•Front brakes: Brembo™ six-piston aluminum calipers with 15 inch x
1.3 inch (380 millimeter x 32 millimeter) vented disc, high air flow
shields and high-performance friction material pads
•Rear brakes: 13.8 inch x 0.75 inch (350 millimeter x 19 millimeter)
vented disc and high-performance friction material pads
•Electronic over-rev with 7000 rpm maximum
•SVT tuned front and rear suspension and optional electronically
selectable dampers by Bilstein™ included on the SVT Performance
Package
•19 inch x 9.5 inch front, 20 inch x 9.5 inch rear forged aluminum
wheels with bolt-in valve stems (standard and optional styles)
•P265/40-19 front, P285/35-20 rear directional Goodyear Eagle F1
Supercar G2 R compound tires
•SVT engineered front fascia, grilles, cold air inlet, rear fascia, fog
lamps, hood with functional air extractor and aerodynamically tuned
front splitter with removable air dam and rear decklid spoiler
•SVT high-speed instrument cluster with track applications dashboard,
over-rev and programmable performance shift indicator
•One-touch instrument panel buttons for launch control (LC),
electronically selectable dampers (ESD) (if equipped) and electric
power assisted steering (EPAS)
•SVT designed seats with over the top stripes and increased lateral
support
•Optional race inspired RECARO® front seats with increased lateral
support on back and cushion, unique Shelby GT500 trim cover,
integrated head restraint, and driver four-way manual adjuster. See the
Seatssection in yourOwner’s Manualfor more information
•Leather and Alcantara® wrapped sport steering wheel, leather shift
boot, parking brake control boot and handle
•I/P appliques, door panels and lighted scuff plates
Shelby® GT500® Unique Features
6
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

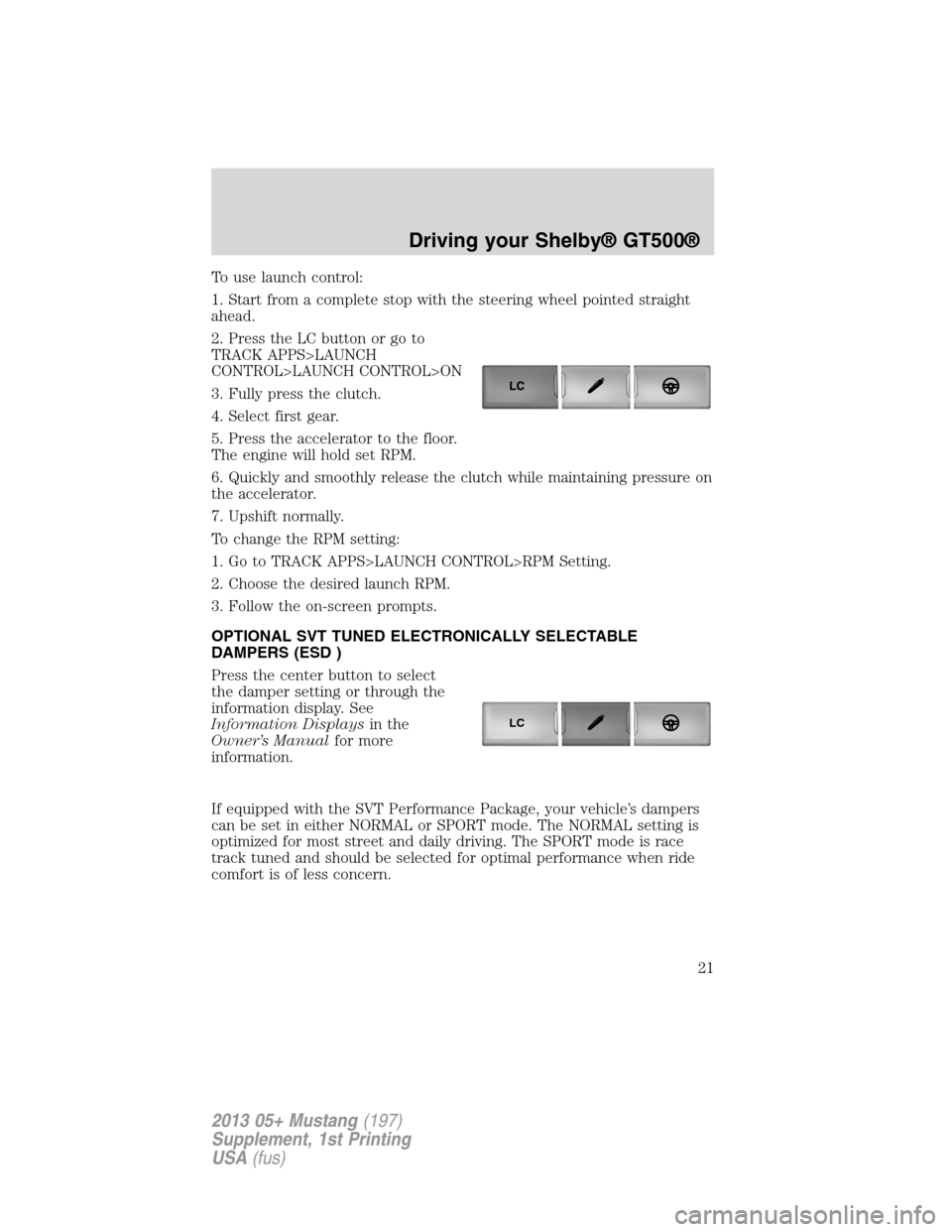

To use launch control:
1. Start from a complete stop with the steering wheel pointed straight
ahead.
2. Press the LC button or go to
TRACK APPS>LAUNCH
CONTROL>LAUNCH CONTROL>ON
3. Fully press the clutch.
4. Select first gear.
5. Press the accelerator to the floor.
The engine will hold set RPM.
6. Quickly and smoothly release the clutch while maintaining pressure on
the accelerator.
7. Upshift normally.
To change the RPM setting:
1. Go to TRACK APPS>LAUNCH CONTROL>RPM Setting.
2. Choose the desired launch RPM.
3. Follow the on-screen prompts.
OPTIONAL SVT TUNED ELECTRONICALLY SELECTABLE
DAMPERS (ESD )
Press the center button to select
the damper setting or through the
information display. See
Information Displaysin the
Owner’s Manualfor more
information.
If equipped with the SVT Performance Package, your vehicle’s dampers
can be set in either NORMAL or SPORT mode. The NORMAL setting is
optimized for most street and daily driving. The SPORT mode is race
track tuned and should be selected for optimal performance when ride
comfort is of less concern.
LC
Driving your Shelby® GT500®
21
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

STEERING
Your vehicle is equipped with an electric power-assisted steering system.
The system’s settings are tuned by SVT and integrated with the vehicle
dynamics.
Press the right button to select the
damper setting or through the
information display. SeeInformation
Displaysin theOwner’s Manualfor
more information.
•STANDARD: Default factory setting.
•SPORT: Slightly higher effort required for steering with more road
force felt through the steering wheel.
•COMFORT: Slightly less effort required for steering with less road
force felt through the steering wheel.
After selecting the desired setting, you may feel a soft feedback bump in
the steering wheel when the changeover occurs.
Note:If the battery is disconnected or removed, the steering setting will
default to STANDARD.
Note:If the AdvanceTrac system is in SPORT mode or OFF, the steering
will default to SPORT.
See theInformation Displayschapter in the Owner’s Manual.
ENGINE OVER-REV
Note:Engine torque and maximum rpm are limited until coolant
temperature reaches 170°F (77°C). Warm up is indicated when the redline
indicator band starting point changes from 6250 rpm to 7000 rpm.
Your vehicle is equipped with an over-rev feature to increase the
performance range of your Shelby GT500. When conditions permit,
over-rev is indicated on the tachometer with redline marked at 7000 rpm.
If conditions limit over-rev accessibility, the band is illuminated red from
6250 rpm to 7000 rpm.
LC
Driving your Shelby® GT500®
22
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

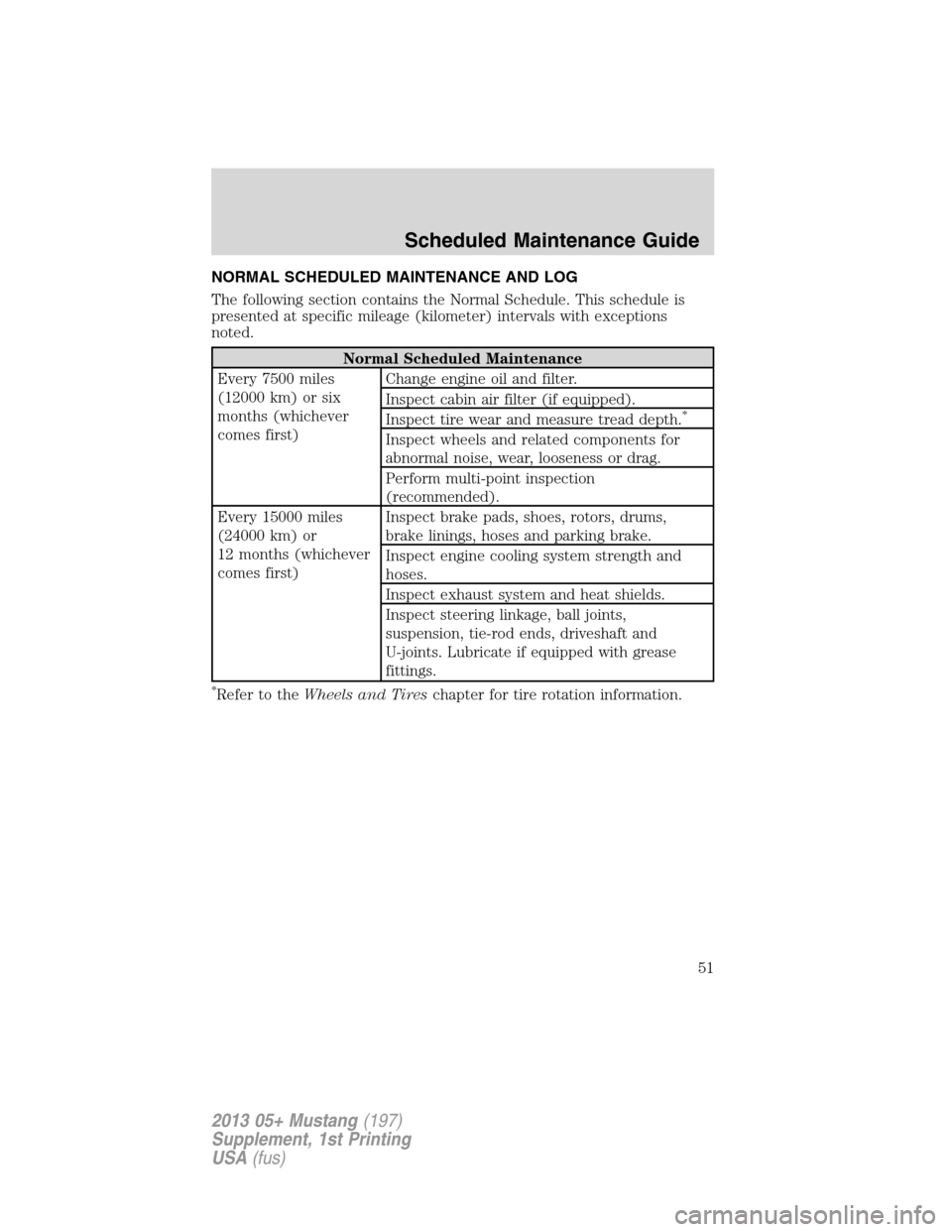

NORMAL SCHEDULED MAINTENANCE AND LOG
The following section contains the Normal Schedule. This schedule is
presented at specific mileage (kilometer) intervals with exceptions
noted.
Normal Scheduled Maintenance
Every 7500 miles
(12000 km) or six
months (whichever
comes first)Change engine oil and filter.
Inspect cabin air filter (if equipped).
Inspect tire wear and measure tread depth.
*
Inspect wheels and related components for
abnormal noise, wear, looseness or drag.
Perform multi-point inspection
(recommended).
Every 15000 miles
(24000 km) or
12 months (whichever
comes first)Inspect brake pads, shoes, rotors, drums,
brake linings, hoses and parking brake.
Inspect engine cooling system strength and
hoses.
Inspect exhaust system and heat shields.
Inspect steering linkage, ball joints,
suspension, tie-rod ends, driveshaft and
U-joints. Lubricate if equipped with grease
fittings.
*Refer to theWheels and Tireschapter for tire rotation information.
Scheduled Maintenance Guide
51
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

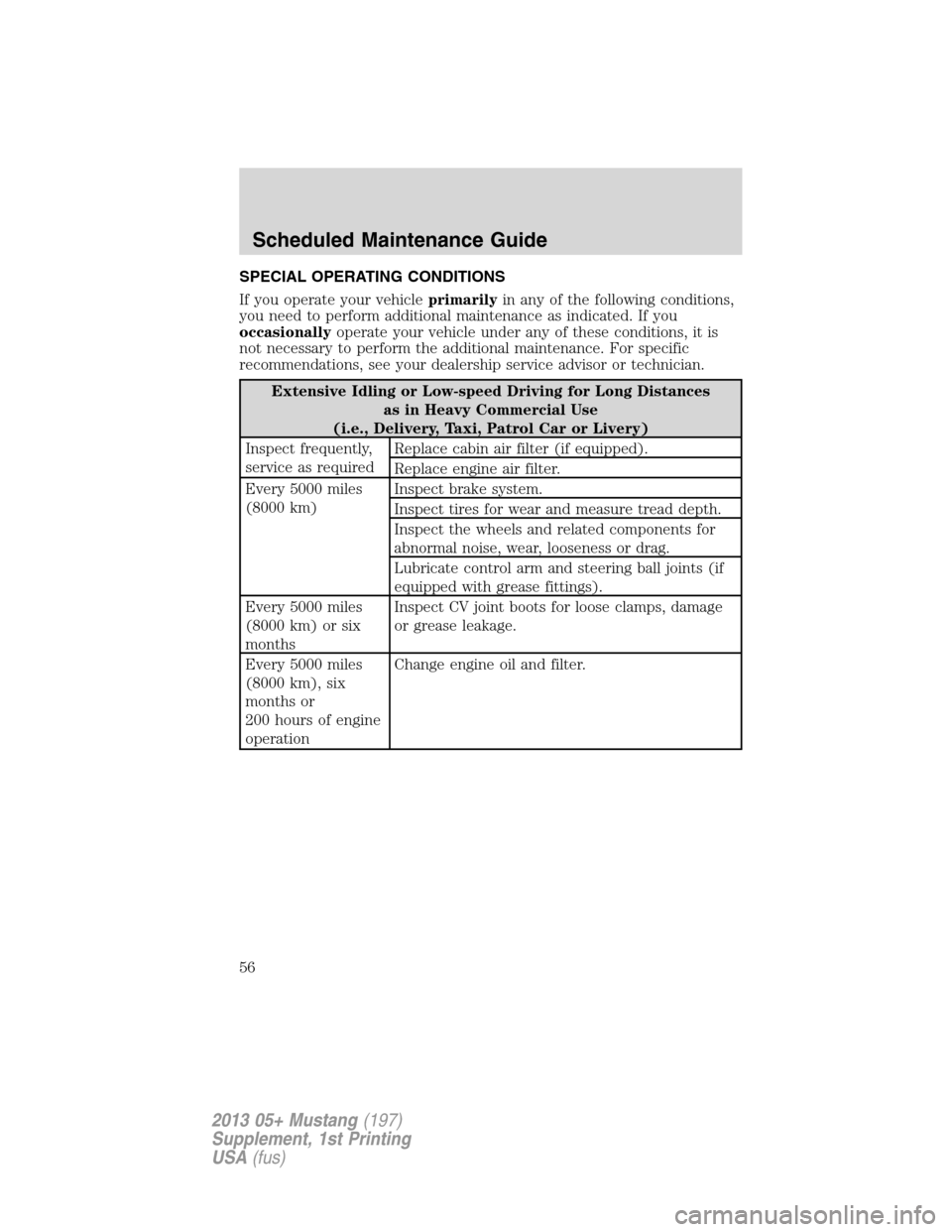

SPECIAL OPERATING CONDITIONS
If you operate your vehicleprimarilyin any of the following conditions,
you need to perform additional maintenance as indicated. If you
occasionallyoperate your vehicle under any of these conditions, it is
not necessary to perform the additional maintenance. For specific
recommendations, see your dealership service advisor or technician.
Extensive Idling or Low-speed Driving for Long Distances
as in Heavy Commercial Use
(i.e., Delivery, Taxi, Patrol Car or Livery)
Inspect frequently,
service as requiredReplace cabin air filter (if equipped).
Replace engine air filter.
Every 5000 miles
(8000 km)Inspect brake system.
Inspect tires for wear and measure tread depth.
Inspect the wheels and related components for
abnormal noise, wear, looseness or drag.
Lubricate control arm and steering ball joints (if
equipped with grease fittings).
Every 5000 miles
(8000 km) or six
monthsInspect CV joint boots for loose clamps, damage
or grease leakage.
Every 5000 miles
(8000 km), six
months or
200 hours of engine
operationChange engine oil and filter.
Scheduled Maintenance Guide
