warning FORD MUSTANG 2013 5.G Shelby GT500 Supplement Manual

SAFETY BELT GUIDE (IF EQUIPPED)
WARNING:Position the safety belt guide so that the belt rests
across the middle of your shoulder. Failure to adjust the safety
belt properly could reduce the effectiveness of the safety belt and
increase the risk of injury in a collision.
When in use, the front safety belts
can be used with the belt guide.
Route the safety belt so that the
belt rests across the middle of your
shoulder.
Safety Belts
10
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

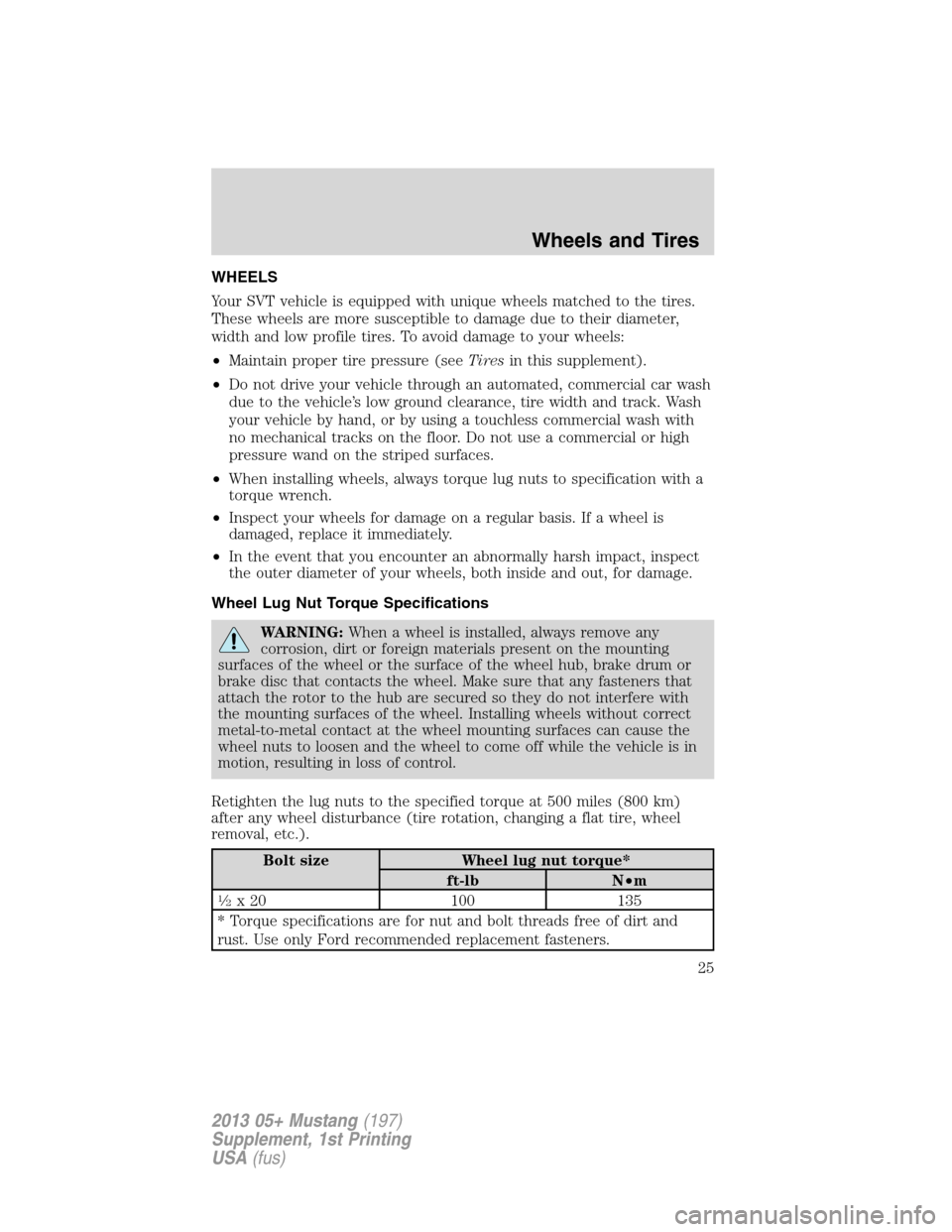

WHEELS
Your SVT vehicle is equipped with unique wheels matched to the tires.
These wheels are more susceptible to damage due to their diameter,
width and low profile tires. To avoid damage to your wheels:
•Maintain proper tire pressure (seeTiresin this supplement).
•Do not drive your vehicle through an automated, commercial car wash
due to the vehicle’s low ground clearance, tire width and track. Wash
your vehicle by hand, or by using a touchless commercial wash with
no mechanical tracks on the floor. Do not use a commercial or high
pressure wand on the striped surfaces.
•When installing wheels, always torque lug nuts to specification with a
torque wrench.
•Inspect your wheels for damage on a regular basis. If a wheel is
damaged, replace it immediately.
•In the event that you encounter an abnormally harsh impact, inspect
the outer diameter of your wheels, both inside and out, for damage.
Wheel Lug Nut Torque Specifications
WARNING:When a wheel is installed, always remove any
corrosion, dirt or foreign materials present on the mounting
surfaces of the wheel or the surface of the wheel hub, brake drum or
brake disc that contacts the wheel. Make sure that any fasteners that
attach the rotor to the hub are secured so they do not interfere with
the mounting surfaces of the wheel. Installing wheels without correct
metal-to-metal contact at the wheel mounting surfaces can cause the
wheel nuts to loosen and the wheel to come off while the vehicle is in
motion, resulting in loss of control.
Retighten the lug nuts to the specified torque at 500 miles (800 km)
after any wheel disturbance (tire rotation, changing a flat tire, wheel
removal, etc.).
Bolt size Wheel lug nut torque*
ft-lb N•m
12x 20 100 135
* Torque specifications are for nut and bolt threads free of dirt and
rust. Use only Ford recommended replacement fasteners.
Wheels and Tires
25
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

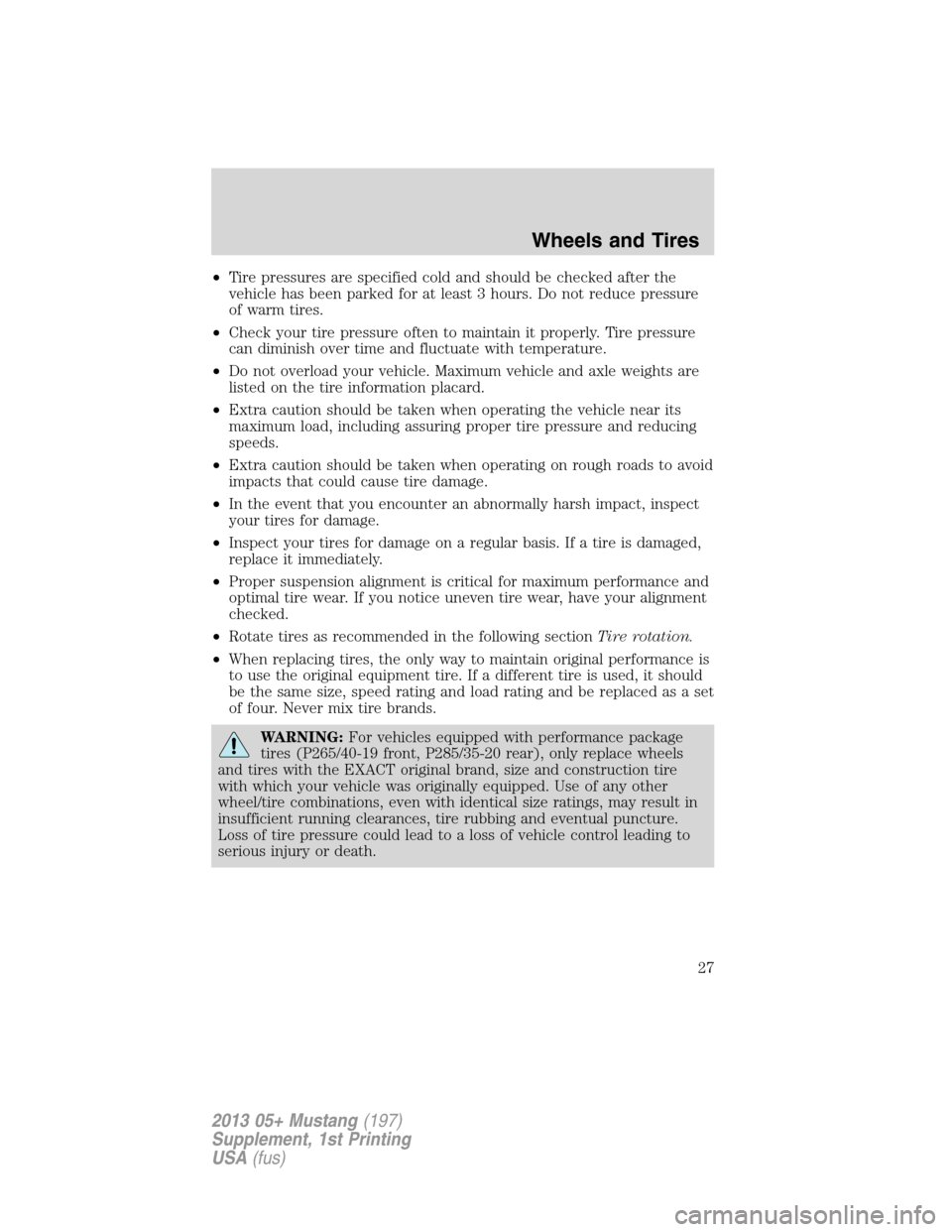

•Tire pressures are specified cold and should be checked after the
vehicle has been parked for at least 3 hours. Do not reduce pressure
of warm tires.
•Check your tire pressure often to maintain it properly. Tire pressure
can diminish over time and fluctuate with temperature.
•Do not overload your vehicle. Maximum vehicle and axle weights are
listed on the tire information placard.
•Extra caution should be taken when operating the vehicle near its
maximum load, including assuring proper tire pressure and reducing
speeds.
•Extra caution should be taken when operating on rough roads to avoid
impacts that could cause tire damage.
•In the event that you encounter an abnormally harsh impact, inspect
your tires for damage.
•Inspect your tires for damage on a regular basis. If a tire is damaged,
replace it immediately.
•Proper suspension alignment is critical for maximum performance and
optimal tire wear. If you notice uneven tire wear, have your alignment
checked.
•Rotate tires as recommended in the following sectionTire rotation.
•When replacing tires, the only way to maintain original performance is
to use the original equipment tire. If a different tire is used, it should
be the same size, speed rating and load rating and be replaced as a set
of four. Never mix tire brands.
WARNING:For vehicles equipped with performance package
tires (P265/40-19 front, P285/35-20 rear), only replace wheels
and tires with the EXACT original brand, size and construction tire
with which your vehicle was originally equipped. Use of any other
wheel/tire combinations, even with identical size ratings, may result in
insufficient running clearances, tire rubbing and eventual puncture.
Loss of tire pressure could lead to a loss of vehicle control leading to
serious injury or death.
Wheels and Tires
27
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

Note:Automotive fluids are not interchangeable; do not use engine
coolant/antifreeze or windshield washer fluid outside of its specified
function and vehicle location. For more information about engine coolant,
see theMaintenancechapter of theOwner’s Manual.
Adding Engine Coolant
WARNING:Do not add coolant when the engine is hot. Steam
and scalding liquids released from a hot cooling system can burn
you badly. Also, you can be burned if you spill coolant on hot engine
parts.
WARNING:Do not put coolant in the windshield washer fluid
container. If sprayed on the windshield, coolant could make it
difficult to see through the windshield.
WARNING:To reduce the risk of personal injury, make sure the
engine is cool before unscrewing the coolant pressure relief cap.
The cooling system is under pressure; steam and hot liquid can come
out forcefully when the cap is loosened slightly.
WARNING:Do not add coolant further than the MAX mark.
Note:Do not use stop leak pellets, cooling system sealants, or additives
as they can cause damage to the engine cooling or heating systems. This
damage would not be covered under your vehicle’s warranty.
Note:During normal vehicle operation, the engine coolant may change
color from orange to pink or light red. As long as the engine coolant is
clear and uncontaminated, this color change does not indicate the engine
coolant has degraded nor does it require the engine coolant to be
drained, the system to be flushed, or the engine coolant to be replaced.
•DO NOT MIX different colors or types of coolant in your vehicle. Make
sure the correct coolant is used. Mixing of engine coolants may harm
your engine’s cooling system. The use of an improper coolant may
harm engine and cooling system components and may void the
warranty.
Maintenance
37
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

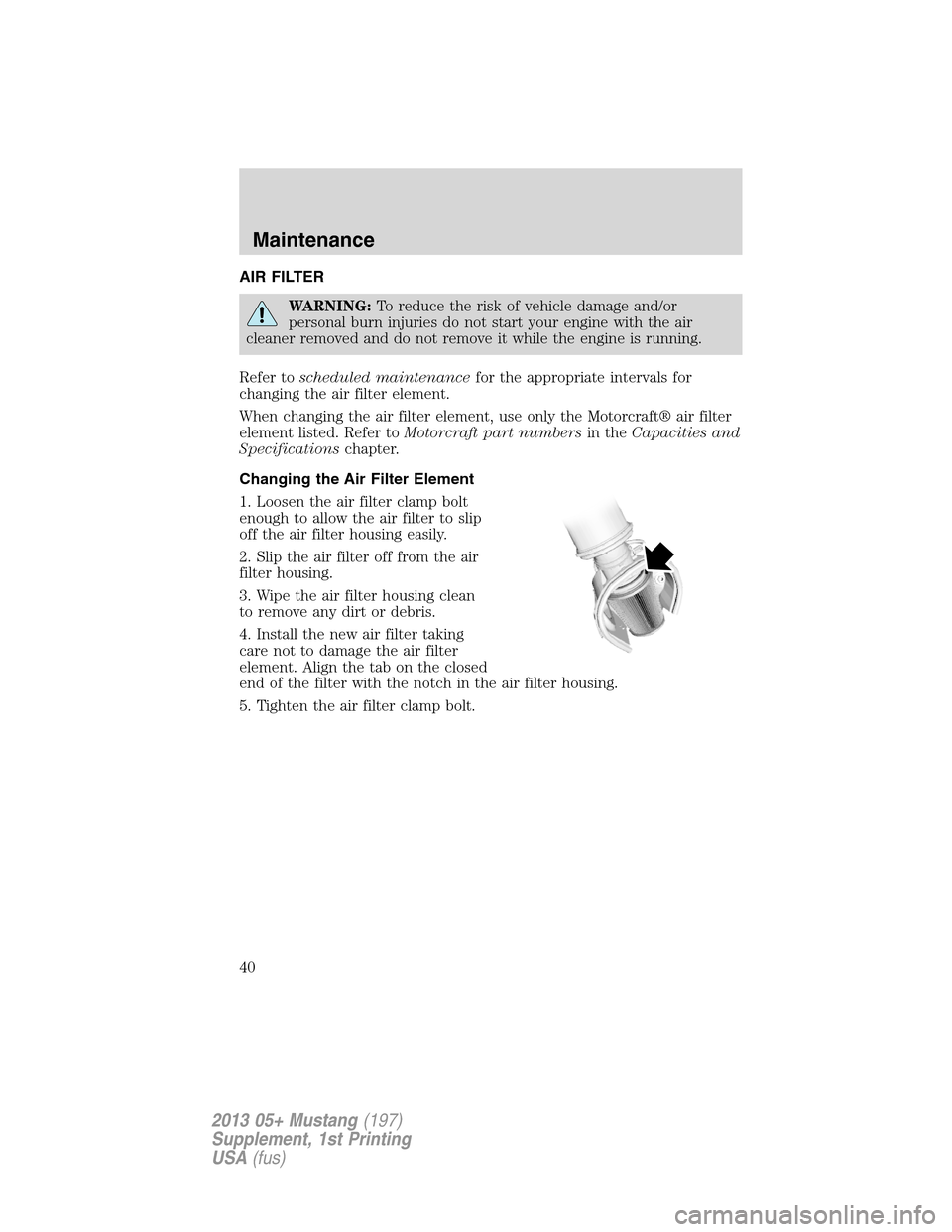

AIR FILTER
WARNING:To reduce the risk of vehicle damage and/or
personal burn injuries do not start your engine with the air
cleaner removed and do not remove it while the engine is running.
Refer toscheduled maintenancefor the appropriate intervals for
changing the air filter element.
When changing the air filter element, use only the Motorcraft® air filter
element listed. Refer toMotorcraft part numbersin theCapacities and
Specificationschapter.
Changing the Air Filter Element
1. Loosen the air filter clamp bolt
enough to allow the air filter to slip
off the air filter housing easily.
2. Slip the air filter off from the air
filter housing.
3. Wipe the air filter housing clean
to remove any dirt or debris.
4. Install the new air filter taking
care not to damage the air filter
element. Align the tab on the closed
end of the filter with the notch in the air filter housing.
5. Tighten the air filter clamp bolt.
Maintenance
40
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

Owner Checks and Services
Certain basic maintenance checks and inspections should be performed
every month or at six month intervals.
Check Every Month
Engine oil level.
Function of all interior and exterior lights.
Tires (including spare) for wear and proper pressure.
Windshield washer fluid level.
Check Every Six Months
Battery connections. Clean if necessary.
Body and door drain holes for obstructions. Clean if necessary.
Cooling system fluid level and coolant strength.
Door weatherstrips for wear. Lubricate if necessary.
Hinges, latches and outside locks for proper operation. Lubricate if
necessary.
Parking brake for proper operation.
Safety belts and seat latches for wear and function.
Safety warning lamps (brake, ABS, airbag, safety belt) for operation.
Washer spray and wiper operation. Clean or replace blades as
necessary.
Scheduled Maintenance Guide
48
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

Multi-point Inspection
In order to keep your vehicle running right, it is important to have the
systems on your vehicle checked regularly. This can help identify
potential issues and prevent major problems. Ford Motor Company
recommends the following multi-point inspection be performed at every
scheduled maintenance interval to help make sure your vehicle keeps
running great.
Multi-point Inspection
Accessory drive belt(s) Half-shaft dust boots (if equipped)
Battery performance Horn operation
Clutch operation (if equipped) Radiator, cooler, heater and A/C hoses
Engine air filter Suspension component for leaks or
damage
Exhaust system Steering and linkage
Exterior lamps and hazard
warning system operationTires (including spare) for wear and
proper pressure
**
Fluid levels*; fill if necessary Windshield for cracks, chips or pits
For oil and fluid leaks Washer spray and wiper operation
*Brake, coolant recovery reservoir, manual and automatic transmission
(with an underhood dipstick), power steering (if equipped) and window
washer
**If your vehicle is equipped with a temporary mobility kit, check the tire
sealant expiration Use By date on the canister. Replace as needed.
Be sure to ask your dealership service advisor or technician about the
multi-point vehicle inspection. It’s a comprehensive way to perform a
thorough inspection of your vehicle. It’s your checklist that gives you
immediate feedback on the overall condition of your vehicle. You’ll know
what’s been checked, what’s okay, as well as those things that may
require future or immediate attention. The multi-point vehicle inspection
is one more way to keep your vehicle running great!
Scheduled Maintenance Guide
49
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

A
AdvanceTrac ................................16
Air cleaner filter ...................40–41
Axle
refill capacities ..........................42
B
Battery
replacement, specifications .....41
Brakes
fluid, refill capacities ................42
Break-in period ...........................11
C
Capacities for refilling fluids ......42
Clutch
recommended shift speeds ......13
Coolant
refill capacities ..........................42
E
Electric power assisted
steering ........................................22
Electronically selectable
dampers .......................................21
Engine ............................................8
refill capacities ..........................42
service points ............................34
Engine oil
filter, specifications ..................41
refill capacities ..........................42
F
Fluid capacities ...........................42Fuel
capacity .....................................42
filter, specifications ..................41
octane rating .........................8, 39
H
Headlamps
bulb specifications ....................44
I
Ignition ...........................................8
Instrument panel
cluster
........................................14
L
Lamps
bulb replacement
specifications chart
..................44
Launch control
............................20
Lights, warning and indicator
....14
Lug nuts
......................................25
M
Manual transmission
fluid capacities
..........................42
Motorcraft® parts
.......................41
O
Octane rating
..............................39
P
Parts (see Motorcraft® parts)
..41
Index
62
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

S
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log ...............51
Spark plugs, specifications .....8, 41
T
Tires
changing ....................................26Towing
wrecker
......................................29
Transmission
fluid, refill capacities
................42
W
Warning lights (see Lights)
.......14
Wrecker towing
...........................29
Index
63
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)
