FORD MUSTANG 2022 Warranty Guide

•

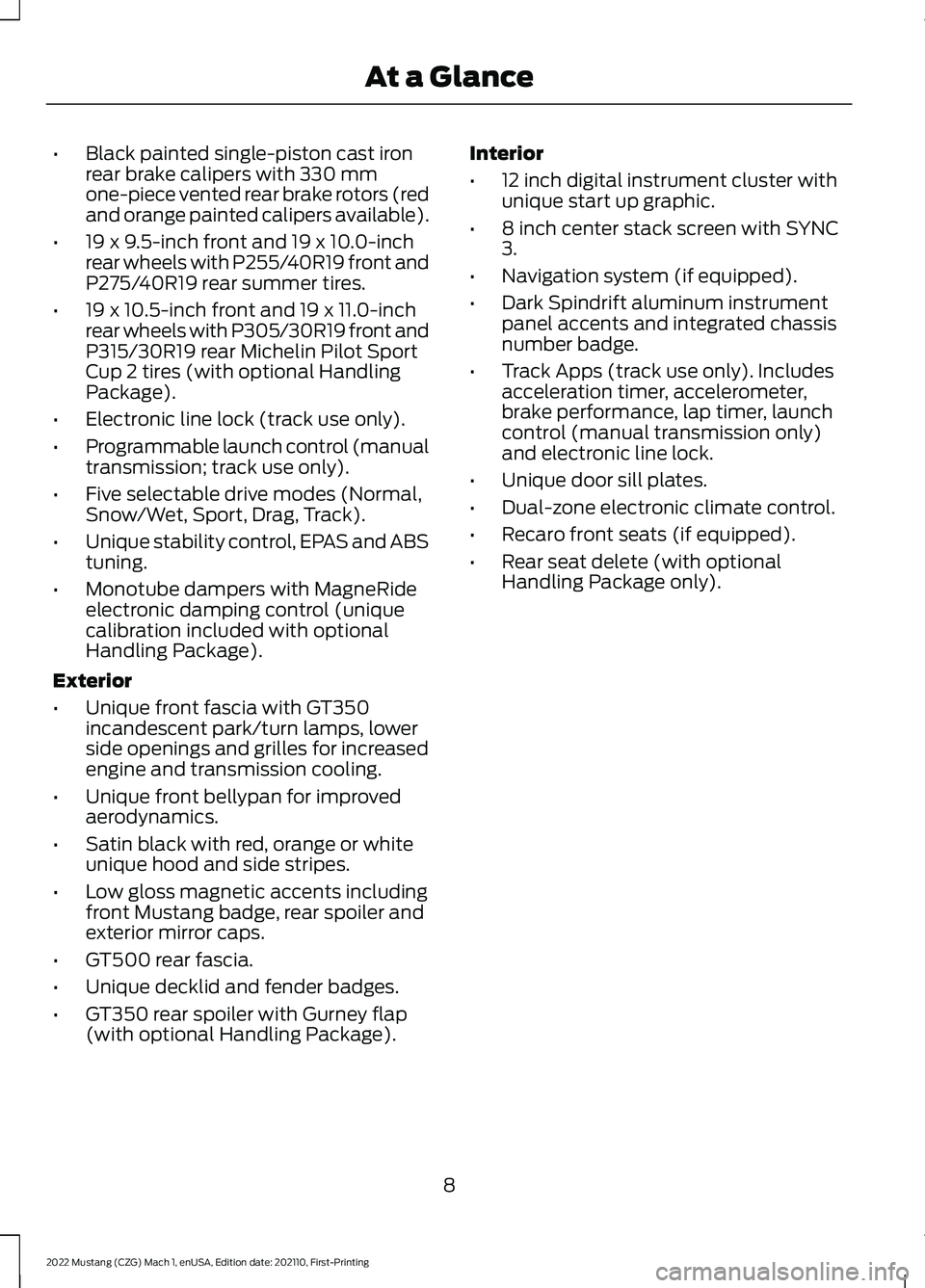

Black painted single-piston cast iron
rear brake calipers with 330 mm
one-piece vented rear brake rotors (red
and orange painted calipers available).
• 19 x 9.5-inch front and 19 x 10.0-inch
rear wheels with P255/40R19 front and
P275/40R19 rear summer tires.
• 19 x 10.5-inch front and 19 x 11.0-inch
rear wheels with P305/30R19 front and
P315/30R19 rear Michelin Pilot Sport
Cup 2 tires (with optional Handling
Package).
• Electronic line lock (track use only).
• Programmable launch control (manual
transmission; track use only).
• Five selectable drive modes (Normal,
Snow/Wet, Sport, Drag, Track).
• Unique stability control, EPAS and ABS
tuning.
• Monotube dampers with MagneRide
electronic damping control (unique
calibration included with optional
Handling Package).
Exterior
• Unique front fascia with GT350
incandescent park/turn lamps, lower
side openings and grilles for increased
engine and transmission cooling.
• Unique front bellypan for improved
aerodynamics.
• Satin black with red, orange or white
unique hood and side stripes.
• Low gloss magnetic accents including
front Mustang badge, rear spoiler and
exterior mirror caps.
• GT500 rear fascia.
• Unique decklid and fender badges.
• GT350 rear spoiler with Gurney flap
(with optional Handling Package). Interior
•
12 inch digital instrument cluster with
unique start up graphic.
• 8 inch center stack screen with SYNC
3.
• Navigation system (if equipped).
• Dark Spindrift aluminum instrument
panel accents and integrated chassis
number badge.
• Track Apps (track use only). Includes
acceleration timer, accelerometer,
brake performance, lap timer, launch
control (manual transmission only)
and electronic line lock.
• Unique door sill plates.
• Dual-zone electronic climate control.
• Recaro front seats (if equipped).
• Rear seat delete (with optional
Handling Package only).
8
2022 Mustang (CZG) Mach 1, enUSA, Edition date: 202110, First-Printing At a Glance

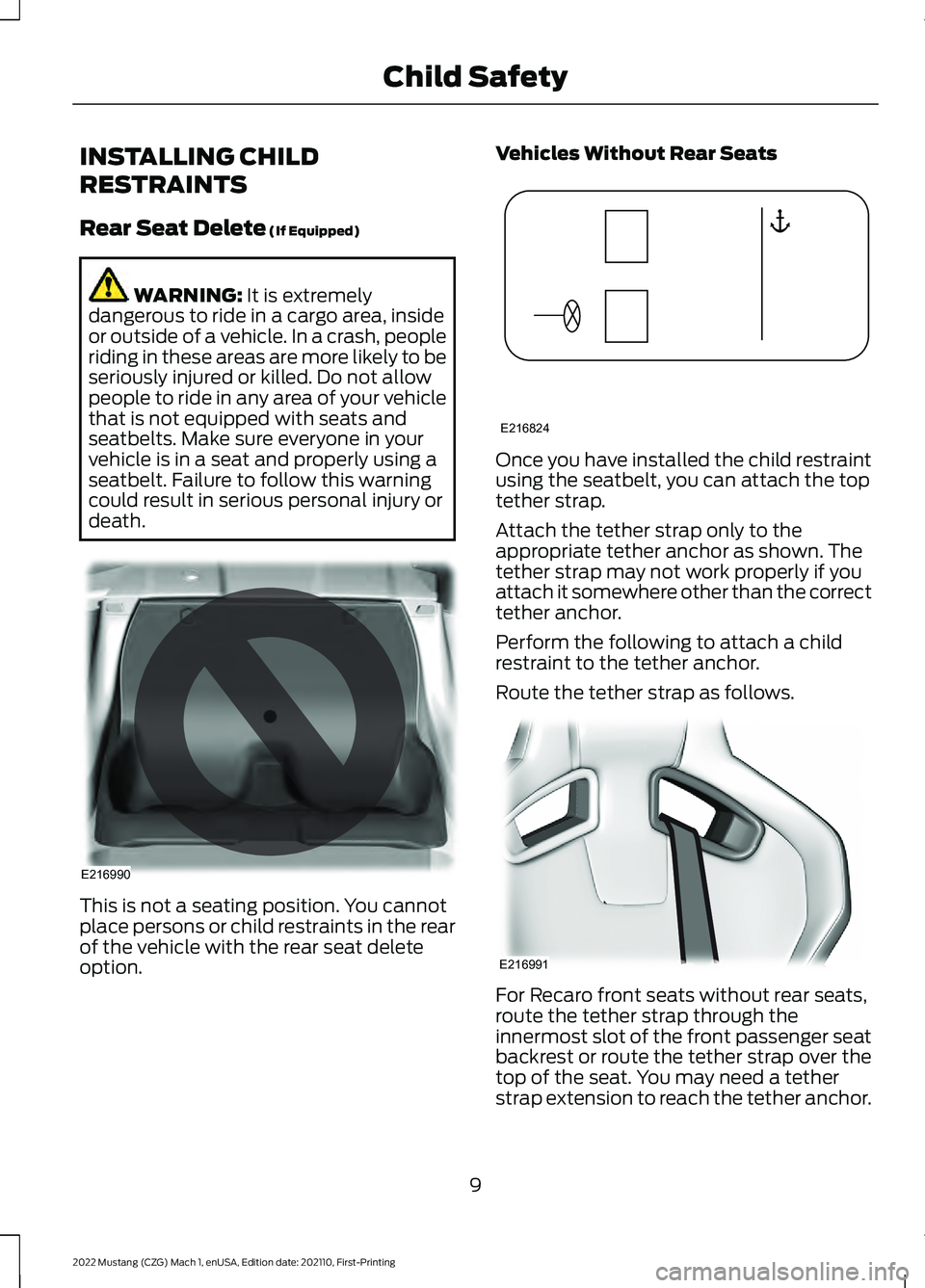

INSTALLING CHILD
RESTRAINTS
Rear Seat Delete (If Equipped)
WARNING:
It is extremely
dangerous to ride in a cargo area, inside
or outside of a vehicle. In a crash, people
riding in these areas are more likely to be
seriously injured or killed. Do not allow
people to ride in any area of your vehicle
that is not equipped with seats and
seatbelts. Make sure everyone in your
vehicle is in a seat and properly using a
seatbelt. Failure to follow this warning
could result in serious personal injury or
death. This is not a seating position. You cannot
place persons or child restraints in the rear
of the vehicle with the rear seat delete
option. Vehicles Without Rear Seats
Once you have installed the child restraint
using the seatbelt, you can attach the top
tether strap.
Attach the tether strap only to the
appropriate tether anchor as shown. The
tether strap may not work properly if you
attach it somewhere other than the correct
tether anchor.
Perform the following to attach a child
restraint to the tether anchor.
Route the tether strap as follows.
For Recaro front seats without rear seats,
route the tether strap through the
innermost slot of the front passenger seat
backrest or route the tether strap over the
top of the seat. You may need a tether
strap extension to reach the tether anchor.
9
2022 Mustang (CZG) Mach 1, enUSA, Edition date: 202110, First-Printing Child SafetyE216990 E216824 E216991

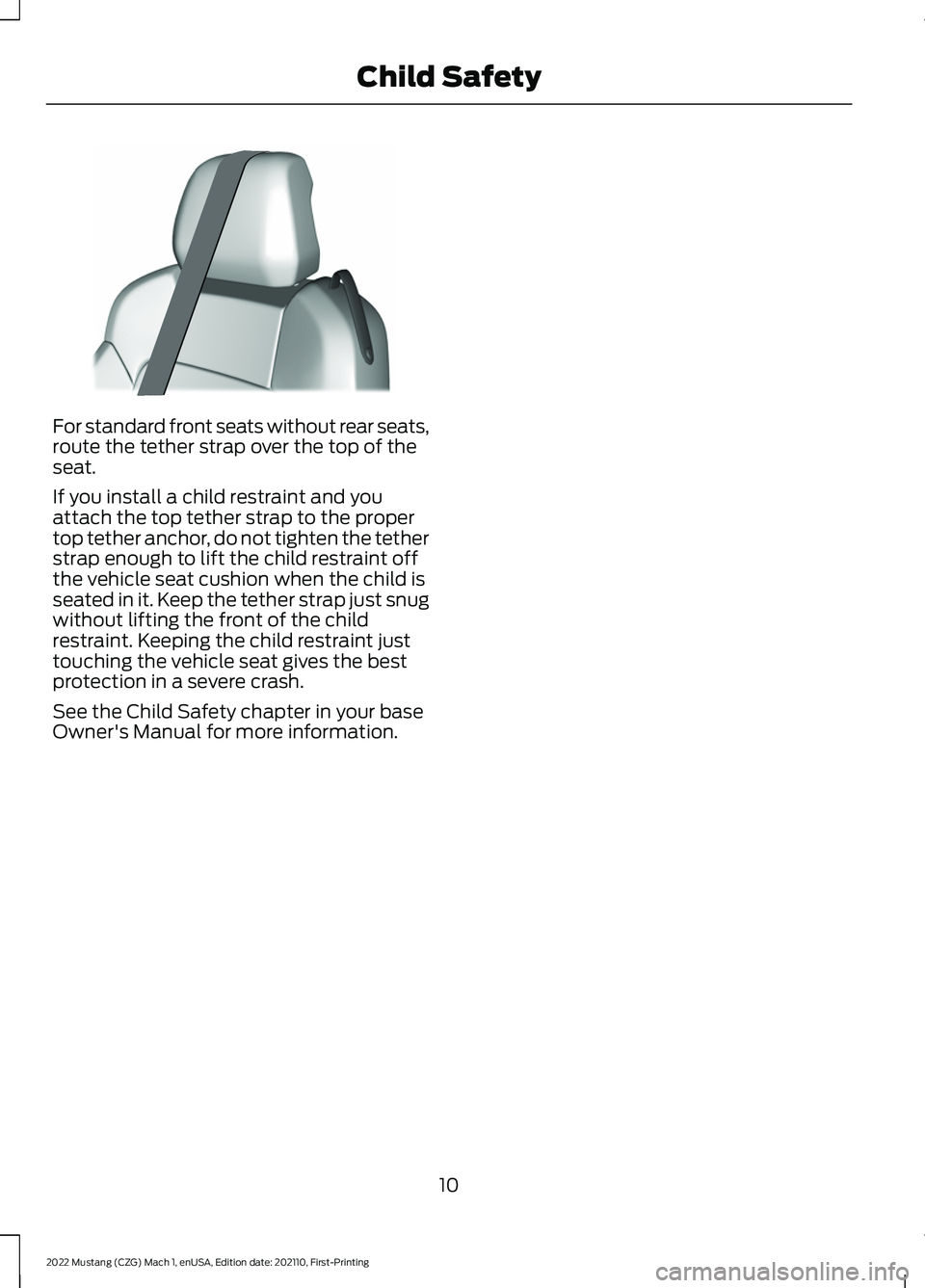

For standard front seats without rear seats,
route the tether strap over the top of the
seat.
If you install a child restraint and you
attach the top tether strap to the proper
top tether anchor, do not tighten the tether
strap enough to lift the child restraint off
the vehicle seat cushion when the child is
seated in it. Keep the tether strap just snug
without lifting the front of the child
restraint. Keeping the child restraint just
touching the vehicle seat gives the best
protection in a severe crash.
See the Child Safety chapter in your base
Owner's Manual for more information.
10
2022 Mustang (CZG) Mach 1, enUSA, Edition date: 202110, First-Printing Child SafetyE338219

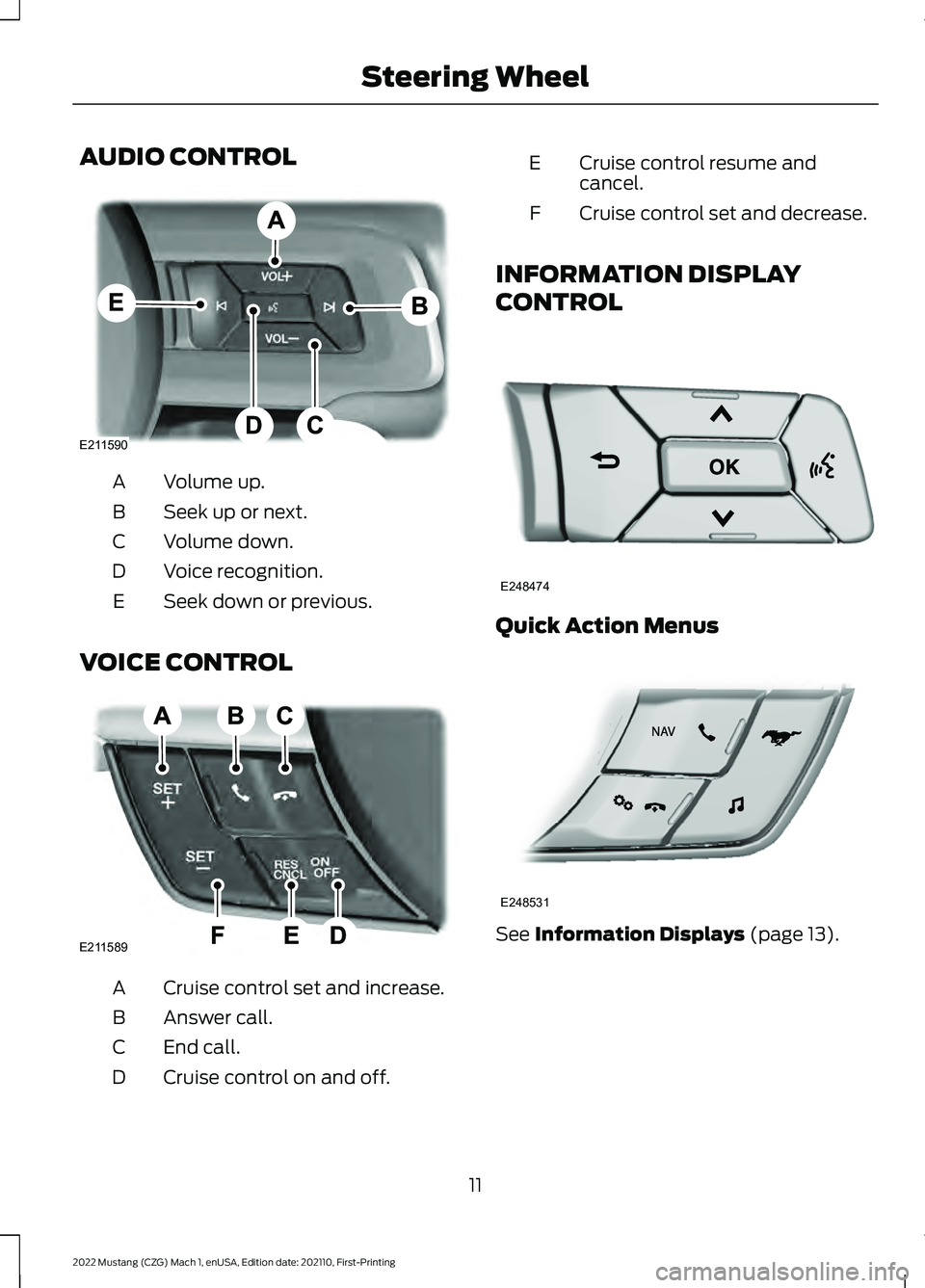

AUDIO CONTROL
Volume up.
A
Seek up or next.
B
Volume down.
C
Voice recognition.
D
Seek down or previous.
E
VOICE CONTROL Cruise control set and increase.
A
Answer call.
B
End call.
C
Cruise control on and off.
D Cruise control resume and
cancel.
E
Cruise control set and decrease.
F
INFORMATION DISPLAY
CONTROL Quick Action Menus
See Information Displays (page 13).
11
2022 Mustang (CZG) Mach 1, enUSA, Edition date: 202110, First-Printing Steering WheelE211590 E211589 E248474 E248531

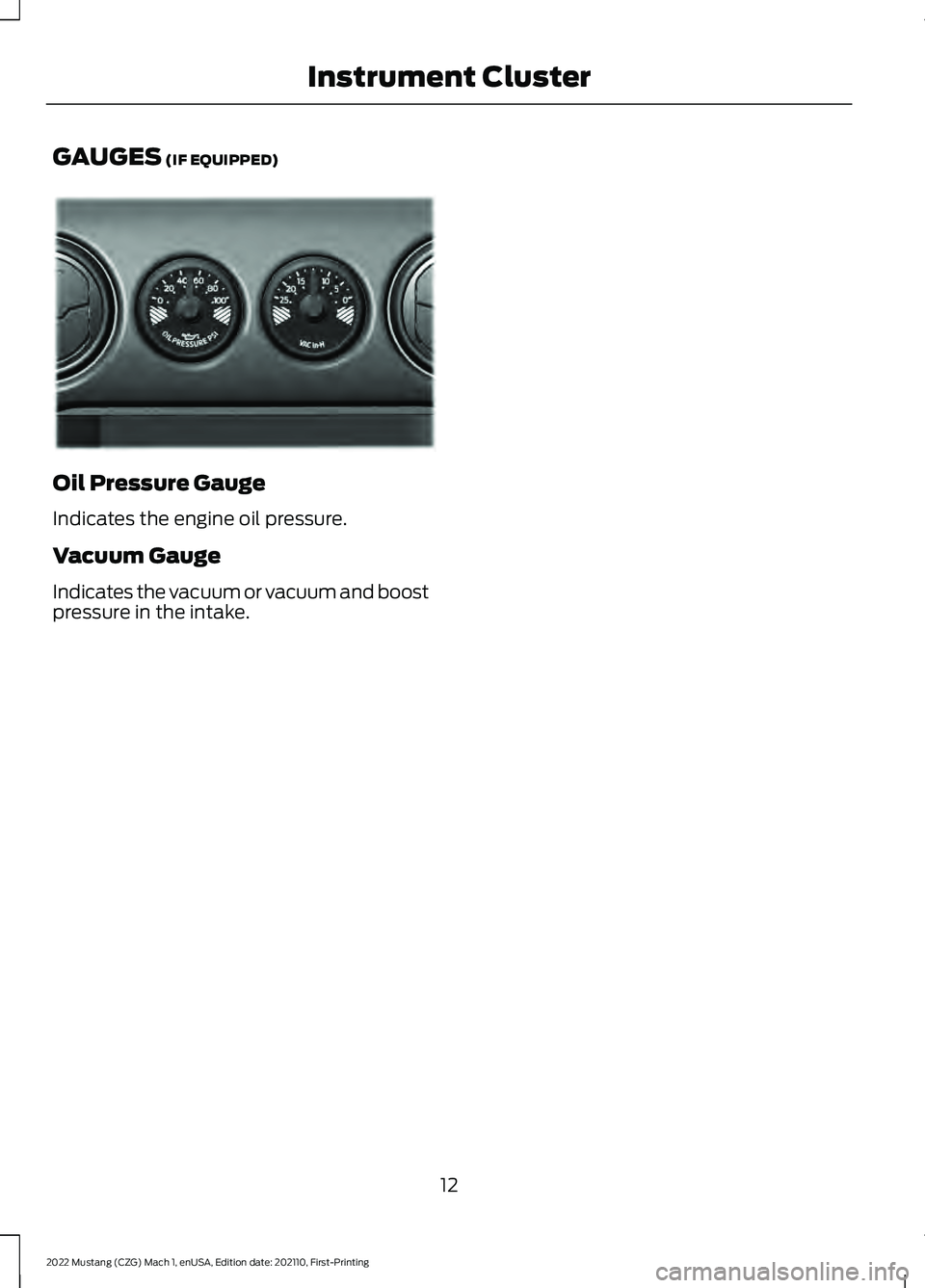

GAUGES (IF EQUIPPED)
Oil Pressure Gauge
Indicates the engine oil pressure.
Vacuum Gauge
Indicates the vacuum or vacuum and boost
pressure in the intake.
12
2022 Mustang (CZG) Mach 1, enUSA, Edition date: 202110, First-Printing Instrument ClusterE339880

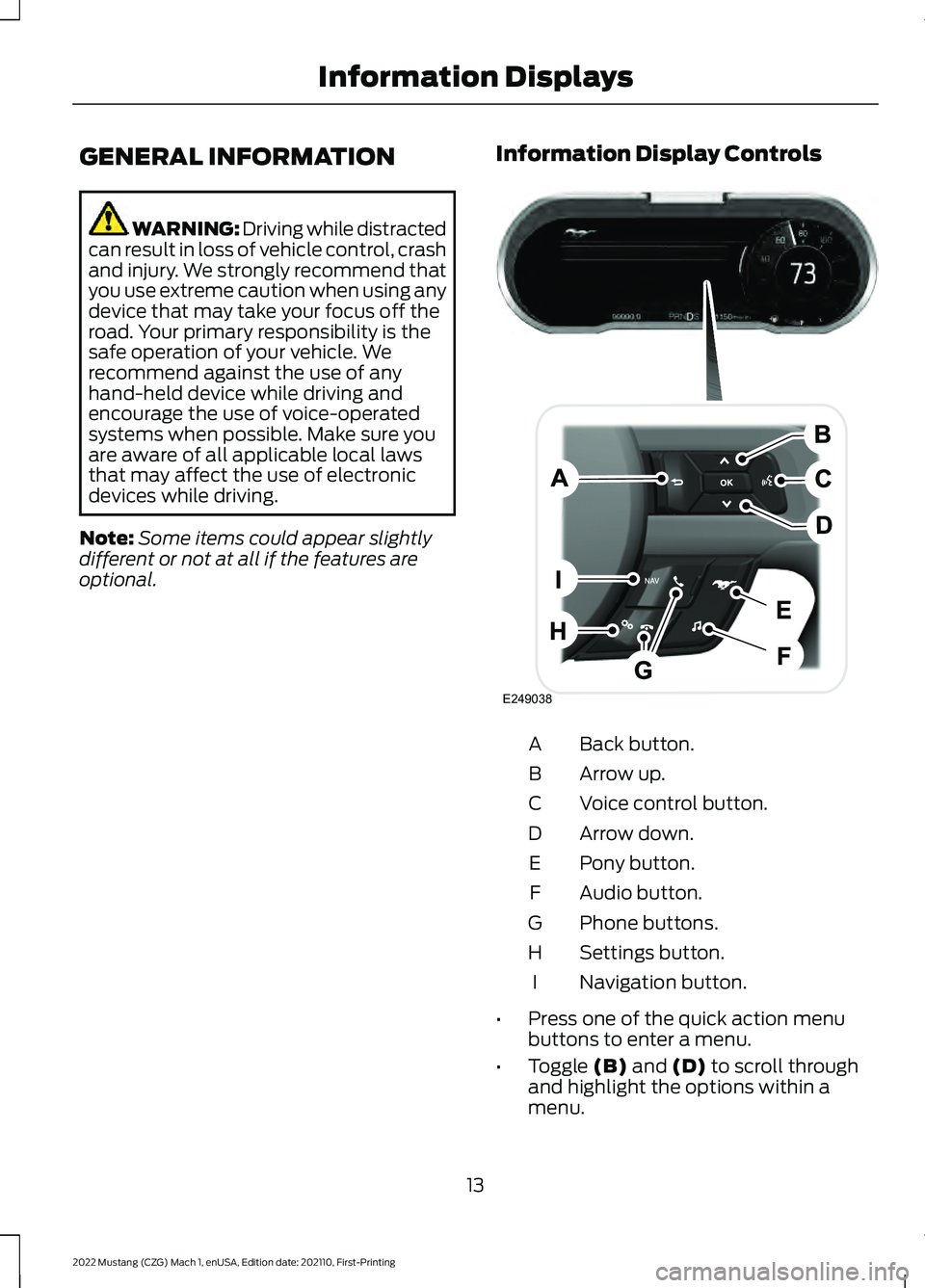

GENERAL INFORMATION
WARNING: Driving while distracted
can result in loss of vehicle control, crash
and injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the
safe operation of your vehicle. We
recommend against the use of any
hand-held device while driving and
encourage the use of voice-operated
systems when possible. Make sure you
are aware of all applicable local laws
that may affect the use of electronic
devices while driving.
Note: Some items could appear slightly
different or not at all if the features are
optional. Information Display Controls Back button.
A
Arrow up.
B
Voice control button.
C
Arrow down.
D
Pony button.
E
Audio button.
F
Phone buttons.
G
Settings button.
H
Navigation button.
I
• Press one of the quick action menu
buttons to enter a menu.
• Toggle (B) and (D) to scroll through
and highlight the options within a
menu.
13
2022 Mustang (CZG) Mach 1, enUSA, Edition date: 202110, First-Printing Information DisplaysE249038

•

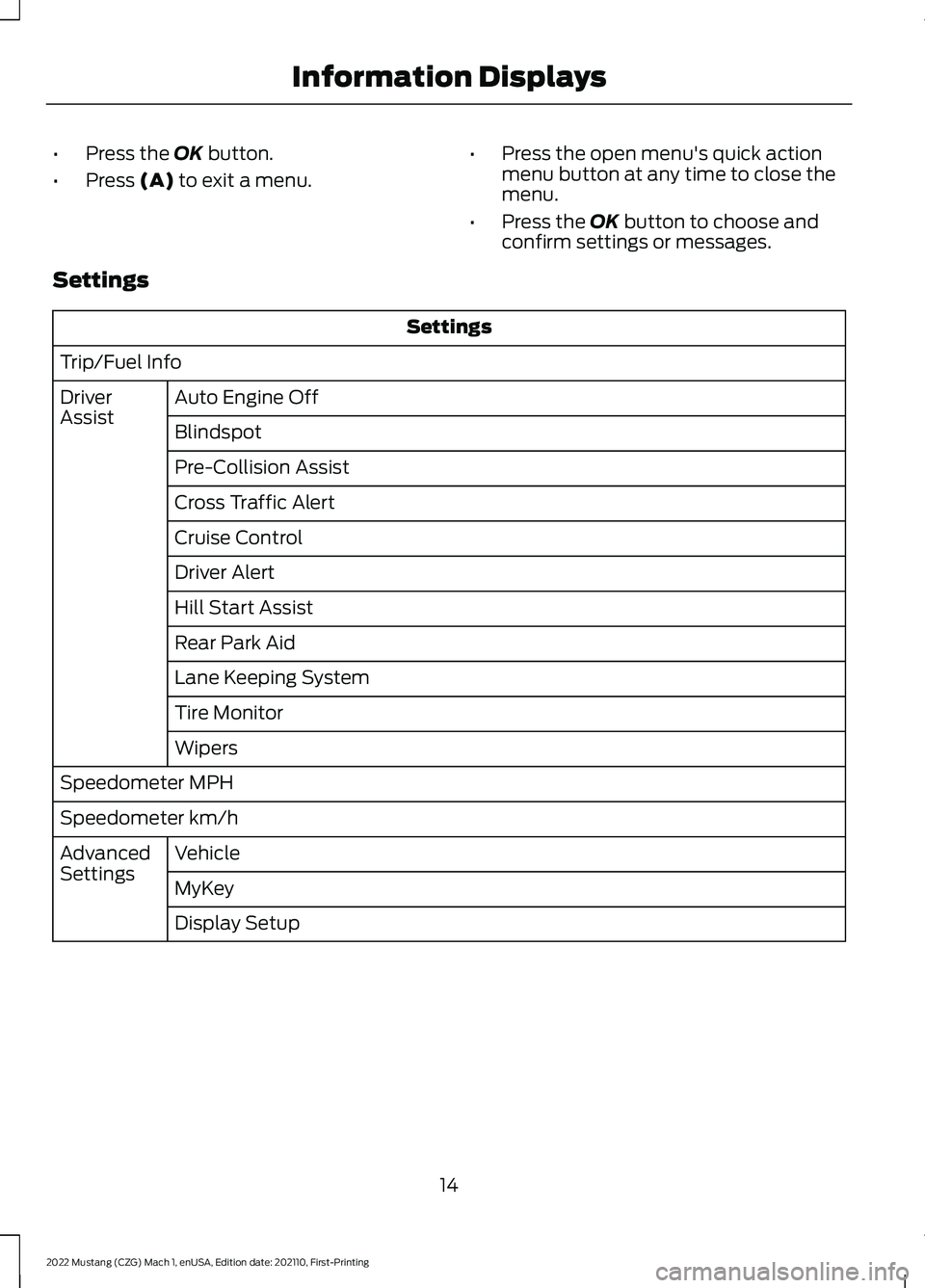

Press the OK button.
• Press
(A) to exit a menu. •
Press the open menu's quick action
menu button at any time to close the
menu.
• Press the
OK button to choose and
confirm settings or messages.
Settings Settings
Trip/Fuel Info Auto Engine Off
Driver
Assist
Blindspot
Pre-Collision Assist
Cross Traffic Alert
Cruise Control
Driver Alert
Hill Start Assist
Rear Park Aid
Lane Keeping System
Tire Monitor
Wipers
Speedometer MPH
Speedometer km/h Vehicle
Advanced
Settings
MyKey
Display Setup
14
2022 Mustang (CZG) Mach 1, enUSA, Edition date: 202110, First-Printing Information Displays

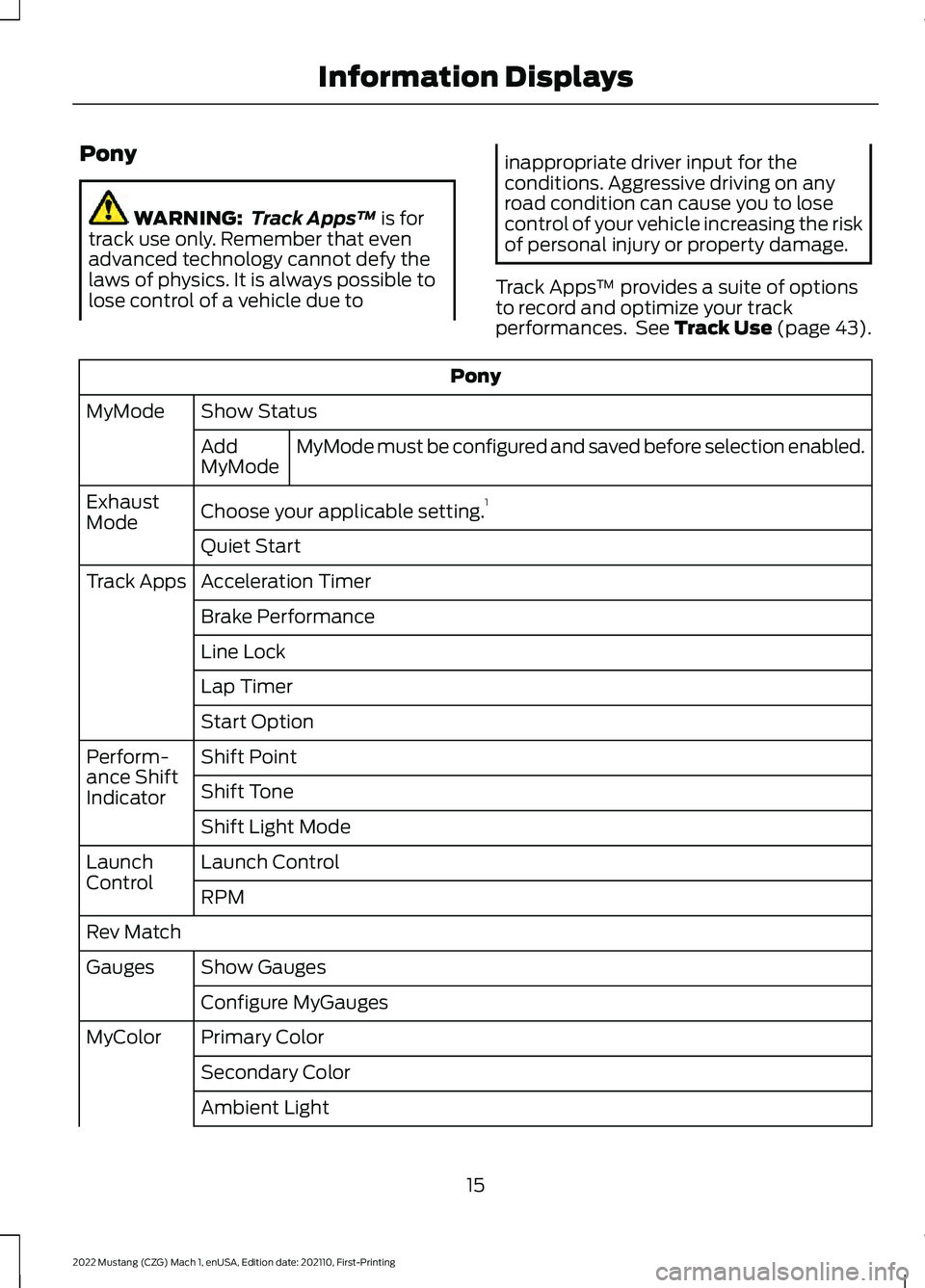

Pony
WARNING:
Track Apps™ is for
track use only. Remember that even
advanced technology cannot defy the
laws of physics. It is always possible to
lose control of a vehicle due to inappropriate driver input for the
conditions. Aggressive driving on any
road condition can cause you to lose
control of your vehicle increasing the risk
of personal injury or property damage.
Track Apps ™ provides a suite of options
to record and optimize your track
performances. See Track Use (page 43). Pony
Show Status
MyMode
MyMode must be configured and saved before selection enabled.
Add
MyMode
Choose your applicable setting. 1
Exhaust
Mode
Quiet Start
Acceleration Timer
Track Apps
Brake Performance
Line Lock
Lap Timer
Start Option
Shift Point
Perform-
ance Shift
Indicator Shift Tone
Shift Light Mode
Launch Control
Launch
Control
RPM
Rev Match Show Gauges
Gauges
Configure MyGauges
Primary Color
MyColor
Secondary Color
Ambient Light
15
2022 Mustang (CZG) Mach 1, enUSA, Edition date: 202110, First-Printing Information Displays

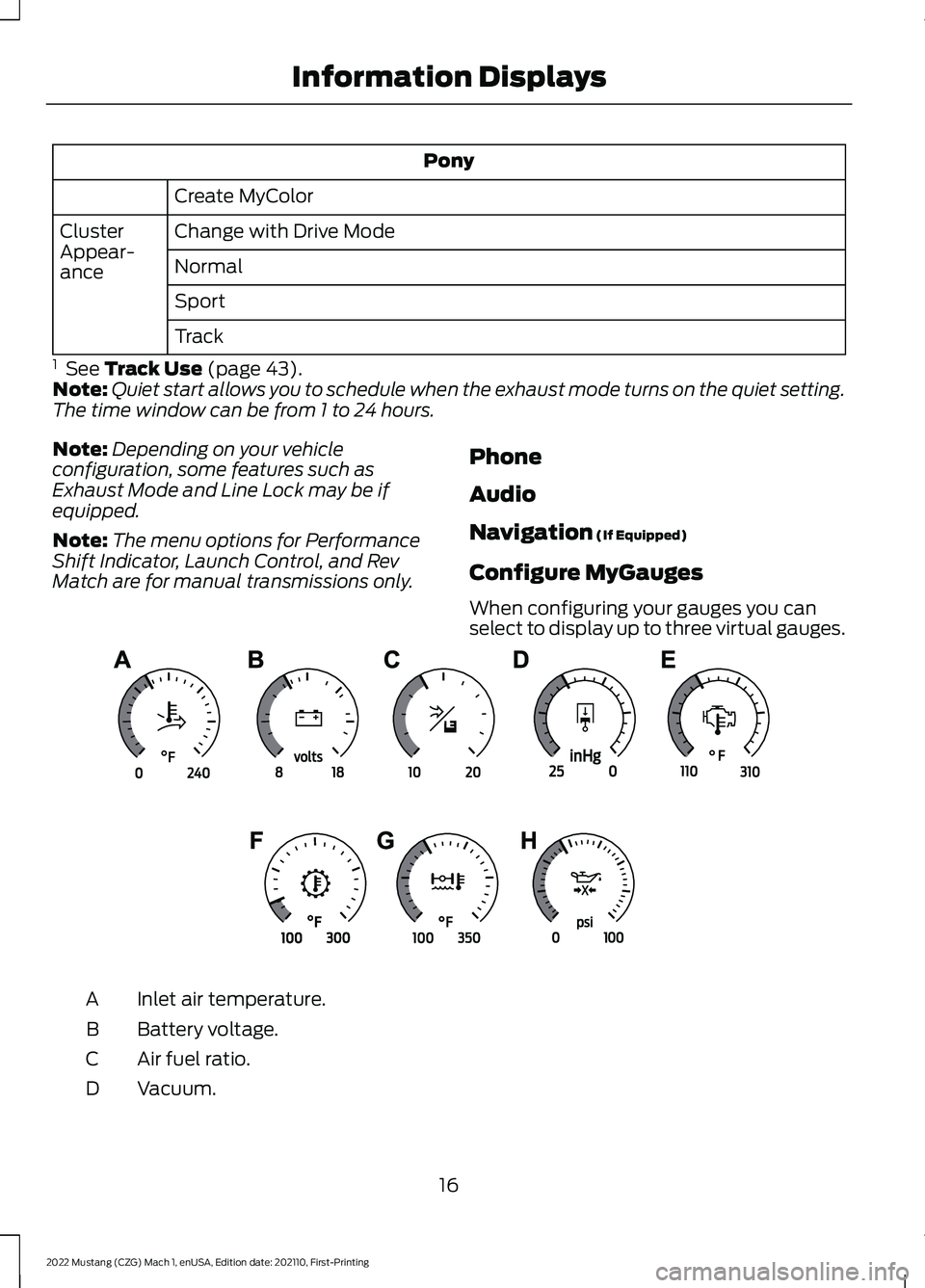

Pony
Create MyColor
Change with Drive Mode
Cluster
Appear-
ance Normal
Sport
Track
1 See Track Use (page 43).
Note: Quiet start allows you to schedule when the exhaust mode turns on the quiet setting.
The time window can be from 1 to 24 hours.
Note: Depending on your vehicle
configuration, some features such as
Exhaust Mode and Line Lock may be if
equipped.
Note: The menu options for Performance
Shift Indicator, Launch Control, and Rev
Match are for manual transmissions only. Phone
Audio
Navigation
(If Equipped)
Configure MyGauges
When configuring your gauges you can
select to display up to three virtual gauges. Inlet air temperature.
A
Battery voltage.
B
Air fuel ratio.
C
Vacuum.
D
16
2022 Mustang (CZG) Mach 1, enUSA, Edition date: 202110, First-Printing Information DisplaysE339879

Cylinder head temperature.
E
Transmission oil temperature.
F
Axle temperature.
G
Engine oil pressure.
H
17
2022 Mustang (CZG) Mach 1, enUSA, Edition date: 202110, First-Printing Information Displays
