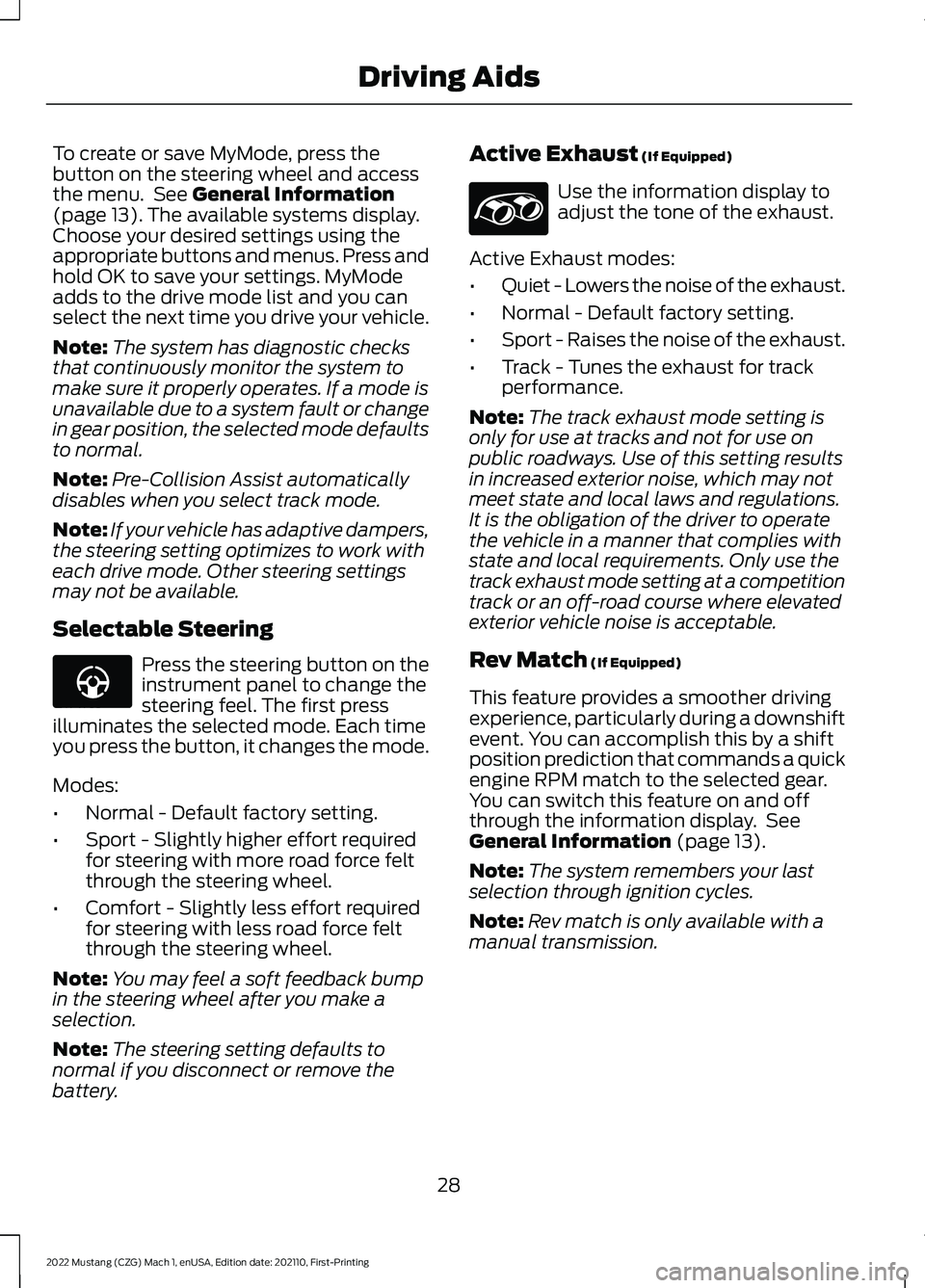

To create or save MyMode, press the
button on the steering wheel and access
the menu. See General Information
(page 13). The available systems display.
Choose your desired settings using the
appropriate buttons and menus. Press and
hold OK to save your settings. MyMode
adds to the drive mode list and you can
select the next time you drive your vehicle.
Note: The system has diagnostic checks
that continuously monitor the system to
make sure it properly operates. If a mode is
unavailable due to a system fault or change
in gear position, the selected mode defaults
to normal.
Note: Pre-Collision Assist automatically
disables when you select track mode.
Note: If your vehicle has adaptive dampers,
the steering setting optimizes to work with
each drive mode. Other steering settings
may not be available.
Selectable Steering Press the steering button on the
instrument panel to change the
steering feel. The first press
illuminates the selected mode. Each time
you press the button, it changes the mode.
Modes:
• Normal - Default factory setting.
• Sport - Slightly higher effort required
for steering with more road force felt
through the steering wheel.
• Comfort - Slightly less effort required
for steering with less road force felt
through the steering wheel.
Note: You may feel a soft feedback bump
in the steering wheel after you make a
selection.
Note: The steering setting defaults to
normal if you disconnect or remove the
battery. Active Exhaust
(If Equipped) Use the information display to
adjust the tone of the exhaust.
Active Exhaust modes:
• Quiet - Lowers the noise of the exhaust.
• Normal - Default factory setting.
• Sport - Raises the noise of the exhaust.
• Track - Tunes the exhaust for track
performance.
Note: The track exhaust mode setting is
only for use at tracks and not for use on
public roadways. Use of this setting results
in increased exterior noise, which may not
meet state and local laws and regulations.
It is the obligation of the driver to operate
the vehicle in a manner that complies with
state and local requirements. Only use the
track exhaust mode setting at a competition
track or an off-road course where elevated
exterior vehicle noise is acceptable.
Rev Match
(If Equipped)
This feature provides a smoother driving
experience, particularly during a downshift
event. You can accomplish this by a shift
position prediction that commands a quick
engine RPM match to the selected gear.
You can switch this feature on and off
through the information display. See
General Information
(page 13).
Note: The system remembers your last
selection through ignition cycles.
Note: Rev match is only available with a
manual transmission.
28
2022 Mustang (CZG) Mach 1, enUSA, Edition date: 202110, First-Printing Driving AidsE174705 E287122

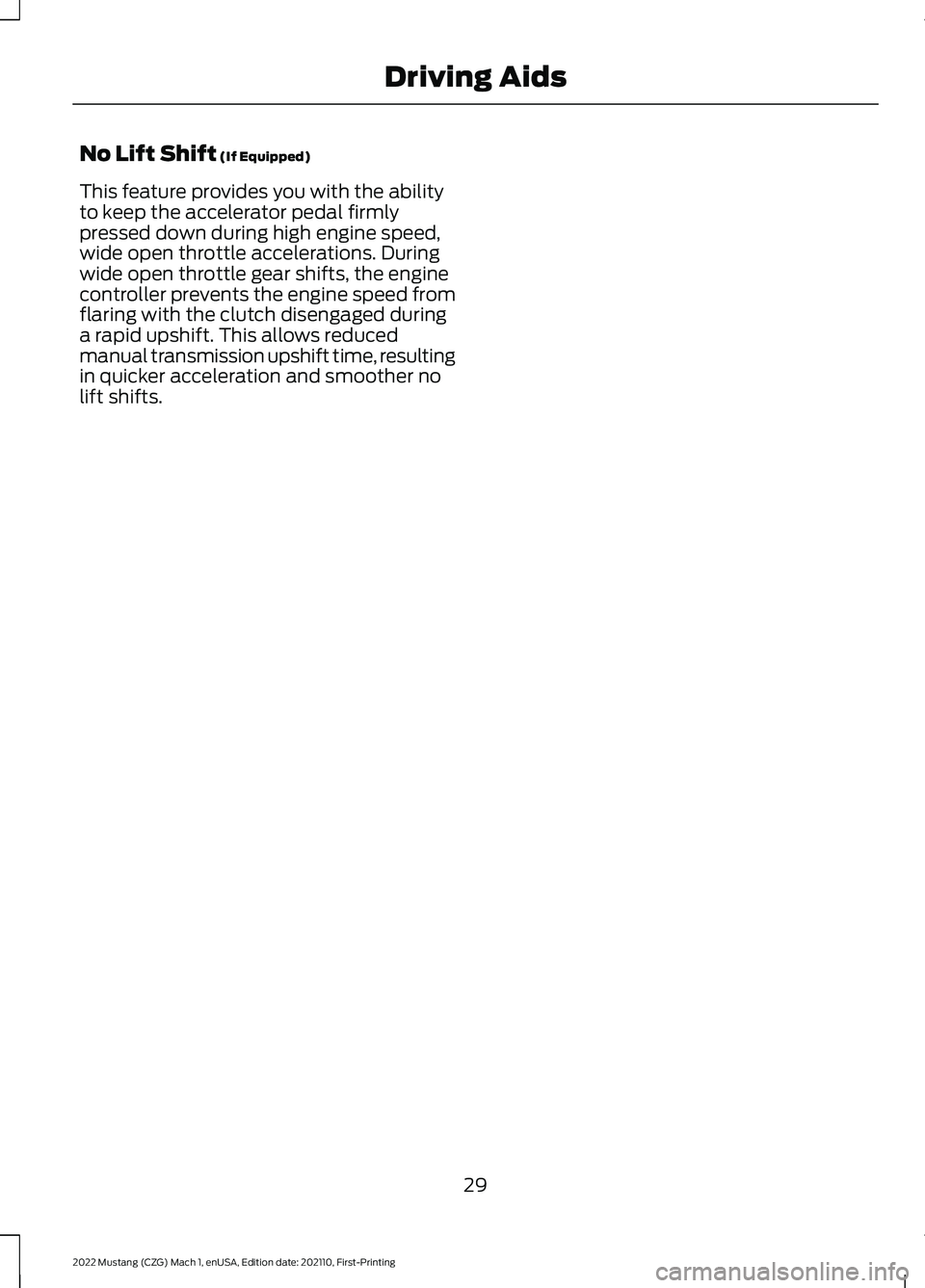

No Lift Shift (If Equipped)
This feature provides you with the ability
to keep the accelerator pedal firmly
pressed down during high engine speed,
wide open throttle accelerations. During
wide open throttle gear shifts, the engine
controller prevents the engine speed from
flaring with the clutch disengaged during
a rapid upshift. This allows reduced
manual transmission upshift time, resulting
in quicker acceleration and smoother no
lift shifts.
29
2022 Mustang (CZG) Mach 1, enUSA, Edition date: 202110, First-Printing Driving Aids

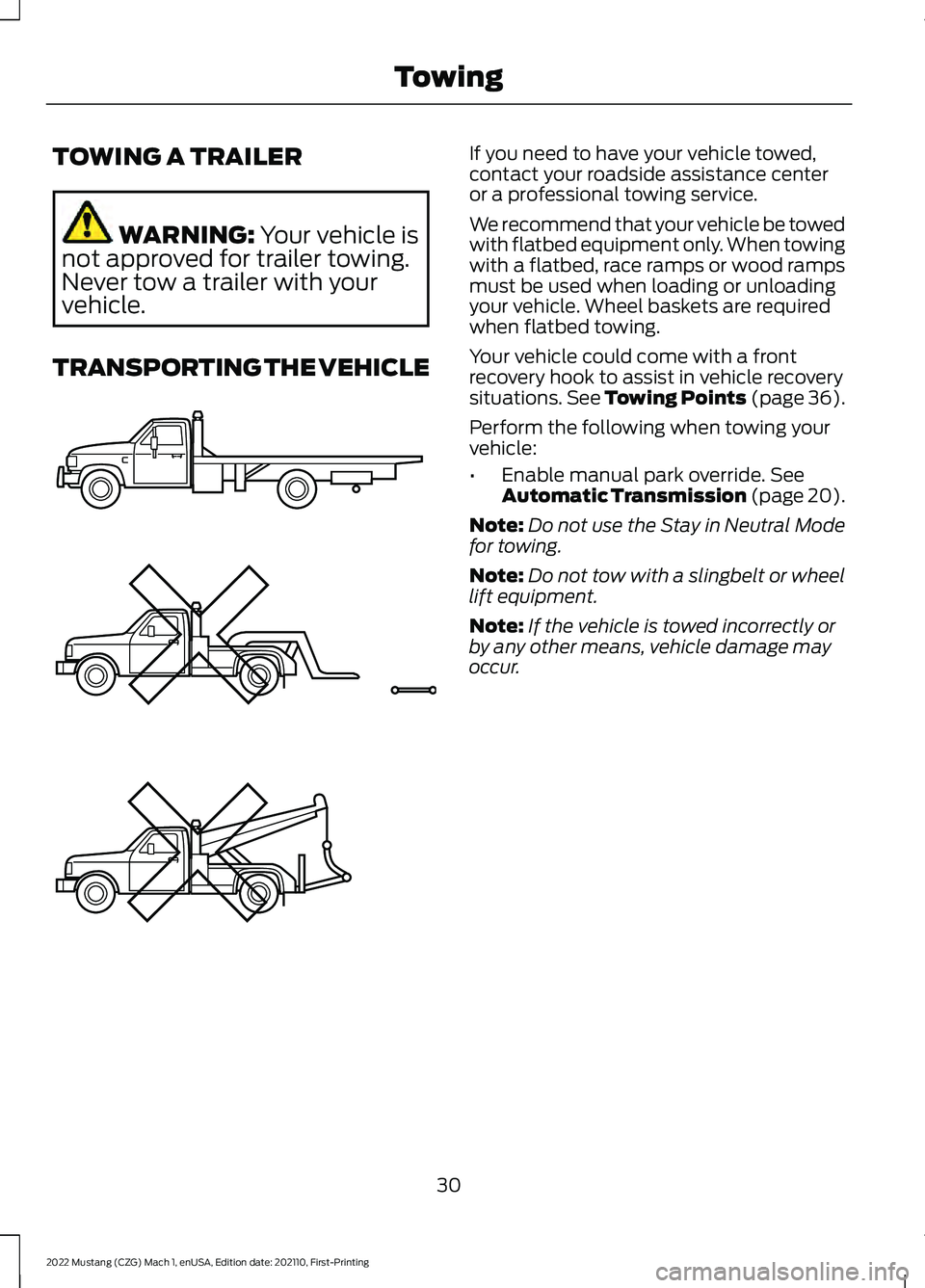

TOWING A TRAILER
WARNING: Your vehicle is
not approved for trailer towing.
Never tow a trailer with your
vehicle.
TRANSPORTING THE VEHICLE If you need to have your vehicle towed,
contact your roadside assistance center
or a professional towing service.
We recommend that your vehicle be towed
with flatbed equipment only. When towing
with a flatbed, race ramps or wood ramps
must be used when loading or unloading
your vehicle. Wheel baskets are required
when flatbed towing.
Your vehicle could come with a front
recovery hook to assist in vehicle recovery
situations.
See Towing Points (page 36).
Perform the following when towing your
vehicle:
• Enable manual park override.
See
Automatic Transmission (page 20).
Note: Do not use the Stay in Neutral Mode
for towing.
Note: Do not tow with a slingbelt or wheel
lift equipment.
Note: If the vehicle is towed incorrectly or
by any other means, vehicle damage may
occur.
30
2022 Mustang (CZG) Mach 1, enUSA, Edition date: 202110, First-Printing TowingE203788

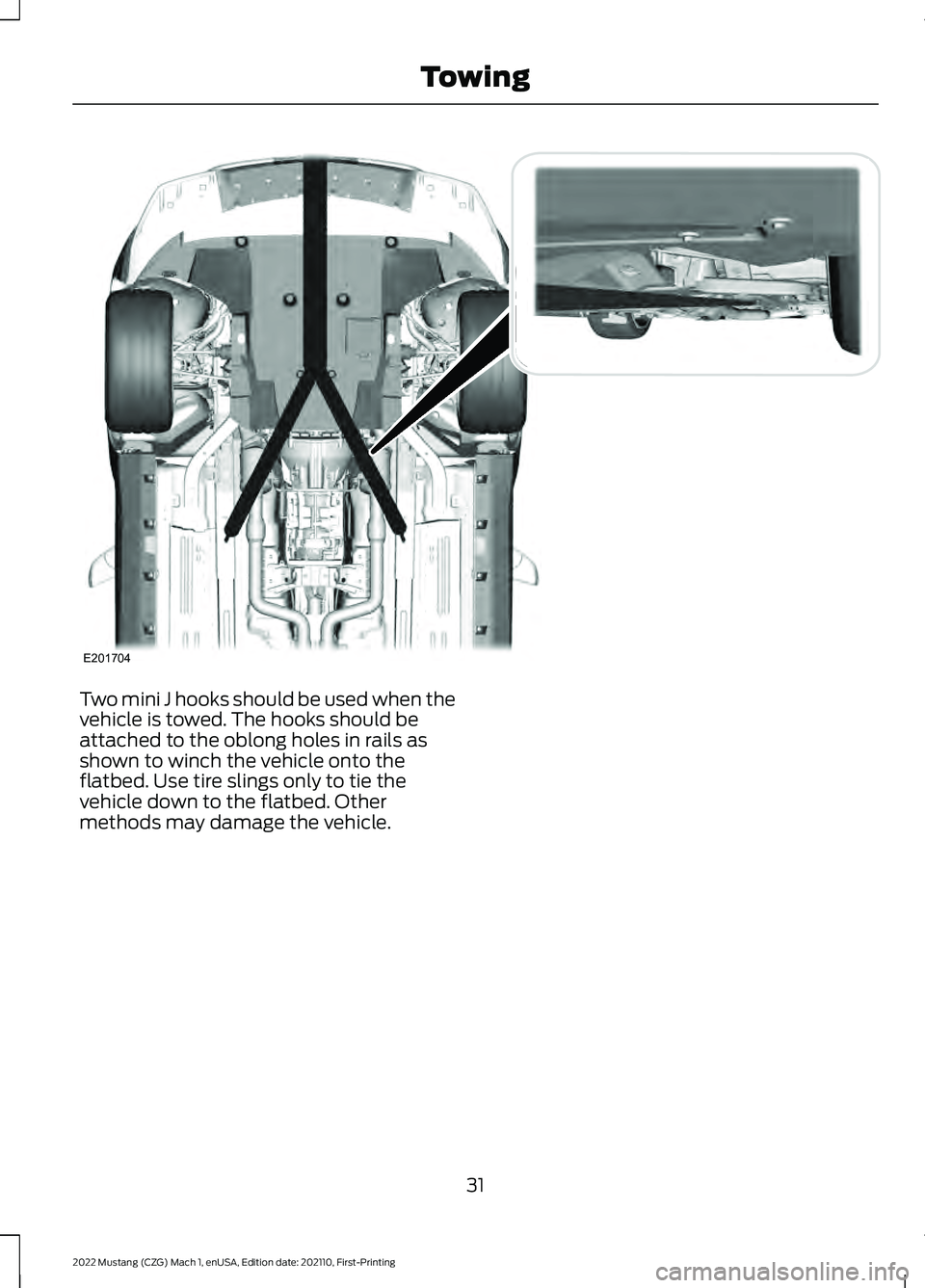

Two mini J hooks should be used when the
vehicle is towed. The hooks should be
attached to the oblong holes in rails as
shown to winch the vehicle onto the
flatbed. Use tire slings only to tie the
vehicle down to the flatbed. Other
methods may damage the vehicle.
31
2022 Mustang (CZG) Mach 1, enUSA, Edition date: 202110, First-Printing TowingE201704

Preferred Flatbed Method
Seven degrees maximum.
A
Tow vehicle ramp.
B
Race ramps.
C
30 inches (76 centimeters) minimum.
D
70 inches (178 centimeters) minimum.
E
Use race ramps to load the vehicle.
The diagram illustrates the maximum
ramp angle allowable to load your vehicle
on a flatbed. Vehicle damage may occur
with greater angles. Ramps must be used to achieve
appropriate undercarriage clearances.
32
2022 Mustang (CZG) Mach 1, enUSA, Edition date: 202110, First-Printing TowingE342994

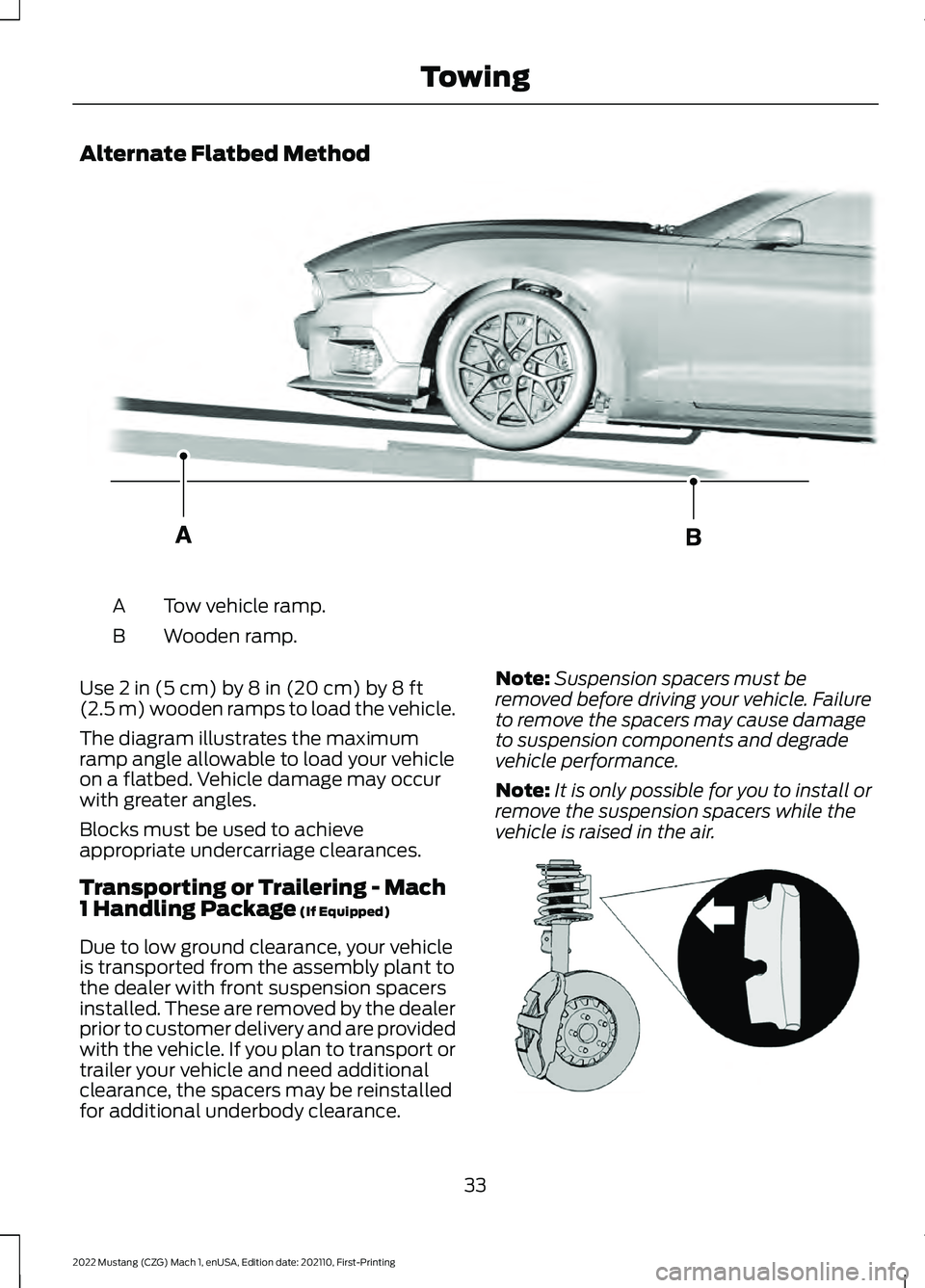

Alternate Flatbed Method
Tow vehicle ramp.
A
Wooden ramp.
B
Use 2 in (5 cm) by 8 in (20 cm) by 8 ft
(2.5 m) wooden ramps to load the vehicle.
The diagram illustrates the maximum
ramp angle allowable to load your vehicle
on a flatbed. Vehicle damage may occur
with greater angles.
Blocks must be used to achieve
appropriate undercarriage clearances.
Transporting or Trailering - Mach
1 Handling Package
(If Equipped)
Due to low ground clearance, your vehicle
is transported from the assembly plant to
the dealer with front suspension spacers
installed. These are removed by the dealer
prior to customer delivery and are provided
with the vehicle. If you plan to transport or
trailer your vehicle and need additional
clearance, the spacers may be reinstalled
for additional underbody clearance. Note:
Suspension spacers must be
removed before driving your vehicle. Failure
to remove the spacers may cause damage
to suspension components and degrade
vehicle performance.
Note: It is only possible for you to install or
remove the suspension spacers while the
vehicle is raised in the air. 33
2022 Mustang (CZG) Mach 1, enUSA, Edition date: 202110, First-Printing Towing E342993 E343027

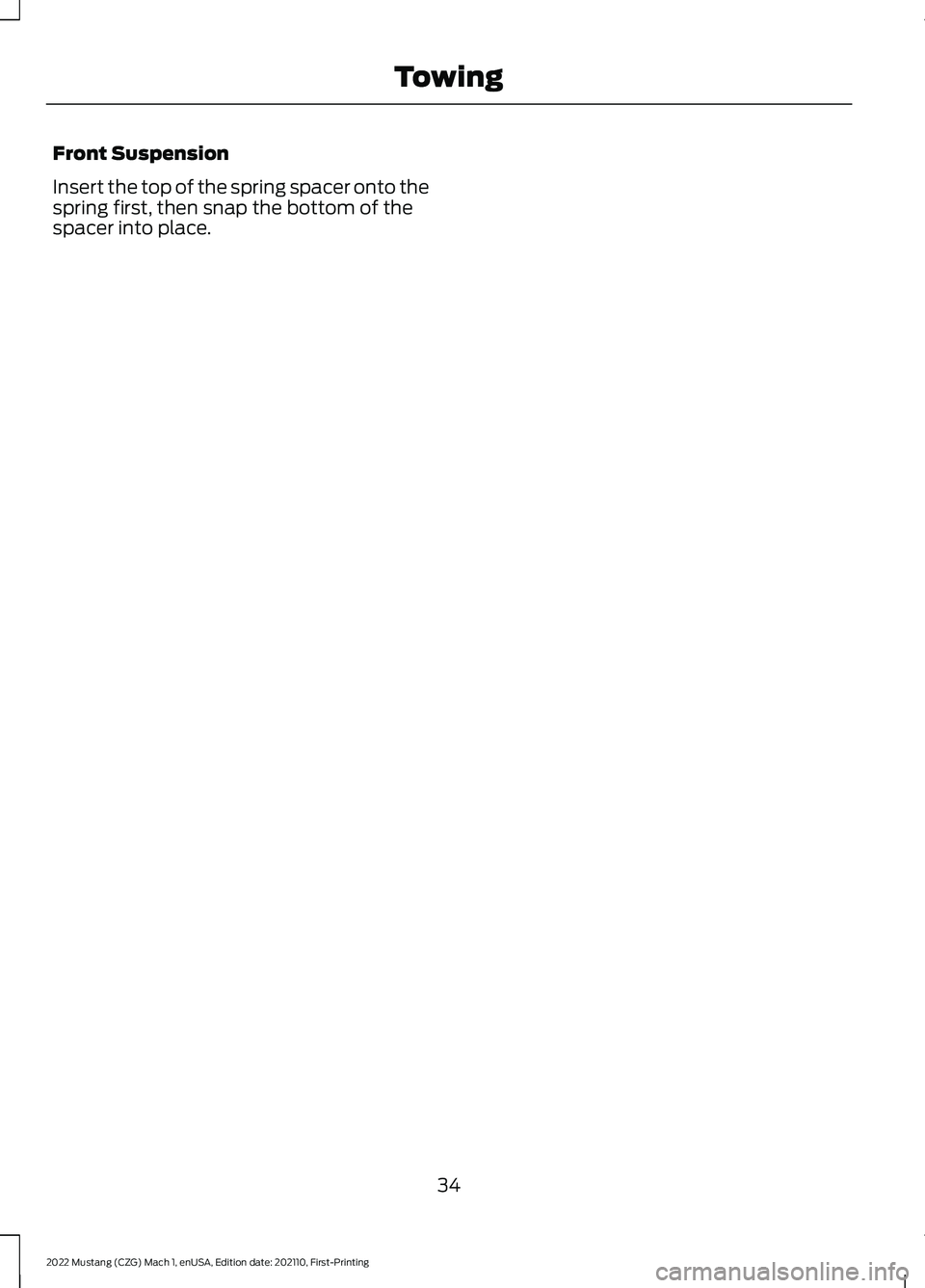

Front Suspension
Insert the top of the spring spacer onto the
spring first, then snap the bottom of the
spacer into place.
34
2022 Mustang (CZG) Mach 1, enUSA, Edition date: 202110, First-Printing Towing

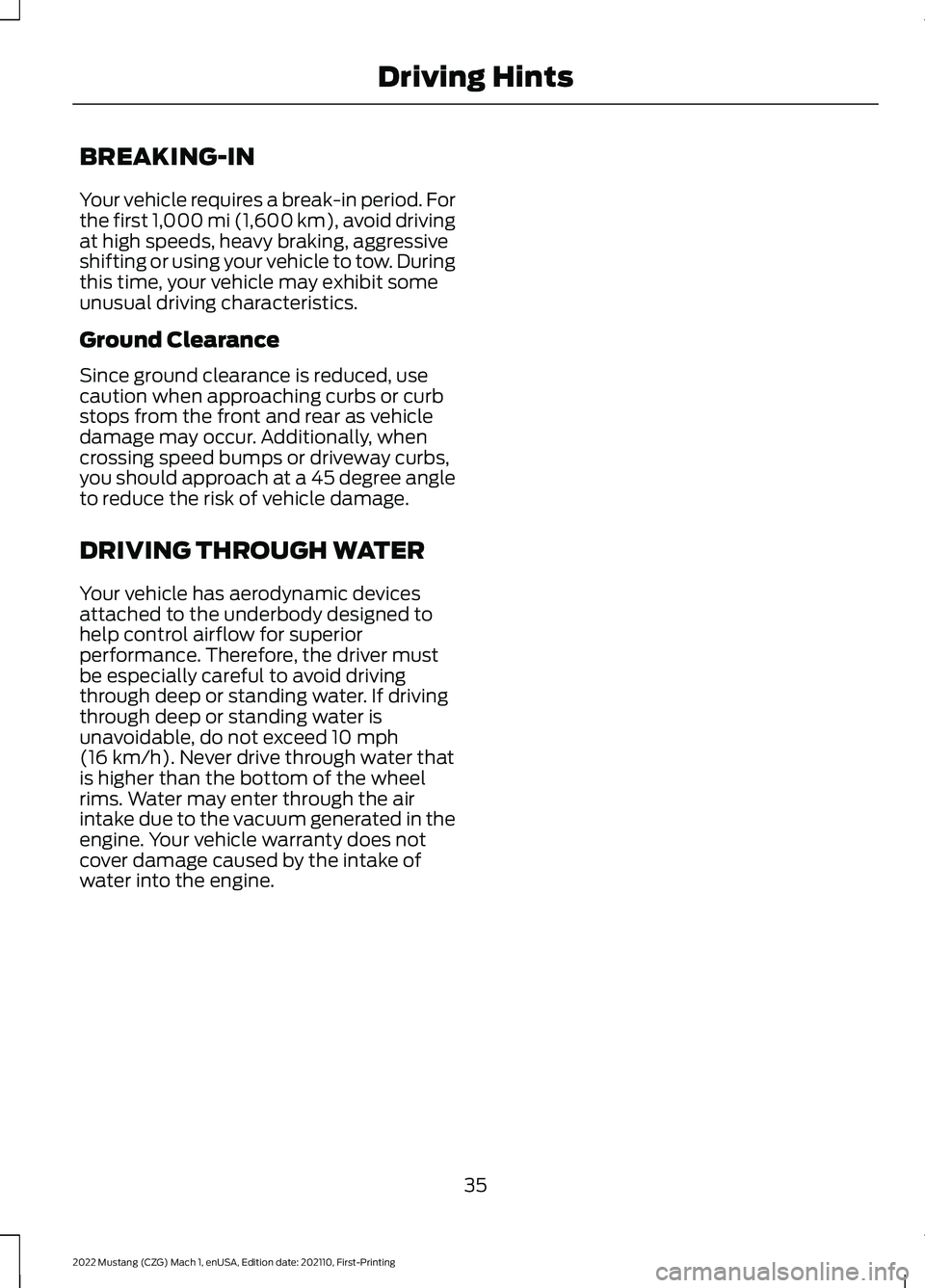

BREAKING-IN
Your vehicle requires a break-in period. For
the first 1,000 mi (1,600 km), avoid driving
at high speeds, heavy braking, aggressive
shifting or using your vehicle to tow. During
this time, your vehicle may exhibit some
unusual driving characteristics.
Ground Clearance
Since ground clearance is reduced, use
caution when approaching curbs or curb
stops from the front and rear as vehicle
damage may occur. Additionally, when
crossing speed bumps or driveway curbs,
you should approach at a 45 degree angle
to reduce the risk of vehicle damage.
DRIVING THROUGH WATER
Your vehicle has aerodynamic devices
attached to the underbody designed to
help control airflow for superior
performance. Therefore, the driver must
be especially careful to avoid driving
through deep or standing water. If driving
through deep or standing water is
unavoidable, do not exceed 10 mph
(16 km/h). Never drive through water that
is higher than the bottom of the wheel
rims. Water may enter through the air
intake due to the vacuum generated in the
engine. Your vehicle warranty does not
cover damage caused by the intake of
water into the engine.
35
2022 Mustang (CZG) Mach 1, enUSA, Edition date: 202110, First-Printing Driving Hints

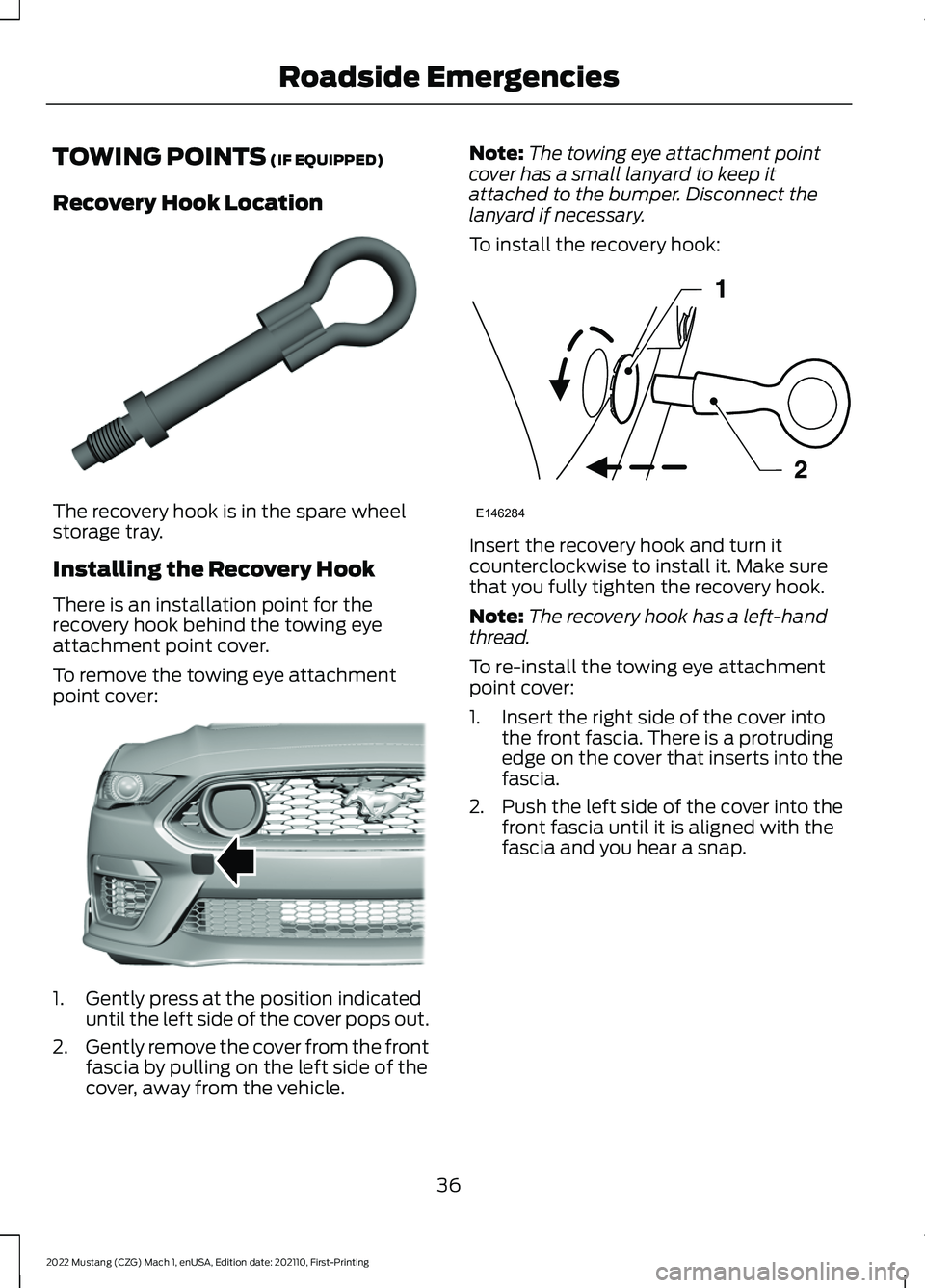

TOWING POINTS (IF EQUIPPED)
Recovery Hook Location The recovery hook is in the spare wheel
storage tray.
Installing the Recovery Hook
There is an installation point for the
recovery hook behind the towing eye
attachment point cover.
To remove the towing eye attachment
point cover:
1. Gently press at the position indicated
until the left side of the cover pops out.
2. Gently remove the cover from the front
fascia by pulling on the left side of the
cover, away from the vehicle. Note:
The towing eye attachment point
cover has a small lanyard to keep it
attached to the bumper. Disconnect the
lanyard if necessary.
To install the recovery hook: Insert the recovery hook and turn it
counterclockwise to install it. Make sure
that you fully tighten the recovery hook.
Note:
The recovery hook has a left-hand
thread.
To re-install the towing eye attachment
point cover:
1. Insert the right side of the cover into the front fascia. There is a protruding
edge on the cover that inserts into the
fascia.
2. Push the left side of the cover into the front fascia until it is aligned with the
fascia and you hear a snap.
36
2022 Mustang (CZG) Mach 1, enUSA, Edition date: 202110, First-Printing Roadside EmergenciesE265227 E333098 E146284

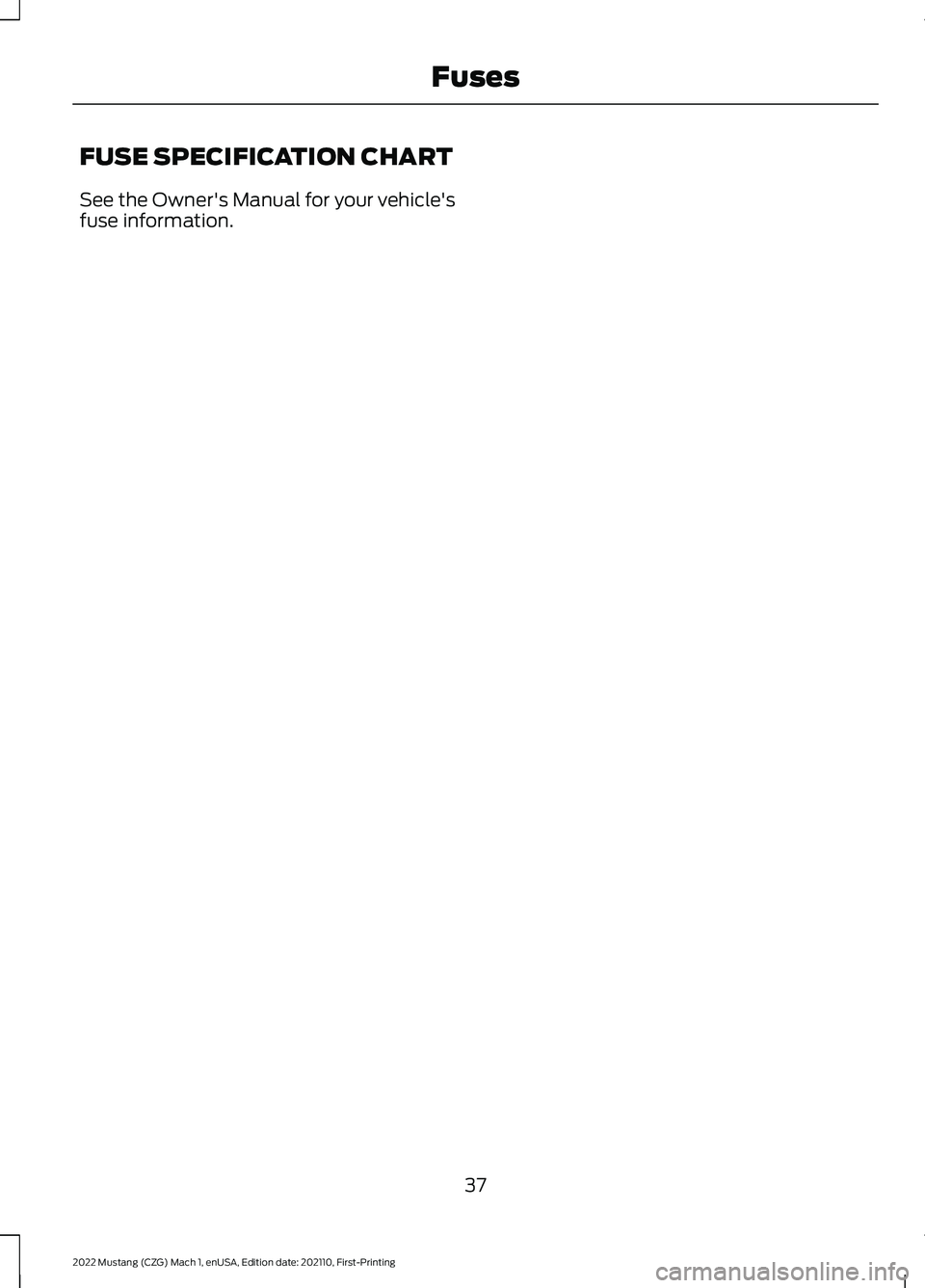

FUSE SPECIFICATION CHART
See the Owner's Manual for your vehicle's
fuse information.
