FORD MUSTANG 2022 Warranty Guide

Note:

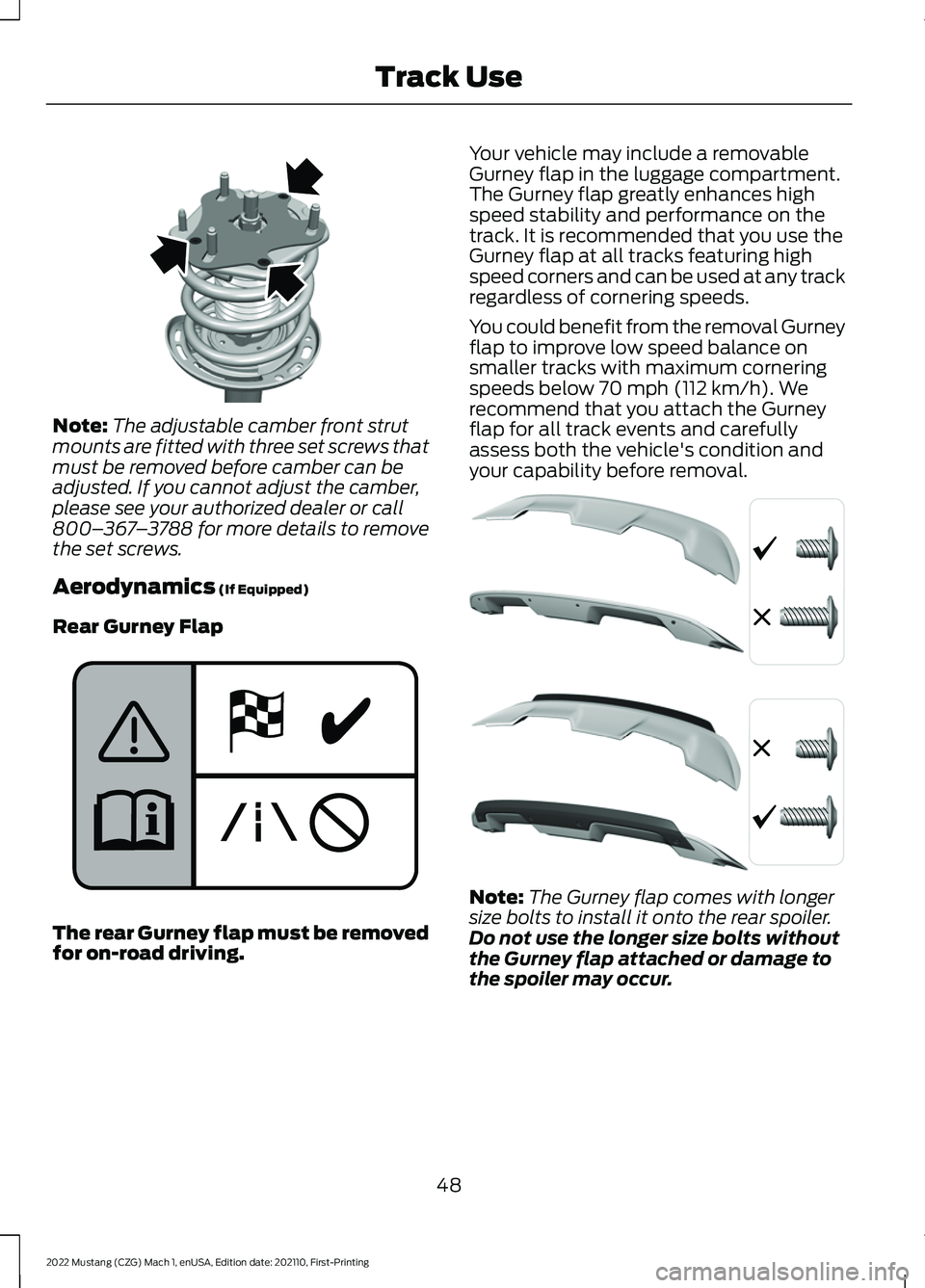

The adjustable camber front strut
mounts are fitted with three set screws that
must be removed before camber can be
adjusted. If you cannot adjust the camber,
please see your authorized dealer or call
800– 367–3788 for more details to remove
the set screws.
Aerodynamics (If Equipped)
Rear Gurney Flap The rear Gurney flap must be removed
for on-road driving. Your vehicle may include a removable
Gurney flap in the luggage compartment.
The Gurney flap greatly enhances high
speed stability and performance on the
track. It is recommended that you use the
Gurney flap at all tracks featuring high
speed corners and can be used at any track
regardless of cornering speeds.
You could benefit from the removal Gurney
flap to improve low speed balance on
smaller tracks with maximum cornering
speeds below
70 mph (112 km/h). We
recommend that you attach the Gurney
flap for all track events and carefully
assess both the vehicle's condition and
your capability before removal. Note:
The Gurney flap comes with longer
size bolts to install it onto the rear spoiler.
Do not use the longer size bolts without
the Gurney flap attached or damage to
the spoiler may occur.
48
2022 Mustang (CZG) Mach 1, enUSA, Edition date: 202110, First-Printing Track UseE343597 E307008 E310471 E310472

Brake Burnishing
The brakes should be properly burnished
prior to heavy track use. Excessive brake
noise may occur after the track burnish or
track use. Perform this procedure in a safe
manner on dry pavement, and in
compliance with all local and state
ordinances and laws regarding motor
vehicle operation.
How to Burnish the Brakes
Initial low temperature bedding:
•
If your brakes already have 200 mi
(322 km) or more of city driving, skip
this step and go directly to the high
temperature bedding cycle procedure.
Otherwise, perform at least 30 stops
from
50 mph (80 km/h) at 1/3 g
deceleration with 1 mi (1.2 km) spacing
between stops. A deceleration gauge
can be accessed through the
TrackApps menu in your information
display.
High temperature bedding cycle:
• Beginning with cool brakes, perform 15
consecutive stops back to back,
accelerating at 3/4 throttle to
80 mph
(128 km/h) and braking to 20 mph
(32 km/h) at 1.0 g deceleration. The
brakes may omit an odor or smoke
during this part of the procedure.
Cool down:
• Cool the brakes down by driving one or
two laps, 5 mi (8 km)
, at 60 mph
(96 km/h) with minimal to no brake
usage.
Recovery low temperature bedding:
• Perform at least 30 stops from 50 mph
(80 km/h)
at 1/3 g deceleration with
0.7 mi (1.2 km) spacing between stops.
A deceleration gauge can be accessed
through the TrackApps menu in your
information display.
49
2022 Mustang (CZG) Mach 1, enUSA, Edition date: 202110, First-Printing Track Use

GENERAL INFORMATION

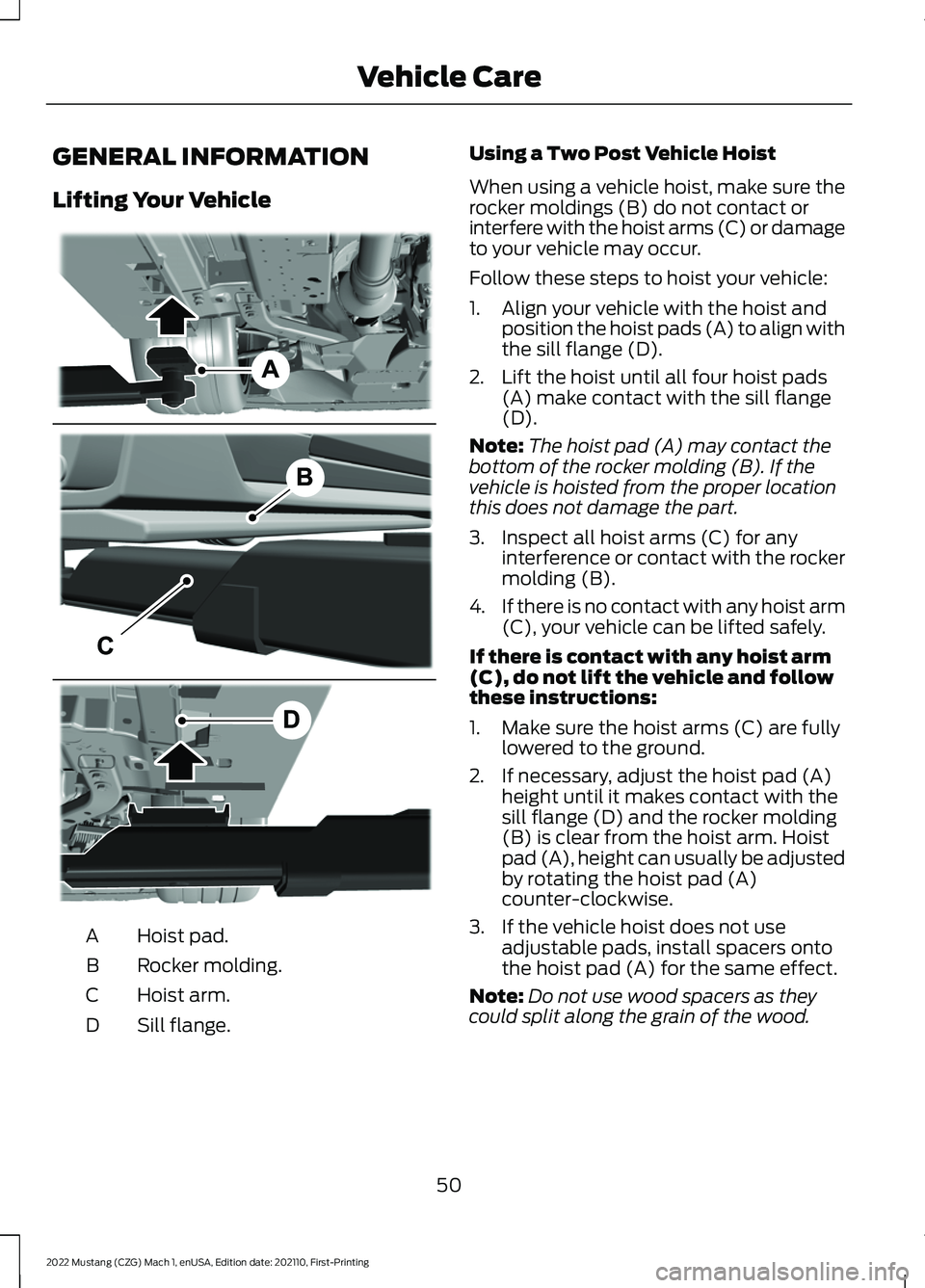

Lifting Your Vehicle
Hoist pad.
A
Rocker molding.
B
Hoist arm.
C
Sill flange.
D Using a Two Post Vehicle Hoist
When using a vehicle hoist, make sure the
rocker moldings (B) do not contact or
interfere with the hoist arms (C) or damage
to your vehicle may occur.
Follow these steps to hoist your vehicle:
1. Align your vehicle with the hoist and
position the hoist pads (A) to align with
the sill flange (D).
2. Lift the hoist until all four hoist pads (A) make contact with the sill flange
(D).
Note: The hoist pad (A) may contact the
bottom of the rocker molding (B). If the
vehicle is hoisted from the proper location
this does not damage the part.
3. Inspect all hoist arms (C) for any interference or contact with the rocker
molding (B).
4. If there is no contact with any hoist arm
(C), your vehicle can be lifted safely.
If there is contact with any hoist arm
(C), do not lift the vehicle and follow
these instructions:
1. Make sure the hoist arms (C) are fully lowered to the ground.
2. If necessary, adjust the hoist pad (A) height until it makes contact with the
sill flange (D) and the rocker molding
(B) is clear from the hoist arm. Hoist
pad (A), height can usually be adjusted
by rotating the hoist pad (A)
counter-clockwise.
3. If the vehicle hoist does not use adjustable pads, install spacers onto
the hoist pad (A) for the same effect.
Note: Do not use wood spacers as they
could split along the grain of the wood.
50
2022 Mustang (CZG) Mach 1, enUSA, Edition date: 202110, First-Printing Vehicle CareA
B
A
12
203A
A E311783

4.
Raise the hoist until the hoist pads (A)
make contact will the sill flange (D).
Make sure there is no contact between
the rocker molding (B) and all hoist
arms (C) before lifting the vehicle.

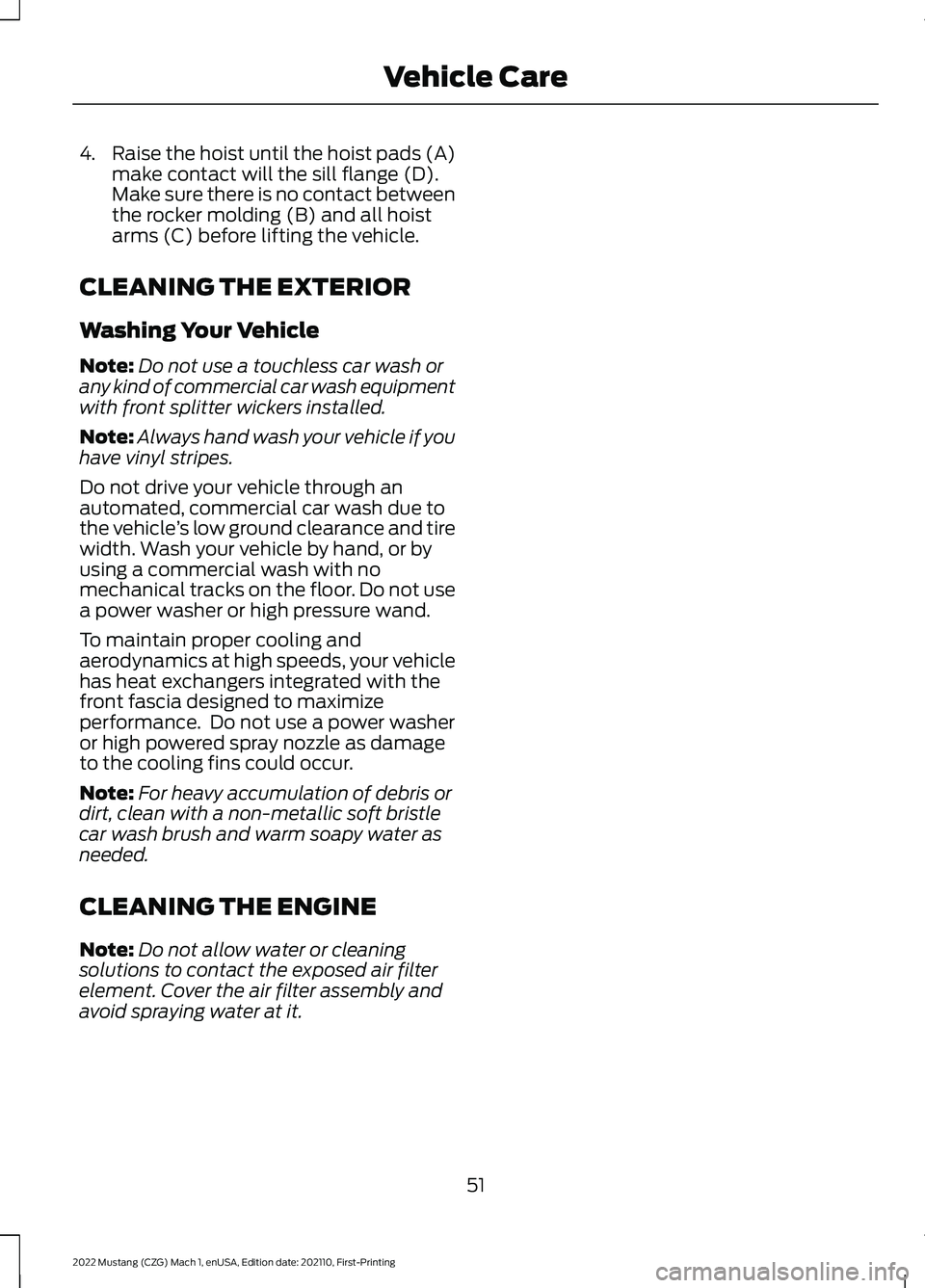

CLEANING THE EXTERIOR
Washing Your Vehicle
Note: Do not use a touchless car wash or
any kind of commercial car wash equipment
with front splitter wickers installed.
Note: Always hand wash your vehicle if you
have vinyl stripes.
Do not drive your vehicle through an
automated, commercial car wash due to
the vehicle ’s low ground clearance and tire
width. Wash your vehicle by hand, or by
using a commercial wash with no
mechanical tracks on the floor. Do not use
a power washer or high pressure wand.
To maintain proper cooling and
aerodynamics at high speeds, your vehicle
has heat exchangers integrated with the
front fascia designed to maximize
performance. Do not use a power washer
or high powered spray nozzle as damage
to the cooling fins could occur.
Note: For heavy accumulation of debris or
dirt, clean with a non-metallic soft bristle
car wash brush and warm soapy water as
needed.
CLEANING THE ENGINE
Note: Do not allow water or cleaning
solutions to contact the exposed air filter
element. Cover the air filter assembly and
avoid spraying water at it.
51
2022 Mustang (CZG) Mach 1, enUSA, Edition date: 202110, First-Printing Vehicle Care

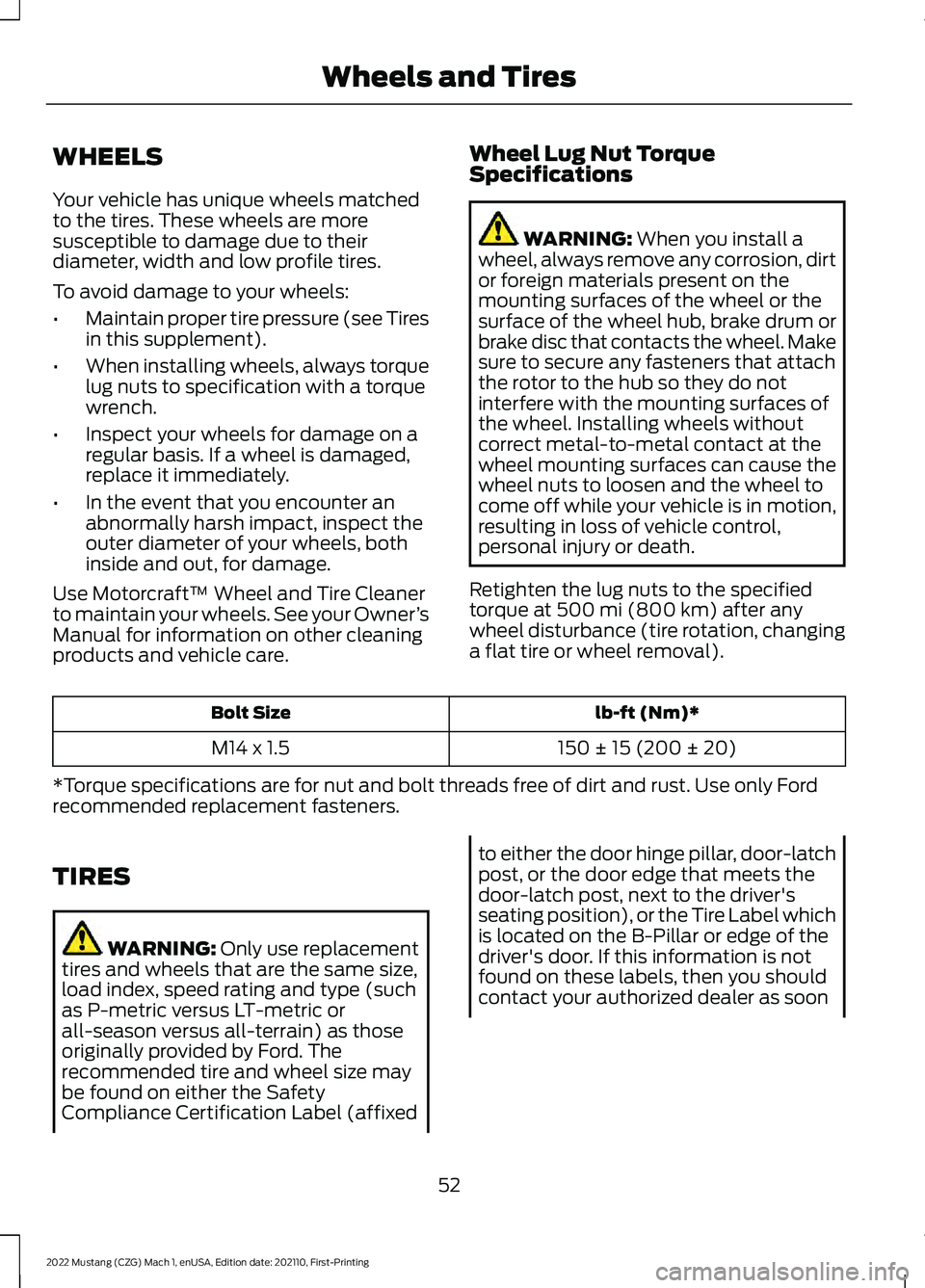

WHEELS
Your vehicle has unique wheels matched
to the tires. These wheels are more
susceptible to damage due to their
diameter, width and low profile tires.
To avoid damage to your wheels:
•
Maintain proper tire pressure (see Tires
in this supplement).
• When installing wheels, always torque
lug nuts to specification with a torque
wrench.
• Inspect your wheels for damage on a
regular basis. If a wheel is damaged,
replace it immediately.
• In the event that you encounter an
abnormally harsh impact, inspect the
outer diameter of your wheels, both
inside and out, for damage.
Use Motorcraft™ Wheel and Tire Cleaner
to maintain your wheels. See your Owner ’s
Manual for information on other cleaning
products and vehicle care. Wheel Lug Nut Torque
Specifications WARNING: When you install a
wheel, always remove any corrosion, dirt
or foreign materials present on the
mounting surfaces of the wheel or the
surface of the wheel hub, brake drum or
brake disc that contacts the wheel. Make
sure to secure any fasteners that attach
the rotor to the hub so they do not
interfere with the mounting surfaces of
the wheel. Installing wheels without
correct metal-to-metal contact at the
wheel mounting surfaces can cause the
wheel nuts to loosen and the wheel to
come off while your vehicle is in motion,
resulting in loss of vehicle control,
personal injury or death.
Retighten the lug nuts to the specified
torque at
500 mi (800 km) after any
wheel disturbance (tire rotation, changing
a flat tire or wheel removal). lb-ft (Nm)*
Bolt Size
150 ± 15 (200 ± 20)
M14 x 1.5
*Torque specifications are for nut and bolt threads free of dirt and rust. Use only Ford
recommended replacement fasteners.
TIRES WARNING:
Only use replacement
tires and wheels that are the same size,
load index, speed rating and type (such
as P-metric versus LT-metric or
all-season versus all-terrain) as those
originally provided by Ford. The
recommended tire and wheel size may
be found on either the Safety
Compliance Certification Label (affixed to either the door hinge pillar, door-latch
post, or the door edge that meets the
door-latch post, next to the driver's
seating position), or the Tire Label which
is located on the B-Pillar or edge of the
driver's door. If this information is not
found on these labels, then you should
contact your authorized dealer as soon
52
2022 Mustang (CZG) Mach 1, enUSA, Edition date: 202110, First-Printing Wheels and Tires

as possible. Use of any tire or wheel not
recommended by Ford can affect the
safety and performance of your vehicle,
which could result in an increased risk of
loss of vehicle control, vehicle rollover,
personal injury and death.
Note: Do not use tire chains on your vehicle.
The use of any type of tire chain on these
tires could damage your vehicle. Your vehicle comes with low profile, high
performance tires designed to optimize
the driving dynamics you expect in a Ford
Performance vehicle. These tires are not
optimized for off-road or winter, snow or
cold weather, performance, and their ride,
noise and wear characteristics are different
than non-performance tires. Also, because
of their lower profile, the tires are more
susceptible to damage due to potholes

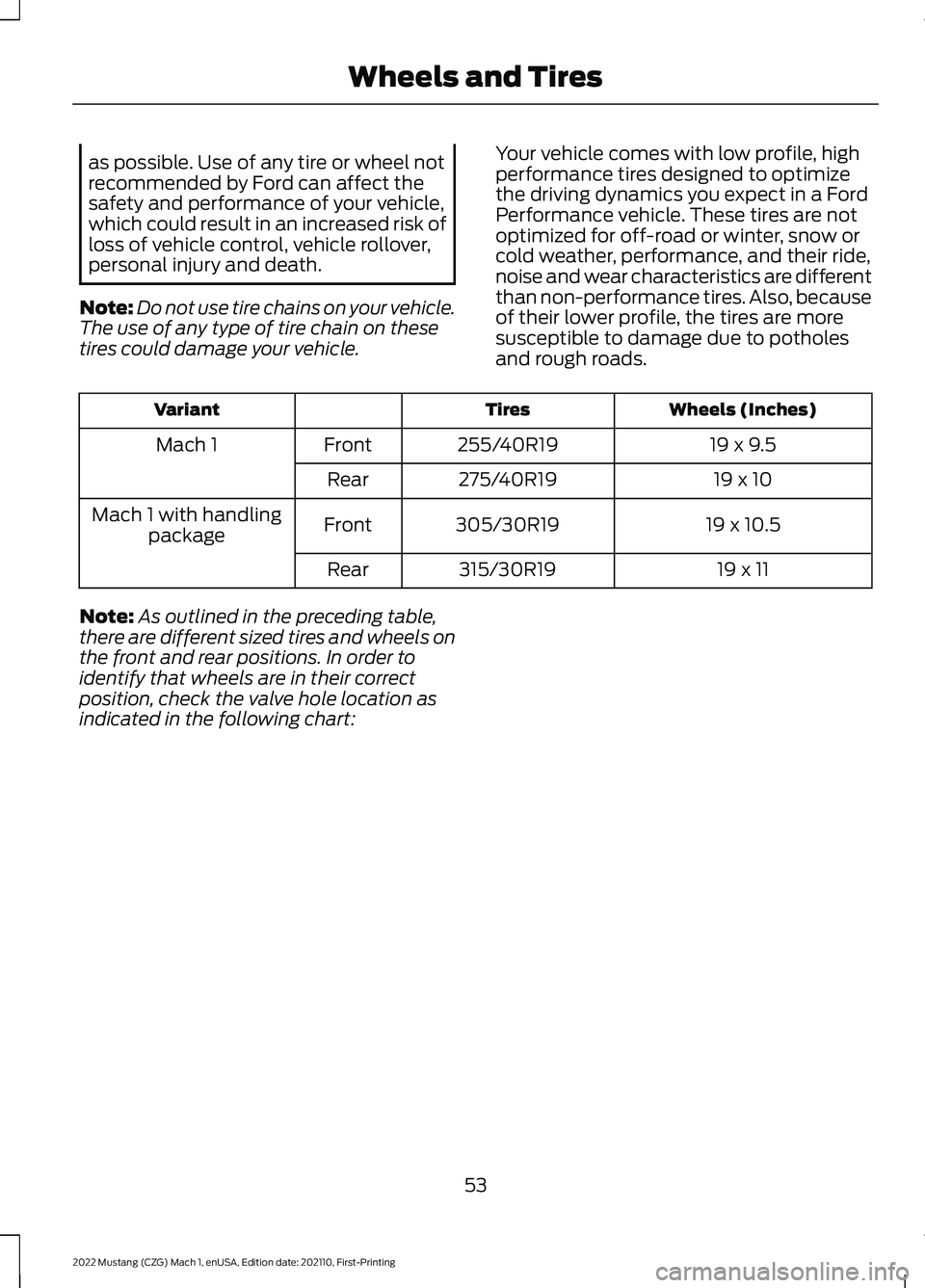

and rough roads. Wheels (Inches)
Tires
Variant
19 x 9.5
255/40R19
Front
Mach 1
19 x 10
275/40R19
Rear
19 x 10.5
305/30R19
Front
Mach 1 with handling
package
19 x 11
315/30R19
Rear
Note: As outlined in the preceding table,
there are different sized tires and wheels on
the front and rear positions. In order to
identify that wheels are in their correct
position, check the valve hole location as
indicated in the following chart:
53
2022 Mustang (CZG) Mach 1, enUSA, Edition date: 202110, First-Printing Wheels and Tires

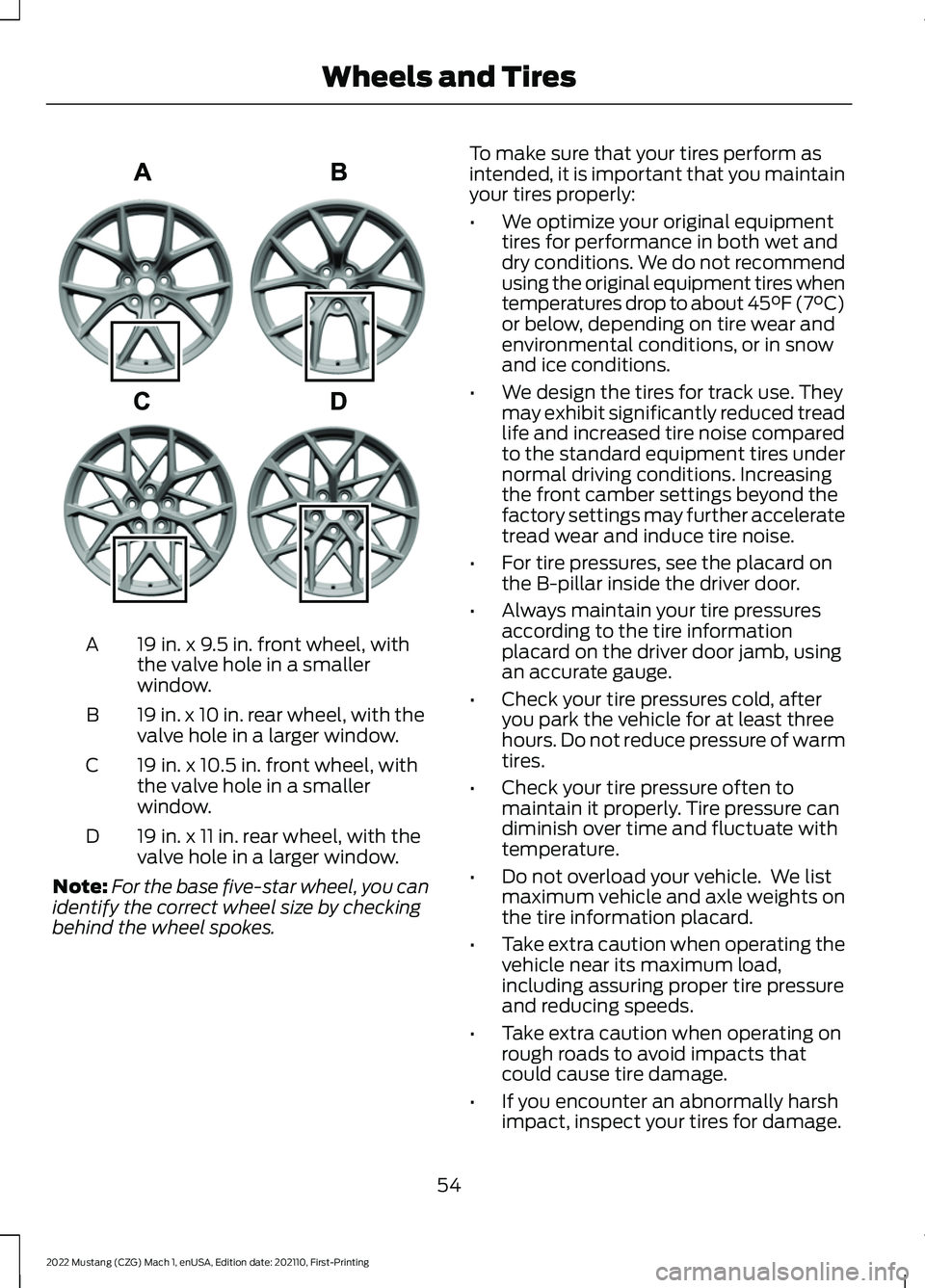

19 in. x 9.5 in. front wheel, with
the valve hole in a smaller
window.
A
19 in. x 10 in. rear wheel, with the
valve hole in a larger window.
B
19 in. x 10.5 in. front wheel, with
the valve hole in a smaller
window.
C
19 in. x 11 in. rear wheel, with the
valve hole in a larger window.
D
Note: For the base five-star wheel, you can
identify the correct wheel size by checking
behind the wheel spokes. To make sure that your tires perform as
intended, it is important that you maintain
your tires properly:
•
We optimize your original equipment
tires for performance in both wet and
dry conditions. We do not recommend
using the original equipment tires when
temperatures drop to about 45°F (7°C)
or below, depending on tire wear and
environmental conditions, or in snow
and ice conditions.
• We design the tires for track use. They
may exhibit significantly reduced tread
life and increased tire noise compared
to the standard equipment tires under
normal driving conditions. Increasing
the front camber settings beyond the
factory settings may further accelerate
tread wear and induce tire noise.
• For tire pressures, see the placard on
the B-pillar inside the driver door.
• Always maintain your tire pressures
according to the tire information
placard on the driver door jamb, using
an accurate gauge.
• Check your tire pressures cold, after
you park the vehicle for at least three
hours. Do not reduce pressure of warm
tires.
• Check your tire pressure often to
maintain it properly. Tire pressure can
diminish over time and fluctuate with
temperature.
• Do not overload your vehicle. We list
maximum vehicle and axle weights on
the tire information placard.
• Take extra caution when operating the
vehicle near its maximum load,
including assuring proper tire pressure
and reducing speeds.
• Take extra caution when operating on
rough roads to avoid impacts that
could cause tire damage.
• If you encounter an abnormally harsh
impact, inspect your tires for damage.
54
2022 Mustang (CZG) Mach 1, enUSA, Edition date: 202110, First-Printing Wheels and TiresE340110

•
Inspect your tires for damage on a
regular basis. If a tire is damaged,
replace it immediately.
• Proper suspension alignment is critical
for maximum performance and
optimal tire wear. If you notice uneven
tire wear, check your alignment.
• When replacing tires, the only way to
maintain original performance is to use
the original equipment tire. If you use
a different tire, use the same size,
speed rating and load rating and
replace as a set of four. Never mix tire
brands.
• Rotate tires as recommended in the
tire rotation information. Your vehicle
has a staggered tire configuration.
Rotate the tires from side to side only,
not from front to back. See your

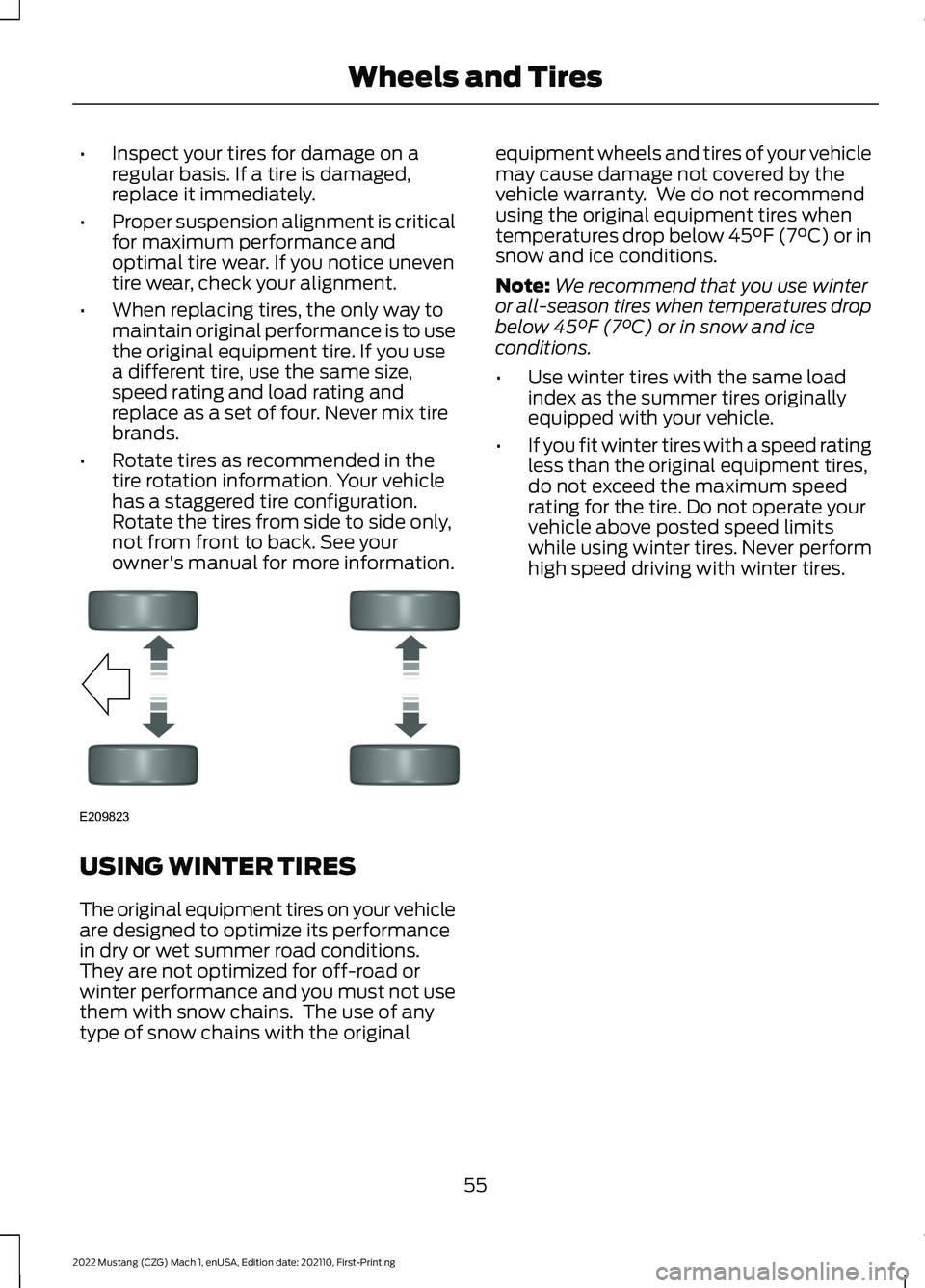

owner's manual for more information. USING WINTER TIRES
The original equipment tires on your vehicle
are designed to optimize its performance
in dry or wet summer road conditions.
They are not optimized for off-road or
winter performance and you must not use
them with snow chains. The use of any
type of snow chains with the original equipment wheels and tires of your vehicle
may cause damage not covered by the
vehicle warranty. We do not recommend
using the original equipment tires when
temperatures drop below 45°F (7°C) or in
snow and ice conditions.
Note:
We recommend that you use winter
or all-season tires when temperatures drop
below 45°F (7°C) or in snow and ice
conditions.
• Use winter tires with the same load
index as the summer tires originally
equipped with your vehicle.
• If you fit winter tires with a speed rating
less than the original equipment tires,
do not exceed the maximum speed
rating for the tire. Do not operate your
vehicle above posted speed limits
while using winter tires. Never perform
high speed driving with winter tires.
55
2022 Mustang (CZG) Mach 1, enUSA, Edition date: 202110, First-Printing Wheels and TiresE209823

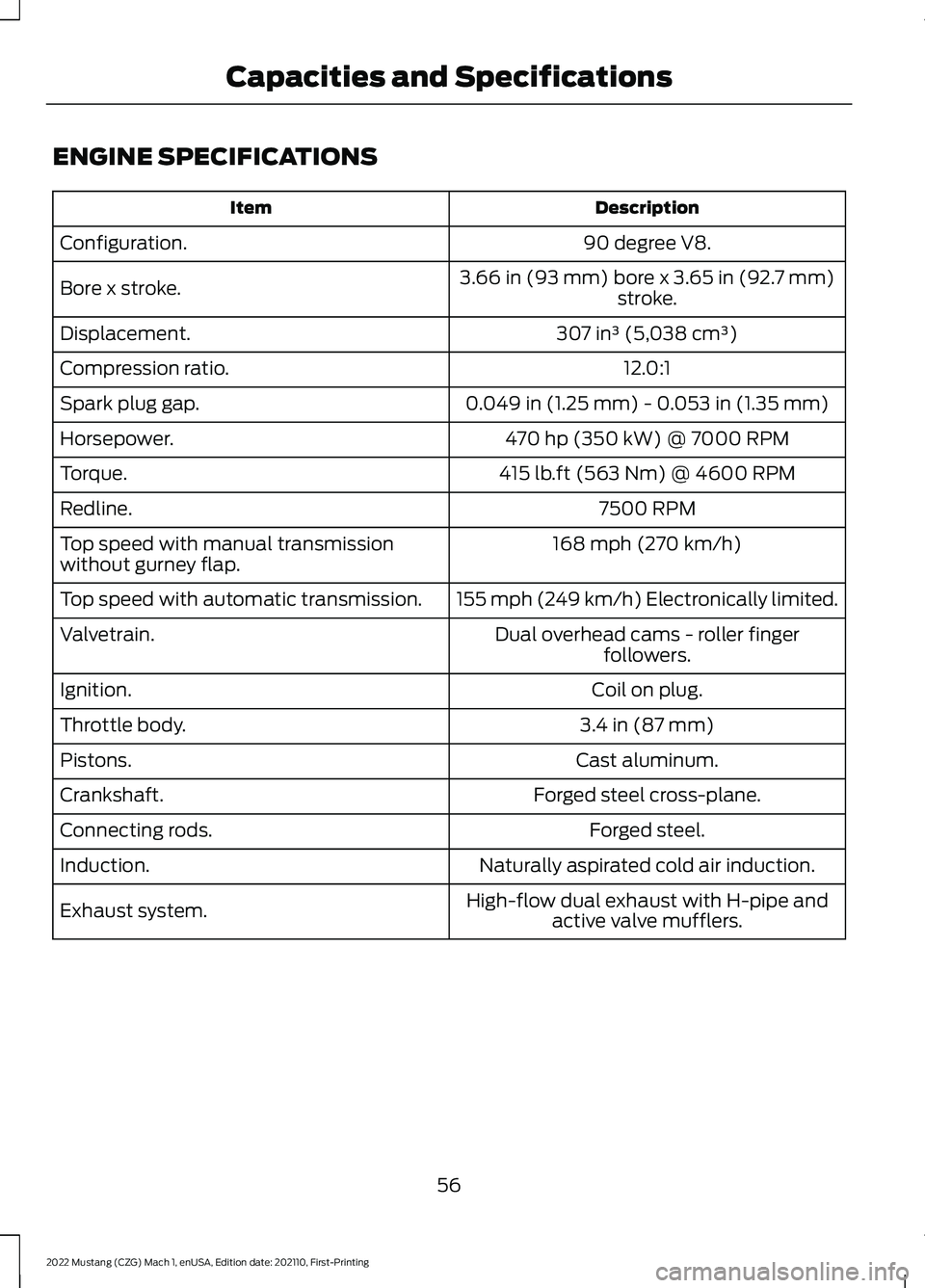

ENGINE SPECIFICATIONS
Description
Item
90 degree V8.
Configuration.
3.66 in (93 mm) bore x 3.65 in (92.7 mm)
stroke.
Bore x stroke.
307 in³ (5,038 cm³)
Displacement.
12.0:1
Compression ratio.
0.049 in (1.25 mm)
- 0.053 in (1.35 mm)
Spark plug gap.
470 hp (350 kW)
@ 7000 RPM
Horsepower.
415 lb.ft (563 Nm)
@ 4600 RPM
Torque.
7500 RPM
Redline.
168 mph (270 km/h)
Top speed with manual transmission
without gurney flap.
155 mph (249 km/h)
Electronically limited.
Top speed with automatic transmission.
Dual overhead cams - roller fingerfollowers.
Valvetrain.
Coil on plug.
Ignition.
3.4 in (87 mm)
Throttle body.
Cast aluminum.
Pistons.
Forged steel cross-plane.
Crankshaft.
Forged steel.
Connecting rods.
Naturally aspirated cold air induction.
Induction.
High-flow dual exhaust with H-pipe andactive valve mufflers.
Exhaust system.
56
2022 Mustang (CZG) Mach 1, enUSA, Edition date: 202110, First-Printing Capacities and Specifications

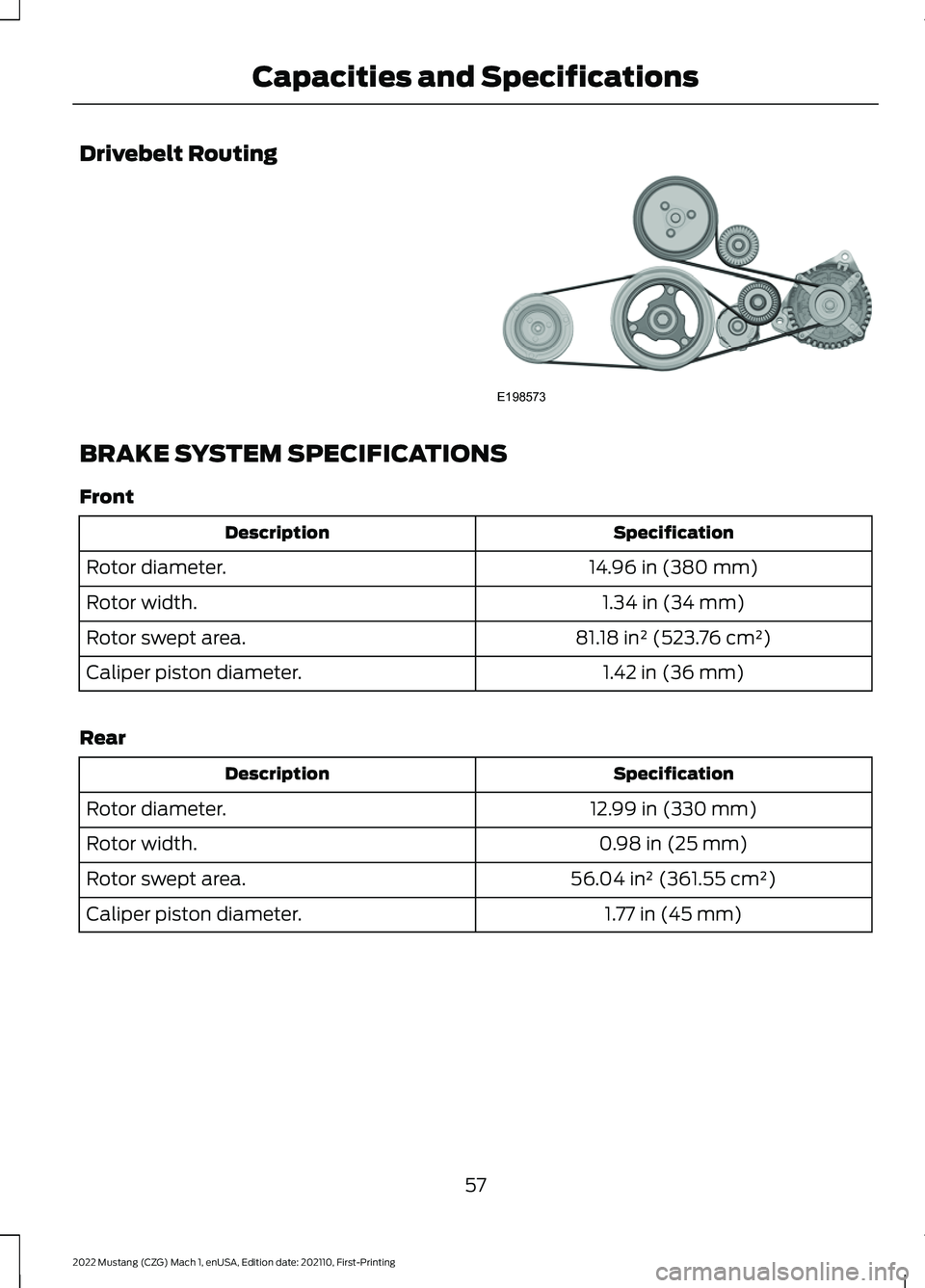

Drivebelt Routing
BRAKE SYSTEM SPECIFICATIONS
Front
Specification
Description
14.96 in (380 mm)
Rotor diameter.
1.34 in (34 mm)
Rotor width.
81.18 in² (523.76 cm²)
Rotor swept area.
1.42 in (36 mm)
Caliper piston diameter.
Rear Specification
Description
12.99 in (330 mm)
Rotor diameter.
0.98 in (25 mm)
Rotor width.
56.04 in² (361.55 cm²)
Rotor swept area.
1.77 in (45 mm)
Caliper piston diameter.
57
2022 Mustang (CZG) Mach 1, enUSA, Edition date: 202110, First-Printing Capacities and SpecificationsE198573
