WHAT IS AUTOMATIC HIGH
BEAM CONTROL
The system turns on high beams if it is darkenough and no other traffic is present. If itdetects an approaching vehicle’sheadlamps or tail lamps, or street lightingahead, the system turns the high beamsoff. Low beams remain on.
A camera sensor, centrally mountedbehind the windshield of your vehicle,continuously monitors conditions to turnthe high beams on and off.
SWITCHING AUTOMATIC HIGH
BEAM CONTROL ON AND OFF
Switch the system on or off using theinformation display. See GeneralInformation (page 98).
Activating the Automatic HighBeam Control
Switch the lighting control to theautolamps position to activate.See Autolamps (page 81).
Note:Automatic high beams are notavailable when you do not turn onautolamps.
When active, the high beams turn on if allof the following occur:
•The ambient light level is low enough.
•There is no traffic in front of yourvehicle.
•The vehicle speed is greater thanapproximately 32 mph (52 km/h).
When active, the high beams turn off if anyof the following occur:
•The ambient light level is high enoughthat it does not require high beams.
•The system detects an approachingvehicle's headlamps or tail lamps.
•The system detects severe rain, snowor fog.
•The camera is blocked.
•The vehicle speed falls belowapproximately 27 mph (44 km/h).
Note:The deactivation speed is lower oncurves.
Note:There could be a delay in high beamreactivation in certain curvy road situations.
Note:If you have a blocked sensor, thesystem may not operate properly. Keep thewindshield free from obstruction or damage.
Note:The system may not operate properlyin cold or inclement conditions. You canswitch on the high beams by overriding thesystem.
Note:If the system detects a blockage, forexample bird droppings, bug splatter, snowor ice, the system goes into low beam modeuntil you clear the blockage. If you have ablocked camera, a message may appear inthe information display.
Note:Using much larger tires or equippingvehicle accessories such as snowplows canmodify your vehicle's ride height anddegrade automatic high beam controlperformance.
AUTOMATIC HIGH BEAM
CONTROL INDICATORS
The indicator illuminates toconfirm when the system isready to assist.
84
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingAutomatic High Beam Control (If Equipped) E146105

Adaptive Cruise Control Indicator
(If Equipped)
It illuminates when you switchthe system on.
It illuminates white when thesystem is in standby mode. It illuminatesgreen when you set the adaptive cruisespeed.
See Using Adaptive Cruise Control(page 185).
Airbag Warning Lamp
If it does not illuminate when youswitch the ignition on, continuesto flash or remains on when theengine is running, this indicates amalfunction. Have your vehicle checkedas soon as possible.
Anti-Lock Brake System WarningLamp
If it illuminates when you aredriving, this indicates amalfunction. Your vehiclecontinues to have normal braking withoutthe anti-lock brake system function. Haveyour vehicle checked as soon as possible.
Automatic Headlamp High BeamIndicator (If Equipped)
It illuminates when the systemautomatically turns theheadlamp high beam on.
See What Is Automatic High BeamControl (page 84).
Battery
If it illuminates while driving, itindicates a malfunction. Switchoff all unnecessary electricalequipment and have the systemimmediately checked.
Blind Spot Information SystemIndicator
It illuminates when you switchthe system off.
See Blind Spot InformationSystem (page 197).
Brake System Warning Lamp
WARNING: Driving your vehiclewith the warning lamp on is dangerous.A significant decrease in brakingperformance may occur. It may take youlonger to stop your vehicle. Have yourvehicle checked as soon as possible.Driving extended distances with theparking brake engaged can cause brakefailure and the risk of personal injury.
Note:Indicators vary depending on region.
This lamp is a dual function lamp andilluminates when:
•You apply the parking brake with theignition on.
•Your vehicle has a brake fault or lowbrake fluid level, regardless of parkingbrake position.
If the lamp illuminates when youare moving, you may have theparking brake applied. Make surethe parking brake is off. Haveyour vehicle checked as soon aspossible if the lamp continues toilluminate.
94
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingInstrument ClusterE144524 E67017 E67020 E146105 E67021 E151262 E270480 E67024

Cruise Control Indicator
It illuminates when you switchthe system on.
See Switching Cruise ControlOn and Off (page 184).
Direction Indicator
It illuminates when you switchon the left or right directionindicator or the hazard warningflasher. Flashes during operation. Anincrease in the rate of flashing warns of afailed indicator bulb.
Door Ajar Warning Lamp
Displays when the ignition is onand any door is not completelyclosed.
Engine Coolant TemperatureWarning Lamp
If it illuminates when your vehicleis moving, this indicates that theengine is overheating. Stop yourvehicle as soon as it is safe to do so andswitch the engine off. Have your vehiclechecked as soon as possible.
Fasten Seatbelt Warning Lamp
It illuminates and a chimesounds until you fasten theseatbelts.
Front Fog Lamp Indicator (If Equipped)
It illuminates when you switchthe front fog lamps on.
Headlamp High Beam Indicator
It illuminates when you switchthe high beam headlamps on. Itflashes when you use theheadlamp flasher.
Hood Ajar
It illuminates when the ignitionis on and you do not have thehood completely closed.
Lane Keeping System Lamp
Illuminates when the systemactivates.
Launch Control
Illuminates when this feature isready, including both slip controland engine RPM hold.
Illuminates when only engineRPM hold is active. See TrackUse (page 285).
Low Beam Malfunction
Lights when there is amalfunction with the low beamheadlamp bulb.
Low Fuel Level Warning Lamp
If it illuminates when you aredriving, refuel as soon aspossible.
Low Tire Pressure Warning Lamp
Illuminates when your tirepressure is low. If the lampremains on with the enginerunning or when driving, check your tirepressure as soon as possible.
95
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingInstrument ClusterE71340 E67018 E103308 E71880 E67019 E159324 E144813 E234583 E255688 E181350 E139232

Stability Control and TractionControl Off Warning Lamp
Illuminates when you switch thesystem off.
Trunk Ajar
Illuminates when the ignition ison and you do not have the trunkcompletely closed.
AUDIBLE WARNINGS AND
INDICATORS
Keyless Warning Alert
The horn sounds twice when you exit yourvehicle with the passive key and yourvehicle is in ON, indicating your vehicle isstill on. The horn also sounds twice whenyou exit your vehicle and attempt to lockthe doors manually when the passive keyis still in the vehicle. The doors will not lockif the passive key remains in the vehicle.
Headlamps On Warning Tone
Sounds when you remove the key from thevehicle and you have left the headlampsor parking lamps on.
Parking Brake On Warning Tone
Sounds when you have left the parkingbrake on and drive your vehicle. If thewarning tone remains on after you releasethe parking brake, have the systemchecked by your authorized dealerimmediately.
Transmission Not in Park
Sounds when the gear selector is in anyposition other than park (P), and youswitch the vehicle ignition off or to theaccessory position. If the door is ajar, thetone is continuous. Once you close thedoor, the tone continues for a period oftime.
Direction Indicator Left On
Sounds when the direction indicator doesnot disengage after 2.0 mi (3.2 km) ofdriving.
Beltminder Warning
Sounds when the system detects anunfastened seatbelt in an occupied seatand your vehicle is moving.
97
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingInstrument ClusterE130458 E159323

•Without applying the brake pedal,press and release the button oncewhen the ignition is in the on mode, orwhen the engine is running but thevehicle is not moving.
On: All electrical circuits are operationaland the warning lamps and indicatorsilluminate.
•Without applying the brake pedal,press and release the button once.
Start: Starts the engine.
•Press the brake pedal (automatictransmission) or clutch pedal (manualtransmission), and then press thebutton for any length of time. Anindicator light on the button illuminateswhen the ignition is on and when theengine starts.
STEERING WHEEL LOCK (IF
EQUIPPED)
Your vehicle has an electronicallycontrolled steering wheel lock thatautomatically operates.
The steering wheel will lock shortly afteryou have parked your vehicle and thepassive key is outside it or when you lockyour vehicle.
Note:The steering wheel will not lock whenthe ignition is on or when your vehicle ismoving.
Unlocking the Steering Wheel
The steering wheel unlocks when thesystem detects a valid passive key insideyour vehicle. If the steering wheel relocks,switch the ignition on to unlock it.
Note:You may have to slightly rotate thesteering wheel to assist unlocking it.
STARTING A GASOLINE
ENGINE
When you start the engine, the idle speedincreases, this helps to warm up theengine. If the engine idle speed does notslow down, have your vehicle checked assoon as possible.
Note: You can crank the engine for a totalof 60 seconds without the engine startingbefore the starting system temporarilydisables. The 60 seconds does not have tobe all at once. For example, if you crank theengine three times for 20 seconds eachtime, without the engine starting, youreached the 60-second time limit. Amessage appears in the information displayalerting you that you exceeded the crankingtime. You cannot attempt to start theengine for at least 15 minutes. After 15minutes, you are limited to a 15-secondengine cranking time. You need to wait 60minutes before you can crank the engine for60 seconds again.
Before starting the engine, check thefollowing:
•Make sure all occupants have fastenedtheir seatbelts.
•Make sure the headlamps andelectrical accessories are off.
•Make sure the parking brake is on.
•Move the transmission selector leverto park (P) (automatic transmission)or neutral (N) (manual transmission)
Note:Do not touch the accelerator pedal.
Note:You must have your intelligent accesskey in the vehicle in order to shift thetransmission out of position P.
1.Fully press the brake pedal.
2.Press the button.
147
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingStarting and Stopping the Engine

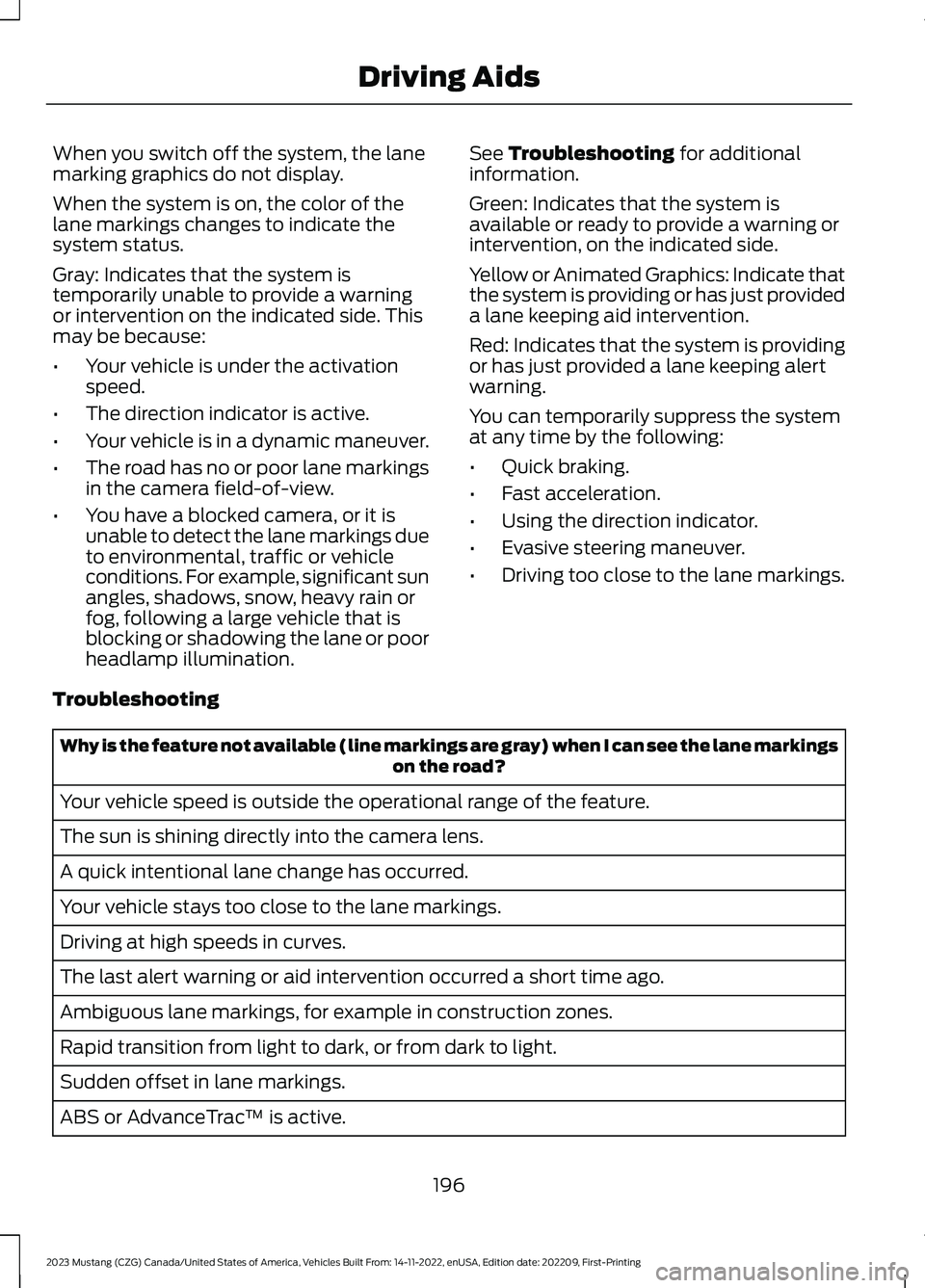

When you switch off the system, the lanemarking graphics do not display.
When the system is on, the color of thelane markings changes to indicate thesystem status.
Gray: Indicates that the system istemporarily unable to provide a warningor intervention on the indicated side. Thismay be because:
•Your vehicle is under the activationspeed.
•The direction indicator is active.
•Your vehicle is in a dynamic maneuver.
•The road has no or poor lane markingsin the camera field-of-view.
•You have a blocked camera, or it isunable to detect the lane markings dueto environmental, traffic or vehicleconditions. For example, significant sunangles, shadows, snow, heavy rain orfog, following a large vehicle that isblocking or shadowing the lane or poorheadlamp illumination.
See Troubleshooting for additionalinformation.
Green: Indicates that the system isavailable or ready to provide a warning orintervention, on the indicated side.
Yellow or Animated Graphics: Indicate thatthe system is providing or has just provideda lane keeping aid intervention.
Red: Indicates that the system is providingor has just provided a lane keeping alertwarning.
You can temporarily suppress the systemat any time by the following:
•Quick braking.
•Fast acceleration.
•Using the direction indicator.
•Evasive steering maneuver.
•Driving too close to the lane markings.
Troubleshooting
Why is the feature not available (line markings are gray) when I can see the lane markingson the road?
Your vehicle speed is outside the operational range of the feature.
The sun is shining directly into the camera lens.
A quick intentional lane change has occurred.
Your vehicle stays too close to the lane markings.
Driving at high speeds in curves.
The last alert warning or aid intervention occurred a short time ago.
Ambiguous lane markings, for example in construction zones.
Rapid transition from light to dark, or from dark to light.
Sudden offset in lane markings.
ABS or AdvanceTrac™ is active.
196
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingDriving Aids

Protected ComponentFuse RatingFuse or RelayNumber
Auxiliary power point.20A254
Electronic fan 2 (base).25A255
Not used (GT500).—
Not used.—56
Air conditioning clutch relay.—57
Not used.—58
Exhaust valves relay.—59
Powertrain control module.5A360
Not used.—61
Anti-lock brakes run/start switch.5A362
Not used.—63
Electronic power assist steering.5A364
Not used.—65
Blind spot information system.
5A366Rear view camera.Rear window defroster relay coils.Vehicle dynamics module.
Not used.—67
Headlamp leveling switch (base).10A368
Signature lighting (GT500).10A3
Cigar lighter relay.—69Auxiliary power point relay.
Mass air flow sensor (base).5A374
Not used (GT500).—
Rain sensor module (base).5A375
250
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingFuses

Protected ComponentFuse RatingFuse or RelayNumber
Not used.—1
Power windows.10A2Electrochromic mirror.Power door locks.
Power mirrors (base).7.5A3Memory seats (base).
Not used (GT500).—
Not used (spare).20A4
Not used.—5
Not used (spare).10A6
Not used (spare).10A7
Telematic control unit - modem.5A8
Not used.5A9
Not used.—10
Not used.—11
Electronic control panel.7.5A12Gateway module.Gear shift module (GT500).
Steering column control module.7.5A13Instrument cluster.
Not used.15A14
SYNC.15A15Gauges.
Not used.—16
Headlamp leveling switch (base).7.5A17
Not used (GT500).—
Not used.7.5A18
Not used.5A19
Intrusion sensor module.5A20
253
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingFuses

WARNING: Keep batteries out ofreach of children. Batteries containsulfuric acid. Avoid contact with skin,eyes or clothing. Shield your eyes whenworking near the battery to protectagainst possible splashing of acidsolution. In case of acid contact with skinor eyes, flush immediately with water fora minimum of 15 minutes and get promptmedical attention. If acid is swallowed,call a physician immediately.
WARNING: Battery posts,terminals and related accessoriescontain lead and lead compounds,chemicals known to the State ofCalifornia to cause cancer andreproductive harm.Wash your handsafter handling.
WARNING: This vehicle may havemore than one battery. Removing thebattery cables from only one batterydoes not disconnect your vehicleelectrical system. Make sure youdisconnect the battery cables from allbatteries when disconnecting power.Failure to do so may cause seriouspersonal injury or property damage.
WARNING: For vehicles withAuto-Start-Stop the battery requirementis different. You must replace the batterywith one of exactly the samespecification.
The battery is in the engine compartment.See Under Hood Overview (page 259).
Your vehicle has a maintenance-freebattery. It does not require additionalwater during service.
If the vehicle battery has a cover and venthose, make sure you correctly install it aftercleaning or replacing the battery.
For longer, trouble-free operation, keep thetop of the battery clean and dry and thebattery cables tightly fastened to thebattery terminals. If any corrosion ispresent on the battery or terminals, removethe cables from the terminals and cleanwith a wire brush. You can neutralize theacid with a solution of baking soda andwater.
We recommend that you disconnect thenegative battery cable terminal from thebattery if you plan to store your vehicle foran extended period.
Note:If you only disconnect the negativebattery cable terminal, make sure it isisolated or placed away from the batteryterminal to avoid unintended connection orarcing.
If you replace the battery make sure itmatches the electrical requirements ofyour vehicle.
If you disconnect or replace the batteryand your vehicle has an automatictransmission, it must relearn its adaptivestrategy. Because of this, the transmissionmay shift firmly when first driven. This isnormal operation while the transmissionfully updates its operation to optimumshift feel.
Battery Sensor Reset
When you install a new battery, reset thebattery sensor by doing the following:
1.Switch the ignition on, and leave theengine off.
Note:Complete Steps 2 and 3 within 10seconds.
2.Flash the high beam headlamps fivetimes, ending with the high beams off.
3.Press and release the brake pedal threetimes.
272
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingMaintenance

Note:Before reconnecting the battery,make sure the ignition remains switched off.
Note:Make sure to fully tighten the batterycables.
If you disconnect or replace the vehiclebattery, you must reset the followingfeatures:
•Window bounce-back. See PowerWindows (page 86).
•Clock Settings.
•Pre-set radio stations.
Battery Disposal
Make sure that you dispose ofold batteries in anenvironmentally friendly way.Seek advice from your local authorityabout recycling old batteries.
ADJUSTING THE HEADLAMPS
Vertical Aim Adjustment
The headlamps on your vehicle areproperly aimed at the assembly plant. Ifyour vehicle has been in an accident, havethe alignment of your headlamps checkedby an authorized dealer.
Headlamp Aiming Target
8 ft (2.4 m).A
Center height of lamp to ground.B
25 ft (7.6 m).C
Horizontal reference line.D
Vertical Aim Adjustment
1.Park the vehicle directly in front of awall or screen on a level surface,approximately 25 ft (7.6 m) away.
2.Measure the height from the center ofyour headlamp indicated by a 3 mmcircle on the lens to the ground andmark an 8 ft (2.4 m) horizontalreference line on the vertical wall orscreen at this height, a piece ofmasking tape works well.
Note:To see a clearer light pattern foradjusting, you may want to block the lightfrom one headlamp while adjusting theother.
3.Turn on the low beam headlamps toilluminate the wall or screen and openthe hood. Cover one of the headlampsso no light hits the wall.
274
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingMaintenanceE107998 E142592
