FORD MUSTANG 2023 Owners Manual

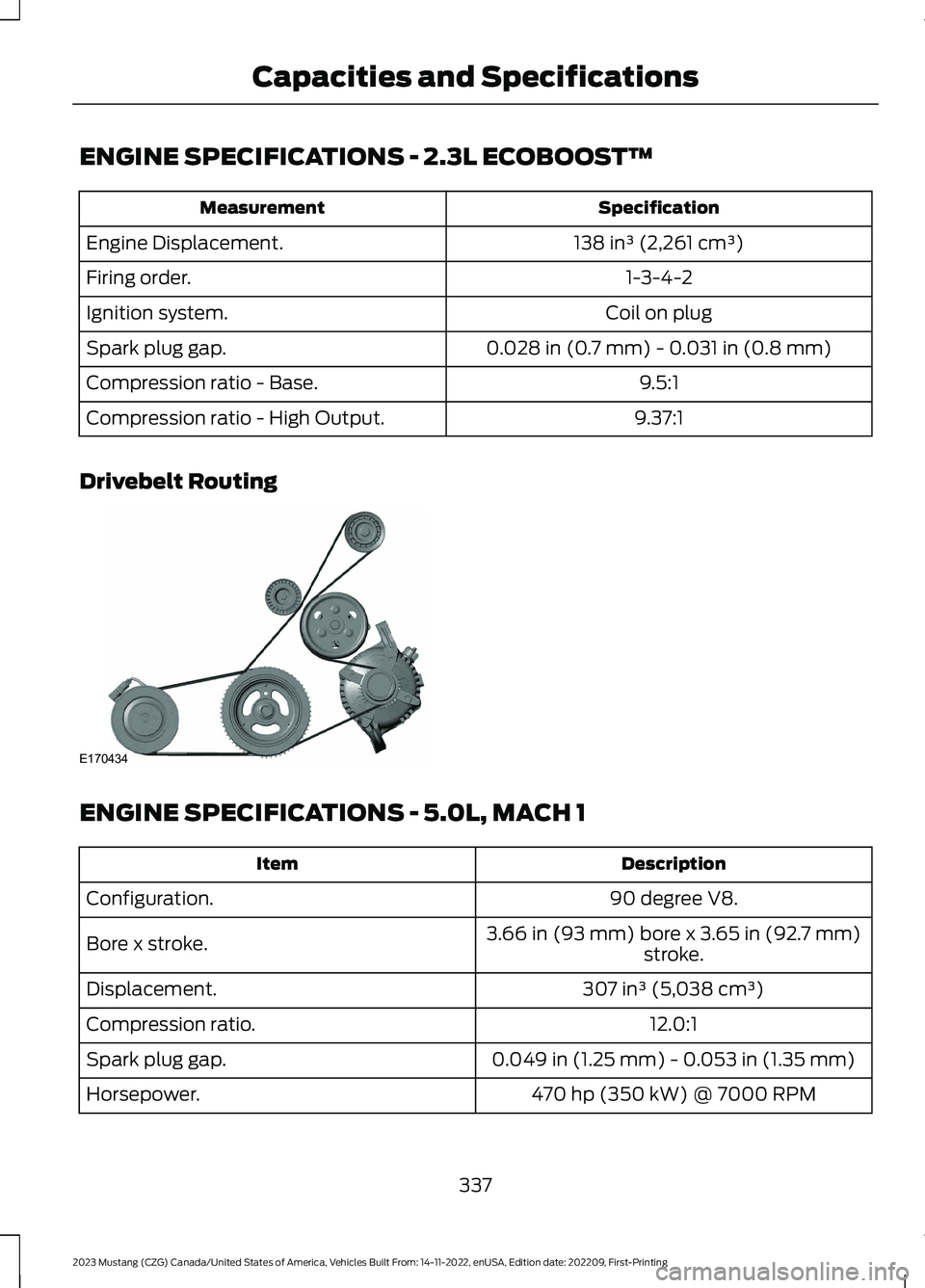

ENGINE SPECIFICATIONS - 2.3L ECOBOOST™
SpecificationMeasurement
138 in³ (2,261 cm³)Engine Displacement.
1-3-4-2Firing order.
Coil on plugIgnition system.
0.028 in (0.7 mm) - 0.031 in (0.8 mm)Spark plug gap.
9.5:1Compression ratio - Base.
9.37:1Compression ratio - High Output.
Drivebelt Routing
ENGINE SPECIFICATIONS - 5.0L, MACH 1
DescriptionItem
90 degree V8.Configuration.
3.66 in (93 mm) bore x 3.65 in (92.7 mm)stroke.Bore x stroke.
307 in³ (5,038 cm³)Displacement.
12.0:1Compression ratio.
0.049 in (1.25 mm) - 0.053 in (1.35 mm)Spark plug gap.
470 hp (350 kW) @ 7000 RPMHorsepower.
337
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingCapacities and SpecificationsE170434

DescriptionItem
415 lb.ft (563 Nm) @ 4600 RPMTorque.
7500 RPMRedline.
168 mph (270 km/h)Top speed with manual transmissionwithout gurney flap.
155 mph (249 km/h) Electronically limited.Top speed with automatic transmission.
Dual overhead cams - roller fingerfollowers.Valvetrain.
Coil on plug.Ignition.
3.4 in (87 mm)Throttle body.
Cast aluminum.Pistons.
Forged steel cross-plane.Crankshaft.
Forged steel.Connecting rods.
Naturally aspirated cold air induction.Induction.
High-flow dual exhaust with H-pipe andactive valve mufflers.Exhaust system.
Drivebelt Routing
338
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingCapacities and SpecificationsE198573

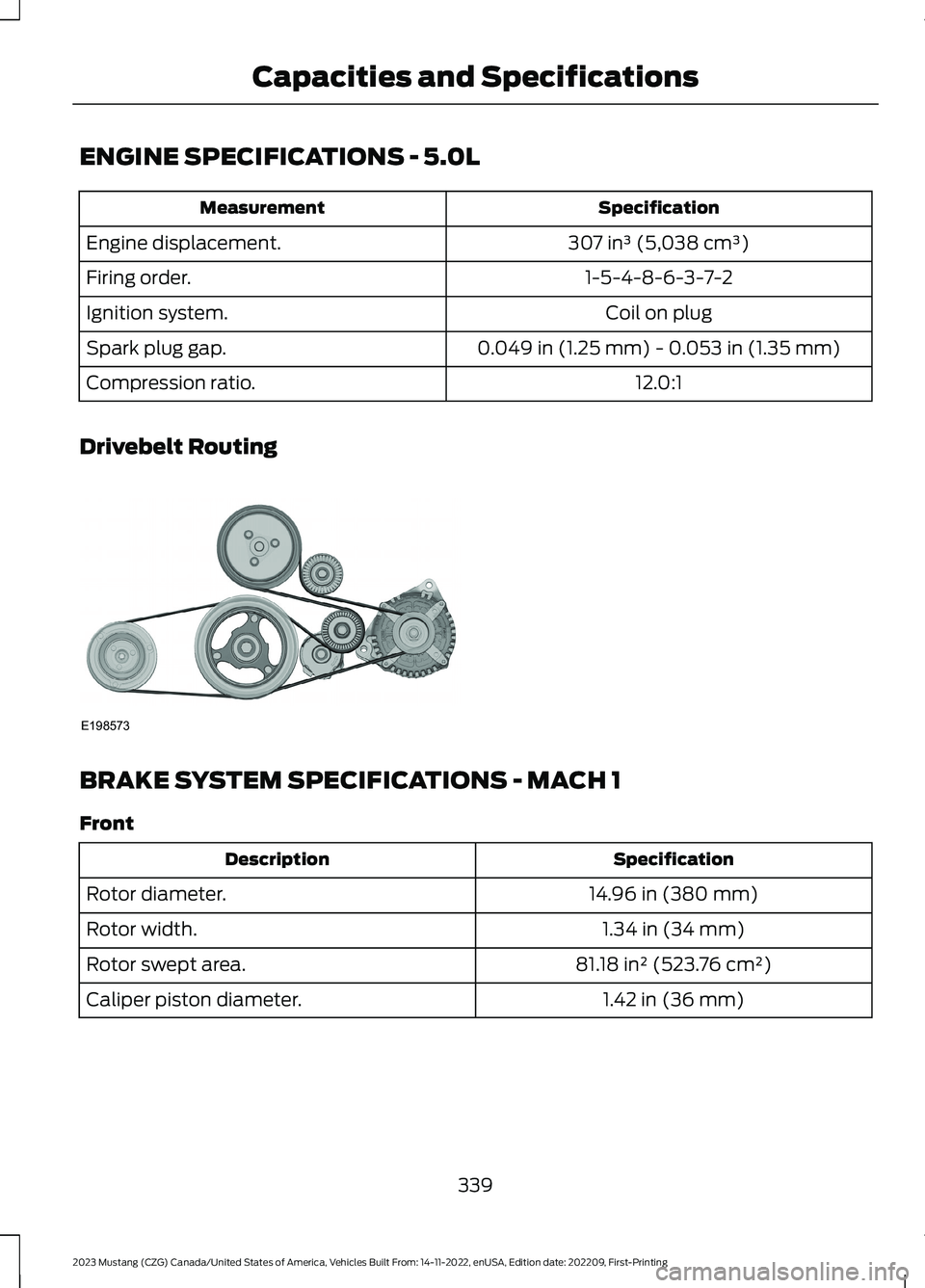

ENGINE SPECIFICATIONS - 5.0L
SpecificationMeasurement
307 in³ (5,038 cm³)Engine displacement.
1-5-4-8-6-3-7-2Firing order.
Coil on plugIgnition system.
0.049 in (1.25 mm) - 0.053 in (1.35 mm)Spark plug gap.
12.0:1Compression ratio.
Drivebelt Routing
BRAKE SYSTEM SPECIFICATIONS - MACH 1
Front
SpecificationDescription
14.96 in (380 mm)Rotor diameter.
1.34 in (34 mm)Rotor width.
81.18 in² (523.76 cm²)Rotor swept area.
1.42 in (36 mm)Caliper piston diameter.
339
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingCapacities and SpecificationsE198573

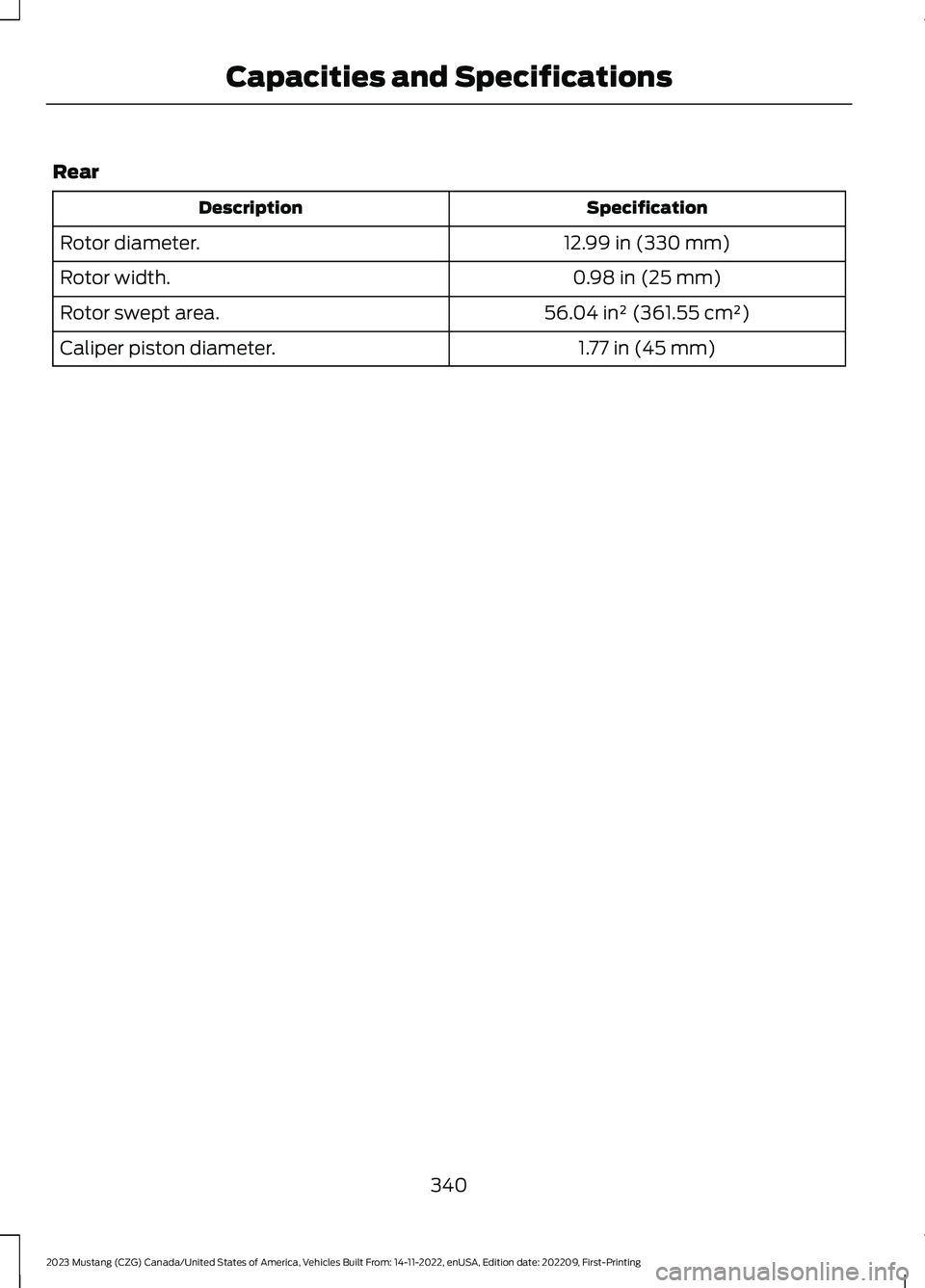

Rear
SpecificationDescription
12.99 in (330 mm)Rotor diameter.
0.98 in (25 mm)Rotor width.
56.04 in² (361.55 cm²)Rotor swept area.
1.77 in (45 mm)Caliper piston diameter.
340
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingCapacities and Specifications

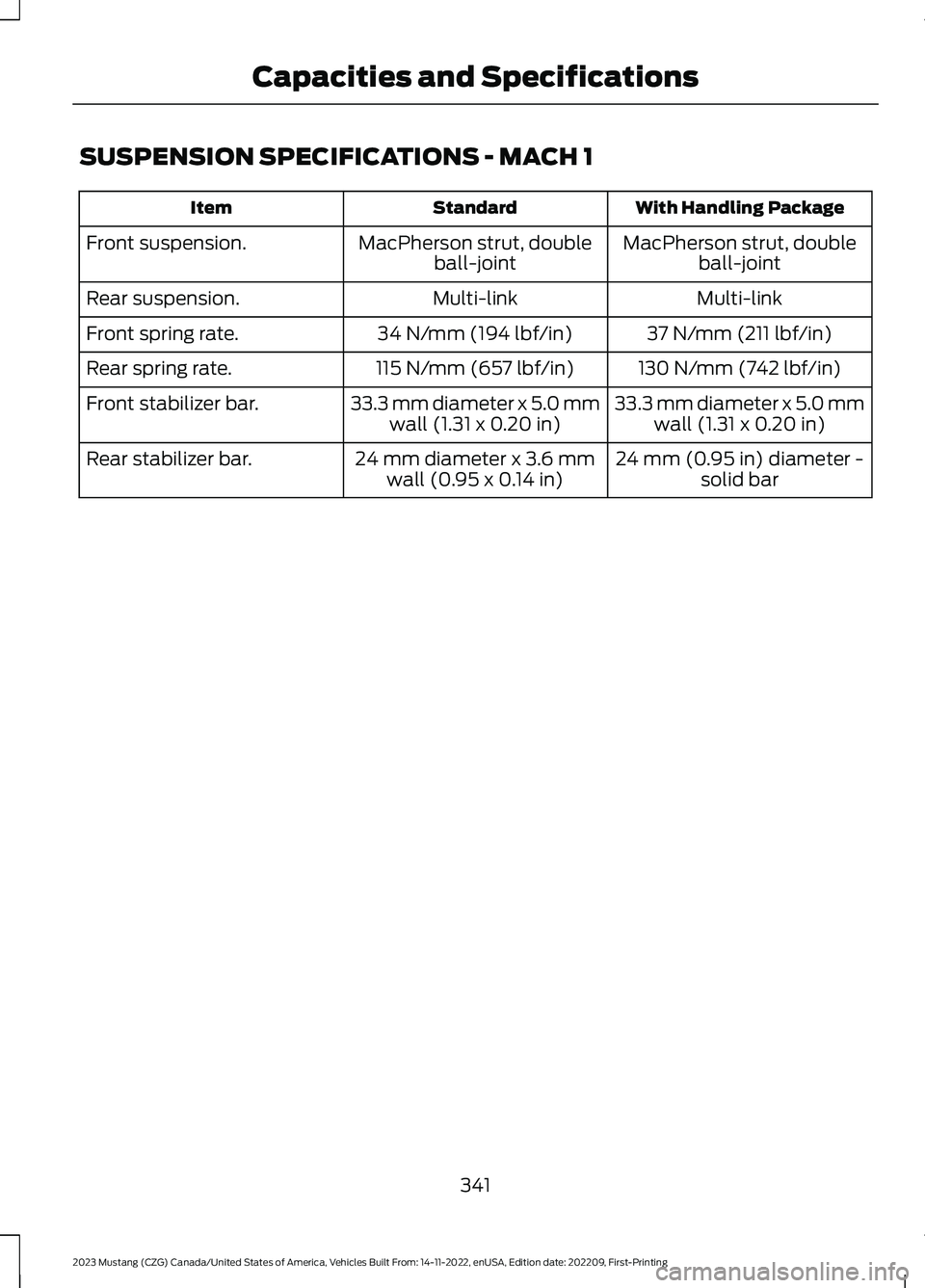

SUSPENSION SPECIFICATIONS - MACH 1
With Handling PackageStandardItem
MacPherson strut, doubleball-jointMacPherson strut, doubleball-jointFront suspension.
Multi-linkMulti-linkRear suspension.
37 N/mm (211 lbf/in)34 N/mm (194 lbf/in)Front spring rate.
130 N/mm (742 lbf/in)115 N/mm (657 lbf/in)Rear spring rate.
33.3 mm diameter x 5.0 mmwall (1.31 x 0.20 in)33.3 mm diameter x 5.0 mmwall (1.31 x 0.20 in)Front stabilizer bar.
24 mm (0.95 in) diameter -solid bar24 mm diameter x 3.6 mmwall (0.95 x 0.14 in)Rear stabilizer bar.
341
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingCapacities and Specifications

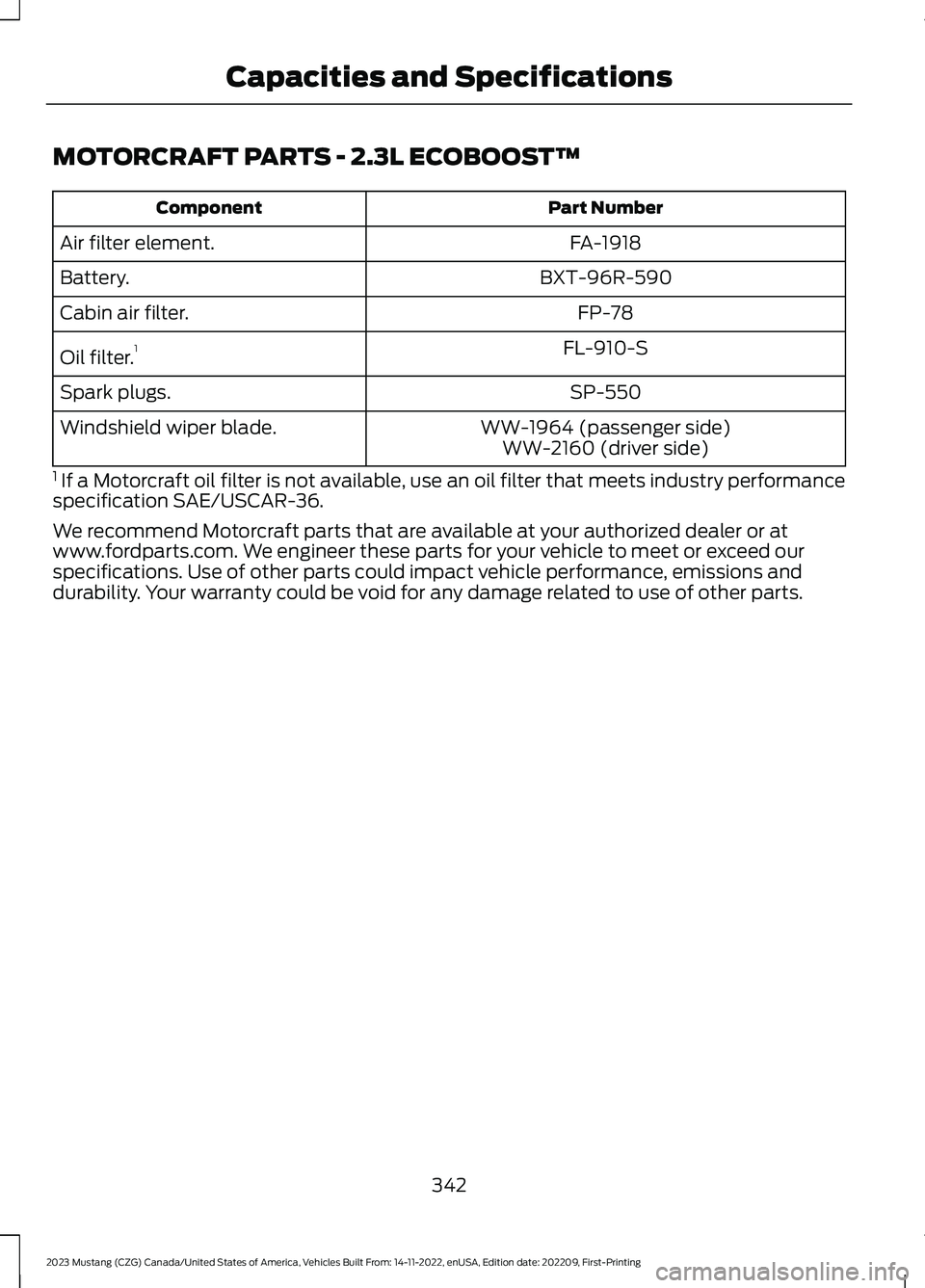

MOTORCRAFT PARTS - 2.3L ECOBOOST™
Part NumberComponent
FA-1918Air filter element.
BXT-96R-590Battery.
FP-78Cabin air filter.
FL-910-SOil filter.1
SP-550Spark plugs.
WW-1964 (passenger side)Windshield wiper blade.WW-2160 (driver side)
1 If a Motorcraft oil filter is not available, use an oil filter that meets industry performancespecification SAE/USCAR-36.
We recommend Motorcraft parts that are available at your authorized dealer or atwww.fordparts.com. We engineer these parts for your vehicle to meet or exceed ourspecifications. Use of other parts could impact vehicle performance, emissions anddurability. Your warranty could be void for any damage related to use of other parts.
342
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingCapacities and Specifications

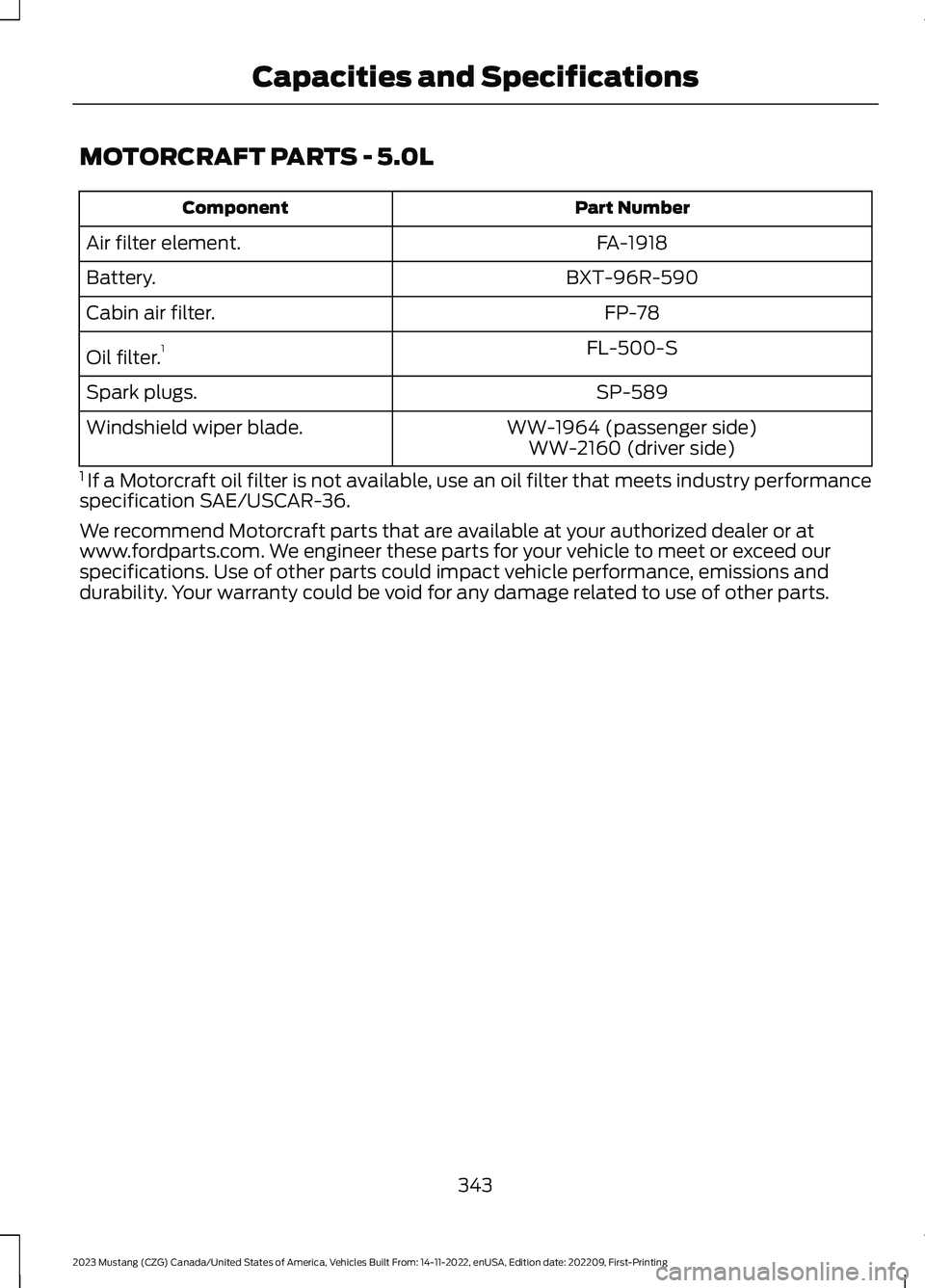

MOTORCRAFT PARTS - 5.0L
Part NumberComponent
FA-1918Air filter element.
BXT-96R-590Battery.
FP-78Cabin air filter.
FL-500-SOil filter.1
SP-589Spark plugs.
WW-1964 (passenger side)Windshield wiper blade.WW-2160 (driver side)
1 If a Motorcraft oil filter is not available, use an oil filter that meets industry performancespecification SAE/USCAR-36.
We recommend Motorcraft parts that are available at your authorized dealer or atwww.fordparts.com. We engineer these parts for your vehicle to meet or exceed ourspecifications. Use of other parts could impact vehicle performance, emissions anddurability. Your warranty could be void for any damage related to use of other parts.
343
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingCapacities and Specifications

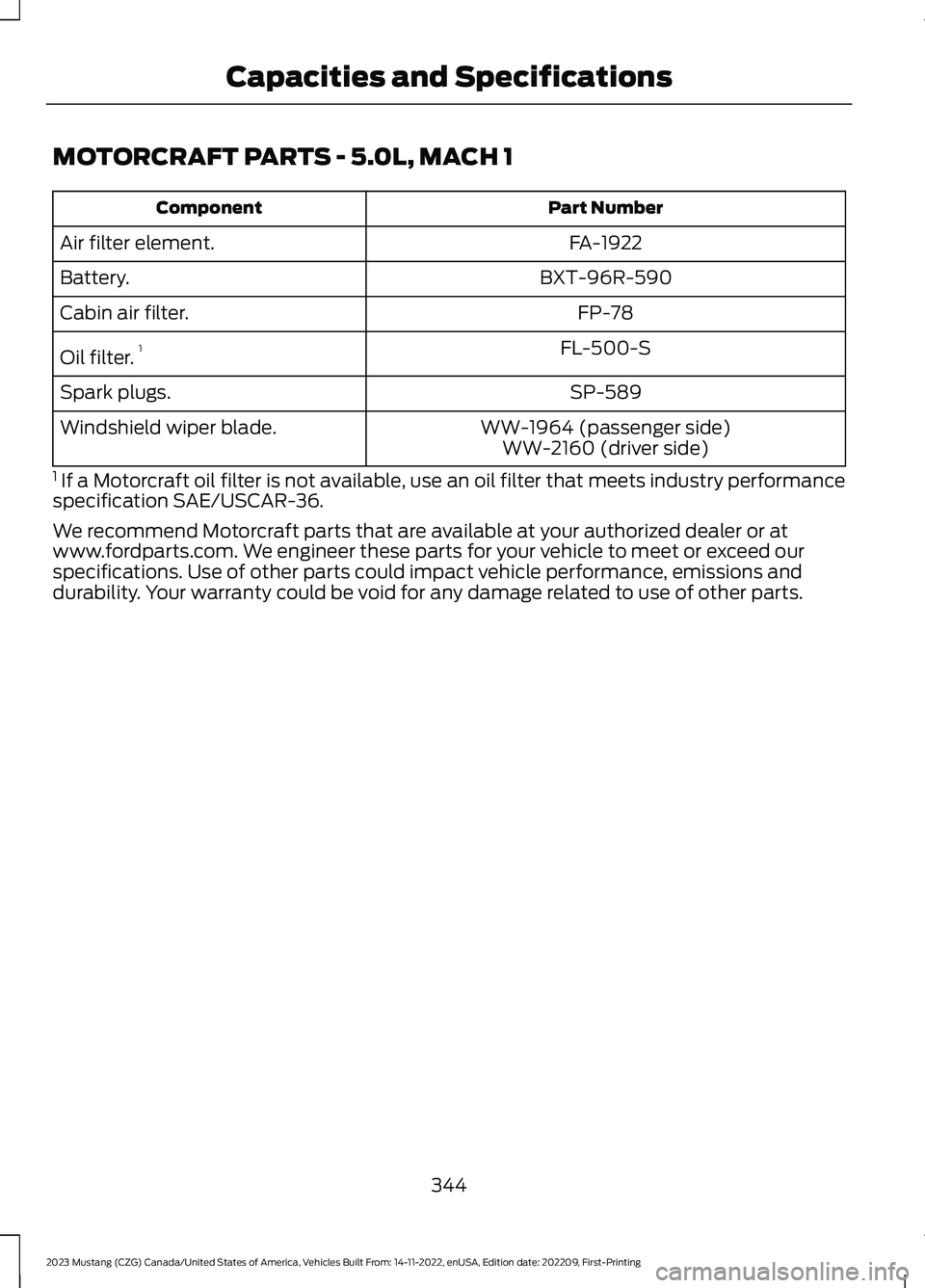

MOTORCRAFT PARTS - 5.0L, MACH 1
Part NumberComponent
FA-1922Air filter element.
BXT-96R-590Battery.
FP-78Cabin air filter.
FL-500-SOil filter.1
SP-589Spark plugs.
WW-1964 (passenger side)Windshield wiper blade.WW-2160 (driver side)
1 If a Motorcraft oil filter is not available, use an oil filter that meets industry performancespecification SAE/USCAR-36.
We recommend Motorcraft parts that are available at your authorized dealer or atwww.fordparts.com. We engineer these parts for your vehicle to meet or exceed ourspecifications. Use of other parts could impact vehicle performance, emissions anddurability. Your warranty could be void for any damage related to use of other parts.
344
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingCapacities and Specifications

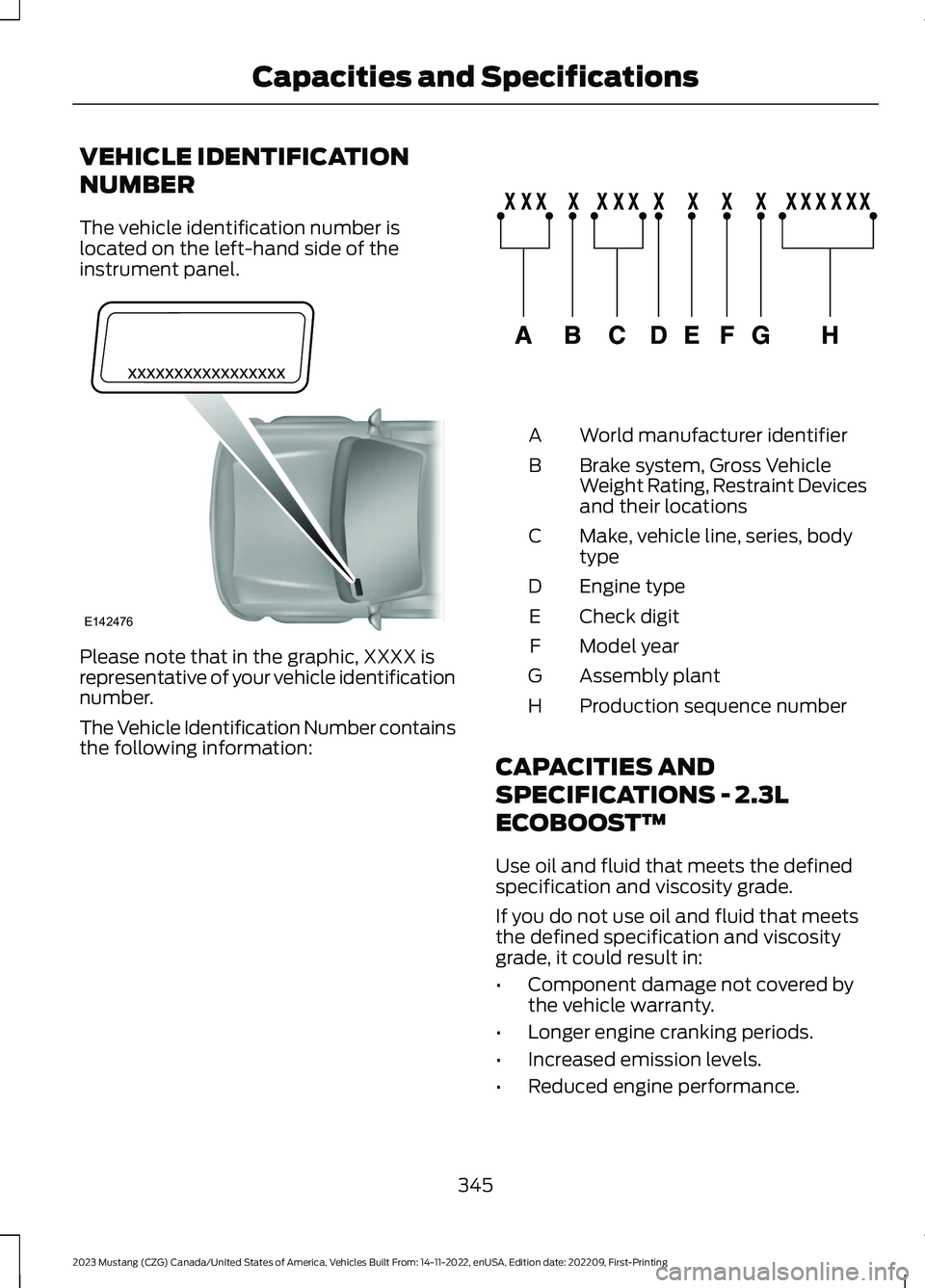

VEHICLE IDENTIFICATION
NUMBER
The vehicle identification number islocated on the left-hand side of theinstrument panel.
Please note that in the graphic, XXXX isrepresentative of your vehicle identificationnumber.
The Vehicle Identification Number containsthe following information:
World manufacturer identifierA
Brake system, Gross VehicleWeight Rating, Restraint Devicesand their locations
B
Make, vehicle line, series, bodytypeC
Engine typeD
Check digitE
Model yearF
Assembly plantG
Production sequence numberH
CAPACITIES AND
SPECIFICATIONS - 2.3L
ECOBOOST™
Use oil and fluid that meets the definedspecification and viscosity grade.
If you do not use oil and fluid that meetsthe defined specification and viscositygrade, it could result in:
•Component damage not covered bythe vehicle warranty.
•Longer engine cranking periods.
•Increased emission levels.
•Reduced engine performance.
345
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingCapacities and SpecificationsE142476 E142477

•Reduced fuel economy.
•Reduced brake performance.

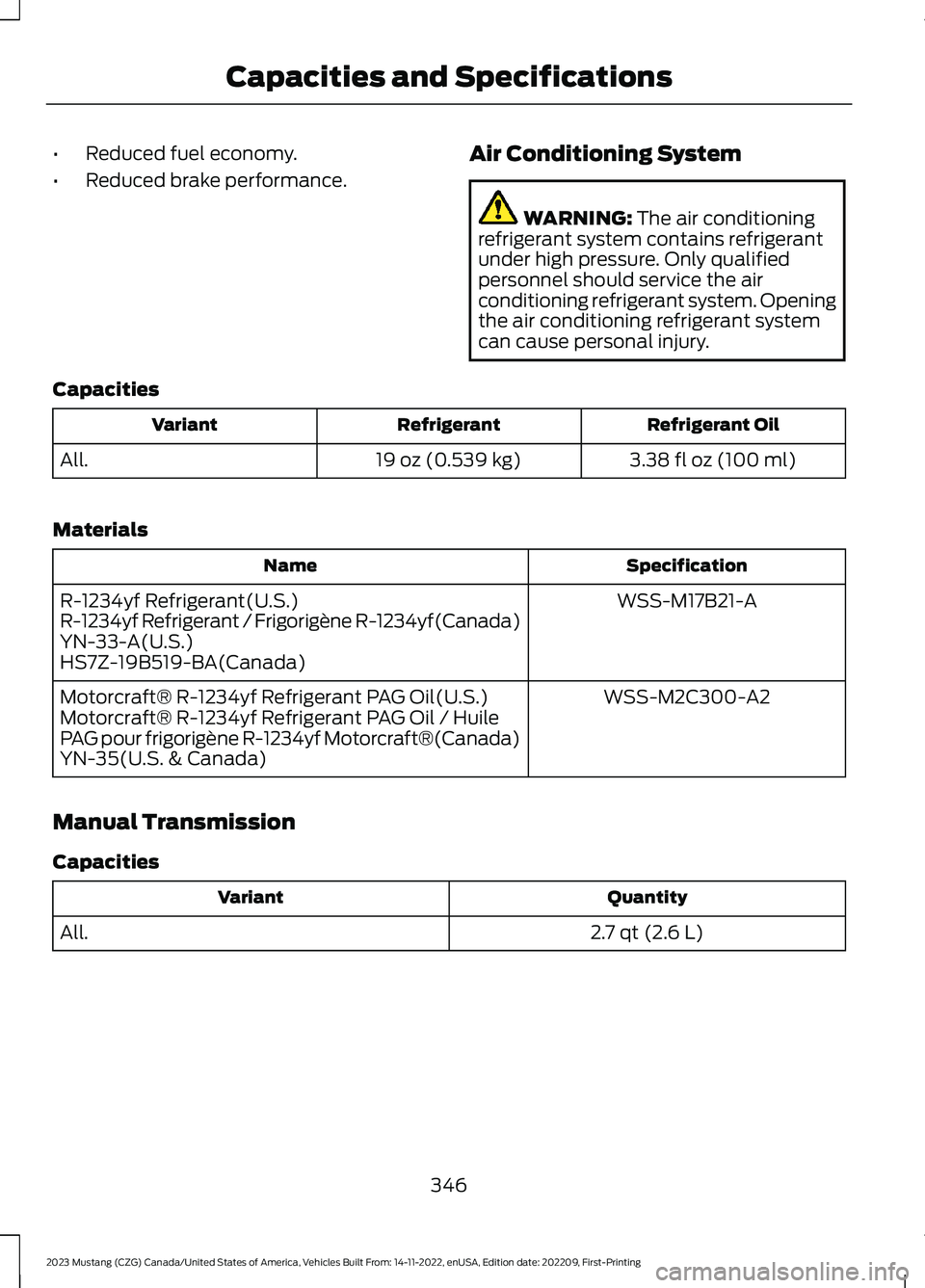

Air Conditioning System
WARNING: The air conditioningrefrigerant system contains refrigerantunder high pressure. Only qualifiedpersonnel should service the airconditioning refrigerant system. Openingthe air conditioning refrigerant systemcan cause personal injury.
Capacities
Refrigerant OilRefrigerantVariant
3.38 fl oz (100 ml)19 oz (0.539 kg)All.
Materials
SpecificationName
WSS-M17B21-AR-1234yf Refrigerant(U.S.)R-1234yf Refrigerant / Frigorigène R-1234yf(Canada)YN-33-A(U.S.)HS7Z-19B519-BA(Canada)
WSS-M2C300-A2Motorcraft® R-1234yf Refrigerant PAG Oil(U.S.)Motorcraft® R-1234yf Refrigerant PAG Oil / HuilePAG pour frigorigène R-1234yf Motorcraft®(Canada)YN-35(U.S. & Canada)
Manual Transmission
Capacities
QuantityVariant
2.7 qt (2.6 L)All.
346
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingCapacities and Specifications
