Materials
SpecificationName
WSS-M2C200-D2Motorcraft® Dual Clutch Transmission Fluid(U.S.)Motorcraft® Dual Clutch Transmission Fluid / Huilepour boîtes embrayage double Motor-craft®(Canada)XT-11-QDC(U.S. & Canada)
Engine Coolant
Capacities
QuantityVariant
9.5 qt (8.96 L)All.
Materials
SpecificationName
WSS-M97B57-A2Motorcraft® Yellow Prediluted Antifreeze/Coolant(U.S.)Motorcraft® Yellow Prediluted Antifreeze/Coolant/ Antigel/liquide de refroidissement prédilué jauneMotorcraft®(Canada)VC-13DL-G(U.S.)CVC-13DL-G(Canada)
Engine Oil 2.3L EcoBoost BaseAn oil that displays this symbol conformsto current engine, emission system andfuel economy performance standards ofILSAC.
We recommend Motorcraft® motor oil foryour vehicle. If Motorcraft® oil is notavailable, use motor oils of therecommended viscosity grade that displaythe API Certification Mark for gasolineengines.
Do not use supplemental engine oiladditives because they are unnecessaryand could lead to engine damage notcovered by your vehicle warranty.
347
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingCapacities and SpecificationsE142732

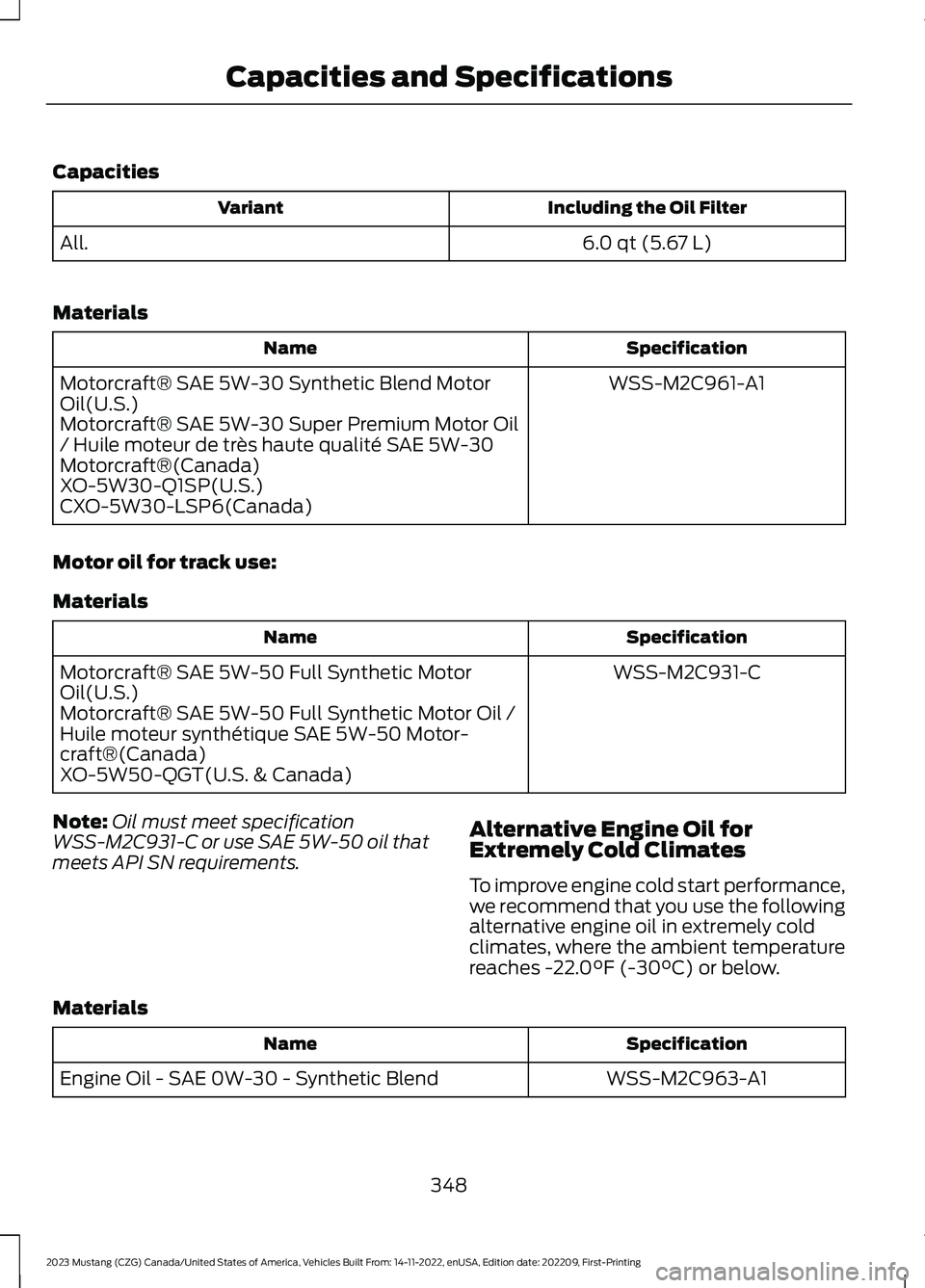

Capacities
Including the Oil FilterVariant
6.0 qt (5.67 L)All.
Materials
SpecificationName
WSS-M2C961-A1Motorcraft® SAE 5W-30 Synthetic Blend MotorOil(U.S.)Motorcraft® SAE 5W-30 Super Premium Motor Oil/ Huile moteur de très haute qualité SAE 5W-30Motorcraft®(Canada)XO-5W30-Q1SP(U.S.)CXO-5W30-LSP6(Canada)
Motor oil for track use:
Materials
SpecificationName
WSS-M2C931-CMotorcraft® SAE 5W-50 Full Synthetic MotorOil(U.S.)Motorcraft® SAE 5W-50 Full Synthetic Motor Oil /Huile moteur synthétique SAE 5W-50 Motor-craft®(Canada)XO-5W50-QGT(U.S. & Canada)
Note:Oil must meet specificationWSS-M2C931-C or use SAE 5W-50 oil thatmeets API SN requirements.
Alternative Engine Oil forExtremely Cold Climates
To improve engine cold start performance,we recommend that you use the followingalternative engine oil in extremely coldclimates, where the ambient temperaturereaches -22.0°F (-30°C) or below.
Materials
SpecificationName
WSS-M2C963-A1Engine Oil - SAE 0W-30 - Synthetic Blend
348
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingCapacities and Specifications

Note:If you use your vehicle regularly abovethe altitude of 7,500 ft (2,286 m) and underthe temperature of -4.0°F (-20°C), it isrecommended to use the alternative engineoil.
Engine Oil 2.3L EcoBoost HighOutput
An oil that displays this symbol conformsto current engine, emission system andfuel economy performance standards ofILSAC.
We recommend Motorcraft® motor oil foryour vehicle. If Motorcraft® oil is notavailable, use motor oils of therecommended viscosity grade that meetsAPI SN requirements.
Do not use supplemental engine oiladditives because they are unnecessaryand could lead to engine damage notcovered by your vehicle warranty.
Capacities
Including the Oil FilterVariant
6.0 qt (5.67 L)All.
349
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingCapacities and SpecificationsE240523 E300448

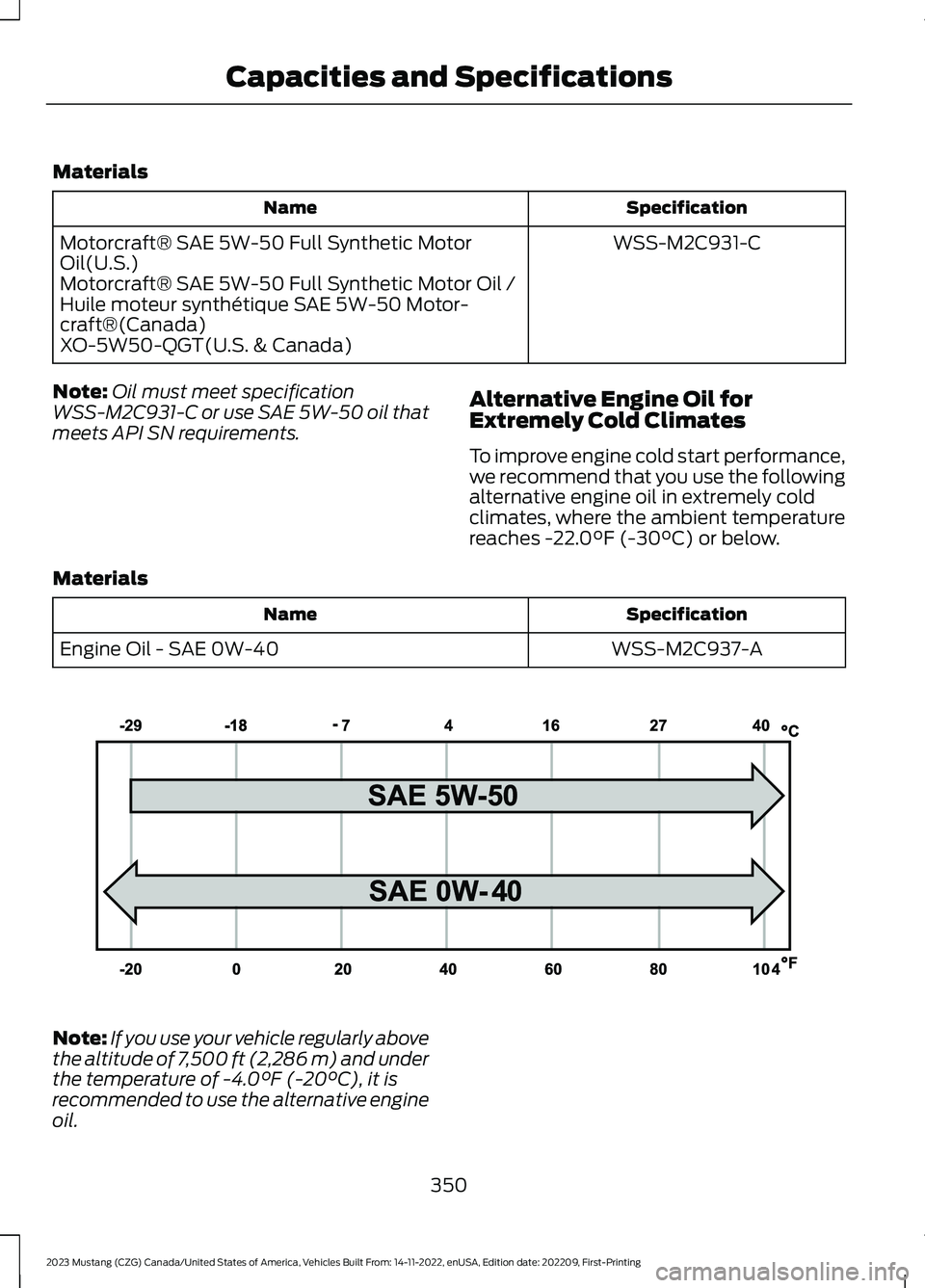

Materials
SpecificationName
WSS-M2C931-CMotorcraft® SAE 5W-50 Full Synthetic MotorOil(U.S.)Motorcraft® SAE 5W-50 Full Synthetic Motor Oil /Huile moteur synthétique SAE 5W-50 Motor-craft®(Canada)XO-5W50-QGT(U.S. & Canada)
Note:Oil must meet specificationWSS-M2C931-C or use SAE 5W-50 oil thatmeets API SN requirements.
Alternative Engine Oil forExtremely Cold Climates
To improve engine cold start performance,we recommend that you use the followingalternative engine oil in extremely coldclimates, where the ambient temperaturereaches -22.0°F (-30°C) or below.
Materials
SpecificationName
WSS-M2C937-AEngine Oil - SAE 0W-40
Note:If you use your vehicle regularly abovethe altitude of 7,500 ft (2,286 m) and underthe temperature of -4.0°F (-20°C), it isrecommended to use the alternative engineoil.
350
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingCapacities and SpecificationsE300343

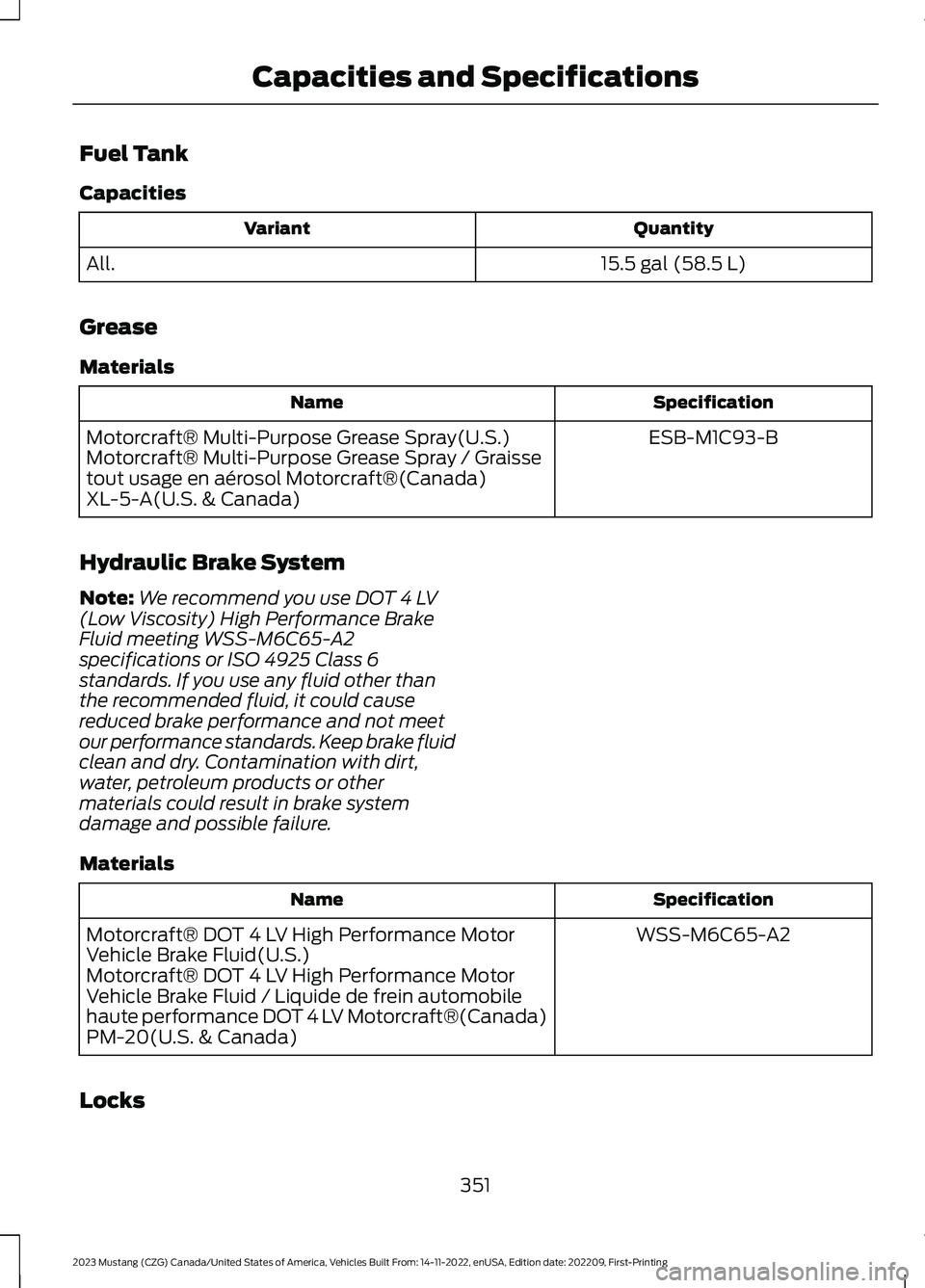

Fuel Tank
Capacities
QuantityVariant
15.5 gal (58.5 L)All.
Grease
Materials
SpecificationName
ESB-M1C93-BMotorcraft® Multi-Purpose Grease Spray(U.S.)Motorcraft® Multi-Purpose Grease Spray / Graissetout usage en aérosol Motorcraft®(Canada)XL-5-A(U.S. & Canada)
Hydraulic Brake System
Note:We recommend you use DOT 4 LV(Low Viscosity) High Performance BrakeFluid meeting WSS-M6C65-A2specifications or ISO 4925 Class 6standards. If you use any fluid other thanthe recommended fluid, it could causereduced brake performance and not meetour performance standards. Keep brake fluidclean and dry. Contamination with dirt,water, petroleum products or othermaterials could result in brake systemdamage and possible failure.
Materials
SpecificationName
WSS-M6C65-A2Motorcraft® DOT 4 LV High Performance MotorVehicle Brake Fluid(U.S.)Motorcraft® DOT 4 LV High Performance MotorVehicle Brake Fluid / Liquide de frein automobilehaute performance DOT 4 LV Motorcraft®(Canada)PM-20(U.S. & Canada)
Locks
351
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingCapacities and Specifications

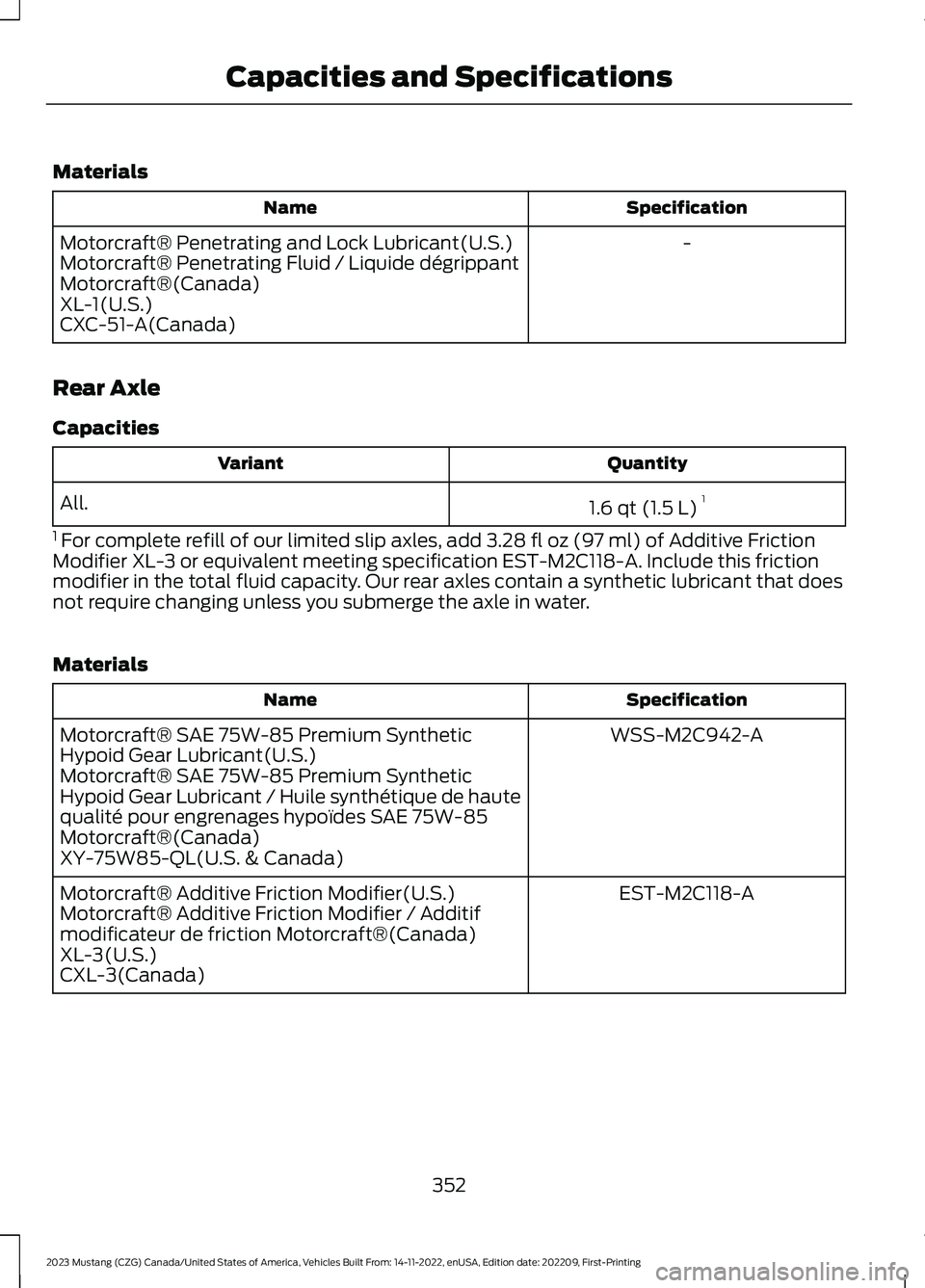

Materials
SpecificationName
-Motorcraft® Penetrating and Lock Lubricant(U.S.)Motorcraft® Penetrating Fluid / Liquide dégrippantMotorcraft®(Canada)XL-1(U.S.)CXC-51-A(Canada)
Rear Axle
Capacities
QuantityVariant
1.6 qt (1.5 L)1All.
1 For complete refill of our limited slip axles, add 3.28 fl oz (97 ml) of Additive FrictionModifier XL-3 or equivalent meeting specification EST-M2C118-A. Include this frictionmodifier in the total fluid capacity. Our rear axles contain a synthetic lubricant that doesnot require changing unless you submerge the axle in water.
Materials
SpecificationName
WSS-M2C942-AMotorcraft® SAE 75W-85 Premium SyntheticHypoid Gear Lubricant(U.S.)Motorcraft® SAE 75W-85 Premium SyntheticHypoid Gear Lubricant / Huile synthétique de hautequalité pour engrenages hypoïdes SAE 75W-85Motorcraft®(Canada)XY-75W85-QL(U.S. & Canada)
EST-M2C118-AMotorcraft® Additive Friction Modifier(U.S.)Motorcraft® Additive Friction Modifier / Additifmodificateur de friction Motorcraft®(Canada)XL-3(U.S.)CXL-3(Canada)
352
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingCapacities and Specifications

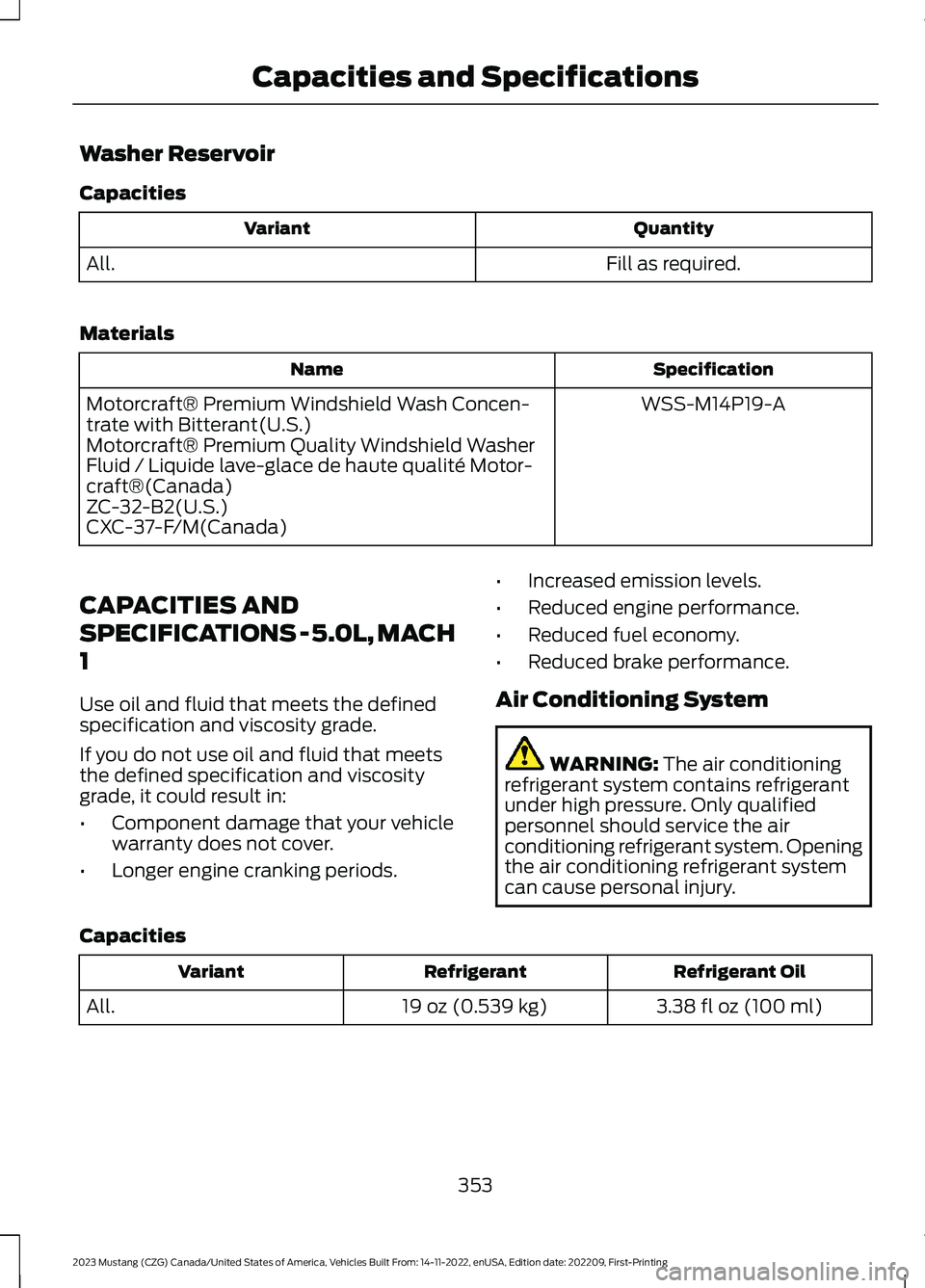

Washer Reservoir
Capacities
QuantityVariant
Fill as required.All.
Materials
SpecificationName
WSS-M14P19-AMotorcraft® Premium Windshield Wash Concen-trate with Bitterant(U.S.)Motorcraft® Premium Quality Windshield WasherFluid / Liquide lave-glace de haute qualité Motor-craft®(Canada)ZC-32-B2(U.S.)CXC-37-F/M(Canada)
CAPACITIES AND
SPECIFICATIONS - 5.0L, MACH
1
Use oil and fluid that meets the definedspecification and viscosity grade.
If you do not use oil and fluid that meetsthe defined specification and viscositygrade, it could result in:
•Component damage that your vehiclewarranty does not cover.
•Longer engine cranking periods.
•Increased emission levels.
•Reduced engine performance.
•Reduced fuel economy.
•Reduced brake performance.
Air Conditioning System
WARNING: The air conditioningrefrigerant system contains refrigerantunder high pressure. Only qualifiedpersonnel should service the airconditioning refrigerant system. Openingthe air conditioning refrigerant systemcan cause personal injury.
Capacities
Refrigerant OilRefrigerantVariant
3.38 fl oz (100 ml)19 oz (0.539 kg)All.
353
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingCapacities and Specifications

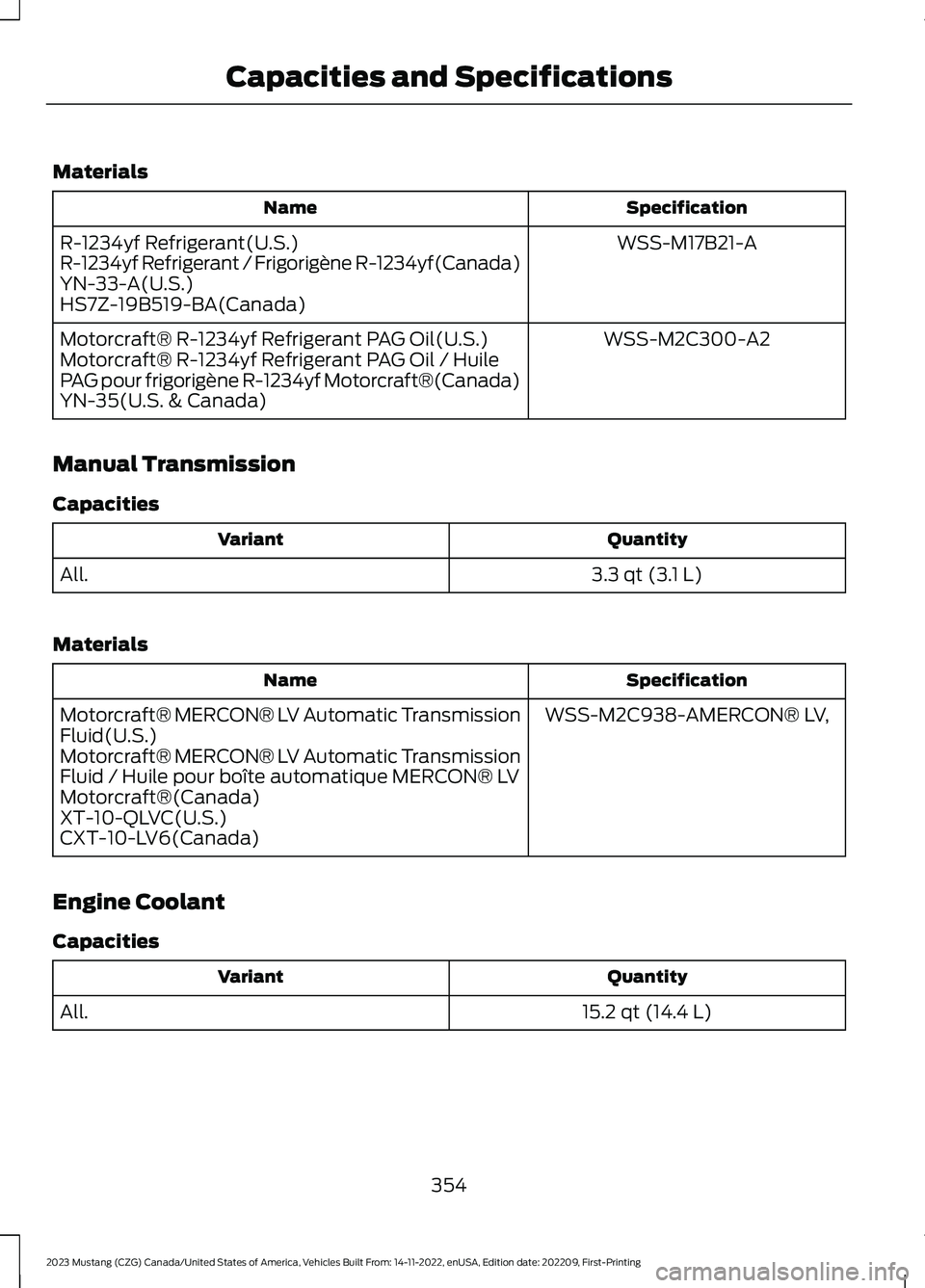

Materials
SpecificationName
WSS-M17B21-AR-1234yf Refrigerant(U.S.)R-1234yf Refrigerant / Frigorigène R-1234yf(Canada)YN-33-A(U.S.)HS7Z-19B519-BA(Canada)
WSS-M2C300-A2Motorcraft® R-1234yf Refrigerant PAG Oil(U.S.)Motorcraft® R-1234yf Refrigerant PAG Oil / HuilePAG pour frigorigène R-1234yf Motorcraft®(Canada)YN-35(U.S. & Canada)
Manual Transmission
Capacities
QuantityVariant
3.3 qt (3.1 L)All.
Materials
SpecificationName
WSS-M2C938-AMERCON® LV,Motorcraft® MERCON® LV Automatic TransmissionFluid(U.S.)Motorcraft® MERCON® LV Automatic TransmissionFluid / Huile pour boîte automatique MERCON® LVMotorcraft®(Canada)XT-10-QLVC(U.S.)CXT-10-LV6(Canada)
Engine Coolant
Capacities
QuantityVariant
15.2 qt (14.4 L)All.
354
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingCapacities and Specifications

Materials
SpecificationName
WSS-M97B57-A2Motorcraft® Yellow Prediluted Antifreeze/Coolant(U.S.)Motorcraft® Yellow Prediluted Antifreeze/Coolant/ Antigel/liquide de refroidissement prédilué jauneMotorcraft®(Canada)VC-13DL-G(U.S.)CVC-13DL-G(Canada)
Engine OilAn oil that displays this symbol conformsto current engine, emission system andfuel economy performance standards ofILSAC.
We recommend Motorcraft® motor oil foryour vehicle. If Motorcraft® oil is notavailable, use motor oils of therecommended viscosity grade that displaythe API Certification Mark for gasolineengines.
Do not use supplemental engine oiladditives because they are unnecessaryand could lead to engine damage that yourvehicle warranty does not cover.
Capacities
Including the Oil FilterVariant
10.0 qt (9.5 L)All.
Materials
SpecificationName
WSS-M2C961-A1Motorcraft® SAE 5W-30 Synthetic Blend MotorOil(U.S.)Motorcraft® SAE 5W-30 Super Premium Motor Oil/ Huile moteur de très haute qualité SAE 5W-30Motorcraft®(Canada)XO-5W30-Q1SP(U.S.)CXO-5W30-LSP6(Canada)
355
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingCapacities and SpecificationsE142732

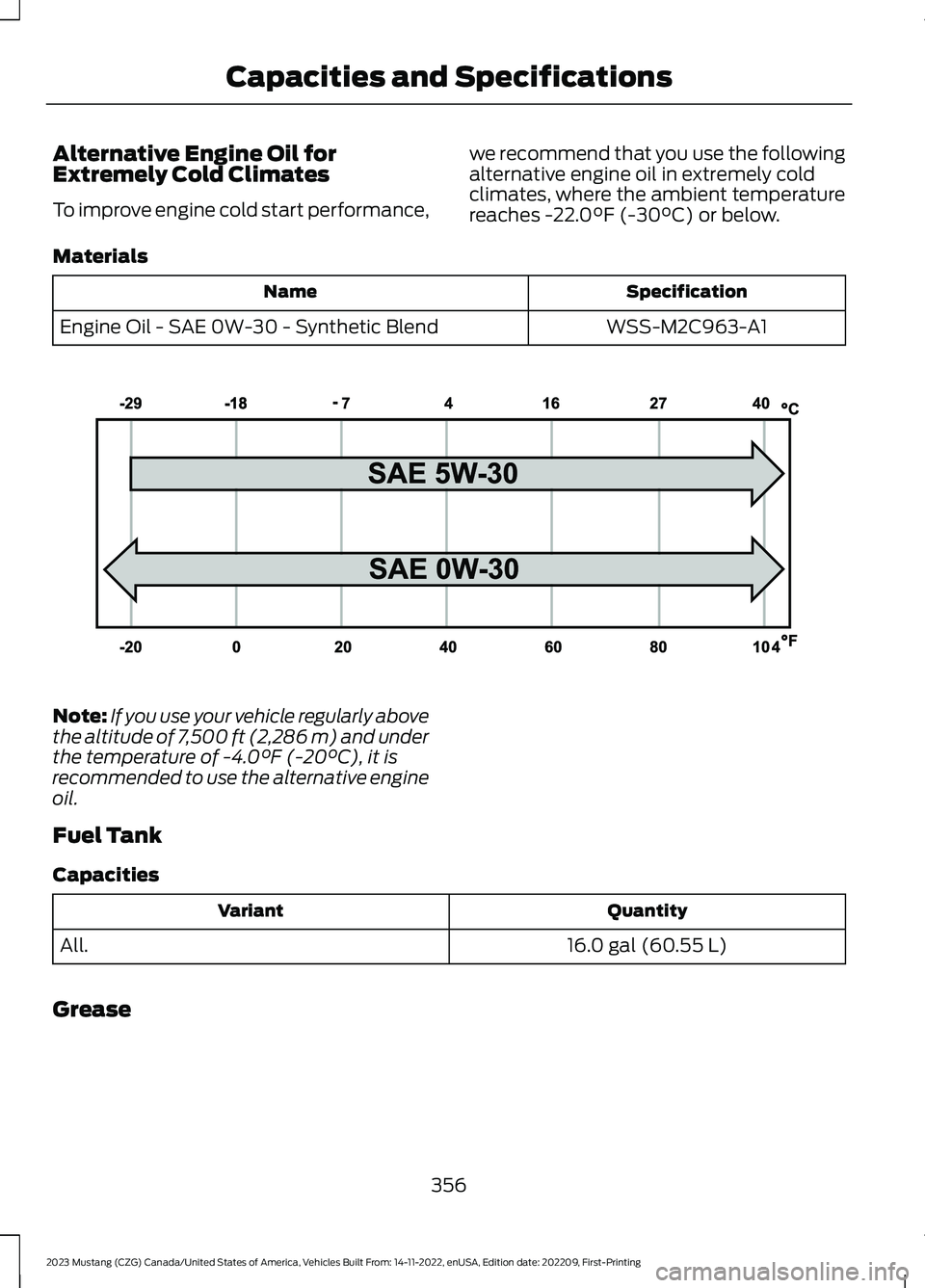

Alternative Engine Oil forExtremely Cold Climates
To improve engine cold start performance,
we recommend that you use the followingalternative engine oil in extremely coldclimates, where the ambient temperaturereaches -22.0°F (-30°C) or below.
Materials
SpecificationName
WSS-M2C963-A1Engine Oil - SAE 0W-30 - Synthetic Blend
Note:If you use your vehicle regularly abovethe altitude of 7,500 ft (2,286 m) and underthe temperature of -4.0°F (-20°C), it isrecommended to use the alternative engineoil.
Fuel Tank
Capacities
QuantityVariant
16.0 gal (60.55 L)All.
Grease
356
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingCapacities and SpecificationsE240523
