WHAT IS SPEED SIGN
RECOGNITION
Speed sign recognition detects speed limit
signs to inform you of the current speed
limit. Detected speed signs appear in the
information display.
HOW DOES SPEED SIGN
RECOGNITION WORK
Speed sign recognition uses a sensor
behind the interior mirror to detect speed
signs.
If your vehicle has speed sign recognition
with navigation, stored speed sign data
may influence the indicated speed limit
value.
SPEED SIGN RECOGNITION
PRECAUTIONS
WARNING: You are responsible for
controlling your vehicle at all times. The
system is designed to be an aid and does
not relieve you of your responsibility to
drive with due care and attention. Failure
to follow this instruction could result in
the loss of control of your vehicle,
personal injury or death. WARNING: In cold and severe
weather conditions the system may not
function. Rain, snow and spray can all
limit sensor performance. WARNING:
The system may not
operate properly if the sensor is blocked.
Keep the windshield free from
obstruction. Note:
Do not carry out windshield repairs
in the immediate area surrounding the
sensor.
Note: If your vehicle has a suspension kit
not approved by us, the system may not
correctly function.
Note: The system may not detect all speed
signs and may incorrectly read signs.
Note: Always fit our original parts when
replacing headlamp bulbs. Other bulbs may
reduce system performance.
SPEED SIGN RECOGNITION
LIMITATIONS
Speed sign recognition may not operate
correctly due to:
• Outdated map data.
• Incorrect recognition of speed limits by
the sensor of signs on parallel roads or
exit ramps.
• Missed recognition of faded, dirty, or
distorted signs.
SPEED SIGN RECOGNITION
INDICATORS When the system detects a speed limit
sign, it appears in the information display.
267
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Speed Sign RecognitionE317824

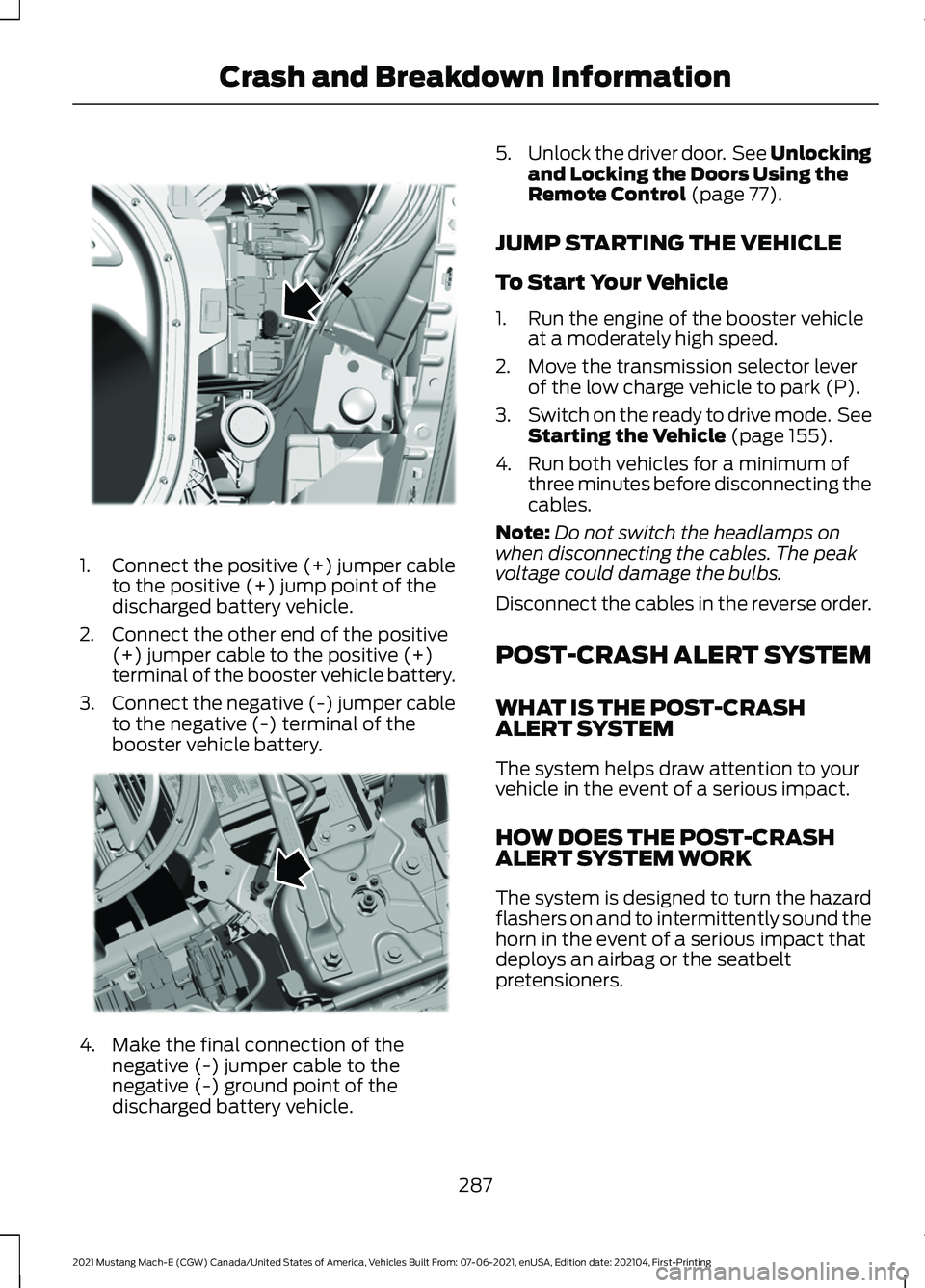

1.
Connect the positive (+) jumper cable
to the positive (+) jump point of the
discharged battery vehicle.
2. Connect the other end of the positive (+) jumper cable to the positive (+)
terminal of the booster vehicle battery.
3. Connect the negative (-) jumper cable
to the negative (-) terminal of the
booster vehicle battery. 4. Make the final connection of the
negative (-) jumper cable to the
negative (-) ground point of the
discharged battery vehicle. 5.
Unlock the driver door. See Unlocking
and Locking the Doors Using the
Remote Control (page 77).
JUMP STARTING THE VEHICLE
To Start Your Vehicle
1. Run the engine of the booster vehicle at a moderately high speed.
2. Move the transmission selector lever of the low charge vehicle to park (P).
3. Switch on the ready to drive mode. See
Starting the Vehicle
(page 155).
4. Run both vehicles for a minimum of three minutes before disconnecting the
cables.
Note: Do not switch the headlamps on
when disconnecting the cables. The peak
voltage could damage the bulbs.
Disconnect the cables in the reverse order.
POST-CRASH ALERT SYSTEM
WHAT IS THE POST-CRASH
ALERT SYSTEM
The system helps draw attention to your
vehicle in the event of a serious impact.
HOW DOES THE POST-CRASH
ALERT SYSTEM WORK
The system is designed to turn the hazard
flashers on and to intermittently sound the
horn in the event of a serious impact that
deploys an airbag or the seatbelt
pretensioners.
287
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Crash and Breakdown InformationE338767 E338540

Protected Component
Fuse
Rating
Fuse
Location
Not used.
—
9
Not used.
—
10
Powertrain control module.
15 A
11
Not used.
—
12
AC electric compressor.
15 A
13
Active grille shutter.
Powertrain control module heater cooling pump.
Powertrain control module heater shut off valve.
Secondary drive unit transmission oil pump (GT).
15 A
14
Not used.
—
15
Battery charge control module.
10 A
16
Not used.
—
17
Powertrain control module.
10 A
18
Brake system control module.
10 A
19
Charge port status indicator.
5 A
20
Front luggage compartment actuator relay coil.
5 A
21
Amplifier.
20 A
22
Rear driver side electronic door.
20 A
23
Not used.
—
24
Left-hand enhanced headlamps.
25 A
25
Right-hand enhanced headlamps.
25 A
26
Keep alive power.
5 A
27
Front luggage compartment actuator relay coil.
5 A
28
DC/DC converter.
5 A
29
Not used.
—
30
Electronic power assist steering.
5 A
31
Body control module.
30 A
32
294
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Fuses

Protected Component
Fuse
Rating
Fuse
Location
Advanced driver assistance system.
20 A
33
Headlamp control module.
10 A
34
Heated steering wheel.
15 A
35
Primary hybrid powertrain control module.
10 A
36
Auxiliary power distribution box.
Secondary hybrid powertrain control module.
Horn.
20 A
37
Blower motor.
40 A
38
Not used.
—
39
Not used.
—
40
Amplifier.
20 A
41
Driver power seat.
30 A
42
Anti-lock brake system valves.
40 A
43
Auxiliary power distribution box.
60 A
44
Passenger power seat.
30 A
45
Not used.
—
46
Not used.
—
47
Not used.
—
48
Anti-lock brake system pump.
60 A
49
Cooling fan.
60 A
50
Not used.
—
51
USB port.
5 A
52
Not used.
—
53
Not used.
—
54
Heated seats.
30 A
55
Front luggage compartment module.
20 A
56
Data link connector.
10 A
57
295
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Fuses

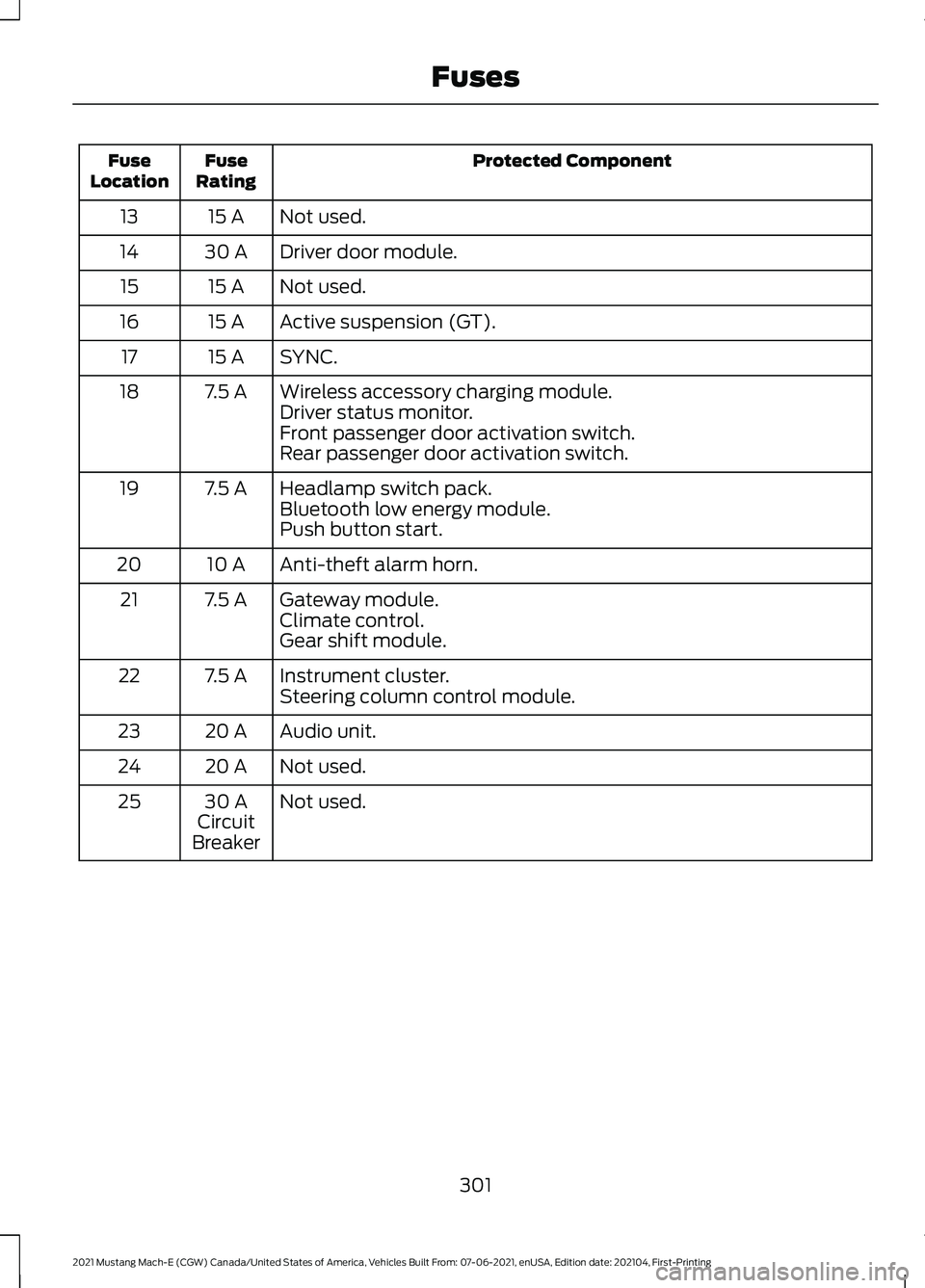

Protected Component
Fuse
Rating
Fuse
Location
Not used.
15 A
13
Driver door module.
30 A
14
Not used.
15 A
15
Active suspension (GT).
15 A
16
SYNC.
15 A
17
Wireless accessory charging module.
7.5 A
18
Driver status monitor.
Front passenger door activation switch.
Rear passenger door activation switch.
Headlamp switch pack.
7.5 A
19
Bluetooth low energy module.
Push button start.
Anti-theft alarm horn.
10 A
20
Gateway module.
7.5 A
21
Climate control.
Gear shift module.
Instrument cluster.
7.5 A
22
Steering column control module.
Audio unit.
20 A
23
Not used.
20 A
24
Not used.
30 A
Circuit
Breaker
25
301
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Fuses

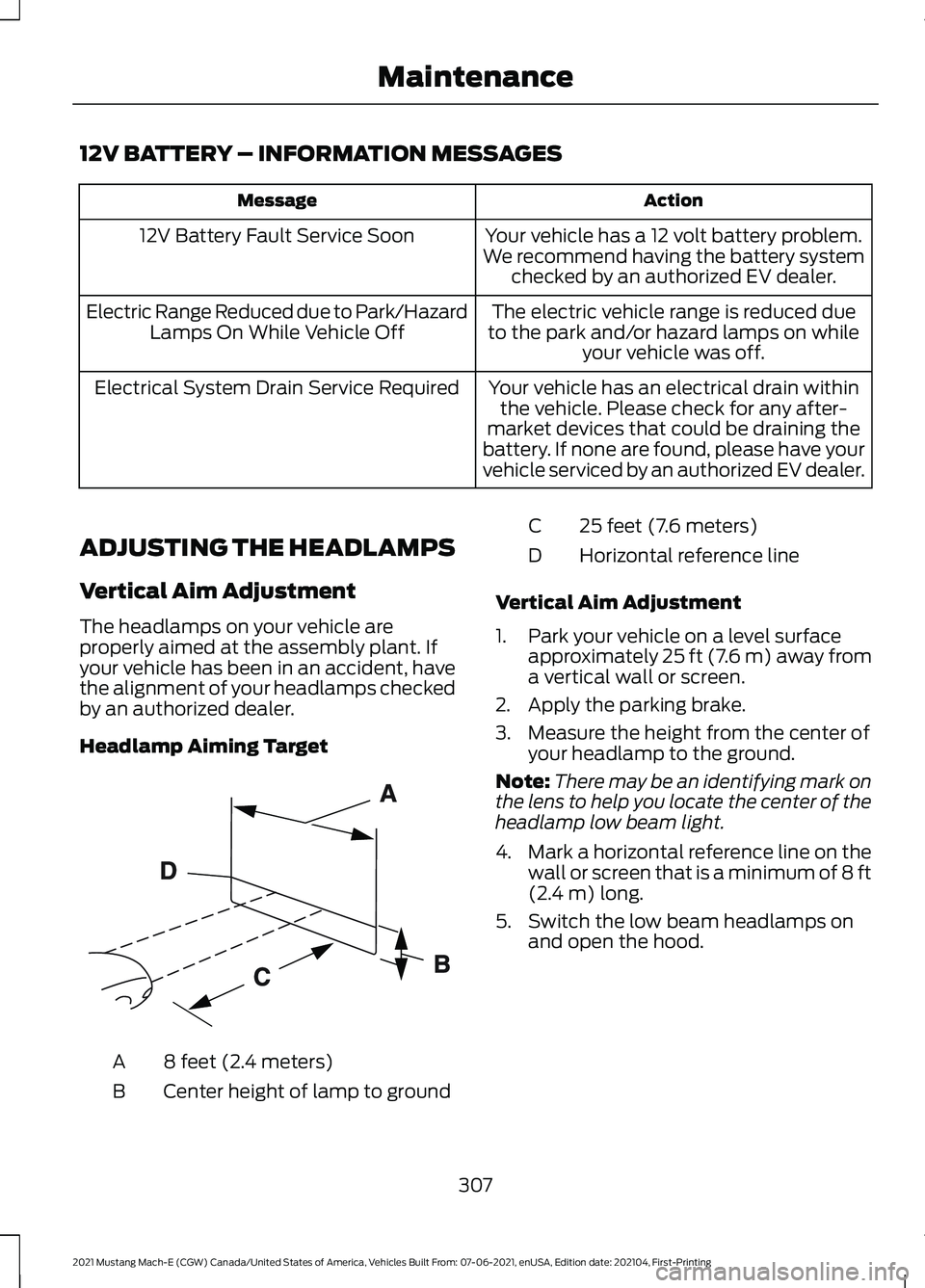

12V BATTERY – INFORMATION MESSAGES
Action
Message
Your vehicle has a 12 volt battery problem.
We recommend having the battery system checked by an authorized EV dealer.
12V Battery Fault Service Soon
The electric vehicle range is reduced due
to the park and/or hazard lamps on while your vehicle was off.
Electric Range Reduced due to Park/Hazard
Lamps On While Vehicle Off
Your vehicle has an electrical drain withinthe vehicle. Please check for any after-
market devices that could be draining the
battery. If none are found, please have your
vehicle serviced by an authorized EV dealer.
Electrical System Drain Service Required
ADJUSTING THE HEADLAMPS
Vertical Aim Adjustment
The headlamps on your vehicle are
properly aimed at the assembly plant. If
your vehicle has been in an accident, have
the alignment of your headlamps checked
by an authorized dealer.
Headlamp Aiming Target 8 feet (2.4 meters)
A
Center height of lamp to ground
B 25 feet (7.6 meters)
C
Horizontal reference line
D
Vertical Aim Adjustment
1. Park your vehicle on a level surface approximately 25 ft (7.6 m) away from
a vertical wall or screen.
2. Apply the parking brake.
3. Measure the height from the center of your headlamp to the ground.
Note: There may be an identifying mark on
the lens to help you locate the center of the
headlamp low beam light.
4. Mark a horizontal reference line on the
wall or screen that is a minimum of 8 ft
(2.4 m)
long.
5. Switch the low beam headlamps on and open the hood.
307
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing MaintenanceE142592

6. On the wall or screen you will observe
a flat zone of high intensity light
located at the top of the right hand
portion of the beam pattern. If the top
edge of the high intensity light zone is
not at the horizontal reference line, the
headlamp will need to be adjusted.
Note: To see a clearer light pattern while
adjusting one headlamp, block the light
from the other headlamp. 7. Locate the vertical adjuster on each
headlamp. Use a Phillips #2
screwdriver to turn the adjuster either
clockwise or counterclockwise to
adjust the vertical aim of the
headlamp.
8. Repeat Steps 3 through 7 to adjust the
other headlamp.
9. Close the hood and turn off the lamps.
EXTERIOR BULBS
EXTERIOR BULB SPECIFICATION
CHART
Your vehicle has LED lamps. These are not
serviceable items. See an authorized dealer
if they fail.
INTERIOR BULBS
INTERIOR BULB SPECIFICATION
CHART
Your vehicle has LED lamps. These are not
serviceable items. See an authorized dealer
if they fail.
308
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing MaintenanceE142465 E335000

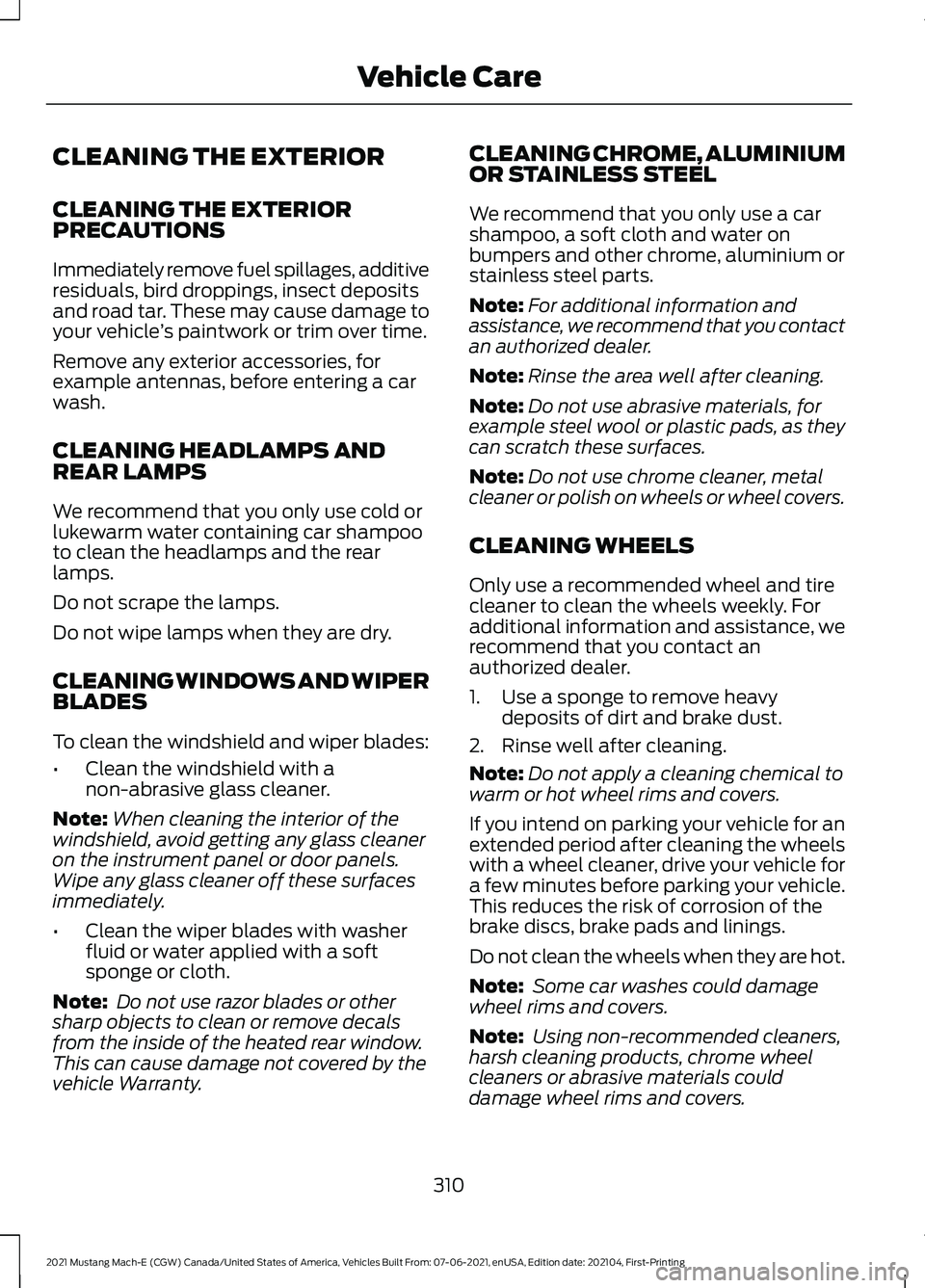

CLEANING THE EXTERIOR
CLEANING THE EXTERIOR
PRECAUTIONS
Immediately remove fuel spillages, additive
residuals, bird droppings, insect deposits
and road tar. These may cause damage to
your vehicle
’s paintwork or trim over time.
Remove any exterior accessories, for
example antennas, before entering a car
wash.
CLEANING HEADLAMPS AND
REAR LAMPS
We recommend that you only use cold or
lukewarm water containing car shampoo
to clean the headlamps and the rear
lamps.
Do not scrape the lamps.
Do not wipe lamps when they are dry.
CLEANING WINDOWS AND WIPER
BLADES
To clean the windshield and wiper blades:
• Clean the windshield with a
non-abrasive glass cleaner.
Note: When cleaning the interior of the
windshield, avoid getting any glass cleaner
on the instrument panel or door panels.
Wipe any glass cleaner off these surfaces
immediately.
• Clean the wiper blades with washer
fluid or water applied with a soft
sponge or cloth.
Note: Do not use razor blades or other
sharp objects to clean or remove decals
from the inside of the heated rear window.
This can cause damage not covered by the
vehicle Warranty. CLEANING CHROME, ALUMINIUM
OR STAINLESS STEEL
We recommend that you only use a car
shampoo, a soft cloth and water on
bumpers and other chrome, aluminium or
stainless steel parts.
Note:
For additional information and
assistance, we recommend that you contact
an authorized dealer.
Note: Rinse the area well after cleaning.
Note: Do not use abrasive materials, for
example steel wool or plastic pads, as they
can scratch these surfaces.
Note: Do not use chrome cleaner, metal
cleaner or polish on wheels or wheel covers.
CLEANING WHEELS
Only use a recommended wheel and tire
cleaner to clean the wheels weekly. For
additional information and assistance, we
recommend that you contact an
authorized dealer.
1. Use a sponge to remove heavy deposits of dirt and brake dust.
2. Rinse well after cleaning.
Note: Do not apply a cleaning chemical to
warm or hot wheel rims and covers.
If you intend on parking your vehicle for an
extended period after cleaning the wheels
with a wheel cleaner, drive your vehicle for
a few minutes before parking your vehicle.
This reduces the risk of corrosion of the
brake discs, brake pads and linings.
Do not clean the wheels when they are hot.
Note: Some car washes could damage
wheel rims and covers.
Note: Using non-recommended cleaners,
harsh cleaning products, chrome wheel
cleaners or abrasive materials could
damage wheel rims and covers.
310
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Vehicle Care

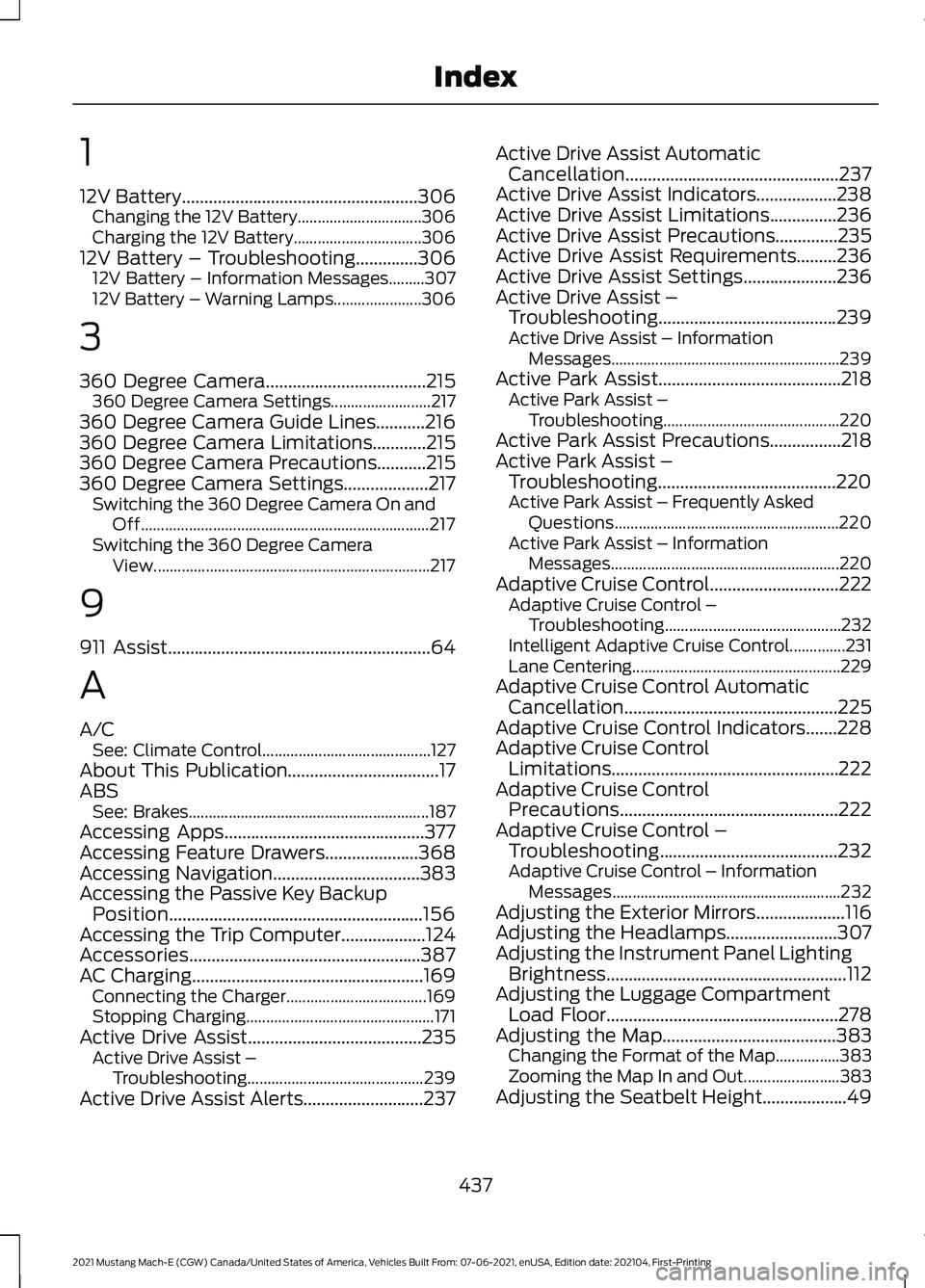

1
12V Battery.....................................................306
Changing the 12V Battery............................... 306
Charging the 12V Battery................................ 306
12V Battery – Troubleshooting
..............306
12V Battery – Information Messages.........307
12V Battery – Warning Lamps...................... 306
3
360 Degree Camera
....................................215
360 Degree Camera Settings......................... 217
360 Degree Camera Guide Lines...........216
360 Degree Camera Limitations
............215
360 Degree Camera Precautions...........215
360 Degree Camera Settings...................217 Switching the 360 Degree Camera On and
Off........................................................................\
217
Switching the 360 Degree Camera View..................................................................... 217
9
911 Assist
...........................................................64
A
A/C See: Climate Control.......................................... 127
About This Publication..................................17
ABS See: Brakes............................................................ 187
Accessing Apps
.............................................377
Accessing Feature Drawers.....................368
Accessing Navigation
.................................383
Accessing the Passive Key Backup Position.........................................................156
Accessing the Trip Computer
...................124
Accessories....................................................387
AC Charging....................................................169 Connecting the Charger................................... 169
Stopping Charging............................................... 171
Active Drive Assist.......................................235 Active Drive Assist –
Troubleshooting............................................ 239
Active Drive Assist Alerts...........................237 Active Drive Assist Automatic
Cancellation................................................237
Active Drive Assist Indicators..................238
Active Drive Assist Limitations...............236
Active Drive Assist Precautions..............235
Active Drive Assist Requirements
.........236
Active Drive Assist Settings.....................236
Active Drive Assist – Troubleshooting........................................
239
Active Drive Assist – Information
Messages......................................................... 239
Active Park Assist.........................................218 Active Park Assist –
Troubleshooting............................................ 220
Active Park Assist Precautions................218
Active Park Assist – Troubleshooting........................................220
Active Park Assist – Frequently Asked Questions........................................................ 220
Active Park Assist – Information Messages......................................................... 220
Adaptive Cruise Control.............................222 Adaptive Cruise Control –
Troubleshooting............................................ 232
Intelligent Adaptive Cruise Control..............231
Lane Centering.................................................... 229
Adaptive Cruise Control Automatic Cancellation................................................225
Adaptive Cruise Control Indicators.......228
Adaptive Cruise Control Limitations...................................................222
Adaptive Cruise Control Precautions.................................................222
Adaptive Cruise Control – Troubleshooting........................................232
Adaptive Cruise Control – Information Messages......................................................... 232
Adjusting the Exterior Mirrors....................116
Adjusting the Headlamps.........................307
Adjusting the Instrument Panel Lighting Brightness......................................................112
Adjusting the Luggage Compartment Load Floor
....................................................278
Adjusting the Map.......................................383
Changing the Format of the Map................383
Zooming the Map In and Out........................ 383
Adjusting the Seatbelt Height...................49
437
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Index

Locating the Body Control Module Fuse
Box..................................................................... 299
Body Styling Kit Precautions....................314
Body Styling Kits...........................................314
Bonnet Lock See: Opening and Closing the Hood..........303
Booster Seats..................................................43
Brake Fluid Specification..........................188
Brake Over Accelerator...............................187
Brake Precautions........................................187
Brakes................................................................187 Anti-Lock Braking System............................... 187
Brakes – Troubleshooting............................... 188
Brakes – Troubleshooting.........................188 Brakes – Frequently Asked
Questions......................................................... 188
Brakes – Warning Lamps................................ 188
Breaking-In....................................................280
C
Calculating Payload
....................................272
Calculating the Load Limit.......................273
Canceling the Set Speed...........................227
Capacities and Specifications
................344
Center Console - GT......................................28
Center Display Limitations......................366
Center Display Overview
..........................366
Center Display Precautions.....................366
Changing a Road Wheel...........................343
Changing the Remote Control Battery.............................................................67
Changing the Vehicle Wi-Fi Hotspot Name or Password
..................................354
Charge Port Indicators...............................168
Charging a Device........................................150
Charging a Wireless Device.......................152
Charging Equipment
...................................159
Charging Your Vehicle.................................159 AC Charging.......................................................... 169
Charging Your Vehicle – Troubleshooting............................................ 180
DC Charging........................................................... 172
Charging Your Vehicle Hints.....................180
Charging Your Vehicle Precautions........159 Charging Your Vehicle –
Troubleshooting........................................180
Charging Your Vehicle – Frequently Asked Questions......................................................... 182
Charging Your Vehicle – Information Messages........................................................... 181
Charging Your Vehicle – Warning Lamps................................................................ 180
Checking MyKey System Status...............75
Checking the Brake Fluid...........................187
Checking the Coolant
................................304
Checking the Seatbelts.................................51
Checking the Tire Pressures....................329
Checking the Wiper Blades......................102
Children and Airbags
.....................................57
Child Restraint Anchor Points...................36
Locating the Child Restraint Lower Anchor
Points................................................................... 36
Locating the Child Restraint Top Tether Anchor Points.................................................... 37
What Are the Child Restraint Anchor Points................................................................... 36
Child Restraints...............................................37 Child Restraint Position Information.............37
Child Restraints Recommendation...............38
Child Safety
......................................................35
Child Restraint Anchor Points......................... 36
Child Restraints..................................................... 37
Installing Child Restraints................................. 38
Child Safety Locks.........................................45
Child Safety Precautions.............................35
Cleaning Products
......................................309
Cleaning the Exterior...................................310 Cleaning Camera Lenses and Sensors........311
Cleaning Chrome, Aluminium or Stainless
Steel................................................................... 310
Cleaning Headlamps and Rear Lamps................................................................ 310
Cleaning Stripes or Graphics........................... 311
Cleaning the Exterior Precautions...............310
Cleaning the Underbody................................... 311
Cleaning Wheels................................................. 310
Cleaning Windows and Wiper Blades........310
Cleaning the Interior
.....................................311
Cleaning Carpets and Floor Mats.................312
Cleaning Displays and Screens..................... 312
Cleaning Plastic................................................... 312
Cleaning Seatbelts............................................. 313
440
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Index
