headlamp FORD MUSTANG MACH-E 2021 Owners Manual

Liftgate - Vehicles With:
Hands-Free Liftgate
Liftgate Precautions ....................................88
Opening the Liftgate ...................................
88
Setting the Liftgate Opening Height ........................................................................\
..
89
Closing the Liftgate ......................................
90
Stopping the Liftgate Movement .............
91
Liftgate Obstacle Detection ......................
92
Liftgate – Troubleshooting ........................
92
Liftgate - Vehicles With: Manual Liftgate
Opening the Liftgate ....................................
94
Closing the Liftgate ......................................
94
Security
Passive Anti-Theft System .......................
95
Anti-Theft Alarm System ..........................
95
Anti-Theft Alarm System Settings ........
96
Security – Troubleshooting .......................
97
Steering Wheel
Adjusting the Steering Wheel ..................
99
Horn ...................................................................
99
Switching the Heated Steering Wheel On and Off ..................................................
99
Wipers and Washers
Wipers .............................................................
100
Autowipers ....................................................
100
Switching the Rear Window Wiper On and Off .........................................................
101
Reverse Wipe .................................................
101
Checking the Wiper Blades .....................
102
Replacing the Front Wiper Blades ........
102
Replacing the Rear Wiper Blades ..........
102
Washers ..........................................................
103
Wipers and Washers – Troubleshooting ........................................................................\
104 Exterior Lighting
Exterior Lighting Control
...........................
105
Headlamps ....................................................
105
Headlamps – Troubleshooting ..............
106
Autolamps .....................................................
106

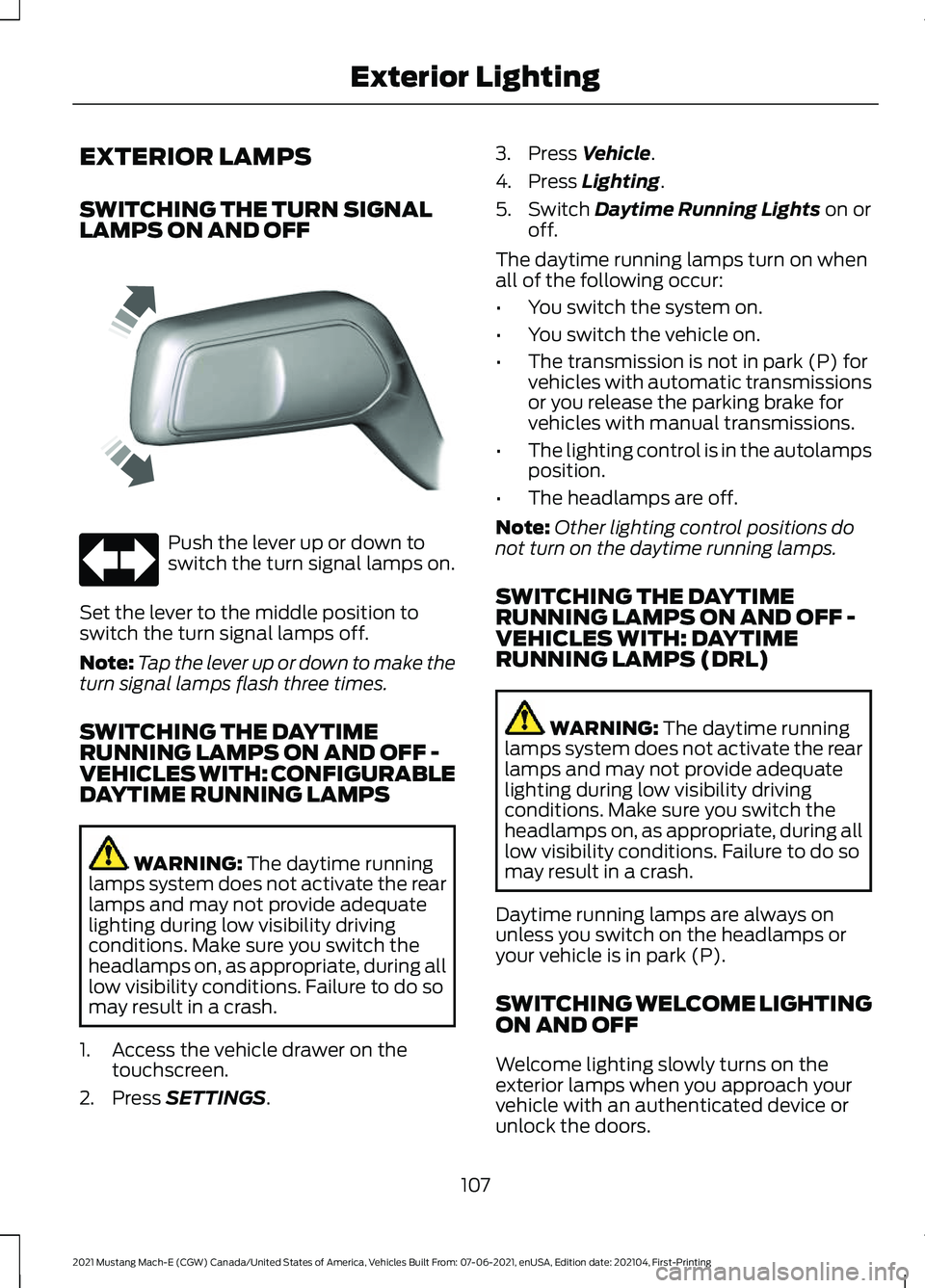

Exterior Lamps ..............................................
107

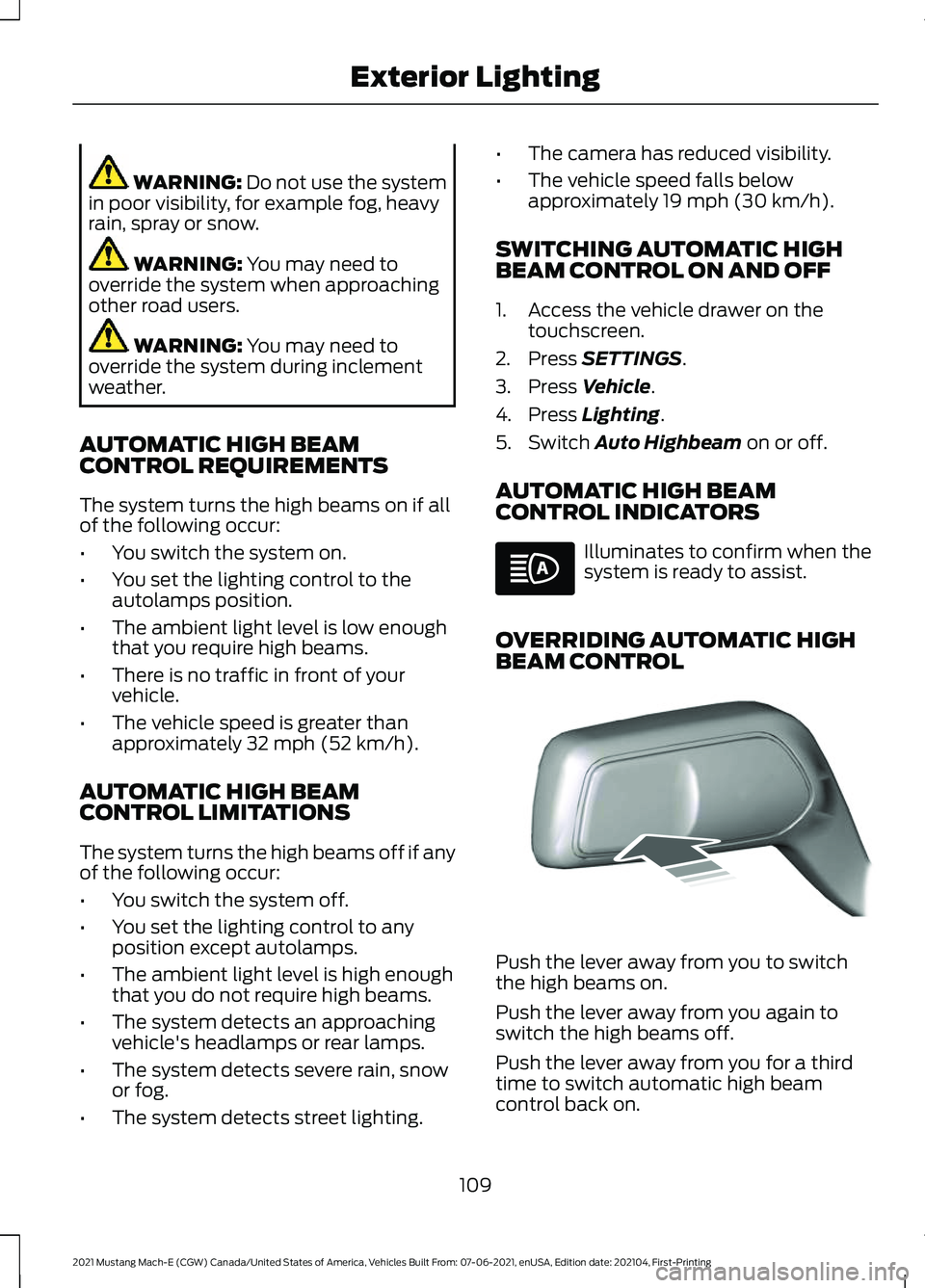

Automatic High Beam Control ..............
108
Automatic High Beam Control – Troubleshooting .......................................
110
Interior Lighting
Switching All of the Interior Lamps On and Off ...........................................................
111
Switching the Front Interior Lamps On and Off ...........................................................
111
Switching the Rear Interior Lamps On and Off ...........................................................
111
Interior Lamp Function ................................
111
Adjusting the Instrument Panel Lighting Brightness ....................................................
112
Ambient Lighting ..........................................
112
Interior Lighting – Troubleshooting ........
112
Windows
Opening and Closing the Windows .......
113
Global Opening and Closing .....................
113
Window Bounce-Back ................................
114
Locking the Rear Window Controls .......
114
Interior Mirror
Interior Mirror Precautions .........................
115
Auto-Dimming Interior Mirror ...................
115
Exterior Mirrors
Adjusting the Exterior Mirrors ...................
116
Folding the Exterior Mirrors - Vehicles With: Manual Folding Mirrors ...............
116
Folding the Exterior Mirrors - Vehicles With: Power Folding Mirrors ..................
117
3
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Table of Contents

Post-Crash Alert System
.........................287
Post Impact Braking ..................................
288
Automatic Crash Shutoff ........................
288
Transporting the Vehicle .........................
289
Towing Your Vehicle
Towing Your Vehicle Precautions .........
290
Recreationally Towing Your Vehicle .......................................................................
290
Emergency Towing ....................................
290
Towing Your Vehicle – Troubleshooting ........................................................................\
.
291
Fuses
Fuse Precautions ........................................
292
Under Hood Fuse Box ...............................
292
Battery Fuse Box .........................................
297
Body Control Module Fuse Box ............
299
Identifying Fuse Types ..............................
302
Fuses – Troubleshooting .........................
302
Maintenance
Maintenance Precautions .......................
303
Opening and Closing the Hood .............
303
Under Hood Overview ..............................
303
Checking the Coolant ...............................
304
Automatic Transmission Fluid Check .......................................................................
306
12V Battery ....................................................
306
12V Battery – Troubleshooting .............
306
Adjusting the Headlamps ........................
307
Exterior Bulbs ..............................................
308
Interior Bulbs ...............................................
308
Vehicle Care
General Information ..................................
309
Cleaning Products .....................................
309
Cleaning the Exterior ..................................
310
Waxing ..............................................................
311
Cleaning the Interior ....................................
311Repairing Minor Paint Damage
...............
313
Body Styling Kits
Body Styling Kit Precautions ...................
314
Storing Your Vehicle
Preparing Your Vehicle for Storage .......
315
Removing Your Vehicle From Storage ........................................................................\
.
316
Wheel and Tire Information
Locating the Tire label ................................
317
Department of Transportation Uniform Tire Quality Grades ..................................
317
Information on the Tire Sidewall ...........
318
Glossary of Tire Terminology ..................
323
Tire Replacement Requirements ..........
324
Using Summer Tires ..................................
326
Using Winter Tires .......................................
327
Using Snow Chains .....................................
327
Tire Care
Checking the Tire Pressures ...................
329
Inflating the Tires ........................................
329
Inspecting the Tire for Wear ...................
330
Inspecting the Tire for Damage ............
330
Inspecting the Wheel Valve Stems .......
331
Tire Rotation ..................................................
331
Tire Sealant and Inflator Kit
What Is the Tire Sealant and Inflator Kit ........................................................................\
333
Tire Sealant and Inflator Kit Precautions ........................................................................\
333
Locating the Tire Sealant and Inflator Kit ........................................................................\
333
Tire Sealant and Inflator Kit Components ........................................................................\
333
Using the Tire Sealant and Inflator Kit ........................................................................\
334
10
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Table of Contents

WARNING: Do not connect
wireless plug-in devices to the data link
connector. Unauthorized third parties
could gain access to vehicle data and
impair the performance of safety related
systems. Only allow repair facilities that
follow our service and repair instructions
to connect their equipment to the data
link connector.
We respect your privacy and are
committed to protecting it. The
information contained in this publication
was correct at the time of going to print
but as technology rapidly changes, we
recommend that you visit the local Ford
website for the latest information.
Your vehicle has electronic control units
that have data recording functionality and
the ability to permanently or temporarily
store data. This data could include
information on the condition and status of
your vehicle, vehicle maintenance
requirements, events and malfunctions.
The types of data that can be recorded are
described in this section. Some of the data
recorded is stored in event logs or error
logs.
Note: Error logs are reset following a service
or repair.
Note: We may provide information in
response to requests from law enforcement,
other government authorities and third
parties acting with lawful authority or
through a legal process. Such information
could be used by them in legal proceedings.
Data recorded includes, for example:
• Operating states of system
components, for example battery
charge level and tire pressure.
• Vehicle and component status, for
example wheel speed, deceleration,
lateral acceleration and seatbelt
status. •
Events or errors in essential systems,
for example headlamps and brakes.
• System responses to driving situations,
for example airbag deployment and
stability control.
• Environmental conditions, for example
temperature.
Some of this data, when used in
combination with other information, for
example an accident report, damage to a
vehicle or eyewitness statements, could
be associated with a specific person.
Services That We Provide
If you use our services, we collect and use
data, for example account information,
vehicle location and driving characteristics,
that could identify you. We transmit this
data through a dedicated, protected
connection. We only collect and use data
to enable your use of our services to which
you have subscribed, with your consent or
where permitted by law. For additional
information, see the terms and conditions
of the services to which you have
subscribed.
For additional information about our
privacy policy, refer to the local Ford
website.
Services That Third Parties
Provide
We recommend that you review the terms
and conditions and data privacy
information for any services equipped with
your vehicle or to which you subscribe. We
take no responsibility for services that third
parties provide.
Where equipped, SiriusXM with 360L may
use the modem. To disable, turn off the
SiriusXM 360L or Vehicle Connectivity
setting. See Enabling and Disabling the
Modem
(page 350).
21
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Data Privacy

EXTERIOR LIGHTING
CONTROL
Lamps off.
A
Parking lamps on.
B
Autolamps on.
C
Headlamps on.
D
Rotate the control to make a selection.
Note: The lighting control defaults to
autolamps every time you switch your
vehicle on.
HEADLAMPS
USING THE HIGH BEAM
HEADLAMPS Push the lever away from you to
switch the high beams on. Push the lever forward again or pull the
lever toward you to switch the high beams
off.
Slightly pull the lever toward you and
release it to flash the headlamps.
SWITCHING HEADLAMP EXIT
DELAY ON AND OFF
To switch headlamp exit delay on, pull the
turn signal lever toward you after switching
your vehicle off.
To switch headlamp exit delay off, pull the
turn signal lever toward you again or switch
your vehicle on.
Note:
The headlamps turn off after three
minutes with any door open or 30 seconds
after the last door closes.
HEADLAMP INDICATORS
Lamps On Illuminates when you switch the
low beam headlamps or the
parking lamps on.
Headlamp High Beam Illuminates when you switch the
high beam headlamps on.
105
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Exterior LightingE327629 E328253

HEADLAMPS –
TROUBLESHOOTING
HEADLAMPS – FREQUENTLY
ASKED QUESTIONS
Why is there condensation in the
headlamps?
Headlamps have vents to
accommodate normal changes in air
pressure. Condensation can be a
natural by-product of this design.
When moist air enters the lamp
assembly through the vents, there is a
possibility that condensation can
occur when the temperature is cold.
When normal condensation occurs, a
fine mist can form on the interior of the
lens. The fine mist eventually clears
and exits through the vents during
normal operation.
How much condensation is
acceptable? The presence of a fine mist, for
example no streaks, drip marks or
large droplets. A fine mist covers less
than 50% of the lens.
How long may it take for the
acceptable condensation to be
cleared? Clearing time may take as long as 48
hours under dry weather conditions.
How much condensation is
unacceptable? A water puddle inside the lamp.
Streaks, drip marks or large droplets
present on the interior of the lens.
What should I do if unacceptable
condensation is present? Have your vehicle checked as soon as
possible. Why do my headlamps turn off when I
have them switched on when I switch
my vehicle off?
The battery saver turns the headlamps
off after a short period of time after
you switch your vehicle off.
AUTOLAMPS
WHAT ARE AUTOLAMPS WARNING: The system does not
relieve you of your responsibility to drive
with due care and attention. You may
need to override the system if it does not
turn the headlamps on in low visibility
conditions, for example daytime fog.
Autolamps turn the headlamps on in low
light situations or when the windshield
wipers operate.
AUTOLAMP SETTINGS
1. Access the vehicle drawer on the touchscreen.
2. Press
SETTINGS.
3. Press
Vehicle.
4. Press
Lighting.
5. Press
Autolamp Delay.
6. Press a setting.
106
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Exterior Lighting

EXTERIOR LAMPS
SWITCHING THE TURN SIGNAL
LAMPS ON AND OFF
Push the lever up or down to
switch the turn signal lamps on.
Set the lever to the middle position to
switch the turn signal lamps off.
Note: Tap the lever up or down to make the
turn signal lamps flash three times.
SWITCHING THE DAYTIME
RUNNING LAMPS ON AND OFF -
VEHICLES WITH: CONFIGURABLE
DAYTIME RUNNING LAMPS WARNING: The daytime running
lamps system does not activate the rear
lamps and may not provide adequate
lighting during low visibility driving
conditions. Make sure you switch the
headlamps on, as appropriate, during all
low visibility conditions. Failure to do so
may result in a crash.
1. Access the vehicle drawer on the touchscreen.
2. Press
SETTINGS. 3. Press
Vehicle.
4. Press
Lighting.
5. Switch
Daytime Running Lights on or
off.
The daytime running lamps turn on when
all of the following occur:
• You switch the system on.
• You switch the vehicle on.
• The transmission is not in park (P) for
vehicles with automatic transmissions
or you release the parking brake for
vehicles with manual transmissions.
• The lighting control is in the autolamps
position.
• The headlamps are off.
Note: Other lighting control positions do
not turn on the daytime running lamps.
SWITCHING THE DAYTIME
RUNNING LAMPS ON AND OFF -
VEHICLES WITH: DAYTIME
RUNNING LAMPS (DRL) WARNING:
The daytime running
lamps system does not activate the rear
lamps and may not provide adequate
lighting during low visibility driving
conditions. Make sure you switch the
headlamps on, as appropriate, during all
low visibility conditions. Failure to do so
may result in a crash.
Daytime running lamps are always on
unless you switch on the headlamps or
your vehicle is in park (P).
SWITCHING WELCOME LIGHTING
ON AND OFF
Welcome lighting slowly turns on the
exterior lamps when you approach your
vehicle with an authenticated device or
unlock the doors.
107
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Exterior LightingE242676

1. Access the vehicle drawer on the
touchscreen.
2. Press SETTINGS.
3. Press
Vehicle.
4. Press
Lighting.
5. Switch
Welcome Lighting on or off.
EXTERIOR LAMP INDICATORS
Turn Signal Lamp It flashes when you switch the
turn signal lamps on.
Note: An increase in the rate of flashing
warns of a failed turn signal lamp.
EXTERIOR LAMP AUDIBLE
WARNING
Exterior Lamps On
Sounds when you open the driver door and
the exterior lamps are on.
AUTOMATIC HIGH BEAM
CONTROL
HOW DOES AUTOMATIC HIGH
BEAM CONTROL WORK
Automatic high beam control turns the
high beams on if it is dark enough and no
other traffic is present. If it detects an
approaching vehicle ’s headlamps or tail
lamps, or street lighting ahead, the system
turns the high beams off.
A camera sensor, centrally mounted
behind the windshield of your vehicle,
continuously monitors conditions to turn
the high beams on and off. Without automatic high beam
control.
A
With automatic high beam
control.
B
AUTOMATIC HIGH BEAM
CONTROL PRECAUTIONS WARNING:
The system does not
relieve you of your responsibility to drive
with due care and attention. You may
need to override the system if it does not
turn the high beams on or off.
108
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Exterior Lighting E327596

WARNING: Do not use the system
in poor visibility, for example fog, heavy
rain, spray or snow. WARNING:
You may need to
override the system when approaching
other road users. WARNING:
You may need to
override the system during inclement
weather.
AUTOMATIC HIGH BEAM
CONTROL REQUIREMENTS
The system turns the high beams on if all
of the following occur:
• You switch the system on.
• You set the lighting control to the
autolamps position.
• The ambient light level is low enough
that you require high beams.
• There is no traffic in front of your
vehicle.
• The vehicle speed is greater than
approximately
32 mph (52 km/h).
AUTOMATIC HIGH BEAM
CONTROL LIMITATIONS
The system turns the high beams off if any
of the following occur:
• You switch the system off.
• You set the lighting control to any
position except autolamps.
• The ambient light level is high enough
that you do not require high beams.
• The system detects an approaching
vehicle's headlamps or rear lamps.
• The system detects severe rain, snow
or fog.
• The system detects street lighting. •
The camera has reduced visibility.
• The vehicle speed falls below
approximately
19 mph (30 km/h).
SWITCHING AUTOMATIC HIGH
BEAM CONTROL ON AND OFF
1. Access the vehicle drawer on the touchscreen.
2. Press
SETTINGS.
3. Press
Vehicle.
4. Press
Lighting.
5. Switch
Auto Highbeam on or off.
AUTOMATIC HIGH BEAM
CONTROL INDICATORS Illuminates to confirm when the
system is ready to assist.
OVERRIDING AUTOMATIC HIGH
BEAM CONTROL Push the lever away from you to switch
the high beams on.
Push the lever away from you again to
switch the high beams off.
Push the lever away from you for a third
time to switch automatic high beam
control back on.
109
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Exterior Lighting E248603

Low Washer Fluid Level
It illuminates when the washer
fluid is low.
Powertrain Malfunction It illuminates when the
powertrain requires service. Have
the system checked as soon as
possible.
Stop Safely It illuminates if an electrical
component requires service or a
failure that causes your vehicle
to shutdown or enter into a limited
operating mode.
Vehicle Plugged In It illuminates when your vehicle
is plugged in.
WHAT ARE THE INSTRUMENT
CLUSTER INDICATORS
Indicators notify you of various features
that are active on your vehicle.
INSTRUMENT CLUSTER
INDICATORS
Adaptive Cruise Control See Adaptive Cruise Control
(page 222).
Automatic Headlamp High Beam See
Automatic High Beam
Control Indicators (page 109). Auto Hold Active See
Auto Hold (page 198).
Auto Hold Unavailable See
Auto Hold (page 198).
Blind Spot Information System See
Blind Spot Information
System (page 251).
Cruise Control See
Adaptive Cruise Control
(page 222).
Headlamp High Beam See
Using the High Beam
Headlamps (page 105).
Parking Lamps See
Headlamp Indicators
(page 105).
Ready to Drive See
Starting and Powering
Off (page 155).
Stability Control and Traction
Control See
Traction Control (page
199). See Stability Control
(page 201).
121
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Instrument ClusterE132353 E288355 E228962 E144524 E323448 E323449 E323542 E71340 E224090 E138639 E225466

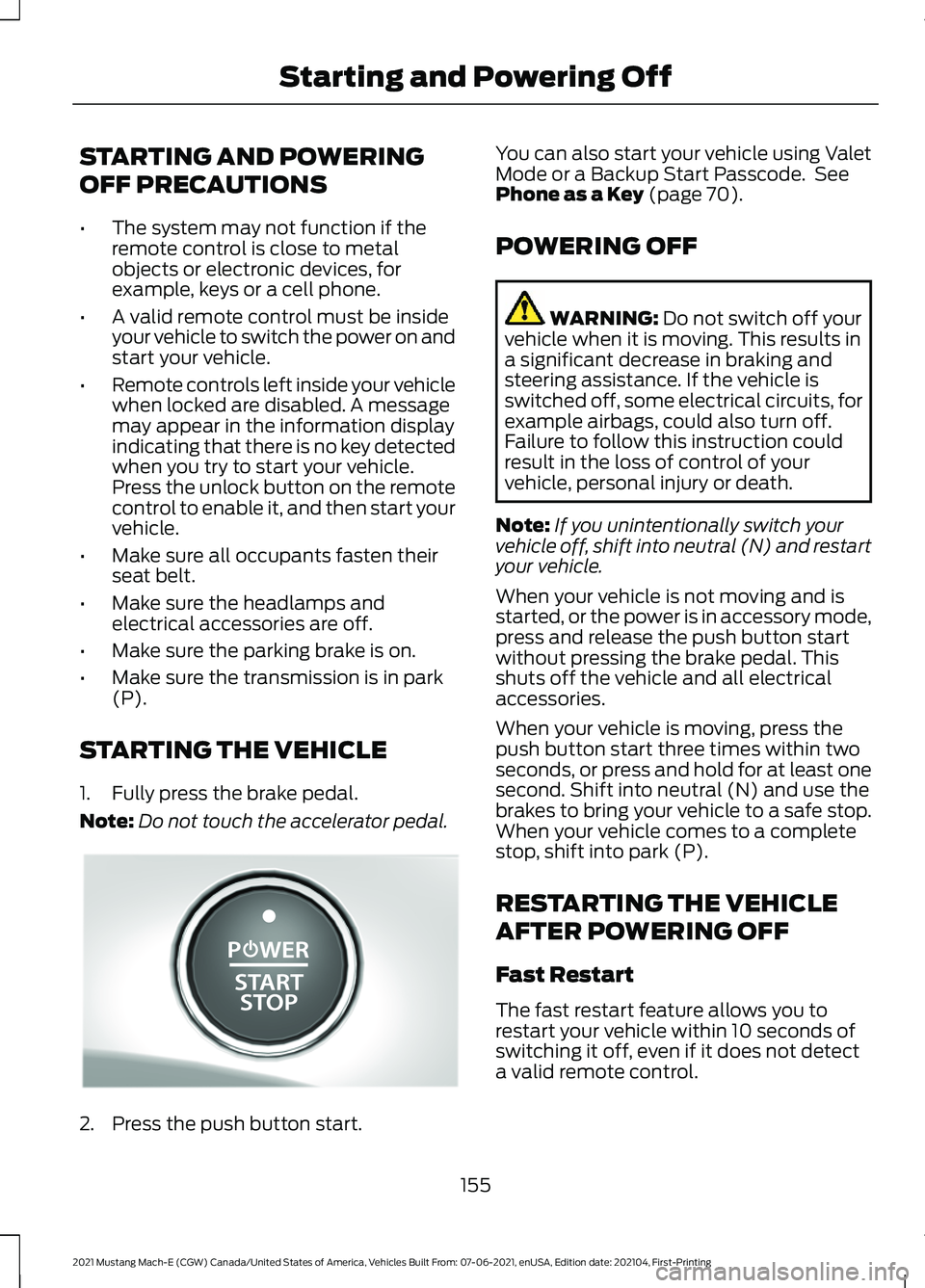

STARTING AND POWERING
OFF PRECAUTIONS
•
The system may not function if the
remote control is close to metal
objects or electronic devices, for
example, keys or a cell phone.
• A valid remote control must be inside
your vehicle to switch the power on and
start your vehicle.
• Remote controls left inside your vehicle
when locked are disabled. A message
may appear in the information display
indicating that there is no key detected
when you try to start your vehicle.
Press the unlock button on the remote
control to enable it, and then start your
vehicle.
• Make sure all occupants fasten their
seat belt.
• Make sure the headlamps and
electrical accessories are off.
• Make sure the parking brake is on.
• Make sure the transmission is in park
(P).
STARTING THE VEHICLE
1. Fully press the brake pedal.
Note: Do not touch the accelerator pedal.2. Press the push button start. You can also start your vehicle using Valet
Mode or a Backup Start Passcode. See
Phone as a Key (page 70).
POWERING OFF WARNING:
Do not switch off your
vehicle when it is moving. This results in
a significant decrease in braking and
steering assistance. If the vehicle is
switched off, some electrical circuits, for
example airbags, could also turn off.
Failure to follow this instruction could
result in the loss of control of your
vehicle, personal injury or death.
Note: If you unintentionally switch your
vehicle off, shift into neutral (N) and restart
your vehicle.
When your vehicle is not moving and is
started, or the power is in accessory mode,
press and release the push button start
without pressing the brake pedal. This
shuts off the vehicle and all electrical
accessories.
When your vehicle is moving, press the
push button start three times within two
seconds, or press and hold for at least one
second. Shift into neutral (N) and use the
brakes to bring your vehicle to a safe stop.
When your vehicle comes to a complete
stop, shift into park (P).
RESTARTING THE VEHICLE
AFTER POWERING OFF
Fast Restart
The fast restart feature allows you to
restart your vehicle within 10 seconds of
switching it off, even if it does not detect
a valid remote control.
155
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Starting and Powering OffE328849
