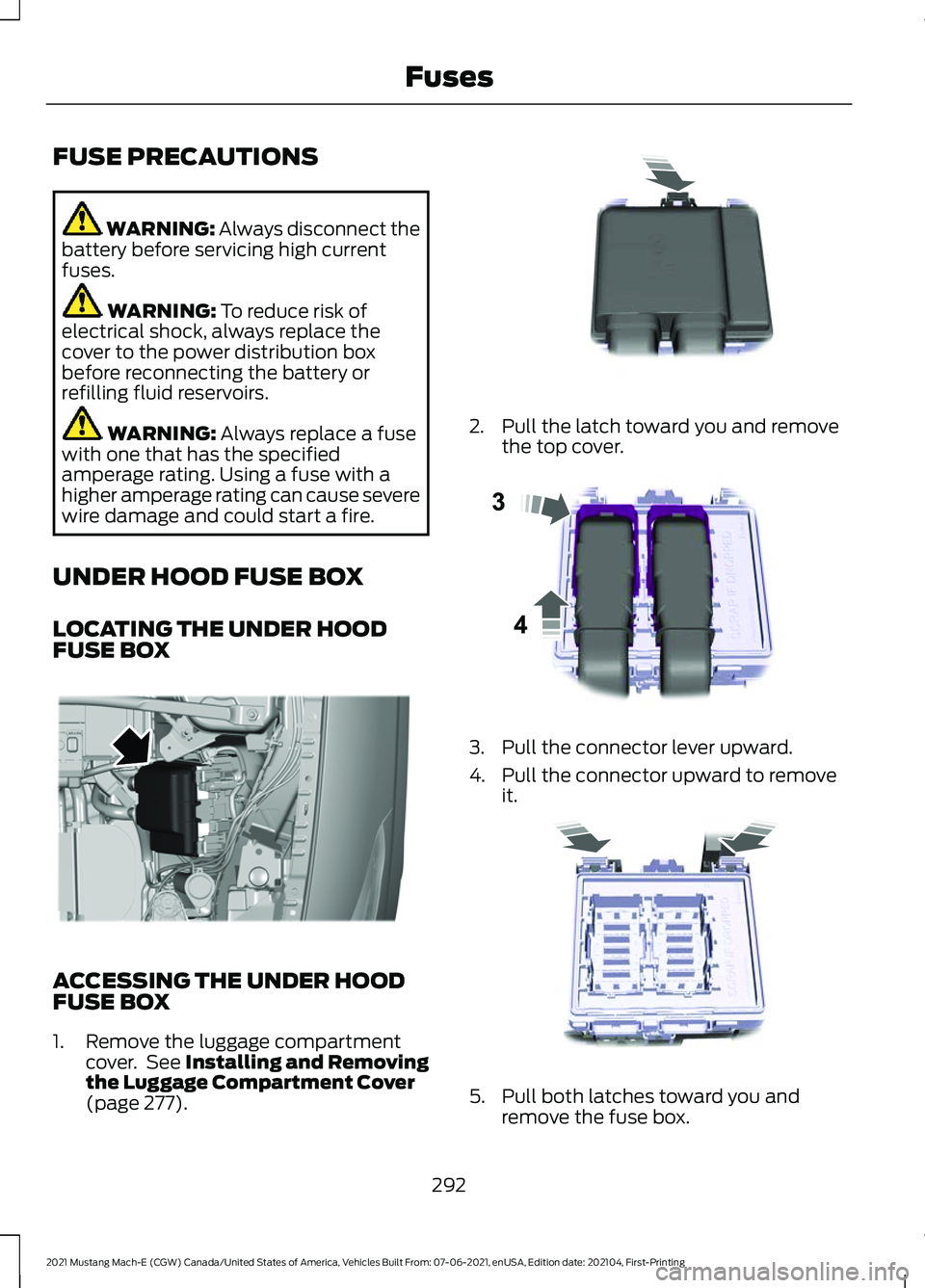

FUSE PRECAUTIONS
WARNING: Always disconnect the
battery before servicing high current
fuses. WARNING:
To reduce risk of
electrical shock, always replace the
cover to the power distribution box
before reconnecting the battery or
refilling fluid reservoirs. WARNING:
Always replace a fuse
with one that has the specified
amperage rating. Using a fuse with a
higher amperage rating can cause severe
wire damage and could start a fire.
UNDER HOOD FUSE BOX
LOCATING THE UNDER HOOD
FUSE BOX ACCESSING THE UNDER HOOD
FUSE BOX
1. Remove the luggage compartment
cover. See Installing and Removing
the Luggage Compartment Cover
(page
277). 2. Pull the latch toward you and remove
the top cover. 3. Pull the connector lever upward.
4. Pull the connector upward to remove
it. 5. Pull both latches toward you and
remove the fuse box.
292
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing FusesE329073 E253688 E329079 E253693

6. Turn the fuse box over and open the lid.

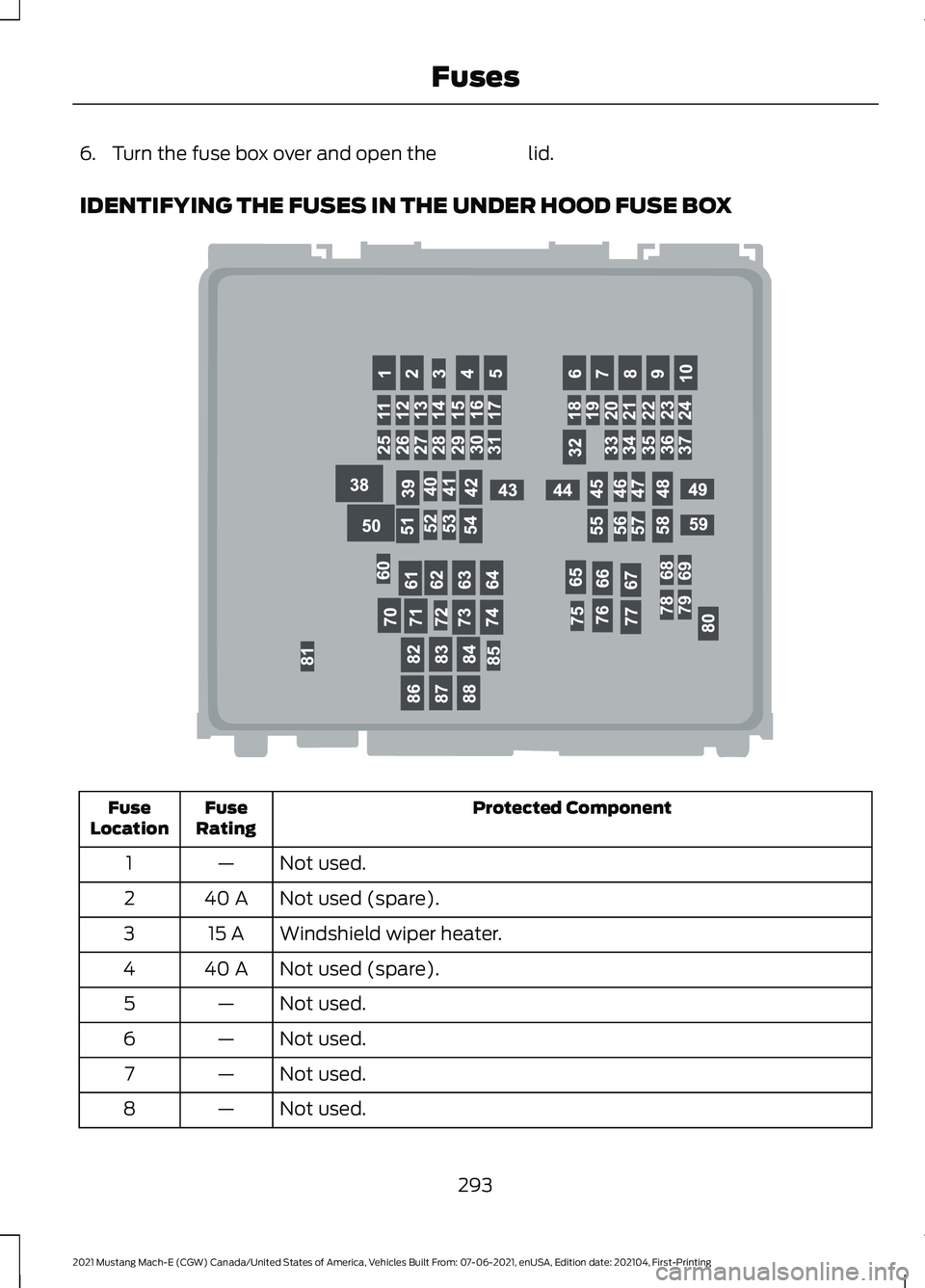

IDENTIFYING THE FUSES IN THE UNDER HOOD FUSE BOX
Protected Component
Fuse
Rating
Fuse
Location
Not used.
—
1
Not used (spare).
40 A
2
Windshield wiper heater.
15 A
3
Not used (spare).
40 A
4
Not used.
—
5
Not used.
—
6
Not used.
—
7
Not used.
—
8
293
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Fuses E292669

Protected Component
Fuse
Rating
Fuse
Location

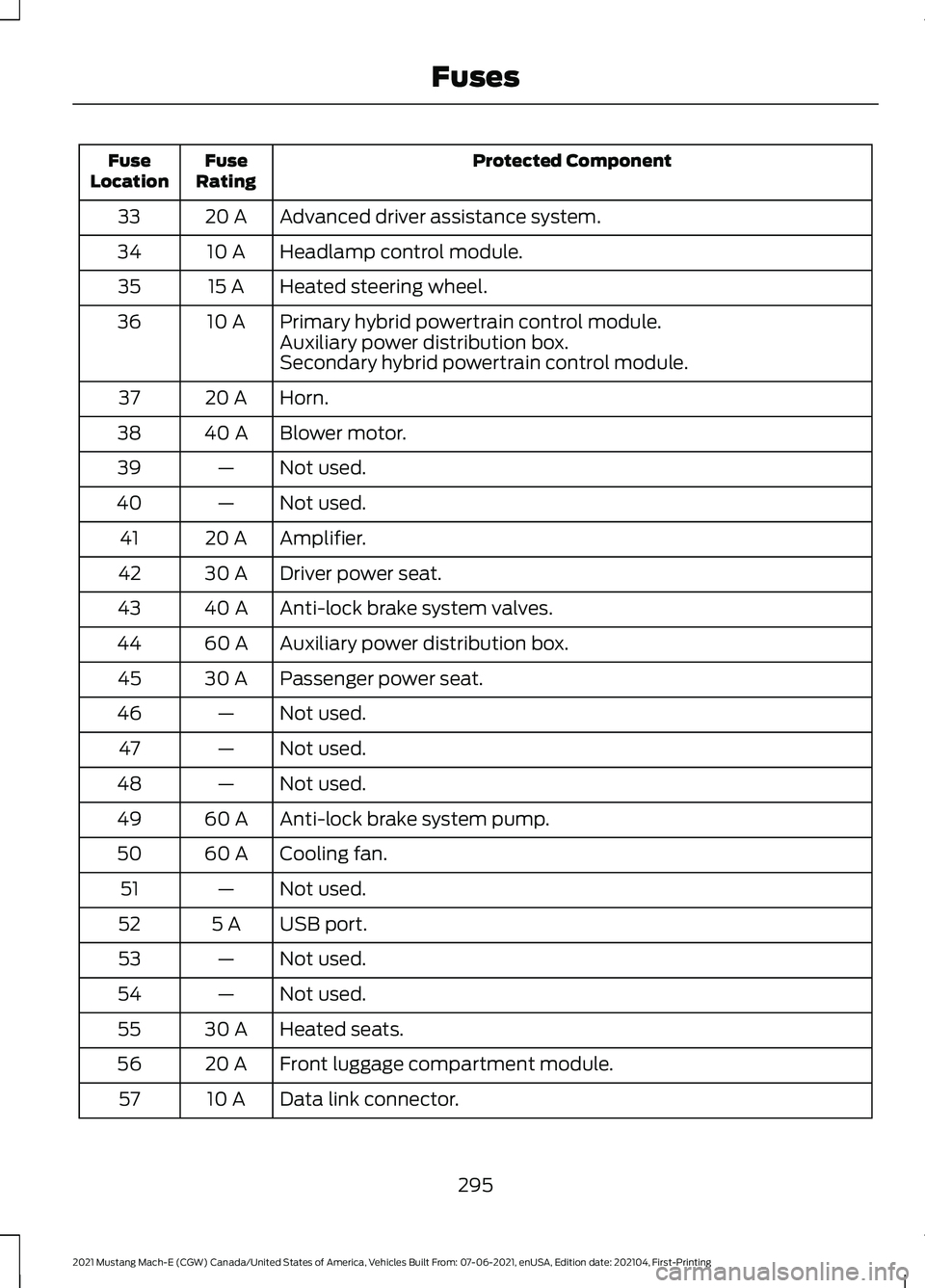

Advanced driver assistance system.
20 A
33
Headlamp control module.
10 A
34
Heated steering wheel.
15 A
35
Primary hybrid powertrain control module.
10 A
36
Auxiliary power distribution box.
Secondary hybrid powertrain control module.
Horn.
20 A
37
Blower motor.
40 A
38
Not used.
—
39
Not used.
—
40
Amplifier.
20 A
41
Driver power seat.
30 A
42
Anti-lock brake system valves.
40 A
43
Auxiliary power distribution box.
60 A
44
Passenger power seat.
30 A
45
Not used.
—
46
Not used.
—
47
Not used.
—
48
Anti-lock brake system pump.
60 A
49
Cooling fan.
60 A
50
Not used.
—
51
USB port.
5 A
52
Not used.
—
53
Not used.
—
54
Heated seats.
30 A
55
Front luggage compartment module.
20 A
56
Data link connector.
10 A
57
295
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Fuses

Protected Component
Fuse
Rating
Fuse
Location
Not used (spare).
40 A
84
Rain sensor.
5 A
85
Not used.
—
86
Not used.
—
87
Not used.
—
88
BATTERY FUSE BOX
LOCATING THE BATTERY FUSE
BOX ACCESSING THE BATTERY FUSE
BOX
1. Press the top right-hand side of the
cover, then pull the raised section on
the bottom left-hand side toward you.
297
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing FusesE348774 E348774

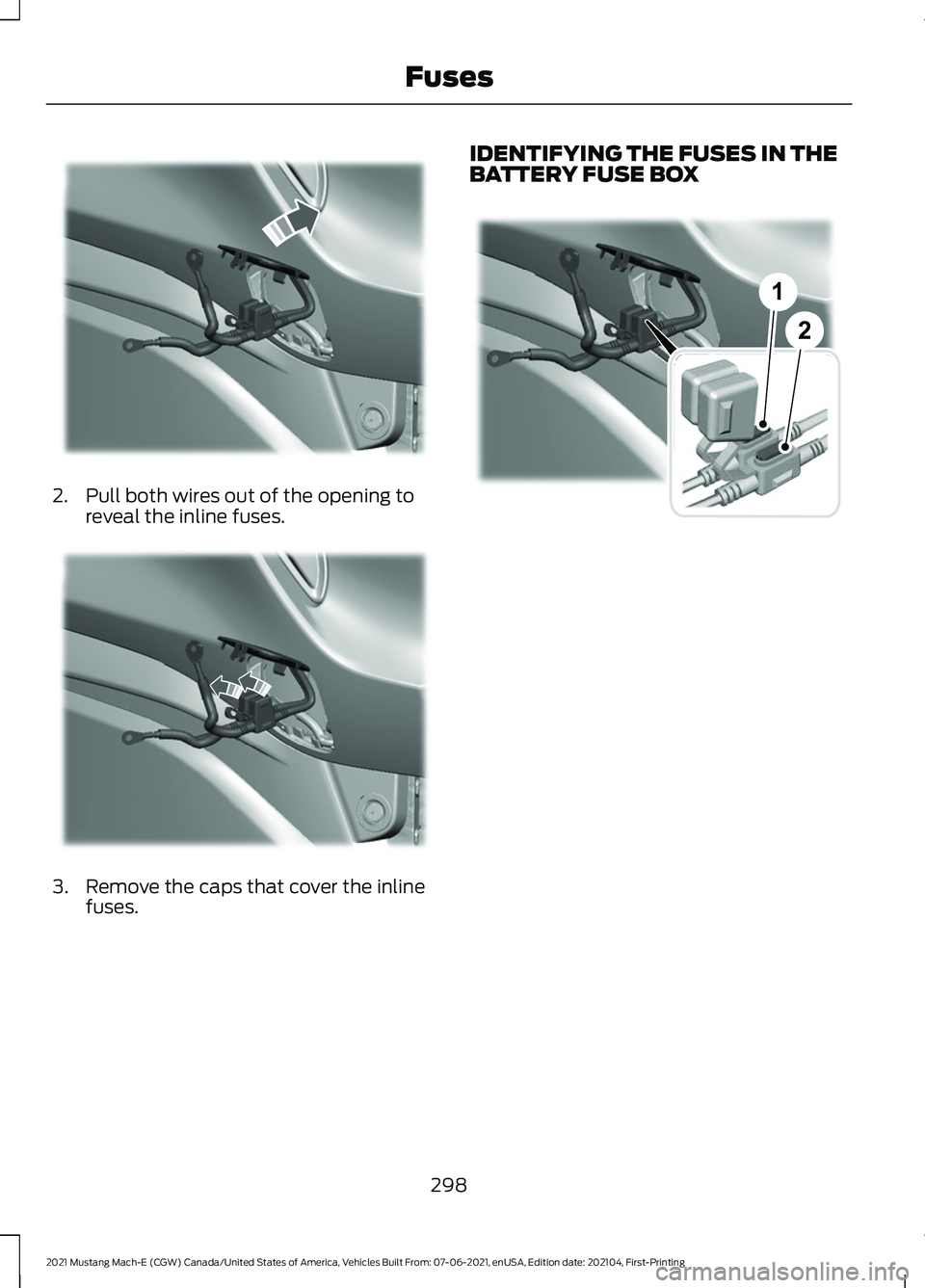

2. Pull both wires out of the opening to
reveal the inline fuses. 3. Remove the caps that cover the inline
fuses. IDENTIFYING THE FUSES IN THE
BATTERY FUSE BOX
298
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing FusesE348775 E348776 1

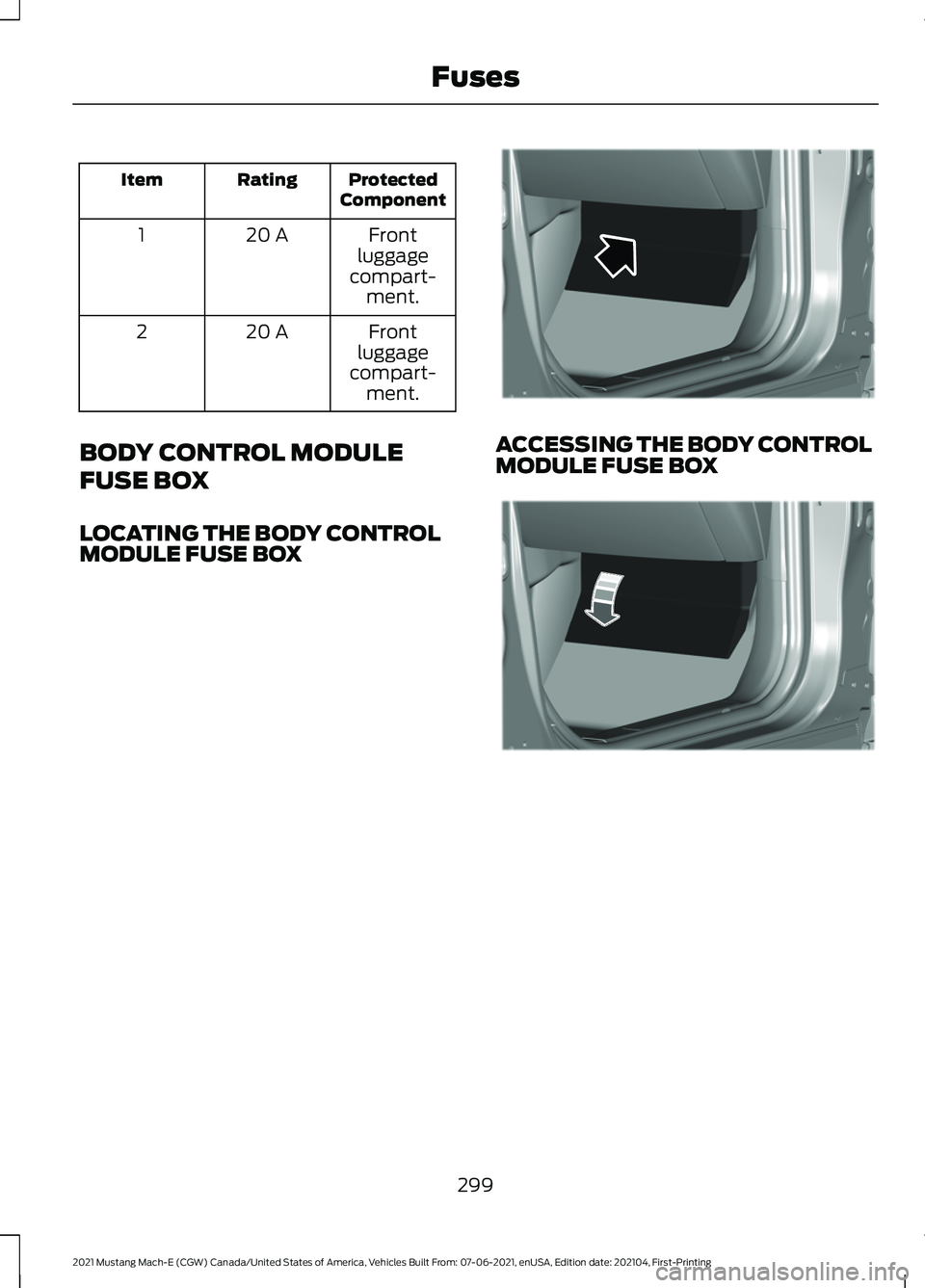

2E348777

Protected
Component
Rating
Item
Front
luggage
compart- ment.
20 A
1
Front
luggage
compart- ment.
20 A
2
BODY CONTROL MODULE
FUSE BOX
LOCATING THE BODY CONTROL
MODULE FUSE BOX ACCESSING THE BODY CONTROL
MODULE FUSE BOX
299
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing FusesE329070 E329071

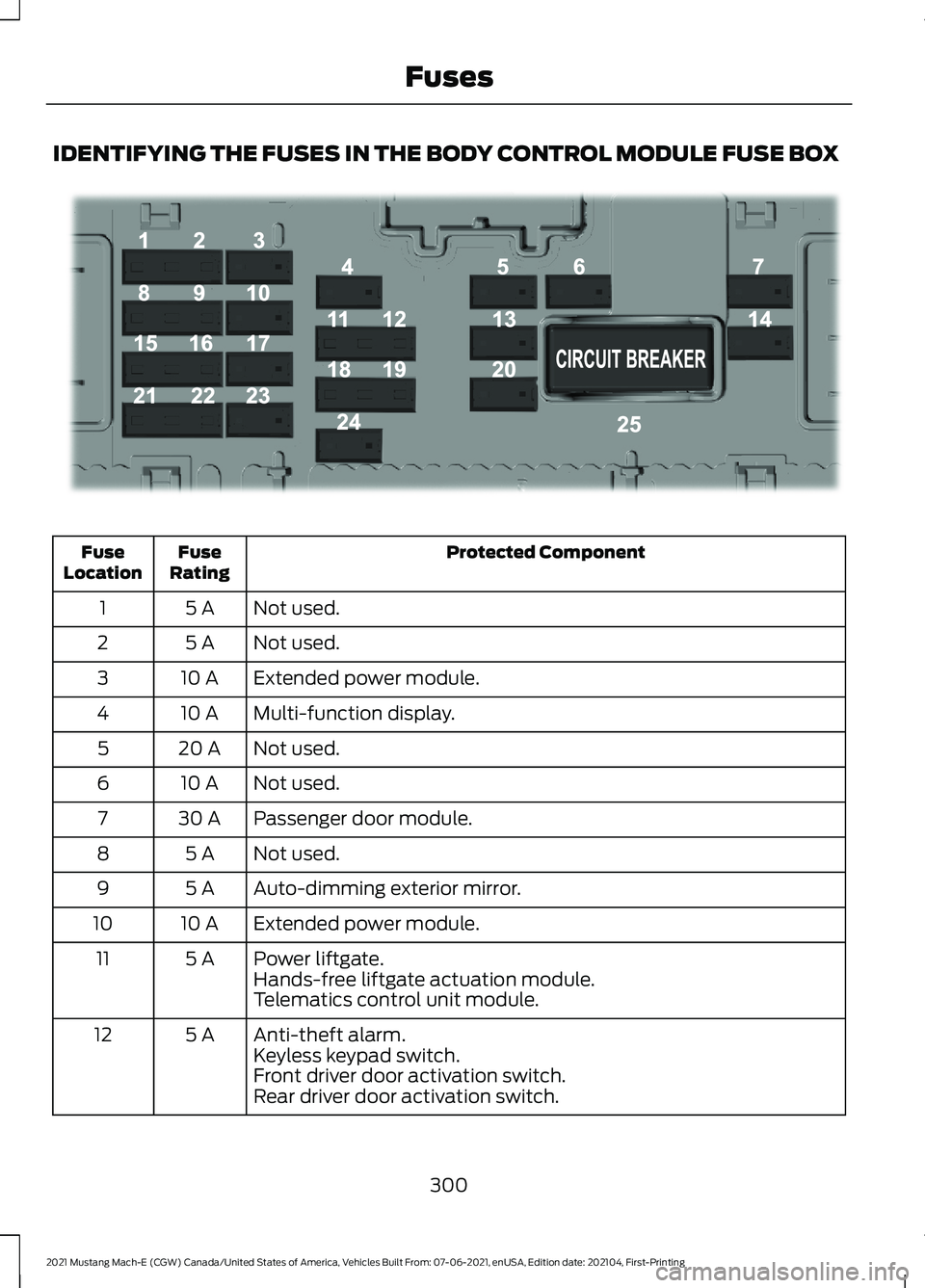

IDENTIFYING THE FUSES IN THE BODY CONTROL MODULE FUSE BOX
Protected Component
Fuse
Rating
Fuse
Location
Not used.
5 A
1
Not used.
5 A
2
Extended power module.
10 A
3
Multi-function display.
10 A
4
Not used.
20 A
5
Not used.
10 A
6
Passenger door module.
30 A
7
Not used.
5 A
8
Auto-dimming exterior mirror.
5 A
9
Extended power module.
10 A
10
Power liftgate.
5 A
11
Hands-free liftgate actuation module.
Telematics control unit module.
Anti-theft alarm.
5 A
12
Keyless keypad switch.
Front driver door activation switch.
Rear driver door activation switch.
300
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing FusesE293328

Motor electronic coolant reservoir. See Checking the Coolant (page 304).
A
Battery coolant reservoir. See
Checking the Coolant (page 304).
B
Brake fluid reservoir.
See Checking the Brake Fluid (page 187).
C
Under hood fuse box. See
Under Hood Fuse Box (page 292).
D
Windshield washer fluid reservoir. See
Adding Washer Fluid (page 104).
E
Note: Some of these components are
underneath the luggage compartment cover
and cannot be seen unless the cover is
removed. See
Installing and Removing
the Luggage Compartment Cover (page
277).

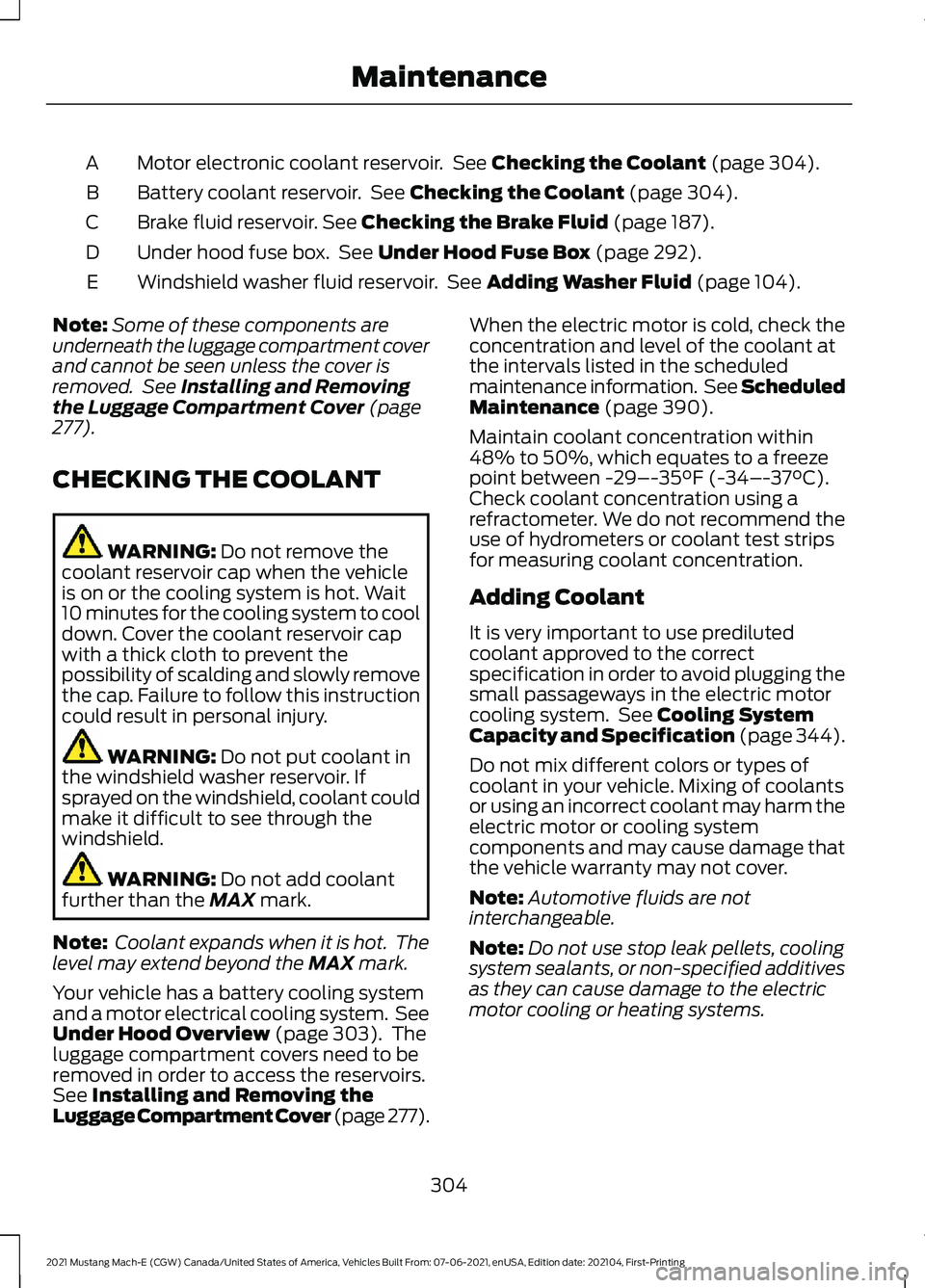

CHECKING THE COOLANT WARNING:
Do not remove the
coolant reservoir cap when the vehicle
is on or the cooling system is hot. Wait
10 minutes for the cooling system to cool
down. Cover the coolant reservoir cap
with a thick cloth to prevent the
possibility of scalding and slowly remove
the cap. Failure to follow this instruction
could result in personal injury. WARNING:
Do not put coolant in
the windshield washer reservoir. If
sprayed on the windshield, coolant could
make it difficult to see through the
windshield. WARNING:
Do not add coolant
further than the MAX mark.
Note: Coolant expands when it is hot. The
level may extend beyond the
MAX mark.
Your vehicle has a battery cooling system
and a motor electrical cooling system. See
Under Hood Overview
(page 303). The
luggage compartment covers need to be
removed in order to access the reservoirs.
See
Installing and Removing the
Luggage Compartment Cover (page 277). When the electric motor is cold, check the
concentration and level of the coolant at
the intervals listed in the scheduled
maintenance information. See Scheduled
Maintenance
(page 390).
Maintain coolant concentration within
48% to 50%, which equates to a freeze
point between
-29–-35°F (-34–-37°C).
Check coolant concentration using a
refractometer. We do not recommend the
use of hydrometers or coolant test strips
for measuring coolant concentration.
Adding Coolant
It is very important to use prediluted
coolant approved to the correct
specification in order to avoid plugging the
small passageways in the electric motor
cooling system. See
Cooling System
Capacity and Specification (page 344).
Do not mix different colors or types of
coolant in your vehicle. Mixing of coolants
or using an incorrect coolant may harm the
electric motor or cooling system
components and may cause damage that
the vehicle warranty may not cover.
Note: Automotive fluids are not
interchangeable.
Note: Do not use stop leak pellets, cooling
system sealants, or non-specified additives
as they can cause damage to the electric
motor cooling or heating systems.
304
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Maintenance

What Is Automatic Emergency
Braking............................................................... 261
Automatic High Beam Control...............108 Automatic High Beam Control
Indicators.......................................................... 109
Automatic High Beam Control Limitations....................................................... 109
Automatic High Beam Control Precautions..................................................... 108
Automatic High Beam Control Requirements................................................. 109
How Does Automatic High Beam Control Work................................................................... 108
Overriding Automatic High Beam Control............................................................... 109
Switching Automatic High Beam Control On and Off....................................................... 109
Automatic High Beam Control – Troubleshooting..........................................110
Automatic High Beam Control – Information Messages.................................. 110
Automatic Locking Mode...........................48
Disengaging Automatic Locking Mode........48
Engaging Automatic Locking Mode..............48
What Is Automatic Locking Mode.................48
When to Use Automatic Locking
Mode.................................................................... 48
Automatic Return to Park (P).................185 Automatic Return to Park (P)
Limitations....................................................... 185
How Does Automatic Return to Park (P) Work................................................................... 185
What Is Automatic Return to Park (P)....................................................................... 185
Automatic Transmission...........................183 Automatic Return to Park (P)........................ 185
Automatic Transmission Positions..............183
Temporary Neutral Mode................................ 184
Automatic Transmission Fluid Check............................................................306
Automatic Transmission Positions........183 Drive (D)................................................................. 183
Low (L)................................................................... 184
Neutral (N)............................................................ 183
Park (P).................................................................. 183
Reverse (R)........................................................... 183
Automatic Transmission Precautions
..................................................183 Auto Mode
.......................................................129
Auto Mode Indicators........................................ 129
Switching Auto Mode On and Off................129
Autounlock........................................................78 Autounlock Requirements................................ 78
What Is Autounlock............................................. 78
Autowipers.....................................................100 Adjusting the Sensitivity of the Rain
Sensor................................................................. 101
Autowipers Settings......................................... 100
What Are Autowipers....................................... 100
AWD See: All-Wheel Drive......................................... 186
B
Battery Fuse Box..........................................297 Accessing the Battery Fuse Box................... 297
Identifying the Fuses in the Battery Fuse Box..................................................................... 298
Locating the Battery Fuse Box...................... 297
Beginning a Voice Interaction.................369
Blind Spot Assist.........................................246 Blind Spot Assist Indicators........................... 247
Blind Spot Assist Limitations........................ 247
How Does Blind Spot Assist Work...............247
What Is Blind Spot Assist............................... 246
Blind Spot Information System...............251 Blind Spot Information System –
Troubleshooting............................................ 253
Blind Spot Information System Indicators.....................................................252
Blind Spot Information System Limitations...................................................251
Blind Spot Information System Precautions..................................................251
Blind Spot Information System Requirements..............................................251
Blind Spot Information System – Troubleshooting........................................253
Blind Spot Information System – Information Messages................................ 253
Bluetooth®
.....................................................376
Body Control Module Fuse Box.............299 Accessing the Body Control Module Fuse
Box..................................................................... 299
Identifying the Fuses in the Body Control Module Fuse Box.......................................... 300
439
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Index
