sensor FORD MUSTANG MACH E 2023 Owners Manual

Contacting Us
Contacting Us..................................................15
Introduction
About This Publication.................................17
Using This Publication.................................18
Symbols Glossary
Symbols Used on Your Vehicle.................19
Data Privacy
Data Privacy.....................................................22
Service Data....................................................23
Event Data........................................................23
Settings Data..................................................24
Connected Vehicle Data.............................24
Mobile Device Data.......................................25
Emergency Call System Data...................25
Environment
Protecting the Environment......................26
Visual Search
Steering Wheel...............................................27
Instrument Panel - Excluding: GT...........28
Instrument Panel - GT.................................29
Center Console - GT....................................30
Vehicle Interior - Excluding: GT.................31
Vehicle Interior - GT......................................32
Front Exterior - Excluding: GT...................33
Front Exterior - GT........................................34
Rear Exterior - Excluding: GT....................35
Rear Exterior - GT..........................................36
Child Safety
Child Safety Precautions............................37
Child Restraint Anchor Points..................38
Child Restraints..............................................39
Installing Child Restraints..........................40
Booster Seats.................................................45
Child Safety Locks.........................................47
Seatbelts
Seatbelt Precautions...................................48
Fastening and Unfastening the Seatbelts..........................................................................49
Sensitive Locking Mode..............................50
Automatic Locking Mode...........................50
Adjusting the Seatbelts DuringPregnancy.....................................................51
Adjusting the Seatbelt Height...................51
Seatbelt Reminder.........................................51
Checking the Seatbelts...............................53
Seatbelt Extensions.....................................54
Personal Safety System™
What Is the Personal Safety System..........................................................................55
How Does the Personal Safety SystemWork...............................................................55
Personal Safety System Components..........................................................................55
Airbags
How Do the Front Airbags Work..............56
How Do the Side Airbags Work...............56
How Do the Knee Airbags Work...............57
How Does the Safety Canopy™ Work...........................................................................57
Airbag Precautions.......................................58
Properly Adjusting the Driver and FrontPassenger Seats........................................59
Children and Airbags...................................59
Front Passenger Sensing System...........60
Crash Sensors and Airbag Indicator.......63
Disposing of Airbags....................................64
Pedestrian Alert System
What Is the Pedestrian Alert System..........................................................................65
1
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMTable of Contents

Locating the Blind Spot InformationSystem Sensors.......................................272
Blind Spot Information SystemIndicators....................................................272
Blind Spot Information System –Troubleshooting......................................273
Cross Traffic Alert
What Is Cross Traffic Alert.......................274
How Does Cross Traffic Alert Work......274
Cross Traffic Alert Precautions..............274
Cross Traffic Alert Limitations................274
Switching Cross Traffic Alert On and Off........................................................................274
Locating the Cross Traffic Alert Sensors........................................................................275
Cross Traffic Alert Indicators..................275
Cross Traffic Alert – Troubleshooting........................................................................276
Pre-Collision Assist
What Is Pre-Collision Assist....................277
How Does Pre-Collision Assist Work.........................................................................277
Pre-Collision Assist Precautions...........277
Pre-Collision Assist Limitations............278
Switching Pre-Collision Assist On andOff.................................................................279
Locating the Pre-Collision Assist Sensors........................................................................279
Distance Indication....................................280
Distance Alert...............................................281
Automatic Emergency Braking..............282
Evasive Steering Assist.............................282
Pre-Collision Assist – Troubleshooting........................................................................283
Driver Alert
What Is Driver Alert....................................285
How Does Driver Alert Work...................285
Driver Alert Precautions...........................285
Driver Alert Limitations.............................285
Switching Driver Alert On and Off.......286
Driver Alert Indicators...............................286
Driver Alert – Troubleshooting..............286
Speed Sign Recognition
What Is Speed Sign Recognition..........287
How Does Speed Sign Recognition Work........................................................................287
Speed Sign Recognition Precautions........................................................................287
Speed Sign Recognition Limitations........................................................................287
Speed Sign Recognition Indicators......287
Setting the Speed Sign RecognitionSpeed Warning.......................................288
Setting the Speed Sign RecognitionSpeed Tolerance....................................288
Speed Sign Recognition –Troubleshooting.....................................288
Load Carrying
Load Carrying Precautions.....................290
Locating the Safety ComplianceCertification Labels................................291
What Is the Gross Axle Weight Rating.........................................................................291
What Is the Gross Vehicle Weight Rating.........................................................................291
What Is the Maximum Loaded TrailerWeight.........................................................291
What Is the Gross Combined WeightRating..........................................................292
Calculating Payload...................................292
Calculating the Load Limit......................293
Roof Rack......................................................294
Luggage Compartment
Luggage Compartment Precautions........................................................................296
Opening the Frunk.....................................296
Closing the Frunk........................................297
Using the Frunk Emergency Release........................................................................297
9
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMTable of Contents

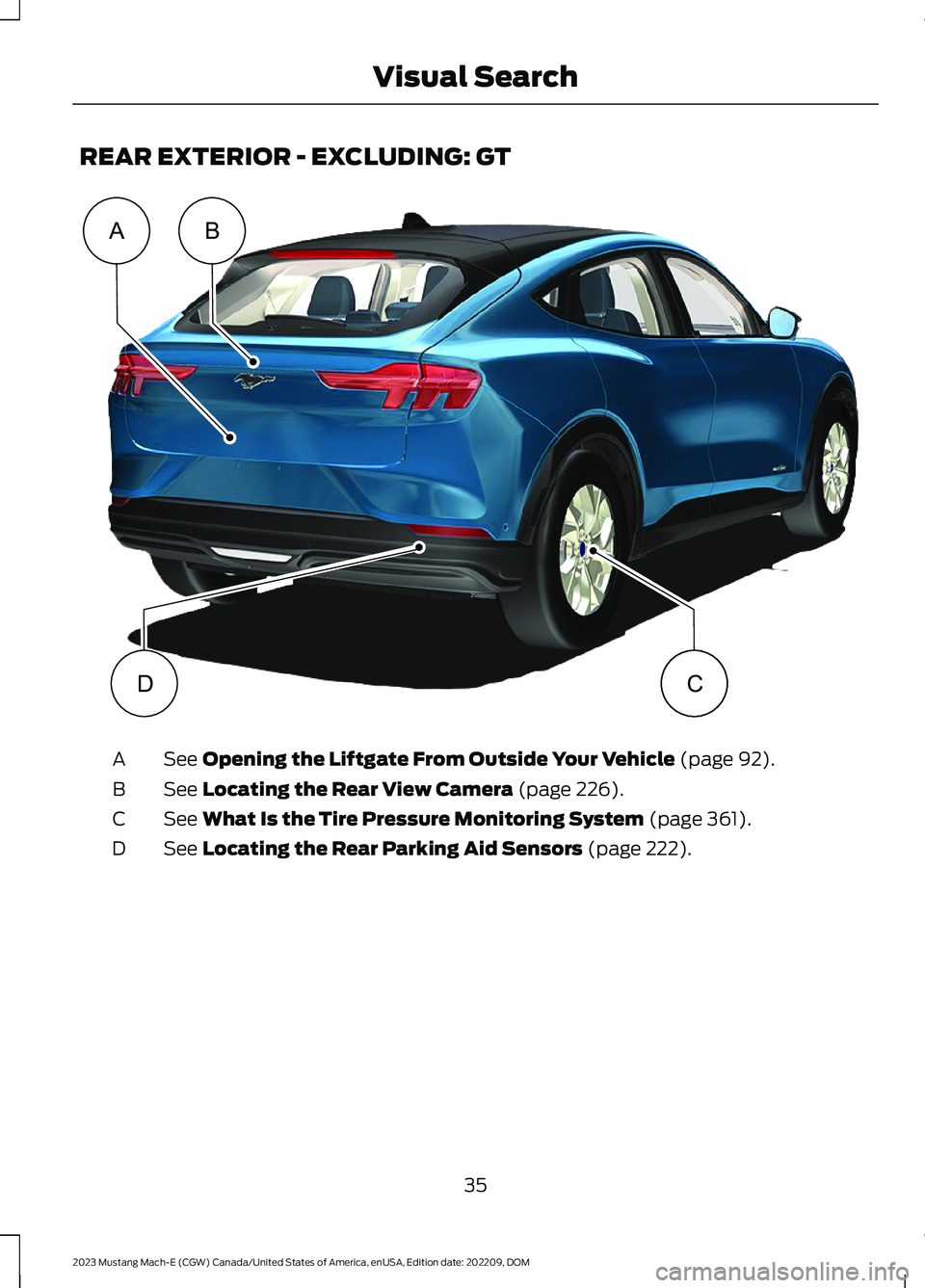

REAR EXTERIOR - EXCLUDING: GT
See Opening the Liftgate From Outside Your Vehicle (page 92).A
See Locating the Rear View Camera (page 226).B
See What Is the Tire Pressure Monitoring System (page 361).C
See Locating the Rear Parking Aid Sensors (page 222).D
35
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMVisual SearchABACDE323199

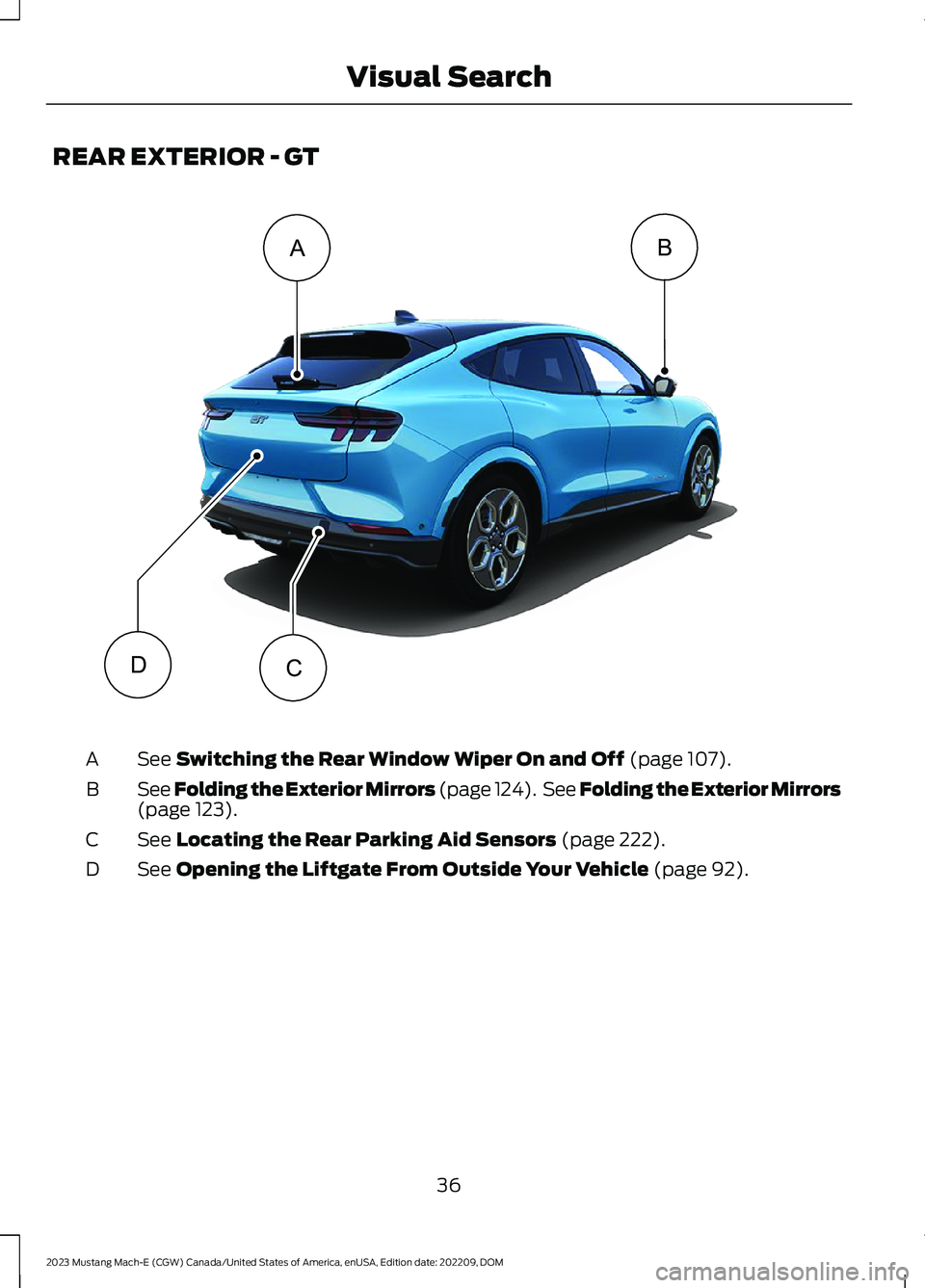

REAR EXTERIOR - GT
See Switching the Rear Window Wiper On and Off (page 107).A
See Folding the Exterior Mirrors (page 124). See Folding the Exterior Mirrors(page 123).B
See Locating the Rear Parking Aid Sensors (page 222).C
See Opening the Liftgate From Outside Your Vehicle (page 92).D
36
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMVisual SearchCBAD E350431

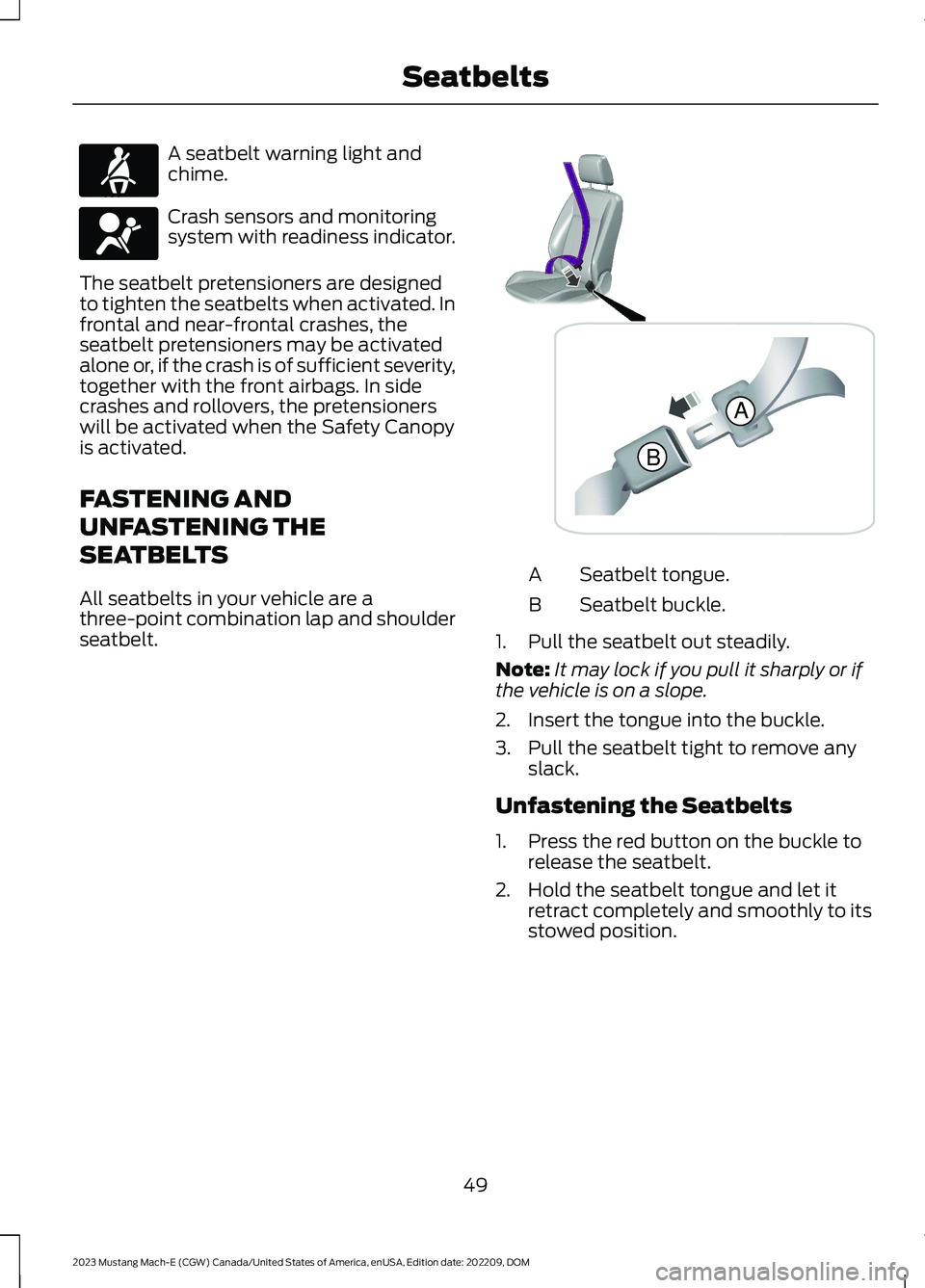

A seatbelt warning light andchime.
Crash sensors and monitoringsystem with readiness indicator.
The seatbelt pretensioners are designedto tighten the seatbelts when activated. Infrontal and near-frontal crashes, theseatbelt pretensioners may be activatedalone or, if the crash is of sufficient severity,together with the front airbags. In sidecrashes and rollovers, the pretensionerswill be activated when the Safety Canopyis activated.
FASTENING AND
UNFASTENING THE
SEATBELTS
All seatbelts in your vehicle are athree-point combination lap and shoulderseatbelt.
Seatbelt tongue.A
Seatbelt buckle.B
1.Pull the seatbelt out steadily.
Note:It may lock if you pull it sharply or ifthe vehicle is on a slope.
2.Insert the tongue into the buckle.
3.Pull the seatbelt tight to remove anyslack.
Unfastening the Seatbelts
1.Press the red button on the buckle torelease the seatbelt.
2.Hold the seatbelt tongue and let itretract completely and smoothly to itsstowed position.
49
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMSeatbeltsE71880 E67017 BA E338014

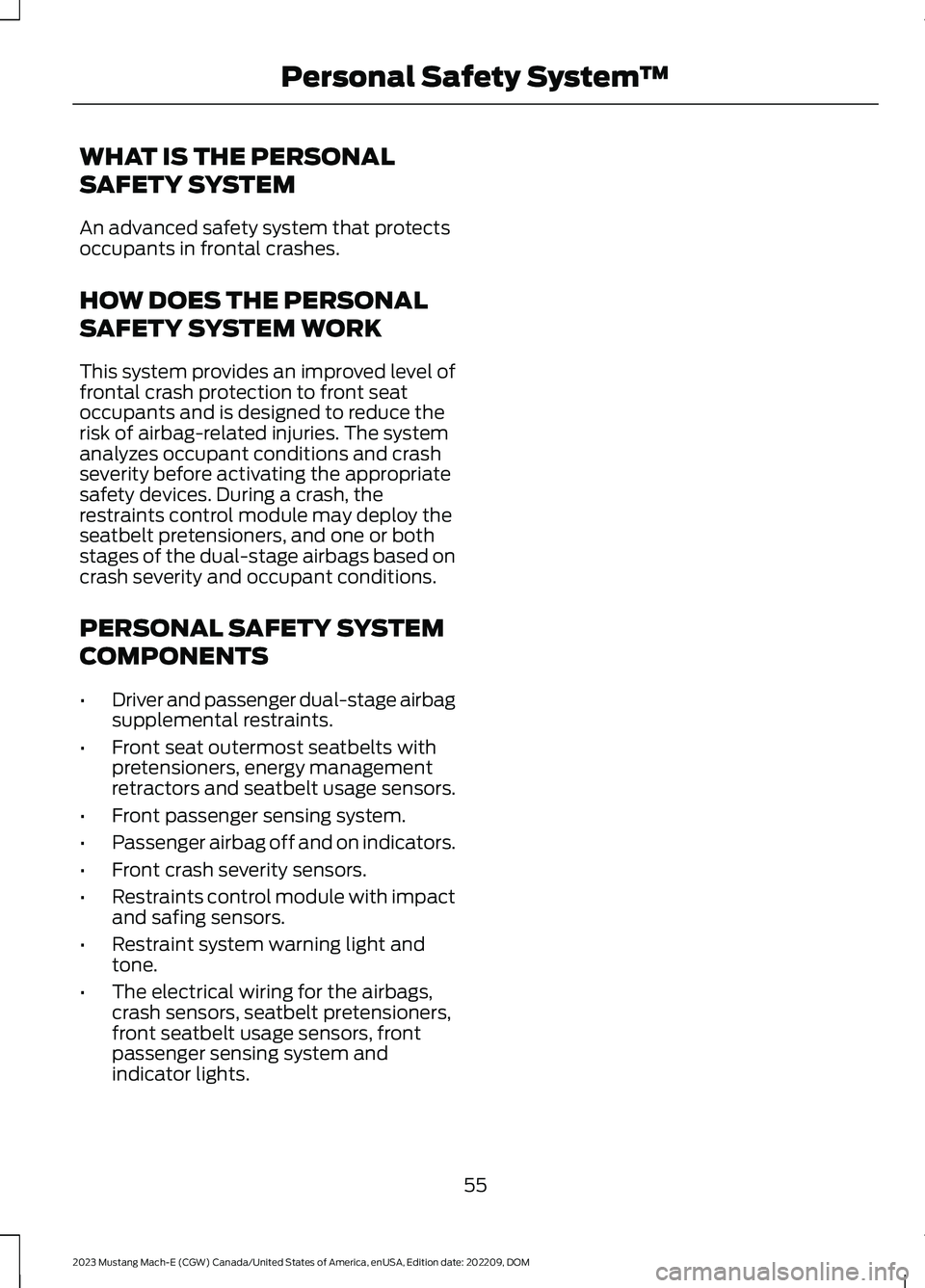

WHAT IS THE PERSONAL
SAFETY SYSTEM
An advanced safety system that protectsoccupants in frontal crashes.
HOW DOES THE PERSONAL
SAFETY SYSTEM WORK
This system provides an improved level offrontal crash protection to front seatoccupants and is designed to reduce therisk of airbag-related injuries. The systemanalyzes occupant conditions and crashseverity before activating the appropriatesafety devices. During a crash, therestraints control module may deploy theseatbelt pretensioners, and one or bothstages of the dual-stage airbags based oncrash severity and occupant conditions.
PERSONAL SAFETY SYSTEM
COMPONENTS
•Driver and passenger dual-stage airbagsupplemental restraints.
•Front seat outermost seatbelts withpretensioners, energy managementretractors and seatbelt usage sensors.
•Front passenger sensing system.
•Passenger airbag off and on indicators.
•Front crash severity sensors.
•Restraints control module with impactand safing sensors.
•Restraint system warning light andtone.
•The electrical wiring for the airbags,crash sensors, seatbelt pretensioners,front seatbelt usage sensors, frontpassenger sensing system andindicator lights.
55
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMPersonal Safety System™

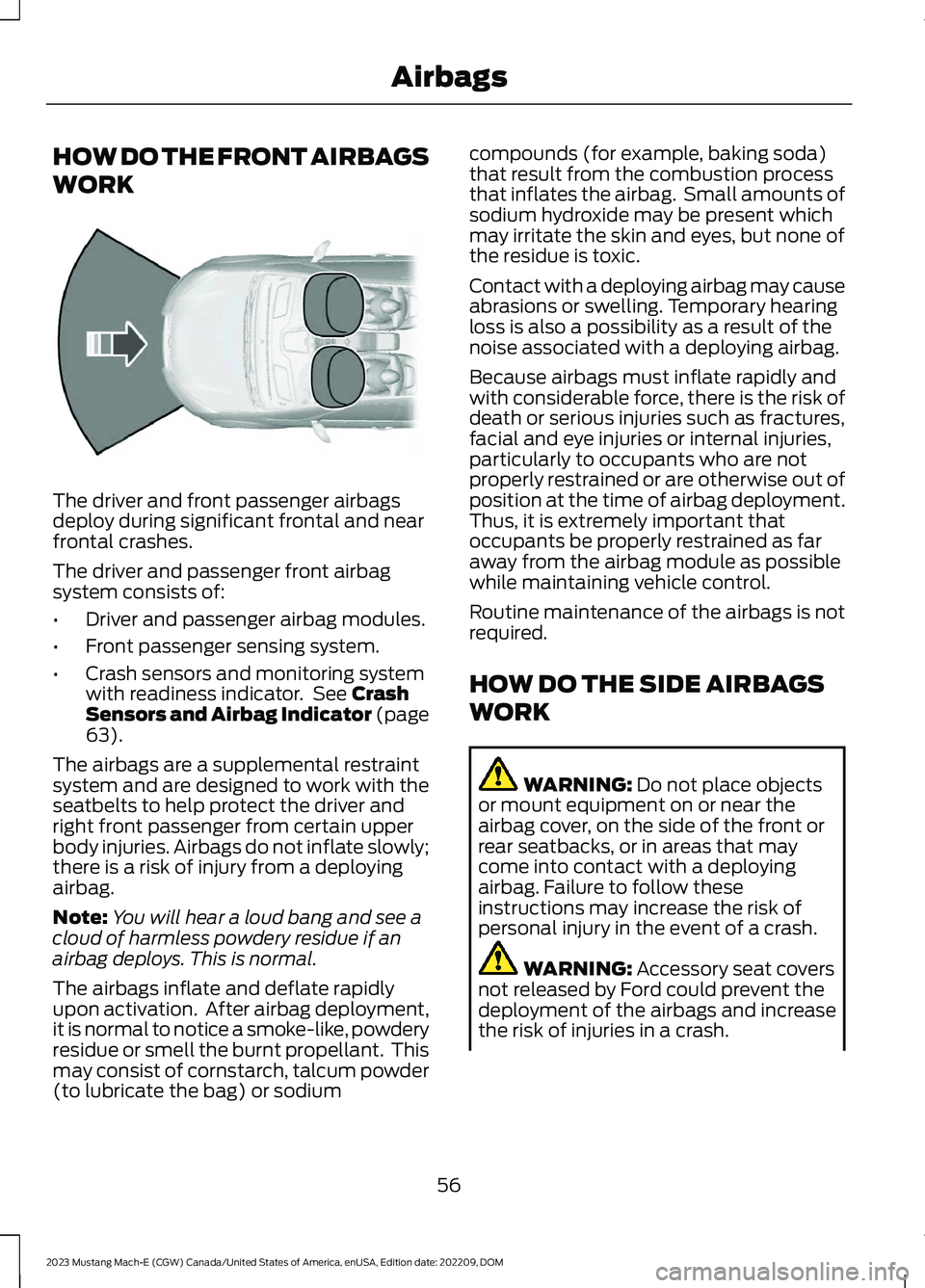

HOW DO THE FRONT AIRBAGS
WORK
The driver and front passenger airbagsdeploy during significant frontal and nearfrontal crashes.
The driver and passenger front airbagsystem consists of:
•Driver and passenger airbag modules.
•Front passenger sensing system.
•Crash sensors and monitoring systemwith readiness indicator. See CrashSensors and Airbag Indicator (page63).
The airbags are a supplemental restraintsystem and are designed to work with theseatbelts to help protect the driver andright front passenger from certain upperbody injuries. Airbags do not inflate slowly;there is a risk of injury from a deployingairbag.
Note:You will hear a loud bang and see acloud of harmless powdery residue if anairbag deploys. This is normal.
The airbags inflate and deflate rapidlyupon activation. After airbag deployment,it is normal to notice a smoke-like, powderyresidue or smell the burnt propellant. Thismay consist of cornstarch, talcum powder(to lubricate the bag) or sodium
compounds (for example, baking soda)that result from the combustion processthat inflates the airbag. Small amounts ofsodium hydroxide may be present whichmay irritate the skin and eyes, but none ofthe residue is toxic.
Contact with a deploying airbag may causeabrasions or swelling. Temporary hearingloss is also a possibility as a result of thenoise associated with a deploying airbag.
Because airbags must inflate rapidly andwith considerable force, there is the risk ofdeath or serious injuries such as fractures,facial and eye injuries or internal injuries,particularly to occupants who are notproperly restrained or are otherwise out ofposition at the time of airbag deployment.Thus, it is extremely important thatoccupants be properly restrained as faraway from the airbag module as possiblewhile maintaining vehicle control.
Routine maintenance of the airbags is notrequired.
HOW DO THE SIDE AIRBAGS
WORK
WARNING: Do not place objectsor mount equipment on or near theairbag cover, on the side of the front orrear seatbacks, or in areas that maycome into contact with a deployingairbag. Failure to follow theseinstructions may increase the risk ofpersonal injury in the event of a crash.
WARNING: Accessory seat coversnot released by Ford could prevent thedeployment of the airbags and increasethe risk of injuries in a crash.
56
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMAirbagsE151127

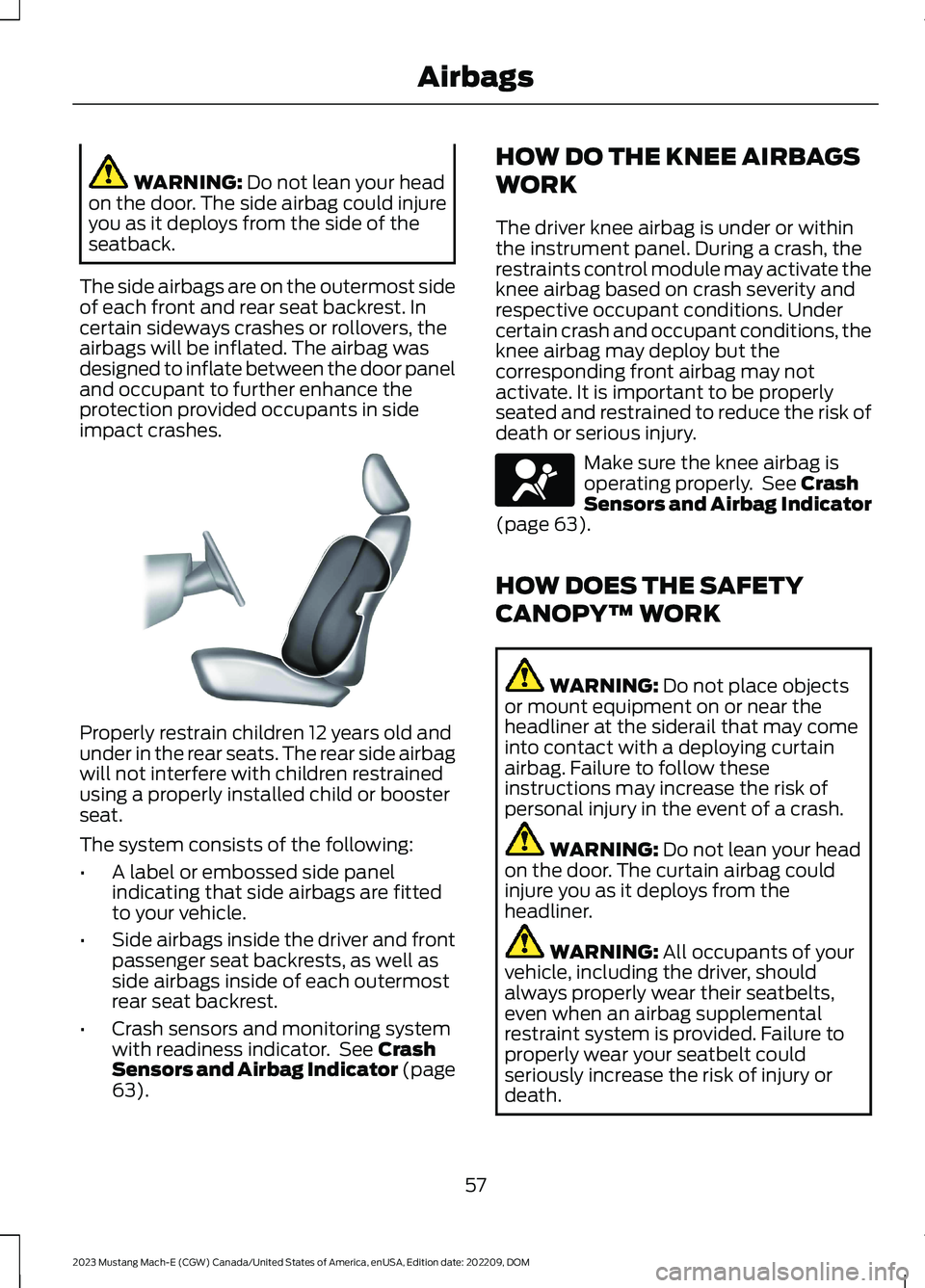

WARNING: Do not lean your headon the door. The side airbag could injureyou as it deploys from the side of theseatback.
The side airbags are on the outermost sideof each front and rear seat backrest. Incertain sideways crashes or rollovers, theairbags will be inflated. The airbag wasdesigned to inflate between the door paneland occupant to further enhance theprotection provided occupants in sideimpact crashes.
Properly restrain children 12 years old andunder in the rear seats. The rear side airbagwill not interfere with children restrainedusing a properly installed child or boosterseat.
The system consists of the following:
•A label or embossed side panelindicating that side airbags are fittedto your vehicle.
•Side airbags inside the driver and frontpassenger seat backrests, as well asside airbags inside of each outermostrear seat backrest.
•Crash sensors and monitoring systemwith readiness indicator. See CrashSensors and Airbag Indicator (page63).
HOW DO THE KNEE AIRBAGS
WORK
The driver knee airbag is under or withinthe instrument panel. During a crash, therestraints control module may activate theknee airbag based on crash severity andrespective occupant conditions. Undercertain crash and occupant conditions, theknee airbag may deploy but thecorresponding front airbag may notactivate. It is important to be properlyseated and restrained to reduce the risk ofdeath or serious injury.
Make sure the knee airbag isoperating properly. See CrashSensors and Airbag Indicator(page 63).
HOW DOES THE SAFETY
CANOPY™ WORK
WARNING: Do not place objectsor mount equipment on or near theheadliner at the siderail that may comeinto contact with a deploying curtainairbag. Failure to follow theseinstructions may increase the risk ofpersonal injury in the event of a crash.
WARNING: Do not lean your headon the door. The curtain airbag couldinjure you as it deploys from theheadliner.
WARNING: All occupants of yourvehicle, including the driver, shouldalways properly wear their seatbelts,even when an airbag supplementalrestraint system is provided. Failure toproperly wear your seatbelt couldseriously increase the risk of injury ordeath.
57
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMAirbagsE152533 E67017

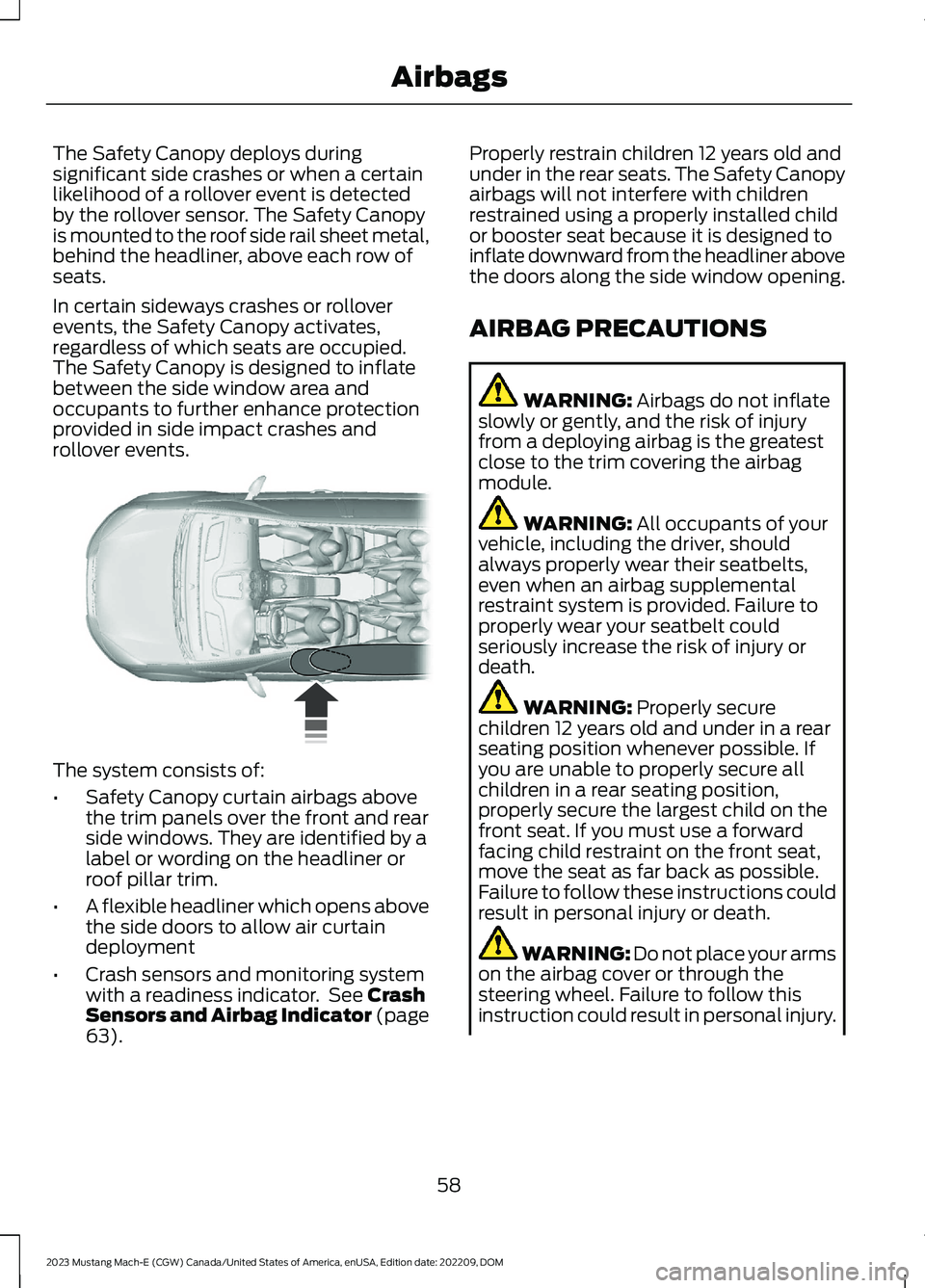

The Safety Canopy deploys duringsignificant side crashes or when a certainlikelihood of a rollover event is detectedby the rollover sensor. The Safety Canopyis mounted to the roof side rail sheet metal,behind the headliner, above each row ofseats.
In certain sideways crashes or rolloverevents, the Safety Canopy activates,regardless of which seats are occupied.The Safety Canopy is designed to inflatebetween the side window area andoccupants to further enhance protectionprovided in side impact crashes androllover events.
The system consists of:
•Safety Canopy curtain airbags abovethe trim panels over the front and rearside windows. They are identified by alabel or wording on the headliner orroof pillar trim.
•A flexible headliner which opens abovethe side doors to allow air curtaindeployment
•Crash sensors and monitoring systemwith a readiness indicator. See CrashSensors and Airbag Indicator (page63).
Properly restrain children 12 years old andunder in the rear seats. The Safety Canopyairbags will not interfere with childrenrestrained using a properly installed childor booster seat because it is designed toinflate downward from the headliner abovethe doors along the side window opening.
AIRBAG PRECAUTIONS
WARNING: Airbags do not inflateslowly or gently, and the risk of injuryfrom a deploying airbag is the greatestclose to the trim covering the airbagmodule.
WARNING: All occupants of yourvehicle, including the driver, shouldalways properly wear their seatbelts,even when an airbag supplementalrestraint system is provided. Failure toproperly wear your seatbelt couldseriously increase the risk of injury ordeath.
WARNING: Properly securechildren 12 years old and under in a rearseating position whenever possible. Ifyou are unable to properly secure allchildren in a rear seating position,properly secure the largest child on thefront seat. If you must use a forwardfacing child restraint on the front seat,move the seat as far back as possible.Failure to follow these instructions couldresult in personal injury or death.
WARNING: Do not place your armson the airbag cover or through thesteering wheel. Failure to follow thisinstruction could result in personal injury.
58
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMAirbags E75004

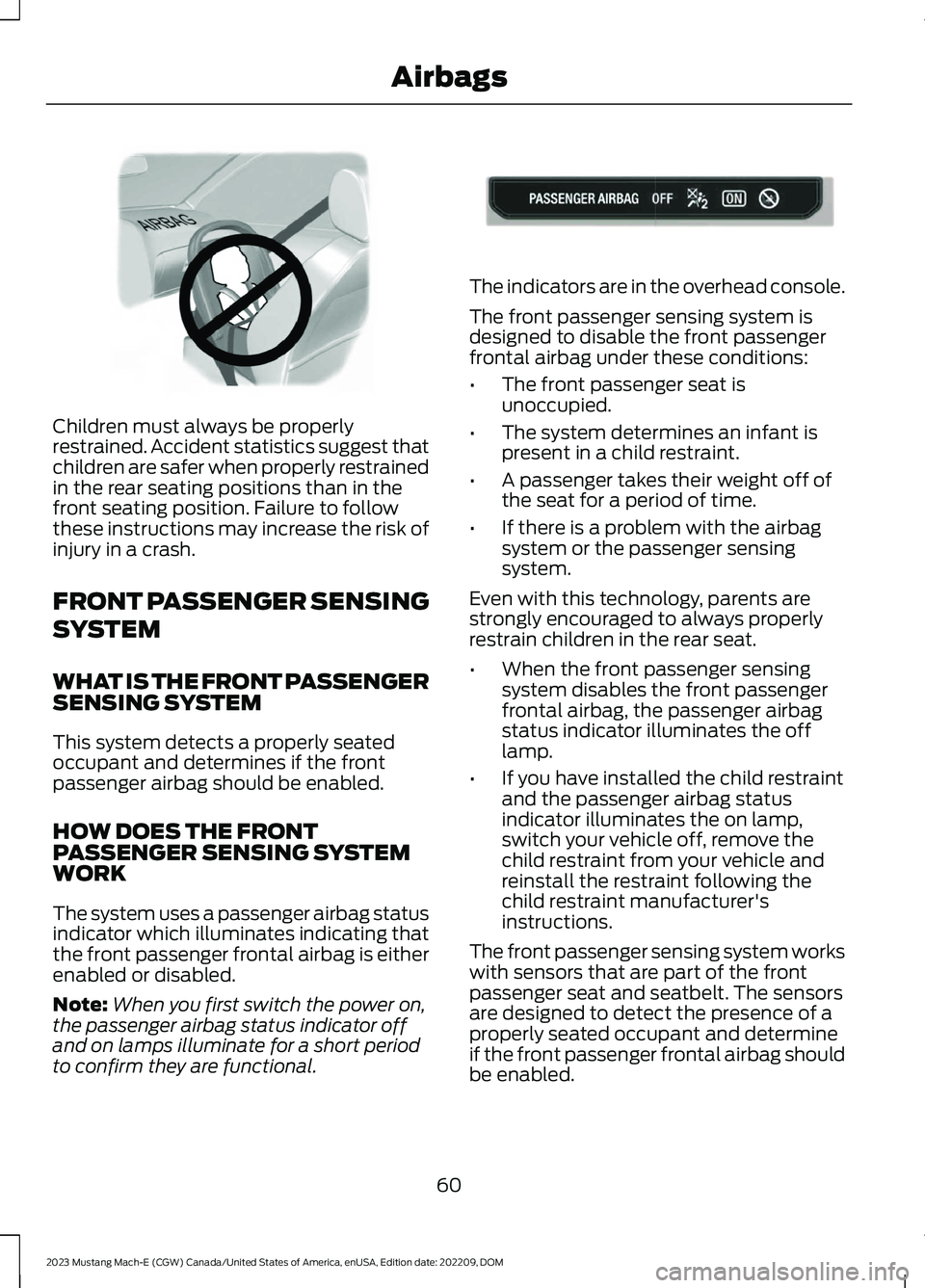

Children must always be properlyrestrained. Accident statistics suggest thatchildren are safer when properly restrainedin the rear seating positions than in thefront seating position. Failure to followthese instructions may increase the risk ofinjury in a crash.
FRONT PASSENGER SENSING
SYSTEM
WHAT IS THE FRONT PASSENGERSENSING SYSTEM
This system detects a properly seatedoccupant and determines if the frontpassenger airbag should be enabled.
HOW DOES THE FRONTPASSENGER SENSING SYSTEMWORK
The system uses a passenger airbag statusindicator which illuminates indicating thatthe front passenger frontal airbag is eitherenabled or disabled.
Note:When you first switch the power on,the passenger airbag status indicator offand on lamps illuminate for a short periodto confirm they are functional.
The indicators are in the overhead console.
The front passenger sensing system isdesigned to disable the front passengerfrontal airbag under these conditions:
•The front passenger seat isunoccupied.
•The system determines an infant ispresent in a child restraint.
•A passenger takes their weight off ofthe seat for a period of time.
•If there is a problem with the airbagsystem or the passenger sensingsystem.
Even with this technology, parents arestrongly encouraged to always properlyrestrain children in the rear seat.
•When the front passenger sensingsystem disables the front passengerfrontal airbag, the passenger airbagstatus indicator illuminates the offlamp.
•If you have installed the child restraintand the passenger airbag statusindicator illuminates the on lamp,switch your vehicle off, remove thechild restraint from your vehicle andreinstall the restraint following thechild restraint manufacturer'sinstructions.
The front passenger sensing system workswith sensors that are part of the frontpassenger seat and seatbelt. The sensorsare designed to detect the presence of aproperly seated occupant and determineif the front passenger frontal airbag shouldbe enabled.
60
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMAirbagsE142846 E181984
