Page 51 of 375

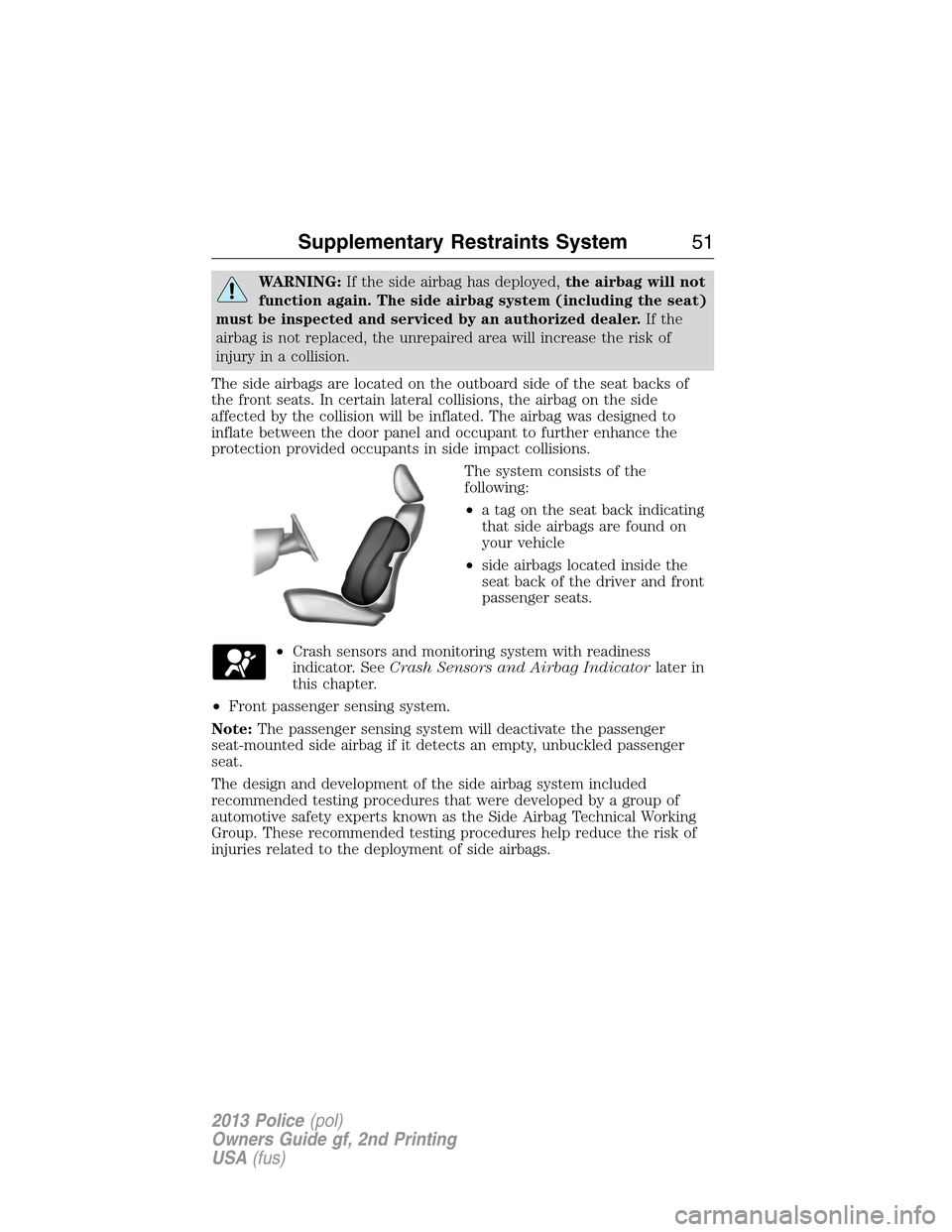

FORD POLICE INTERCEPTOR SEDAN 2013 1.G Workshop Manual WARNING:If the side airbag has deployed,the airbag will not
function again. The side airbag system (including the seat)
must be inspected and serviced by an authorized dealer.If the
airbag is not repl

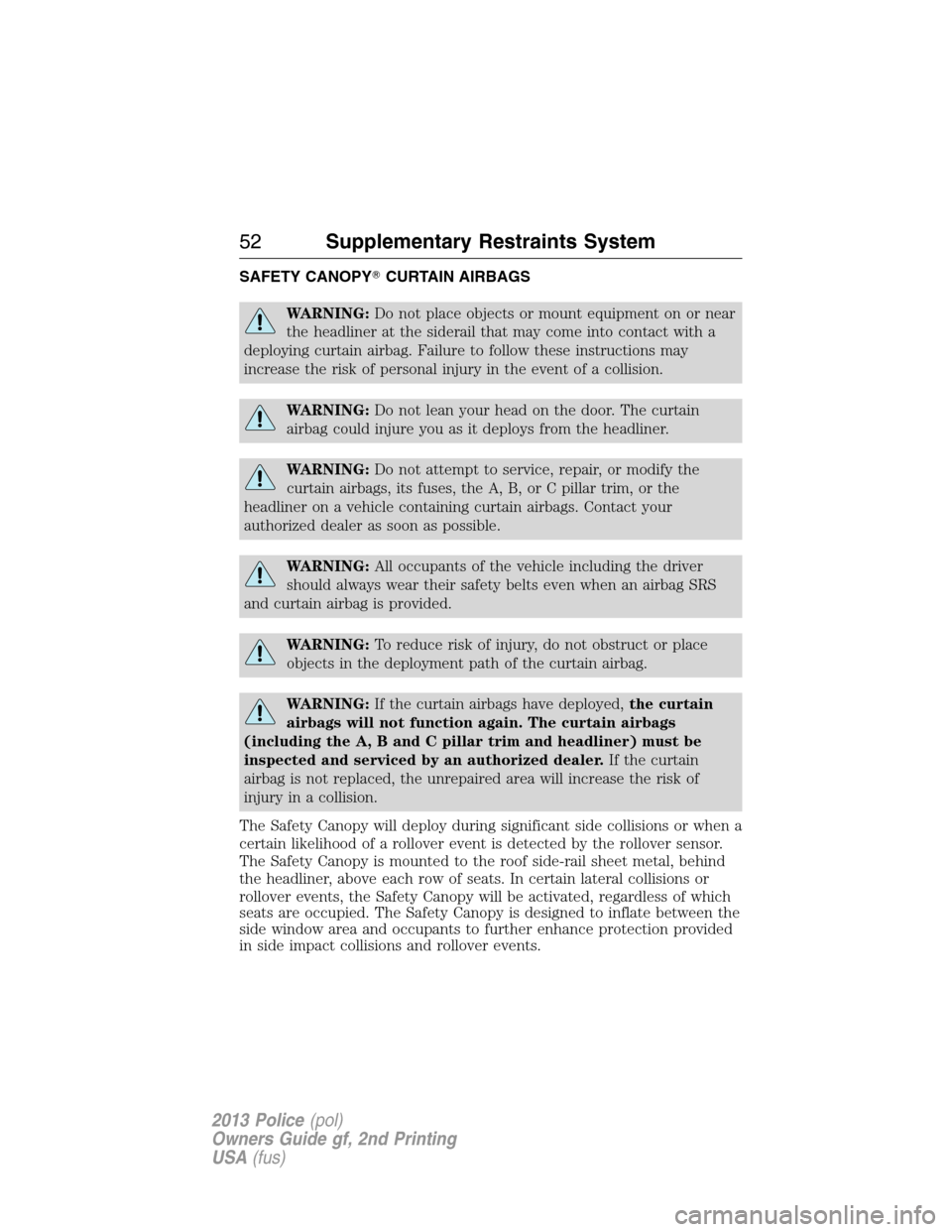

Page 52 of 375

FORD POLICE INTERCEPTOR SEDAN 2013 1.G Workshop Manual SAFETY CANOPYCURTAIN AIRBAGS
WARNING:Do not place objects or mount equipment on or near
the headliner at the siderail that may come into contact with a
deploying curtain airbag. Failure to follow the

Page 53 of 375

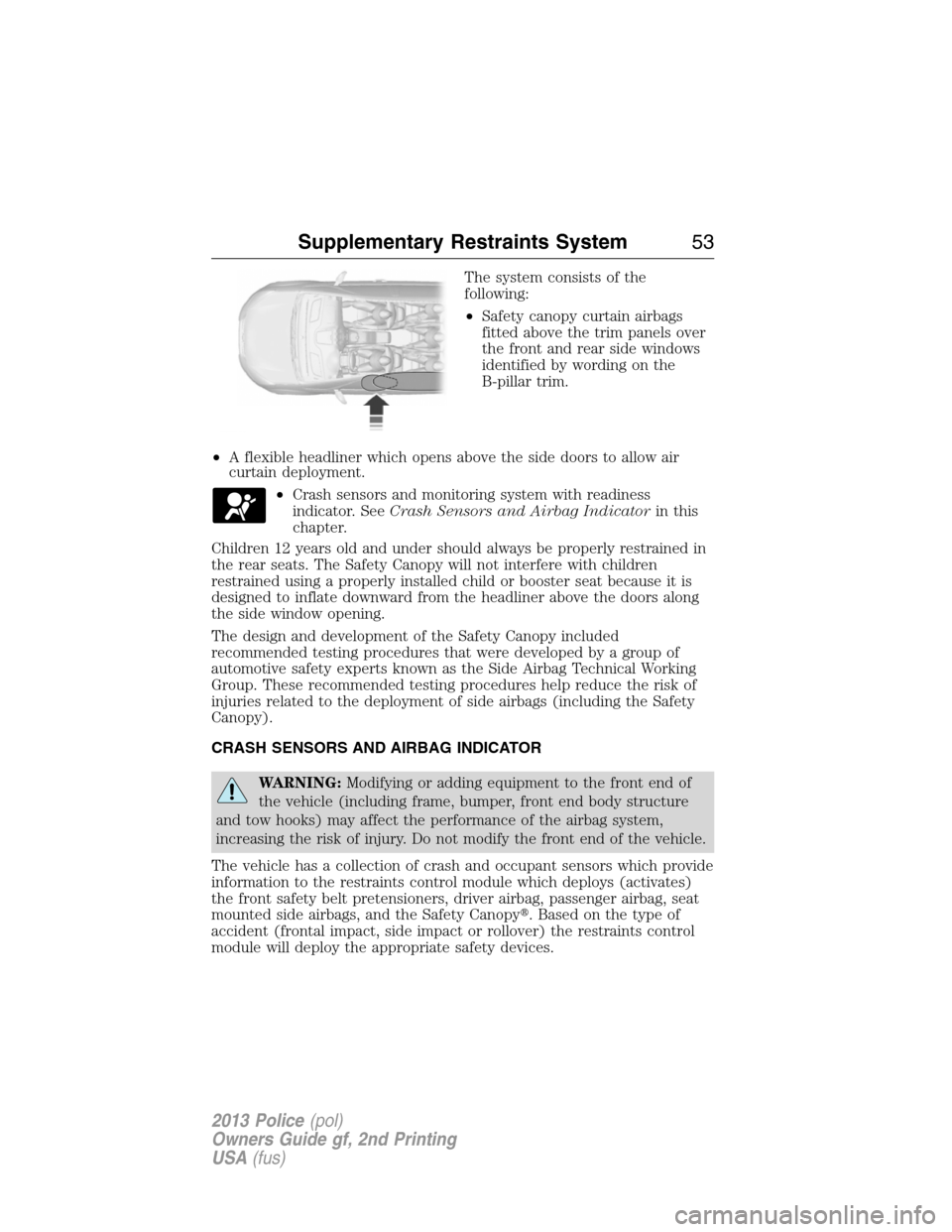

FORD POLICE INTERCEPTOR SEDAN 2013 1.G Workshop Manual The system consists of the
following:
•Safety canopy curtain airbags
fitted above the trim panels over
the front and rear side windows
identified by wording on the
B-pillar trim.
•A flexible headl

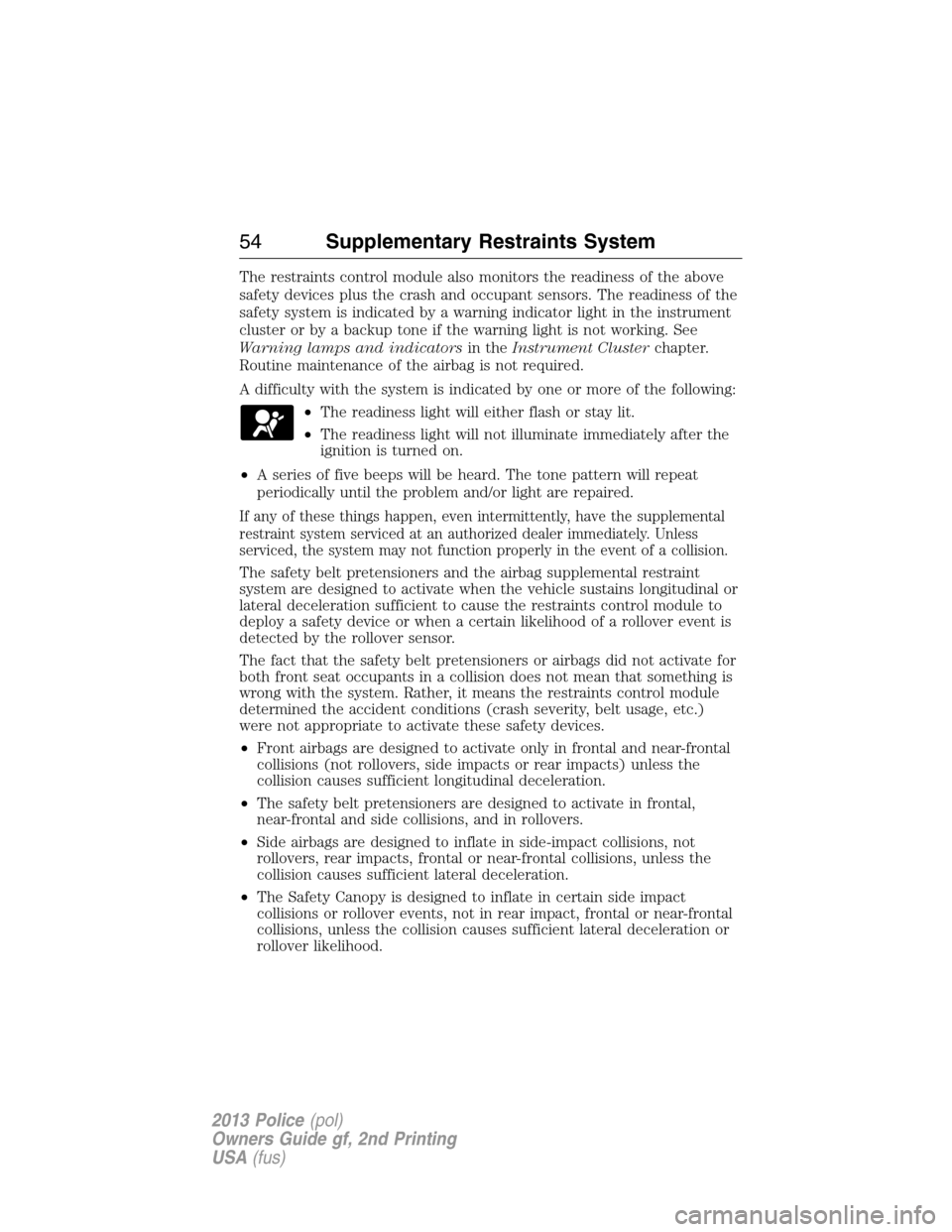

Page 54 of 375

FORD POLICE INTERCEPTOR SEDAN 2013 1.G Workshop Manual The restraints control module also monitors the readiness of the above
safety devices plus the crash and occupant sensors. The readiness of the
safety system is indicated by a warning indicator light

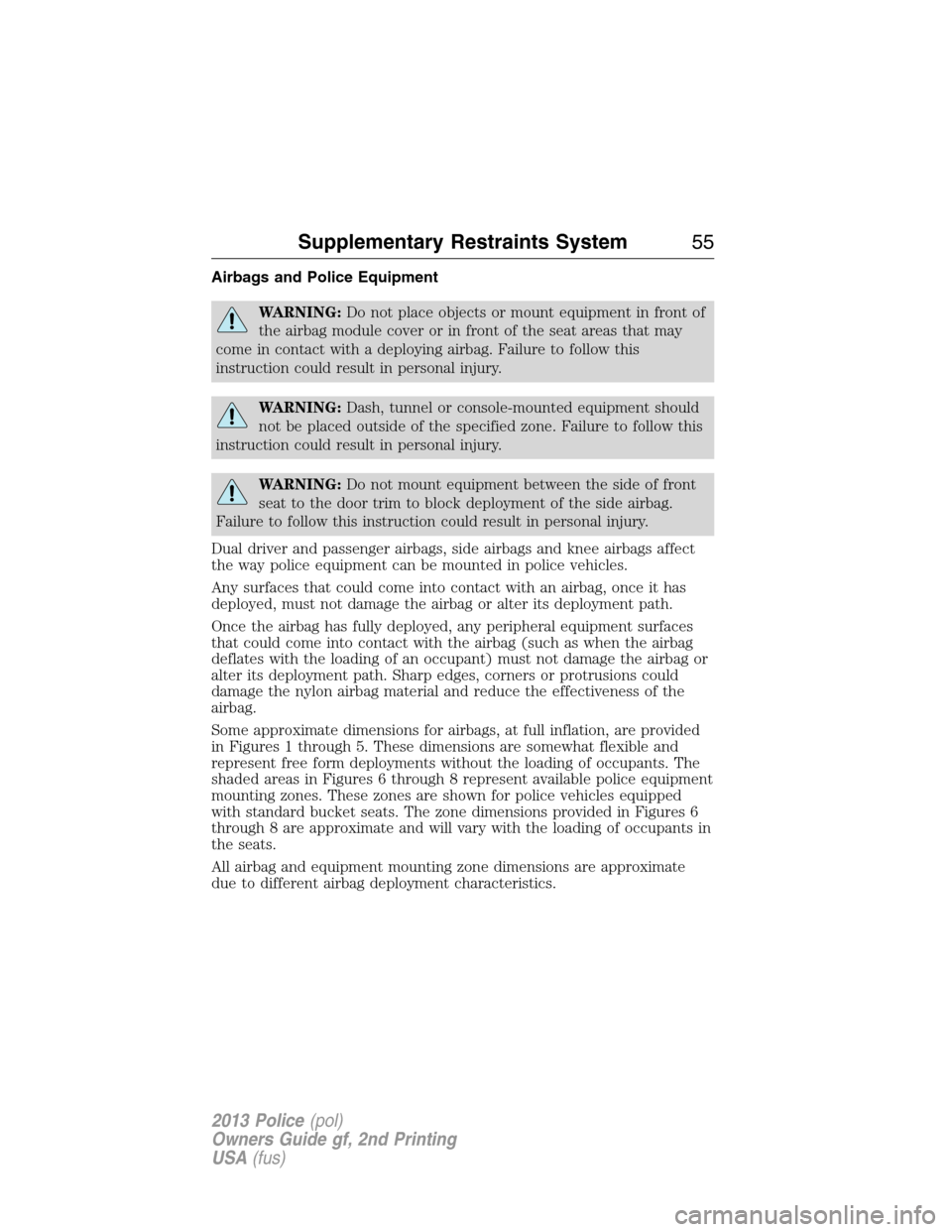

Page 55 of 375

FORD POLICE INTERCEPTOR SEDAN 2013 1.G Workshop Manual Airbags and Police Equipment
WARNING:Do not place objects or mount equipment in front of
the airbag module cover or in front of the seat areas that may
come in contact with a deploying airbag. Failure

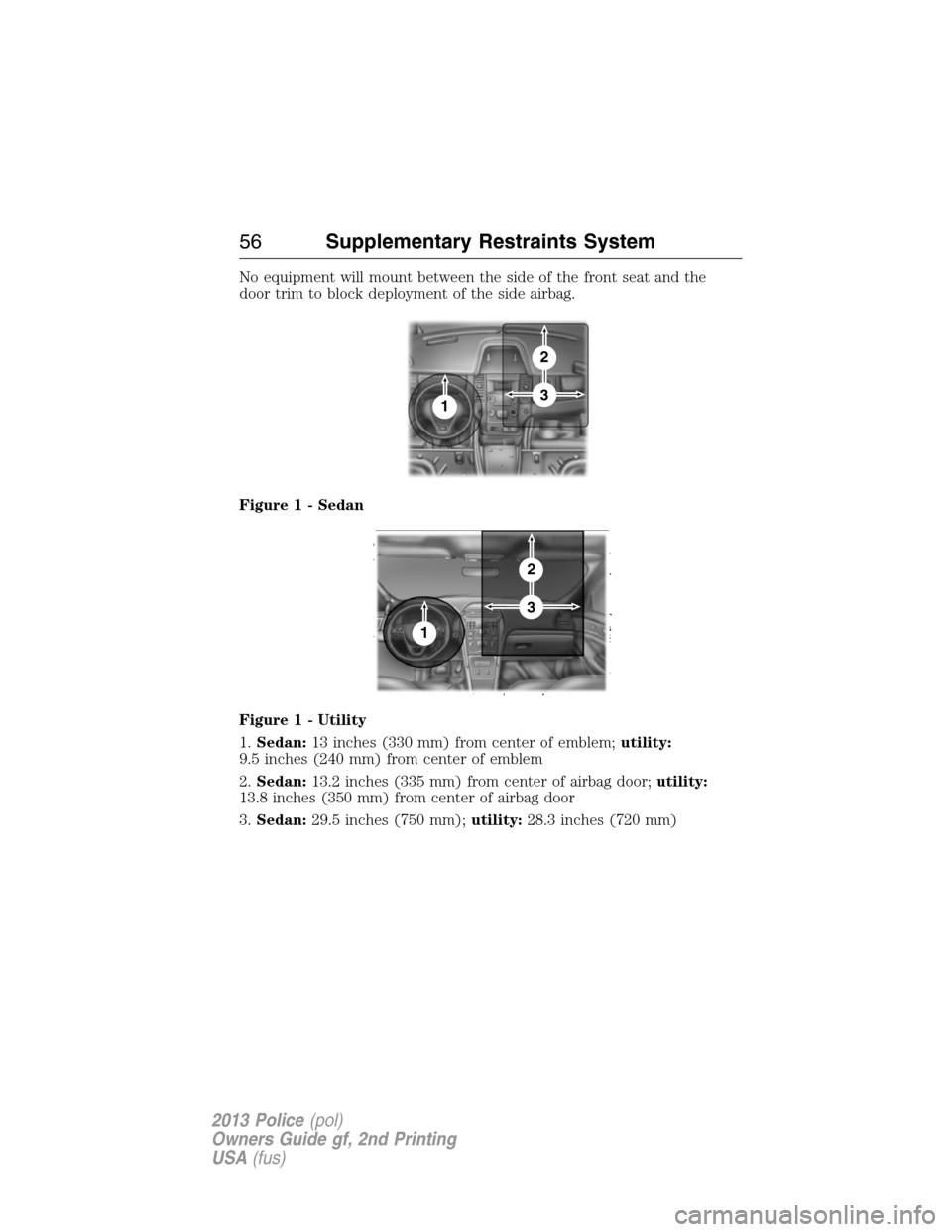

Page 56 of 375

FORD POLICE INTERCEPTOR SEDAN 2013 1.G Workshop Manual No equipment will mount between the side of the front seat and the
door trim to block deployment of the side airbag.
Figure 1 - Sedan
Figure 1 - Utility
1.Sedan:13 inches (330 mm) from center of emble

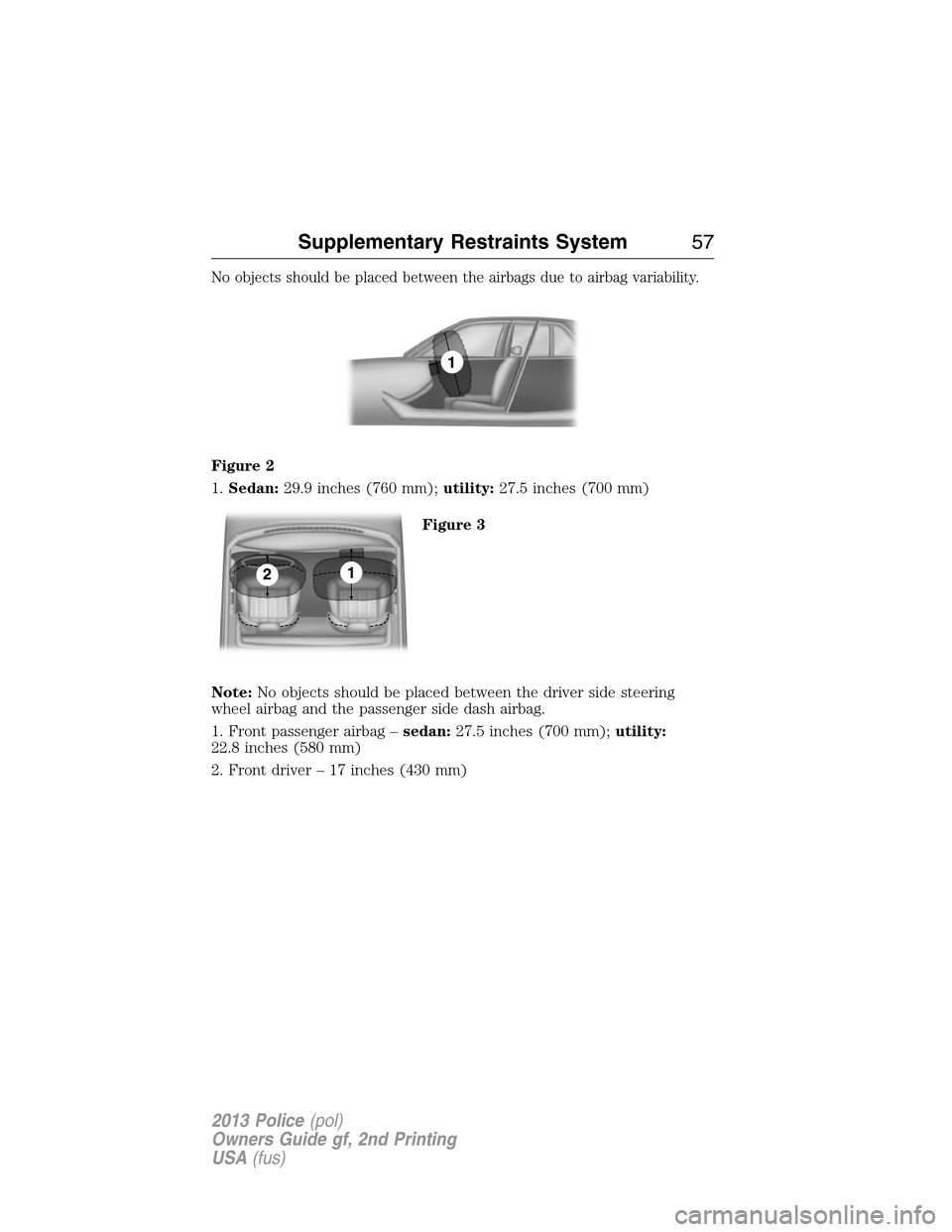

Page 57 of 375

FORD POLICE INTERCEPTOR SEDAN 2013 1.G Workshop Manual No objects should be placed between the airbags due to airbag variability.
Figure 2
1.Sedan:29.9 inches (760 mm);utility:27.5 inches (700 mm)
Figure 3
Note:No objects should be placed between the driv

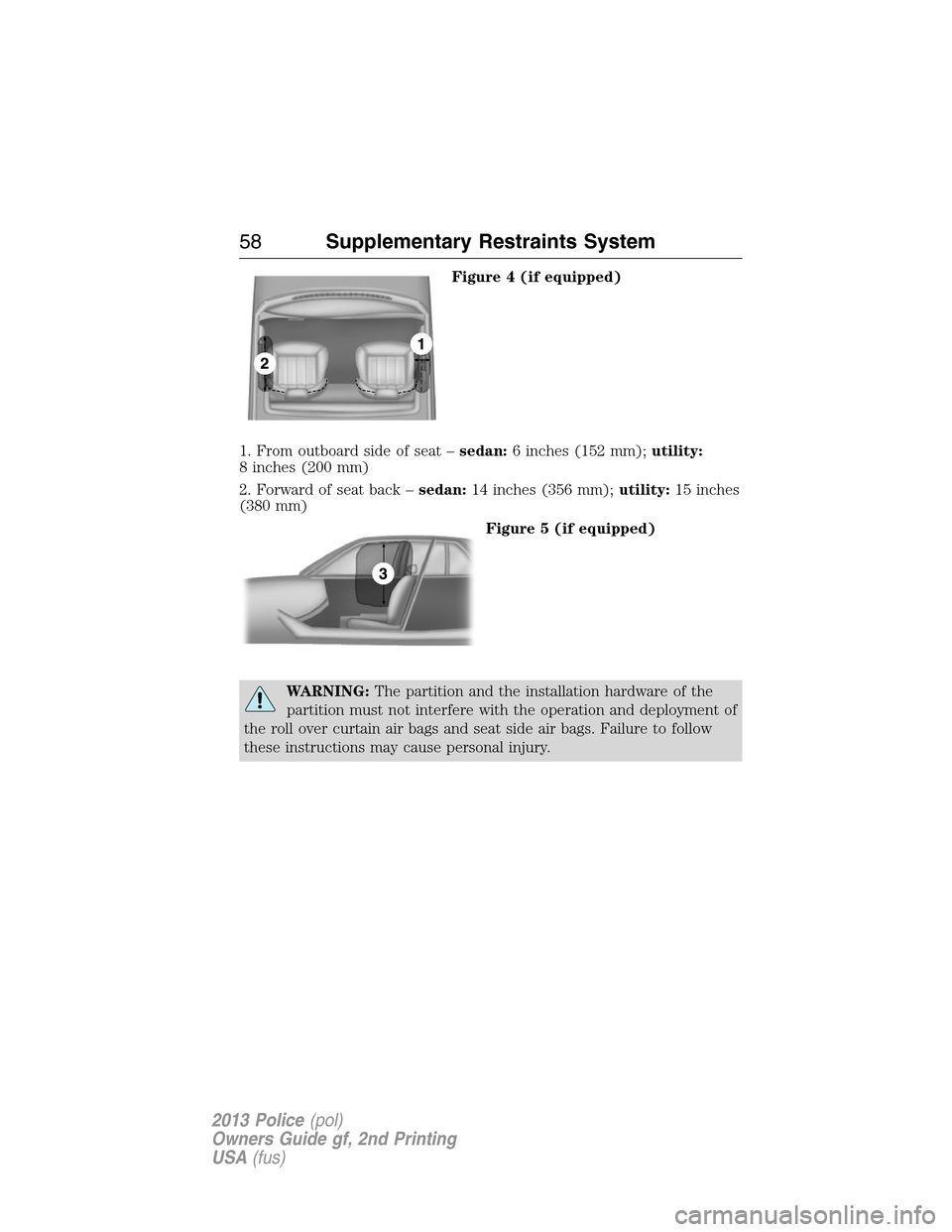

Page 58 of 375

FORD POLICE INTERCEPTOR SEDAN 2013 1.G Workshop Manual Figure 4 (if equipped)
1. From outboard side of seat –sedan:6 inches (152 mm);utility:
8 inches (200 mm)
2. Forward of seat back –sedan:14 inches (356 mm);utility:15 inches
(380 mm)
Figure 5 (if e

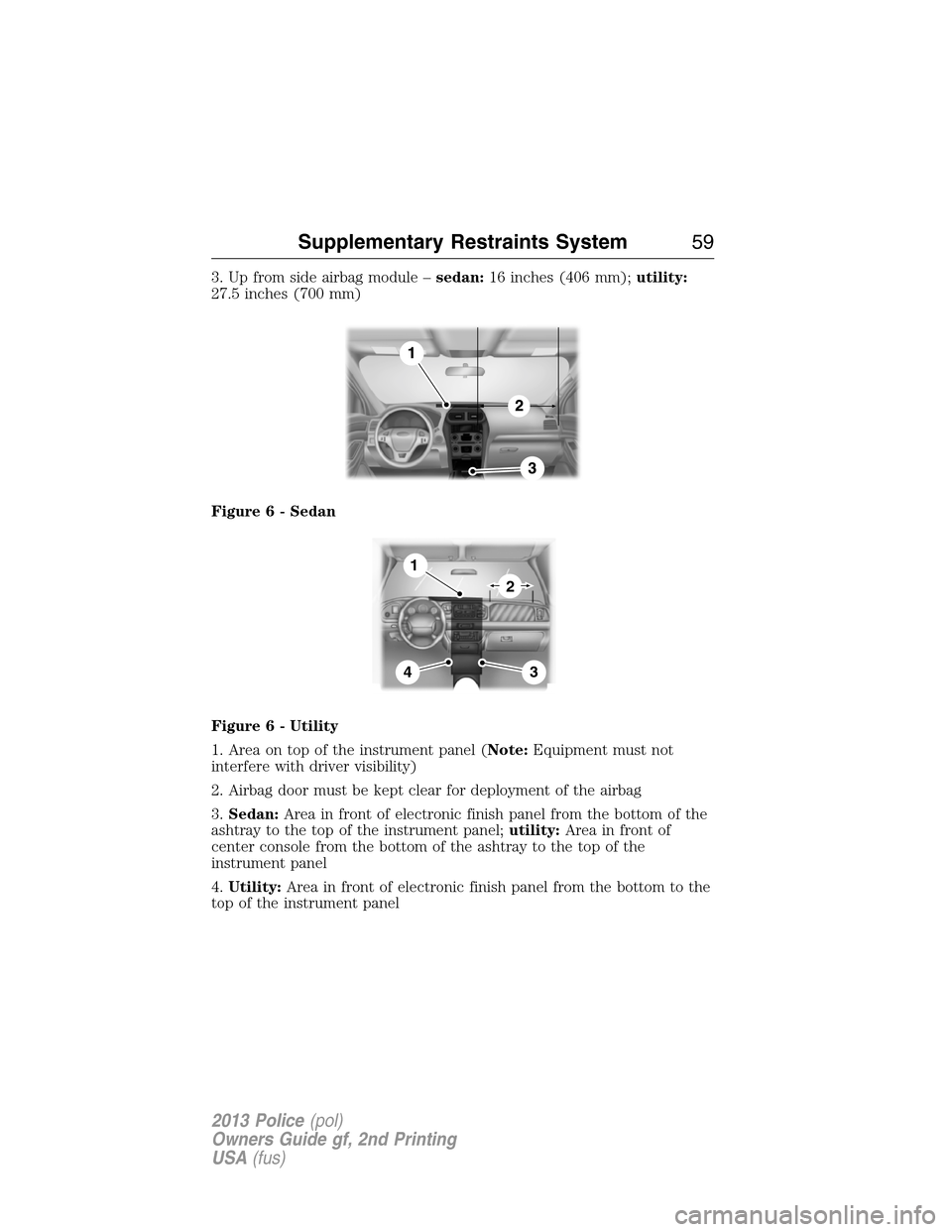

Page 59 of 375

FORD POLICE INTERCEPTOR SEDAN 2013 1.G Workshop Manual 3. Up from side airbag module –sedan:16 inches (406 mm);utility:
27.5 inches (700 mm)
Figure 6 - Sedan
Figure 6 - Utility
1. Area on top of the instrument panel (Note:Equipment must not
interfere wi

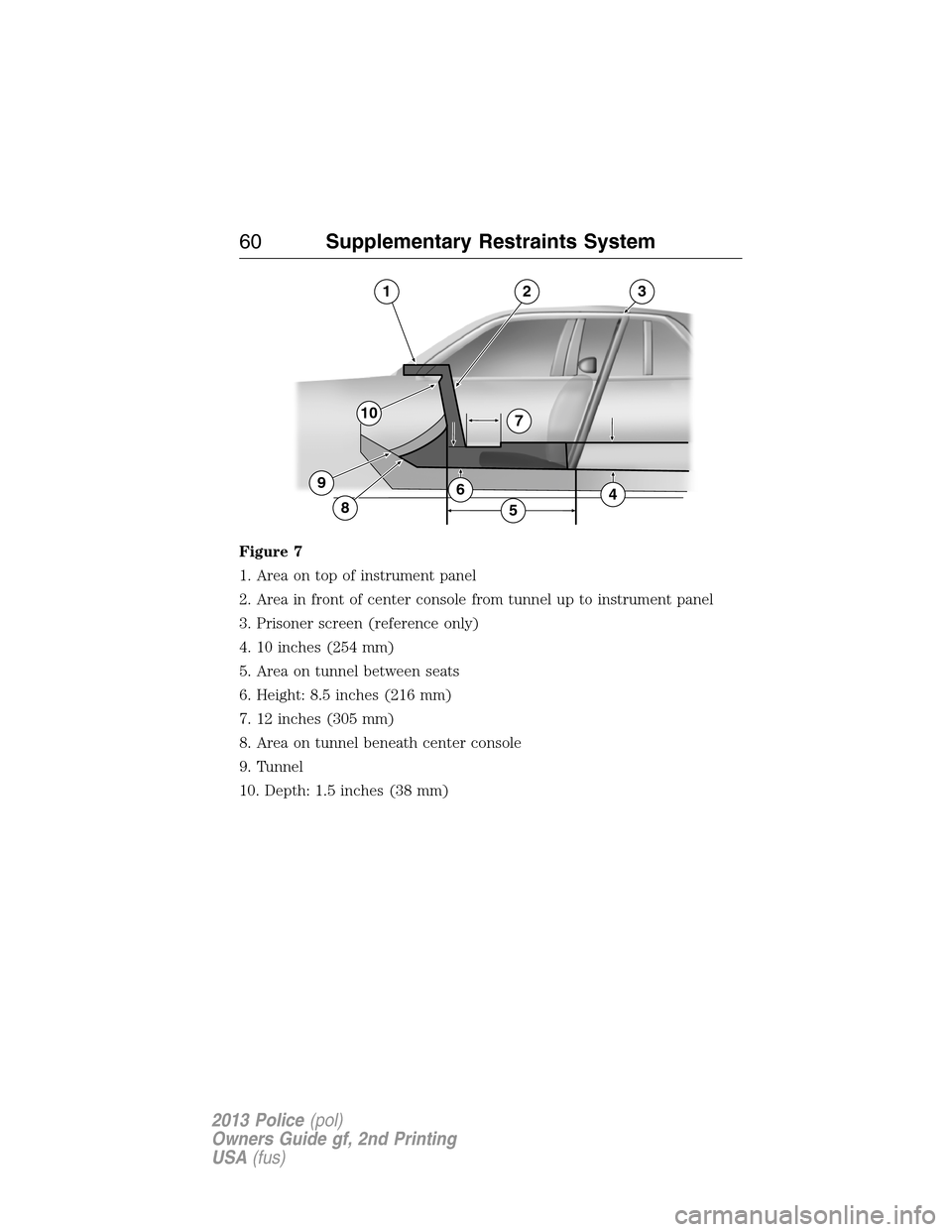

Page 60 of 375

FORD POLICE INTERCEPTOR SEDAN 2013 1.G Workshop Manual Figure 7
1. Area on top of instrument panel
2. Area in front of center console from tunnel up to instrument panel
3. Prisoner screen (reference only)
4. 10 inches (254 mm)
5. Area on tunnel between se
