Page 81 of 375

Headlamp Flasher
Sedan
Utility
Pull toward you slightly to activate and release to deactivate.
SPOT LIGHT CONTROL (IF EQUIPPED)
•Use the switch on the chrome
handle to turn the spot light on
and off.
•Rotate and twist the handle to
adjust the position of the spot
light.
Lighting81
2013 Police(pol)
Owners Guide gf, 2nd Printing
USA(fus)
Page 82 of 375

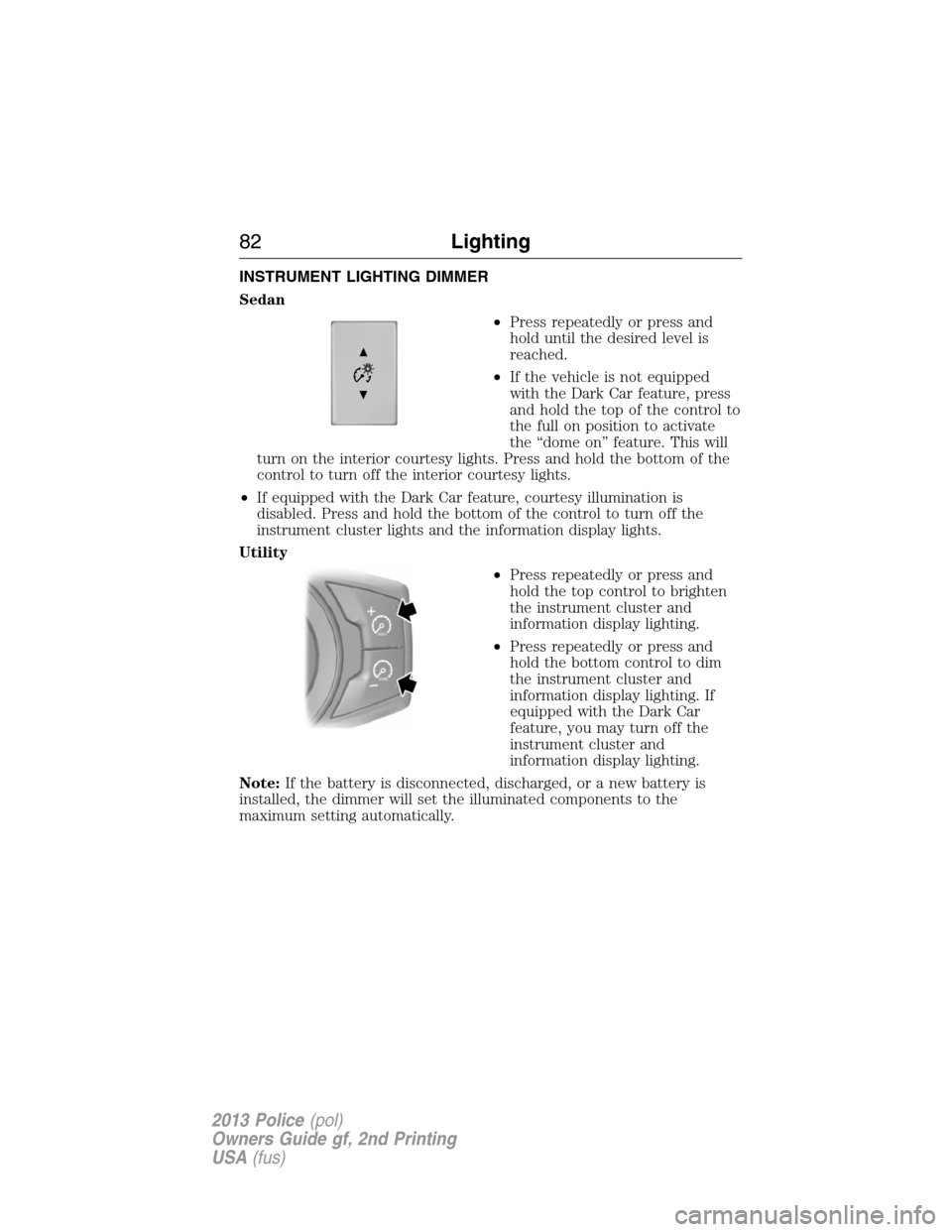

INSTRUMENT LIGHTING DIMMER
Sedan
•Press repeatedly or press and
hold until the desired level is
reached.
•If the vehicle is not equipped
with the Dark Car feature, press
and hold the top of the control to
the full on position to activate
the “dome on” feature. This will
turn on the interior courtesy lights. Press and hold the bottom of the
control to turn off the interior courtesy lights.
•If equipped with the Dark Car feature, courtesy illumination is
disabled. Press and hold the bottom of the control to turn off the
instrument cluster lights and the information display lights.
Utility
•Press repeatedly or press and
hold the top control to brighten
the instrument cluster and
information display lighting.
•Press repeatedly or press and
hold the bottom control to dim
the instrument cluster and
information display lighting. If
equipped with the Dark Car
feature, you may turn off the
instrument cluster and
information display lighting.
Note:If the battery is disconnected, discharged, or a new battery is
installed, the dimmer will set the illuminated components to the
maximum setting automatically.
82Lighting
2013 Police(pol)
Owners Guide gf, 2nd Printing
USA(fus)
Page 83 of 375

DAYTIME RUNNING LAMPS (IF EQUIPPED)
WARNING:Always remember to turn on your headlamps at
dusk or during inclement weather. The Daytime Running Lamp
(DRL) system does not activate the tail lamps and generally may not
provide adequate lighting during these conditions. Failure to activate
your headlamps under these conditions may result in a collision.
The system turns the headlamps on with a reduced output.
To activate:
•the ignition must be in the on position and
•the lighting control is in the off, autolamp, or parking lamp position.
•the transmission is not in P (Park).
DIRECTION INDICATORS
The turn signal lever does not mechanically lock in the upward or
downward position when activated.
Sedan
Utility
•Push down to activate the left turn signal.
•Push up to activate the right turn signal.
Note:Tap the lever up or down to make the direction indicators flash
only three times to indicate a lane change.
Lighting83
2013 Police(pol)
Owners Guide gf, 2nd Printing
USA(fus)
Page 84 of 375

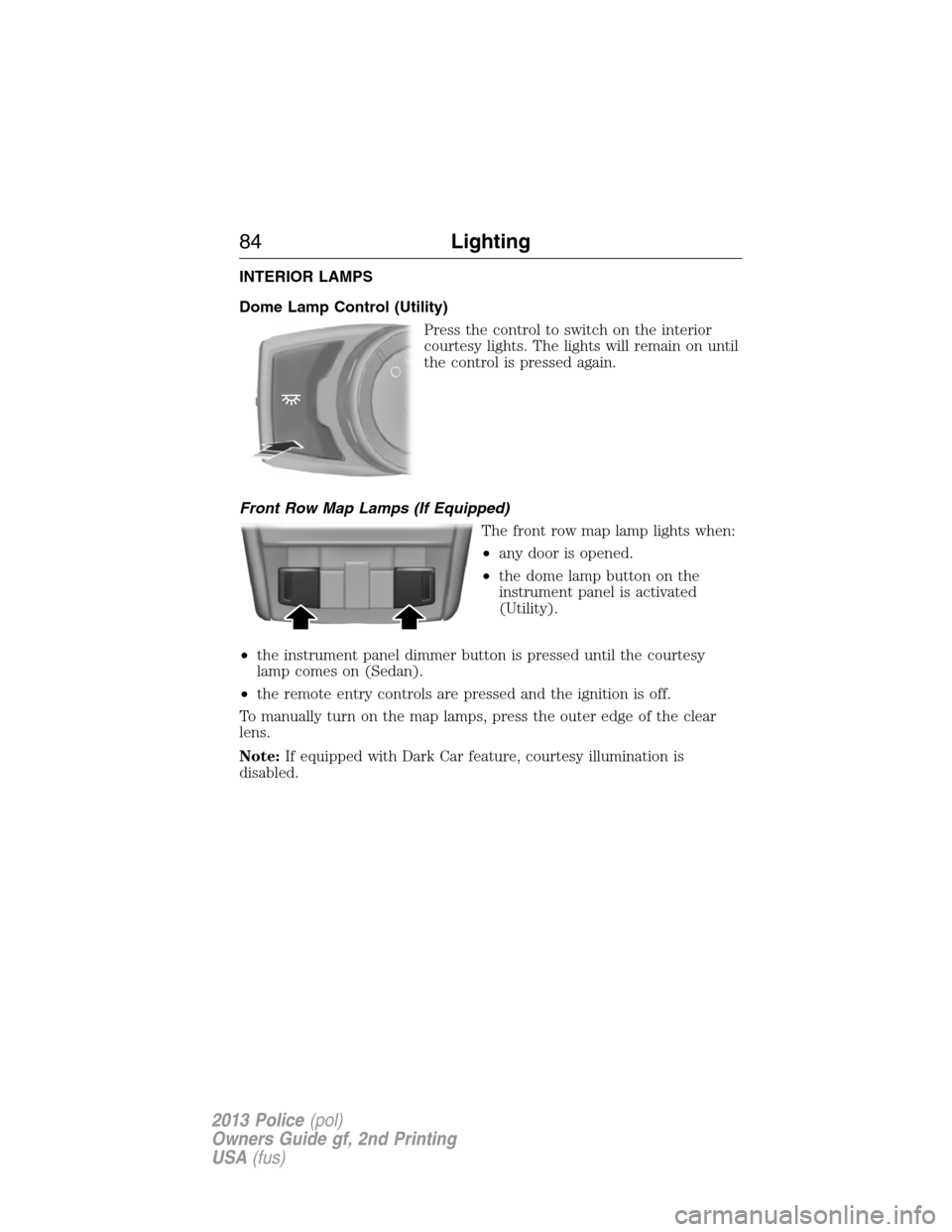

INTERIOR LAMPS
Dome Lamp Control (Utility)
Press the control to switch on the interior
courtesy lights. The lights will remain on until
the control is pressed again.
Front Row Map Lamps (If Equipped)
The front row map lamp lights when:
•any door is opened.
•the dome lamp button on the
instrument panel is activated
(Utility).
•the instrument panel dimmer button is pressed until the courtesy
lamp comes on (Sedan).
•the remote entry controls are pressed and the ignition is off.
To manually turn on the map lamps, press the outer edge of the clear
lens.
Note:If equipped with Dark Car feature, courtesy illumination is
disabled.
84Lighting
2013 Police(pol)
Owners Guide gf, 2nd Printing
USA(fus)
Page 85 of 375

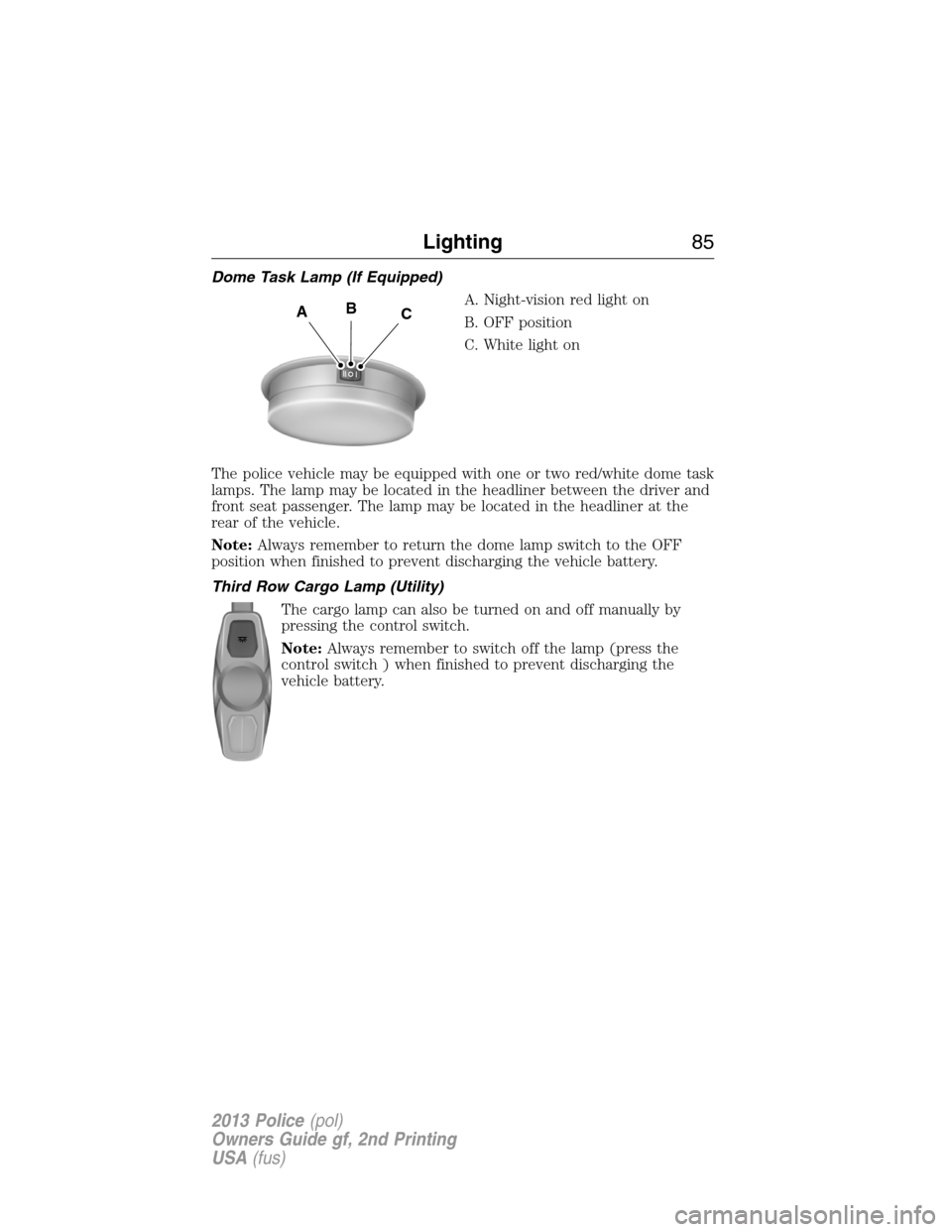

Dome Task Lamp (If Equipped)
A. Night-vision red light on
B. OFF position
C. White light on
The police vehicle may be equipped with one or two red/white dome task
lamps. The lamp may be located in the headliner between the driver and
front seat passenger. The lamp may be located in the headliner at the
rear of the vehicle.
Note:Always remember to return the dome lamp switch to the OFF
position when finished to prevent discharging the vehicle battery.
Third Row Cargo Lamp (Utility)
The cargo lamp can also be turned on and off manually by
pressing the control switch.
Note:Always remember to switch off the lamp (press the
control switch ) when finished to prevent discharging the
vehicle battery.
ABC
Lighting85
2013 Police(pol)
Owners Guide gf, 2nd Printing
USA(fus)
Page 86 of 375

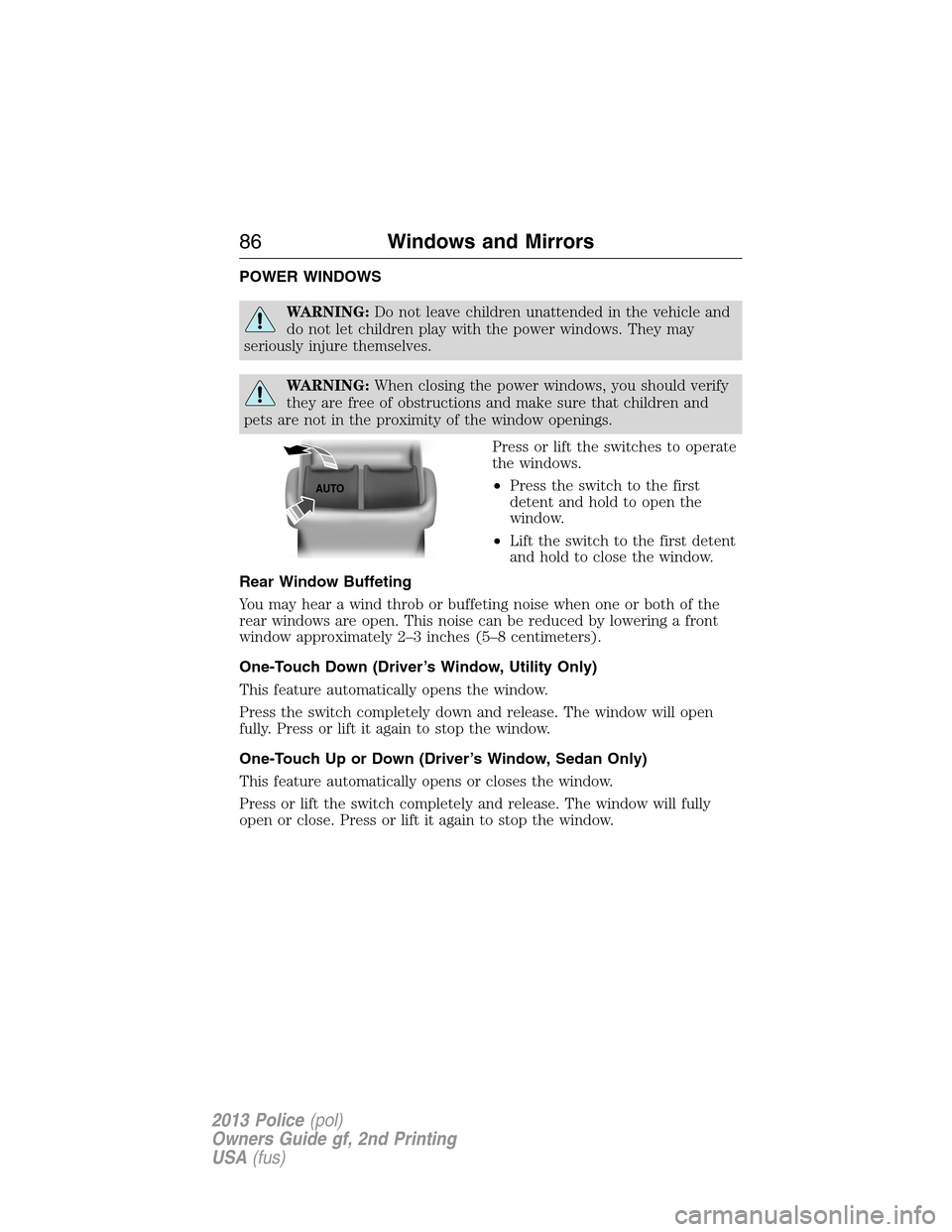

POWER WINDOWS
WARNING:Do not leave children unattended in the vehicle and
do not let children play with the power windows. They may
seriously injure themselves.
WARNING:When closing the power windows, you should verify
they are free of obstructions and make sure that children and
pets are not in the proximity of the window openings.
Press or lift the switches to operate
the windows.
•Press the switch to the first
detent and hold to open the
window.
•Lift the switch to the first detent
and hold to close the window.
Rear Window Buffeting
You may hear a wind throb or buffeting noise when one or both of the
rear windows are open. This noise can be reduced by lowering a front
window approximately 2–3 inches (5–8 centimeters).
One-Touch Down (Driver’s Window, Utility Only)
This feature automatically opens the window.
Press the switch completely down and release. The window will open
fully. Press or lift it again to stop the window.
One-Touch Up or Down (Driver’s Window, Sedan Only)
This feature automatically opens or closes the window.
Press or lift the switch completely and release. The window will fully
open or close. Press or lift it again to stop the window.
AUTO
86Windows and Mirrors
2013 Police(pol)
Owners Guide gf, 2nd Printing
USA(fus)
Page 87 of 375

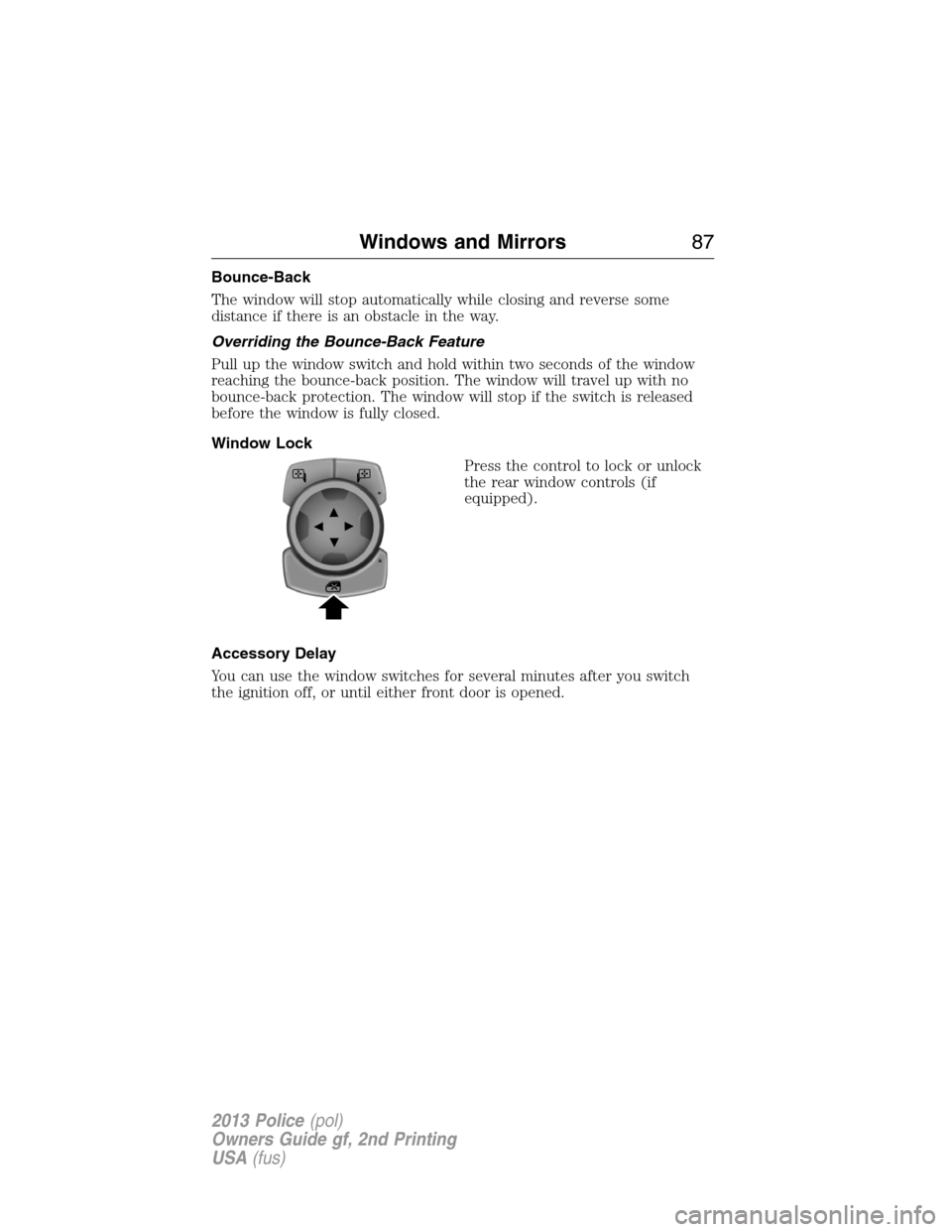

Bounce-Back
The window will stop automatically while closing and reverse some
distance if there is an obstacle in the way.
Overriding the Bounce-Back Feature
Pull up the window switch and hold within two seconds of the window
reaching the bounce-back position. The window will travel up with no
bounce-back protection. The window will stop if the switch is released
before the window is fully closed.
Window Lock
Press the control to lock or unlock
the rear window controls (if
equipped).
Accessory Delay
You can use the window switches for several minutes after you switch
the ignition off, or until either front door is opened.
Windows and Mirrors87
2013 Police(pol)
Owners Guide gf, 2nd Printing
USA(fus)
Page 88 of 375

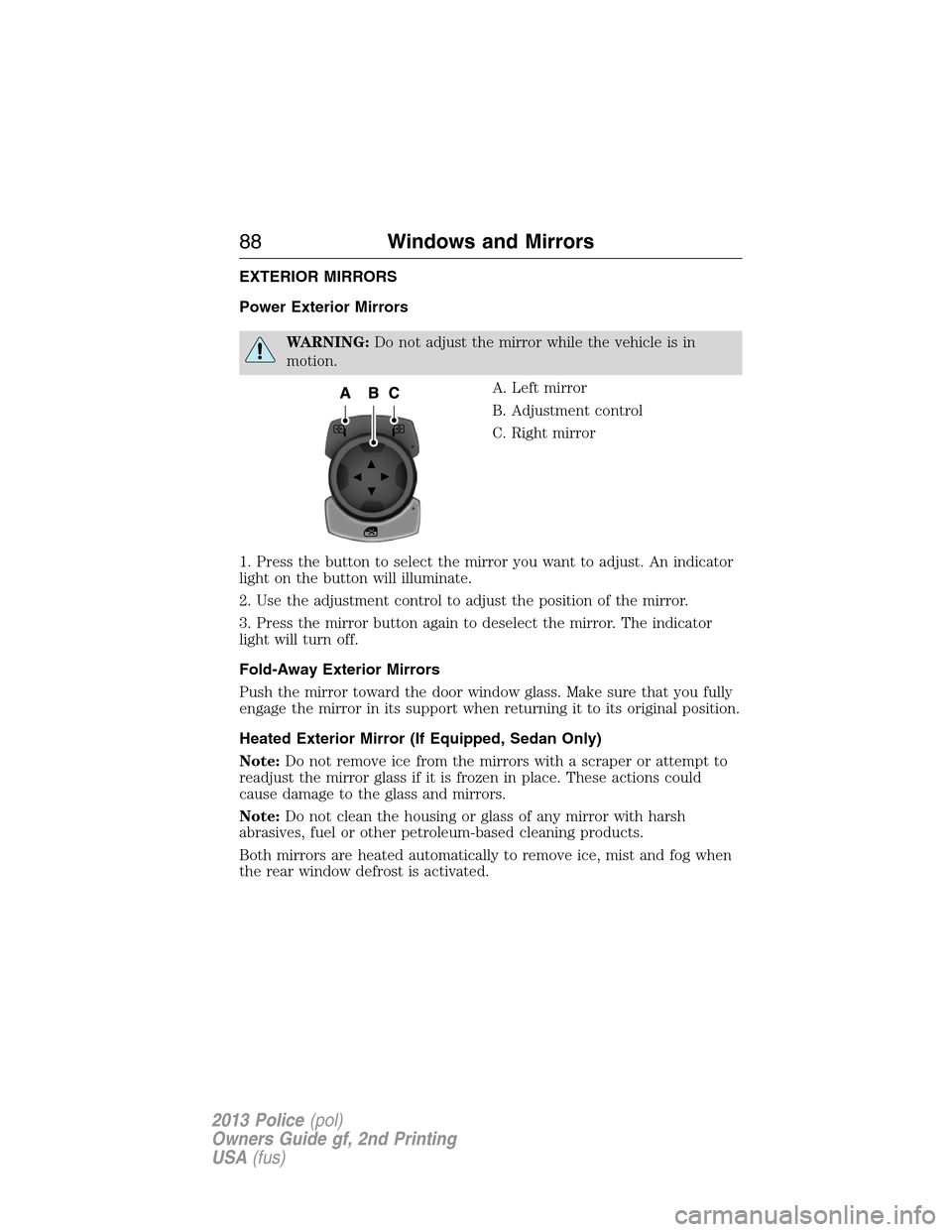

EXTERIOR MIRRORS
Power Exterior Mirrors
WARNING:Do not adjust the mirror while the vehicle is in
motion.
A. Left mirror
B. Adjustment control
C. Right mirror
1. Press the button to select the mirror you want to adjust. An indicator
light on the button will illuminate.
2. Use the adjustment control to adjust the position of the mirror.
3. Press the mirror button again to deselect the mirror. The indicator
light will turn off.
Fold-Away Exterior Mirrors
Push the mirror toward the door window glass. Make sure that you fully
engage the mirror in its support when returning it to its original position.
Heated Exterior Mirror (If Equipped, Sedan Only)
Note:Do not remove ice from the mirrors with a scraper or attempt to
readjust the mirror glass if it is frozen in place. These actions could
cause damage to the glass and mirrors.
Note:Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum-based cleaning products.
Both mirrors are heated automatically to remove ice, mist and fog when
the rear window defrost is activated.
88Windows and Mirrors
2013 Police(pol)
Owners Guide gf, 2nd Printing
USA(fus)
Page 89 of 375

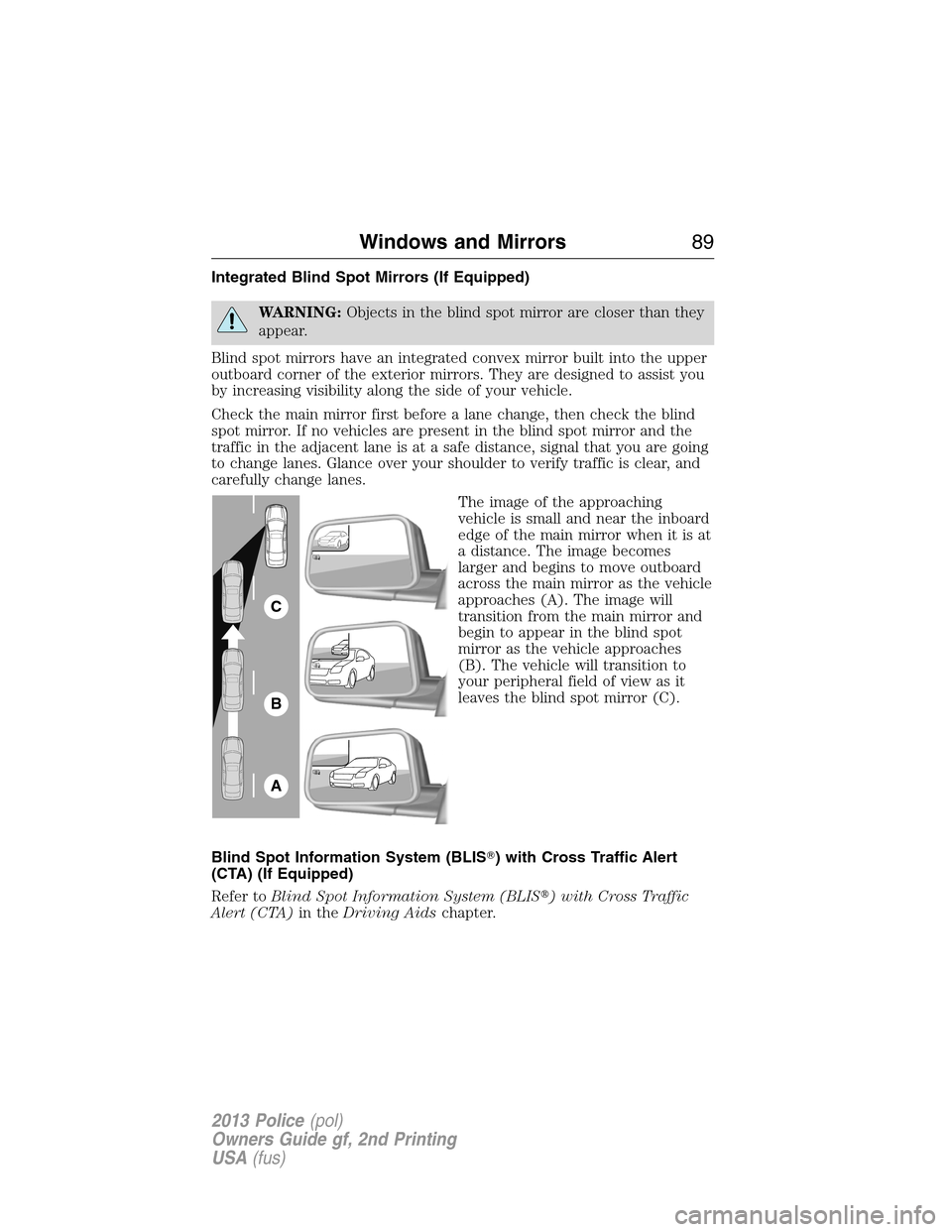

Integrated Blind Spot Mirrors (If Equipped)
WARNING:Objects in the blind spot mirror are closer than they
appear.
Blind spot mirrors have an integrated convex mirror built into the upper
outboard corner of the exterior mirrors. They are designed to assist you
by increasing visibility along the side of your vehicle.
Check the main mirror first before a lane change, then check the blind
spot mirror. If no vehicles are present in the blind spot mirror and the
traffic in the adjacent lane is at a safe distance, signal that you are going
to change lanes. Glance over your shoulder to verify traffic is clear, and
carefully change lanes.
The image of the approaching
vehicle is small and near the inboard
edge of the main mirror when it is at
a distance. The image becomes
larger and begins to move outboard
across the main mirror as the vehicle
approaches (A). The image will
transition from the main mirror and
begin to appear in the blind spot
mirror as the vehicle approaches
(B). The vehicle will transition to
your peripheral field of view as it
leaves the blind spot mirror (C).
Blind Spot Information System (BLIS) with Cross Traffic Alert
(CTA) (If Equipped)
Refer toBlind Spot Information System (BLIS) with Cross Traffic
Alert (CTA)in theDriving Aidschapter.
A
B
C
Windows and Mirrors89
2013 Police(pol)
Owners Guide gf, 2nd Printing
USA(fus)
Page 90 of 375

INTERIOR MIRROR
WARNING:Do not adjust the mirror when your vehicle is
moving.
Note:Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum or ammonia based cleaning products.
You can adjust the interior mirror to your preference. Some mirrors also
have a second pivot point. This lets you move the mirror head up or
down and from side to side.
Pull the tab below the mirror toward you to reduce glare at night.
Auto-Dimming Mirror (If Equipped)
Note:Do not block the sensors on the front and back of the mirror.
Mirror performance may be affected. A rear center passenger or raised
rear center head restraint may also block light from reaching the sensor.
The mirror will dim automatically to reduce glare when bright lights are
detected from behind your vehicle. It will automatically return to normal
reflection when you select reverse gear to make sure you have a clear
view when backing up.
SUN VISORS
Slide-On-Rod
Rotate the visor toward the side
window and extend it rearward for
extra sunlight coverage.
Retract the visor before moving it
back toward the windshield and
storing it.
90Windows and Mirrors
2013 Police(pol)
Owners Guide gf, 2nd Printing
USA(fus)
