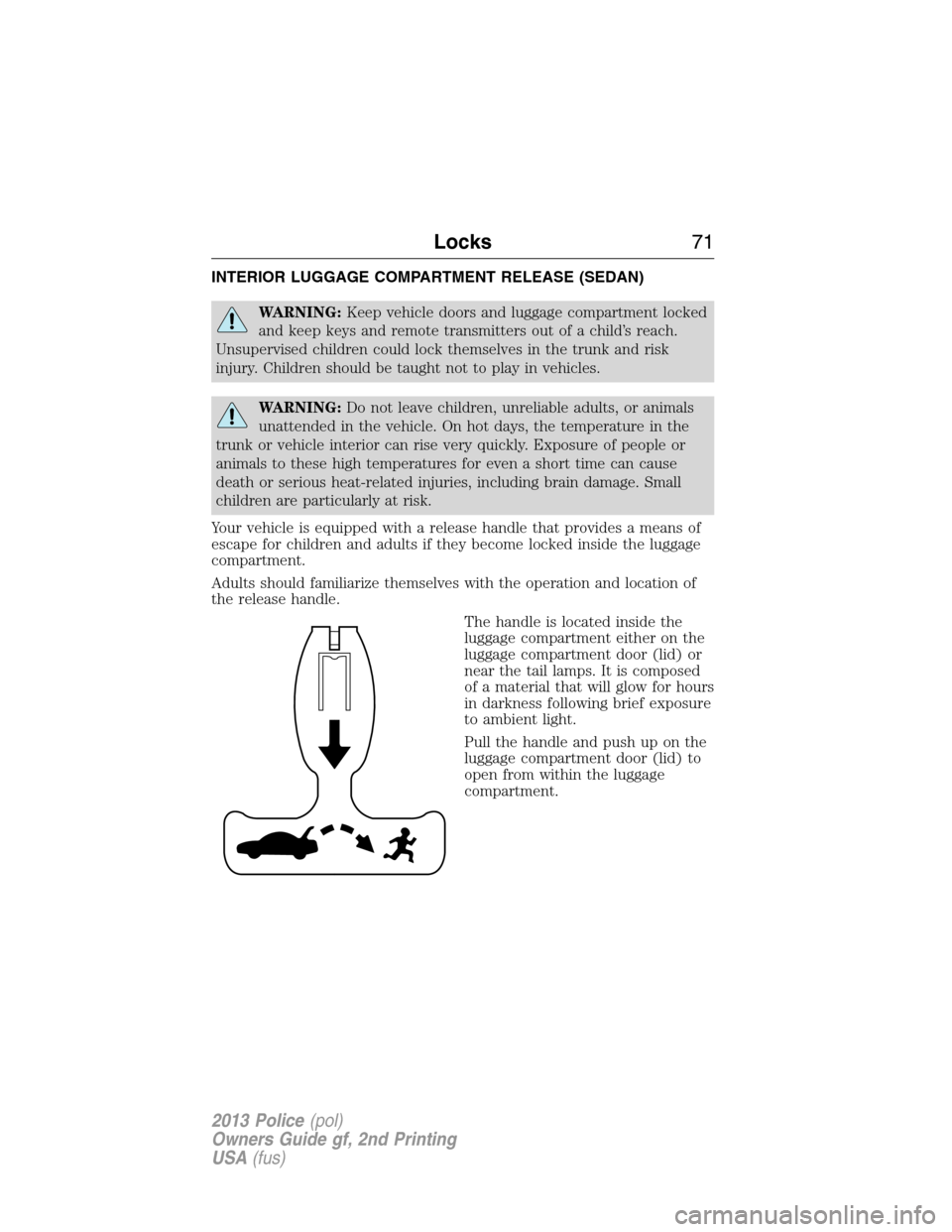

INTERIOR LUGGAGE COMPARTMENT RELEASE (SEDAN)
WARNING:Keep vehicle doors and luggage compartment locked
and keep keys and remote transmitters out of a child’s reach.
Unsupervised children could lock themselves in the trunk and risk
injury. Children should be taught not to play in vehicles.
WARNING:Do not leave children, unreliable adults, or animals
unattended in the vehicle. On hot days, the temperature in the
trunk or vehicle interior can rise very quickly. Exposure of people or
animals to these high temperatures for even a short time can cause
death or serious heat-related injuries, including brain damage. Small
children are particularly at risk.
Your vehicle is equipped with a release handle that provides a means of
escape for children and adults if they become locked inside the luggage
compartment.
Adults should familiarize themselves with the operation and location of
the release handle.
The handle is located inside the
luggage compartment either on the
luggage compartment door (lid) or
near the tail lamps. It is composed
of a material that will glow for hours
in darkness following brief exposure
to ambient light.
Pull the handle and push up on the
luggage compartment door (lid) to
open from within the luggage
compartment.
Locks71
2013 Police(pol)
Owners Guide gf, 2nd Printing
USA(fus)

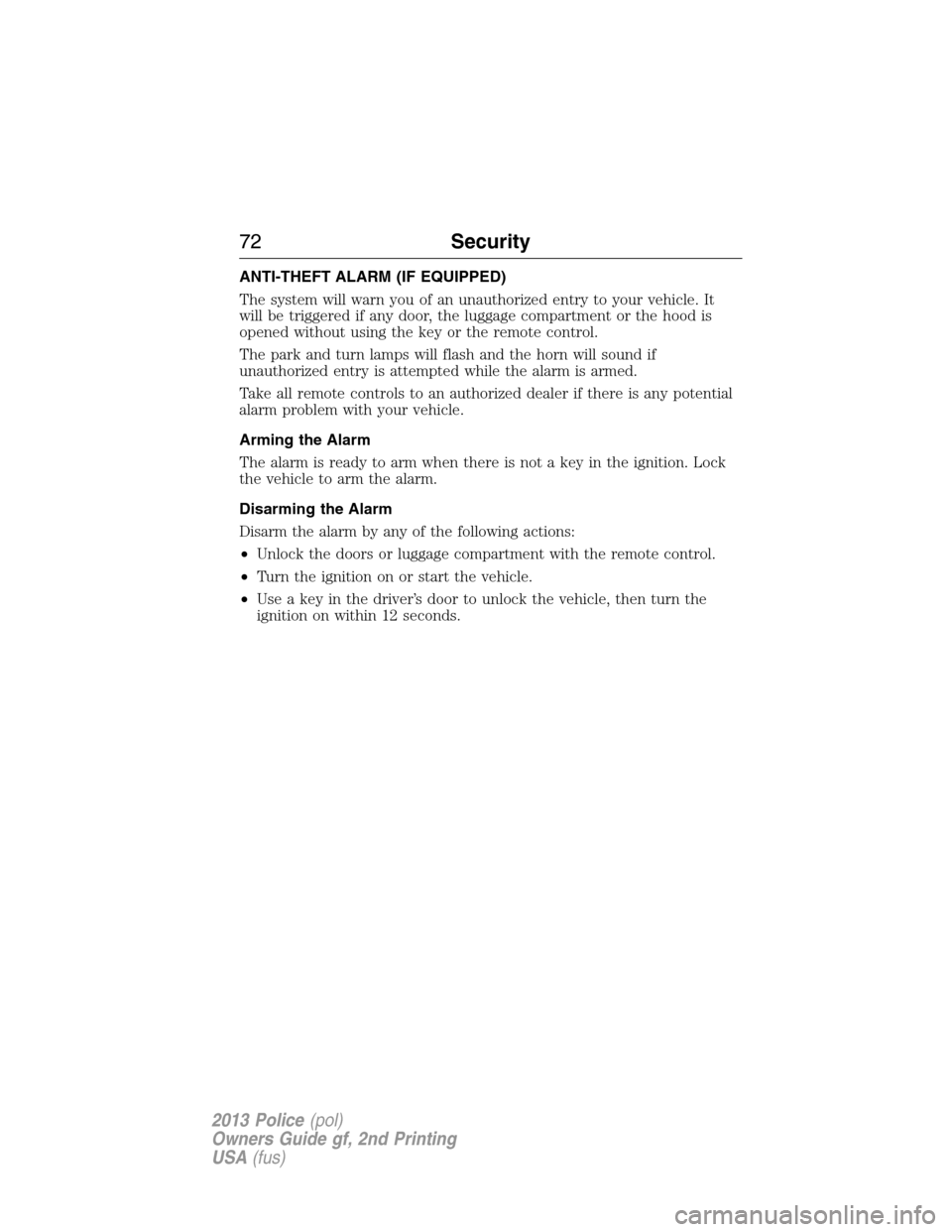

ANTI-THEFT ALARM (IF EQUIPPED)
The system will warn you of an unauthorized entry to your vehicle. It
will be triggered if any door, the luggage compartment or the hood is
opened without using the key or the remote control.
The park and turn lamps will flash and the horn will sound if
unauthorized entry is attempted while the alarm is armed.
Take all remote controls to an authorized dealer if there is any potential
alarm problem with your vehicle.
Arming the Alarm
The alarm is ready to arm when there is not a key in the ignition. Lock
the vehicle to arm the alarm.
Disarming the Alarm
Disarm the alarm by any of the following actions:
•Unlock the doors or luggage compartment with the remote control.
•Turn the ignition on or start the vehicle.
•Use a key in the driver’s door to unlock the vehicle, then turn the
ignition on within 12 seconds.
72Security
2013 Police(pol)
Owners Guide gf, 2nd Printing
USA(fus)

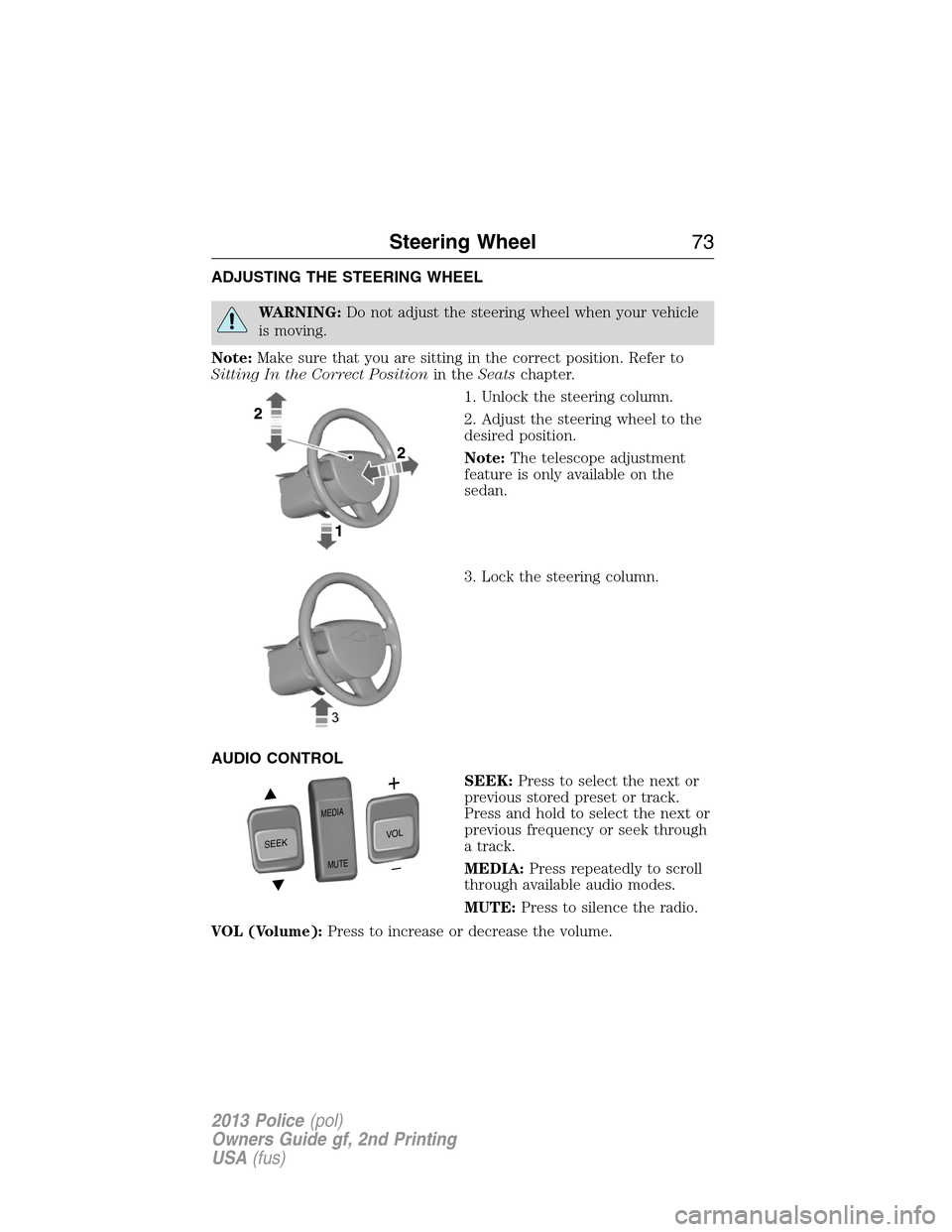

ADJUSTING THE STEERING WHEEL
WARNING:Do not adjust the steering wheel when your vehicle
is moving.
Note:Make sure that you are sitting in the correct position. Refer to
Sitting In the Correct Positionin theSeatschapter.
1. Unlock the steering column.
2. Adjust the steering wheel to the
desired position.
Note:The telescope adjustment
feature is only available on the
sedan.
3. Lock the steering column.
AUDIO CONTROL
SEEK:Press to select the next or
previous stored preset or track.
Press and hold to select the next or
previous frequency or seek through
a track.
MEDIA:Press repeatedly to scroll
through available audio modes.
MUTE:Press to silence the radio.
VOL (Volume):Press to increase or decrease the volume.
SEEK
MEDIA
MUTE
V
O
L
Steering Wheel73
2013 Police(pol)
Owners Guide gf, 2nd Printing
USA(fus)

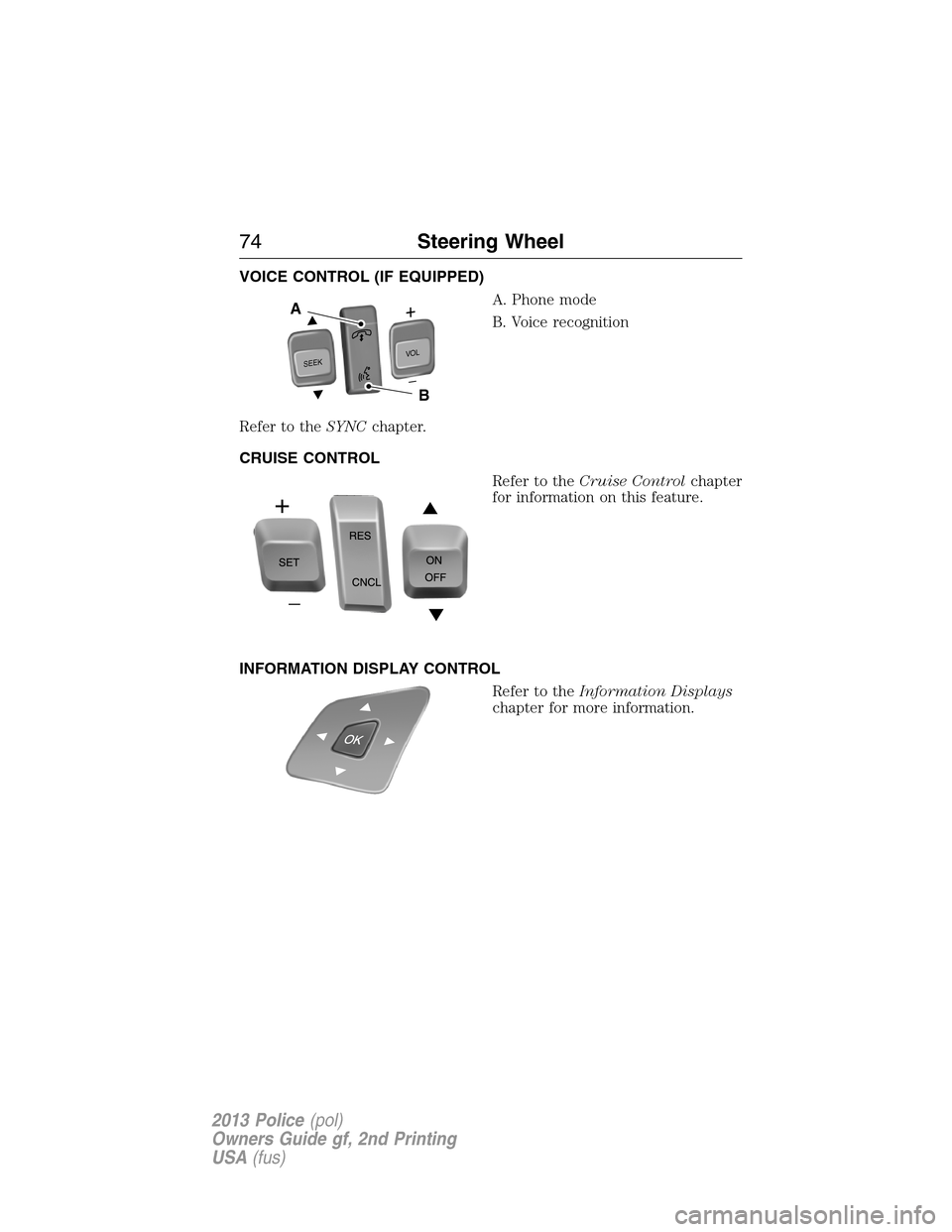

VOICE CONTROL (IF EQUIPPED)
A. Phone mode
B. Voice recognition
Refer to theSYNCchapter.
CRUISE CONTROL
Refer to theCruise Controlchapter
for information on this feature.
INFORMATION DISPLAY CONTROL
Refer to theInformation Displays
chapter for more information.
S
E
E
KVOL
A
B
74Steering Wheel
2013 Police(pol)
Owners Guide gf, 2nd Printing
USA(fus)

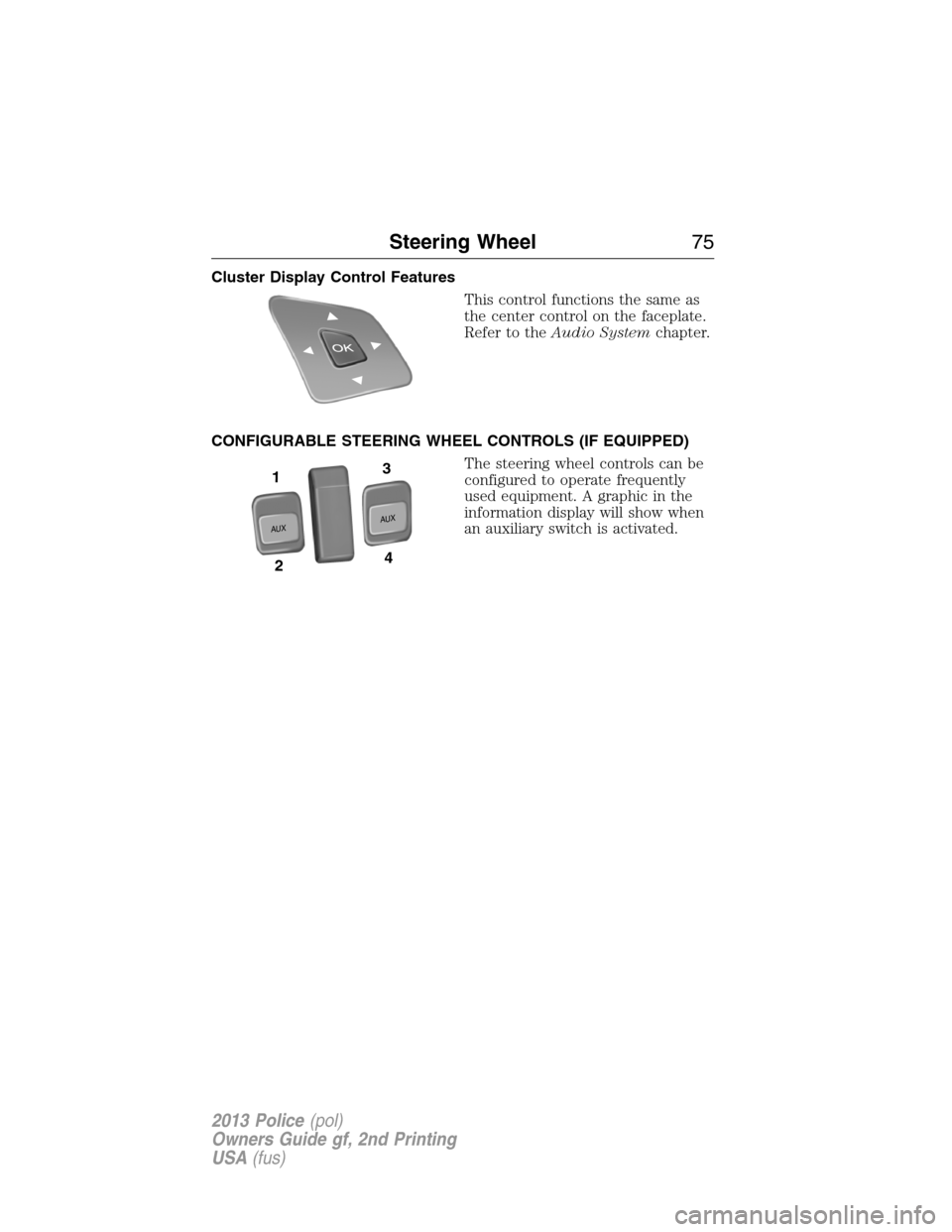

Cluster Display Control Features
This control functions the same as
the center control on the faceplate.
Refer to theAudio Systemchapter.
CONFIGURABLE STEERING WHEEL CONTROLS (IF EQUIPPED)
The steering wheel controls can be
configured to operate frequently
used equipment. A graphic in the
information display will show when
an auxiliary switch is activated.
A
U
XAU
X
3
42
1
Steering Wheel75
2013 Police(pol)
Owners Guide gf, 2nd Printing
USA(fus)

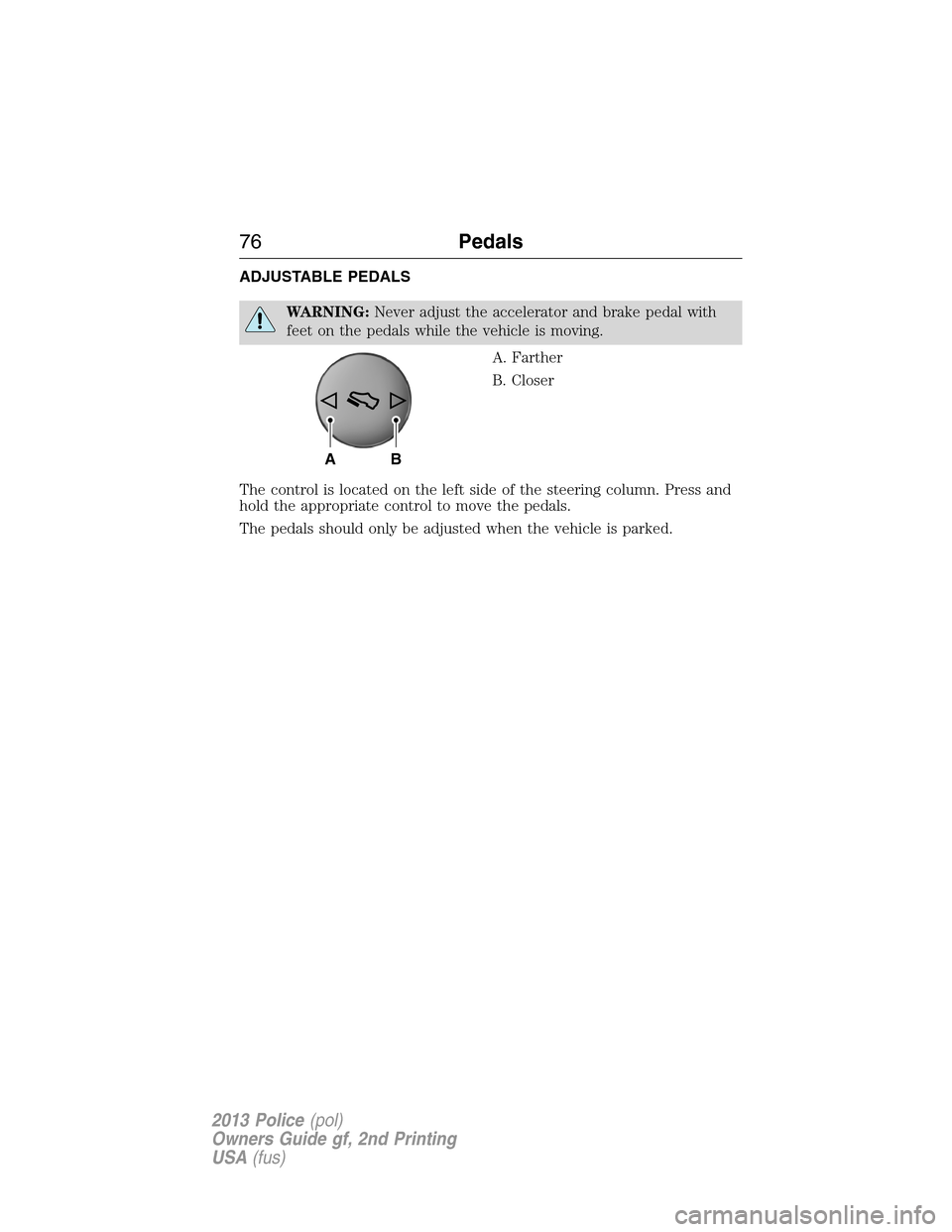

ADJUSTABLE PEDALS
WARNING:Never adjust the accelerator and brake pedal with
feet on the pedals while the vehicle is moving.
A. Farther
B. Closer
The control is located on the left side of the steering column. Press and
hold the appropriate control to move the pedals.
The pedals should only be adjusted when the vehicle is parked.
AB
76Pedals
2013 Police(pol)
Owners Guide gf, 2nd Printing
USA(fus)

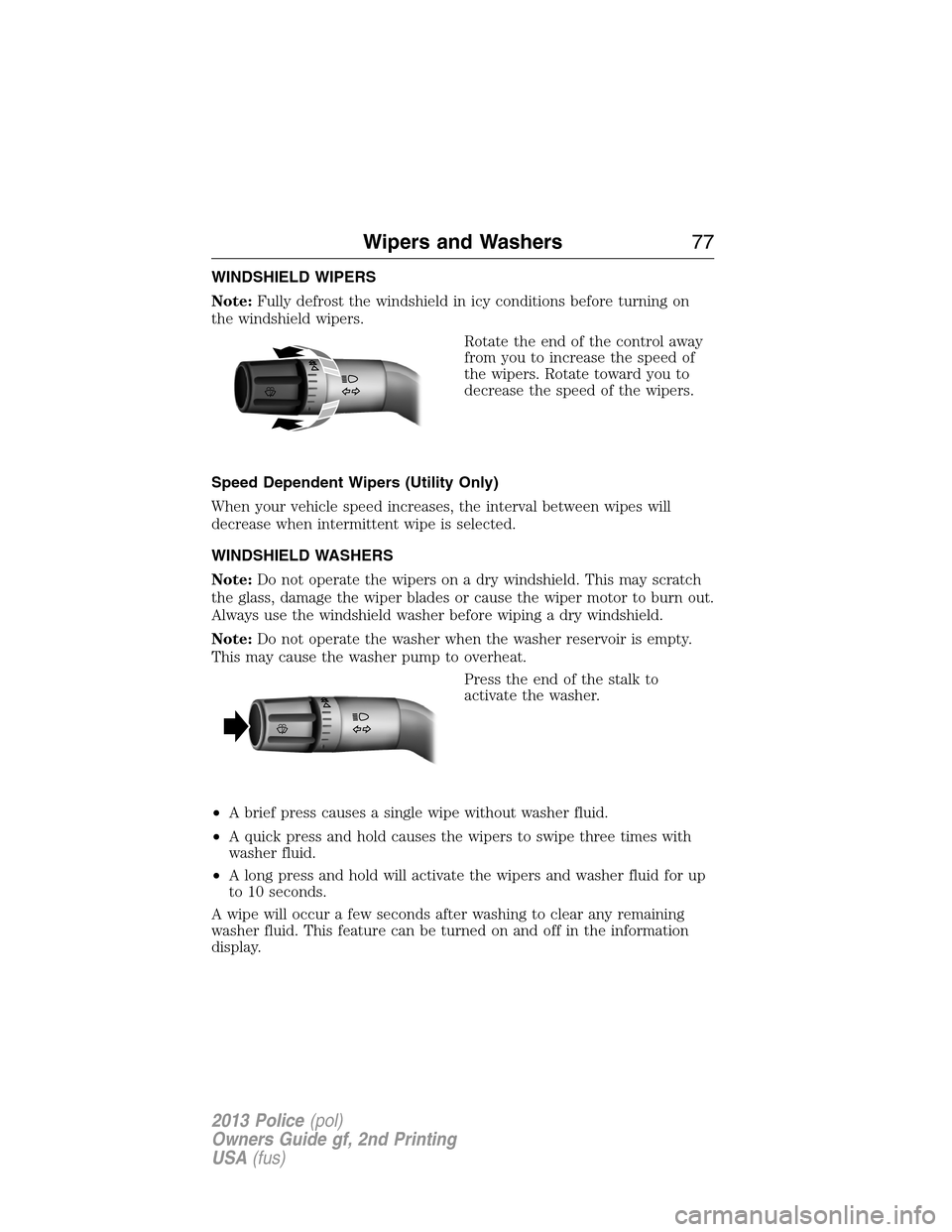

WINDSHIELD WIPERS
Note:Fully defrost the windshield in icy conditions before turning on
the windshield wipers.
Rotate the end of the control away
from you to increase the speed of
the wipers. Rotate toward you to
decrease the speed of the wipers.
Speed Dependent Wipers (Utility Only)
When your vehicle speed increases, the interval between wipes will
decrease when intermittent wipe is selected.
WINDSHIELD WASHERS
Note:Do not operate the wipers on a dry windshield. This may scratch
the glass, damage the wiper blades or cause the wiper motor to burn out.
Always use the windshield washer before wiping a dry windshield.
Note:Do not operate the washer when the washer reservoir is empty.
This may cause the washer pump to overheat.
Press the end of the stalk to
activate the washer.
•A brief press causes a single wipe without washer fluid.
•A quick press and hold causes the wipers to swipe three times with
washer fluid.
•A long press and hold will activate the wipers and washer fluid for up
to 10 seconds.
A wipe will occur a few seconds after washing to clear any remaining
washer fluid. This feature can be turned on and off in the information
display.
Wipers and Washers77
2013 Police(pol)
Owners Guide gf, 2nd Printing
USA(fus)

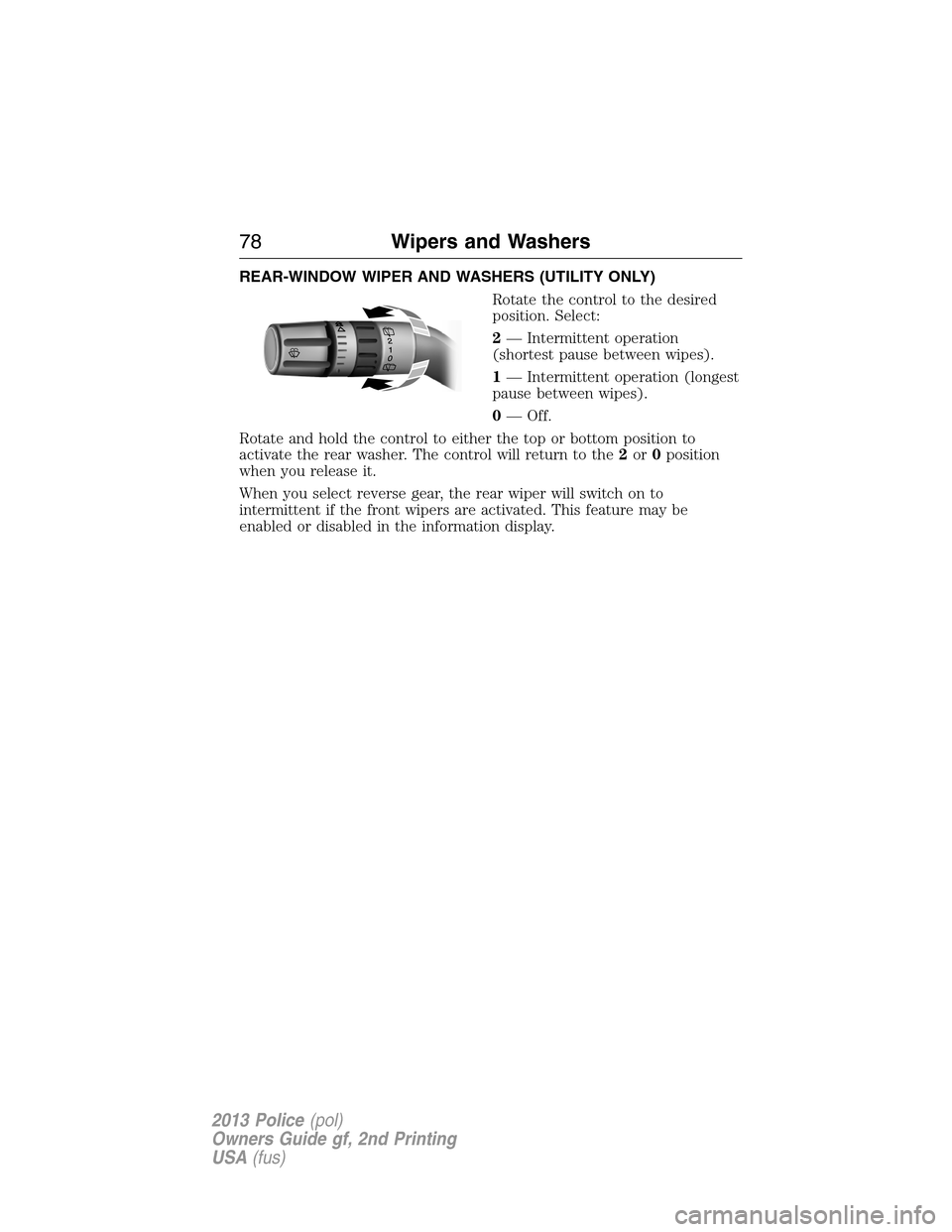

REAR-WINDOW WIPER AND WASHERS (UTILITY ONLY)
Rotate the control to the desired
position. Select:
2— Intermittent operation
(shortest pause between wipes).
1— Intermittent operation (longest
pause between wipes).
0— Off.
Rotate and hold the control to either the top or bottom position to
activate the rear washer. The control will return to the2or0position
when you release it.
When you select reverse gear, the rear wiper will switch on to
intermittent if the front wipers are activated. This feature may be
enabled or disabled in the information display.
78Wipers and Washers
2013 Police(pol)
Owners Guide gf, 2nd Printing
USA(fus)

LIGHTING CONTROL
Sedan
Utility
A. Off
B. Parking lamps, instrument panel lamps, license plate lamps and tail
lamps.
C. Headlamps
P
ABC
Lighting79
2013 Police(pol)
Owners Guide gf, 2nd Printing
USA(fus)

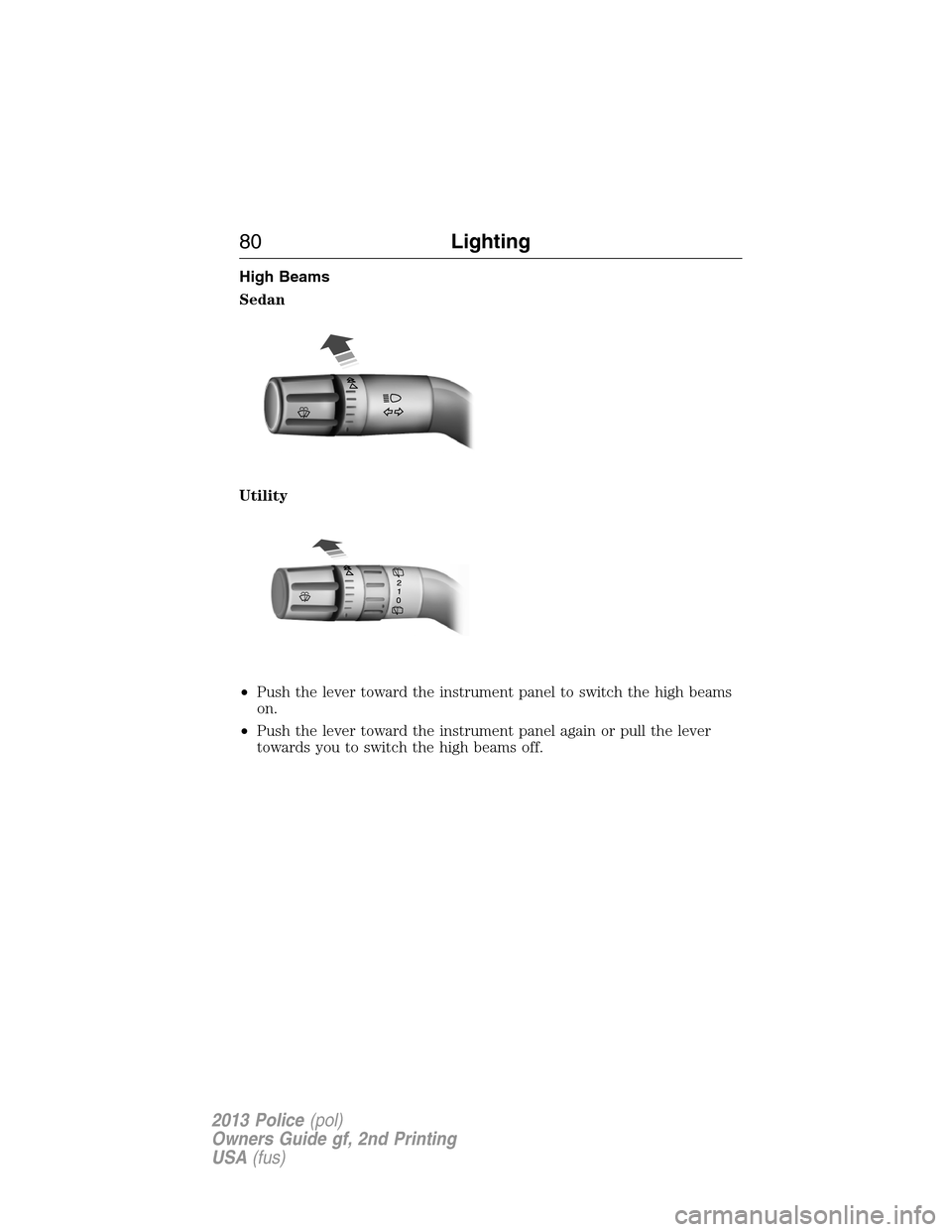

High Beams
Sedan
Utility
•Push the lever toward the instrument panel to switch the high beams
on.
•Push the lever toward the instrument panel again or pull the lever
towards you to switch the high beams off.
