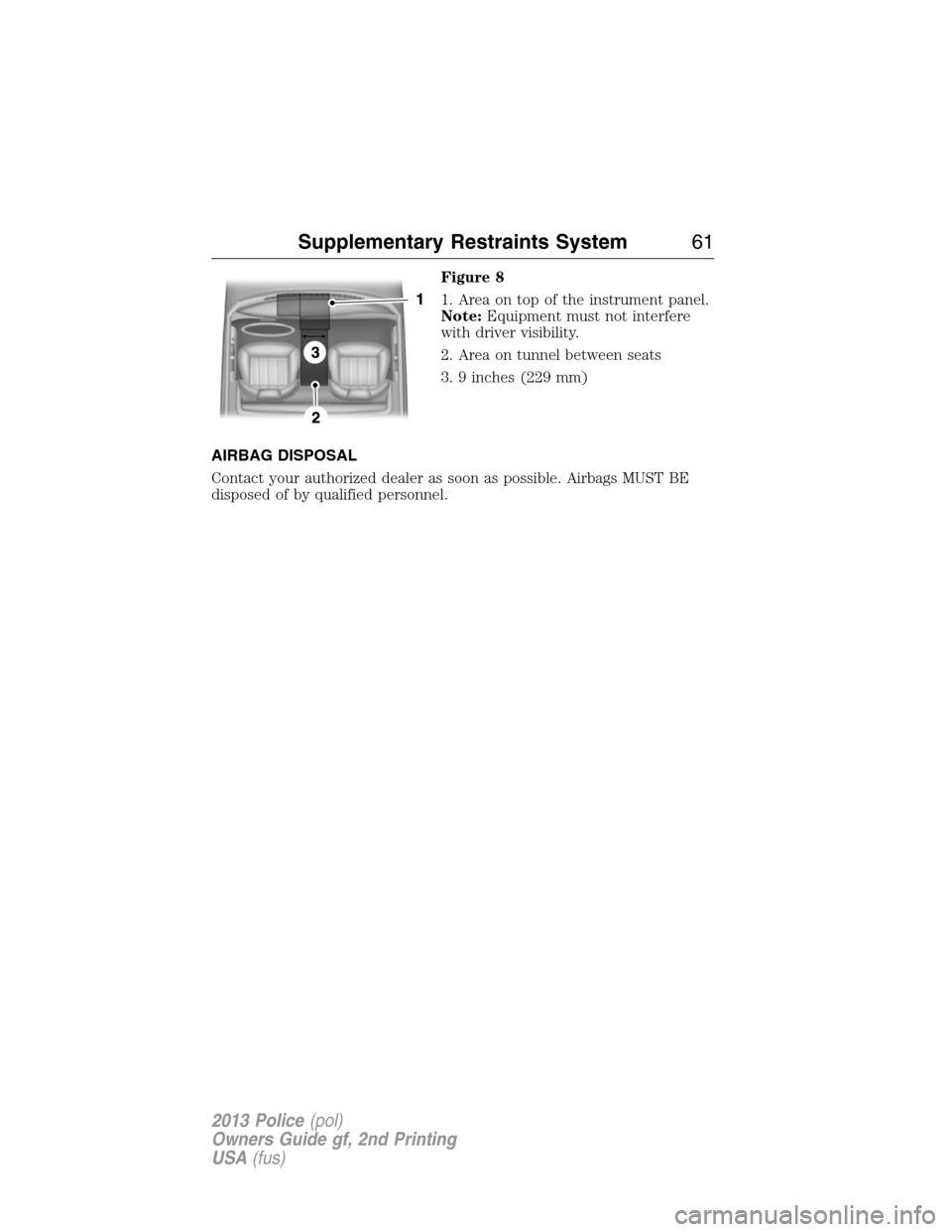

Figure 8
1. Area on top of the instrument panel.
Note:Equipment must not interfere
with driver visibility.
2. Area on tunnel between seats
3. 9 inches (229 mm)
AIRBAG DISPOSAL
Contact your authorized dealer as soon as possible. Airbags MUST BE
disposed of by qualified personnel.
Supplementary Restraints System61
2013 Police(pol)
Owners Guide gf, 2nd Printing
USA(fus)

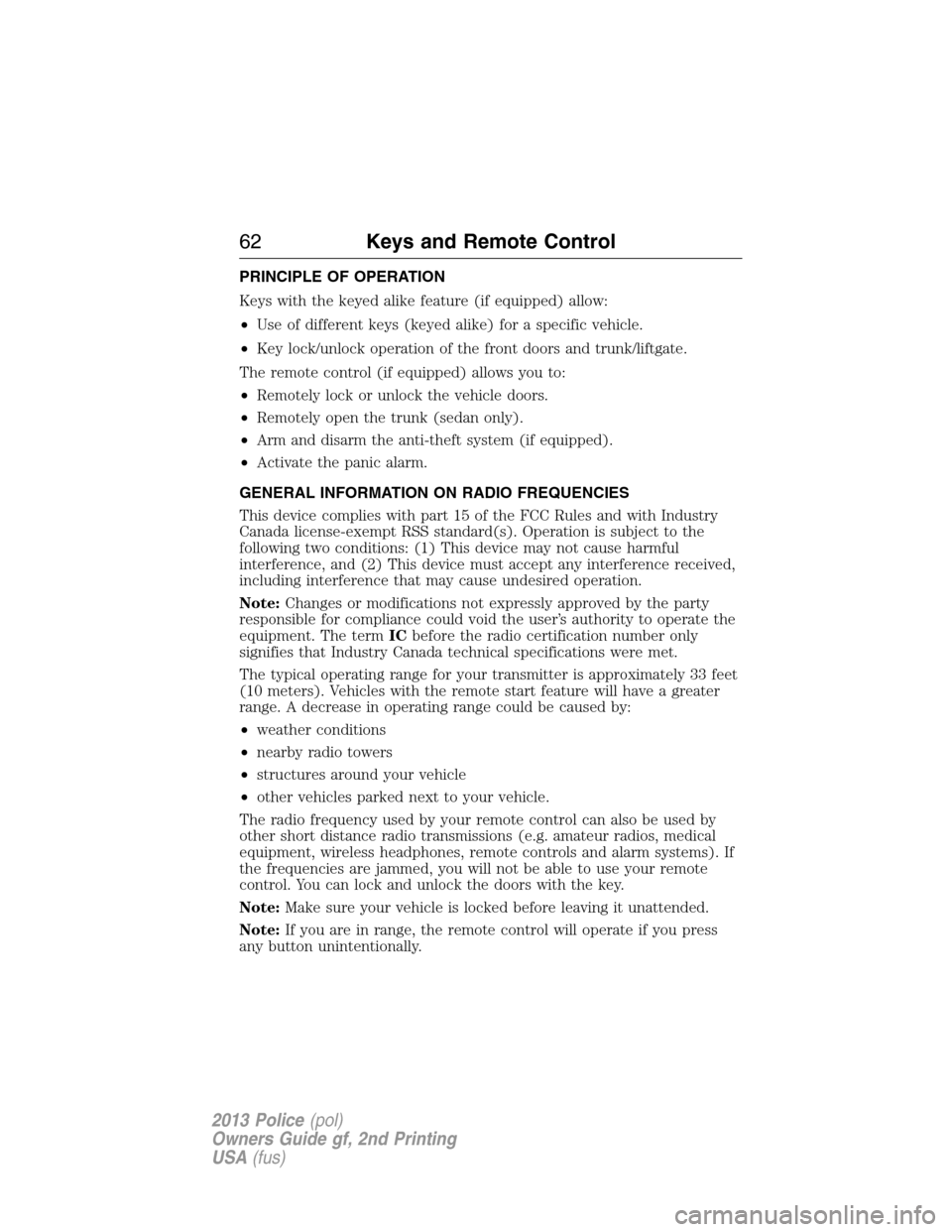

PRINCIPLE OF OPERATION
Keys with the keyed alike feature (if equipped) allow:
•Use of different keys (keyed alike) for a specific vehicle.
•Key lock/unlock operation of the front doors and trunk/liftgate.
The remote control (if equipped) allows you to:
•Remotely lock or unlock the vehicle doors.
•Remotely open the trunk (sedan only).
•Arm and disarm the anti-theft system (if equipped).
•Activate the panic alarm.
GENERAL INFORMATION ON RADIO FREQUENCIES
This device complies with part 15 of the FCC Rules and with Industry
Canada license-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
Note:Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment. The termICbefore the radio certification number only
signifies that Industry Canada technical specifications were met.
The typical operating range for your transmitter is approximately 33 feet
(10 meters). Vehicles with the remote start feature will have a greater
range. A decrease in operating range could be caused by:
•weather conditions
•nearby radio towers
•structures around your vehicle
•other vehicles parked next to your vehicle.
The radio frequency used by your remote control can also be used by
other short distance radio transmissions (e.g. amateur radios, medical
equipment, wireless headphones, remote controls and alarm systems). If
the frequencies are jammed, you will not be able to use your remote
control. You can lock and unlock the doors with the key.
Note:Make sure your vehicle is locked before leaving it unattended.
Note:If you are in range, the remote control will operate if you press
any button unintentionally.
62Keys and Remote Control
2013 Police(pol)
Owners Guide gf, 2nd Printing
USA(fus)

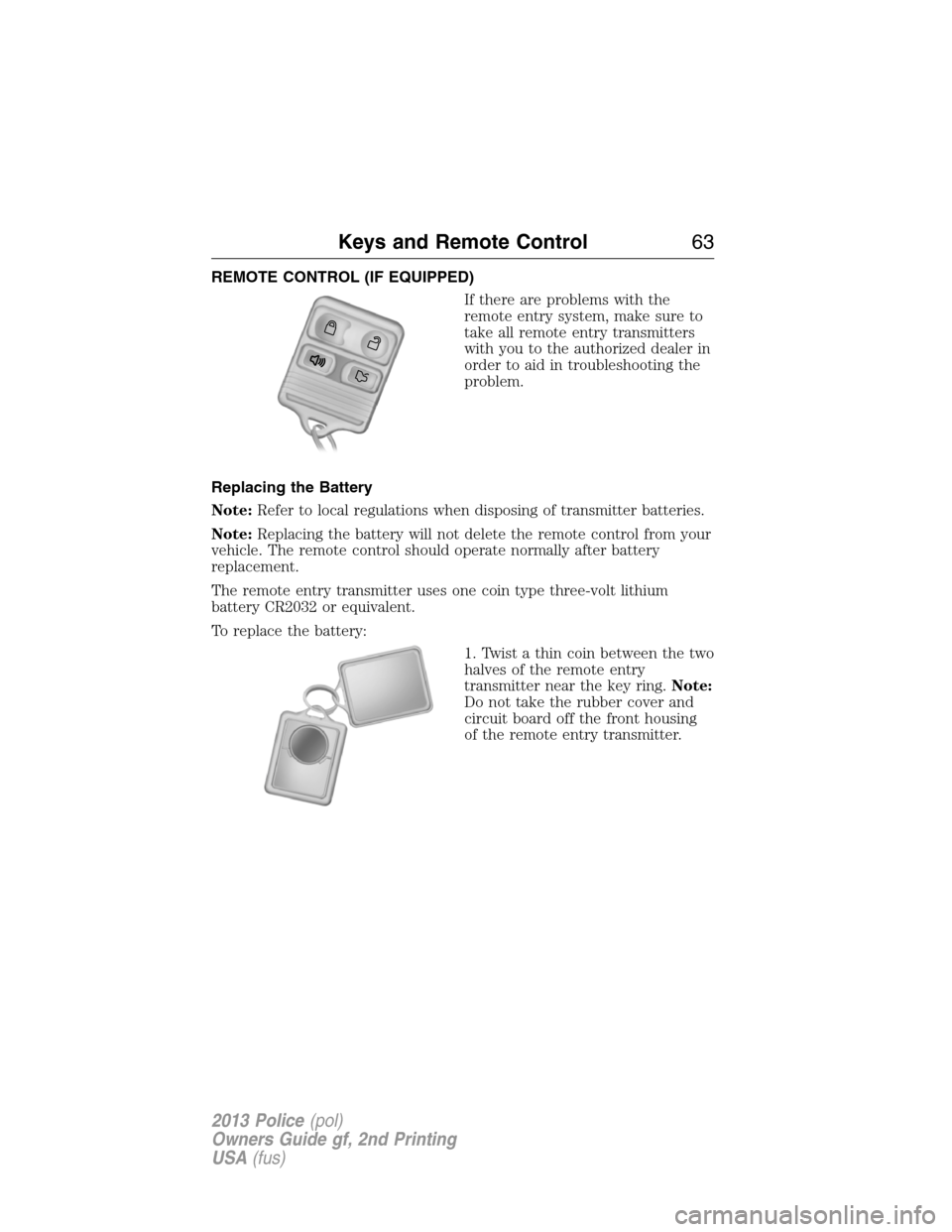

REMOTE CONTROL (IF EQUIPPED)
If there are problems with the
remote entry system, make sure to
take all remote entry transmitters
with you to the authorized dealer in
order to aid in troubleshooting the
problem.
Replacing the Battery
Note:Refer to local regulations when disposing of transmitter batteries.
Note:Replacing the battery will not delete the remote control from your
vehicle. The remote control should operate normally after battery
replacement.
The remote entry transmitter uses one coin type three-volt lithium
battery CR2032 or equivalent.
To replace the battery:
1. Twist a thin coin between the two
halves of the remote entry
transmitter near the key ring.Note:
Do not take the rubber cover and
circuit board off the front housing
of the remote entry transmitter.
Keys and Remote Control63
2013 Police(pol)
Owners Guide gf, 2nd Printing
USA(fus)

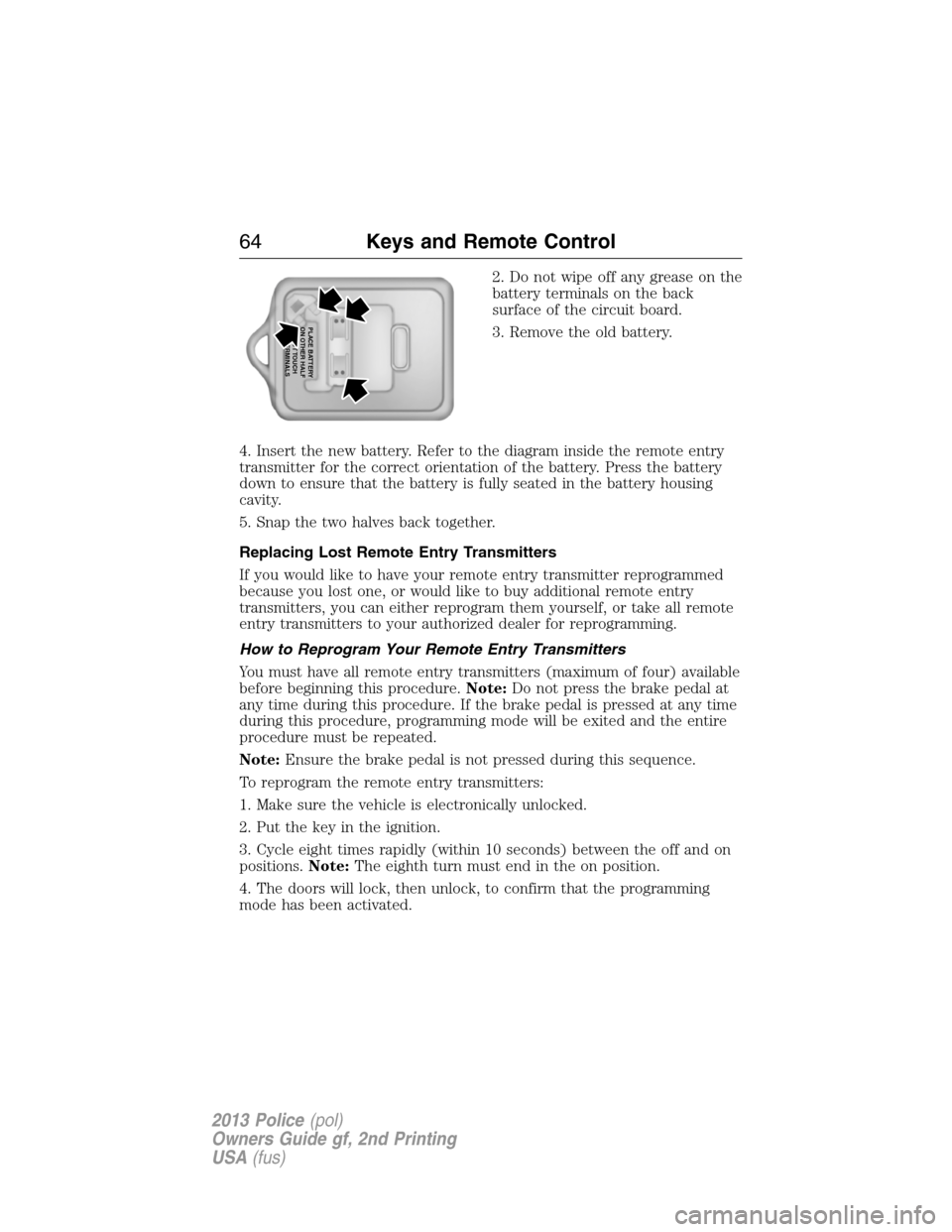

2. Do not wipe off any grease on the
battery terminals on the back
surface of the circuit board.
3. Remove the old battery.
4. Insert the new battery. Refer to the diagram inside the remote entry
transmitter for the correct orientation of the battery. Press the battery
down to ensure that the battery is fully seated in the battery housing
cavity.
5. Snap the two halves back together.
Replacing Lost Remote Entry Transmitters
If you would like to have your remote entry transmitter reprogrammed
because you lost one, or would like to buy additional remote entry
transmitters, you can either reprogram them yourself, or take all remote
entry transmitters to your authorized dealer for reprogramming.
How to Reprogram Your Remote Entry Transmitters
You must have all remote entry transmitters (maximum of four) available
before beginning this procedure.Note:Do not press the brake pedal at
any time during this procedure. If the brake pedal is pressed at any time
during this procedure, programming mode will be exited and the entire
procedure must be repeated.
Note:Ensure the brake pedal is not pressed during this sequence.
To reprogram the remote entry transmitters:
1. Make sure the vehicle is electronically unlocked.
2. Put the key in the ignition.
3. Cycle eight times rapidly (within 10 seconds) between the off and on
positions.Note:The eighth turn must end in the on position.
4. The doors will lock, then unlock, to confirm that the programming
mode has been activated.
PLACE BATTERY
ON OTHER HALF
DO NOT TOUCH
THE TERMINALS
64Keys and Remote Control
2013 Police(pol)
Owners Guide gf, 2nd Printing
USA(fus)

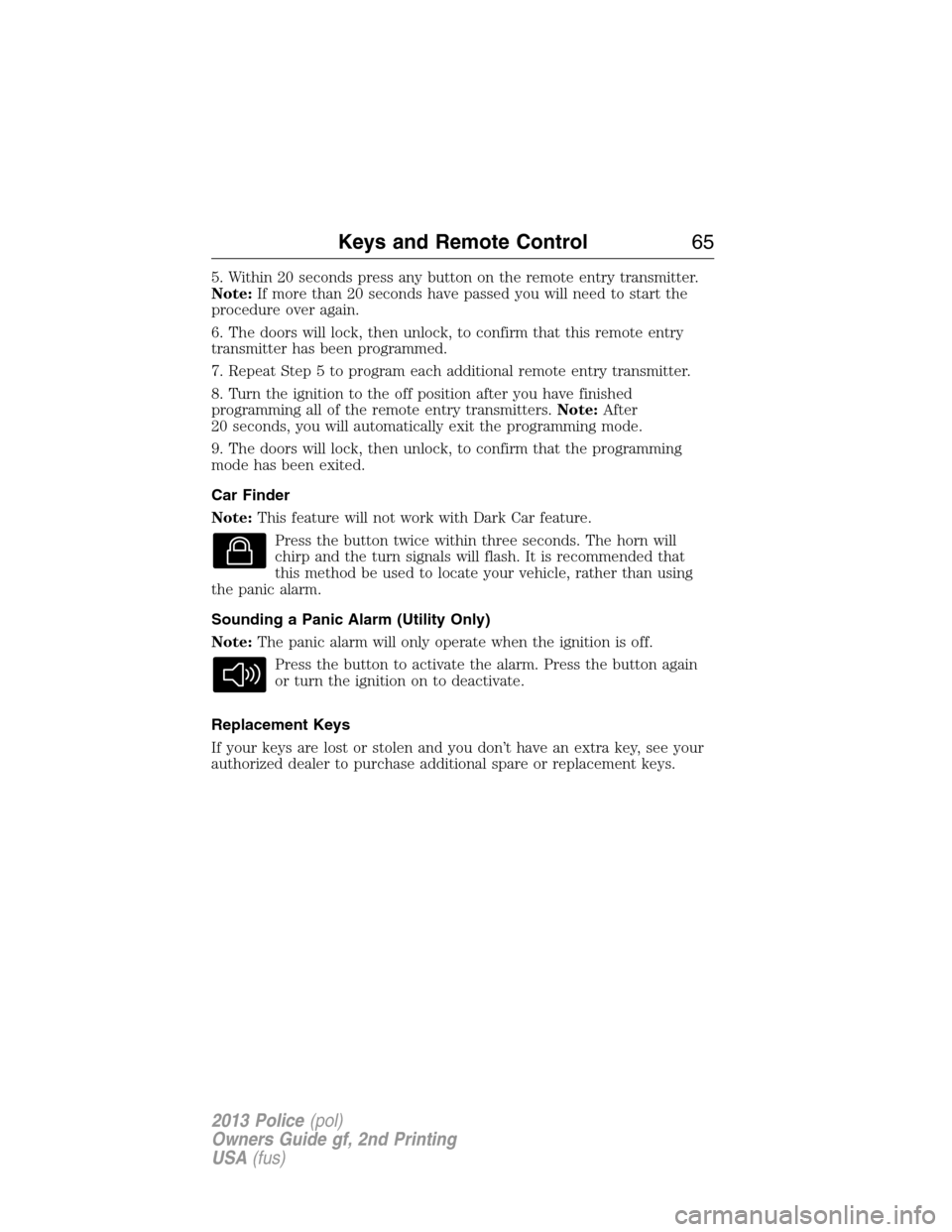

5. Within 20 seconds press any button on the remote entry transmitter.
Note:If more than 20 seconds have passed you will need to start the
procedure over again.
6. The doors will lock, then unlock, to confirm that this remote entry
transmitter has been programmed.
7. Repeat Step 5 to program each additional remote entry transmitter.
8. Turn the ignition to the off position after you have finished
programming all of the remote entry transmitters.Note:After
20 seconds, you will automatically exit the programming mode.
9. The doors will lock, then unlock, to confirm that the programming
mode has been exited.
Car Finder
Note:This feature will not work with Dark Car feature.
Press the button twice within three seconds. The horn will
chirp and the turn signals will flash. It is recommended that
this method be used to locate your vehicle, rather than using
the panic alarm.
Sounding a Panic Alarm (Utility Only)
Note:The panic alarm will only operate when the ignition is off.
Press the button to activate the alarm. Press the button again
or turn the ignition on to deactivate.
Replacement Keys
If your keys are lost or stolen and you don’t have an extra key, see your
authorized dealer to purchase additional spare or replacement keys.
Keys and Remote Control65
2013 Police(pol)
Owners Guide gf, 2nd Printing
USA(fus)

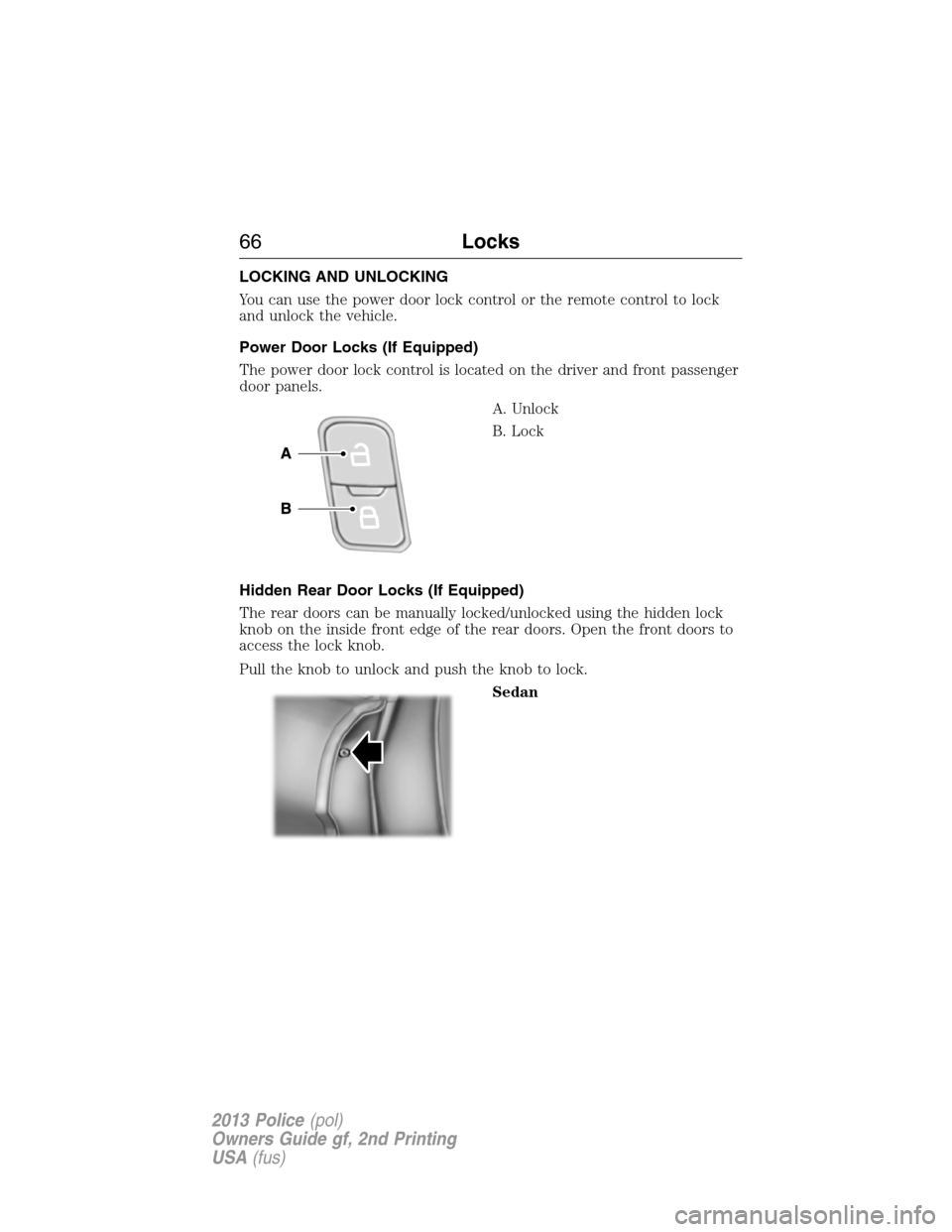

LOCKING AND UNLOCKING
You can use the power door lock control or the remote control to lock
and unlock the vehicle.
Power Door Locks (If Equipped)
The power door lock control is located on the driver and front passenger
door panels.
A. Unlock
B. Lock
Hidden Rear Door Locks (If Equipped)
The rear doors can be manually locked/unlocked using the hidden lock
knob on the inside front edge of the rear doors. Open the front doors to
access the lock knob.
Pull the knob to unlock and push the knob to lock.
Sedan
66Locks
2013 Police(pol)
Owners Guide gf, 2nd Printing
USA(fus)

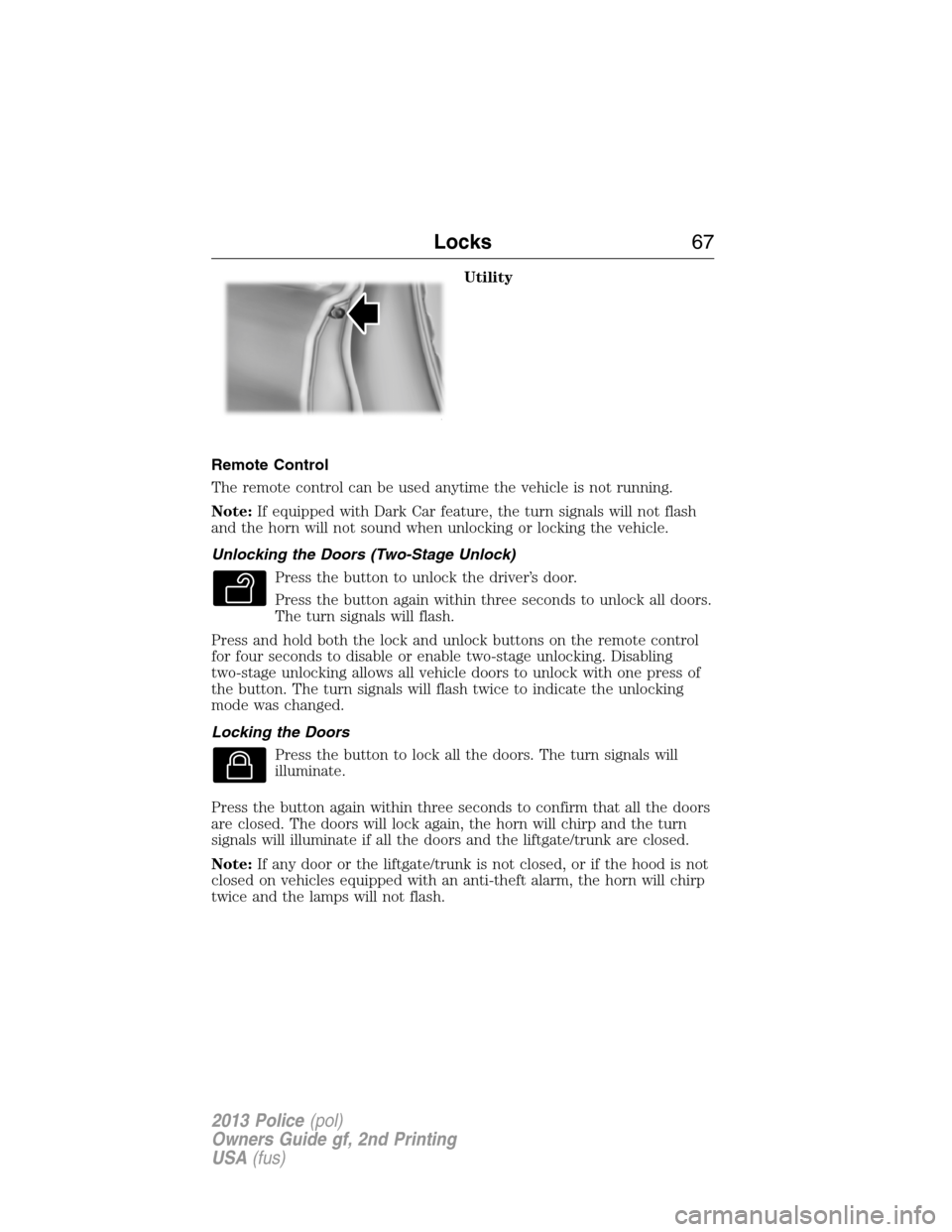

Utility
Remote Control
The remote control can be used anytime the vehicle is not running.
Note:If equipped with Dark Car feature, the turn signals will not flash
and the horn will not sound when unlocking or locking the vehicle.
Unlocking the Doors (Two-Stage Unlock)
Press the button to unlock the driver’s door.
Press the button again within three seconds to unlock all doors.
The turn signals will flash.
Press and hold both the lock and unlock buttons on the remote control
for four seconds to disable or enable two-stage unlocking. Disabling
two-stage unlocking allows all vehicle doors to unlock with one press of
the button. The turn signals will flash twice to indicate the unlocking
mode was changed.
Locking the Doors
Press the button to lock all the doors. The turn signals will
illuminate.
Press the button again within three seconds to confirm that all the doors
are closed. The doors will lock again, the horn will chirp and the turn
signals will illuminate if all the doors and the liftgate/trunk are closed.
Note:If any door or the liftgate/trunk is not closed, or if the hood is not
closed on vehicles equipped with an anti-theft alarm, the horn will chirp
twice and the lamps will not flash.
Locks67
2013 Police(pol)
Owners Guide gf, 2nd Printing
USA(fus)

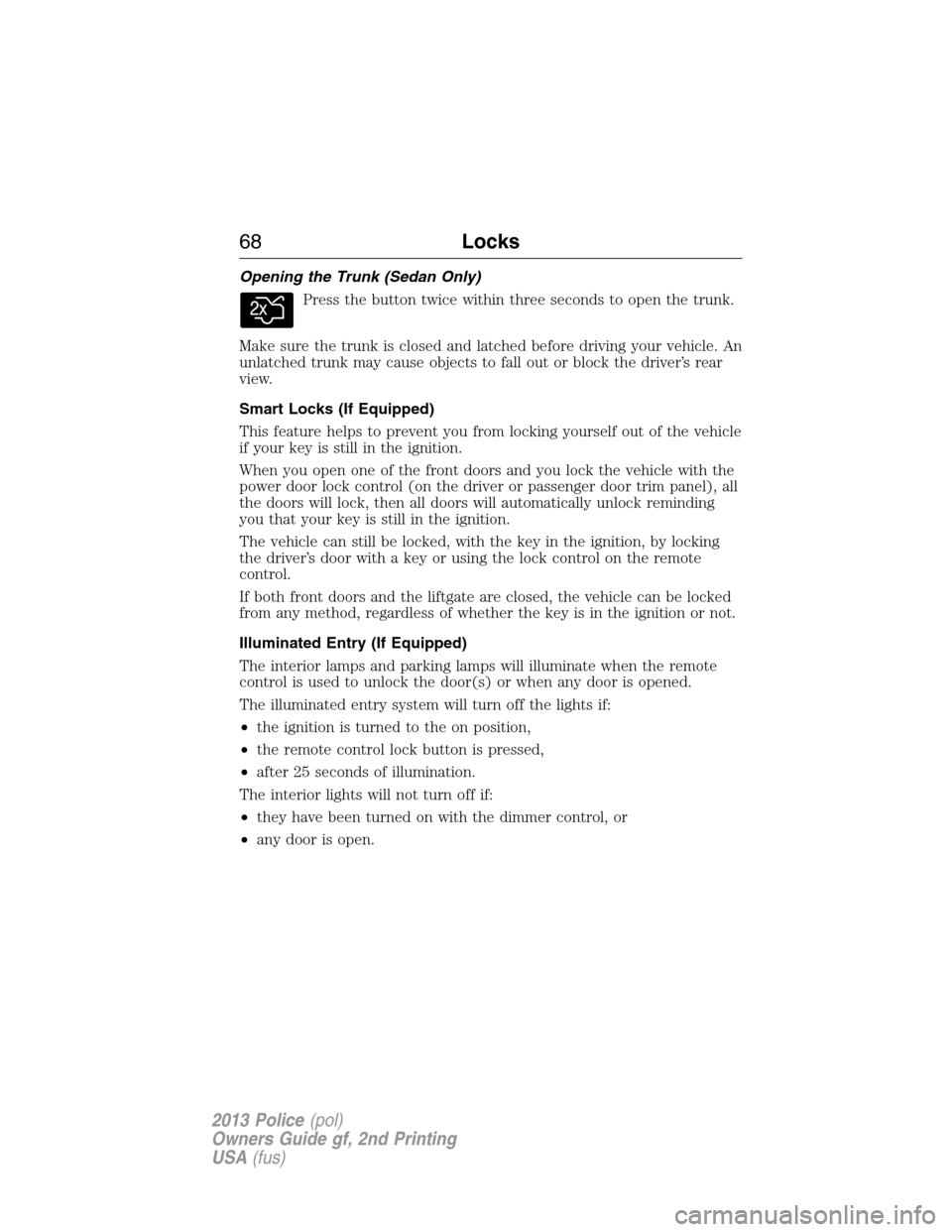

Opening the Trunk (Sedan Only)
Press the button twice within three seconds to open the trunk.
Make sure the trunk is closed and latched before driving your vehicle. An
unlatched trunk may cause objects to fall out or block the driver’s rear
view.
Smart Locks (If Equipped)
This feature helps to prevent you from locking yourself out of the vehicle
if your key is still in the ignition.
When you open one of the front doors and you lock the vehicle with the
power door lock control (on the driver or passenger door trim panel), all
the doors will lock, then all doors will automatically unlock reminding
you that your key is still in the ignition.
The vehicle can still be locked, with the key in the ignition, by locking
the driver’s door with a key or using the lock control on the remote
control.
If both front doors and the liftgate are closed, the vehicle can be locked
from any method, regardless of whether the key is in the ignition or not.
Illuminated Entry (If Equipped)
The interior lamps and parking lamps will illuminate when the remote
control is used to unlock the door(s) or when any door is opened.
The illuminated entry system will turn off the lights if:
•the ignition is turned to the on position,
•the remote control lock button is pressed,
•after 25 seconds of illumination.
The interior lights will not turn off if:
•they have been turned on with the dimmer control, or
•any door is open.
68Locks
2013 Police(pol)
Owners Guide gf, 2nd Printing
USA(fus)

Illuminated Exit (If Equipped)
•When all vehicle doors are closed and the key is removed from the
ignition, the interior lamps will illuminate.
The lamps will turn off if all the doors remain closed and
•25 seconds elapse, or
•the key is inserted in the ignition.
Battery Saver
The battery saver will shut off the lamps 10 minutes after the ignition
has been turned off.
•If the dome lamps were turned on using the panel dimmer control, the
battery saver will shut them off 10 minutes after the ignition has been
turned off.
•If the courtesy lamps were turned on because one of the vehicle doors
or the trunk or liftgate was opened, the battery saver will shut them
off 10 minutes after the ignition has been turned off.
•The battery saver will shut off the headlamps 10 minutes after the
ignition has been turned off.
TRUNK RELEASE (SEDAN)
To open the trunk with the key, use the key in the trunk lock cylinder to
open.
To open the trunk with the instrument panel button:
press the button located on the instrument panel.
The trunk release can be configured to work with the
ignition in any position or when the ignition is on only.
See your authorized dealer to change the
configuration.
Locks69
2013 Police(pol)
Owners Guide gf, 2nd Printing
USA(fus)

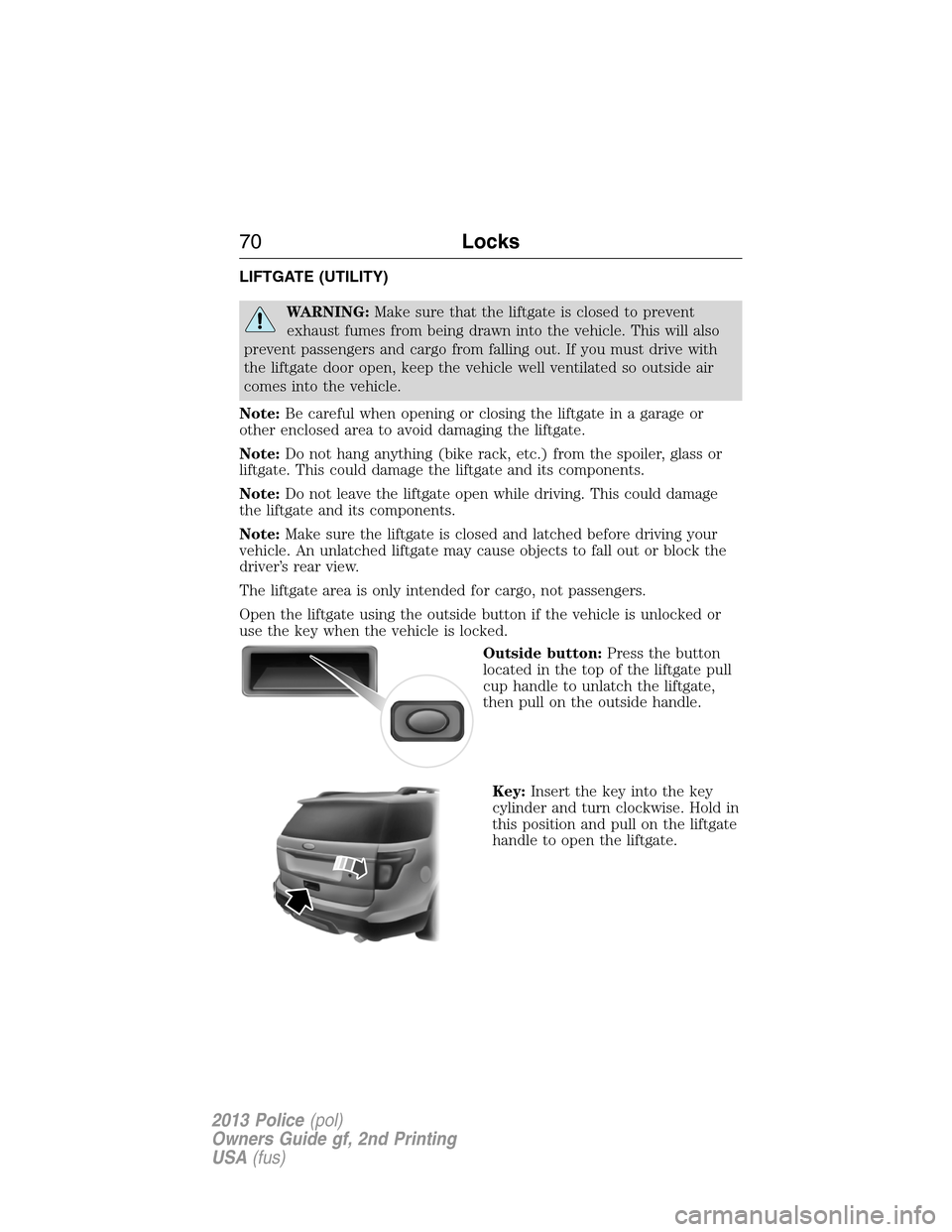

LIFTGATE (UTILITY)
WARNING:Make sure that the liftgate is closed to prevent
exhaust fumes from being drawn into the vehicle. This will also
prevent passengers and cargo from falling out. If you must drive with
the liftgate door open, keep the vehicle well ventilated so outside air
comes into the vehicle.
Note:Be careful when opening or closing the liftgate in a garage or
other enclosed area to avoid damaging the liftgate.
Note:Do not hang anything (bike rack, etc.) from the spoiler, glass or
liftgate. This could damage the liftgate and its components.
Note:Do not leave the liftgate open while driving. This could damage
the liftgate and its components.
Note:Make sure the liftgate is closed and latched before driving your
vehicle. An unlatched liftgate may cause objects to fall out or block the
driver’s rear view.
The liftgate area is only intended for cargo, not passengers.
Open the liftgate using the outside button if the vehicle is unlocked or
use the key when the vehicle is locked.
Outside button:Press the button
located in the top of the liftgate pull
cup handle to unlatch the liftgate,
then pull on the outside handle.
Key:Insert the key into the key
cylinder and turn clockwise. Hold in
this position and pull on the liftgate
handle to open the liftgate.
70Locks
2013 Police(pol)
Owners Guide gf, 2nd Printing
USA(fus)
