display FORD POLICE INTERCEPTOR UTILITY 2017 1.G Owners Manual

Introduction
About This Manual...........................................7
Symbols Glossary
.............................................7
Data Recording
..................................................9
California Proposition 65..............................11
Perchlorate.........................................................11
Ford Credit
..........................................................11
Replacement Parts Recommendation.......................................12
Special Notices................................................12
Mobile Communications Equipment.....................................................14
Export Unique Options
.................................14
Environment
Protecting the Environment........................15
Child Safety
General Information
.......................................16
Installing Child Restraints
.............................17
Booster Seats
..................................................23
Child Restraint Positioning.........................25
Child Safety Locks..........................................27
Seatbelts
Principle of Operation..................................29
Fastening the Seatbelts..............................30
Seatbelt Height Adjustment......................32
Seatbelt Warning Lamp and Indicator Chime
..............................................................32
Seatbelt Reminder
.........................................33
Child Restraint and Seatbelt Maintenance................................................34
Seatbelt Extension
........................................35
Personal Safety System ™
Personal Safety System ™
..........................36Supplementary Restraints
System
Principle of Operation...................................37
Driver and Passenger Airbags...................38
Front Passenger Sensing System............39
Side Airbags
......................................................41
Passenger Knee Airbag................................42
Safety Canopy ™
.............................................42
Crash Sensors and Airbag Indicator........43
Airbag Disposal..............................................48
Keys and Remote Controls
Principle of Operation..................................49
General Information on Radio Frequencies.................................................49
Remote Control
..............................................49
Replacing a Lost Key or Remote Control............................................................51
Doors and Locks
Locking and Unlocking.................................52
Manual Liftgate
...............................................54
Security
Anti-Theft Alarm
............................................56
Steering Wheel
Adjusting the Steering Wheel....................57
Audio Control...................................................57
Cruise Control
..................................................58
Information Display Control......................58
Pedals
Adjusting the Pedals.....................................59
Wipers and Washers
Windshield Wipers........................................60
Windshield Washers
.....................................60
Rear Window Wiper and Washers..........60
1
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing Table of Contents

Lighting
General Information......................................62
Lighting Control..............................................62
Autolamps........................................................63
Instrument Lighting Dimmer.....................64
Daytime Running Lamps
............................64
Direction Indicators
.......................................65
Interior Lamps.................................................65
Windows and Mirrors
Power Windows
..............................................67
Exterior Mirrors................................................68
Interior Mirror
...................................................69
Sun Visors
.........................................................70
Instrument Cluster

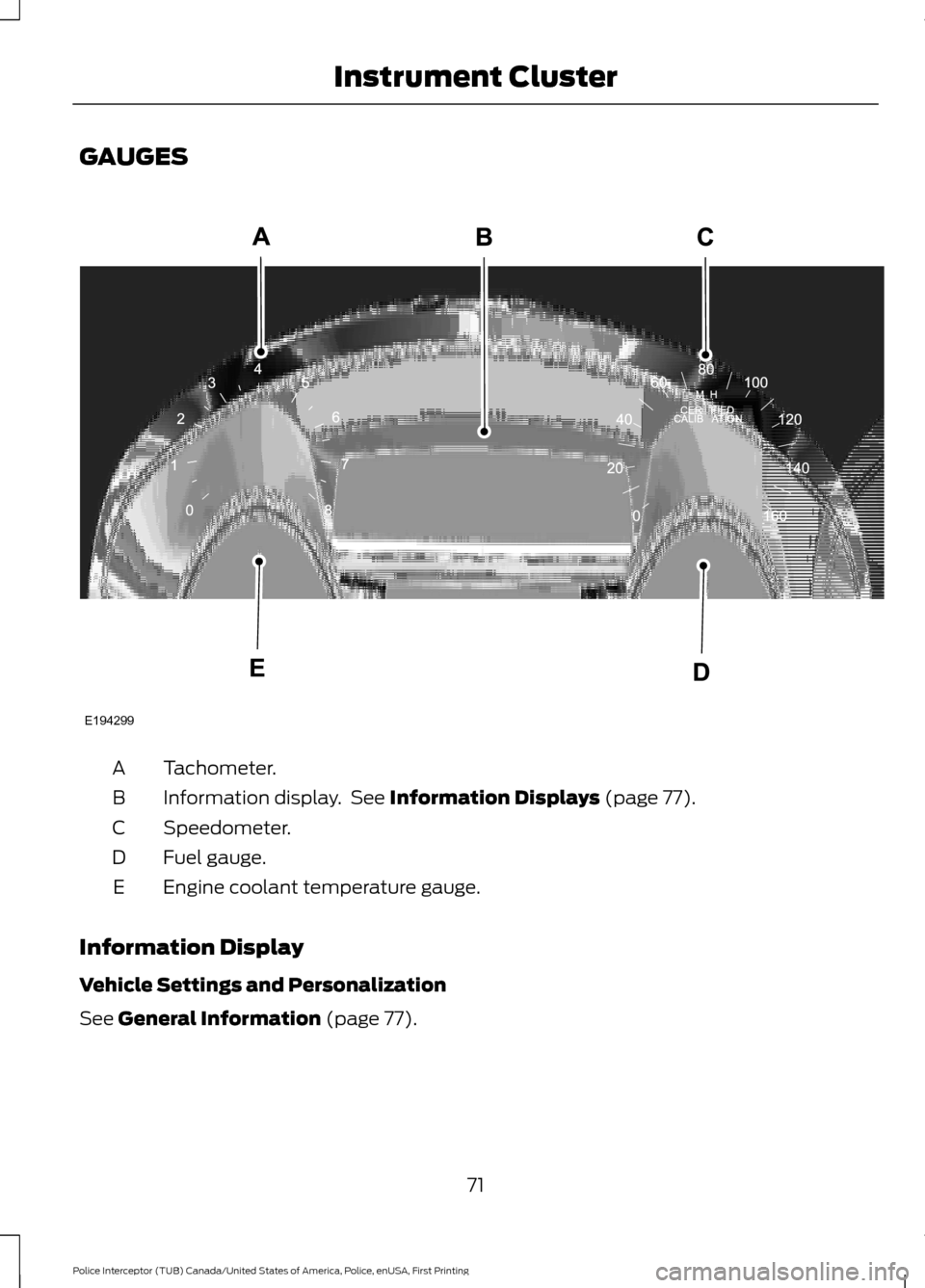

Gauges.................................................................71
Warning Lamps and Indicators.................72
Audible Warnings and Indicators.............75
Information Displays
General Information
.......................................77
Information Messages.................................80
Climate Control
Manual Climate Control..............................90
Hints on Controlling the Interior Climate...........................................................91
Heated Windows and Mirrors....................92
Cabin Air Filter
.................................................92
Seats
Sitting in the Correct Position...................93
Head Restraints
..............................................93
Manual Seats
..................................................95
Power Seats
.....................................................96
Rear Seats
........................................................96 Auxiliary Power Points
Auxiliary Power Points.................................98
Storage Compartments
Center Console
...............................................99
Overhead Console
.........................................99
Starting and Stopping the Engine
General Information...................................100
Ignition Switch
..............................................100
Starting a Gasoline Engine.......................100
Engine Block Heater
....................................102
Police Engine Idle Feature.........................103
Fuel and Refueling
Safety Precautions
......................................104
Fuel Quality - Gasoline...............................105
Fuel Quality - E85........................................105
Fuel Filler Funnel Location
.......................106
Running Out of Fuel....................................106
Refueling..........................................................107
Fuel Consumption
........................................110
Emission Control System............................111
Transmission
Automatic Transmission.............................114
All-Wheel Drive
Using All-Wheel Drive..................................116
Brakes
General Information
....................................123
Hints on Driving With Anti-Lock Brakes...........................................................123
Parking Brake
.................................................124
Traction Control
Principle of Operation.................................125
2
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing Table of Contents

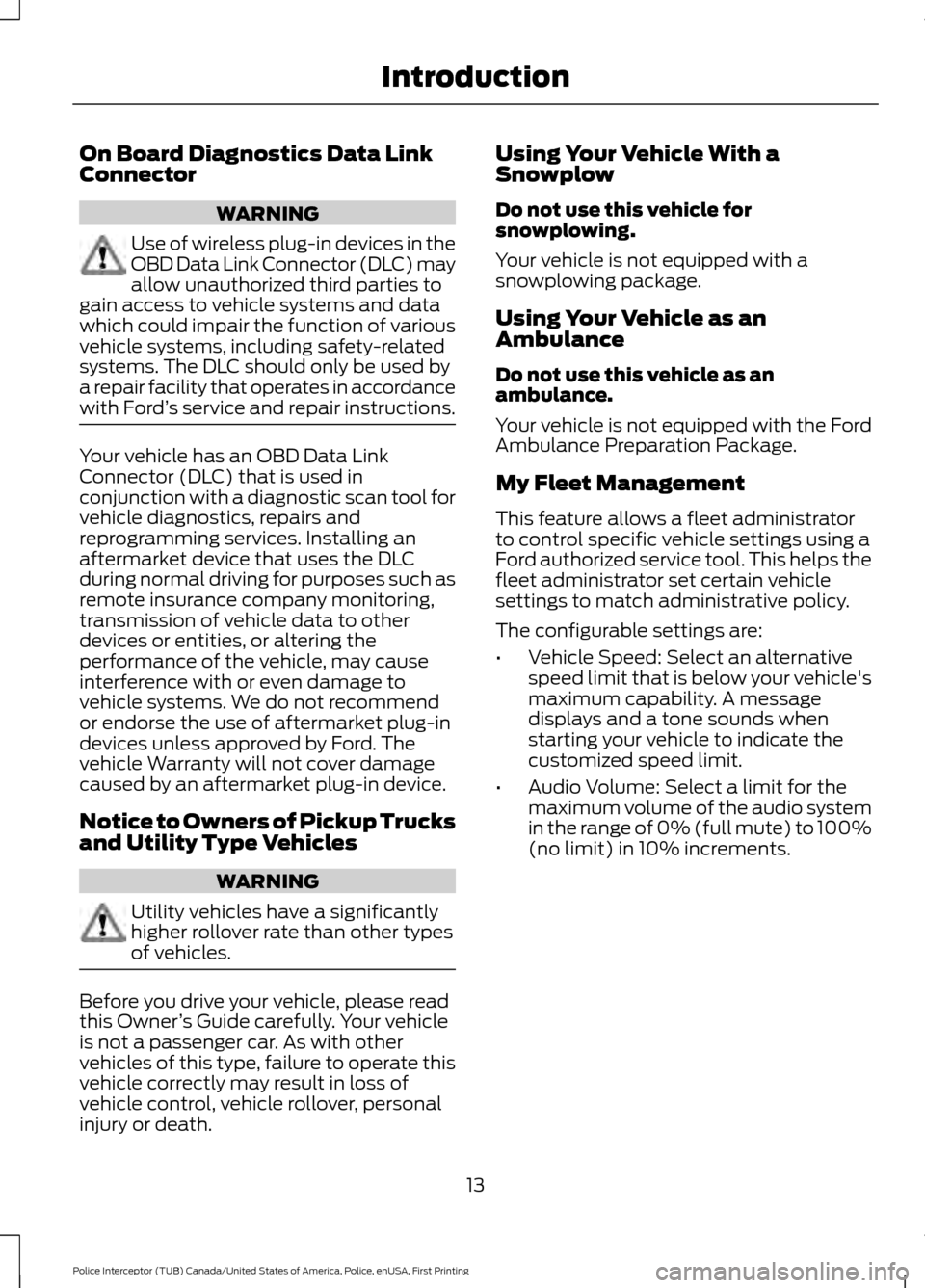

On Board Diagnostics Data Link
Connector
WARNING
Use of wireless plug-in devices in the
OBD Data Link Connector (DLC) may
allow unauthorized third parties to
gain access to vehicle systems and data
which could impair the function of various
vehicle systems, including safety-related
systems. The DLC should only be used by
a repair facility that operates in accordance
with Ford ’s service and repair instructions. Your vehicle has an OBD Data Link
Connector (DLC) that is used in
conjunction with a diagnostic scan tool for
vehicle diagnostics, repairs and
reprogramming services. Installing an
aftermarket device that uses the DLC
during normal driving for purposes such as
remote insurance company monitoring,
transmission of vehicle data to other
devices or entities, or altering the
performance of the vehicle, may cause
interference with or even damage to
vehicle systems. We do not recommend
or endorse the use of aftermarket plug-in
devices unless approved by Ford. The
vehicle Warranty will not cover damage
caused by an aftermarket plug-in device.
Notice to Owners of Pickup Trucks
and Utility Type Vehicles
WARNING
Utility vehicles have a significantly
higher rollover rate than other types
of vehicles.
Before you drive your vehicle, please read
this Owner
’s Guide carefully. Your vehicle
is not a passenger car. As with other
vehicles of this type, failure to operate this
vehicle correctly may result in loss of
vehicle control, vehicle rollover, personal
injury or death. Using Your Vehicle With a
Snowplow
Do not use this vehicle for
snowplowing.
Your vehicle is not equipped with a
snowplowing package.
Using Your Vehicle as an
Ambulance
Do not use this vehicle as an
ambulance.
Your vehicle is not equipped with the Ford
Ambulance Preparation Package.
My Fleet Management
This feature allows a fleet administrator
to control specific vehicle settings using a
Ford authorized service tool. This helps the
fleet administrator set certain vehicle
settings to match administrative policy.
The configurable settings are:
•
Vehicle Speed: Select an alternative
speed limit that is below your vehicle's
maximum capability. A message
displays and a tone sounds when
starting your vehicle to indicate the
customized speed limit.
• Audio Volume: Select a limit for the
maximum volume of the audio system
in the range of 0% (full mute) to 100%
(no limit) in 10% increments.
13
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing Introduction

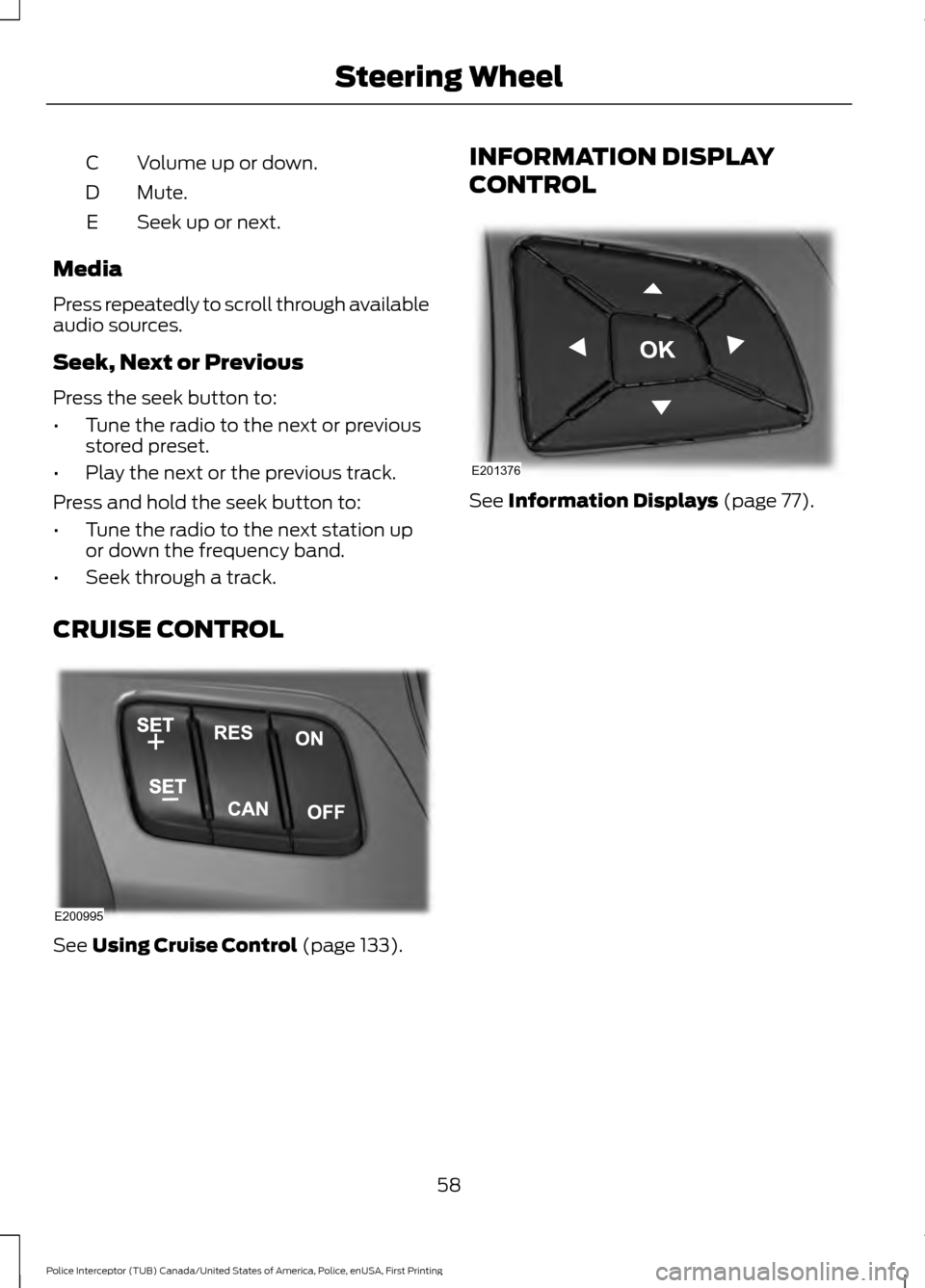

Volume up or down.
C
Mute.
D
Seek up or next.
E
Media
Press repeatedly to scroll through available
audio sources.
Seek, Next or Previous
Press the seek button to:
• Tune the radio to the next or previous
stored preset.
• Play the next or the previous track.
Press and hold the seek button to:
• Tune the radio to the next station up
or down the frequency band.
• Seek through a track.
CRUISE CONTROL See Using Cruise Control (page 133). INFORMATION DISPLAY
CONTROL
See
Information Displays (page 77).
58
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing Steering WheelE200995 E201376

WINDSHIELD WIPERS
Note:
Fully defrost the windshield before
you switch the windshield wipers on.
Note: Make sure you switch the windshield
wipers off before entering a car wash.
Note: Clean the windshield and wiper
blades if they begin to leave streaks or
smears. If that does not resolve the issue,
install new wiper blades. See Changing
the Wiper Blades (page 195).
Note: Do not operate the wipers on a dry
windshield. This may scratch the glass,
damage the wiper blades or cause the wiper
motor to burn out. Always use the
windshield washers before wiping a dry
windshield. Rotate the end of the control:
•
Away from you to increase the wiper
speed.
• Toward you to decrease the wiper
speed.
Speed Dependent Wipers
When your vehicle speed increases, the
interval between wipes decreases. WINDSHIELD WASHERS
Note:
Do not operate the wipers on a dry
windshield. This may scratch the glass,
damage the wiper blades or cause the wiper
motor to burn out. Always use the
windshield washers before wiping a dry
windshield.
Note: Do not operate the washers when
the washer reservoir is empty. This may
cause the washer pump to overheat. Press the end of the wiper lever to activate
the washer:
•
A brief press causes a single wipe
without washer fluid.
• A quick press and hold causes the
wipers to swipe the windshield three
times with washer fluid.
• A long press and hold activates the
wipers and washer fluid for up to 10
seconds.
A wipe occurs a few seconds after washing
to clear any remaining washer fluid. You
can switch this feature on and off through
the information display. See
General
Information (page 77).
REAR WINDOW WIPER AND
WASHERS
Rear Window Wiper
Note: Make sure you switch the windshield
wipers off before entering a car wash.
60
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing Wipers and WashersE208496 E208497

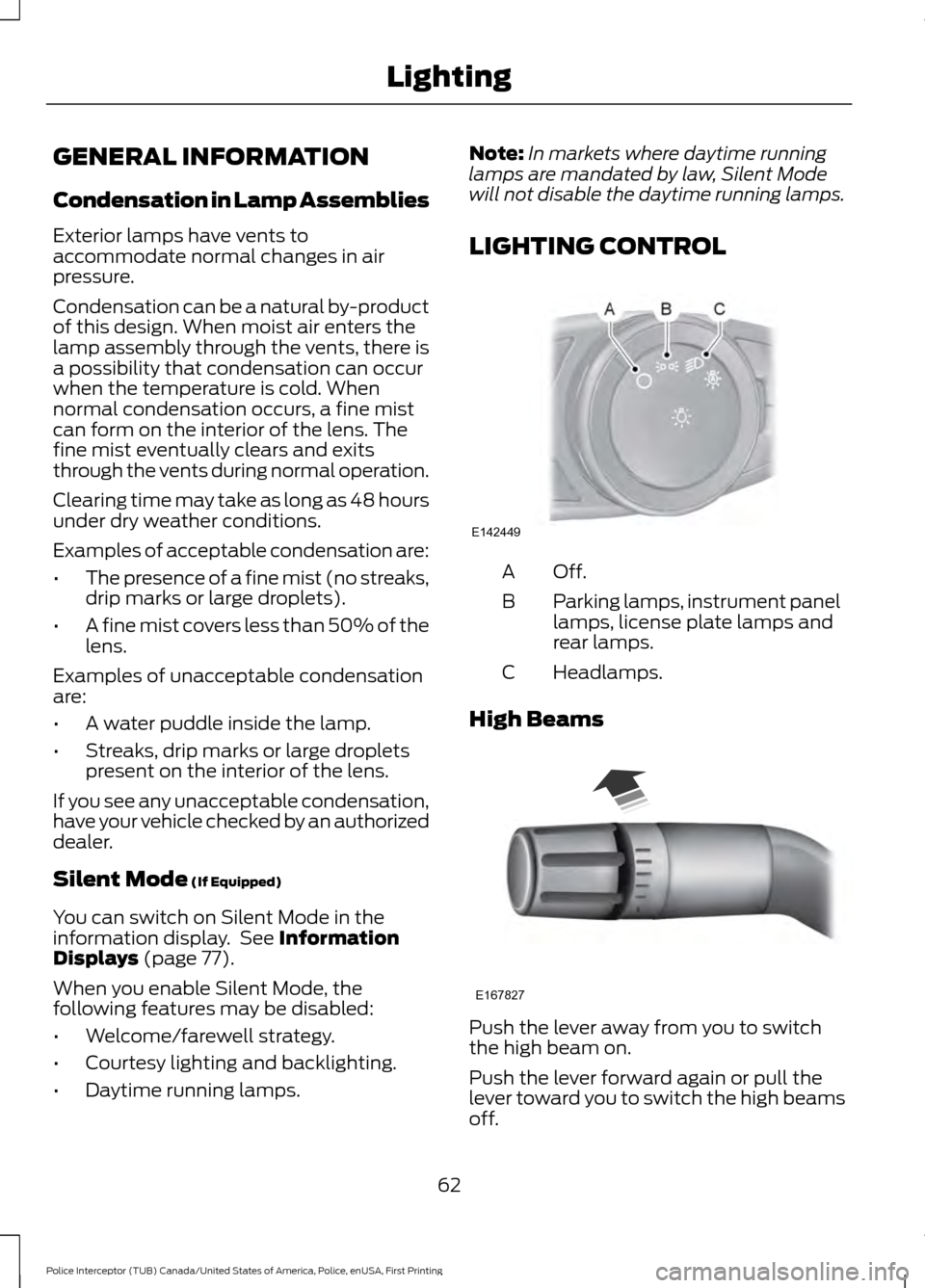

GENERAL INFORMATION
Condensation in Lamp Assemblies
Exterior lamps have vents to
accommodate normal changes in air
pressure.
Condensation can be a natural by-product
of this design. When moist air enters the
lamp assembly through the vents, there is
a possibility that condensation can occur
when the temperature is cold. When
normal condensation occurs, a fine mist
can form on the interior of the lens. The
fine mist eventually clears and exits
through the vents during normal operation.
Clearing time may take as long as 48 hours
under dry weather conditions.
Examples of acceptable condensation are:
•
The presence of a fine mist (no streaks,
drip marks or large droplets).
• A fine mist covers less than 50% of the
lens.
Examples of unacceptable condensation
are:
• A water puddle inside the lamp.
• Streaks, drip marks or large droplets
present on the interior of the lens.
If you see any unacceptable condensation,
have your vehicle checked by an authorized
dealer.
Silent Mode (If Equipped)
You can switch on Silent Mode in the
information display. See
Information
Displays (page 77).
When you enable Silent Mode, the
following features may be disabled:
• Welcome/farewell strategy.
• Courtesy lighting and backlighting.
• Daytime running lamps. Note:
In markets where daytime running
lamps are mandated by law, Silent Mode
will not disable the daytime running lamps.
LIGHTING CONTROL Off.A
Parking lamps, instrument panel
lamps, license plate lamps and
rear lamps.
B
Headlamps.
C
High Beams Push the lever away from you to switch
the high beam on.
Push the lever forward again or pull the
lever toward you to switch the high beams
off.
62
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing LightingE142449 E167827

Headlamp Flasher
Slightly pull the lever toward you and
release it to flash the headlamps.
Spot Lamp Control (If Equipped)
Use the switch on the chrome handle to
turn the spot lamp on and off.
Rotate and twist the handle to adjust the
position of the spot lamp. AUTOLAMPS
(If Equipped) WARNING
The autolamps switch position may
not activate the headlamps in all low
visibility conditions, such as daytime
fog. Always ensure that your headlamps
are switched to auto or on, as appropriate,
during all low visibility conditions. Failure
to do so may result in a collision. When the lighting control is in the
autolamps position, the headlamps
automatically turn on in low light situations
or when the wipers activate.
If equipped, the following also activate
when the lighting control is in the
autolamps position and you switch them
on in the information display:
•
Configurable daytime running lamps.
• Automatic high beam control.
• Adaptive headlamp control.
The headlamps remain on for a period of
time after you switch the ignition off. Use
the information display controls to adjust
the period of time that the headlamps
remain on. See
Information Displays
(page 77).
63
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing LightingE163268 E203952 E142451

Note:
With the headlamps in the
autolamps position, you cannot switch the
high beam headlamps on until the
autolamps system turns the low beam
headlamps on.
Windshield Wiper Activated
Headlamps
The windshield wiper activated headlamps
turn on within 10 seconds when you switch
the windshield wipers on and the lighting
control is in the autolamps position. They
turn off approximately 60 seconds after
you switch the windshield wipers off.
The headlamps will not turn on by wiper
activation:
• During a mist wipe.
• When the wipers are on to clear washer
fluid during a wash condition.
• If the wipers are in intermittent mode.
Note: If you switch autolamps and
autowipers on, the headlamps will
automatically turn on when the windshield
wipers continuously operate.
INSTRUMENT LIGHTING
DIMMER
Note: You disable the manual dimmer
when you adjust the setting to Auto
Dimming in the information display. See
Information Displays (page 77).
Note: If you disconnect the battery or it runs
out of charge, the illuminated components
will switch to the maximum setting. Repeatedly press or press and hold it to
adjust the level.
The instrument cluster and center stack
backlighting will be turned off when the
dimmer switch is in the lowest position,
and the headlamp switch off.
DAYTIME RUNNING LAMPS
(If
Equipped) WARNING
The daytime running lamps system
does not activate the rear lamps and
may not provide adequate lighting
during low visibility driving conditions. Also,
the autolamps switch position may not
activate the headlamps in all low visibility
conditions, such as daytime fog. Make sure
the headlamps are switched to auto or on,
as appropriate, during all low visibility
conditions. Failure to do so may result in a
crash. 64
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing LightingE161902

The daytime running lamps turn on when:
1. The ignition is switched to the on
position.
2. The lighting control is in the off position, parking lamps position or the
autolamps position, and the sensor
detects daylight.
3. Your vehicle is in drive (D).
Note: You can switch the daytime running
lamps on or off by selecting Police Silent
Mode through the information display. See
General Information (page 77).
Note: In markets where daytime running
lamps are mandated by law, Silent Mode
will not disable the daytime running lamps.
DIRECTION INDICATORS •
To operate the left direction indicator,
push the lever down until it stops.
• To operate the right direction indicator,
push the lever up until it stops.
Note: Tap the lever up or down to make the
direction indicators flash three times. INTERIOR LAMPS
Dome Lamp
Press the button to switch the interior
lamps on or off.
Front Map Lamps
(If Equipped)
The lamps will switch on when:
•
You open any door.
• You press the dome lamp button on
the instrument panel.
• You press a remote control button and
the ignition is off.
To manually switch on the map lamps,
press the outer edge of the clear lens.
65
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing LightingE163272 E206739 E163273

GAUGES
Tachometer.
A
Information display. See Information Displays (page 77).
B
Speedometer.
C
Fuel gauge.
D
Engine coolant temperature gauge.
E
Information Display
Vehicle Settings and Personalization
See
General Information (page 77).
71
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing Instrument ClusterE194299
