FORD RANGER 1997 2.G Owners Manual

240

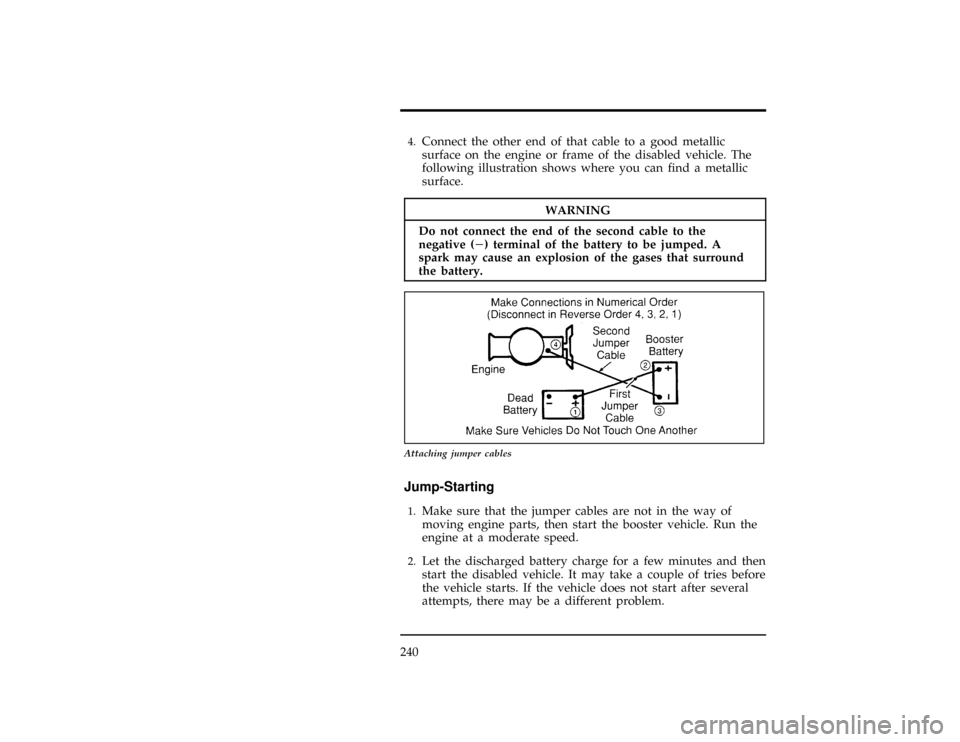

WARNING
Do no tconnec tth een dof th esecon dcabl eto the
*

Roadside Emergencies
241
*
[ER26800(R)02/96]3.
When both vehicles are running, let them idle for a few
minutes to charge the discharged battery.
%*
[ER26900(R)02/96]
Removing jumper cables
*
[ER26910(R)02/96]1.
Always remove the jumper cables in the reverse order.
Remove the negative (s) end of the jumper cable from the
metallic surface on the engine or frame of the disabled
vehicle.
*
[ER26920(R)03/96]2.
Remove the negative (s) cable from the booster battery.
*
[ER26922(R)02/96]3.
Remove the positive (+) cable from the booster battery.
*
[ER26924(R)02/96]4.
Remove the other end of the positive (+) cable from the
discharged battery.
*
[ER26926(R)02/96]
After the vehicle is started, let it idle for a while to let the
engine ªrelearnº its idle conditions. Drive it around for a while
with all electrical accessories turned off to let the battery
recharge. Driveability may be deteriorated slightly until all drive
modes are ªrelearned.ºYou may need to use a battery charger
to fully recharge the battery.
*
[ER26928(R)03/96]
If you need to replace your battery, seeBatteryin the
Maintenance and Carechapter.
File:10unerr.ex
Update:Thu Mar 20 08:56:46 1997

242
%*
[ER30000(R)04/96]
Towing Your Vehicle
*
[ER30100(R)01/96]
If you need to have your vehicle towed, contact a professional
towing service or, if you are a member, your roadside assistance
center.
[ER30300(R)01/96]
Ranger 4x2/4x4
[ER30500(R)04/96]

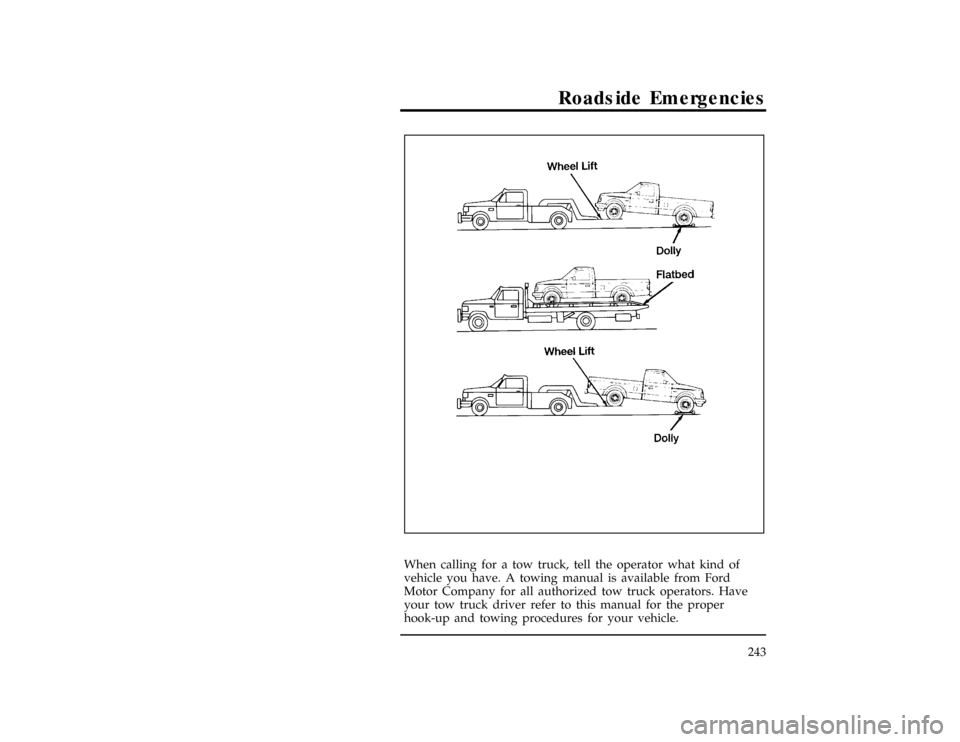

The recommended method to tow your Ranger is with flatbed
or wheel lift equipment. However, slingbelt towing is
acceptable.
[ER30700(R)01/96]
Ranger without rear bumper
[ER30900(R)01/96]
The recommended method to tow your Ranger is with flatbed
or wheel lift equipment. However, slingbelt towing is
acceptable. Be sure to remove the undervehicle spare tire before
attaching slingbelt towing equipment.
File:10unerr.ex
Update:Thu Mar 20 08:56:46 1997

Roadside Emergencies
243
[ER31000(R)01/96]
three fourths page
art:0090196-A*
[ER31200(R)01/96]
When calling for a tow truck, tell the operator what kind of
vehicle you have. A towing manual is available from Ford
Motor Company for all authorized tow truck operators. Have
your tow truck driver refer to this manual for the proper
hook-up and towing procedures for your vehicle.
File:10unerr.ex
Update:Thu Mar 20 08:56:46 1997

244
WARNING
Whendisconnecting/installin gthedriveshaft ,th eparking

Roadside Emergencies
245
[ER33000(R)01/96]
4x2ÐManualtransmission
*
[ER33100(R)01/96]
n
Release the parking brake.
[ER33200(R)01/96]
n
Place the transmission gearshift in the neutral position.
[ER33300(R)01/96]
n
Maximum speed is limited by towing equipment
manufacturer's recommendation, unlimited distance.
[ER33400(R)01/96]
4x4ÐManualshifttransfercase
*
[ER33500(R)01/96]
n
Release the parking brake.
[ER33600(R)01/96]
n
Place the transmission gearshift in the neutral position.
[ER33700(R)01/96]
n
Place the transfer case gearshift in the neutral position.
[ER33800(R)01/96]
n
Set the manual locking hubs in the FREE position.
[ER33900(R)01/96]
n
Maximum speed is 55 mph (88 km/h), unlimited distance.
[ER34000(R)01/96]
4 x 4 Electric shift transfer case
*
[ER34200(R)01/96]
n
Release the parking brake.
[ER34300(R)01/96]
n
Place the transmission gearshift in the neutral position.
[ER34400(R)05/96]
n
Ensure the transfer case is in 2H and the auto hubs are
unlocked.
[ER34600(R)01/96]
NOTE: Both the 4WD and 4WD Low indicator lights in the
instrument panel will be off when the 4WD switch is
in 2WD.
[ER34700(R)01/96]
For automatic transmissions:
[ER34800(R)01/96]
n
Maximum speed is 35 mph (56 km/h).
[ER34900(R)01/96]
n
Maximum distance is 50 miles (80 km).
File:10unerr.ex
Update:Thu Mar 20 08:56:46 1997

246
WARNING
Whendisconnecting/installin gthedriveshaft ,th eparking

Roadside Emergencies
247
[ER36400(R)01/96]
To return the vehicle to a towable condition, youmust:
[ER36500(R)01/96]
n
Place the transfer case in 2WD by rotating the 4WD switch
to 2WD.
[ER36600(R)01/96]
NOTE: Both the 4WD and 4WD Low indicator lights in the
instrument cluster will be off when the transfer case
is in 2WD.
[ER36700(R)01/96]
n
After 2WD is selected, the front hubs must be ªunlockedº by
moving the vehicle in reverse direction for a minimum of ten
feet.
[ER36800(R)01/96]
n
Confirm the front hubs are unlocked by inspecting the front
drive shaft to verify it does not turn when the vehicle is
towed.
[ER36900(R)01/96]
In addition to the above guidelines, it is recommended that you
follow the instructions provided by the manufacturer of the
towing apparatus.
File:10unerr.ex
Update:Thu Mar 20 08:56:46 1997

249
Maintenance and Care
%*[MC00300(R)01/96]Service Made Easy
*[MC00400(R)01/96]Ford has two goals for servicing your vehicle.
*[MC00500(R)01/96]1.When we can, we design parts that do not need to be
serviced.
*[MC00600(R)01/96]2.We want to make servicing your vehicle as easy as possible.
To help you:
*[MC00700(R)01/96]nWe highlight do-it-yourself items in yellow in the engine
compartment so that you can find them easily.
*[MC00800(R)03/96]nWhen possible, we design parts that can be replaced without
tools.
*[MC00900(R)02/96]nWe give you a Maintenance Schedule that makes tracking
routine service for your vehicle easy. The maintenance
schedule is located in theMaintenance Schedulebooklet.
*[MC01000(R)01/96]This chapter tells you about the basic parts that you need to
check and service regularly.
*[MC01050(R)01/96]If your vehicle needs professional servicing, your dealership can
provide the parts and service required. Check your Warranty
Information Booklet to find out which parts and services are
covered. Also see the Customer Assistancechapter of this Owner
Guide.
*[MC01300(R)02/96]Ford Motor Company recommends that the Owner Maintenance
Checks listed in the Maintenance Schedule booklet be performed
for the proper operation of your vehicle. In addition to the
conditions listed in the Owner Maintenance Checklist , be alert for
any unusual noise, vibration, or other indication that your
vehicle may need service. If you do notice something unusual,
see that your vehicle is serviced promptly.
File:11unmcr.ex
Update:Thu Mar 20 08:58:43 1997

250
%*
[MC01400(R)05/96]
NOTE: Always dispose of used automotive fluids in a
responsible manner. Follow your community's
standards for disposing of these types of fluids. Call
your local recycling center to find out about recycling
automotive fluids.
%*
[MC01600(R)01/96]
Precautions When Servicing Your Vehicle
*
[MC01700(R)01/96]
Be especially careful when inspecting or servicing your vehicle.
Here are some general precautions for your safety:
*
[MC01900(R)01/96]
n
If you must work with the engine running, avoid wearing
loose clothing or jewelry that could get caught in moving
parts. Take appropriate precautions with long hair.
*
[MC02000(R)01/96]
n
Do not work on a vehicle in an enclosed space with the
engine running, unless you are sure you have enough
ventilation.
*
[MC02100(R)01/96]
n
Never get under a vehicle while it is supported only by a
jack. If you must work under a vehicle, use safety stands.
*
[MC02200(R)01/96]
n
Keep all lit cigarettes and other smoking materials away
from the battery and all fuel-related parts.
*
[MC02500(R)01/96]
If you disconnect the battery, the engine must ªrelearnº its idle
conditions before your vehicle will drive properly. To find out
how the engine does this, seeBatteryin this chapter.
*
[MC02600(R)01/96]
Working with the engine off:
*
[MC02660(R)01/96]1.
Set the parking brake fully and make sure that the gearshift
is securely latched in P (Park).
*
[MC02700(R)01/96]2.
Remove the key from the ignition after you turn the engine
off.
*
[MC02725(R)01/96]3.
Block the wheels. This will prevent your vehicle from
moving unexpectedly.
File:11unmcr.ex
Update:Thu Mar 20 08:58:43 1997
