Replacing foglamp bulbs (if equipped)
1. Make sure the headlamp switch is
in the OFF position and remove the
bulb socket from the foglamp by
turning counterclockwise.
2. Disconnect the electrical
connector.
Install the new bulb in reverse order.
Replacing high-mount brakelamp bulb
1. Make sure the headlamp switch is
in the OFF position and remove the
two screws and lamp assembly from
vehicle.
2. Remove the bulb socket from
lamp assembly by rotating it counterclockwise.
3. Carefully pull bulb straight out of socket.
Install the new bulb in reverse order.
Replacing license plate lamp bulbs
1. Make sure the headlamp switch is
in the OFF position and reach
behind the rear bumper to locate
the bulb socket.
2. Twist the socket counterclockwise
and remove.
3. Carefully pull the bulb straight
out of the socket.
Install the new bulb(s) in reverse order.
2004 Ranger(ran)
Owners Guide (post-2002-fmt)
USA English (fus)
Lights
44

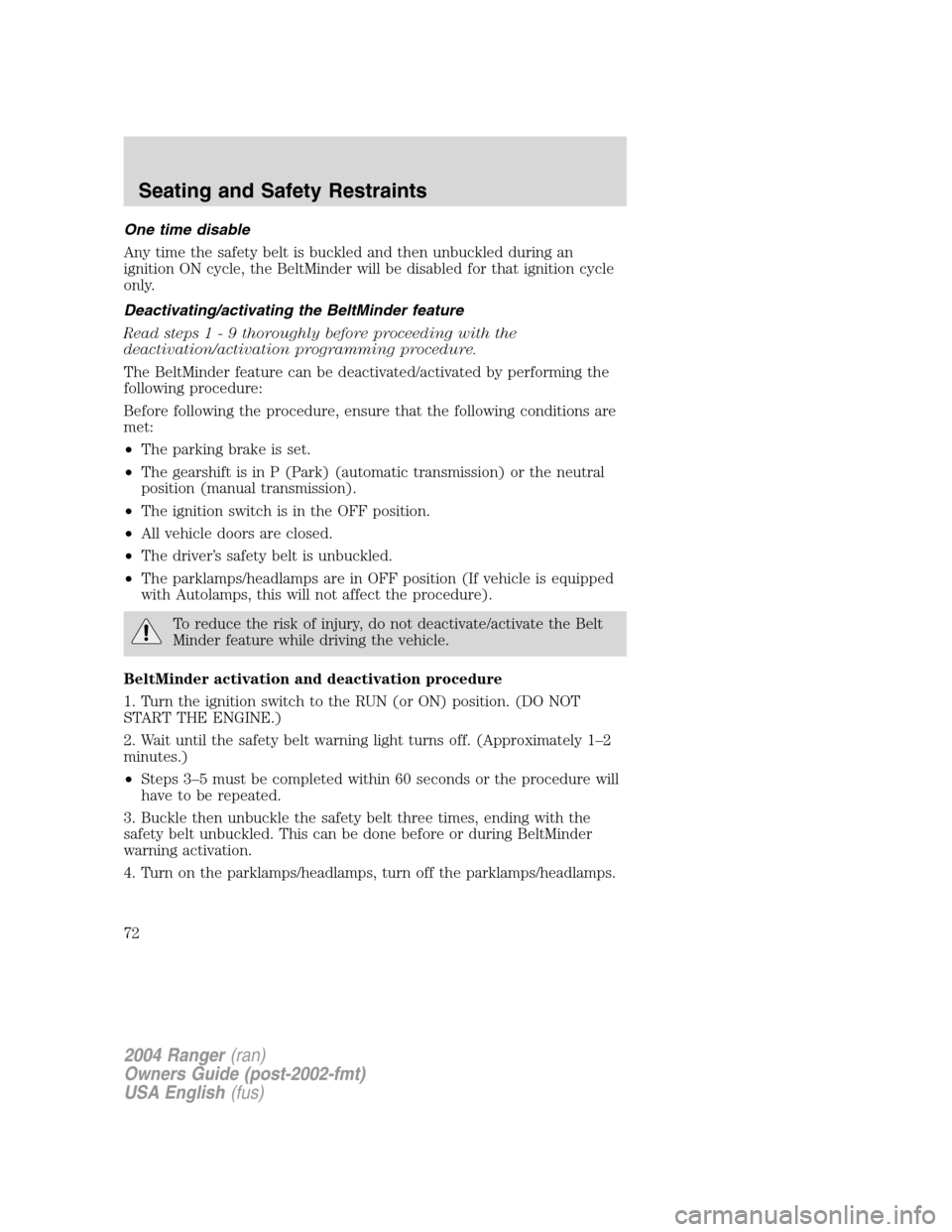

One time disable
Any time the safety belt is buckled and then unbuckled during an
ignition ON cycle, the BeltMinder will be disabled for that ignition cycle
only.
Deactivating/activating the BeltMinder feature
Read steps1-9thoroughly before proceeding with the
deactivation/activation programming procedure.
The BeltMinder feature can be deactivated/activated by performing the
following procedure:
Before following the procedure, ensure that the following conditions are
met:
• The parking brake is set.
• The gearshift is in P (Park) (automatic transmission) or the neutral
position (manual transmission).
• The ignition switch is in the OFF position.
• All vehicle doors are closed.
• The driver ’s safety belt is unbuckled.
• The parklamps/headlamps are in OFF position (If vehicle is equipped
with Autolamps, this will not affect the procedure).
To reduce the risk of injury, do not deactivate/activate the Belt
Minder feature while driving the vehicle.
BeltMinder activation and deactivation procedure
1. Turn the ignition switch to the RUN (or ON) position. (DO NOT
START THE ENGINE.)
2. Wait until the safety belt warning light turns off. (Approximately 1 –2
minutes.)
• Steps 3 –5 must be completed within 60 seconds or the procedure will
have to be repeated.
3. Buckle then unbuckle the safety belt three times, ending with the
safety belt unbuckled. This can be done before or during BeltMinder
warning activation.
4. Turn on the parklamps/headlamps, turn off the parklamps/headlamps.
2004 Ranger (ran)
Owners Guide (post-2002-fmt)
USA English (fus)
Seating and Safety Restraints
72

Extended idling at high engine speeds can produce very high
temperatures in the engine and exhaust system, creating the risk
of fire or other damage.
Do not park, idle, or drive your vehicle in dry grass or other dry
ground cover. The emission system heats up the engine
compartment and exhaust system, which can start a fire.
Do not start your vehicle in a closed garage or in other enclosed
areas. Exhaust fumes can be toxic. Always open the garage door
before you start the engine. See Guarding against exhaust fumes in
this chapter for more instructions.
If you smell exhaust fumes inside your vehicle, have your dealer
inspect your vehicle immediately. Do not drive if you smell
exhaust fumes.
When the key is in the ignition and in the OFF position, the
automatic transmission shift lever can be moved from the P
(Park) position without the brake pedal depressed. To avoid unwanted
vehicle movement, always set the parking brake.
Important safety precautions
When the engine starts, the idle RPM runs faster to warm the engine. If
the engine idle speed does not slow down automatically, have the vehicle
checked.
Before starting the vehicle:
1. Make sure all occupants buckle their safety belts. For more
information on safety belts and their proper usage, refer to the Seating
and Safety Restraints chapter.
2. Make sure the headlamps and electrical accessories are off.
2004 Ranger (ran)
Owners Guide (post-2002-fmt)
USA English (fus)
Driving
97

Refer to the following chart for information regarding the
factory-equipped trailer tow connector:
Trailer tow connector
Color Function Comment
1. Dark Green Trailer right-handturn signal Circuit activated when brake
pedal is depressed or when
ignition is on and right-hand
turn signal is applied.
2. Yellow Trailer left-hand turn signal Circuit activated when brake
pedal is depressed or when
ignition is on and left-hand
turn signal is applied.
3. Tan/White Tail lamp Relay controlled circuit activated when the park
lamps/headlamps are on.
4. White Ground Matching vehicle circuit returns to battery’s negative
ground.
Driving while you tow
When towing a trailer:
• Turn off the speed control. The speed control may shut off
automatically when you are towing on long, steep grades.
• Consult your local motor vehicle speed regulations for towing a trailer.
• To eliminate excessive shifting, use a lower gear. This will also assist
in transmission cooling. (For additional information, refer to the
Driving with a 5–speed automatic transmission section in this
chapter.)
• Under extreme conditions with large frontal trailers, high outside
temperatures and highway speeds, the coolant gauge may indicate
higher than normal coolant temperatures. If this occurs, reduce speed
until the coolant temperature returns to the normal range. Refer to
Engine coolant temperature gauge in theInstrument cluster
chapter.
• Anticipate stops and brake gradually.
• Do not exceed the GCWR rating or transmission damage may occur.
2004 Ranger (ran)
Owners Guide (post-2002-fmt)
USA English (fus)
Driving
128

The fuses are coded as follows:
Fuse/RelayLocation Fuse Amp
Rating Passenger Compartment Fuse
Panel Description
1 5A Instrument panel dimmer switch
2 10A Trailer tow park lamps
3 10A Right low beam headlamp
4 10A Left low beam headlamp
5 30A Windshield wipers/washer
6 10A Radio (RUN/ACCY)
7 5A Headlamp illumination indicator
8 10A Restraints Control Module (RCM), PADI (Passenger Air bag
Deactivation Indicator)
9 5A Cluster air bag indicator
10 10A Cluster (RUN/START), 4x4 module (RUN/START)
2004 Ranger(ran)
Owners Guide (post-2002-fmt)
USA English (fus)
Roadside Emergencies
136

Fuse/RelayLocation Fuse Amp
Rating Passenger Compartment Fuse
Panel Description
11 10A Smart Junction Box (SJB) (Logic power)
12 15A Center console subwoofer amplifier
13 15A Horn, Interior lamps
14 15A High beam headlamp, High beam indicator (cluster)
15 —One-touch down relay
16 30A cartridge fusePower windows
17 15A Turn signals/Hazards
18 —Not used
19 20A Center High-Mounted Stop Lamp (CHMSL)/Stop lamps
20 10A Anti-lock Brake System (ABS) module, Brake-shift interlock,
Speed control module, Back-up
lamps, Overdrive cancel switch,
Electronic flasher (turn/hazard)
21 5A Starter relay
22 5A Spare
23 30A Headlamps (low and high beam)
24 20A Radio
25 —Accessory relay
26 2A Brake pressure switch
27 10A Climate control blower relay/blend doors, 4x4 module
28 15A 4x4 module B+
29 20A Cigar lighter or power point, Diagnostic connector (OBD II)
30 5A Power mirrors
2004 Ranger (ran)
Owners Guide (post-2002-fmt)
USA English (fus)
Roadside Emergencies
137

FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of genuine Ford accessories are available for your
vehicle through your local authorized Ford or Ford of Canada dealer.
These quality accessories have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and aerodynamic appearance of your vehicle. In addition, each accessory
is made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Ford accessory found to be
defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessory. The accessory will be warranted for whichever provides you
the greatest benefit:
• 12 months or 20,000 km (12,000 miles) (whichever occurs first), or
• the remainder of your new vehicle limited warranty.
This means that genuine Ford accessories purchased along with your
new vehicle and installed by the dealer are covered for the full length of
your New Vehicle ’s Limited Warranty —3 years or 60,000 km (36,000
miles) (whichever occurs first). Contact your dealer for details and a
copy of the warranty.
Not all accessories are available for all models.
The following is a list of several Ford Genuine Accessory products for
your vehicle. Not all accessories are available for all models. For a
complete listing of the accessories that are available for your vehicle,
please contact your dealer or visit our online store at:
www.fordaccessoriesstore.com.
Exterior style
Bug shields
Deflectors
Exterior trim
Fender flares
Front end covers
Grille inserts
Headlamps, taillamps, fog lights and Daytime Running Lamps (DRLS)
Running boards
Sliding rear windows - manual and power
2004 Ranger (ran)
Owners Guide (post-2002-fmt)
USA English (fus)
Accessories
Accessories
236

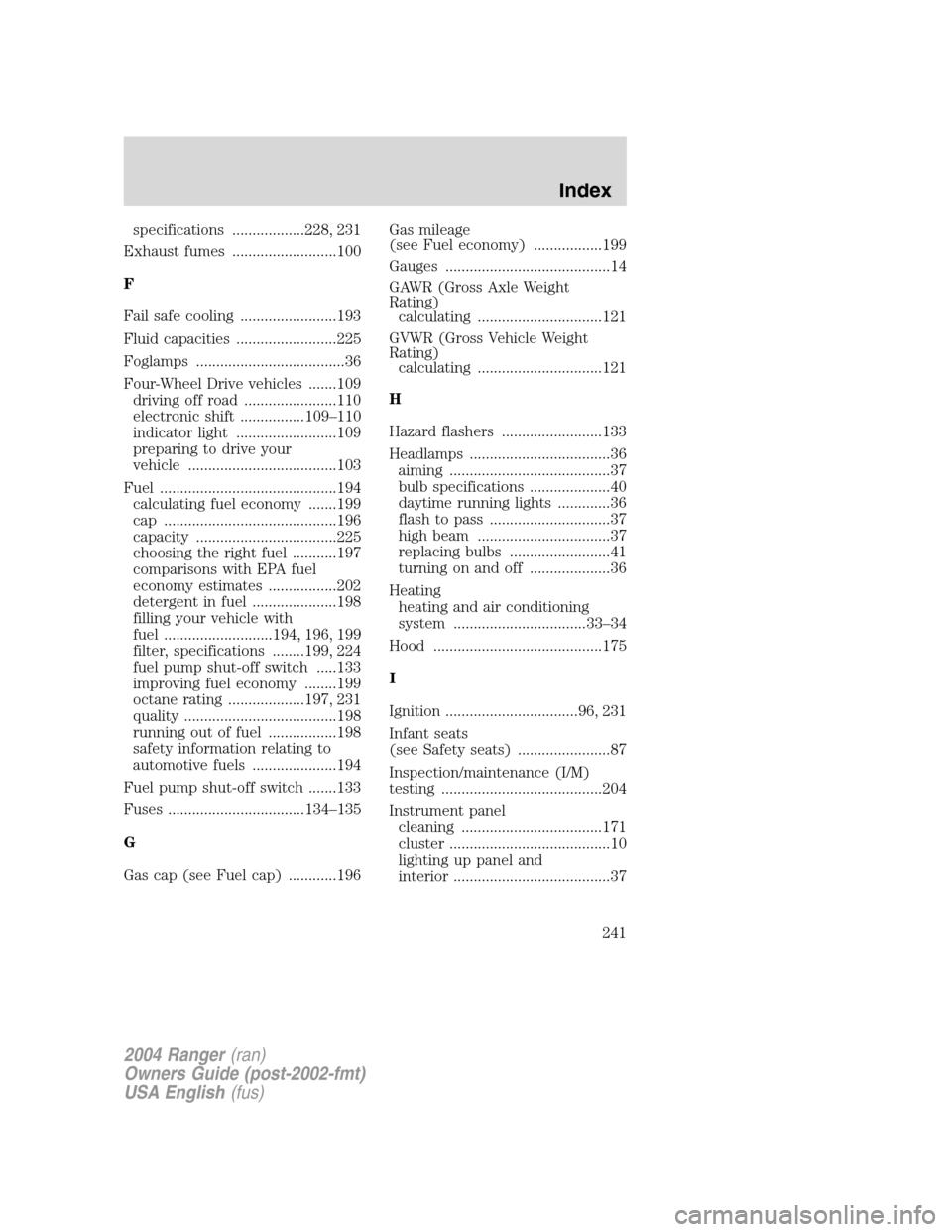

specifications ..................228, 231
Exhaust fumes ..........................100
F
Fail safe cooling ........................193
Fluid capacities .........................225
Foglamps .....................................36
Four-Wheel Drive vehicles .......109 driving off road .......................110
electronic shift ................109 –110
indicator light .........................109
preparing to drive your
vehicle .....................................103
Fuel ............................................194 calculating fuel economy .......199
cap ...........................................196
capacity ...................................225
choosing the right fuel ...........197
comparisons with EPA fuel
economy estimates .................202
detergent in fuel .....................198
filling your vehicle with
fuel ...........................194, 196, 199
filter, specifications ........199, 224
fuel pump shut-off switch .....133
improving fuel economy ........199
octane rating ...................197, 231
quality ......................................198
running out of fuel .................198
safety information relating to
automotive fuels .....................194
Fuel pump shut-off switch .......133
Fuses ..................................134 –135
G
Gas cap (see Fuel cap) ............196 Gas mileage
(see Fuel economy) .................199
Gauges .........................................14
GAWR (Gross Axle Weight
Rating)
calculating ...............................121
GVWR (Gross Vehicle Weight
Rating) calculating ...............................121
H
Hazard flashers .........................133
Headlamps ...................................36 aiming ........................................37
bulb specifications ....................40
daytime running lights .............36
flash to pass ..............................37
high beam .................................37
replacing bulbs .........................41
turning on and off ....................36
Heating heating and air conditioning
system .................................33 –34
Hood ..........................................175
I
Ignition .................................96, 231
Infant seats
(see Safety seats) .......................87
Inspection/maintenance (I/M)
testing ........................................204
Instrument panel cleaning ...................................171
cluster ........................................10
lighting up panel and
interior .......................................37
2004 Ranger (ran)
Owners Guide (post-2002-fmt)
USA English (fus)
Index
241

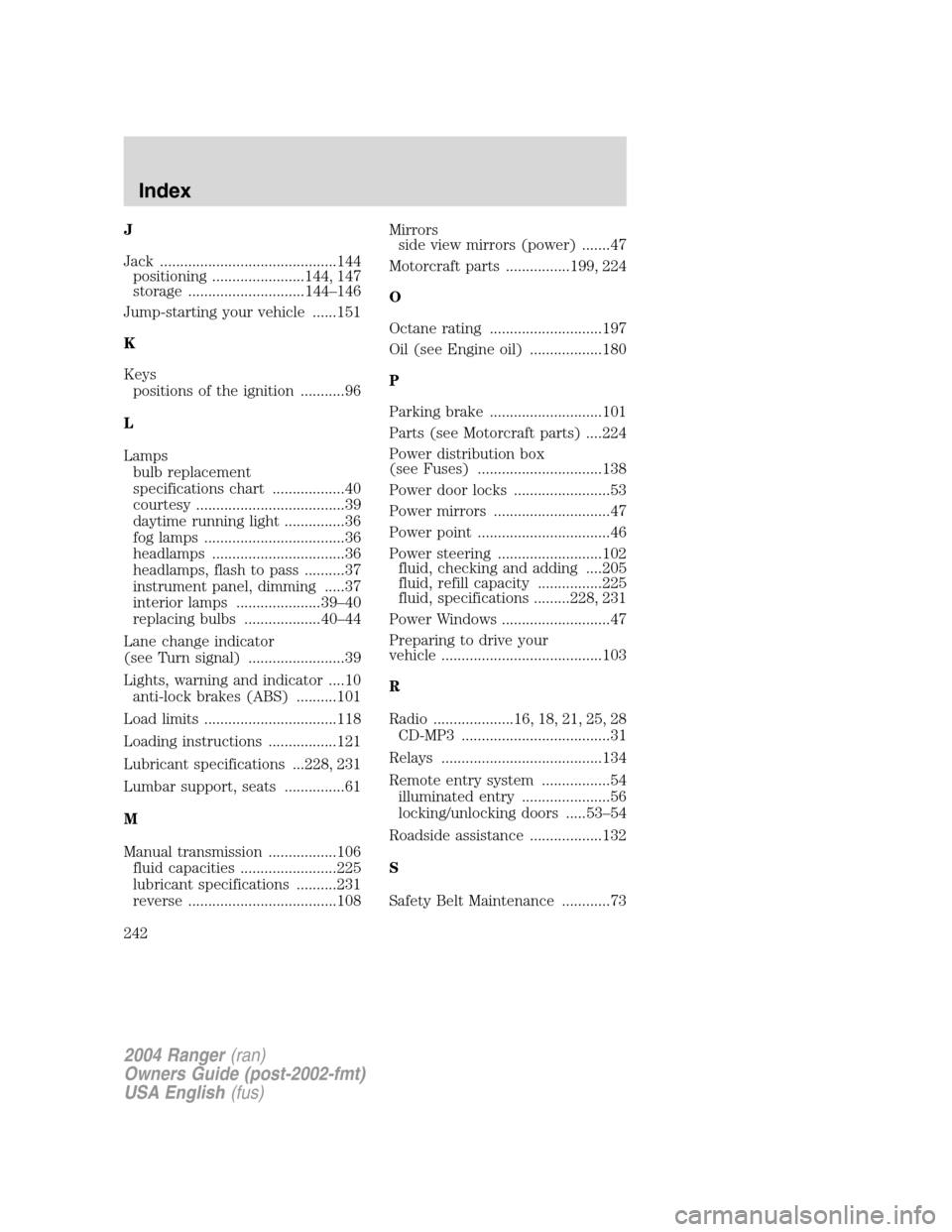

J
Jack ............................................144positioning .......................144, 147
storage .............................144 –146
Jump-starting your vehicle ......151
K
Keys positions of the ignition ...........96
L
Lamps bulb replacement
specifications chart ..................40
courtesy .....................................39
daytime running light ...............36
fog lamps ...................................36
headlamps .................................36
headlamps, flash to pass ..........37
instrument panel, dimming .....37
interior lamps .....................39 –40
replacing bulbs ...................40 –44
Lane change indicator
(see Turn signal) ........................39
Lights, warning and indicator ....10 anti-lock brakes (ABS) ..........101
Load limits .................................118
Loading instructions .................121
Lubricant specifications ...228, 231
Lumbar support, seats ...............61
M
Manual transmission .................106 fluid capacities ........................225
lubricant specifications ..........231
reverse .....................................108 Mirrors
side view mirrors (power) .......47
Motorcraft parts ................199, 224
O
Octane rating ............................197
Oil (see Engine oil) ..................180
P
Parking brake ............................101
Parts (see Motorcraft parts) ....224
Power distribution box
(see Fuses) ...............................138
Power door locks ........................53
Power mirrors .............................47
Power point .................................46
Power steering ..........................102 fluid, checking and adding ....205
fluid, refill capacity ................225
fluid, specifications .........228, 231
Power Windows ...........................47
Preparing to drive your
vehicle ........................................103
R
Radio ....................16, 18, 21, 25, 28 CD-MP3 .....................................31
Relays ........................................134
Remote entry system .................54 illuminated entry ......................56
locking/unlocking doors .....53 –54
Roadside assistance ..................132
S
Safety Belt Maintenance ............73
2004 Ranger (ran)
Owners Guide (post-2002-fmt)
USA English (fus)
Index
242
