FORD RANGER 2023 Owners Manual

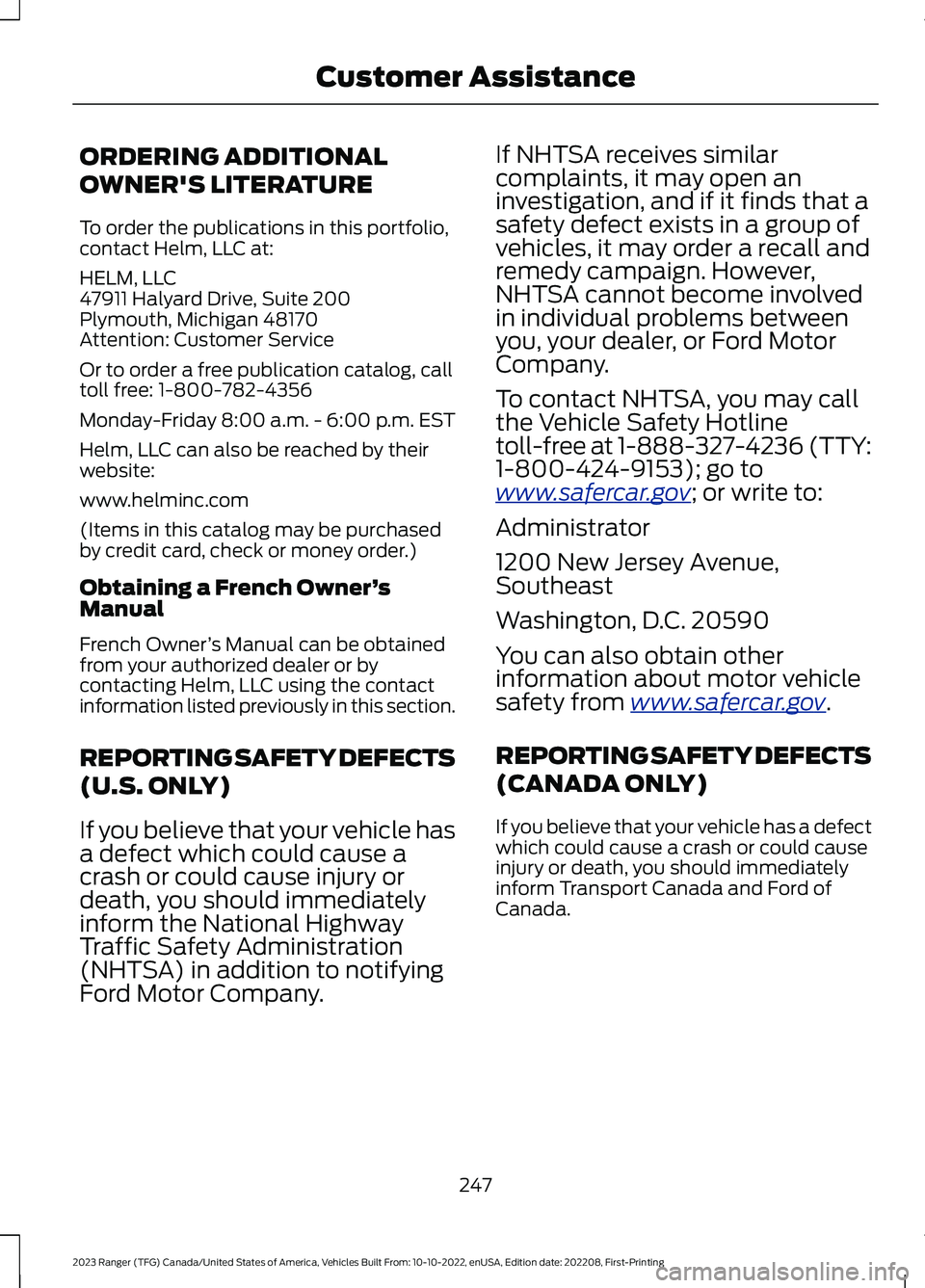

ORDERING ADDITIONAL
OWNER'S LITERATURE
To order the publications in this portfolio,contact Helm, LLC at:
HELM, LLC47911 Halyard Drive, Suite 200Plymouth, Michigan 48170Attention: Customer Service
Or to order a free publication catalog, calltoll free: 1-800-782-4356
Monday-Friday 8:00 a.m. - 6:00 p.m. EST
Helm, LLC can also be reached by theirwebsite:
www.helminc.com
(Items in this catalog may be purchasedby credit card, check or money order.)
Obtaining a French Owner’sManual
French Owner’s Manual can be obtainedfrom your authorized dealer or bycontacting Helm, LLC using the contactinformation listed previously in this section.
REPORTING SAFETY DEFECTS
(U.S. ONLY)
If you believe that your vehicle hasa defect which could cause acrash or could cause injury ordeath, you should immediatelyinform the National HighwayTraffic Safety Administration(NHTSA) in addition to notifyingFord Motor Company.
If NHTSA receives similarcomplaints, it may open aninvestigation, and if it finds that asafety defect exists in a group ofvehicles, it may order a recall andremedy campaign. However,NHTSA cannot become involvedin individual problems betweenyou, your dealer, or Ford MotorCompany.
To contact NHTSA, you may callthe Vehicle Safety Hotlinetoll-free at 1-888-327-4236 (TTY:1-800-424-9153); go towww.safercar.gov; or write to:
Administrator
1200 New Jersey Avenue,Southeast
Washington, D.C. 20590
You can also obtain otherinformation about motor vehiclesafety from www.safercar.gov.
REPORTING SAFETY DEFECTS
(CANADA ONLY)
If you believe that your vehicle has a defectwhich could cause a crash or could causeinjury or death, you should immediatelyinform Transport Canada and Ford ofCanada.
247
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingCustomer Assistance

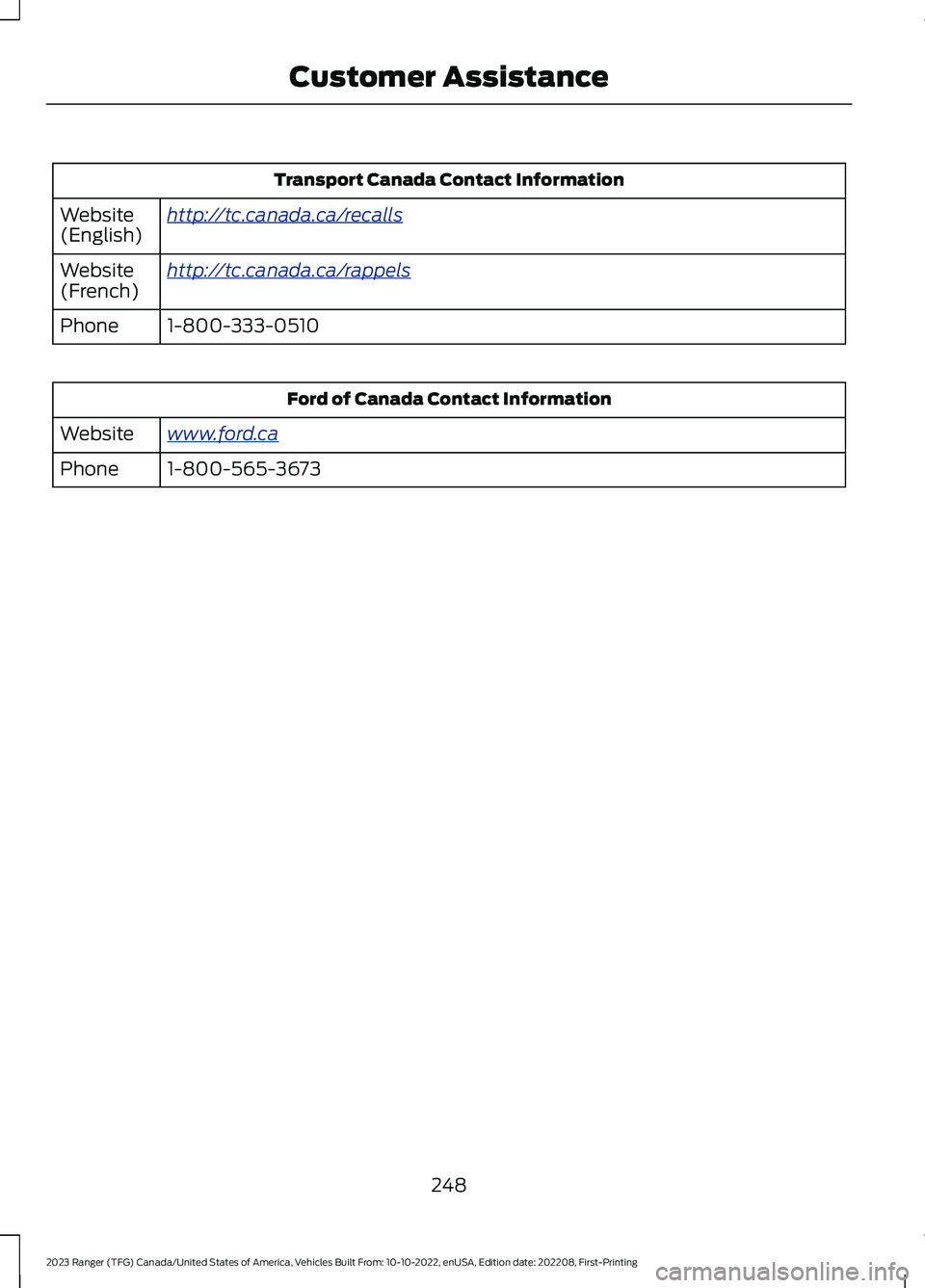

Transport Canada Contact Information
http://tc.canada.ca/recallsWebsite(English)
http://tc.canada.ca/rappelsWebsite(French)
1-800-333-0510Phone
Ford of Canada Contact Information
www.ford.caWebsite
1-800-565-3673Phone
248
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingCustomer Assistance

FUSE BOX LOCATIONS
Left-Hand Drive
Pre-fuse box.A
Engine compartment fuse box.B
Passenger compartment fusebox.C
High current fuse box.D
Note: The passenger compartment fusebox is on the right-hand side for right-handdrive vehicles.
Pre-fuse Box
Your vehicle has a pre-fuse box in theengine compartment attached to thepositive battery post. This box containsseveral high current fuses. If replacementof these high current fuses is required, seean authorized dealer.
Engine Compartment Fuse Box
WARNING: Always disconnect thebattery before servicing high currentfuses.
WARNING: To reduce risk ofelectrical shock, always replace thecover to the power distribution boxbefore reconnecting the battery orrefilling fluid reservoirs.
The engine compartment fuse box hashigh-current fuses that protect yourvehicle's main electrical systems fromoverloads.
When you disconnect and reconnect thebattery, you need to reset some features.See Changing the 12V Battery (page 275).
Lift the release lever at the rear of the coverto remove it.
249
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingFusesE264973 E206156 E206157

High Current Fuse Box
Your vehicle has a pre-fuse box in theengine compartment below the enginecompartment fuse box. This box containsseveral high current fuses. If replacementof these high current fuses is required, seean authorized dealer.
Passenger Compartment Fuse Box
The fuse box is behind the access cover onthe outermost side of the steering column.
FUSE SPECIFICATION CHART
Engine Compartment Fuse Box
WARNING: Always disconnect thebattery before servicing high currentfuses.
WARNING: To reduce risk ofelectrical shock, always replace thecover to the power distribution boxbefore reconnecting the battery orrefilling fluid reservoirs.
The engine compartment fuse box hashigh-current fuses that protect thevehicle's main electrical systems fromoverloads. When you disconnect andreconnect the battery, you need to resetsome features. See Changing the 12VBattery (page 275). Lift the release leversat the rear of the cover to remove it.
250
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingFusesE206158 E206167

Protected ComponentRatingItem
Not used.-1
Starter motor solenoid relay.-2
Rain sensor.5 A23
Blower motor relay.-4
Auxiliary power point 3 - console rear.20 A15
Trailer park lamp relay.-6
Powertrain control module.20 A27
Canister vent solenoid.20 A28Fuel vapor shutoff valve.Canister purge valve.Variable cam timing valve 1 and 2.
251
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingFusesE190797

Protected ComponentRatingItem
Heated oxygen sensors.
Powertrain control module relay.-9
Auxiliary power point 1 - instrument panel.20 A110
Ignition coils.15 A311
A/C control drive.15 A312Transaxle warmer.Auxiliary water pump.Aspirator valve control.Fan clutch.Oil pump.Turbo bypass.
Not used.-13
Not used.-14
Run/start relay.-15
Auxiliary power point 2 - instrument panel.20 A116
Auxiliary power point - rear cargo area.20 A117
Not used.-18
Electric power assist steering.10 A219
Not used.-20
Transmission run/start relay.5 A221
A/C compressor.10 A222
Voltage quality module.5 A223
Not used.-24
Anti-lock brake system.10 A325
Not used (spare).10 A326
Not used.-27
252
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingFuses

Protected ComponentRatingItem
Powertrain control module.10 A228
USB charge port.7.5 A229
Not used.-30
Not used.-31
Fuel pump relay.-32
A/C clutch relay.-33
Trailer reverse lamp.10 A234
Not used.-35
Not used.-36
Heated exterior mirror.10 A237
Trailer right-hand turn and stop lamp relay.-38
Trailer left-hand turn and stop lamp relay.-39
Trailer reverse lamp relay.-40
Horn relay.-41
Four wheel drive motor no. 2 relay.-42
Not used.-43
Not used.-44
Not used.-45
Not used (spare).10 A346
Brake pedal switch.10 A347
Horn.20 A248
Transmission control module oil pump.15 A249
Not used (spare).10 A250
Not used.-51
253
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingFuses

Protected ComponentRatingItem
Not used.-52
Rear differential lock.15 A253
Not used.-54
Not used.-55
Four wheel drive motor no. 1 relay.-86
1 M-type fuse.2 Micro 2 fuse.3 Micro 3 fuse.

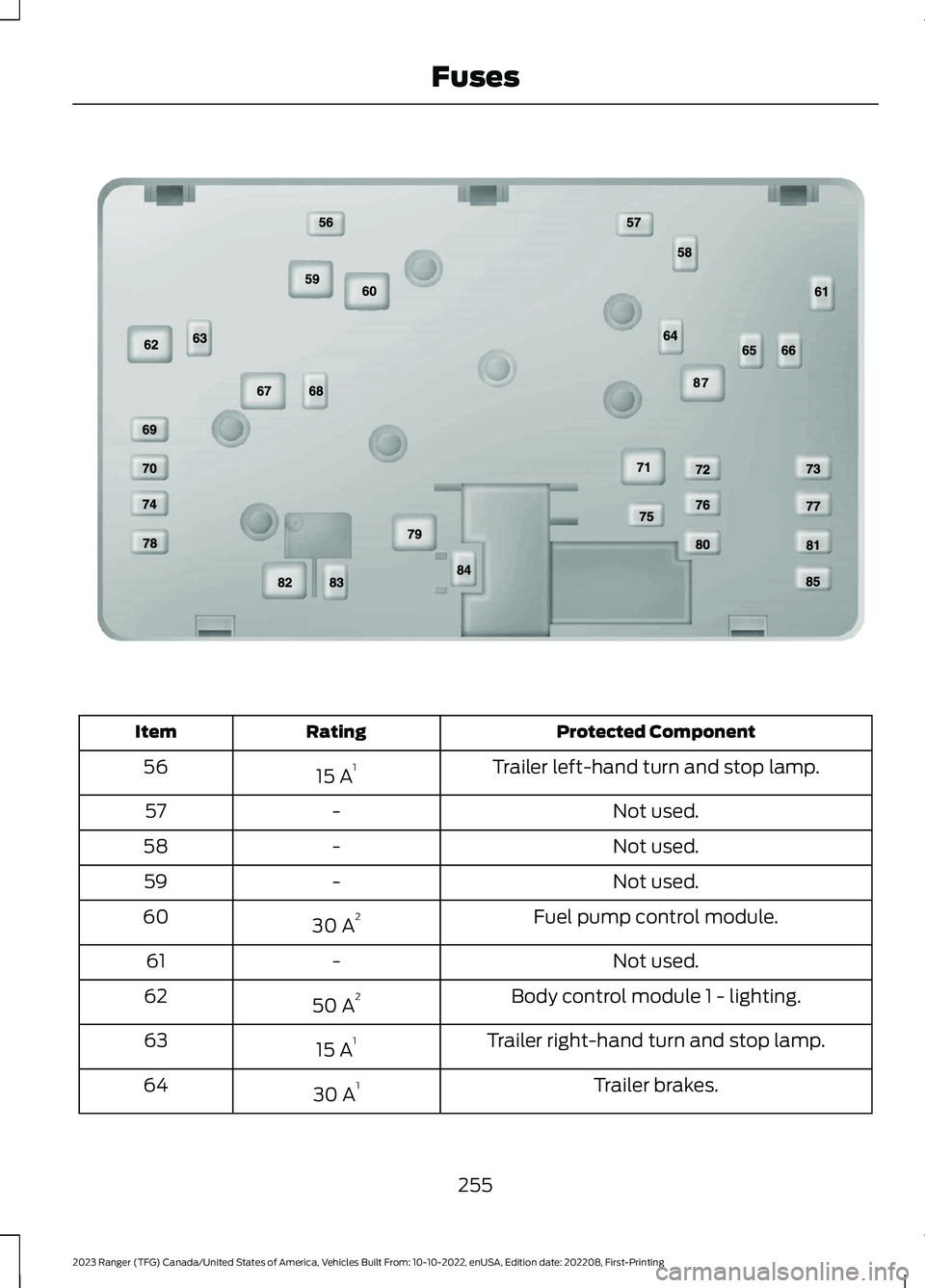

Power Distribution Box - Bottom
There are fuses on the bottom of the fusebox. To access the bottom of the fuse box:
Toward the front of the vehicle.A
1.Release the two latches on both sidesof the fuse box.
2.Lift the rear of the fuse box from thecradle.
3.Move the fuse box toward the rear ofthe engine compartment and rotate asshown.
4.Pivot the rear of the fuse box to accessthe bottom side.
5.Release the two latches to open thefuse cover.
254
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingFusesA12E2061711 355E206174

Protected ComponentRatingItem
Trailer left-hand turn and stop lamp.15 A156
Not used.-57
Not used.-58
Not used.-59
Fuel pump control module.30 A260
Not used.-61
Body control module 1 - lighting.50 A262
Trailer right-hand turn and stop lamp.15 A163
Trailer brakes.30 A164
255
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingFusesE190798

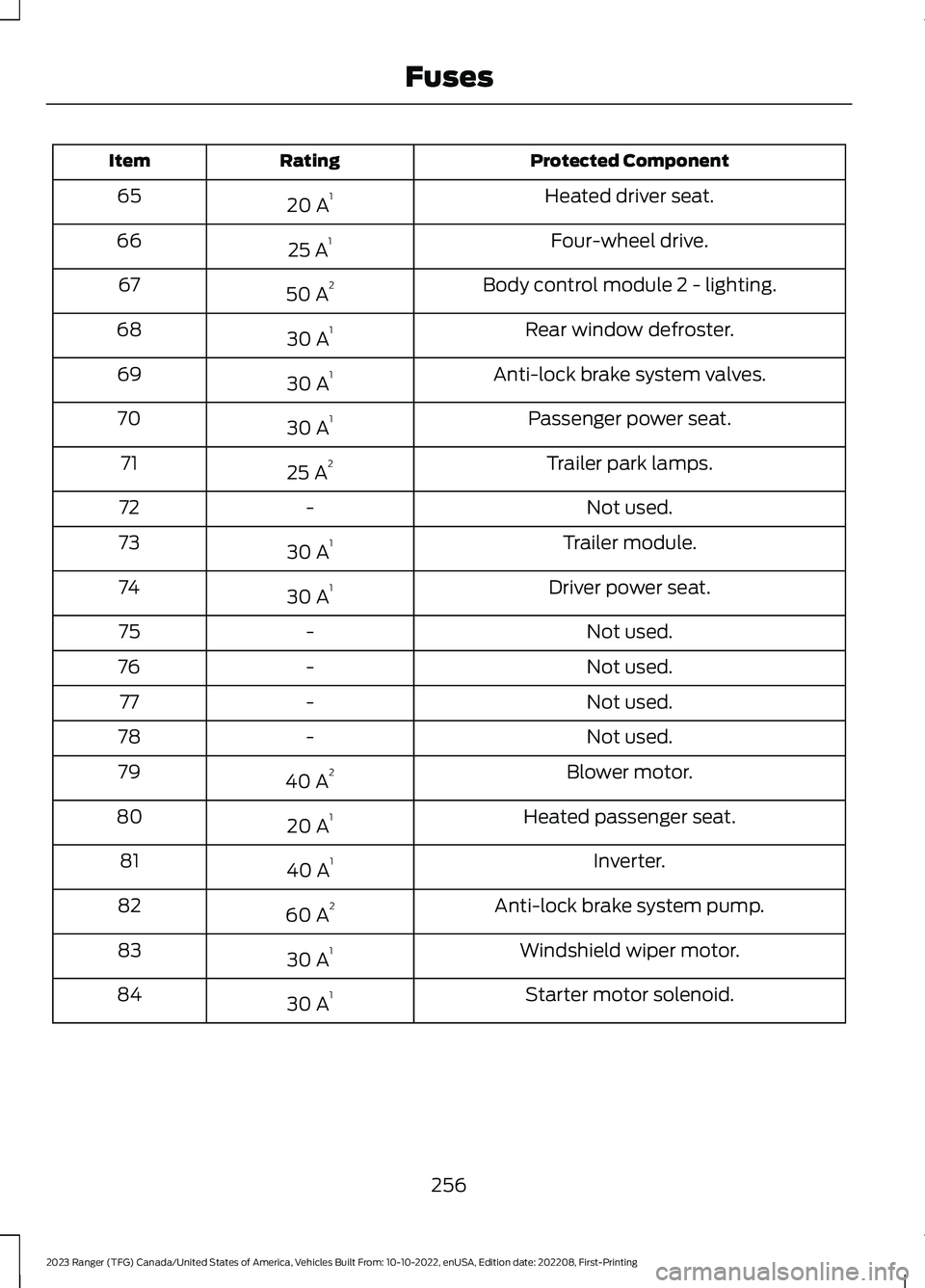

Protected ComponentRatingItem
Heated driver seat.20 A165
Four-wheel drive.25 A166
Body control module 2 - lighting.50 A267
Rear window defroster.30 A168
Anti-lock brake system valves.30 A169
Passenger power seat.30 A170
Trailer park lamps.25 A271
Not used.-72
Trailer module.30 A173
Driver power seat.30 A174
Not used.-75
Not used.-76
Not used.-77
Not used.-78
Blower motor.40 A279
Heated passenger seat.20 A180
Inverter.40 A181
Anti-lock brake system pump.60 A282
Windshield wiper motor.30 A183
Starter motor solenoid.30 A184
256
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingFuses
