fuse FORD RANGER 2023 Owner's Manual

ENGINE COOLANT CHECK
WARNING: Do not remove thecoolant reservoir cap when the engine ison or the cooling system is hot. Wait 10minutes for the cooling system to cooldown. Cover the coolant reservoir capwith a thick cloth to prevent thepossibility of scalding and slowly removethe cap. Failure to follow this instructioncould result in personal injury.
WARNING: Do not dispose ofcoolant in the household refuse or thepublic sewage system. Use an authorizedwaste disposal facility.
WARNING: Do not put coolant inthe windshield washer reservoir. Ifsprayed on the windshield, coolant couldmake it difficult to see through thewindshield.
WARNING: To reduce the risk ofpersonal injury, make sure the engine iscool before unscrewing the coolantpressure relief cap. The cooling systemis under pressure. Steam and hot liquidcan come out forcefully when you loosenthe cap slightly.
When the engine is cold, check theconcentration and level of the coolant atthe intervals listed in the scheduledmaintenance information. See ScheduledMaintenance (page 416).
Note:Make sure that the coolant level isbetween the MIN and the MAX marks onthe coolant reservoir.
Note: Coolant expands when it is hot. Thelevel may extend beyond the MAX mark.
Maintain coolant concentration within48% to 50%, which equates to a freezepoint between -29°F (-34°C) and -35°F(-37°C). Coolant concentration should bechecked using a refractometer. We do notrecommend the use of hydrometers orcoolant test strips for measuring coolantconcentration.
Adding Coolant
WARNING: Do not remove thecoolant reservoir cap when the engine ison or the cooling system is hot. Wait 10minutes for the cooling system to cooldown. Cover the coolant reservoir capwith a thick cloth to prevent thepossibility of scalding and slowly removethe cap. Failure to follow this instructioncould result in personal injury.
WARNING: Do not allow the fluidto touch your skin or eyes. If thishappens, rinse the affected areasimmediately with plenty of water andcontact your physician.
WARNING: Do not add coolantfurther than the MAX mark.
Note:Automotive fluids are notinterchangeable. Take care not to put enginecoolant in the windshield washer fluidreservoir or windshield washer fluid in theengine coolant reservoir.
Note: Do not use stop leak pellets, coolingsystem sealants, or non-specified additivesas they can cause damage to the enginecooling or heating systems. Resultingcomponent damage may not be covered bythe vehicle Warranty.
269
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingMaintenance

AUXILIARY SWITCHES (IF
EQUIPPED)
For maximum vehicle performance, keepthe following information in mind whenadding accessories or equipment to yourvehicle:
•When adding accessories, equipment,passengers and luggage to yourvehicle, do not exceed the total weightcapacity of the vehicle or of the frontor rear axle (GVWR or GAWR asindicated on the Safety ComplianceCertification label). Ask an authorizeddealer for specific weight information.
•The Federal CommunicationsCommission (FCC) and CanadianRadio TelecommunicationsCommission (CRTC) regulate the useof mobile communications systemsequipped with radio transmitters, forexample, two-way radios, telephonesand theft alarms. Any such equipmentinstalled in your vehicle should complywith Federal CommunicationsCommission (FCC) and CanadianRadio TelecommunicationsCommission (CRTC) regulations, andshould be installed by an authorizeddealer.
•An authorized dealer needs to installmobile communications systems.Improper installation may harm theoperation of your vehicle, particularlyif the manufacturer did not design themobile communication systemspecifically for automotive use.
•If you or an authorized Ford dealer addany non-Ford electrical or electronicaccessories or components to yourvehicle, you may adversely affectbattery performance and durability. Inaddition, you may also adversely affectthe performance of other electricalsystems in the vehicle.
The auxiliary switch option packageprovides six switches mounted in theinstrument panel. These switches operatewhen the vehicle is running . Werecommend, however, that the engineremain running to maintain battery chargewhen using the auxiliary switches forextended periods of time or higher currentdraws.
When switched on, the auxiliary switchesprovide electrical battery power for avariety of personal or commercial uses.Switch 1 is provided with 25 amps fuse.Switch 2 is provided with 15 amps fuse.Switch 3 is provided with 10 amps fuse.Switches 4, 5 and 6 provided with a 5amps fuse.
The relay box for the auxiliary switches isin the left front of the engine compartment.See your authorized dealer for service.
The relays are coded as shown:
409
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingAccessoriesE220728

Each switch includes a blunt-cut, wirelocated next to the auxiliary fuse and relaybox in the left front of the engine bay.
Protected ComponentFuse RatingFuse or RelayNumber
Fuse 11A and 11B.25A11
Fuse 12A and 12B.20A12
Relay AUX1.25A23
Not used.-4A
Not used.-4B
Relay AUX2.15A25
Not used.-6
Not used.-7
Not used.-8
Not used.-9
Not used.-10
Relay AUX3.10A311A
410
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingAccessories0302011009080706051115121413171618E332362

Protected ComponentFuse RatingFuse or RelayNumber
Relay AUX4.5A311B
Relay AUX5.5A312A
Relay AUX6.5A312B
Relay AUX3 violet with green trace.-13
Relay AUX4 brown.-14
Relay AUX5 blue with orange trace.-15
Relay AUX2 green with brown trace.-16
Relay AUX6 yellow with orange trace.-17
Relay AUX1 yellow.-18
1 LPJ-type fuse.2 M-type fuse.3 Mini fuse.
411
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingAccessories

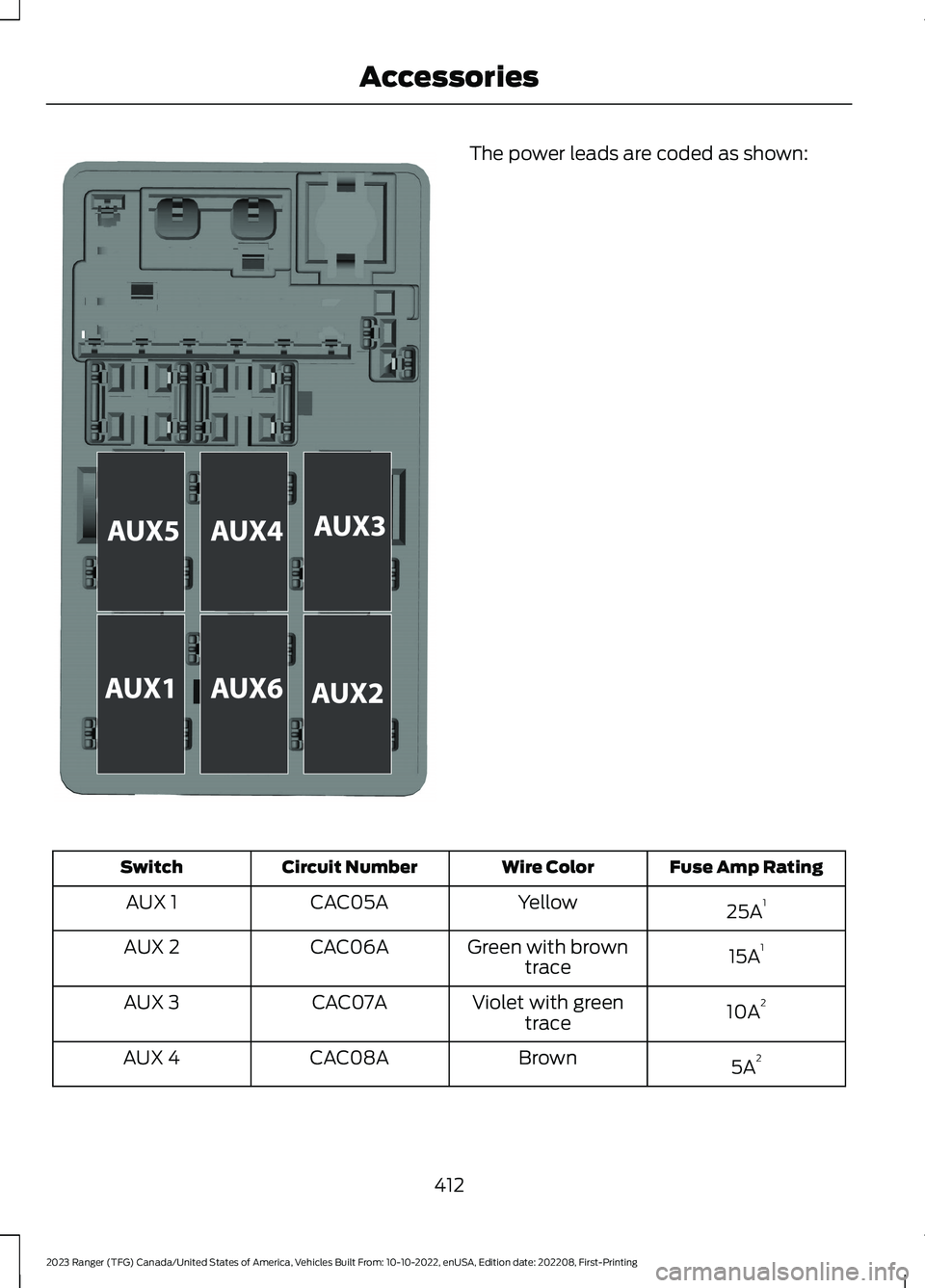

The power leads are coded as shown:
Fuse Amp RatingWire ColorCircuit NumberSwitch
25A1YellowCAC05AAUX 1
15A1Green with browntraceCAC06AAUX 2
10A2Violet with greentraceCAC07AAUX 3
5A2BrownCAC08AAUX 4
412
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingAccessoriesE333655

Fuse Amp RatingWire ColorCircuit NumberSwitch
5A2Blue with orangetraceCAC13AAUX 5
5A2Yellow with orangetraceCAC14AAUX 6
1 M-type fuse.2 Mini fuse
A - Press tabs to release mounting bracket.
B - Auxiliary fuse and relay box.
C - The power lead location.
413
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingAccessoriesBCAE332775

Multi-Point Inspection
Hazard warning system operationAccessory drive belt(s)
Horn operationBattery performance
Radiator, cooler, heater and air conditioninghosesEngine air filter
Suspension components for leaks ordamageExhaust system
Steering and linkageExterior lamps operation
Tires (including spare) for wear and proper
pressure2Fluid levels1; fill if necessary
Windshield for cracks, chips or pitsFor oil and fluid leaks
Washer spray and wiper operationHalf-shaft dust boots
1 Brake, coolant recovery reservoir, automatic transmission and window washer.2If your vehicle comes with a temporary mobility kit, check the tire sealant expiration UseBy date on the canister. Replace as needed.
Be sure to ask your dealership serviceadvisor or technician about the multi-pointvehicle inspection. It is a comprehensiveway to perform a thorough inspection ofyour vehicle. Your checklist gives youimmediate feedback on the overallcondition of your vehicle.
NORMAL SCHEDULED
MAINTENANCE
Intelligent Oil-Life Monitor™
Your vehicle has an Intelligent Oil-LifeMonitor that determines when you shouldchange the engine oil based on how youuse your vehicle. By using severalimportant factors in its calculations, themonitor helps reduce the cost of owningyour vehicle and reduces environmentalwaste at the same time.
This means you do not have to rememberto change the oil on a mileage-basedschedule. Your vehicle lets you know whenan oil change is due by displaying amessage in the information display.
The following table provides examples ofvehicle use and its impact on oil changeintervals. It is a guideline only. Actual oilchange intervals depend on several factorsand generally decrease with severity ofuse.
419
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingScheduled Maintenance

NOTICE OF USE
CONTRACTOR (MANUFACTURER/SUPPLIER) NAME: HERE
CONTRACTOR (MANUFACTURER/SUPPLIER) ADDRESS: c/o Nokia, 425West Randolph Street, Chicago, Illinois60606
This Data is a commercial item asdefined in FAR 2.101 and is subject tothese End-User Terms under which thisData was provided.
© 1987 – 2014 HERE – All rights reserved.
If the Contracting Officer, federalgovernment agency, or any federal officialrefuses to use the legend provided herein,the Contracting Officer, federalgovernment agency, or any federal officialmust notify HERE prior to seekingadditional or alternative rights in the Data.
I. US/Canada Territory
A. United States Data. The End-UserTerms for any Application containingData for the United States shall containthe following notices:
“HERE holds a non-exclusive licensefrom the United States PostalService® to publish and sell ZIP+4®information.”
“©United States Postal Service®20XX. Prices are not established,controlled or approved by the UnitedStates Postal Service®. The followingtrademarks and registrations areowned by the USPS: United StatesPostal Service, USPS, and ZIP+4.”
B. Canada Data. The following provi-sions apply to the Data for Canada,which may include or reflect data fromthird party licensors (“Third PartyData”), including Her Majesty the Queenin Right of Canada (“Her Majesty”),Canada Post Corporation (“CanadaPost”) and the Department of NaturalResources of Canada (“NRCan”):
1. Disclaimer and Limitation: Clientagrees that its use of the Third PartyData is subject to the following provi-sions:
a. Disclaimer: The Third Party Datais licensed on an “as is” basis. Thelicensors of such data, including HerMajesty, Canada Post and NRCan,make no guarantees, representa-tions or warranties respecting suchdata, either express or implied,arising by law or otherwise, includingbut not limited to, effectiveness,completeness, accuracy or fitnessfor a particular purpose.
b. Limitation on Liability: The ThirdParty Data licensors, including HerMajesty, Canada Post and NRCan,shall not be liable: (i) in respect ofany claim, demand or action, irre-spective of the nature of the causeof the claim, demand or actionalleging any loss, injury or damages,direct or indirect, which may resultfrom the use or possession of suchData; or (ii) in any way for loss ofrevenues or contracts, or any otherconsequential loss of any kindresulting from any defect in theData.
445
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingAppendices

4
4WDSee: Four-Wheel Drive......................................165
9
911 Assist...........................................................50
A
A/CSee: Climate Control...........................................117About This Manual...........................................7ABSSee: Brakes............................................................175ABS driving hintsSee: Hints on Driving With Anti-LockBrakes.................................................................175Accessories...................................................408AccessoriesSee: Replacement PartsRecommendation............................................10ACCSee: Using Adaptive Cruise Control.............193Adjusting the Headlamps.........................278Adjusting the Steering Wheel....................72Airbag Disposal...............................................49Air ConditioningSee: Climate Control...........................................117Air FilterSee: Changing the Engine Air Filter.............267AlarmSee: Anti-Theft Alarm........................................70Ambient Lighting............................................82Anti-Theft Alarm............................................70Appendices....................................................428Apps..................................................................392At a Glance........................................................18Audible Warnings and Indicators.............95Audio Control...................................................72Audio Input Jack...........................................353Audio System................................................343General Information.........................................343Audio Unit - Vehicles With: SYNC3.......................................................................347Audio Unit - Vehicles With: SYNC.........345
Audio Unit - Vehicles Without:SYNC.............................................................343Autolamps........................................................78Automatic Climate Control.......................118Automatic Crash Shutoff...........................241Automatic Crash ShutoffPrecautions......................................................241Re-Enabling Your Vehicle................................241What Is Automatic Crash Shutoff................241Automatic High Beam Control..................79Automatic Transmission.............................161Automatic Transmission FluidCheck.............................................................273Auto-Start-Stop...........................................148Autowipers........................................................75Auxiliary Power Points................................138Auxiliary Switches......................................409
B
BatterySee: Changing the 12V Battery......................275Battery ChargingSee: Charging the 12V Battery.......................274Blind Spot Information System.............206BLISSee: Blind Spot Information System.........206Bonnet LockSee: Opening and Closing the Hood..........264Booster Seats..................................................29Brake Fluid Check.........................................273Brakes................................................................175General Information...........................................175Breaking-In......................................................231Bulb Specification Chart...........................335
C
Cabin Air Filter................................................122Canceling the Set Speed...........................184Capacities and Specifications................329Cargo Lamps....................................................82Car WashSee: Cleaning the Exterior..............................285Catalytic Converter......................................158Center Console.............................................140Changing a Bulb...........................................279Changing a Fuse...........................................261
461
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingIndex

Engine Emission Control............................157Engine ImmobilizerSee: Passive Anti-Theft System.....................70Engine Oil Check..........................................266Engine Oil Dipstick......................................266Engine Specifications.................................325Entertainment..............................................380Environment......................................................13Essential Towing Checks..........................226Event Data.........................................................15Exterior Mirrors................................................86
F
Fastening the Seatbelts...............................35Flat TireSee: Changing a Road Wheel.........................313Floor Mats.......................................................234Fog Lamps - FrontSee: Front Fog Lamps........................................80Ford Protect....................................................414Four-Wheel Drive.........................................165Principle of Operation.......................................165Front Fog Lamps............................................80Front Parking Aid...........................................187Front Passenger Sensing System............43Fuel and Refueling.......................................150Fuel Consumption........................................155Fuel Filler Funnel Location.........................151Fuel Filter.........................................................274Fuel Quality....................................................150Fuse Box Locations.....................................249Fuses................................................................249Fuse Specification Chart..........................250
G
Garage Door Opener...................................134Garage Door OpenerSee: Universal Garage Door Opener............134Gauges...............................................................89GearboxSee: Transmission...............................................161General Information on RadioFrequencies...................................................52General Maintenance Information........416Getting Assistance Outside the U.S. andCanada.........................................................245
Getting the Services You Need...............242Glove Compartment...................................140
H
HandbrakeSee: Parking Brake..............................................176Hazard Flashers...........................................236Headlamp AdjustingSee: Adjusting the Headlamps.....................278Headlamp RemovalSee: Removing a Headlamp..........................279HeadrestSee: Head Restraints.........................................124Head Restraints.............................................124Heated Exterior Mirrors...............................122Heated Rear Window..................................122Heated Seats.................................................130HeatingSee: Climate Control...........................................117Hill Start Assist..............................................176Hints on Controlling the InteriorClimate..........................................................120Hints on Driving With Anti-LockBrakes.............................................................175Hood LockSee: Opening and Closing the Hood..........264Horn.....................................................................74How Does the Rear Occupant AlertSystem Work...............................................132
I
Ignition Switch...............................................142In California (U.S. Only).............................243Information Display Control.......................74Information Displays....................................96General Information...........................................96Information Messages...............................104Installing Child Restraints...........................22Instrument Cluster........................................89Instrument Lighting Dimmer......................78Instrument Panel............................................18Interior Lamps..................................................81Interior Mirror....................................................87Introduction.........................................................7
463
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingIndex
