Protected ComponentRatingItem
Not used.-52
Rear differential lock.15 A253
Not used.-54
Not used.-55
Four wheel drive motor no. 1 relay.-86
1 M-type fuse.2 Micro 2 fuse.3 Micro 3 fuse.
Power Distribution Box - Bottom
There are fuses on the bottom of the fusebox. To access the bottom of the fuse box:
Toward the front of the vehicle.A
1.Release the two latches on both sidesof the fuse box.
2.Lift the rear of the fuse box from thecradle.
3.Move the fuse box toward the rear ofthe engine compartment and rotate asshown.
4.Pivot the rear of the fuse box to accessthe bottom side.
5.Release the two latches to open thefuse cover.
254
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingFusesA12E2061711 355E206174

Protected ComponentRatingItem
Trailer left-hand turn and stop lamp.15 A156
Not used.-57
Not used.-58
Not used.-59
Fuel pump control module.30 A260
Not used.-61
Body control module 1 - lighting.50 A262
Trailer right-hand turn and stop lamp.15 A163
Trailer brakes.30 A164
255
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingFusesE190798

Protected ComponentRatingItem
Heated driver seat.20 A165
Four-wheel drive.25 A166
Body control module 2 - lighting.50 A267
Rear window defroster.30 A168
Anti-lock brake system valves.30 A169
Passenger power seat.30 A170
Trailer park lamps.25 A271
Not used.-72
Trailer module.30 A173
Driver power seat.30 A174
Not used.-75
Not used.-76
Not used.-77
Not used.-78
Blower motor.40 A279
Heated passenger seat.20 A180
Inverter.40 A181
Anti-lock brake system pump.60 A282
Windshield wiper motor.30 A183
Starter motor solenoid.30 A184
256
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingFuses

Protected ComponentRatingItem
Not used.-85
Trailer module.40 A287
1 M-type fuse.2 LPJ-type fuse.
Battery Mounted Fuse Link
Protected ComponentRatingItem
Alternator (with auxiliary fuse and relay box).300 A1Alternator (without auxiliary fuse and relay box).225 A
Electronic power assist steering.125 A2
257
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingFusesE200936

High Current Fuse Box
Protected ComponentRatingItem
Not used.-1
Body control module.125 A2
Voltage quality module (supplies rear lamp blind spot,rear view camera, head up display, 4x4 switch, imageprocessing module and adaptive cruise control radar).50 A3
Busbar through to power distribution box.-4
Auxiliary fuse and relay box.100 A5
Passenger Compartment Fuse Box
The fuse box is below and outermost ofthe steering column behind the accesscover.
258
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingFusesE206158

Protected ComponentRatingItem
Not used.-1
Not used (spare).7.5 A12
Driver door lock.20 A13
Not used (spare).5 A14
Branded audio amplifier.20 A15
Not used (spare).10 A26
Not used (spare).10 A27
Anti-theft alarm horn.10 A28
Telematics.10 A29
Not used (spare).5 A210
Not used (spare).5 A211
Electronic control panel.7.5 A212
259
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingFusesE145984

Protected ComponentRatingItem
Climate control.
Instrument cluster.
7.5 A213Steering column control module.Data link connector.
Extended power module (for restraints module andoccupant module).10 A214
Data link module.10 A215Data link connector.
Not used (spare).15 A116
Not used (spare).5 A217
Ignition switch.
5 A218Lock solenoid.Push button start.
Extended power module (for restraints module andoccupant module).7.5 A219
Auxiliary switches.7.5 A220
Humidity and in-car temperature sensor.5 A221
Not used (spare).5 A222
Inverter.10 A123Door lock switch.
Central locking system.20 A124
Driver door power window.30 A125
Not used (spare).30 A126
Not used (spare).30 A127
Branded audio amplifier.20 A128
Not used (spare).30 A129
Not used (spare).30 A130
260
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingFuses

Protected ComponentRatingItem
SYNC.15 A131
Radio transceiver module.10 A132Door entry remote.
Audio unit.20 A133
Run/start relay.30 A134
Not used (spare).5 A135
Auto-dimming interior mirror.15 A136Mirror adjustment control.
Not used (spare).20 A137
Power windows.30 A338
1 Micro 2 fuse.2 Micro 3 fuse.3 PTC fuse.
CHANGING A FUSE
Fuses
WARNING: Always replace a fusewith one that has the specifiedamperage rating. Using a fuse with ahigher amperage rating can cause severewire damage and could start a fire.If electrical components in the vehicle arenot working, a fuse may have blown. Blownfuses are identified by a broken wire withinthe fuse. Check the appropriate fusesbefore replacing any electricalcomponents.
261
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingFusesE217331

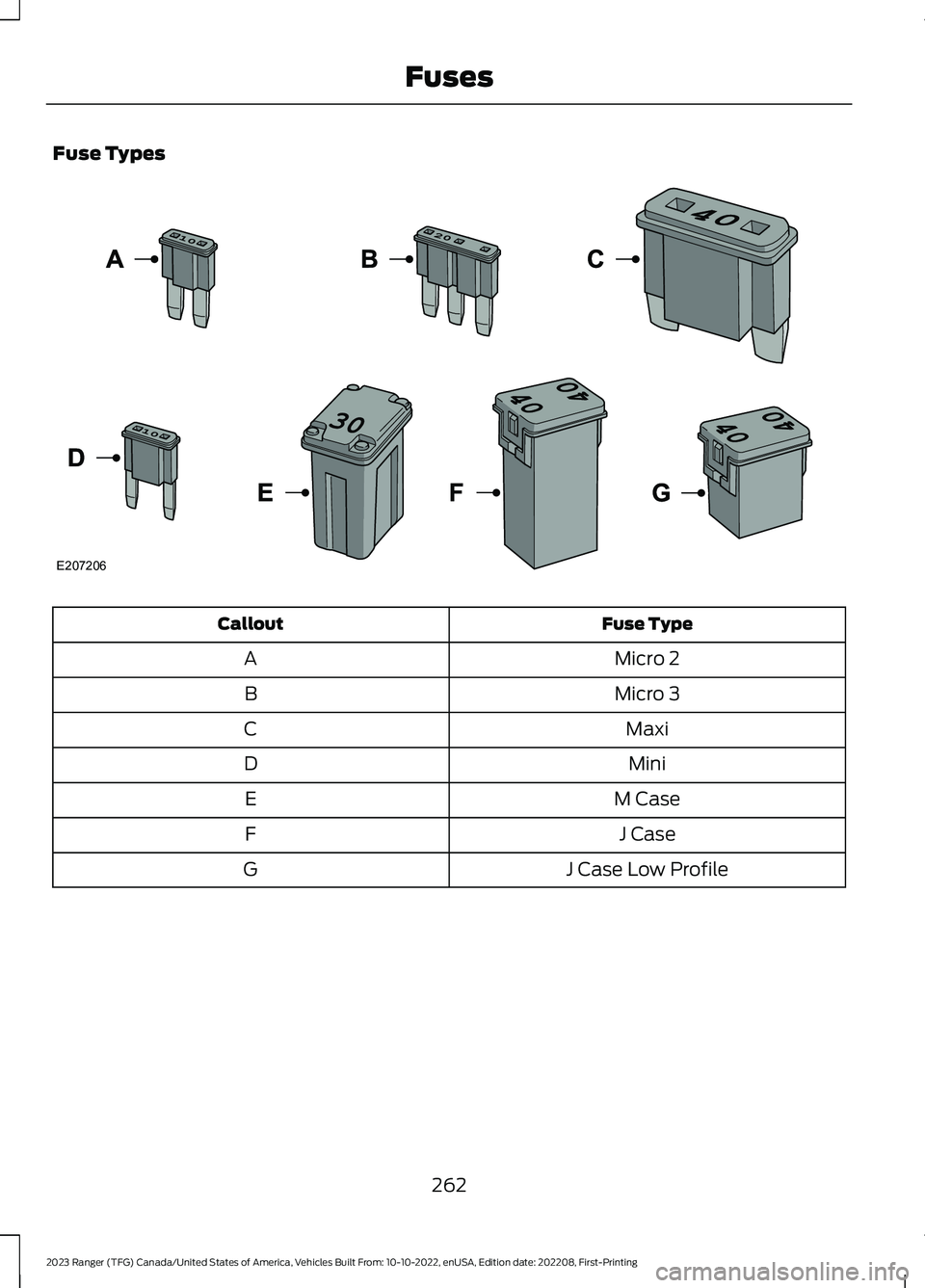

Fuse Types
