check engine FORD RANGER 2023 Owners Manual

Front Parking Aid.........................................187
Rear View Camera......................................188
Cruise Control
Principle of Operation................................192
Using Cruise Control...................................192
Using Adaptive Cruise Control...............193
Driving Aids
Driver Alert....................................................200
Lane Keeping System................................201
Blind Spot Information System............206
Cross Traffic Alert.......................................209
Steering...........................................................213
Pre-Collision Assist.....................................213
Load Carrying
Load Limit.......................................................218
Load Retaining Fixtures............................222
Using a Slide-In Camper..........................223
Towing
Towing a Trailer............................................224
Trailer Sway Control...................................225
Recommended Towing Weights...........225
Essential Towing Checks.........................226
Towing the Vehicle on Four Wheels.....229
Driving Hints
Breaking-In.....................................................231
Economical Driving.....................................231
Cold Weather Precautions......................232
Off-Road Driving.........................................232
Driving Through Water..............................233
Floor Mats......................................................234
Roadside Emergencies
Roadside Assistance.................................235
Hazard Flashers..........................................236
Jump Starting the Vehicle.......................236
Transporting the Vehicle..........................238
Towing Points...............................................239
Crash and BreakdownInformation
Automatic Crash Shutoff..........................241
Customer Assistance
Getting the Services You Need..............242
In California (U.S. Only)............................243
The Better Business Bureau (BBB) AutoLine Program (U.S. Only)....................244
Utilizing the Mediation/ArbitrationProgram (Canada Only)......................245
Getting Assistance Outside the U.S. andCanada.......................................................245
Ordering Additional Owner's Literature........................................................................247
Reporting Safety Defects (U.S. Only)........................................................................247
Reporting Safety Defects (Canada Only)........................................................................247
Fuses
Fuse Box Locations....................................249
Fuse Specification Chart.........................250
Changing a Fuse..........................................261
Maintenance
General Information..................................263
Opening and Closing the Hood.............264
Under Hood Overview..............................265
Engine Oil Dipstick.....................................266
Engine Oil Check.........................................266
Changing the Engine Air Filter................267
Oil Change Indicator Reset.....................268
Engine Coolant Check..............................269
Automatic Transmission Fluid Check.........................................................................273
Brake Fluid Check........................................273
4
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingTable of Contents

Power Steering Fluid Check....................274
Fuel Filter........................................................274
Charging the 12V Battery..........................274
Changing the 12V Battery.........................275
Washer Fluid Check....................................277
Checking the Wiper Blades.....................277
Changing the Wiper Blades.....................277
Adjusting the Headlamps........................278
Removing a Headlamp.............................279
Changing a Bulb..........................................279
Vehicle Care
General Information..................................284
Cleaning Products......................................284
Cleaning the Exterior.................................285
Waxing............................................................286
Cleaning the Engine..................................286
Cleaning the Windows and Wiper Blades........................................................................287
Cleaning the Interior..................................287
Cleaning the Instrument Panel andInstrument Cluster Lens......................288
Cleaning Leather Seats............................288
Repairing Minor Paint Damage.............289
Cleaning the Wheels.................................289
Vehicle Storage...........................................289
Wheels and Tires
General Information..................................292
Tire Care.........................................................293
Using Snow Chains...................................308
Tire Pressure Monitoring System.........309
Changing a Road Wheel...........................313
Technical Specifications..........................324
Capacities and Specifications
Engine Specifications................................325
Motorcraft Parts..........................................326
Vehicle Identification Number...............327
Vehicle Certification Label......................328
Transmission Code Designation...........328
Capacities and Specifications...............329
Bulb Specification Chart..........................335
Connected Vehicle
What Is a Connected Vehicle..................337
Connected Vehicle Requirements........337
Connected Vehicle Limitations..............337
Connecting the Vehicle to a MobileNetwork......................................................337
Connecting the Vehicle to a Wi-FiNetwork - Vehicles With: SYNC 3......337
Connected Vehicle – Troubleshooting -Vehicles With: Modem.........................338
Connected Vehicle – Troubleshooting -Vehicles With: SYNC 3..........................339
Vehicle Wi-Fi Hotspot
Creating a Vehicle Wi-Fi Hotspot -Vehicles Without: SYNC.......................341
Creating a Vehicle Wi-Fi Hotspot -Vehicles With: SYNC 3...........................341
Changing the Vehicle Wi-Fi HotspotName or Password................................342
Audio System
General Information..................................343
Audio Unit - Vehicles Without: SYNC........................................................................343
Audio Unit - Vehicles With: SYNC........345
Audio Unit - Vehicles With: SYNC 3......347
Connecting a Bluetooth® Device -Vehicles With: AM/FM/USB/Bluetooth, Vehicles Without: SYNC........................................................................348
Radio...............................................................349
Satellite Radio.............................................349
Digital Radio..................................................351
Audio Input Jack..........................................353
USB Port........................................................354
5
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingTable of Contents

Brake fluid - non petroleumbased
Brake system
Brake system
Cabin air filter
Check fuel cap
Child safety door lock or unlock
Child seat lower anchor
Child seat tether anchor
Cruise control
Do not open when hot
Electric Parking brake
Engine air filter
Engine coolant
Engine coolant temperature
Engine oil
Explosive gas
Fan warning
Fasten seatbelt
Flammable
Front fog lamps
Fuel pump reset
Fuse compartment
Hazard flashers
Headlamp high beams
Headlamps on
Heated rear window
Hill descent control
Horn control
Interior luggage compartmentrelease
Jack
8
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingIntroductionE139209 E67024 E270480 E139223 E139211 E141128 E332905 E139219 E139212 E103308 E67022 E139221 E139228 E71880 E231160 E139214 E75790 E67019 E270968 E163171 E270945 E139231

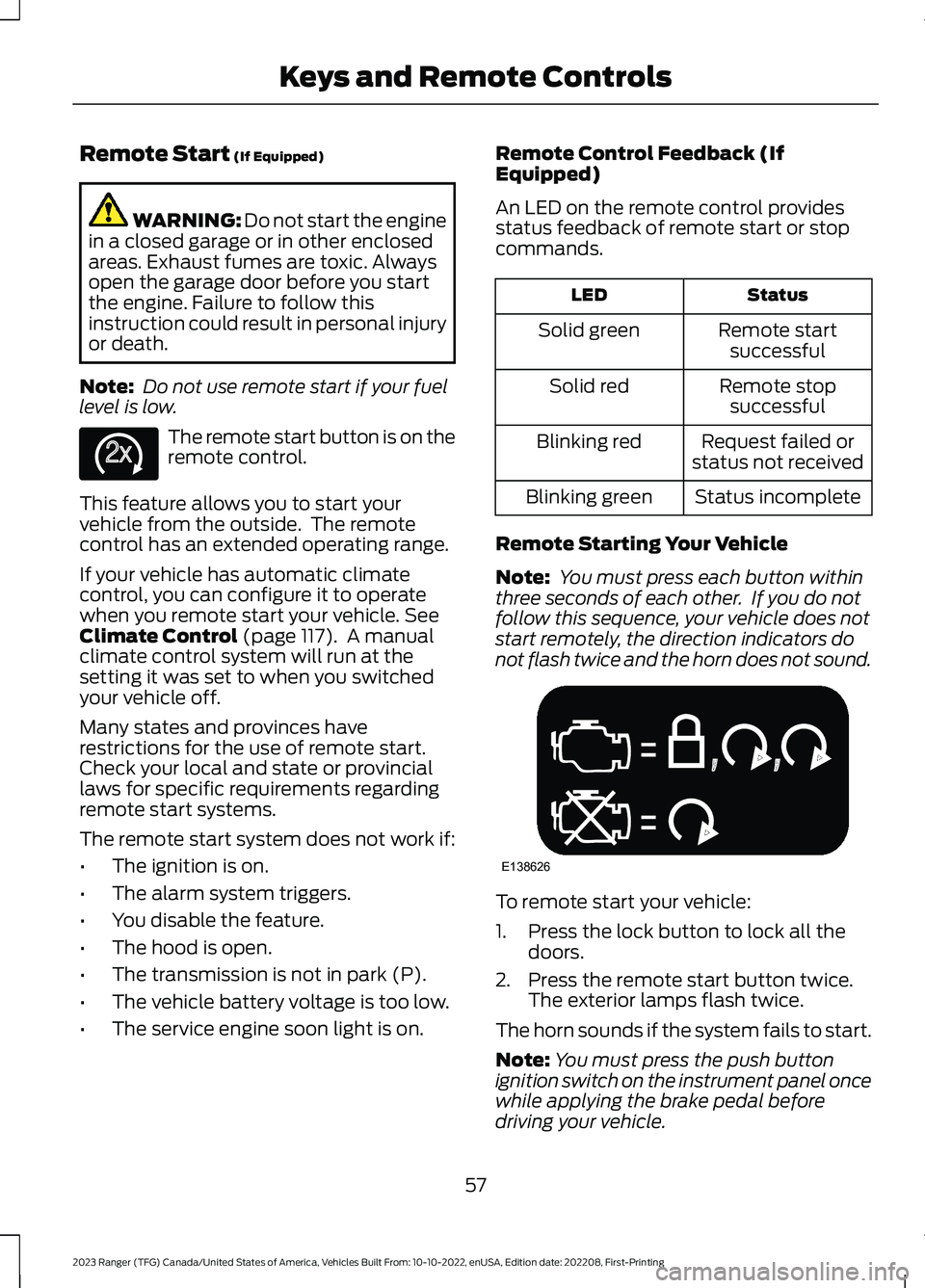

Remote Start (If Equipped)
WARNING: Do not start the enginein a closed garage or in other enclosedareas. Exhaust fumes are toxic. Alwaysopen the garage door before you startthe engine. Failure to follow thisinstruction could result in personal injuryor death.
Note: Do not use remote start if your fuellevel is low.
The remote start button is on theremote control.
This feature allows you to start yourvehicle from the outside. The remotecontrol has an extended operating range.
If your vehicle has automatic climatecontrol, you can configure it to operatewhen you remote start your vehicle. SeeClimate Control (page 117). A manualclimate control system will run at thesetting it was set to when you switchedyour vehicle off.
Many states and provinces haverestrictions for the use of remote start.Check your local and state or provinciallaws for specific requirements regardingremote start systems.
The remote start system does not work if:
•The ignition is on.
•The alarm system triggers.
•You disable the feature.
•The hood is open.
•The transmission is not in park (P).
•The vehicle battery voltage is too low.
•The service engine soon light is on.
Remote Control Feedback (IfEquipped)
An LED on the remote control providesstatus feedback of remote start or stopcommands.
StatusLED
Remote startsuccessfulSolid green
Remote stopsuccessfulSolid red
Request failed orstatus not receivedBlinking red
Status incompleteBlinking green
Remote Starting Your Vehicle
Note: You must press each button withinthree seconds of each other. If you do notfollow this sequence, your vehicle does notstart remotely, the direction indicators donot flash twice and the horn does not sound.
To remote start your vehicle:
1.Press the lock button to lock all thedoors.
2.Press the remote start button twice.The exterior lamps flash twice.
The horn sounds if the system fails to start.
Note:You must press the push buttonignition switch on the instrument panel oncewhile applying the brake pedal beforedriving your vehicle.
57
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingKeys and Remote ControlsE138625 E138626

WARNING LAMPS AND
INDICATORS
The following warning lamps andindicators alert you to a vehicle conditionthat may become serious. Some lampsilluminate when you start your vehicle tomake sure they work. If any lamps remainon after starting your vehicle, refer to therespective system warning lamp for furtherinformation.
Note:Some warning indicators appear inthe information display and operate thesame as a warning lamp but do notilluminate when you start your vehicle.
Adaptive Cruise Control Indicator
(If Equipped)
It illuminates when you switchthe system on.
It illuminates white when thesystem is in standby mode. It illuminatesgreen when you set the adaptive cruisespeed.
See Using Adaptive Cruise Control(page 193).
Anti-Lock Braking System
If it illuminates when you aredriving, this indicates amalfunction. Your vehiclecontinues to have normal braking withoutthe anti-lock brake system function. Haveyour vehicle checked as soon as possible.
Automatic Headlamp High BeamIndicator (If Equipped)
It illuminates when the systemturns the headlamp high beamon.
See Automatic High Beam Control(page 79).
Auto-Start-Stop Indicator
It illuminates when the enginehas automatically stopped. Itflashes to inform you when theengine needs to restart. The indicator isshown with a strikethrough if the systemis not available.
See Auto-Start-Stop (page 148).
Battery
It illuminates when you switchthe ignition on.
If it illuminates when the engineis running this indicates a malfunction.Have your vehicle checked as soon aspossible.
Blind Spot Monitor (If Equipped)
It illuminates when you switchthe system off.
See Blind Spot InformationSystem (page 206).
Brake System Warning Lamp
WARNING: Driving your vehiclewith the warning lamp on is dangerous.A significant decrease in brakingperformance may occur. It may take youlonger to stop your vehicle. Have yourvehicle checked as soon as possible.Driving extended distances with theparking brake engaged can cause brakefailure and the risk of personal injury.
Note:Indicators vary depending on region.
This lamp is a dual function lamp andilluminates when:
92
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingInstrument ClusterE144524 E67020 E146105 E121377 E67021 E151262

•You apply the parking brake with theignition on.
•Your vehicle has a brake fault or lowbrake fluid level, regardless of parkingbrake position.
If the lamp illuminates when youare moving, you may have theparking brake applied. Make surethat the parking brake is off.Have your vehicle checked assoon as possible if the lampcontinues to illuminate.
Cruise Control Indicator (If Equipped)
It illuminates when you switchthe system on.
See Using Cruise Control(page 192).
Direction Indicator
Flashes when the left or rightdirection indicator or the hazardflasher turns on. An increase inthe rate of flashing warns of a failedindicator bulb.
Door Ajar Warning Lamp
It illuminates when you switchthe ignition on and remains on ifany door is open.
Electronic Locking Differential (If
Equipped)
Illuminates when using theelectronic locking differential.
Engine Coolant TemperatureWarning Lamp
If it illuminates when your vehicleis moving, this indicates that theengine is overheating. Stop yourvehicle as soon as it is safe to do so andswitch the engine off. Have your vehiclechecked as soon as possible.
See Engine Coolant Check (page 269).
Fasten Seatbelt Warning Lamp
It illuminates and a chimesounds until you fasten theseatbelts.
Fasten Rear Seatbelt WarningLamp (If Equipped)
It illuminates and a chimesounds until you fasten the rearseatbelts.
Four-Wheel Drive Indicators (If
Equipped)
Illuminates when four-wheeldrive low is engaged.
Illuminates when four-wheeldrive high is engaged.
Front Airbag
If it fails to illuminate when youstart your vehicle, continues toflash or remains on, it indicatesa malfunction. Have the system checked.
Front Fog Lamp Indicator (If Equipped)
It illuminates when you switchthe front fog lamps on.
93
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingInstrument ClusterE270480 E67024 E71340 E67018 E163170 E103308 E71880 E206718 E181780 E181779 E67017

Headlamp High Beam Indicator
It illuminates when you switchthe headlamp high beam on. Itflashes when you use theheadlamp flasher.
Hood Ajar Warning Lamp
Illuminates when the ignition ison and the hood is notcompletely closed.
Low Beam Malfunction (If Equipped)
Lights when there is amalfunction with the low beamheadlamp.
Low Fuel Level Warning Lamp
If it illuminates when you aredriving, refuel as soon aspossible.
Low Tire Pressure Warning Lamp
It illuminates when your tirepressure is low. If the lampremains on with the enginerunning or when driving, check the tirepressure as soon as possible.
It also momentarily illuminates when youswitch the ignition on to confirm the lampis functional. If it does not illuminate whenyou switch the ignition on, or begins toflash at any time, have the system checkedby your authorized dealer.
Low Washer Fluid Level WarningLamp
It illuminates when the washerfluid is low.
Oil Pressure Warning Lamp
It illuminates when you switchthe ignition on.
If it illuminates when the engineis running this indicates a malfunction.Stop your vehicle as soon as it is safe todo so and switch the engine off. Check theengine oil level. If the oil level is sufficient,this indicates a system malfunction. Haveyour vehicle checked as soon as possible.
See Engine Oil Check (page 266).
Parking Lamps
It illuminates when you switchthe parking lamps on.
Powertrain Malfunction/ReducedPower/Electronic Throttle Control
Illuminates when the system hasdetected a powertrain or afour-wheel drive fault. Contactan authorized dealer as soon as possible.
Service Engine Soon
If it illuminates when the engineis running this indicates amalfunction. The On BoardDiagnostics system has detected amalfunction of the vehicle emission controlsystem.
If it flashes, engine misfire may beoccurring. Increased exhaust gastemperatures could damage the catalyticconverter or other vehicle components.Drive in a moderate fashion, avoid heavyacceleration and deceleration and haveyour vehicle immediately serviced.
It illuminates when you switch the ignitionon prior to engine start to check the bulband to indicate whether your vehicle isready for Inspection and Maintenance(I/M) testing.
94
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingInstrument ClusterE67019 E296055 E181350 E139232 E132353 E67022 E71341 E67028

Normally, it illuminates until the engine iscranked and automatically turns off if nomalfunctions are present. However, if after15 seconds it flashes eight times, thisindicates that your vehicle is not ready forInspection and Maintenance (I/M) testing.See Emission Law (page 157).
Stability Control and TractionControl Indicator
Flashes during operation.
If it does not illuminate when youswitch the ignition on, or remainson when the engine is running, thisindicates a malfunction. Have your vehiclechecked as soon as possible.
See Using Stability Control (page 180).
Stability Control and TractionControl Off Warning Lamp
It illuminates when you switchthe system off.
Tow Haul Indicator (If Equipped)
It illuminates when you switchthe system on.
Trail Control (If Equipped)
It illuminates when you switchthe system on.
AUDIBLE WARNINGS AND
INDICATORS
Key in Ignition Warning Chime (If
Equipped)
Sounds when you open the driver's doorand you have left the key in the ignition.
Keyless Warning Alert (If Equipped)
Sounds the horn twice when you exit yourvehicle with the intelligent access key, afterthe last door is closed and your keylessvehicle is in RUN, indicating your vehicle isstill on.
Headlamps On Warning Chime
Sounds when you remove the key from theignition and open the driver's door and youhave left the headlamps or parking lampson.
Parking Brake On Warning Chime
Sounds when you have left the parkingbrake on and drive your vehicle. If thewarning chime remains on after you havereleased the parking brake, have thesystem checked by an authorized dealerimmediately.
95
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingInstrument ClusterE138639 E130458 E271981 E272858

Auto-Start-Stop
ActionMessage
The system is not functioning. A manual restart is required.Auto StartStop ManualRestart Required
The engine needs to be restarted, press the clutch pedal tostart.Auto StartStop PressClutch to Start Engine
The engine needs to be restarted, press any pedal to start.Auto StartStop Press aPedal to Start Engine
Select neutral for the system to restart the engine.Auto StartStop SelectNeutral To Start Engine
Displays when the vehicle is in StartStop when the door isopened. Switch the ignition off before leaving the vehicle ifthe system has shut down the engine.
Vehicle is ON
The system detects a fault that requires service. Stop yourvehicle in a safe place. Have your vehicle checked as soon aspossible.
Auto StartStop Malfunc-tion Service Required
The engine needs to be restarted, press the brake pedal harderto start.Auto StartStop PressBrake Harder to Activate
Conditions are not met for the Auto StartStop system tofunction properly.Auto StartStop NotAvailable
Select park for the system to restart the engine.Auto StartStop Shift toP, then Restart Engine
106
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingInformation Displays

Drivetrain
ActionMessage
Slow the vehicle to the displayed speed to allow the elec-tronic locking differential to engage.To Engage LockingDifferential Slow to XXmph/km/h
The electronic locking differential requests the acceleratorto be released in order to engage.To Engage LockingDifferential ReleaseAccelerator Pedal
An electronic locking differential (ELD) system fault ispresent. Have your vehicle checked as soon as possible.Check Locking Differen-tial
The transfer case is in the neutral position. This messageindicates that your vehicle is safe to be towed with all fourwheels on the ground.
Neutral Tow EnabledLeave Transmission inNeutral
The transfer case is NOT in the neutral position. This messageindicates that your vehicle is NOT safe to be towed with allfour wheels on the ground.
Neutral Tow Disabled
Engine
ActionMessage
The engine has reduced power to help reduce highengine temperature.Power Reduced to Lower EngineTemp
Displays when the accelerator pedal is entrapped orboth accelerator and brake pedals are applied at thesame time. Have your vehicle checked as soon aspossible.
Brake Applied Power Reduced
Fuel
ActionMessage
An early reminder of a low fuel condition.Fuel Level Low
The fuel fill inlet may not be properly closed.Check Fuel Fill Inlet
109
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingInformation Displays
