fuse box FORD RANGER 2023 Owners Manual

Front Parking Aid.........................................187
Rear View Camera......................................188
Cruise Control
Principle of Operation................................192
Using Cruise Control...................................192
Using Adaptive Cruise Control...............193
Driving Aids
Driver Alert....................................................200
Lane Keeping System................................201
Blind Spot Information System............206
Cross Traffic Alert.......................................209
Steering...........................................................213
Pre-Collision Assist.....................................213
Load Carrying
Load Limit.......................................................218
Load Retaining Fixtures............................222
Using a Slide-In Camper..........................223
Towing
Towing a Trailer............................................224
Trailer Sway Control...................................225
Recommended Towing Weights...........225
Essential Towing Checks.........................226
Towing the Vehicle on Four Wheels.....229
Driving Hints
Breaking-In.....................................................231
Economical Driving.....................................231
Cold Weather Precautions......................232
Off-Road Driving.........................................232
Driving Through Water..............................233
Floor Mats......................................................234
Roadside Emergencies
Roadside Assistance.................................235
Hazard Flashers..........................................236
Jump Starting the Vehicle.......................236
Transporting the Vehicle..........................238
Towing Points...............................................239
Crash and BreakdownInformation
Automatic Crash Shutoff..........................241
Customer Assistance
Getting the Services You Need..............242
In California (U.S. Only)............................243
The Better Business Bureau (BBB) AutoLine Program (U.S. Only)....................244
Utilizing the Mediation/ArbitrationProgram (Canada Only)......................245
Getting Assistance Outside the U.S. andCanada.......................................................245
Ordering Additional Owner's Literature........................................................................247
Reporting Safety Defects (U.S. Only)........................................................................247
Reporting Safety Defects (Canada Only)........................................................................247
Fuses
Fuse Box Locations....................................249
Fuse Specification Chart.........................250
Changing a Fuse..........................................261
Maintenance
General Information..................................263
Opening and Closing the Hood.............264
Under Hood Overview..............................265
Engine Oil Dipstick.....................................266
Engine Oil Check.........................................266
Changing the Engine Air Filter................267
Oil Change Indicator Reset.....................268
Engine Coolant Check..............................269
Automatic Transmission Fluid Check.........................................................................273
Brake Fluid Check........................................273
4
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingTable of Contents

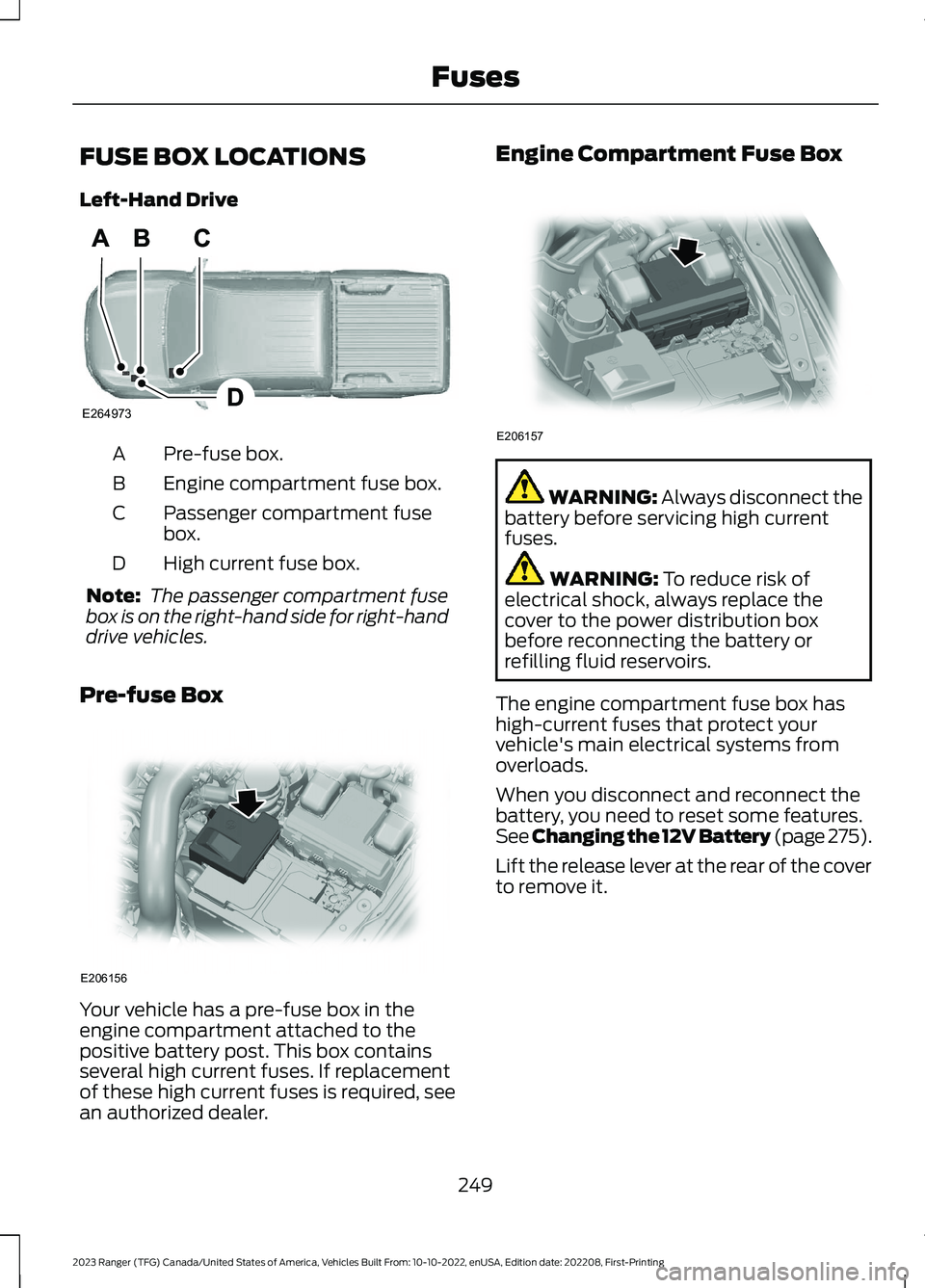

FUSE BOX LOCATIONS
Left-Hand Drive
Pre-fuse box.A
Engine compartment fuse box.B
Passenger compartment fusebox.C
High current fuse box.D
Note: The passenger compartment fusebox is on the right-hand side for right-handdrive vehicles.
Pre-fuse Box
Your vehicle has a pre-fuse box in theengine compartment attached to thepositive battery post. This box containsseveral high current fuses. If replacementof these high current fuses is required, seean authorized dealer.
Engine Compartment Fuse Box
WARNING: Always disconnect thebattery before servicing high currentfuses.
WARNING: To reduce risk ofelectrical shock, always replace thecover to the power distribution boxbefore reconnecting the battery orrefilling fluid reservoirs.
The engine compartment fuse box hashigh-current fuses that protect yourvehicle's main electrical systems fromoverloads.
When you disconnect and reconnect thebattery, you need to reset some features.See Changing the 12V Battery (page 275).
Lift the release lever at the rear of the coverto remove it.
249
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingFusesE264973 E206156 E206157

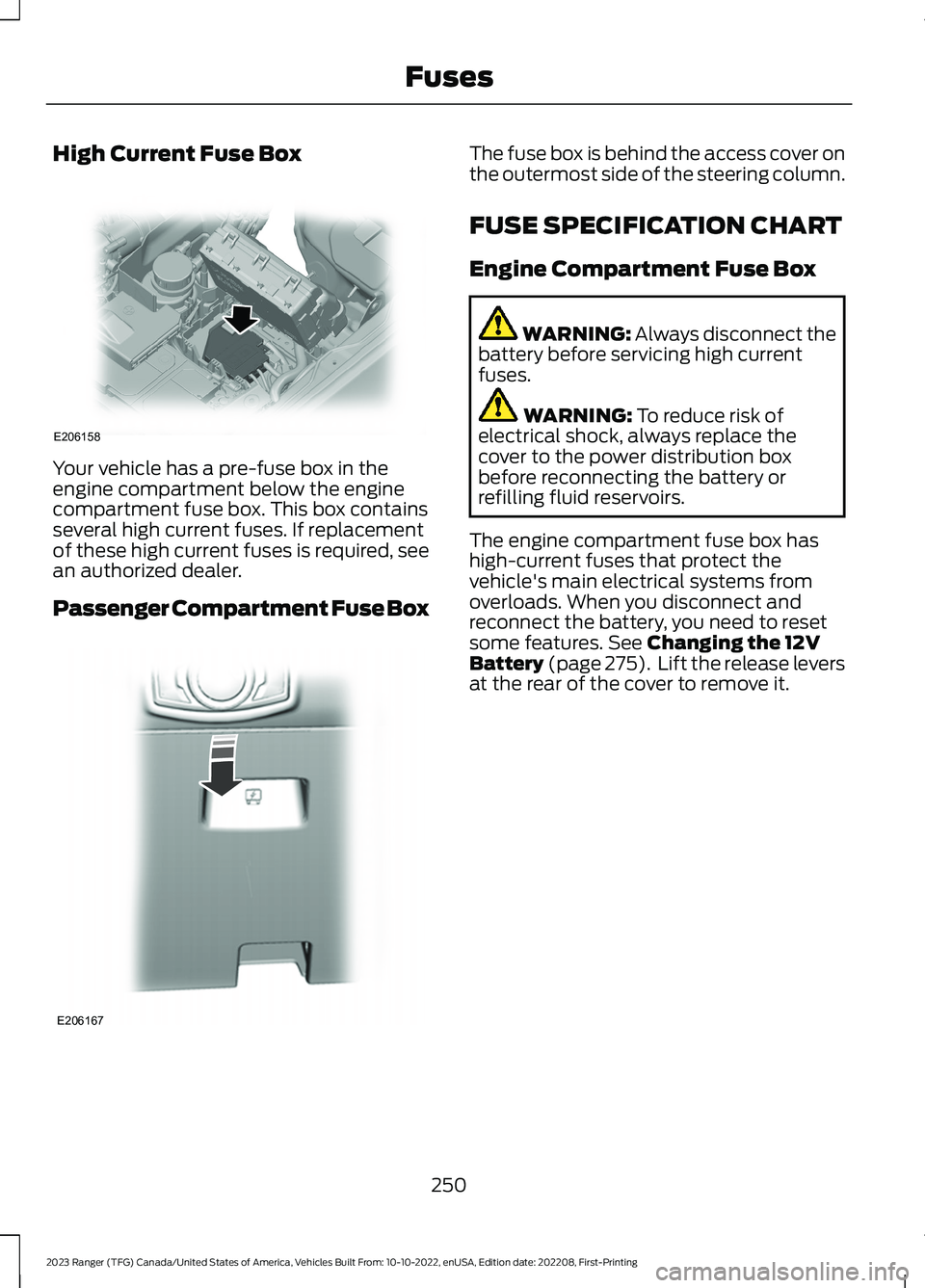

High Current Fuse Box
Your vehicle has a pre-fuse box in theengine compartment below the enginecompartment fuse box. This box containsseveral high current fuses. If replacementof these high current fuses is required, seean authorized dealer.
Passenger Compartment Fuse Box
The fuse box is behind the access cover onthe outermost side of the steering column.
FUSE SPECIFICATION CHART
Engine Compartment Fuse Box
WARNING: Always disconnect thebattery before servicing high currentfuses.
WARNING: To reduce risk ofelectrical shock, always replace thecover to the power distribution boxbefore reconnecting the battery orrefilling fluid reservoirs.
The engine compartment fuse box hashigh-current fuses that protect thevehicle's main electrical systems fromoverloads. When you disconnect andreconnect the battery, you need to resetsome features. See Changing the 12VBattery (page 275). Lift the release leversat the rear of the cover to remove it.
250
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingFusesE206158 E206167

Protected ComponentRatingItem
Not used.-52
Rear differential lock.15 A253
Not used.-54
Not used.-55
Four wheel drive motor no. 1 relay.-86
1 M-type fuse.2 Micro 2 fuse.3 Micro 3 fuse.
Power Distribution Box - Bottom
There are fuses on the bottom of the fusebox. To access the bottom of the fuse box:
Toward the front of the vehicle.A
1.Release the two latches on both sidesof the fuse box.
2.Lift the rear of the fuse box from thecradle.
3.Move the fuse box toward the rear ofthe engine compartment and rotate asshown.
4.Pivot the rear of the fuse box to accessthe bottom side.
5.Release the two latches to open thefuse cover.
254
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingFusesA12E2061711 355E206174

Protected ComponentRatingItem
Not used.-85
Trailer module.40 A287
1 M-type fuse.2 LPJ-type fuse.
Battery Mounted Fuse Link
Protected ComponentRatingItem
Alternator (with auxiliary fuse and relay box).300 A1Alternator (without auxiliary fuse and relay box).225 A
Electronic power assist steering.125 A2
257
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingFusesE200936

High Current Fuse Box
Protected ComponentRatingItem
Not used.-1
Body control module.125 A2
Voltage quality module (supplies rear lamp blind spot,rear view camera, head up display, 4x4 switch, imageprocessing module and adaptive cruise control radar).50 A3
Busbar through to power distribution box.-4
Auxiliary fuse and relay box.100 A5
Passenger Compartment Fuse Box
The fuse box is below and outermost ofthe steering column behind the accesscover.
258
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingFusesE206158

UNDER HOOD OVERVIEW
Engine coolant reservoir. See Engine Coolant Check (page 269).A
Engine oil dipstick. See Engine Oil Dipstick (page 266).B
Engine oil filler cap. See Engine Oil Check (page 266).C
Brake fluid reservoir. See Brake Fluid Check (page 273).D
Engine compartment fuse box. See Changing a Fuse (page 261).E
Battery. See Changing the 12V Battery (page 275).F
Windshield washer fluid reservoir. See Washer Fluid Check (page 277).G
Air filter assembly. See Changing the Engine Air Filter (page 267).H
265
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingMaintenanceE276868

AUXILIARY SWITCHES (IF
EQUIPPED)
For maximum vehicle performance, keepthe following information in mind whenadding accessories or equipment to yourvehicle:
•When adding accessories, equipment,passengers and luggage to yourvehicle, do not exceed the total weightcapacity of the vehicle or of the frontor rear axle (GVWR or GAWR asindicated on the Safety ComplianceCertification label). Ask an authorizeddealer for specific weight information.
•The Federal CommunicationsCommission (FCC) and CanadianRadio TelecommunicationsCommission (CRTC) regulate the useof mobile communications systemsequipped with radio transmitters, forexample, two-way radios, telephonesand theft alarms. Any such equipmentinstalled in your vehicle should complywith Federal CommunicationsCommission (FCC) and CanadianRadio TelecommunicationsCommission (CRTC) regulations, andshould be installed by an authorizeddealer.
•An authorized dealer needs to installmobile communications systems.Improper installation may harm theoperation of your vehicle, particularlyif the manufacturer did not design themobile communication systemspecifically for automotive use.
•If you or an authorized Ford dealer addany non-Ford electrical or electronicaccessories or components to yourvehicle, you may adversely affectbattery performance and durability. Inaddition, you may also adversely affectthe performance of other electricalsystems in the vehicle.
The auxiliary switch option packageprovides six switches mounted in theinstrument panel. These switches operatewhen the vehicle is running . Werecommend, however, that the engineremain running to maintain battery chargewhen using the auxiliary switches forextended periods of time or higher currentdraws.
When switched on, the auxiliary switchesprovide electrical battery power for avariety of personal or commercial uses.Switch 1 is provided with 25 amps fuse.Switch 2 is provided with 15 amps fuse.Switch 3 is provided with 10 amps fuse.Switches 4, 5 and 6 provided with a 5amps fuse.
The relay box for the auxiliary switches isin the left front of the engine compartment.See your authorized dealer for service.
The relays are coded as shown:
409
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingAccessoriesE220728

Each switch includes a blunt-cut, wirelocated next to the auxiliary fuse and relaybox in the left front of the engine bay.
Protected ComponentFuse RatingFuse or RelayNumber
Fuse 11A and 11B.25A11
Fuse 12A and 12B.20A12
Relay AUX1.25A23
Not used.-4A
Not used.-4B
Relay AUX2.15A25
Not used.-6
Not used.-7
Not used.-8
Not used.-9
Not used.-10
Relay AUX3.10A311A
410
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingAccessories0302011009080706051115121413171618E332362

Fuse Amp RatingWire ColorCircuit NumberSwitch
5A2Blue with orangetraceCAC13AAUX 5
5A2Yellow with orangetraceCAC14AAUX 6
1 M-type fuse.2 Mini fuse
A - Press tabs to release mounting bracket.
B - Auxiliary fuse and relay box.
C - The power lead location.
413
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingAccessoriesBCAE332775
