FORD TAURUS 1996 Owners Manual

111 [IP30700(ALL)11/94]
To dim the instrument panel lights, rotate the
thumbwheel down. To turn on the interior
lights, turn the thumbwheel all the way up. The
interior lights also come on when any side door
or the liftgate is opened.
% [IP30925(ALL)03/95]
Dome Lamps
[IP30950(ALL)03/95]
The front dome lamp is located overhead
between the driver and front passenger seats.
However, if your vehicle is equipped with a
power moon roof, the dome lamp is located
behind the moon roof.
[IP30975(ALL)11/94]
In the wagon, the rear dome lamp is located
overhead near the rear seating positions.
[IP31025(ALL)02/95]

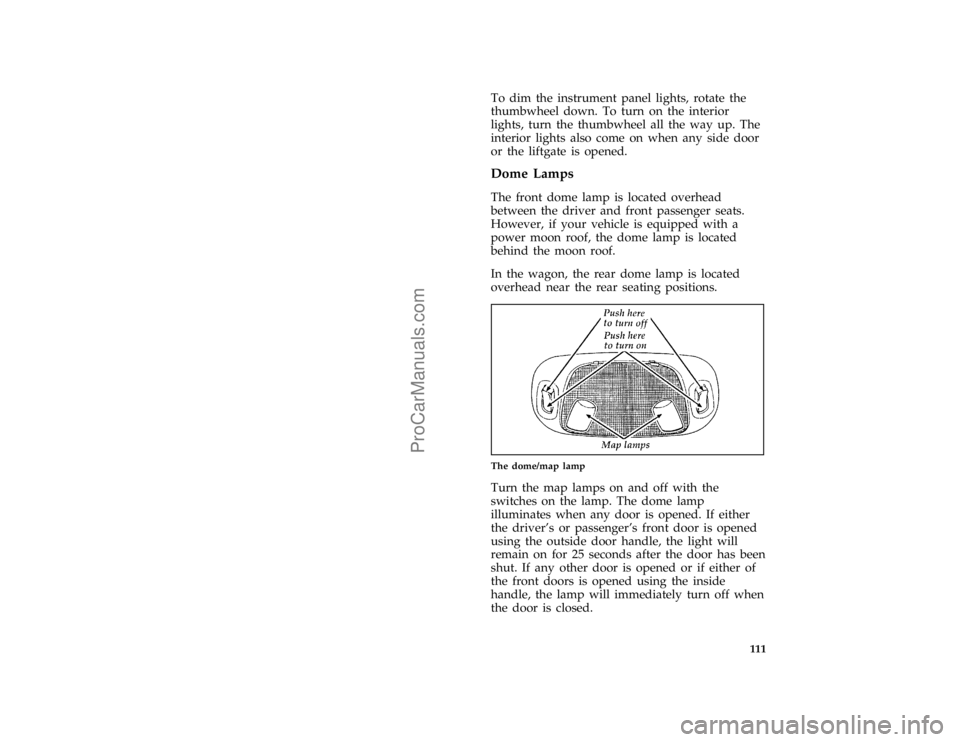

one third page art:0001410-A
The dome/map lamp
[IP31050(ALL)03/95]
Turn the map lamps on and off with the
switches on the lamp. The dome lamp
illuminates when any door is opened. If either
the driver's or passenger's front door is opened
using the outside door handle, the light will
remain on for 25 seconds after the door has been
shut. If any other door is opened or if either of
the front doors is opened using the inside
handle, the lamp will immediately turn off when
the door is closed.
File:06fcipt.ex
Update:Tue Jan 23 08:13:16 1996
ProCarManuals.com

112 [IP31075(ALL)11/94]

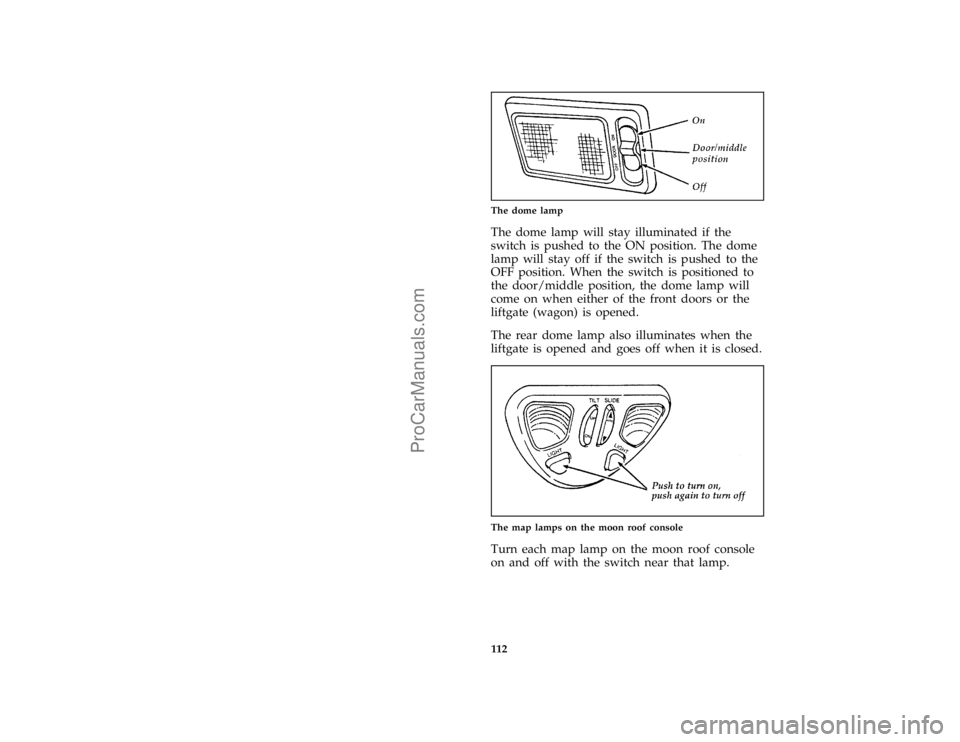

quarter page art:0001377-AThe dome lamp
[IP31100(ALL)03/95]
The dome lamp will stay illuminated if the
switch is pushed to the ON position. The dome
lamp will stay off if the switch is pushed to the
OFF position. When the switch is positioned to
the door/middle position, the dome lamp will
come on when either of the front doors or the
liftgate (wagon) is opened.
[IP31125(ALL)03/95]
The rear dome lamp also illuminates when the
liftgate is opened and goes off when it is closed.
[IP31150(ALL)11/94]
one third page art:0001378-A
The map lamps on the moon roof console
[IP31175(ALL)11/94]
Turn each map lamp on the moon roof console
on and off with the switch near that lamp.
File:06fcipt.ex
Update:Tue Jan 23 08:13:16 1996
ProCarManuals.com

113 %
*
[IP31200(ALL)04/95]
Cleaning the Interior Lamps
*
[IP31300(ALL)04/95]
Your interior dome lamps and map lamps are
plastic and should be cleaned with a mild
detergent diluted in water. Rinse them with clear
water.
%*
[IP31400(ALL)01/95]
Battery Saver
[IP31500(ALL)11/94]
When the ignition is turned off, the vehicle will
turn off battery voltage to the interior lights
after 40 minutes.
*
[IP31600(ALL)09/95]
This will prevent draining of the battery if those
lights have been left on inadvertently or if a
door is not completely closed. Battery voltage to
these lamps will be restored when the outside
front door handles are lifted, the keyless entry
keypad is used, the remote entry transmitter is
used, any door is opened, the trunk is opened,
or the ignition key is turned to the ON position.
%
*
[IP32600(ALL)03/95]
Clock
[IP33200(ALL)03/95]

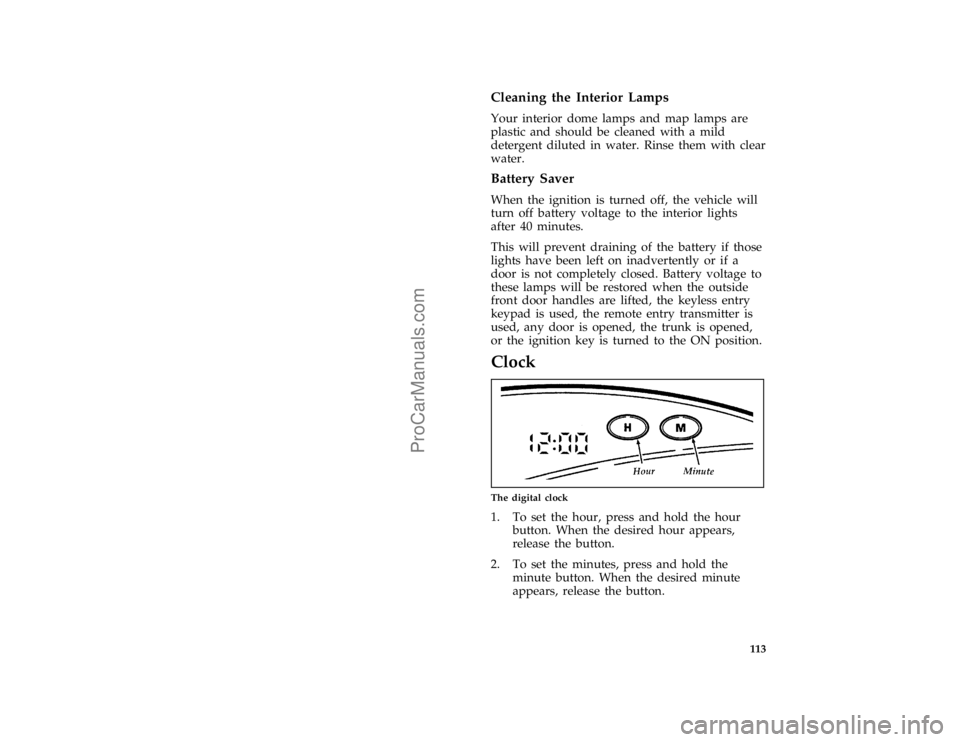

quarter page art:0000247-G
The digital clock
*
[IP33750(ALL)05/95]
1. To set the hour, press and hold the hour
button. When the desired hour appears,
release the button.
*
[IP33850(ALL)05/95]
2. To set the minutes, press and hold the
minute button. When the desired minute
appears, release the button.
File:06fcipt.ex
Update:Tue Jan 23 08:13:16 1996
ProCarManuals.com

115
Steering Column Controls
*
[SC00400(ALL)01/95]
The controls on the steering column and wheel
are designed to give you easy access to the
controls while you are driving.
%
*
[SC00500(ALL)01/95]
The Turn Signal Lever
*
[SC00600(ALL)01/95]
You can use the turn signal lever on the left side
of the steering column to:
*
[SC00700(ALL)07/94]
q
operate the turn signals
*
[SC00800(ALL)01/95]
q
turn the high beams on/off
*
[SC00900(ALL)05/95]
q
flash the lamps
*
[SC01000(ALL)01/95]
q
turn the windshield wipers and washer
on/off
%*
[SC01100(ALL)01/95]
Turn Signals
*
[SC02201(ALL)03/95]
Move the lever up to signal a right turn. Move
it down to signal a left turn. The corresponding
indicator light in the instrument cluster will
flash.
*
[SC02401(ALL)03/95]
If the turn signal stays on after you turn, move
the lever back to the center (off) position.
*
[SC02451(ALL)08/95]
For lane changes, move the lever far enough to
signal but not to latch. The lever will return to
the off position when you release it.
%*
[SC02800(ALL)08/95]
High Beams
*
[SC03100(ALL)05/95]
To turn on the high beams, turn the headlamp
control knob to the headlamp ON position and
push the turn signal lever away from you until
it latches. When the high beams are ON, the
high beam indicator light on the instrument
panel comes on.
File:07fcsct.ex
Update:Mon Jan 22 15:52:32 1996
ProCarManuals.com

116
*
[SC03200(ALL)05/95]
To turn off the high beams, pull the lever
toward you until it latches. The high beam
indicator light turns off.
%*
[SC03300(ALL)08/95]
Flashing the Lights
*
[SC03400(ALL)06/95]
To flash the headlamps, pull the lever toward
you for a moment and then release it. The
headlamps will flash whether the headlamp
knob is in the on or off position.
[SC03450(ALL)04/95]
one third page art:0001411-B
The turn signal lever
%*
[SC03500(ALL)08/95]
Windshield Wipers and Washer
*
[SC03600(ALL)03/95]
To turn on the windshield wipers, the ignition
key must be turned to the ON or ACC position.
[SC03900(ALL)05/94]
Turn the knob on the end of the turn signal
lever away from you to activate the wipers. The
first seven detents are interval wipe positions,
the eighth detent is the LO position, and the
ninth detent is the HI position.
*
[SC04000(ALL)01/95]
To turn the wipers off, turn the knob toward
you to the OFF position.
File:07fcsct.ex
Update:Mon Jan 22 15:52:32 1996
ProCarManuals.com

117 %
*
[SC04100(ALL)08/95]
Variable Interval Wipers
*
[SC04300(ALL)01/95]
In addition to two speed wipers, your vehicle
has wipers that you can set to operate at
varying intervals. For example, you can set the
interval so they wipe less often when it drizzles
or more often in heavier rain.
[SC04500(ALL)04/95]
one third page art:0001412-B
The variable interval wiper on the turn signal lever
*
[SC04925(ALL)03/94]
To set the interval wipers, turn the knob at the
end of the turn signal lever toward or away
from you until the wipers are going at the
desired interval.
*
[SC04950(ALL)08/95]
Windshield Washer
[SC05000(ALL)05/94]
To clean the windshield, push in the end of the
wiper switch knob. For a constant spray, keep
the knob pushed in. After you release the knob,
the wipers operate for two to three cycles before
turning off (if the wipers were off) or returning
to HI, LO, or the interval setting selected.
[SC05050(ALL)04/95]
For information about the rear washer on the
wagon, seeWindshield washer fluid and wipersin
the Index.
File:07fcsct.ex
Update:Mon Jan 22 15:52:32 1996
ProCarManuals.com

118
*
[SC05100(ALL)03/95]
If the washer does not work, check the washer
fluid level and fill it if it is low. See theServicing
Your Tauruschapter. If there is enough fluid,
consult your nearest Ford or Lincoln-Mercury
dealer.
*
[SC05300(ALL)08/95]
Do not try to clean the windshield when the
washer fluid container is empty or activate the
washers at any time for more than 15 seconds
continuously. This could damage the washer
pump system.
*
[SC05350(ALL)08/95]
RWARNING
In freezing weather, the washer solution
may freeze on the windshield and obscure
your vision. Always warm up the
windshield with the defroster before you
use the washer fluid. If you cannot see
through the windshield clearly, it can
increase the risk of being involved in a
collision.
*
[SC05500(ALL)08/95]
For information about refilling the washer fluid
or replacing your windshield wiper blades, see
Windshield washer fluid and Wipersin the Index.
%
*
[SC05520(ALL)03/95]
Hazard Flasher
[SC05540(ALL)05/89]

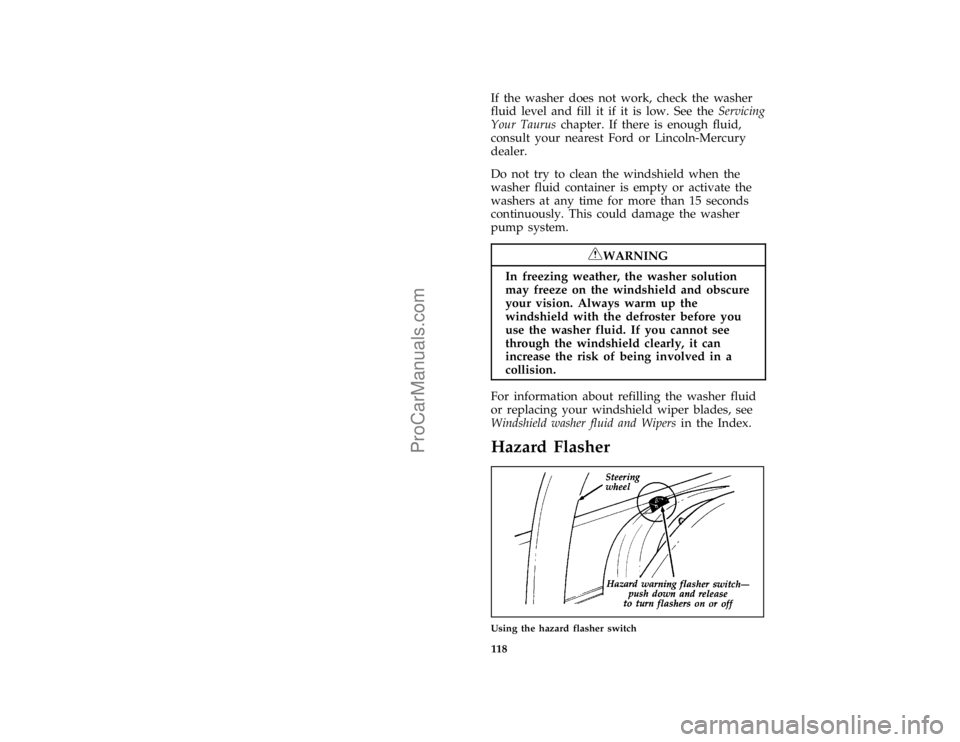

one third page art:0000238-A
Using the hazard flasher switch
File:07fcsct.ex
Update:Mon Jan 22 15:52:32 1996
ProCarManuals.com

119
*
[SC05560(ALL)03/95]
The hazard flasher serves as a warning to other
drivers to be careful when approaching or
passing your vehicle.
*
[SC05590(ALL)03/95]
The flashers work whether your vehicle is
running or not. The flashers work for up to two
hours when the battery is fully charged and in
good condition without draining the battery
excessively. If the flashers run for longer than
two hours or if the battery is not fully charged,
the battery can be drained.
%
*
[SC05600(ALL)01/95]
Horn
*
[SC05800(ALL)05/95]
To sound the horn, push the center pad area of
the steering wheel.
[SC06000(ALL)02/95]

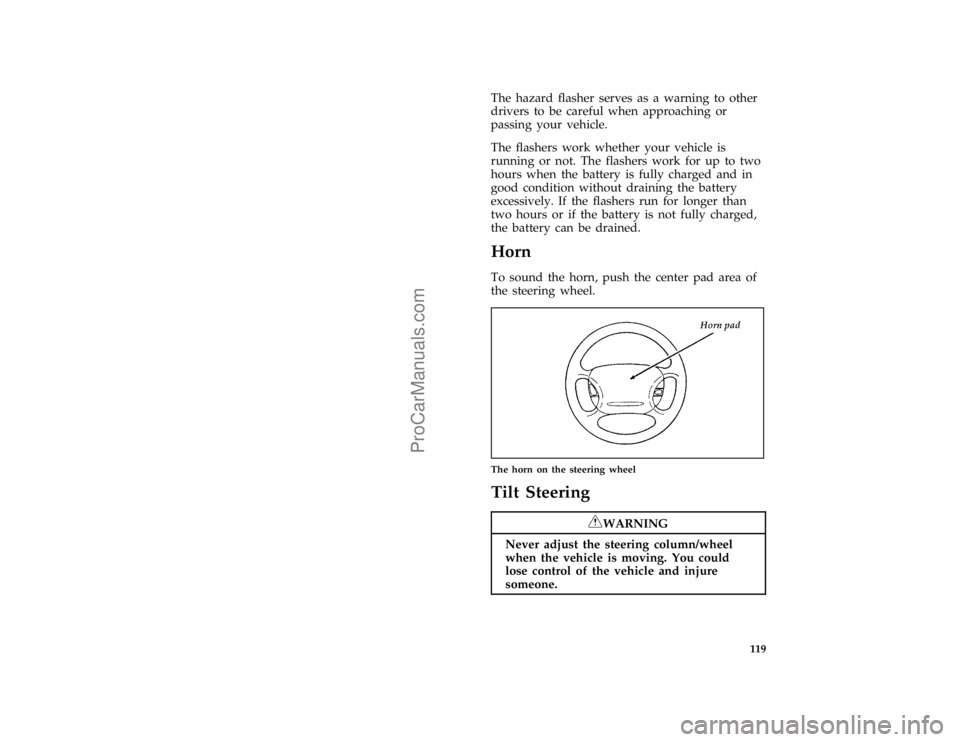

one third page art:0001403-B
The horn on the steering wheel
%*
[SC06210(ALL)05/95]
Tilt Steering
*
[SC06400(ALL)04/95]
RWARNING
Never adjust the steering column/wheel
when the vehicle is moving. You could
lose control of the vehicle and injure
someone.
File:07fcsct.ex
Update:Mon Jan 22 15:52:32 1996
ProCarManuals.com

120 [SC06650(ALL)11/94]

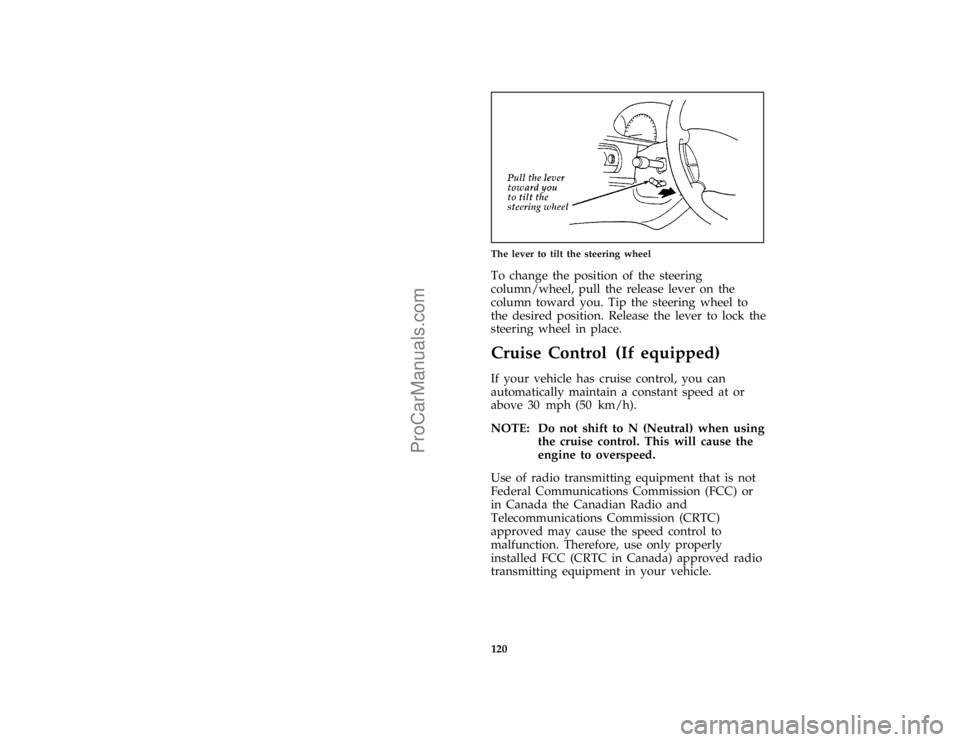

one third page art:0000658-BThe lever to tilt the steering wheel
*
[SC06800(ALL)04/95]
To change the position of the steering
column/wheel, pull the release lever on the
column toward you. Tip the steering wheel to
the desired position. Release the lever to lock the
steering wheel in place.
%
*
[SC07400(ALL)03/91]
Cruise Control (If equipped)
*
[SC07500(ALL)06/95]
If your vehicle has cruise control, you can
automatically maintain a constant speed at or
above 30 mph (50 km/h).
*
[SC07550(ALL)09/95]
NOTE: Do not shift to N (Neutral) when using
the cruise control. This will cause the
engine to overspeed.
*
[SC07600(ALL)06/95]
Use of radio transmitting equipment that is not
Federal Communications Commission (FCC) or
in Canada the Canadian Radio and
Telecommunications Commission (CRTC)
approved may cause the speed control to
malfunction. Therefore, use only properly
installed FCC (CRTC in Canada) approved radio
transmitting equipment in your vehicle.
File:07fcsct.ex
Update:Mon Jan 22 15:52:32 1996
ProCarManuals.com

121 [SC08000(ALL)11/94]

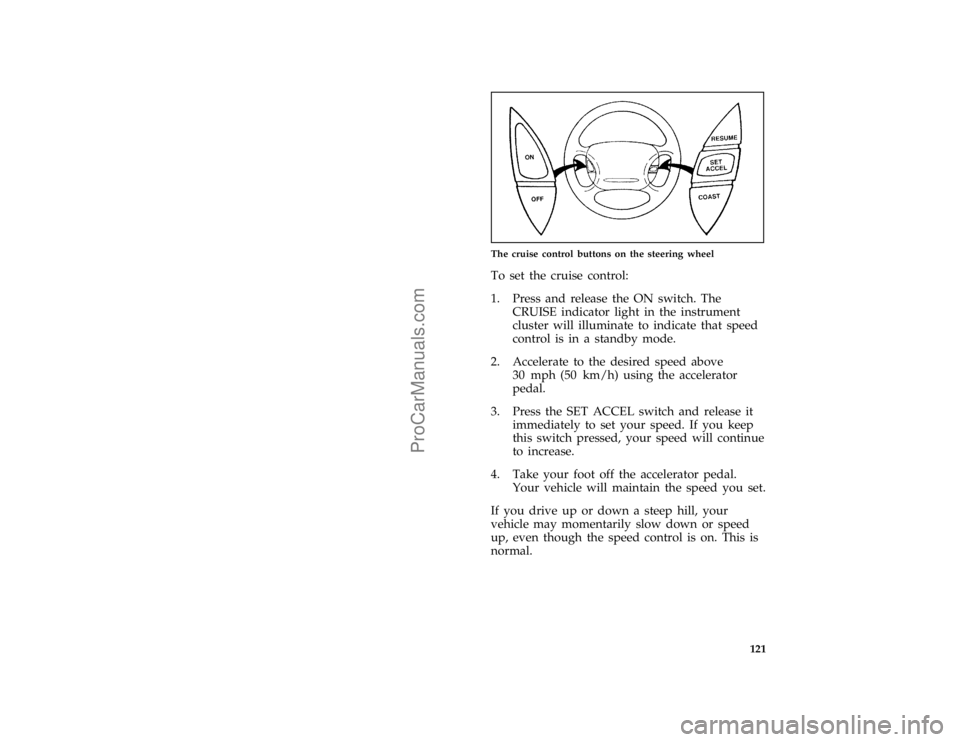

one third page art:0001399-B
The cruise control buttons on the steering wheel
*
[SC08200(ALL)08/95]
To set the cruise control:
[SC08400(ALL)11/94]
1. Press and release the ON switch. The
CRUISE indicator light in the instrument
cluster will illuminate to indicate that speed
control is in a standby mode.
*
[SC08500(ALL)08/95]
2. Accelerate to the desired speed above
30 mph (50 km/h) using the accelerator
pedal.
*
[SC08800(ALL)08/95]
3. Press the SET ACCEL switch and release it
immediately to set your speed. If you keep
this switch pressed, your speed will continue
to increase.
*
[SC08900(ALL)08/95]
4. Take your foot off the accelerator pedal.
Your vehicle will maintain the speed you set.
*
[SC09000(ALL)08/95]
If you drive up or down a steep hill, your
vehicle may momentarily slow down or speed
up, even though the speed control is on. This is
normal.
File:07fcsct.ex
Update:Mon Jan 22 15:52:32 1996
