FORD TAURUS 1996 Owners Manual

101 [IP07125(ALL)12/95]
You can override the fan speed at any time. If
you use the button to control the fan speed, the
EATC will continue to control the temperature
but you control the fan speed. To return to auto
fan control, press the AUTO button. If you are
operating in one of the override functions (S,
MAX A/C, etc.), automatic fan control will
continue unless you press the fan speed button.
To return to automatic fan control, press the
AUTO button. The EATC will return to
automatic operation. If you want to return to
any override function, press the button for that
function. The fan speed will continue to be
automatically controlled.
*
[IP07225(ALL)01/95]
Manual override buttons
[IP07325(ALL)04/95]
Your EATC has six buttons which allow you to
make special selections. The buttons are located
along the bottom edge of the EATC and allow
you to determine where the air will be
discharged. Pressing any override button
changes the air discharge location only. It does
not affect the ability of the system to control
temperature or the fan speed. Return to fully
automatic operation by pushing the AUTO
button.
*
[IP07425(ALL)01/95]
MAX A/C button
[IP07525(ALL)04/95]
The MAX A/C feature allows for faster cooling
because air is drawn from inside the vehicle.
Using inside air causes the fan to sound louder
which is normal for this selection. The display
window will change to indicate MAX A/C and
the airflow will be from the instrument panel
registers. To exit, push AUTO or any of the
other five manual override buttons.
File:06fcipt.ex
Update:Tue Jan 23 08:13:16 1996
ProCarManuals.com

102 %
*
[IP07625(ALL)01/95]
VENT button
[IP07725(ALL)03/95]
Press this button to select outside air through
the instrument panel registers. The display
window will show the set temperature and
VENT to the lower right of the temperature.
Your EATC will heat the air if the temperature
you have selected is warmer than the outside air
coming into the vehicle. However, the air will
NOT be cooled regardless of the temperature
setting. Airflow will be from the instrument
panel registers.
[IP07825(ALL)04/95]
S(Panel and floor) button
[IP07925(ALL)02/95]
Push this button to get air from the floor and
instrument panel registers at the same time. The
display will show the set temperature andS.
Depending on the selected temperature, the air
will be automatically heated or cooled.
[IP08025(ALL)04/95]
R(Floor)
[IP08125(ALL)03/95]
Airflow will be to the floor when theR(floor)
button is pressed. The display window will
show the set temperature andR(floor) to the
right of the temperature. Fan speed will be
automatic unless manually controlled. If you
override the fan speed and wish to return to
automatic fan control, press AUTO. Then, again
selectR(floor) for airflow to the floor.
[IP08225(ALL)04/95]
P(Floor and defrost)
[IP08325(ALL)02/95]
Press this button to get air to the floor and
windshield defrosters at the same time. The
display will show the set temperature andP.If
the outside temperature is about50ÊF (10ÊC) and
above, the air will be dehumidified to remove
moisture. This will help to prevent fogging in
humid weather.
File:06fcipt.ex
Update:Tue Jan 23 08:13:16 1996
ProCarManuals.com

103 % [IP08425(ALL)07/95]
VF-DEF (Front defrost)
[IP08525(ALL)02/95]
Press theVF-DEF (front defrost) button to
obtain maximum airflow to the windshield.
Adjust the temperature setting as required for
defrosting. The Display window will show the
temperature setting withVto the right of the
temperature. When the outside temperature is
about50ÊF (10ÊC) andabove, the air will be
dehumidified to remove moisture. This will help
prevent fogging in humid weather.
[IP08625(ALL)04/95]
OUTSIDE TEMP button
[IP08725(ALL)05/95]
When this button is pressed, the temperature of
the air outside of the vehicle will show in the
display window. If the EATC is off, the display
will go blank after 4 seconds. If the EATC is on,
the outside temperature will be shown until the
OUTSIDE Temp button is pressed a second time
or another override button is pressed.
*
[IP08825(ALL)01/95]
NOTE: The outside temperature reading is
most accurate when the vehicle is
moving. Higher readings may be
obtained when the vehicle is not
moving. The readings that you get may
not agree with temperatures given on
the radio due to differences in vehicle
and station locations.
*
[IP08850(ALL)04/95]
Service
*
[IP08875(ALL)04/95]
If your EATC is not operating as described here,
take it to your dealer to have it checked. System
diagnostics are built in which will allow your
dealer to readily identify problems that might
occur.
File:06fcipt.ex
Update:Tue Jan 23 08:13:16 1996
ProCarManuals.com

104 [IP08925(ALL)04/95]Operating tips
*
[IP09025(ALL)03/95]
The following tips will help you to get the most
satisfaction from your climate control system.
[IP09125(ALL)04/95]
q
In humid weather, selectVF-DEF (front
defrost) before driving. This will help to
prevent windshield fogging. After a few
minutes of operation, switch to any desired
selection.
*
[IP09325(ALL)03/95]
q
Do not put objects under the front seats that
interfere with the flow of air to the back seat
area.
[IP09425(ALL)04/95]
q
Remove any snow, ice, or leaves from the air
intake area of your climate control system
which could block the air intake. The intake
area is located at the bottom of the
windshield, under the hood at the passenger
side rear corner.
[IP09500(ALL)03/95]
q
If the air conditioner performs well in MAX
A/C but not in A/C, this may indicate that
the MicronAirHfilter (if equipped) needs to
be replaced.
[IP10000(ALL)03/95]
MicronAirHAir Filter (If equipped)
*
[IP10100(ALL)02/95]
Your vehicle may have an air filter that removes
pollen and road dust from outside air before it
is directed to the interior of the vehicle. For
maintenance of this filter, seeServicing Your
Taurus.
% [IP21650(ALL)04/95]
Rear Window Defroster and Heated Side
View Mirrors
*
[IP21700(ALL)02/95]
The defroster for the rear window clears frost,
fog, or thin ice from both the inside and outside
of the rear window and activates the heated side
view mirrors.
[IP21900(ALL)04/95]
The button for the rear defroster and heated side
view mirrors is on the instrument panel.
File:06fcipt.ex
Update:Tue Jan 23 08:13:16 1996
ProCarManuals.com

105 [IP22200(ALL)04/95]
one inch art:0000651-E
The button that controls the rear window defroster and
heated side view mirrors
[IP22300(ALL)04/95]
Clear away any snow that is on the rear
window and side view mirrors before using the
defroster. With the engine running, push the
defrost button. After 10 minutes, the defroster
will turn off. If the window and mirrors are still
not clear, push the defroster button again. The
defroster will turn off when the ignition key is
turned to the OFF position.
%*
[IP23000(ALL)09/95]
NOTE: Never use sharp instruments or
window cleaners with abrasives to
clean the inside of your rear window.
If you do, you may damage the heating
elements that are bonded to the inside
of the rear window and cause damage
to the rear window defroster.
% [IP23200(ALL)12/95]
Liftgate Window Wiper and Washer
(If equipped)
[IP23401(ALL)04/95]
quarter page art:0000696-E
The liftgate window wiper and washer switches
[IP23500(ALL)04/95]
To turn on the liftgate window wiper, press the
bswitch. To turn the liftgate window wiper
off, press the switch again.
File:06fcipt.ex
Update:Tue Jan 23 08:13:16 1996
ProCarManuals.com

106 [IP23550(ALL)04/95]To turn on the liftgate window washer, press the
dswitch. When thedswitch is pressed, it also
turns on the liftgate wiper.
%
*
[IP23600(ALL)01/95]
The Interior and Exterior Lights
%*
[IP23700(ALL)01/95]
Turning On the Exterior Lights
[IP23800(ALL)12/95]
To turn on your headlamps, parking lamps, side
markers, license plate lamps and tail lamps, use
the knob that is to the left of the steering wheel.
[IP24200( T)10/95]
one third page art:0000695-C
The knob for the headlamps, parking lamps, license plate
lamps and tail lamps
[IP24500(ALL)12/95]
To turn on the parking lamps, side markers,
license plate lamps and tail lamps, turn the knob
to ªPº or the first position.
[IP24600(ALL)12/95]
To turn on the headlamps, parking lamps, side
markers, license plate lamps and tail lamps, turn
the knob to the second position.
File:06fcipt.ex
Update:Tue Jan 23 08:13:16 1996
ProCarManuals.com

107 [IP25200(ALL)03/95]
one third page art:0001411-B
Turning on the high beams
% [IP25250(ALL)02/89]
To change your headlamps from low to high
beam, push the turn signal lever away from you.
To change them back to low beam, pull the
lever toward you.
*
[IP25300(ALL)03/93]
For more information about how the high beam
headlamps work, seeSteering column controlsin
the Index.
%*
[IP25605(ALL)01/95]
Daytime Running Light System
[IP25610(ALL)03/95]
(Canadian and fleet vehicles only)
*
[IP25615(ALL)03/95]
The Daytime Running Light (DRL) system is
designed to turn the high beam headlamps on,
with a reduced light output and without
illuminating the high beam indicator lamp in the
instrument panel. The DRL system operates
when all of the following conditions are met:
*
[IP25620(ALL)03/95]
q
The vehicle is ªrunning.º
*
[IP25625(ALL)01/95]
q
The vehicle has a fully released parking
brake.
*
[IP25630(ALL)03/95]
q
The headlamp system is in the OFF position.
*
[IP25635(ALL)09/95]
NOTE: If you have a vehicle with an
automatic lighting system, the DRL
system is active until the automatic
system turns on the headlamps.
File:06fcipt.ex
Update:Tue Jan 23 08:13:16 1996
ProCarManuals.com

108
*
[IP25636(ALL)09/95]
NOTE: The high beam indicator will not turn
on in the flash-to-pass mode during
nighttime driving.
[IP25637(ALL)01/95]
You may notice that the lights flicker when the
vehicle is turned on or off. This is a normal
condition.
*
[IP25638(ALL)05/95]
RWARNING
The Daytime Running Light (DRL) system
will not illuminate the tail lamps and
parking lamps. Turn on your headlamps
at dusk. Failure to do so may result in a
collision.
%*
[IP25640(ALL)08/95]
Cleaning the Exterior Lamps
*
[IP25650(ALL)08/95]
Do not use dry paper towel, chemical solvents
or abrasive cleaners to clean the lamps, as these
may cause scratches or crack the lamps.
%*
[IP26600(ALL)02/95]
Setting the Autolamp Delay System
(If equipped)
*
[IP26700(ALL)02/95]
The autolamp sets the headlamps to turn on and
off automatically. You can use the autolamp to:
*
[IP26800(ALL)01/95]
q
turn on the lamps automatically at night
*
[IP26900(ALL)01/95]
q
turn off the lamps automatically during
daylight
[IP27000(ALL)11/94]
q
keep the lamps on for up to three minutes
after you turn the ignition to the OFF
position.
File:06fcipt.ex
Update:Tue Jan 23 08:13:16 1996
ProCarManuals.com

109 [IP27100(ALL)02/95]
one third page art:0000693-C

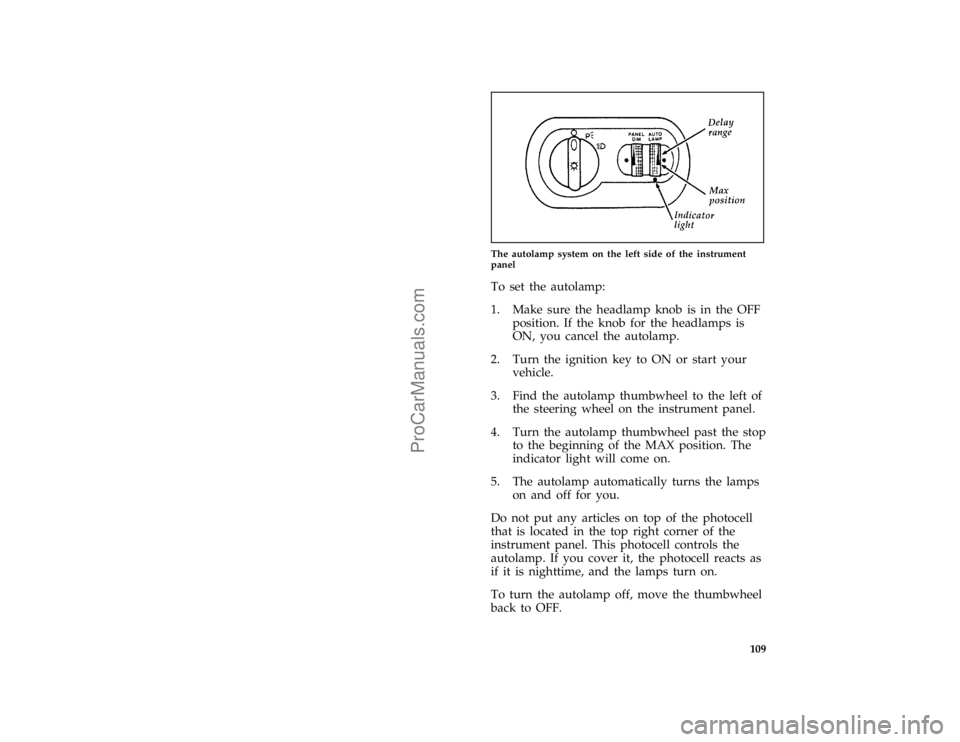

The autolamp system on the left side of the instrument
panel
*
[IP27400(ALL)01/95]
To set the autolamp:
*
[IP27450(ALL)05/95]
1. Make sure the headlamp knob is in the OFF
position. If the knob for the headlamps is
ON, you cancel the autolamp.
*
[IP27550(ALL)01/95]
2. Turn the ignition key to ON or start your
vehicle.
*
[IP27650(ALL)01/95]
3. Find the autolamp thumbwheel to the left of
the steering wheel on the instrument panel.
[IP27750(ALL)02/95]
4. Turn the autolamp thumbwheel past the stop
to the beginning of the MAX position. The
indicator light will come on.
*
[IP27850(ALL)01/95]
5. The autolamp automatically turns the lamps
on and off for you.
[IP27950(ALL)10/95]
Do not put any articles on top of the photocell
that is located in the top right corner of the
instrument panel. This photocell controls the
autolamp. If you cover it, the photocell reacts as
if it is nighttime, and the lamps turn on.
*
[IP28050(ALL)01/95]
To turn the autolamp off, move the thumbwheel
back to OFF.
File:06fcipt.ex
Update:Tue Jan 23 08:13:16 1996
ProCarManuals.com

110
*
[IP28500(ALL)01/95]
You can set the autolamp so the headlamps stay
on for up to three minutes after you turn your
vehicle off.
*
[IP28600(ALL)01/95]
To keep the lamps on after you leave your
vehicle:
*
[IP28650(ALL)01/95]
q
Turn the thumbwheel as far into the MAX
range as you want.
*
[IP28750(ALL)01/95]
q
The further you move the thumbwheel into
the DELAY area (toward the MAX position),
the longer the lamps will stay on after you
leave your vehicle. Similarly, if you move the
thumbwheel only slightly into the DELAY
area, your lamps will stay on only for a
moment after you turn your vehicle off.
%*
[IP29800(ALL)01/95]
Lighting Up the Interior and Instrument
Panel
*
[IP30000(ALL)05/95]
With the light knob in the parking lamps or the
headlamps position, you can brighten or dim the
lights in the instrument panel. To do this, use
the thumbwheel to the left of the steering wheel.
This wheel also turns on the interior lights with
the light knob on or off.
% [IP30300(ALL)02/95]
one third page art:0000692-C
The thumbwheel that controls the light on the instrument
panel
File:06fcipt.ex
Update:Tue Jan 23 08:13:16 1996
ProCarManuals.com
