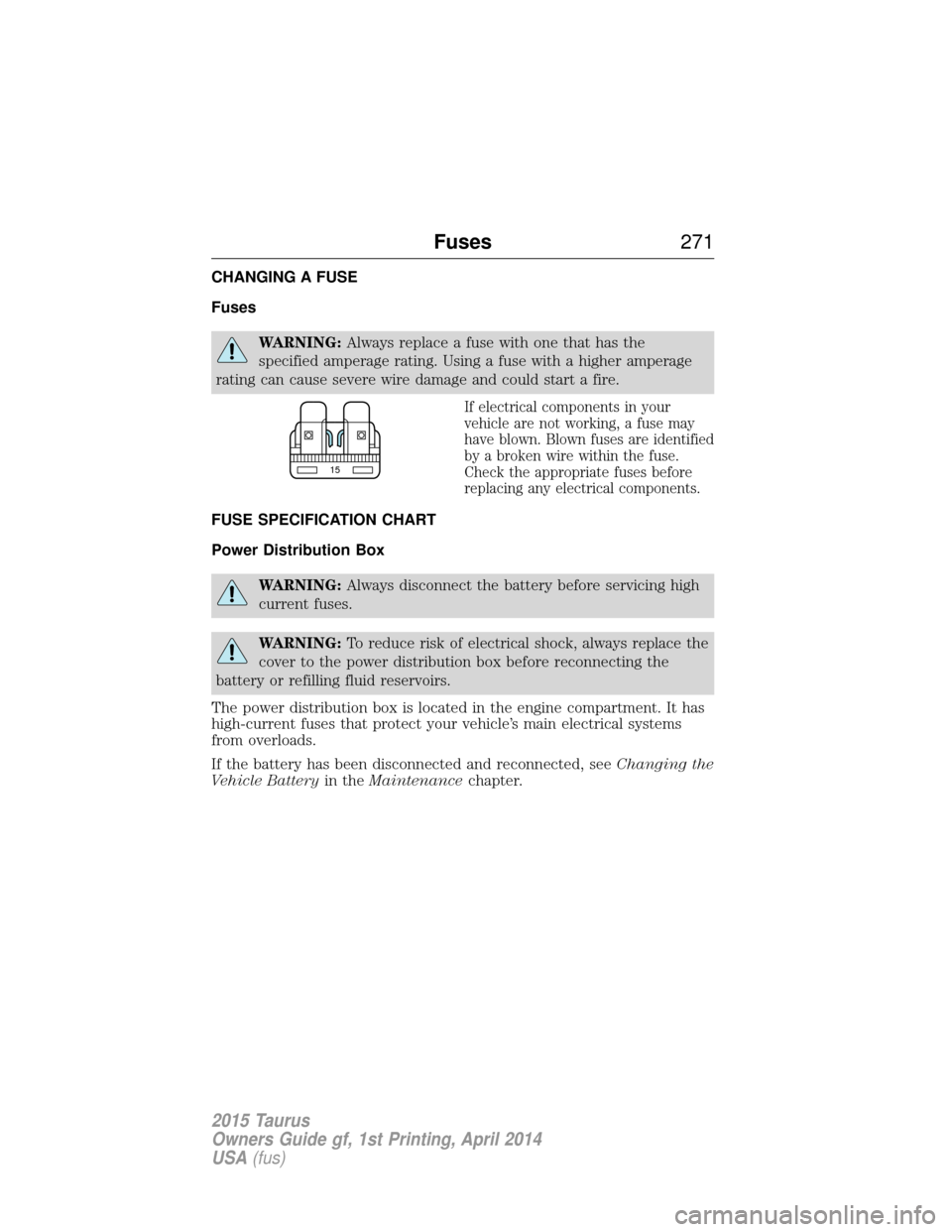

CHANGING A FUSE
Fuses
WARNING:Always replace a fuse with one that has the
specified amperage rating. Using a fuse with a higher amperage
rating can cause severe wire damage and could start a fire.
If electrical components in your
vehicle are not working, a fuse may
have blown. Blown fuses are identified
by a broken wire within the fuse.
Check the appropriate fuses before
replacing any electrical components.
FUSE SPECIFICATION CHART
Power Distribution Box
WARNING: Always disconnect the battery before servicing high
current fuses.
WARNING: To reduce risk of electrical shock, always replace the
cover to the power distribution box before reconnecting the
battery or refilling fluid reservoirs.
The power distribution box is located in the engine compartment. It has
high-current fuses that protect your vehicle’s main electrical systems
from overloads.
If the battery has been disconnected and reconnected, see Changing the
Vehicle Battery in theMaintenance chapter.
15
Fuses 271
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

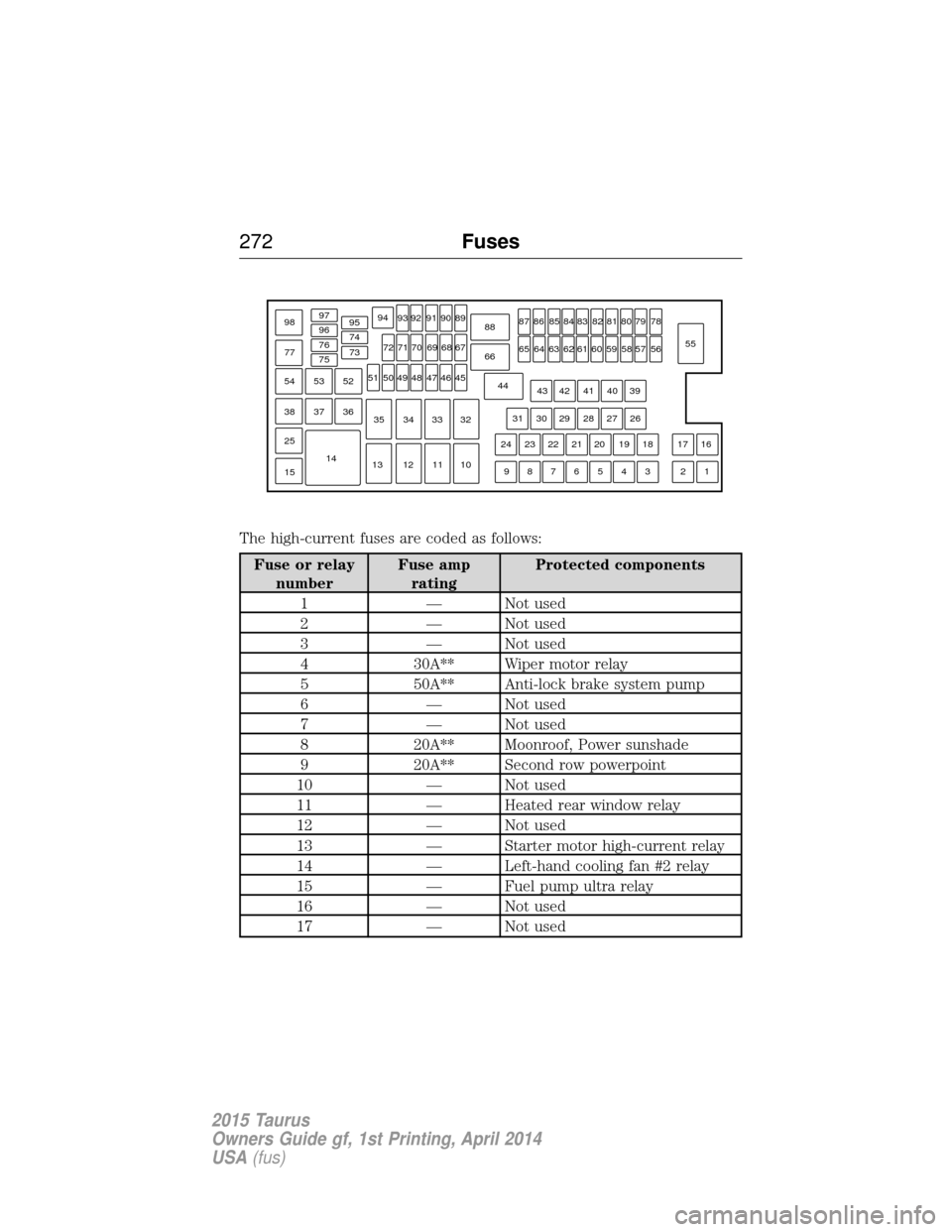

The high-current fuses are coded as follows:
Fuse or relaynumber Fuse amp
rating Protected components
1 — Not used
2 — Not used
3 — Not used
4 30A** Wiper motor relay
5 50A** Anti-lock brake system pump
6 — Not used
7 — Not used
8 20A** Moonroof, Power sunshade
9 20A** Second row powerpoint
10 — Not used
11 — Heated rear window relay
12 — Not used
13 — Starter motor high-current relay
14 — Left-hand cooling fan #2 relay
15 — Fuel pump ultra relay
16 — Not used
17 — Not used
97
98
77 96
95
94
93 92 91 90 89
88
66
44 78
56
39 26 18 1617
31 2
456789
192021222324
2728293031 40414243 55
575859606162636465
798081828384858687
67
45
32
10111213
333435
464748495051
6869707172
74
73
76
75
53
37 36
54
38
25
15
1452
272
Fuses
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

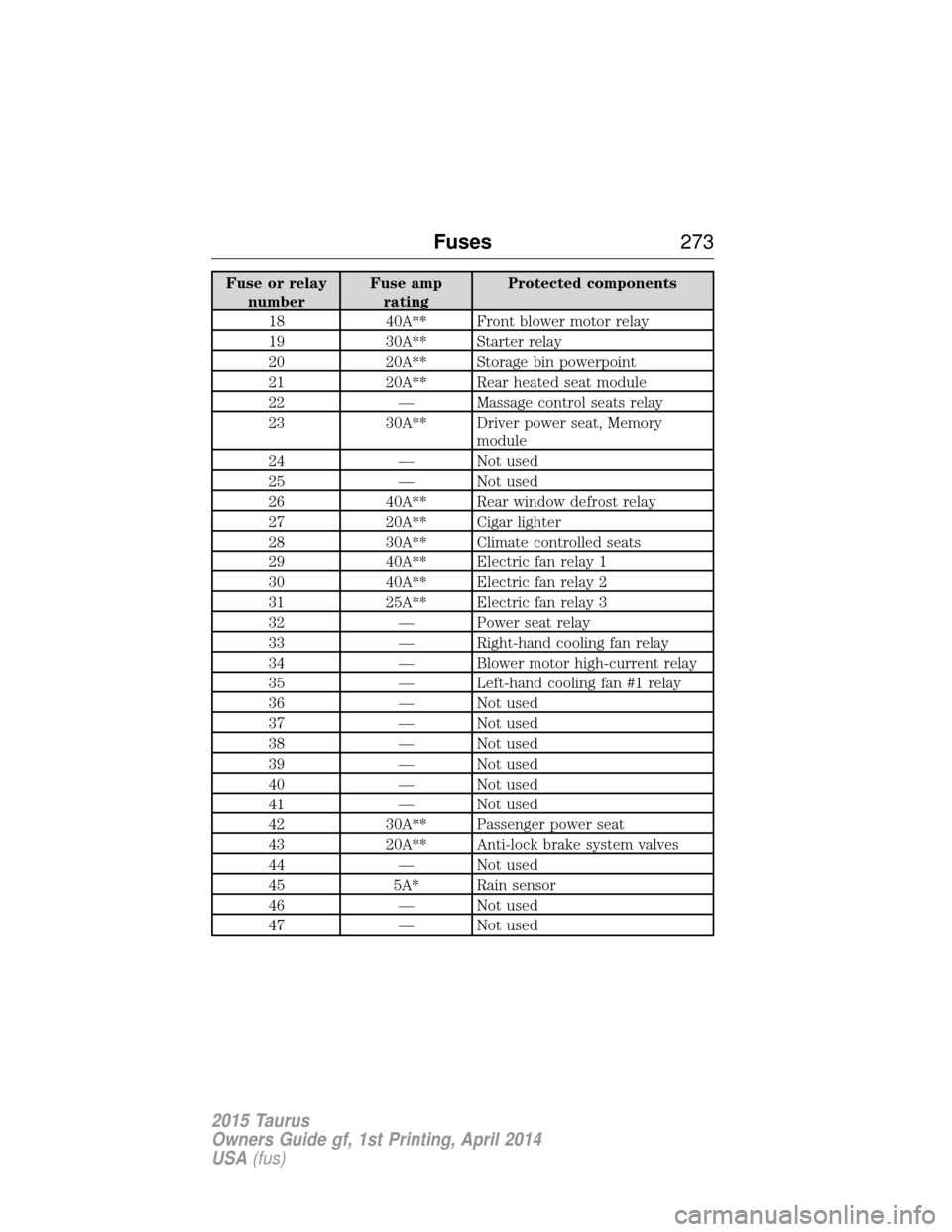

Fuse or relaynumber Fuse amp
rating Protected components
18 40A** Front blower motor relay
19 30A** Starter relay
20 20A** Storage bin powerpoint
21 20A** Rear heated seat module
22 — Massage control seats relay
23 30A** Driver power seat, Memory
module
24 — Not used
25 — Not used
26 40A** Rear window defrost relay
27 20A** Cigar lighter
28 30A** Climate controlled seats
29 40A** Electric fan relay 1
30 40A** Electric fan relay 2
31 25A** Electric fan relay 3
32 — Power seat relay
33 — Right-hand cooling fan relay
34 — Blower motor high-current relay
35 — Left-hand cooling fan #1 relay
36 — Not used
37 — Not used
38 — Not used
39 — Not used
40 — Not used
41 — Not used
42 30A** Passenger power seat
43 20A** Anti-lock brake system valves
44 — Not used
45 5A* Rain sensor
46 — Not used
47 — Not used
Fuses 273
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

Fuse or relaynumber Fuse amp
rating Protected components
48 — Not used
49 — Not used
50 15A* Heated mirrors
51 — Not used
52 — Not used
53 — Not used
54 — Not used
55 — Wiper relay
56 — Not used
57 20A* Left high-intensity discharge
headlamp
58 10A* Alternator A-line
59 10A* Brake on/off switch
60 — Not used
61 — Not used
62 10A* A/C clutch relay
63 — Not used
64 15A* Massage control seats
65 30A* Fuel pump relay, Fuel injectors
66 — Powertrain control module relay
67 20A* Oxygen sensor heater, Mass
airflow sensor, Variable camshaft
timing solenoid valve, Canister
vent solenoid, Canister purge
solenoid
68 20A* Ignition coils
69 20A* Vehicle power #1 (powertrain
control module)

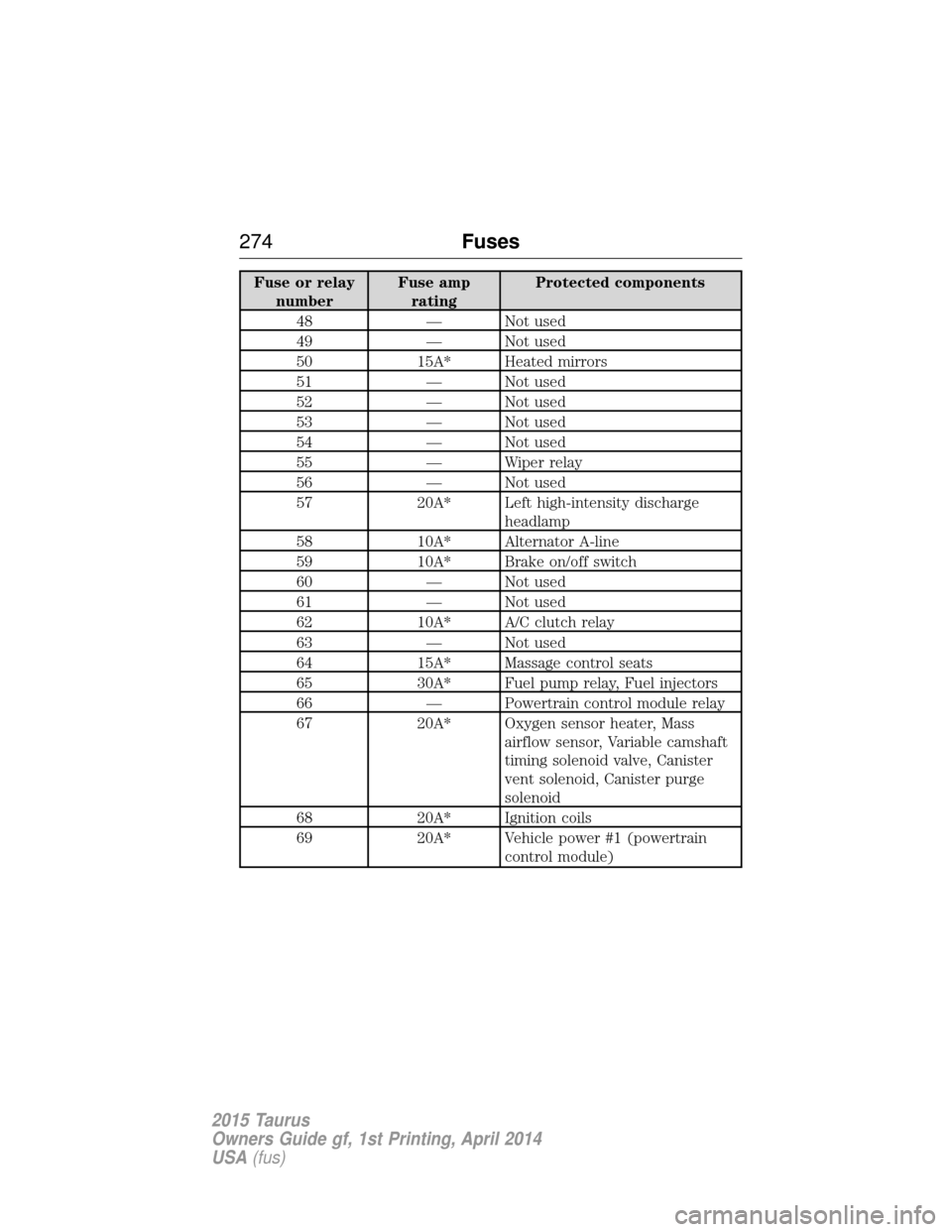

274 Fuses
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

Fuse or relaynumber Fuse amp
rating Protected components
70 15A* A/C clutch, Fan control relay
coils (1-3), Variable air
conditioning compressor,
Auxiliary transmission warmup,
Turbo charge waste-gate control,
Electronic compressor bypass
valve, All-wheel drive module,
Positive crankcase ventilation
heater
71 — Not used
72 — Not used
73 — Not used
74 — Not used
75 — Not used
76 — Not used
77 — Not used
78 20A* Right high-intensity discharge
headlamp
79 — Not used
80 — Not used
81 — Not used
82 — Not used
83 — Not used
84 — Not used
85 — Not used
86 7.5A* Powertrain control module
keep-alive power and relay,
Canister vent solenoid
87 5A* Run/start relay
88 — Run/start relay
89 5A* Front blower relay coil, Electrical

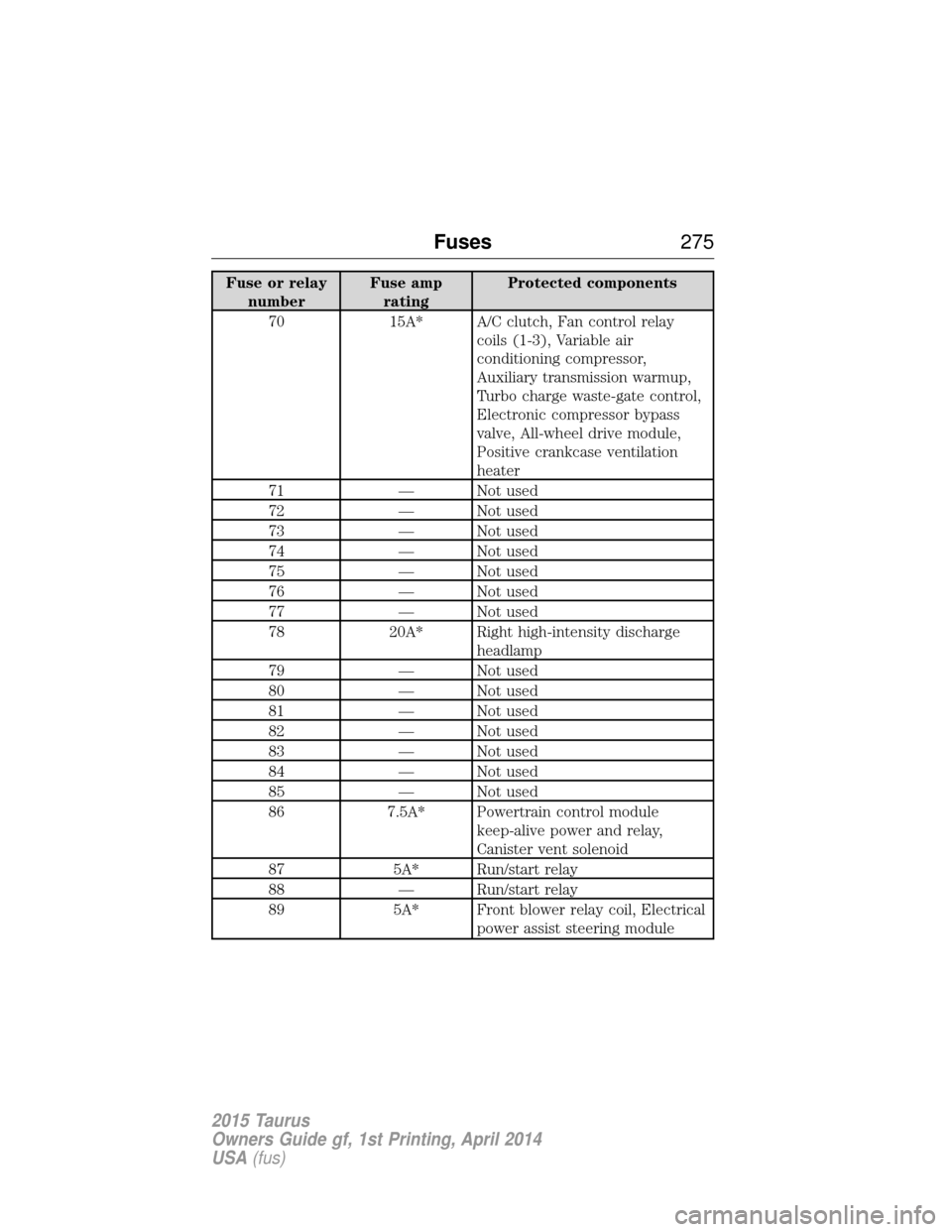

power assist steering module
Fuses 275
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

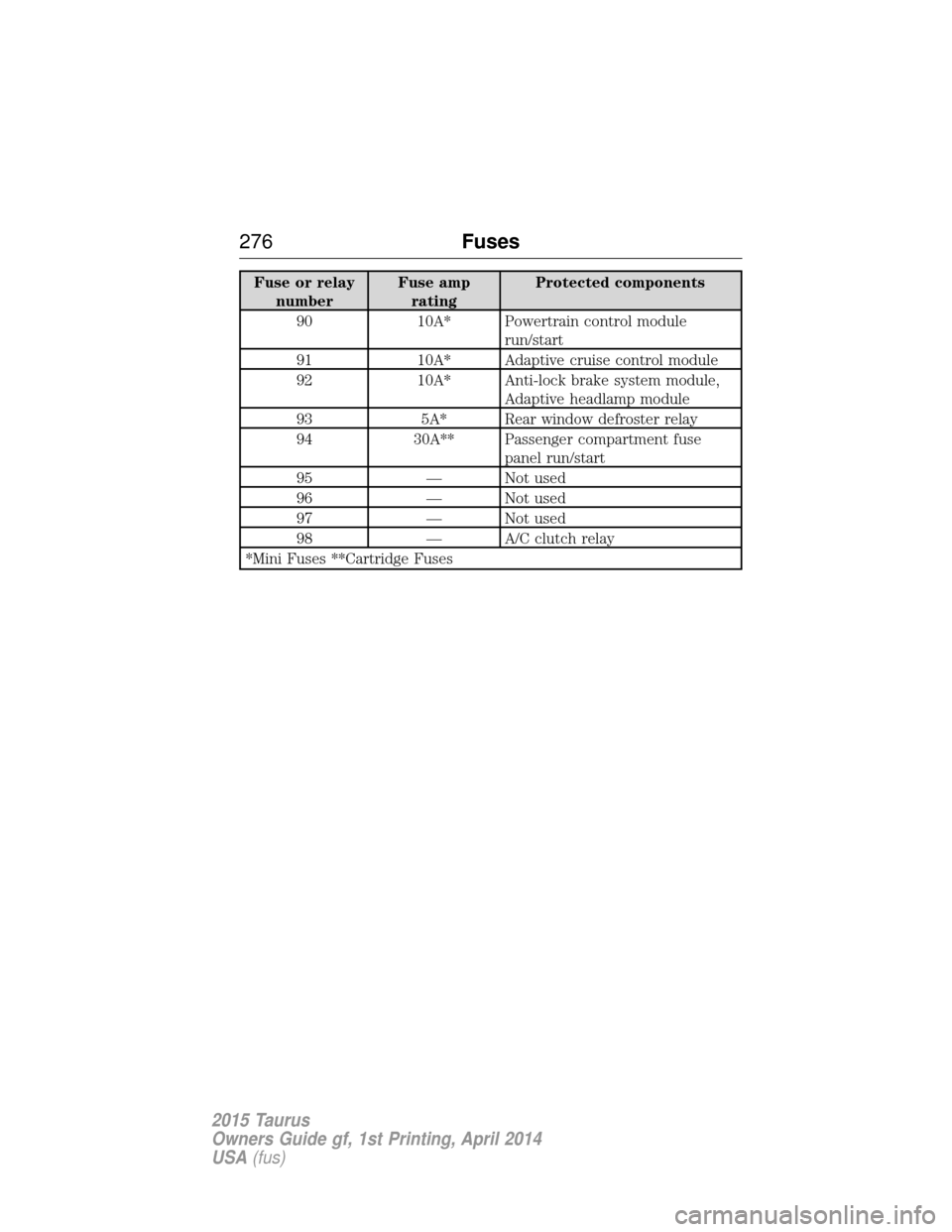

Fuse or relaynumber Fuse amp
rating Protected components
90 10A* Powertrain control module
run/start
91 10A* Adaptive cruise control module
92 10A* Anti-lock brake system module,
Adaptive headlamp module
93 5A* Rear window defroster relay
94 30A** Passenger compartment fuse
panel run/start
95 — Not used
96 — Not used
97 — Not used
98 — A/C clutch relay
*Mini Fuses **Cartridge Fuses
276 Fuses
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

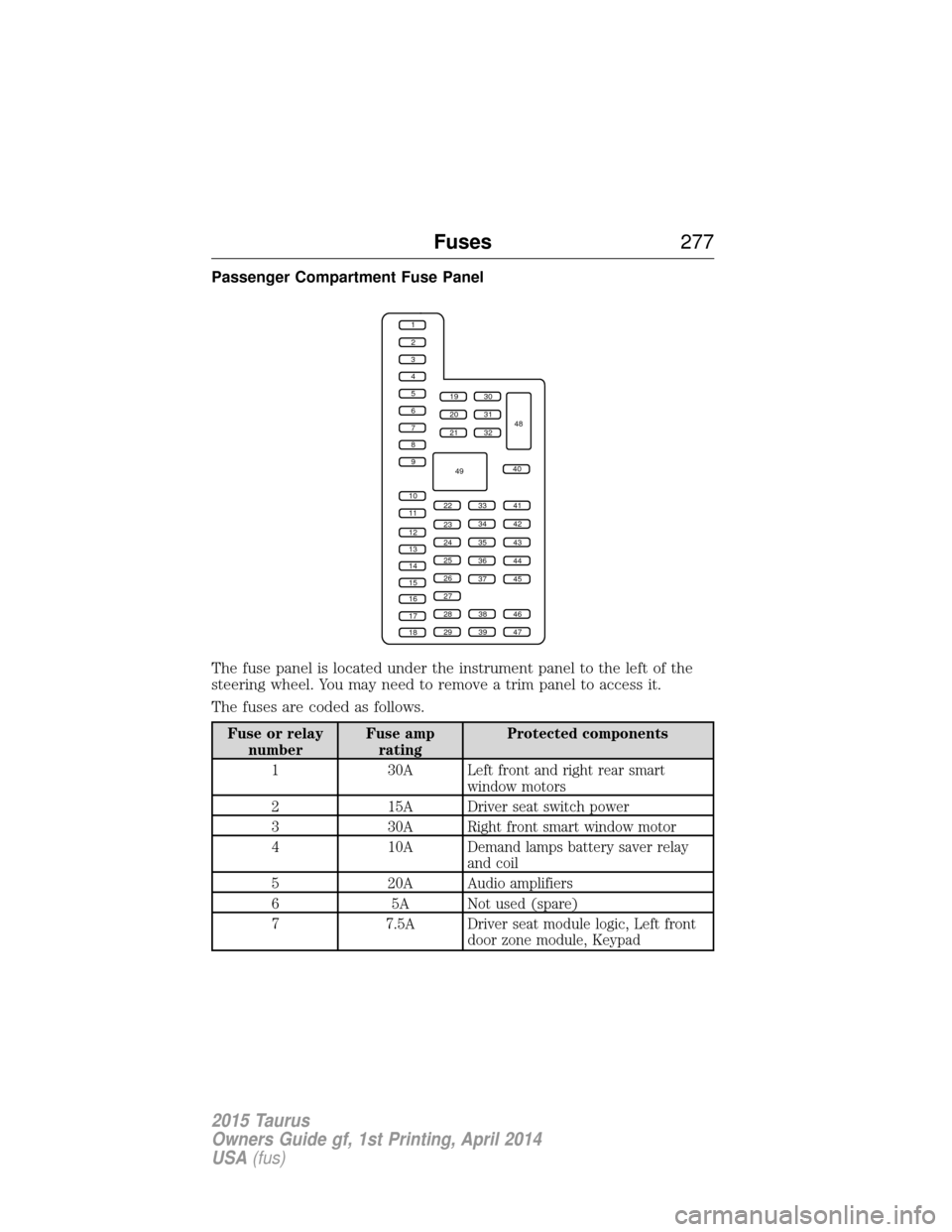

Passenger Compartment Fuse Panel
The fuse panel is located under the instrument panel to the left of the
steering wheel. You may need to remove a trim panel to access it.
The fuses are coded as follows.
Fuse or relaynumber Fuse amp
rating Protected components
1 30A Left front and right rear smart window motors
2 15A Driver seat switch power
3 30A Right front smart window motor
4 10A Demand lamps battery saver relay and coil
5 20A Audio amplifiers
6 5A Not used (spare)
7 7.5A Driver seat module logic, Left front door zone module, Keypad
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
223341
42
43
44
45
34
35
36
37
23
24
25
26
27
283846
394729
32
40
31
30
48
49
Fuses 277
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

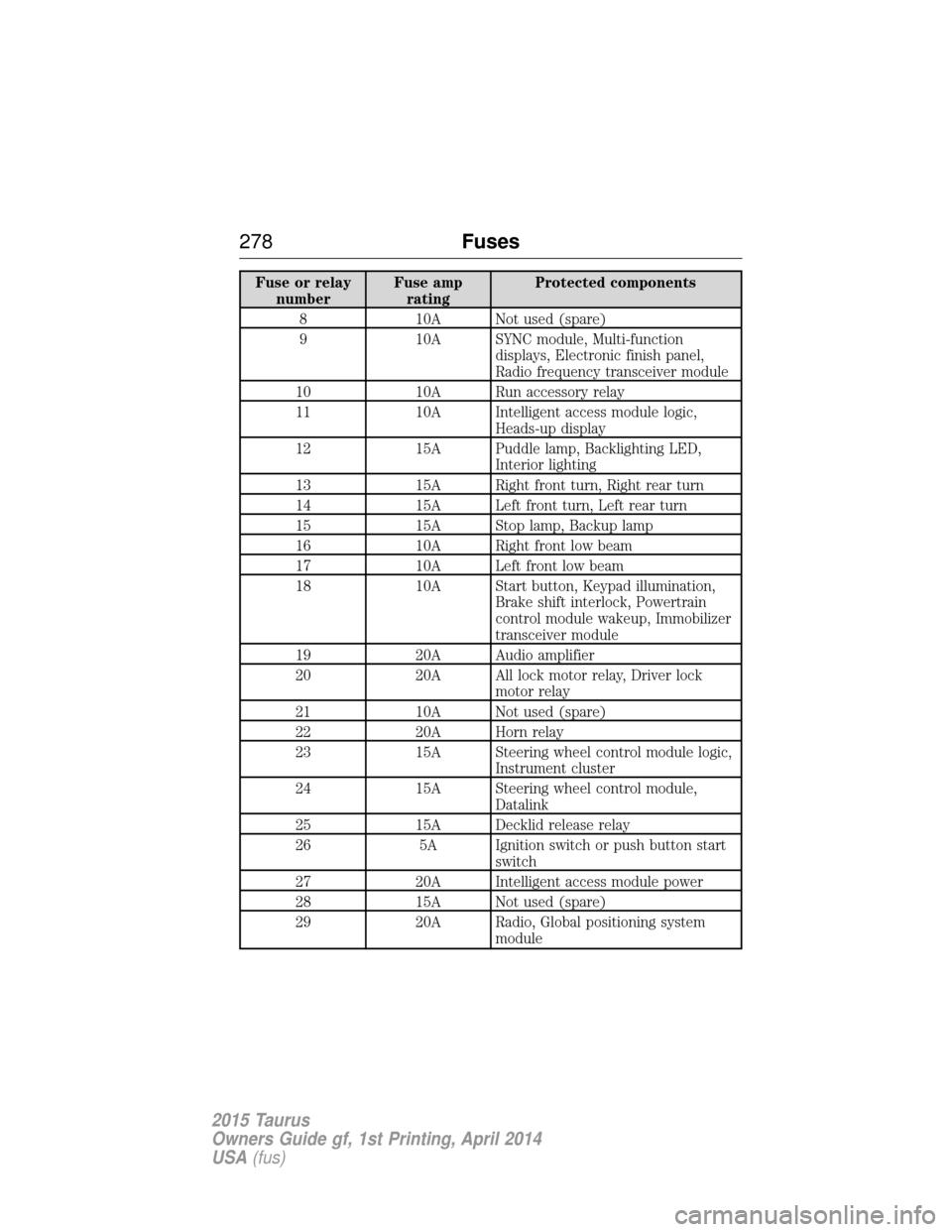

Fuse or relaynumber Fuse amp
rating Protected components
8 10A Not used (spare)
9 10A SYNC module, Multi-function displays, Electronic finish panel,
Radio frequency transceiver module
10 10A Run accessory relay
11 10A Intelligent access module logic, Heads-up display
12 15A Puddle lamp, Backlighting LED, Interior lighting
13 15A Right front turn, Right rear turn
14 15A Left front turn, Left rear turn
15 15A Stop lamp, Backup lamp
16 10A Right front low beam
17 10A Left front low beam
18 10A Start button, Keypad illumination, Brake shift interlock, Powertrain
control module wakeup, Immobilizer
transceiver module
19 20A Audio amplifier
20 20A All lock motor relay, Driver lock motor relay
21 10A Not used (spare)
22 20A Horn relay
23 15A Steering wheel control module logic, Instrument cluster
24 15A Steering wheel control module, Datalink
25 15A Decklid release relay
26 5A Ignition switch or push button start switch
27 20A Intelligent access module power
28 15A Not used (spare)
29 20A Radio, Global positioning system module
278Fuses
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

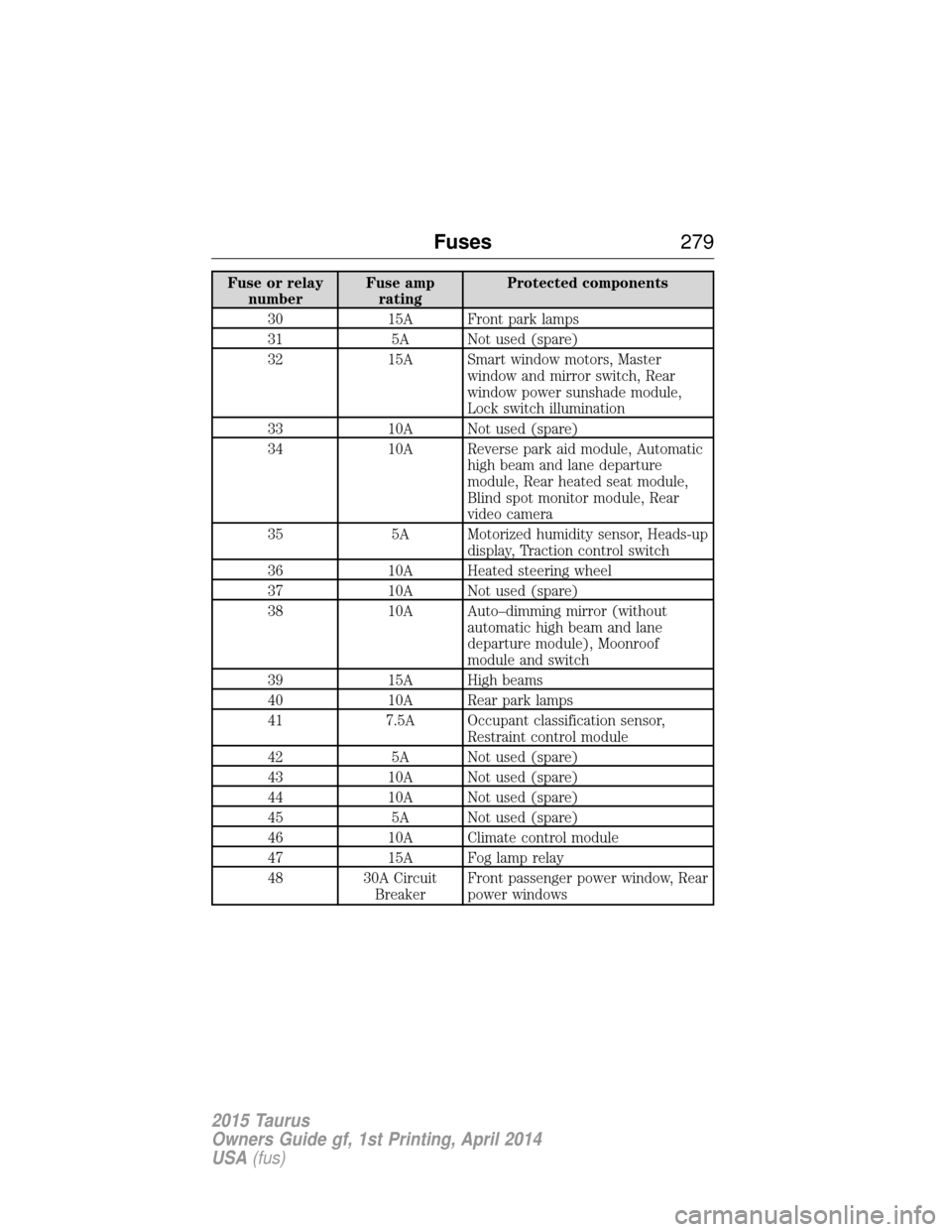

Fuse or relaynumber Fuse amp
rating Protected components
30 15A Front park lamps
31 5A Not used (spare)
32 15A Smart window motors, Master window and mirror switch, Rear
window power sunshade module,
Lock switch illumination
33 10A Not used (spare)
34 10A Reverse park aid module, Automatic high beam and lane departure
module, Rear heated seat module,
Blind spot monitor module, Rear
video camera
35 5A Motorized humidity sensor, Heads-up display, Traction control switch
36 10A Heated steering wheel
37 10A Not used (spare)
38 10A Auto–dimming mirror (without automatic high beam and lane
departure module), Moonroof
module and switch
39 15A High beams
40 10A Rear park lamps
41 7.5A Occupant classification sensor, Restraint control module
42 5A Not used (spare)
43 10A Not used (spare)
44 10A Not used (spare)
45 5A Not used (spare)
46 10A Climate control module
47 15A Fog lamp relay
48 30A Circuit BreakerFront passenger power window, Rear
power windows
Fuses
279
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)
