2. Locate the two chrome locking
buttons on each of the two rack
legs.
3. Firmly squeeze the two chrome
buttons (top and bottom) on one
leg and rotate the leg toward you
until the leg snaps into place.
4. Squeeze the second set of chrome
buttons (top and bottom) for the
opposite leg until the leg snaps into
place.
5. Turn the rack over on its wheels
and place the removable top storage
rack on a flat level surface. Make
sure the center ªTº section is fully
locked by attempting to move the
section downward without
depressing the chrome locking
buttons.
6. Lock the two front wheels located on the ends of each of the two rack
legs.
7. To lock the wheels, push down on
the bottom part of the plastic tab
located on the tip of each wheel.
Driver controls
81

8. Place the removable top on the
storage rack. Make sure the rear
edge of the removable top rests on
the rubber bumpers of the rack legs.
This prevents damage to the painted
edge and the weatherstrips.
9. Buckle and tighten the retaining
strap and unlock the cart wheels
before moving the top and cart.
To unlock the wheels, pull up on the
lower portion of the plastic tab
located on the tip of each wheel.
Place the mounting key in a safe place to use again.
Keep your removable top clean by placing the provided cover over it.
If you plan to drive with the covertible top down, ensure all the snaps on
the covertible top tonneau cover are fastened and that the rear of the
cover is firmly tucked before driving. Refer toInstallation of the
tonneau coverin theConvertiblesection.
Driver controls
82

CENTER CONSOLE
Your vehicle may be equipped with a variety of console features. These
include:
²Utility compartment
²Cellular phone (if equipped)
²Cupholders
²Ash tray
POSITIVE RETENTION FLOOR MAT
Position the floor mat so that the
eyelet is over the pointed end of the
retention post and rotate forward to
lock in. Make sure that the mat does
not interfere with the operation of
the accelerator or the brake pedal.
To remove the floor mat, reverse the
installation procedure.
Driver controls
83

KEYS
The key operates all locks on your
vehicle. In case of loss, replacement
keys are available from your dealer.
You should always carry a second
key with you in a safe place in case
you require it in an emergency.
Refer toSecuriLockyPassive
Anti-Theft Systemfor more
information.
POWER DOOR LOCKS
Press the top of the control to
unlock all doors and the bottom to
lock all doors.
When the vehicle is armed the
power door locks and remote trunk
release control are disabled. These
will not work until the vehicle is
disarmed.
Smart locks
With the key in the ignition, and the driver's door open, the doors cannot
be locked using the driver's power door lock switches. If this is
attempted, both doors will lock, then the driver's door will immediately
unlock.
The vehicle can still be locked. with the key in the ignition, using the
manual lock button on the door, operating the remote entry transmitter,
or locking the drivers door with the a key.
INTERIOR LUGGAGE COMPARTMENT RELEASE
Your vehicle is equipped with a mechanical interior luggage compartment
release handle that provides a means of escape for children and adults in
the event they become locked inside the luggage compartment.
Adults are advised to familiarize themselves with the operation and
location of the release handle.
Locks and security
84

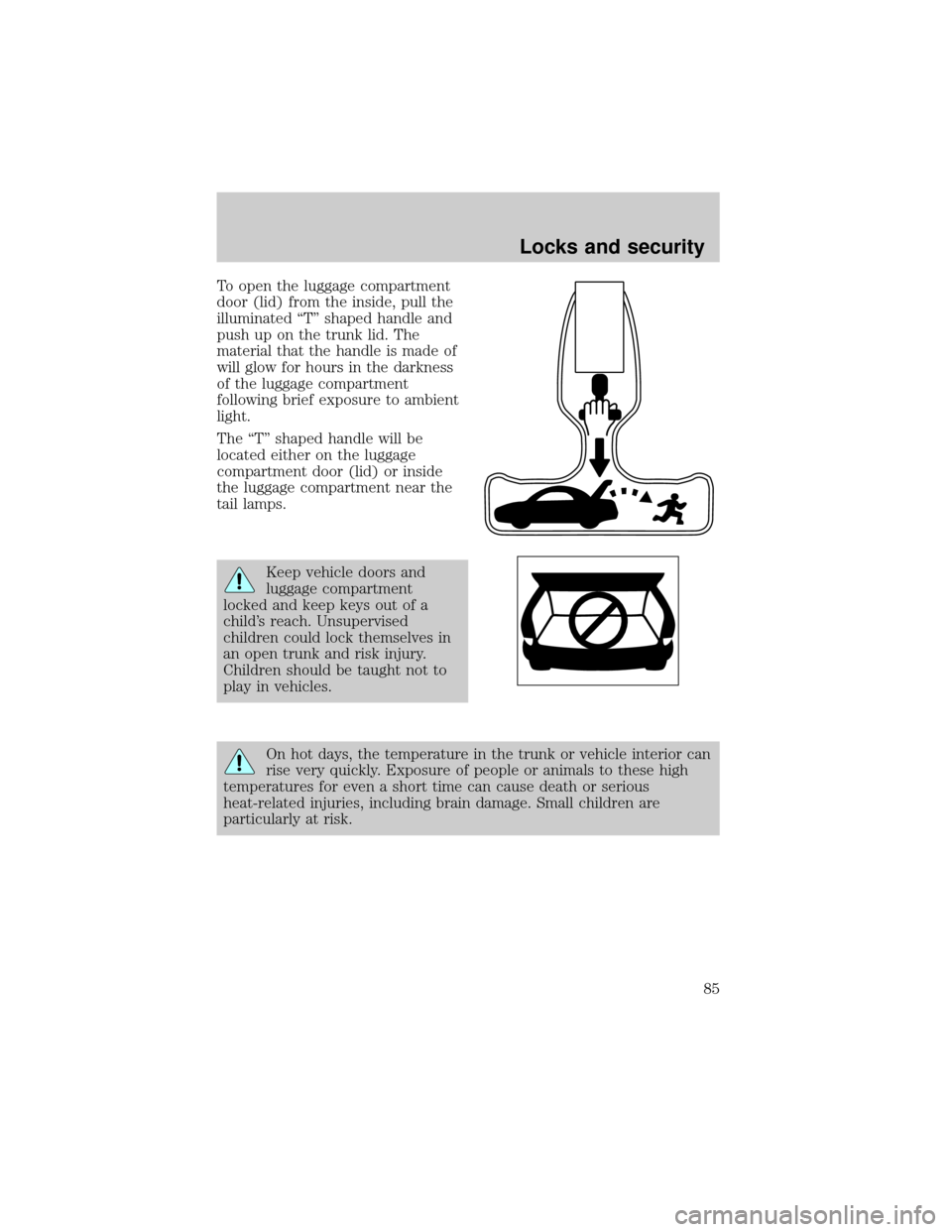

To open the luggage compartment
door (lid) from the inside, pull the
illuminated ªTº shaped handle and
push up on the trunk lid. The
material that the handle is made of
will glow for hours in the darkness
of the luggage compartment
following brief exposure to ambient
light.
The ªTº shaped handle will be
located either on the luggage
compartment door (lid) or inside
the luggage compartment near the
tail lamps.
Keep vehicle doors and
luggage compartment
locked and keep keys out of a
child's reach. Unsupervised
children could lock themselves in
an open trunk and risk injury.
Children should be taught not to
play in vehicles.
On hot days, the temperature in the trunk or vehicle interior can
rise very quickly. Exposure of people or animals to these high
temperatures for even a short time can cause death or serious
heat-related injuries, including brain damage. Small children are
particularly at risk.
Locks and security
85

REMOTE ENTRY SYSTEM
This device complies with part 15 of the FCC rules and with RS-210 of
Industry Canada. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device
must accept any interference received, including interference that may
cause undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
Your remote entry system contains two remote transmitters which
provide remote control of several features. Each remote transmitter will
allow you to:
²unlock the vehicle doors without a key
²lock all the vehicle doors without a key
²open the trunk without a key
²activate the personal alarm
²arm and disarm the perimeter anti-theft system
²operate the illuminated entry feature
The remote transmitter features only operate with the ignition in the
OFF or ACC positions. The remote transmitter features also operate if
the ignition is in the RUN position and the gear shift is in P (Park). The
personal alarm feature, however, will not operate when the ignition is in
the RUN position.
When the vehicle is armed the power door locks and remote trunk
release control are disabled. These will not work until the vehicle is
disarmed.
If there is any potential remote keyless entry problem with your vehicle,
ensureALL key fobs(remote entry transmitters) are brought to the
dealership, to aid in troubleshooting.
Locks and security
86

Locking the doors
Press this control to lock all the
doors and arm the perimeter
anti-theft system. To confirm all the
doors and trunk are closed, the turn
signal lamps will display one short
flash. Press the control twice within
3 seconds the horn will chirp once,
confirming that all doors, hood or
trunk are closed. If any of the doors,
hood or trunk are open or ajar, the
horn will make two quick chirps,
reminding you to properly close them.
Unlocking the doors
Press this control to unlock the
driver door and disarm the
perimeter alarm (if armed). The
interior lamps will illuminate.
Press the control a second time
within three seconds to unlock all
the doors.
Opening the trunk
Press this control to open the trunk.
Be certain the trunk is closed before
driving your vehicle. The trunk may
appear closed, but it may not be
latched. Failure to do so may cause
objects to fall out of the trunk or
block rear view vision.
Locks and security
87

Activating the personal alarm
Press this control to turn on the
personal alarm.
Press the control a second time to
turn off the personal alarm. The
personal alarm will also turn off if
the remote transmitter unlock
control is pressed, or if the ignition
switch is turned out of the OFF
position, or after 2±3 minutes of
operation.
Replacing the battery
The remote transmitter is powered by one coin type three-volt lithium
battery CR2032 or equivalent. Typical operating range will allow you to
be up to 10 meters (33 feet) away from your vehicle. A decrease in
operating range can be caused by:
²weather conditions
²nearby radio towers
²structures around the vehicle
²other vehicles parked next to the vehicle
To replace the battery:
1. Twist a thin coin between the two
halves of the transmitter near the
key ring. DO NOT TAKE THE
FRONT PART OF THE
TRANSMITTER APART.
2. Place the positive (+) side of new
battery in the same orientation.
Refer to the diagram inside the
transmitter unit.
3. Snap the two halves back
together.
Replacement of the battery willnotcause the remote transmitter to
become deprogrammed from your vehicle. The remote transmitter should
operate normally after battery replacement.
Locks and security
88

Replacing lost transmitters
If a remote transmitter has been lost
and you would like to remove it
from the vehicle's memory or you
would like to purchase additional
transmitters for your vehicle (up to
four may be programmed into
memory), takeallyour vehicle's
transmitters to your dealer for
programming or perform the
reprogramming procedure yourself.
Reprogramming transmitters
It will be necessary to reprogramallthe transmitters to the vehicle at
the same time while performing this procedure.
To program the transmitter yourself:
1. To reprogram the transmitters
yourself, place the key in the
ignition and turn from (2) OFF
to (4) RUN and cycle between
(4) RUN and (2) OFF eight times in
rapid succession (within 10
seconds) ending in the (4) RUN
position.
2. After doors lock/unlock, press any
control on all transmitters (up to four). With each control press of the
transmitters, the door should cycle (lock/unlock) to confirm
programming. When completed, turn the ignition to (2) OFF.
3. The door locks should cycle (lock/unlock) one last time to confirm
completion of programming.
Illuminated entry
The illuminated entry feature will automatically turn on the interior
lamps when the remote transmitter unlock control is pressed.
The illuminated entry feature will automatically turn off the interior
lamps if the ignition switch is turned out of the OFF position, or if the
remote transmitter lock control is pressed, or after 25 seconds of
illumination.
23 1
4
5
Locks and security
89

The interior lamps will not turn off if:
²they have been turned on with the instrument panel dimmer control
switch or
²any door is open
The battery saver will turn off the interior lamps 30 minutes after the
last door is closed even if the dimmer control switch is on.
Autolock/Relock
This feature automatically locks all vehicle doors when:
²all doors are closed
²the engine is running
²you shift out of P (Park).
Relock
The autolock feature repeats when:
²the passenger's door is opened then closed while the engine is running
and
²you put the vehicle in motion.
Deactivating/activating the autolock/relock feature
Before following the procedure, make sure that the ignition is OFF and
all vehicle doors are closed.
You must complete steps 1-5 within 30 seconds or the procedure will
have to be repeated. Wait 30 seconds before repeating the procedure.
1. Turn the ignition key to RUN.
2. Press the power door unlock control three times.
3. Turn the ignition key from RUN to OFF.
4. Press the power door unlock control three times.
5. Turn the ignition back to RUN. The horn will chirp to indicate that
you have entered the programming mode.
6. Press the unlock control, then press the lock control. The horn will
chirp once if autolock was deactivated or twice (one short and one long
chirp) if autolock was activated.
7. Turn the ignition to OFF. The horn will chirp once to confirm the
procedure is complete.
Locks and security
90
