Exterior Lamps On
Sounds when you remove the key from the
ignition and open the driver door, and you
have left the headlamps or parking lamps
on.
Gearshift Lever not in Park (P)
Sounds when the driver door is open, the
key is in the ignition and the gearshift lever
is not in park (P).
Key in Ignition
Sounds when the driver door is open and
the key is in the ignition.
Parking Brake On
Sounds when the parking brake is on and
your vehicle is moving. If the warning chime
continues to sound when you release the
parking brake, have the system checked
by an authorized dealer.
Safety Belt Minder
WARNINGS
The safety belt minder remains in
stand-by mode when the front safety
belts have been fastened. It will
sound if either safety belt is unfastened. Do not sit on top of a fastened safety
belt to prevent the safety belt minder
from coming on. The occupant
protection system will only provide
optimum protection when you use the
safety belt correctly. Sounds when a safety belt is unfastened
in an occupied seat and your vehicle is
moving.
78Transit (TTH) Canada/United States of America, enUSA, Edition date: 03/2014 Instrument Cluster

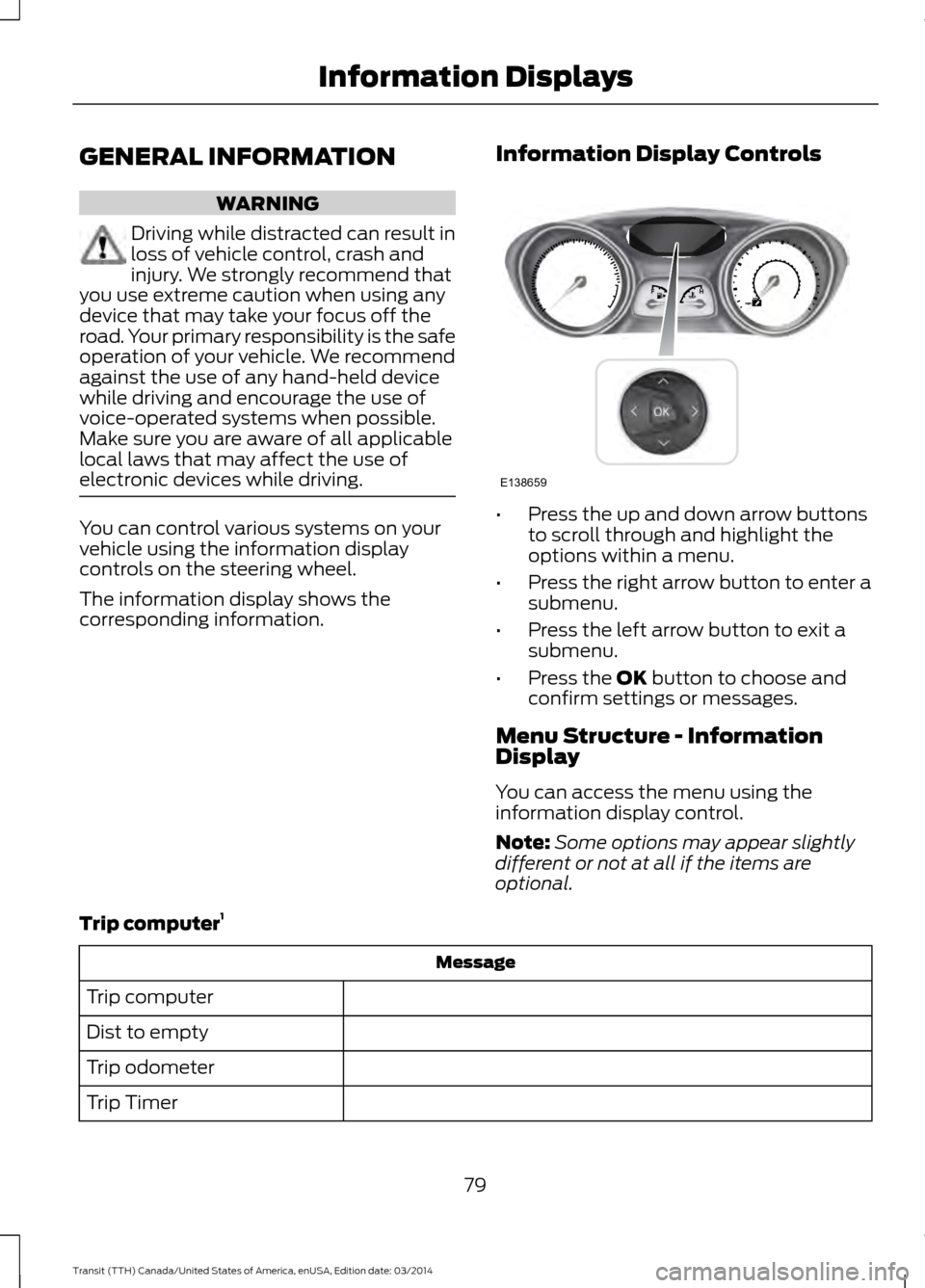

GENERAL INFORMATION
WARNING
Driving while distracted can result in
loss of vehicle control, crash and
injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the safe
operation of your vehicle. We recommend
against the use of any hand-held device
while driving and encourage the use of
voice-operated systems when possible.
Make sure you are aware of all applicable
local laws that may affect the use of
electronic devices while driving. You can control various systems on your
vehicle using the information display
controls on the steering wheel.
The information display shows the
corresponding information.
Information Display Controls •
Press the up and down arrow buttons
to scroll through and highlight the
options within a menu.
• Press the right arrow button to enter a
submenu.
• Press the left arrow button to exit a
submenu.
• Press the OK button to choose and
confirm settings or messages.
Menu Structure - Information
Display
You can access the menu using the
information display control.
Note: Some options may appear slightly
different or not at all if the items are
optional.
Trip computer 1 Message
Trip computer
Dist to empty
Trip odometer
Trip Timer
79Transit (TTH) Canada/United States of America, enUSA, Edition date: 03/2014 Information DisplaysE138659

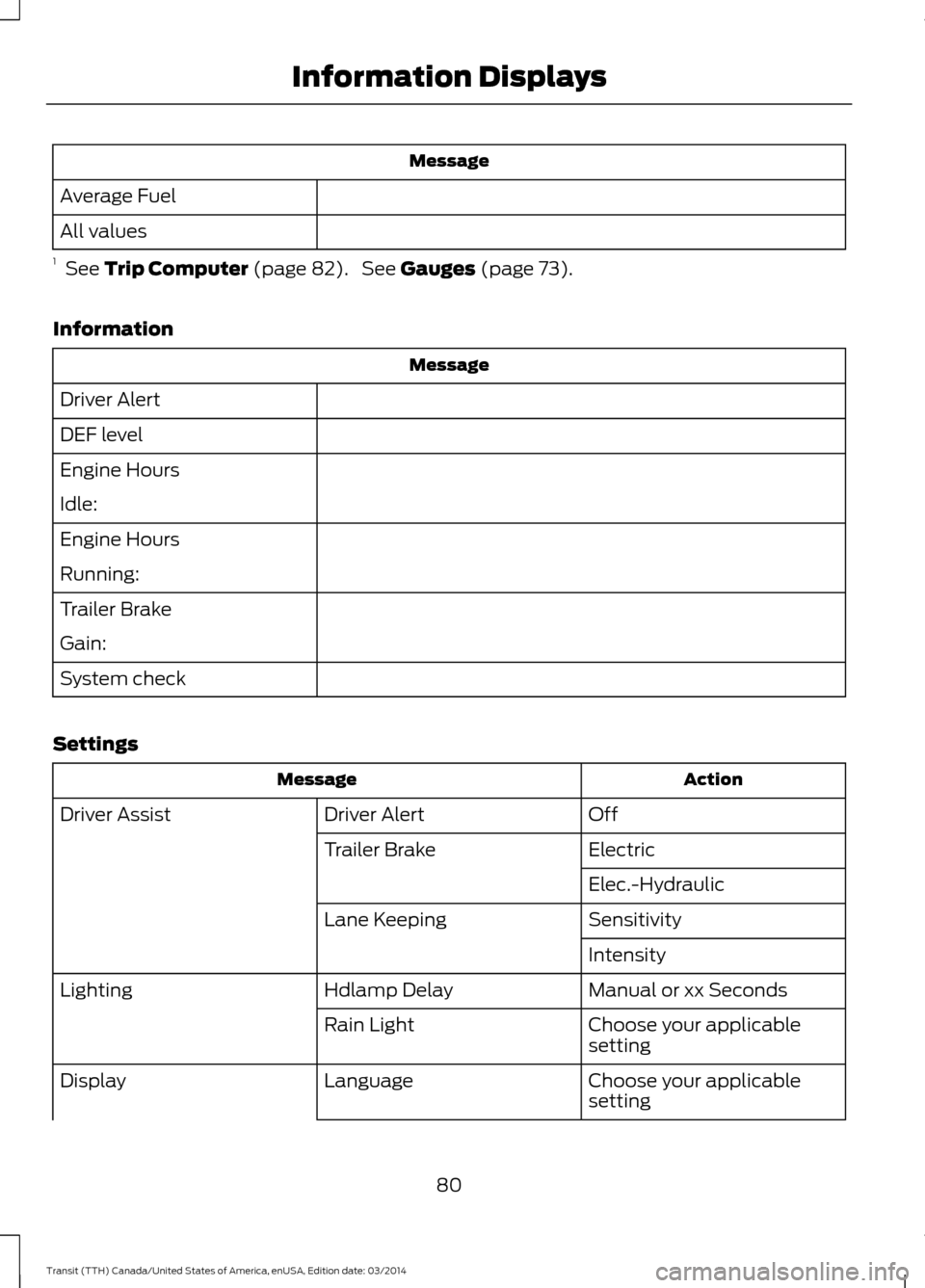

Message
Average Fuel
All values
1 See Trip Computer (page 82). See Gauges (page 73).
Information Message
Driver Alert
DEF level
Engine Hours
Idle:
Engine Hours
Running:
Trailer Brake
Gain:
System check
Settings Action
Message
Off
Driver Alert
Driver Assist
Electric
Trailer Brake
Elec.-Hydraulic
Sensitivity
Lane Keeping
Intensity
Manual or xx Seconds
Hdlamp Delay
Lighting
Choose your applicable
setting
Rain Light
Choose your applicable
setting
Language
Display
80Transit (TTH) Canada/United States of America, enUSA, Edition date: 03/2014 Information Displays

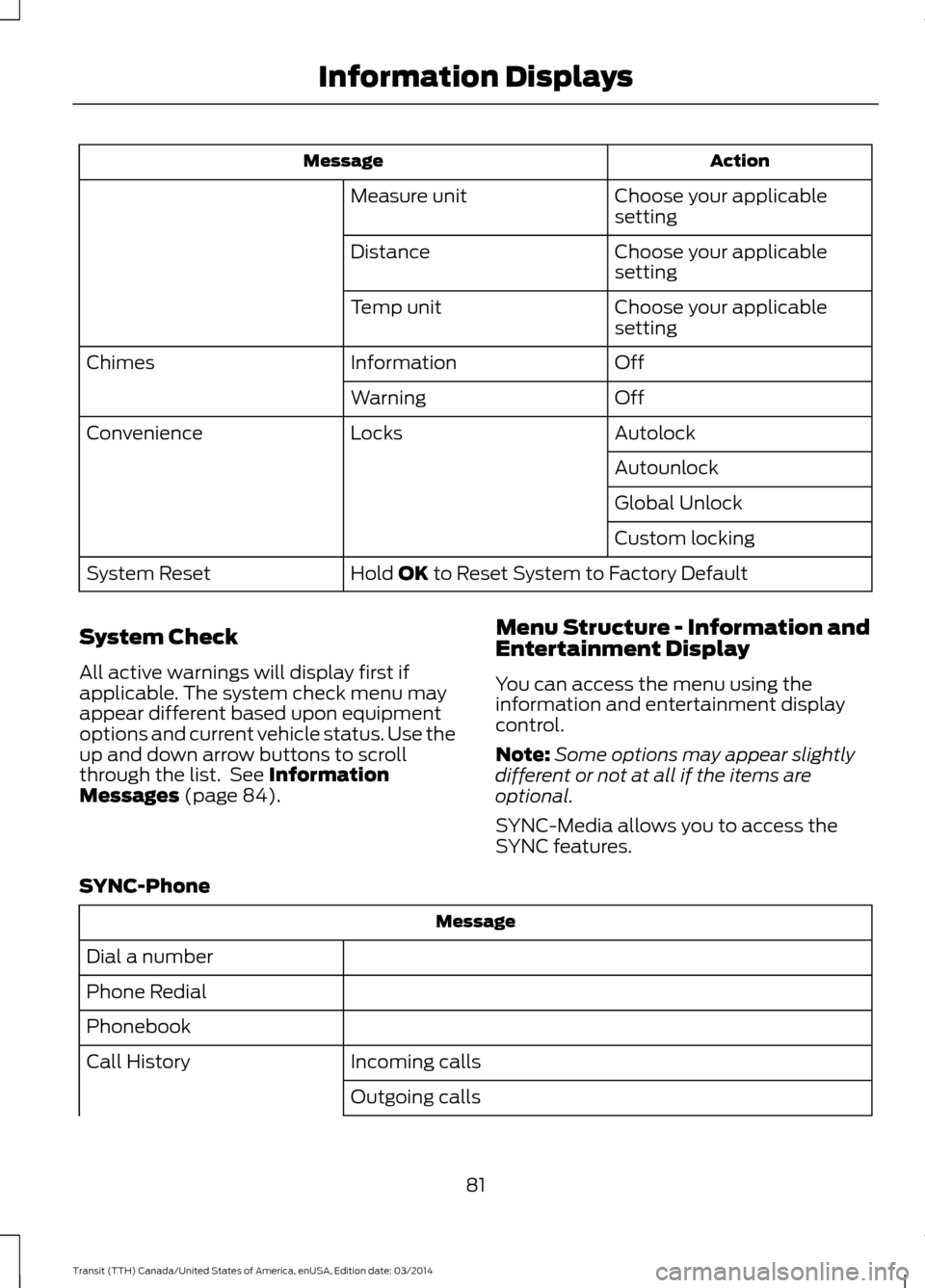

Action
Message
Choose your applicable
setting
Measure unit
Choose your applicable
setting
Distance
Choose your applicable
setting
Temp unit
Off
Information
Chimes
Off
Warning
Autolock
Locks
Convenience
Autounlock
Global Unlock
Custom locking
Hold OK to Reset System to Factory Default
System Reset
System Check
All active warnings will display first if
applicable. The system check menu may
appear different based upon equipment
options and current vehicle status. Use the
up and down arrow buttons to scroll
through the list. See
Information
Messages (page 84). Menu Structure - Information and
Entertainment Display
You can access the menu using the
information and entertainment display
control.
Note:
Some options may appear slightly
different or not at all if the items are
optional.
SYNC-Media allows you to access the
SYNC features.
SYNC-Phone Message
Dial a number
Phone Redial
Phonebook Incoming calls
Call History
Outgoing calls
81Transit (TTH) Canada/United States of America, enUSA, Edition date: 03/2014 Information Displays

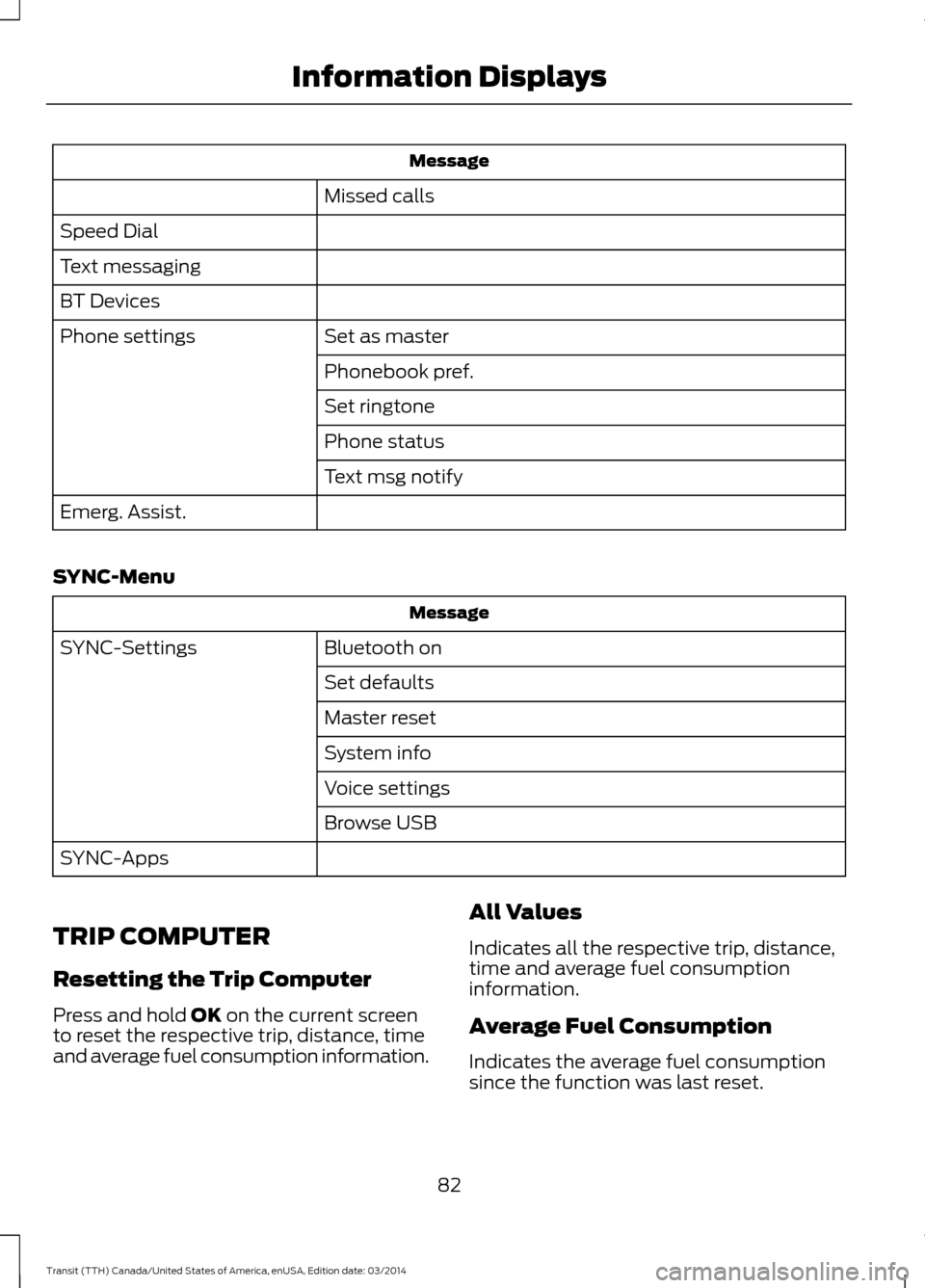

Message
Missed calls
Speed Dial
Text messaging
BT Devices Set as master
Phone settings
Phonebook pref.
Set ringtone
Phone status
Text msg notify
Emerg. Assist.
SYNC-Menu Message
Bluetooth on
SYNC-Settings
Set defaults
Master reset
System info
Voice settings
Browse USB
SYNC-Apps
TRIP COMPUTER
Resetting the Trip Computer
Press and hold OK on the current screen
to reset the respective trip, distance, time
and average fuel consumption information. All Values
Indicates all the respective trip, distance,
time and average fuel consumption
information.
Average Fuel Consumption
Indicates the average fuel consumption
since the function was last reset.
82 Transit (TTH) Canada/United States of America, enUSA, Edition date: 03/2014 Information Displays

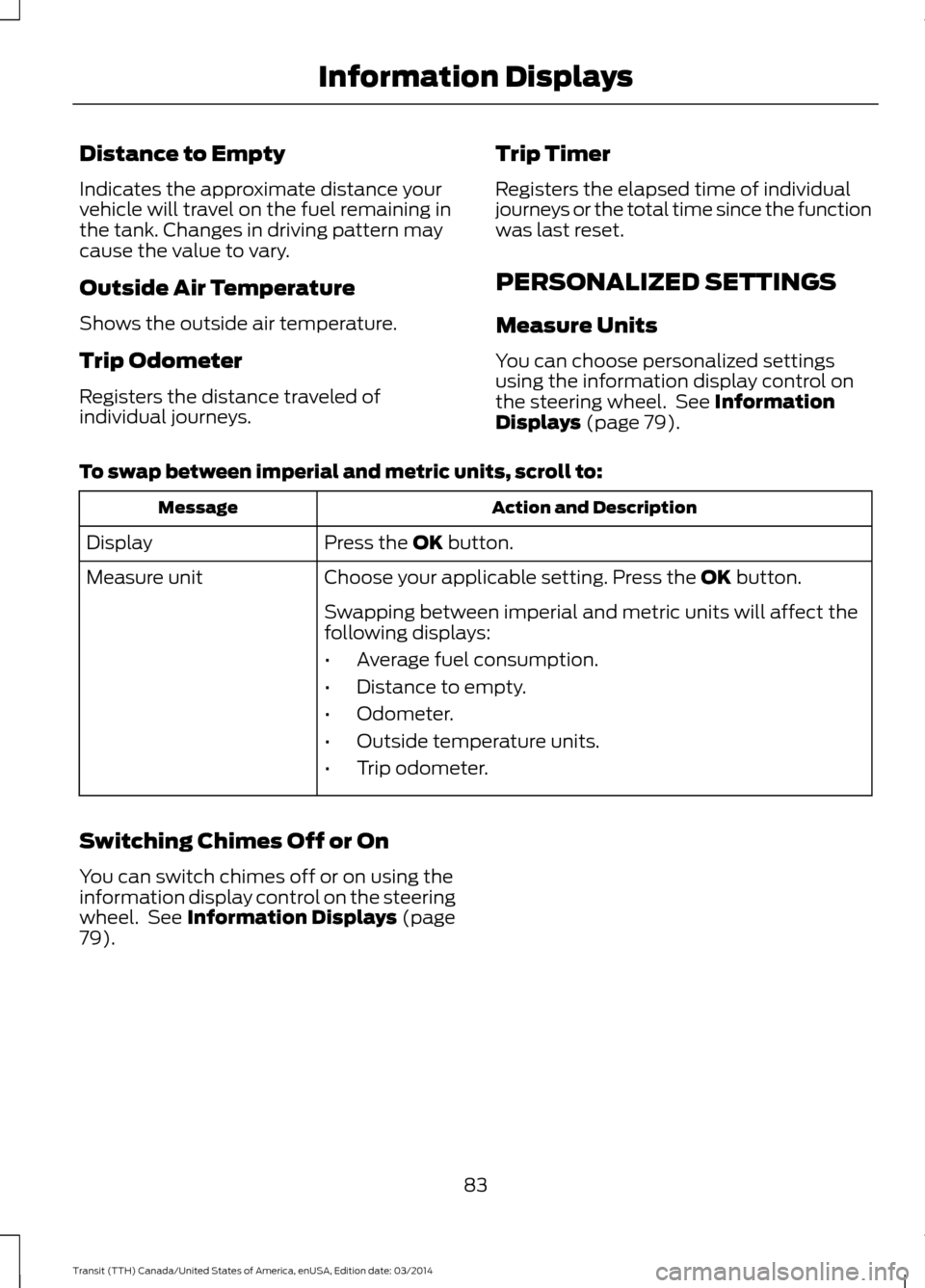

Distance to Empty
Indicates the approximate distance your
vehicle will travel on the fuel remaining in
the tank. Changes in driving pattern may
cause the value to vary.
Outside Air Temperature
Shows the outside air temperature.
Trip Odometer
Registers the distance traveled of
individual journeys.
Trip Timer
Registers the elapsed time of individual
journeys or the total time since the function
was last reset.
PERSONALIZED SETTINGS
Measure Units
You can choose personalized settings
using the information display control on
the steering wheel. See Information
Displays (page 79).
To swap between imperial and metric units, scroll to: Action and Description
Message
Press the
OK button.
Display
Choose your applicable setting. Press the
OK button.
Measure unit
Swapping between imperial and metric units will affect the
following displays:
•Average fuel consumption.
• Distance to empty.
• Odometer.
• Outside temperature units.
• Trip odometer.
Switching Chimes Off or On
You can switch chimes off or on using the
information display control on the steering
wheel. See
Information Displays (page
79).
83Transit (TTH) Canada/United States of America, enUSA, Edition date: 03/2014 Information Displays

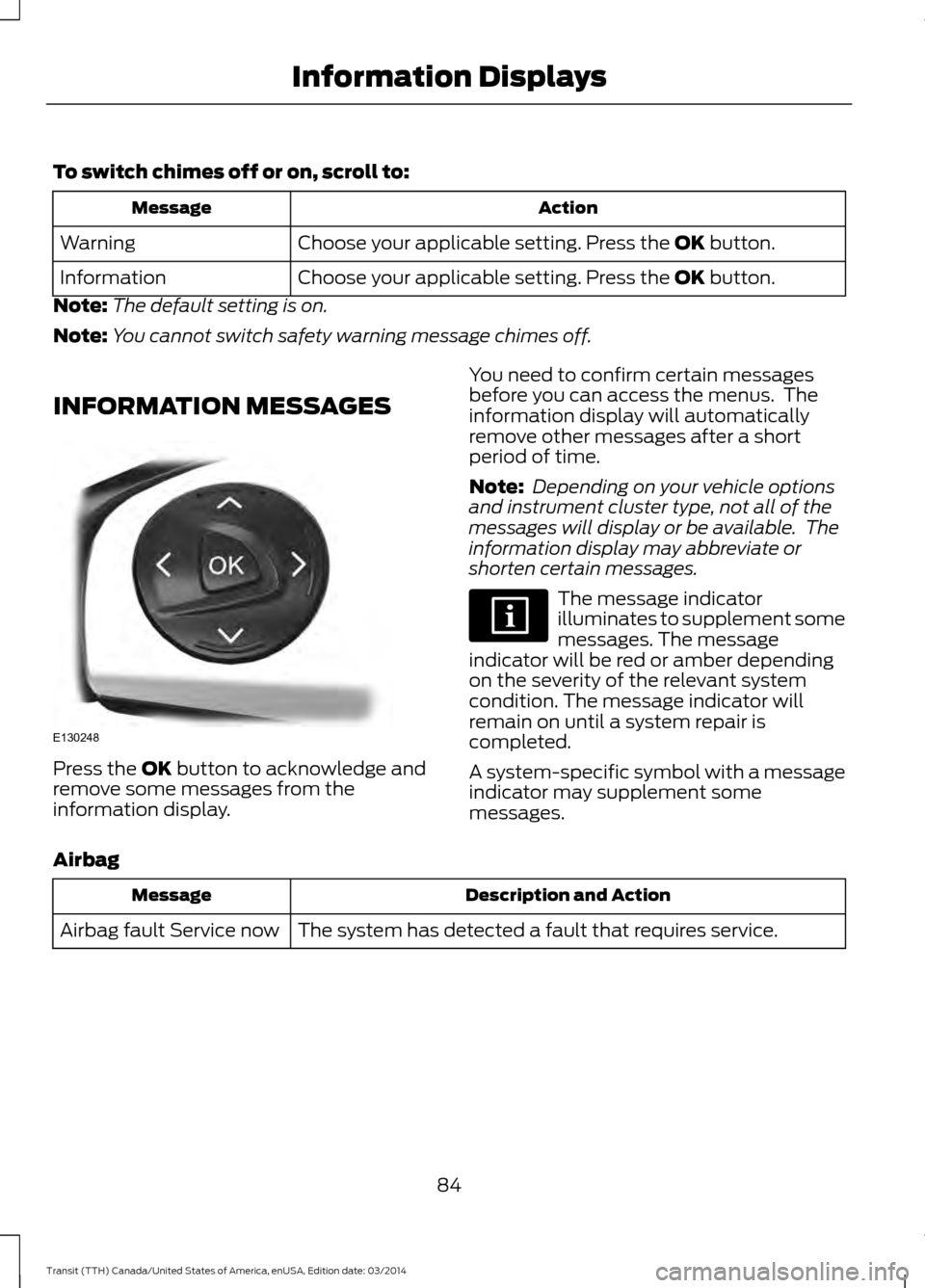

To switch chimes off or on, scroll to:
Action
Message
Choose your applicable setting. Press the OK button.
Warning
Choose your applicable setting. Press the
OK button.
Information
Note: The default setting is on.
Note: You cannot switch safety warning message chimes off.
INFORMATION MESSAGES Press the
OK button to acknowledge and
remove some messages from the
information display. You need to confirm certain messages
before you can access the menus. The
information display will automatically
remove other messages after a short
period of time.
Note:
Depending on your vehicle options
and instrument cluster type, not all of the
messages will display or be available. The
information display may abbreviate or
shorten certain messages. The message indicator
illuminates to supplement some
messages. The message
indicator will be red or amber depending
on the severity of the relevant system
condition. The message indicator will
remain on until a system repair is
completed.
A system-specific symbol with a message
indicator may supplement some
messages.
Airbag Description and Action
Message
The system has detected a fault that requires service.
Airbag fault Service now
84Transit (TTH) Canada/United States of America, enUSA, Edition date: 03/2014 Information DisplaysE130248

Battery and Charging System
Description and Action
Message
Stop your vehicle as soon as it is safe to do so and switch the
ignition off. The system has detected a fault that requires
service.
Electrical system over-
voltage Stop safely
Switch off all unnecessary electrical systems and devices.
The system has detected a fault that requires service.
Battery low See manual
Diesel Exhaust Fluid Description and Action
Message
Indicates the approximate distance remaining before the
diesel exhaust fluid tank will be empty. Refill the diesel
exhaust fluid tank as soon as possible.
DEF level low Range XXX
mi Refill now
Indicates the approximate distance remaining before the
diesel exhaust fluid tank will be empty and when it will restrict
your vehicle speed. Refill the diesel exhaust fluid tank as soon
as possible.
DEF level empty YY MPH
max in XXX mi
Indicates that the diesel exhaust fluid tank is empty and that
your vehicle speed is being restricted. Refill the diesel exhaust
fluid tank as soon as possible.
DEF level empty Speed
limited to YY MPH
Indicates that the diesel exhaust fluid tank is empty and that
your vehicle speed will be restricted when you restart your
vehicle. Refill the diesel exhaust fluid tank as soon as possible.
DEF level empty YY MPH
max Upon restart
Indicates that the diesel exhaust fluid tank is empty and that
the engine will soon be restricted to idle operation.
DEF level empty Engine
idled soon
Indicates that the diesel exhaust fluid tank is empty and that
the engine is restricted to idle operation.
DEF level empty Engine
idled See manual
Indicates that your vehicle speed will soon be restricted. The
system has detected a fault that requires service.
DEF fault YY MPH max in
XXXX mi
Indicates that your vehicle speed is restricted. The system
has detected a fault that requires service.
DEF fault Speed limited
to YY MPH
Indicates that the engine will soon be restricted to idle oper-
ation. The system has detected a fault that requires service.
DEF fault Engine idled
soon
85Transit (TTH) Canada/United States of America, enUSA,
Edition da te: 03/2014 Information Displays

Description and Action
Message
Indicates that the engine is restricted to idle operation. The
system has detected a fault that requires service.
DEF fault Engine idled
See manual
Indicates that your vehicle speed will be restricted when you
restart your vehicle. The system has detected a fault that
requires service.
DEF level empty YY MPH
max Upon restart
Note: When filling the diesel exhaust fluid tank from empty, there may be a short period
before the increased diesel exhaust fluid level is registered. The system must register the
increased diesel exhaust fluid level before your vehicle will return to full power.
Door Open Description and Action
Message
Stop your vehicle as soon as it is safe to do so and close the
door.
Driver door ajar
Stop your vehicle as soon as it is safe to do so and close the
door.
Driver side rear door ajar
Stop your vehicle as soon as it is safe to do so and close the
door.
Passenger door ajar
Stop your vehicle as soon as it is safe to do so and close the
door.
Passenger side rear door
ajar
Stop your vehicle as soon as it is safe to do so and close the
hood.
Hood open
Stop your vehicle as soon as it is safe to do so and close the
door.
Rear load compartment
door ajar
Stop your vehicle as soon as it is safe to do so and close the
door.
Emergency rear door ajar
Engine Description and Action
Message
The system has detected a fault that requires service.
Engine fault Service now
Stop your vehicle as soon as it is safe to do so, allow the
engine to cool and then check the coolant level. If the warning
remains on when you have checked the coolant level, the
system has detected a fault that requires service. See Engine
Coolant Check (page 206).
High engine temperature
Stop safely
86Transit (TTH) Canada/United States of America, enUSA, Edition date: 03/2014 Information Displays

Lighting
Description and Action
Message
Indicates that a brake lamp bulb has burned out. See Main-
tenance (page 200).
Brake lamp Bulb fault
Indicates that a low beam headlamp bulb has burned out.
See
Maintenance (page 200).
Low beam Bulb fault
The system has detected a fault that requires service.
Headlamp fault Service
required
Maintenance Description and Action
Message
The engine oil has exceeded the service time or distance limit.
Renew the engine oil and oil filter as soon as possible. See
Engine Oil Check
(page 204).
Oil change required
The system has detected a fault that requires service. See
Brake Fluid Check
(page 210).
Brake fluid level low
Service now
Refill the washer fluid reservoir as soon as possible. See
Washer Fluid Check
(page 210).
Washer fluid level low
Parking Aid Description and Action
Message
The system has detected a fault that requires service. See
Parking Aid
(page 143).
Parking aid fault Service
required
Parking Brake Description and Action
Message
The parking brake is applied and your vehicle speed is above
3 mph (5 km/h). If the warning remains on when you have
released the parking brake, the system has detected a fault
that requires service.
Park brake applied
87Transit (TTH) Canada/United States of America, enUSA, Edition date: 03/2014 Information Displays
