Because your vehicle's tires may wear unevenly, you may need
to replace them before a wear band appears across the entire
tread. Some spots wear more heavily than others.
*
[SV26100(ALL)01/95]
RWARNING
When replacing full size tires, never mix radial,
bias-belted, or bias-type tires. Use only the tire sizes that
are listed on the tire pressure decal. Make sure that all
tires are the same size, speed rating, and load-carrying
capacity. Use only the tire combinations recommended on
the decal. If you do not follow these precautions, your
vehicle may not drive properly and safely.
*
[SV26200(ALL)03/90]
RWARNING
Make sure that all replacement tires are of the same size,
type, load-carrying capacity, and tread design (e.g. ªAll
Terrainº, etc.), as originally offered by Ford.
*
[SV26225(ALL)04/95]
RWARNING
Do not replace your tires with ªhigh performanceº tires
or larger size tires.
*
[SV26250(ALL)05/95]
RWARNING
Use of aftermarket wheel assemblies may damage your
vehicle or cause accidents resulting in serious injuries.
*
[SV26300(ALL)05/95]
RWARNING
Failure to follow these precautions may adversely affect
the handling of the vehicle and make it easier to lose
control and roll over.
File:wnsvs.ex
Update:Tue Mar 19 08:16:43 1996

332
*
[SV26400(ALL)01/93]
Tires that are larger or smaller than your vehicle's original tires
may affect the accuracy of your speedometer and odometer.
%*
[SV27400(ALL)02/95]
Information About Tire Quality Grades
*
[SV27500(ALL)01/93]
New vehicles are fitted with tires that have their Tire Quality
Grade (described below) molded into the tire's sidewall. These
Tire Quality Grades are determined by standards that the
United States Department of Transportation has set.
*
[SV27600(ALL)12/93]
Tire Quality Grades apply to new pneumatic tires for use on
this vehicle. They do not apply to deep tread, winter-type snow
tires, space-saver or temporary use spare tires, tires with
nominal rim diameters of 10 to 12 inches (254-305 mm) or
limited production tires as defined in Title 49 Code of Federal
Regulations Part 575.104(c)(2).
*
[SV27700(ALL)01/93]
U.S. Department of Transportation Ð Tire quality grades:The
U.S. Department of Transportation requires Ford to give you the
following information about tire grades exactly as the
government has written it.
%*
[SV27800(ALL)01/95]
Treadwear
*
[SV27900(ALL)01/93]
The treadwear grade is a comparative rating based on the wear
rate of the tire when tested under controlled conditions on a
specified government test course. For example, a tire graded 150
would wear one and one-half (1 1/2) times as well on the
government course as a tire graded 100. The relative
performance of tires depends upon the actual conditions of their
use, however, and may depart significantly from the norm due
to variations in driving habits, service practices and differences
in road characteristics and climate.
File:wnsvs.ex
Update:Tue Mar 19 08:16:43 1996

Servicing Your Windstar
333
*
[SV28000(ALL)01/95]
Traction A B C
[SV28100(ALL)12/93]
The traction grades, from highest to lowest, are A, B, and C,
and they represent the tire's ability to stop on wet pavement as
measured under controlled conditions on specified government
test surfaces of asphalt and concrete. A tire marked C may have
poor traction performance. Warning: The traction grade assigned
to this tire is based on braking (straight ahead) traction tests
and does not include cornering (turning) traction.
*
[SV28300(ALL)01/95]
Temperature A B C
[SV28400(ALL)12/93]
The temperature grades are A (the highest), B, and C,
representing the tire's resistance to the generation of heat and
its ability to dissipate heat when tested under controlled
conditions on a specified indoor laboratory test wheel. Sustained
high temperature can cause the material of the tire to
degenerate and reduce tire life, and excessive temperature can
lead to sudden tire failure. The grade C corresponds to a level
of performance which all passenger car tires must meet under
the Federal Motor Vehicle Safety Stadard No. 109. Grades B and
A represent higher levels of performance on the laboratory test
wheel than the minimum required by law. Warning: The
temperature grade for this tire is established for a tire that is
properly inflated and not overloaded. Excessive speed,
underinflation, or excessive loading, either separately or in
combination, can cause heat buildup and possible tire failure.
%*
[SV28700(ALL)04/95]
Snow Tires and Chains
*
[SV28800(ALL)01/95]
The tires on your vehicle have all-weather treads that provide
traction in rain or snow. However, during the winter months in
some climates, you may need to use snow tires and occasionally
chains for your tires.
File:wnsvs.ex
Update:Tue Mar 19 08:16:43 1996

334
*
[SV28900(ALL)05/95]
RWARNING
When using snow tires, make sure they are the same size
and grade as the tires you normally use on your vehicle.
*
[SV29000(ALL)02/95]
Do not use chains when using a temporary spare. For full size
tires, use chains on the tires only in an emergency or if the law
requires them where you live. When you use the tire chains:
*
[SV29100(ALL)01/95]
n
Make sure the chains are the right size for your tires. Use
only SAE Class ªSº chains. Other types may damage your
vehicle.
*
[SV29200(ALL)01/93]
n
Put chains on tightly with the ends held down securely.
Follow the chain manufacturer's instructions.
*
[SV29300(ALL)01/93]
n
Drive slowly. If you can hear the chains rub or bang against
your vehicle, stop the vehicle and tighten the chains. If you
continue to hear the chains rub or bang against your vehicle,
remove the chains to prevent damage to your vehicle.
*
[SV29400(ALL)10/94]
n
Avoid fully loading your vehicle if possible.
*
[SV29500(ALL)05/94]
n
Remove tire chains at the first opportunity after using them
on snow and ice. Do not use the chains on dry roads.
[SV29520(ALL)10/93]
Limited chain clearance exists with P215/70R15 tires. If your
vehicle is equipped with these tires, extra care must be observed
to avoid damage with chains.
[SV29530(ALL)10/93]
Be sure:
[SV29535(ALL)10/93]
n
The chains are fully tightened
[SV29540(ALL)05/95]
n
The vehicle is driven below 30 MPH (50 km/h)
[SV29550(ALL)10/93]
n
The vehicle is lightly loaded
[SV29560(ALL)10/93]
n
To avoid sharp turns
File:wnsvs.ex
Update:Tue Mar 19 08:16:43 1996

Servicing Your Windstar
335
*
[SV29600(ALL)01/93]
Make sure your suspension insulators and bumpers are not
missing or worn to avoid damage to your vehicle.
%*
[SV29700(ALL)04/95]
Cleaning the Wheels
*
[SV29800(ALL)05/95]
Wash the wheels with the same detergent you use to wash your
vehicle's body. Do not use acid-based wheel cleaners, steel wool,
abrasives, fuel, or strong detergents. These substances will
damage protective coatings. Use tar and road oil remover to
remove grease and tar.
*
[SV29900(ALL)04/95]
NOTE: Before going to a car wash, find out if the brushes are
abrasive.
*
[SV31300(ALL)05/95]
Automatic Transaxle Fluid
[SV31400(ALL)08/94]
Under normal circumstances, you need to change the fluid at
30,000 miles (48,000 km) for normal operating conditions or
21,000 miles (34,000 km) for severe duty. However, if the
transaxle is not working properly (for example, slipping or
shifting slowly), or you notice some sign of fluid leakage, the
fluid level should be checked.
*
[SV31500(ALL)01/93]
It is best to check the transaxle fluid level at normal operating
temperature, after approximately 20 miles (30 km) of driving.
However, if necessary, you can check the fluid level without
having to drive 20 miles (30 km) to obtain a normal operating
temperature if outside temperatures are above50ÊF (10ÊC).
*
[SV31600(ALL)01/93]
NOTE: If the vehicle has been operated for an extended
period at high speeds or in city traffic during hot
weather, or if it has been pulling a trailer, the engine
should be turned off for about 30 minutes to allow
the fluid to cool before checking.
File:wnsvs.ex
Update:Tue Mar 19 08:16:43 1996

336
%*
[SV31700(ALL)02/93]
Checking the Automatic Transaxle Fluid
*
[SV31800(ALL)01/93]
With the vehicle on a level surface, start the engine and move
the gearshift lever through all of the gear ranges allowing
sufficient time for each position to engage. Securely latch the
gearshift lever in the P (Park) position, fully set the parking
brake and leave the engine running.
*
[SV32000(ALL)01/93]
Wipe off the dipstick cap, pull the dipstick out and wipe the
indicator end clean. Put the dipstick back into the filler tube and
make sure it is fully seated. Pull the dipstick out and read the
fluid level.
[SV32100(ALL)10/93]
When checking fluid at normal operating temperature, the fluid
level should be within the crosshatched area on the dipstick.
[SV32200(ALL)08/94]

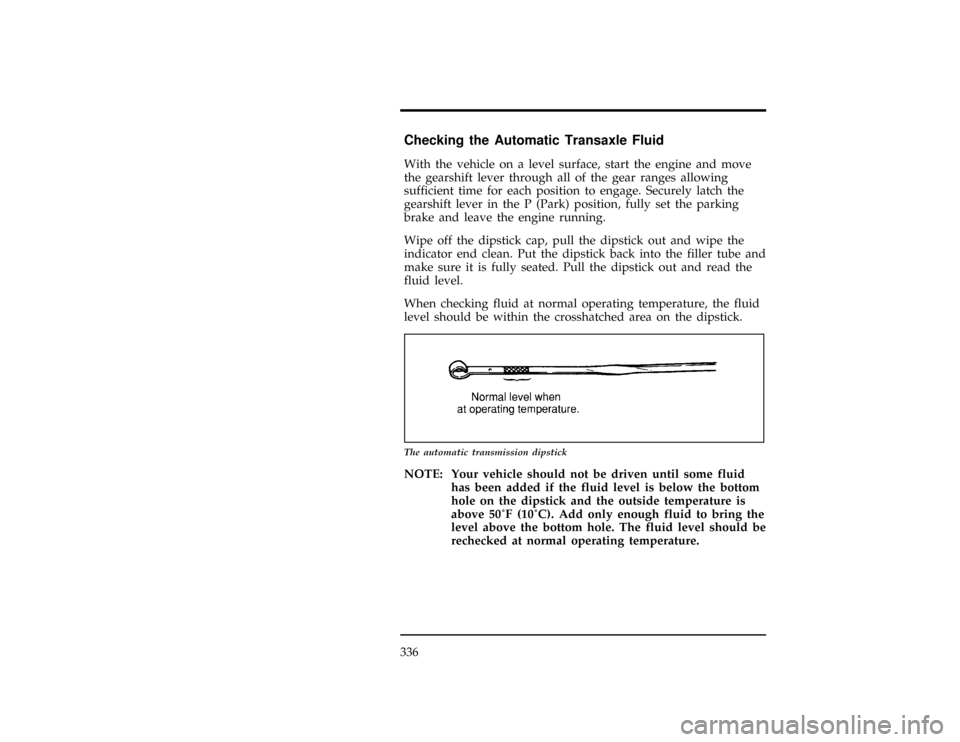

7-1/2 pica art:0050021-A
The automatic transmission dipstick
[SV32250(ALL)11/93]
NOTE: Your vehicle should not be driven until some fluid
has been added if the fluid level is below the bottom
hole on the dipstick and the outside temperature is
above50ÊF (10ÊC). Addonly enough fluid to bring the
level above the bottom hole. The fluid level should be
rechecked at normal operating temperature.
File:wnsvs.ex
Update:Tue Mar 19 08:16:43 1996

Servicing Your Windstar
337
%*
[SV32300(ALL)01/95]
Adding Automatic Transaxle Fluid
*
[SV32400(ALL)04/95]
The fluid type is stamped on the dipstick. Before adding any
fluid, be sure that the correct type will be used.
*
[SV32500(ALL)05/95]
Add fluid in 1/2 pint (0.25 liter) increments through the filler
tube to bring the level to the correct area on the dipstick. If an
overfill occurs, excess fluid should be removed by a qualified
technician.
%*
[SV32600(ALL)01/93]
NOTE: Always dispose of used automotive fluids in a
responsible manner. Follow your community's
standards for disposing of these types of fluids. Call
your local recycling center to find out about recycling
automotive fluids.
*
[SV32700(ALL)06/94]
NOTE: Always use Motorcraft MERCONHor equivalent
MERCONHautomatic transaxle fluid when you refill
your automatic transaxle fluid.
%*
[SV32800(ALL)02/95]
Brake Fluid
*
[SV32900(ALL)05/90]
Your vehicle is equipped with a brake fluid level indicator in
the master cylinder which lights the BRAKE warning light on
the instrument panel when the brake fluid level is low.
*
[SV33000(ALL)01/93]
Under normal circumstances, your vehicle should not use up
brake fluid rapidly. However, expect the level of the brake fluid
to slowly fall as you put more mileage on your vehicle and the
brake pads wear.
*
[SV33100(ALL)10/89]
Check the brake fluid at least once a year. You can do this by
looking at the fluid level in the plastic reservoir on the master
cylinder. The fluid level should be at or near the MAX mark.
*
[SV33200(ALL)05/95]
RWARNING
Brake fluid is toxic.
File:wnsvs.ex
Update:Tue Mar 19 08:16:43 1996

338
*
[SV33220(ALL)05/95]
If brake fluid contacts eyes, flush eyes with running water for
15 minutes. Get medical attention if irritation persists. If taken
internally, drink water and induce vomiting. Get medical
attention immediately.
%*
[SV33300(ALL)02/95]
If the fluid is low, carefully clean and remove the filler cap
from the reservoir. Fill the reservoir to the MAX line with Ford
High Performance DOT 3 Brake Fluid C6AZ-19542-AA or DOT
3 equivalent fluid meeting Ford specification ESA-M6C25-A.
[SV33550(ALL)05/95]
13-1/2 pica
art:0050216-B

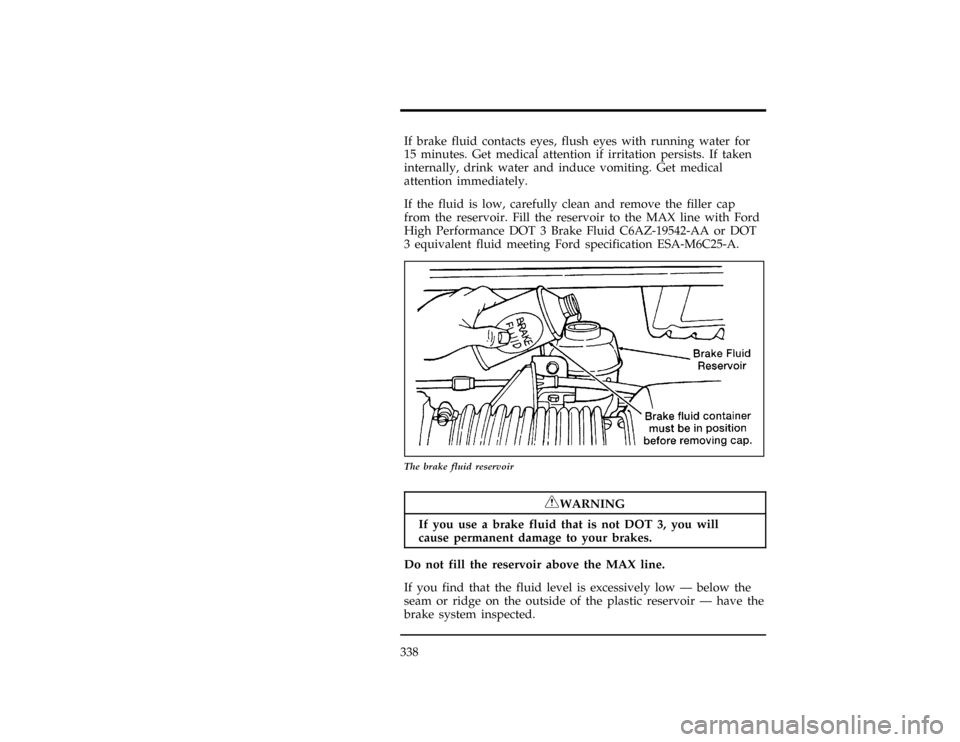

The brake fluid reservoir
*
[SV33600(ALL)01/95]
RWARNING
If you use a brake fluid that is not DOT 3, you will
cause permanent damage to your brakes.
*
[SV33700(ALL)01/95]
Do not fill the reservoir above the MAX line.
*
[SV33800(ALL)01/95]
If you find that the fluid level is excessively low Ð below the
seam or ridge on the outside of the plastic reservoir Ð have the
brake system inspected.
File:wnsvs.ex
Update:Tue Mar 19 08:16:43 1996

Servicing Your Windstar
339
*
[SV33900(ALL)01/95]
RWARNING
Do not let the reservoir for the master cylinder run dry.
This may cause the brakes to fail.
%*
[SV34100(ALL)02/95]
Power Steering Fluid
*
[SV34200(ALL)01/95]
Check the level of the power steering fluid at least twice a
year (i.e., every Spring and Fall).
*
[SV34300(ALL)03/95]
To check the level of your power steering fluid:
[SV34400(ALL)02/95]1.
Start the engine and let it run until the power steering fluid
reaches normal operating temperature. The power steering
fluid will reach the right temperature after at least five
minutes of idling or at least one mile (1 km) of driving.
*
[SV34500(ALL)01/95]2.
While the engine idles, turn the steering wheel back and
forth several times. Make sure that the cap assembly is
installed at this time.
*
[SV34600(ALL)03/93]3.
Then turn the engine off.
*
[SV34700(ALL)01/93]4.
Check the fluid level in the power steering fluid reservoir.
File:wnsvs.ex
Update:Tue Mar 19 08:16:43 1996

340
[SV34800(ALL)10/93]
13-1/2 pica
art:0050163-A
The power steering fluid cap
[SV34900(ALL)03/94]5.
If the power steering fluid is low, add fluid in small
amounts, continuously checking the level, until the fluid is
between the minimum (MIN) and maximum (MAX) lines on
the dipstick. Do not overfill.
[SV34950(ALL)10/93]6.
Make sure the cap is free of all dirt prior to re-installing to
prevent pump damage.
*
[SV35000(ALL)06/94]
Use only power steering fluid that meets Ford Specification
ESW-M2C33-F, such as Ford Premium Power Steering Fluid,
E6AZ-19582-AA or an equivalent Type F Automatic Transaxle
Fluid with a Ford registration number (an 8-digit number
beginning with ª2Pº printed on the fluid container).
*
[SV35100(ALL)03/95]
NOTE: If the power steering fluid is low, do not drive your
vehicle for a long period of time before adding fluid.
This can damage the power steering pump.
*
[SV35200(ALL)01/93]
If you must check the power steering fluid when it is cold,
make sure that the fluid reaches at least the minimum (MIN)
mark. The reading will only be accurate if the fluid temperature
is approximately 70Ê to100ÊF (21Ê to 38ÊC).
File:wnsvs.ex
Update:Tue Mar 19 08:16:43 1996
