FORD WINDSTAR 1997 1.G Owners Manual

220
WARNING
To preven telectrica lshock ,do no tus eyou rheate rwith
WARNING
Do no tstar tyou rvehicl ein a close dgarag eor in other
WARNING
If yo ueve rsmel lexhaus tfume sof an ykin dinsid eyour

Starting
221
*
[TO04300(ALL)01/96]
Have the exhaust and body ventilation systems checked by a
qualified technician whenever:
*
[TO04400(ALL)01/96]
n
your vehicle is raised for service
*
[TO04500(ALL)01/96]
n
the sound of the exhaust system changes
*
[TO04600(ALL)01/96]
n
your vehicle has been damaged in an accident
[TO04700(ALL)12/95]
If the exhaust system has any indications of leaks it should be
repaired immediately.
*
[TO04800(ALL)01/96]
Improve your ventilation by keeping all air intake vents clear of
snow, leaves, and other objects.
[TO04900(ALL)12/95]
If the engine idles while you are stopped in an open area for
long periods of time, open the windows at least one inch. Also,
adjust the heating or air conditioning to bring in outside air.
*
[TO05000(ALL)01/96]
Read the sectionClimate Control Systemsfor instructions on
bringing fresh outside air into your vehicle. Refer to the Index.
File:08wntos.ex
Update:Thu Jul 18 11:01:04 1996

223
Driving
%*
[GF00200(ALL)05/96]
Brakes
*
[GF00300(ALL)01/96]
When the foot (service) brake pedal is depressed, the
high-mount brake lamp should illuminate.
*
[GF00400(ALL)01/96]
Front Disc Brakes
[GF00500(ALL)01/96]
The front disc brakes are self-adjusting. They only require
periodic inspection for pad wear.
[GF00600(ALL)01/96]
Rear Disc Brakes (If equipped)
[GF00700(ALL)01/96]
The rear disc brakes are self-adjusting. They only require
periodic inspection for pad wear.
[GF00800(ALL)01/96]
The rear disc parking brakes need to be adjusted manually.
*
[GF00900(ALL)03/96]
Rear Drum Brakes
*
[GF01000(ALL)01/96]
The rear drum brakes are self-adjusting. Automatic adjustment
occurs through normal use of the brakes.
*
[GF01100(ALL)05/96]
Four-Wheel Anti-lock Brakes
*
[GF01200(ALL)01/96]
The Anti-lock Brake System (ABS) prevents wheels from
completely locking up by automatically releasing and
re-applying the brakes. During ABS braking, slight brake pedal
pulsations may be felt on the driver's foot. These pulsations
represent the rapid cycling of the ABS valves. The pedal
pulsations are considered normal ABS operation, and will stop
when normal braking is resumed or when the vehicle comes to
a stop.
%*
[GF01300(ALL)01/96]
During ABS activation, a mechanical noise may be heard as the
ABS system cycles. This is normal ABS operation.
*
[GF01400(ALL)01/96]
The ABS system has self-check capabilities. The system turns on
the ABS warning light each time you start the engine. After the
engine is started and the ABS warning light turns off, the
system performs another test the first time the vehicle reaches
File:09wngfs.ex
Update:Thu Jul 18 11:01:42 1996

224
*
WARNING
If th eanti-loc kbrak esyste mwarnin gligh tremain son or

Driving
225
WARNING
Modificationsto thesuspensio nsprin grate sand/or

226
WARNING
If yo uare drivin gdow nalongor stee phill ,shif tto a
File:09wngfs.ex

Driving
227
WARNING

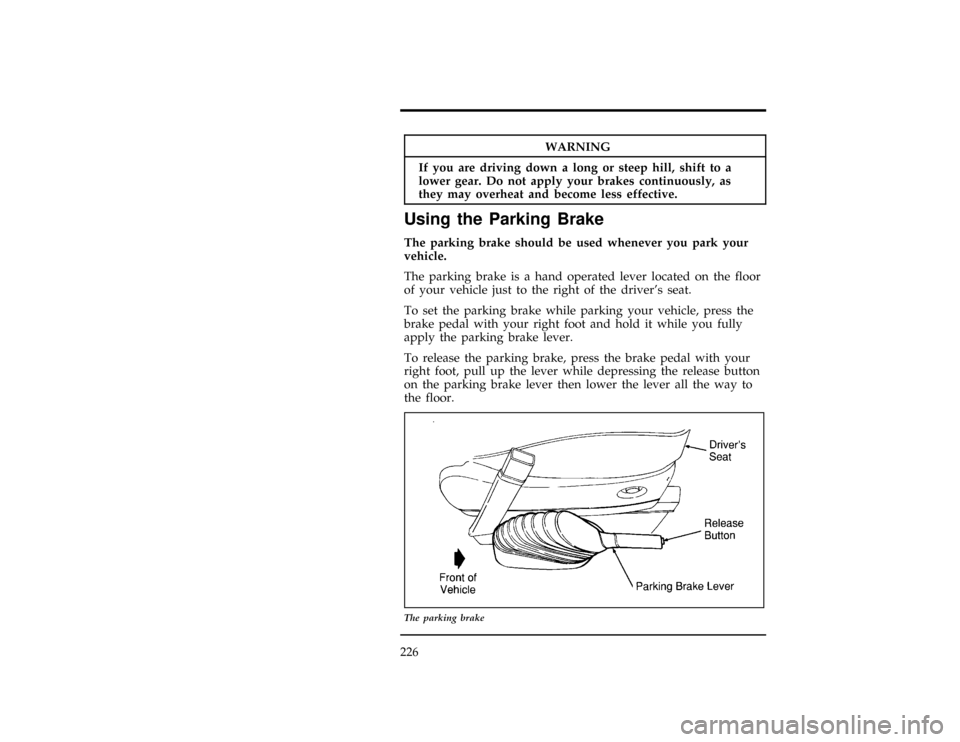

Alwaysse tth eparkin gbrak efull yan dmak esur ethe
WARNING
If th eparkin gbrak eis full yreleased ,bu tth eBrake

228
%*
[GF04100(ALL)01/96]
Steering Your Vehicle
*
[GF04200(ALL)01/96]
Your vehicle has power steering. Power steering uses energy
from the engine to help steer your vehicle.
*
[GF04300(ALL)01/96]
Never hold the steering wheel in the extreme right or left
position for more than five seconds if the engine is running.
This can damage the power steering pump.
%*
[GF04400(ALL)03/96]
If the amount of effort needed to steer your vehicle changes at a
constant vehicle speed, have the power steering system checked.
If the power steering system breaks down (or if the engine is
turned off), you can steer the vehicle manually but it takes more
effort.
*
[GF04500(ALL)01/96]
NOTE: After any severe impact such as striking large
potholes, sliding into curbs on icy roads, or a collision
involving the front end, have the front suspension
and steering checked for possible damage.
%*
[GF04600(ALL)01/96]
Automatic Transaxle Operation
%*
[GF04700(ALL)05/96]
Putting Your Vehicle in Gear
[GF04800(ALL)01/96]

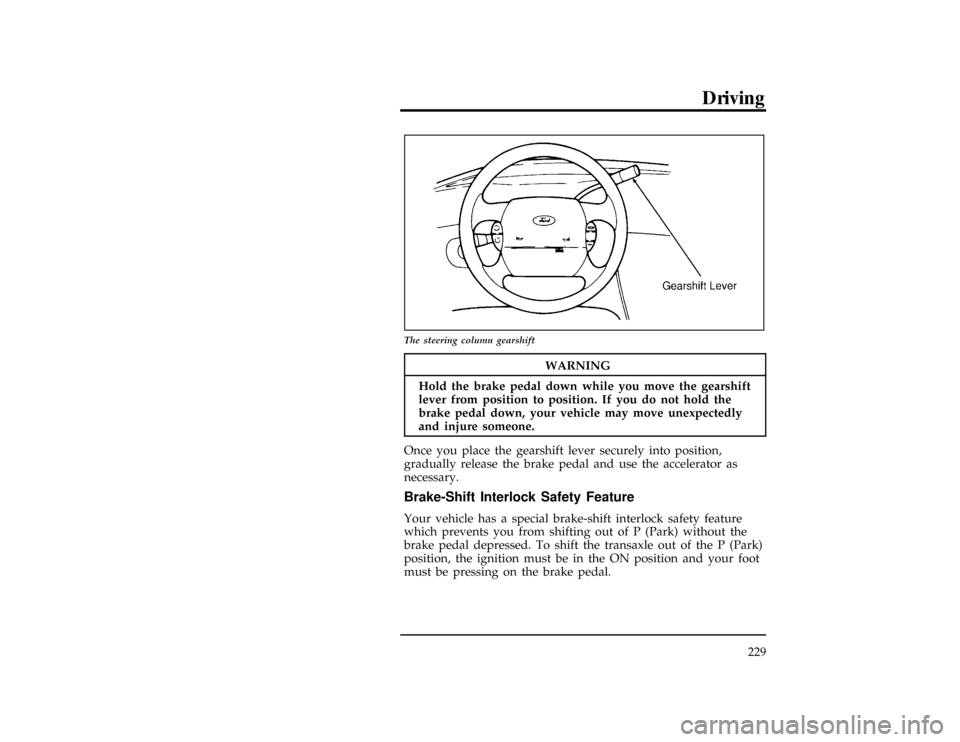

Your vehicle's gearshift lever is on the steering column. The
OVERDRIVE ON/OFF button is located on the end of the
gearshift lever. You can put the gearshift lever in any one of
several positions.
File:09wngfs.ex
Update:Thu Jul 18 11:01:42 1996

Driving
229
*WARNING
Holdthebrak epeda ldow nwhil eyo umov eth egearshift

230
WARNING
DO NO TDRIV EYOU RVEHICL EUNTI LYO UVERIFY
