FORD WINDSTAR 1998 1.G Owners Manual

Seating and Safety Restraints
191
*

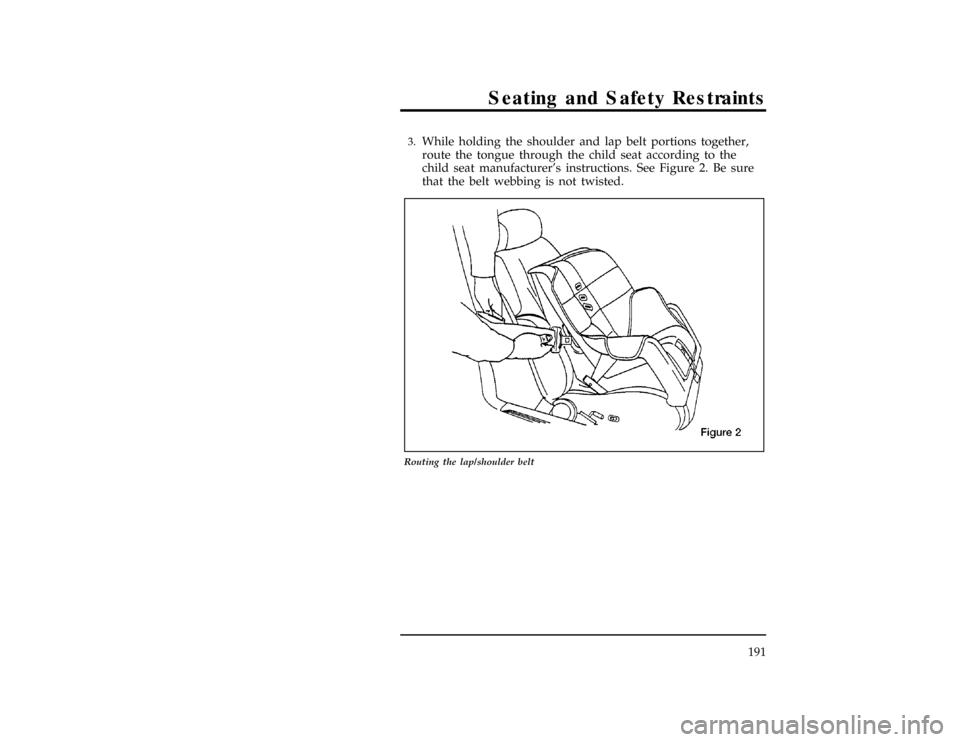

[SS30000(ALL)01/96]3.
While holding the shoulder and lap belt portions together,
route the tongue through the child seat according to the
child seat manufacturer's instructions. See Figure 2. Be sure
that the belt webbing is not twisted.
[SS30100(ALL)12/95]
17-1/2 pica
art:0050277-A
Routing the lap/shoulder belt
File:06wnsss.ex
Update:Fri Oct 11 10:48:20 1996

192
[SS30200(ALL)12/95]4.
Insert the belt into the proper buckle for that seating position
until you hear and feel the latch engage. See Figure 3. Make
sure the tongue is latched securely to buckle by pulling on
the tongue.
[SS30300(ALL)12/95]
17-1/2 pica
art:0050278-A
Buckling the belt
*
[SS30400(ALL)12/95]5.
Grasp the shoulder portion of the belt and pull downward
until all of the belt is extracted and a click is heard. At this
time, the retractor is in the automatic locking mode (child
restraint mode). See Figure 4.
[SS30500(ALL)12/95]
NOTE: The dual-locking mode retractor must be in the
automatic locking mode to properly restrain a child
seat.
File:06wnsss.ex
Update:Fri Oct 11 10:48:20 1996

Seating and Safety Restraints
193
[SS30600(ALL)12/95]
17-1/2 pica
art:0050279-A
Setting the retractor to automatic locking mode

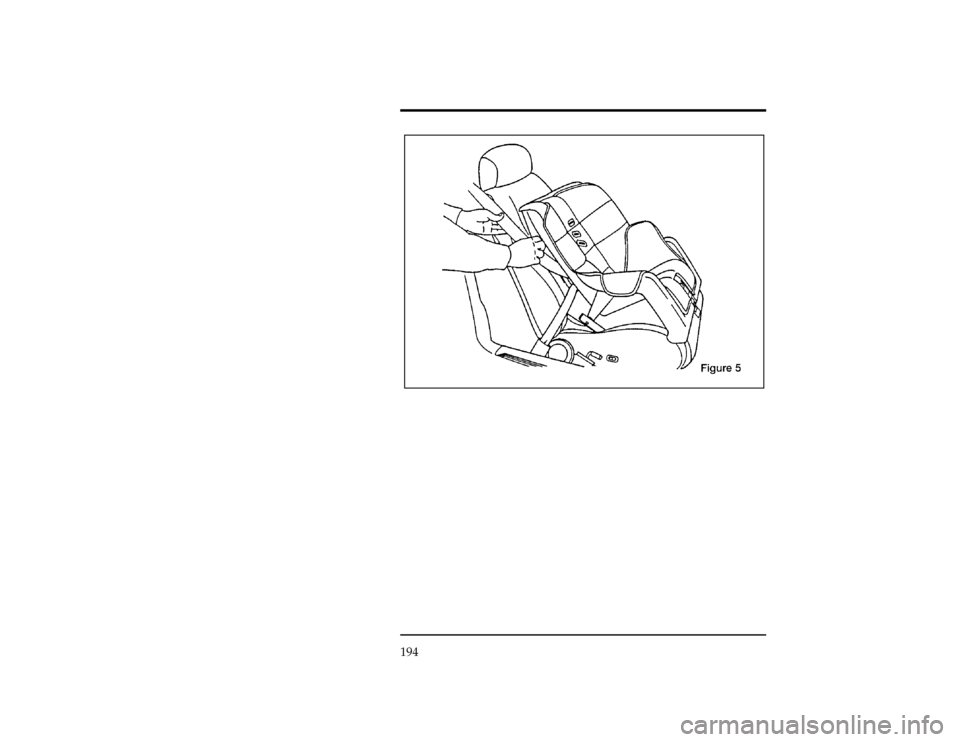

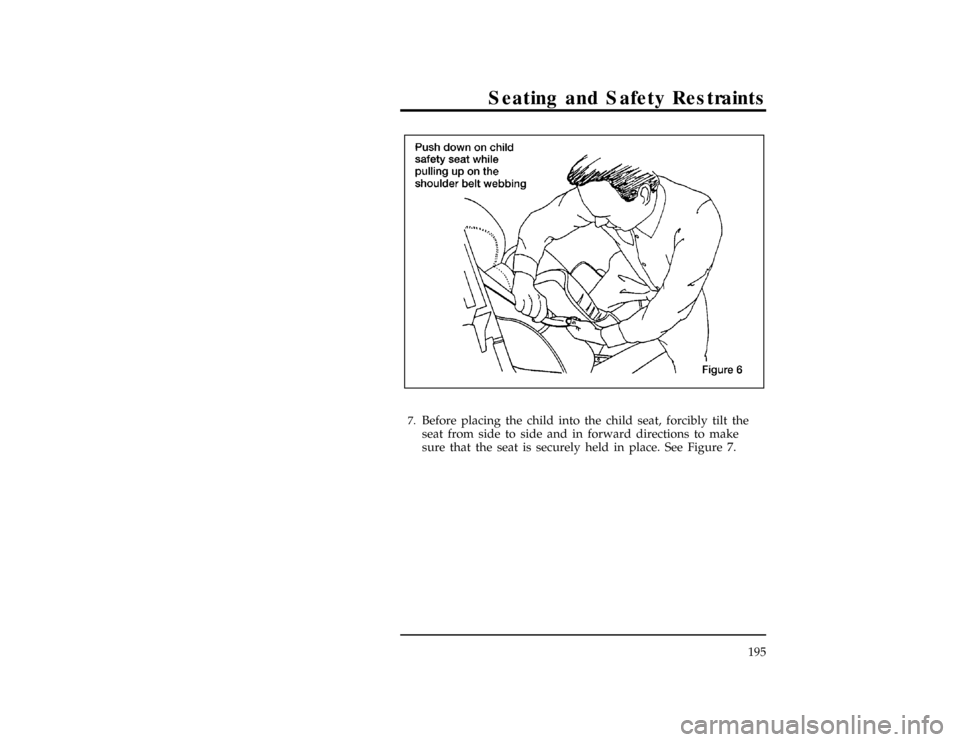

[SS30700(ALL)12/95]6.
Allow the belt to retract. A clicking sound will be heard as
the belt retracts. This indicates the retractor is in the
automatic locking mode. Pull on the lap belt portion across
the child seat towards the buckle and continue to pull up on
the shoulder belt portion while pushing down on the child
seat allowing the shoulder belt to retract, to remove any
slack in seat belt. See Figures 5 and 6.
File:06wnsss.ex
Update:Fri Oct 11 10:48:20 1996

194
[SS30800(ALL)12/95]
17-1/2 pica
art:0050280-AFile:06wnsss.ex
Update:Fri Oct 11 10:48:20 1996

Seating and Safety Restraints
195
[SS30900(ALL)12/95]
17-1/2 pica

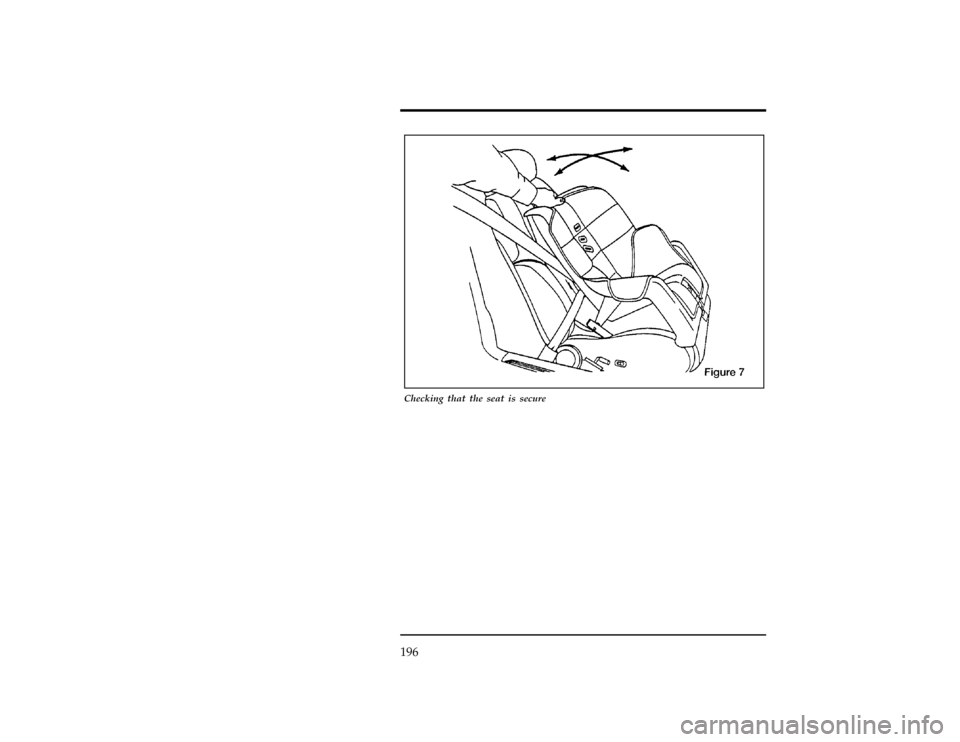

art:0050281-A[SS31000(ALL)12/95]7.
Before placing the child into the child seat, forcibly tilt the
seat from side to side and in forward directions to make
sure that the seat is securely held in place. See Figure 7.
File:06wnsss.ex
Update:Fri Oct 11 10:48:20 1996

196
[SS31100(ALL)12/95]
17-1/2 pica
art:0050282-A
Checking that the seat is secure
File:06wnsss.ex
Update:Fri Oct 11 10:48:20 1996

Seating and Safety Restraints
197

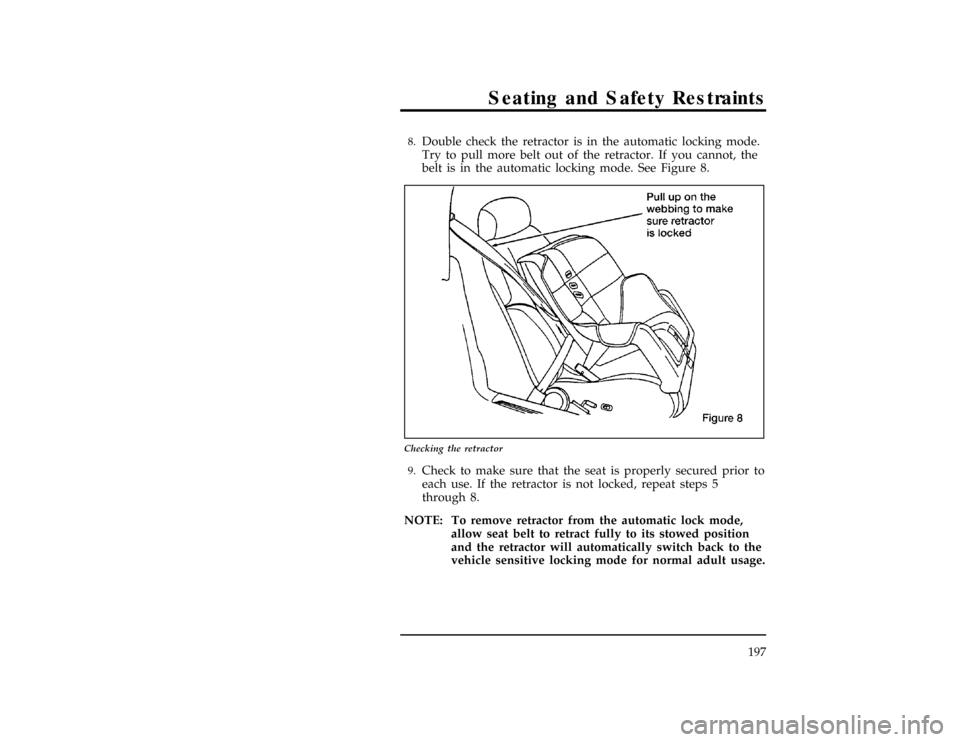

[SS31200(ALL)12/95]8.
Double check the retractor is in the automatic locking mode.
Try to pull more belt out of the retractor. If you cannot, the
belt is in the automatic locking mode. See Figure 8.
[SS31300(ALL)12/95]
17-1/2 pica
art:0050283-A
Checking the retractor
[SS31400(ALL)09/96]9.
Check to make sure that the seat is properly secured prior to
each use. If the retractor is not locked, repeat steps 5
through 8.
[SS31500(ALL)12/95]
NOTE: To remove retractor from the automatic lock mode,
allow seat belt to retract fully to its stowed position
and the retractor will automatically switch back to the
vehicle sensitive locking mode for normal adult usage.
File:06wnsss.ex
Update:Fri Oct 11 10:48:20 1996

198
*
[SS31600(ALL)05/96]
Installing a Child Safety Seat at the Center Seating
Position with Locking Adjustable Lap Belt
*
[SS31700(ALL)01/96]1.
Lengthen the lap belt. To lengthen the belt, hold the tongue
so that its bottom is perpendicular to the direction of
webbing while sliding the tongue up the webbing.
*
[SS31800(ALL)01/96]2.
Place the child safety seat in the center seating position.
*
[SS31900(ALL)01/96]3.
Route the tongue and webbing through the child seat
according to the child seat manufacturer's instructions.
*
[SS32000(ALL)01/96]4.
Insert the belt tongue into the proper buckle for the center
seating position until you hear a snap and feel it latch. Make
sure the tongue is securely fastened to the buckle by pulling
on tongue.
*
[SS32100(ALL)01/96]5.
Push down on the child seat while pulling on the loose end
of the lap belt webbing to tighten the belt.
[SS32200(ALL)12/95]6.
Before placing the child into the child seat, forcibly tilt the
child seat from side to side and in forward directions to
ensure that the seat is held securely in place. If the child seat
moves excessively, repeat steps 5 through 6 or properly
install the child seat in a different seating position.
File:06wnsss.ex
Update:Fri Oct 11 10:48:20 1996

Seating and Safety Restraints
199
%*
[SS32300(ALL)04/96]
Attaching Safety Seats With Tether Straps
*
[SS32400(ALL)04/96]
Some manufacturers make safety seats that include a tether
strap that goes over the back of the vehicle seat and attaches to
an anchoring point. Other manufacturers offer the tether strap
as an accessory. Contact the manufacturer of your child safety
seat for information about ordering a tether strap.
[SS32500(ALL)12/95]
You can attach a tether strap to the front passenger or second
row seats by using the built-in tether anchors provided on the
back of the seats as described below.
[SS32600(ALL)12/95]
Follow the child seat manufacturer's instructions to attach the
tether strap to the tether anchor.
[SS32700(ALL)12/95]
RWARNING
Use only the tether attachment locations shown below.
The tether anchor may not perform properly if the wrong
mounting location is used.
File:06wnsss.ex
Update:Fri Oct 11 10:48:20 1996

200
[SS32800(ALL)12/95]

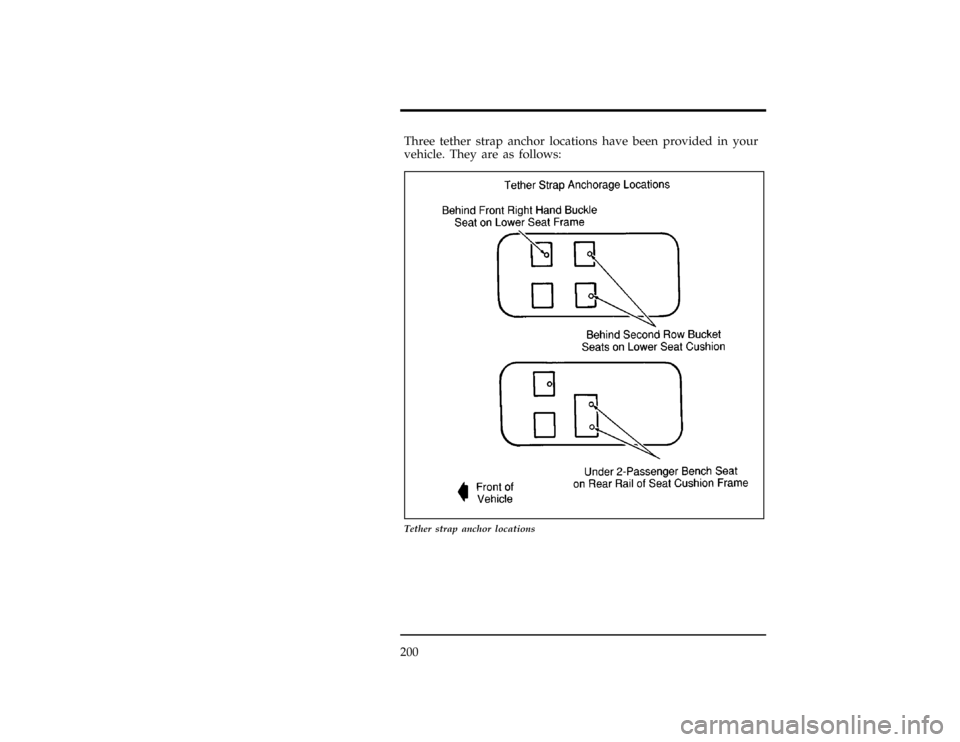

Three tether strap anchor locations have been provided in your
vehicle. They are as follows:
[SS32900(ALL)12/95]
24 pica art:0050183-A
Tether strap anchor locations
