FORD WINDSTAR 1998 1.G Owners Manual

292
*
[MC15700(ALL)01/96]
7-1/2 pica art:0040201-A
Battery recycling symbol
*
[MC15800(ALL)02/96]
RWARNING
The gases around the battery can explode if exposed to
flames, sparks, or lit cigarettes. An explosion could result
in injury or vehicle damage.
%*
[MC15900(ALL)05/96
]
RWARNING
Batteries contain sulfuric acid which burns skin, eyes,
and clothing.
*
[MC16000(ALL)02/96]
If the acid touches someone's skin, eyes, or clothing,
immediately flush the area with water for at least 15 minutes. If
someone swallows the acid, have him or her drink lots of milk
or water first, then Milk of Magnesia, a beaten egg, or vegetable
oil. Call a doctor immediately.
%*
[MC16100(ALL)02/96
]
RWARNING
Applying too much pressure on the ends when lifting a
battery could cause acid to spill. Lift the battery with a
carrier or with your hands on the opposite corners.
File:11wnmcs.ex
Update:Tue Oct 8 10:24:50 1996

Maintenance and Care
293
%*
[MC16200(ALL)02/96]
Wiper Blades
[MC16300(ALL)01/96]
Check the windshield wipers at least twice a year. Also check
them whenever they seem less effective than usual. Such
substances as tree sap and some hot wax treatments used by
commercial car washes reduce the effectiveness of wipers.
*
[MC16400(ALL)01/96]
If the blades do not wipe properly, clean both the windshield
and the wiper blades. Use undiluted windshield washer solution
or a mild detergent. Rinse thoroughly with clear water. Do not
use fuel, kerosene, paint thinner, or other solvents to clean your
wiper blades. These will damage your blades.
[MC16500(ALL)01/96]
Your wipers have a service feature that allows you to pull the
wiper arms and blades away from the windshield and into an
upright position. This service position allows you easy access to
the blades from either side of your vehicle.
*
[MC16600(ALL)01/96]
To reach the wiper blades easily, turn the ignition switch to
ACCESSORY and turn your wipers on. Wait for them to reach a
vertical position and turn the ignition to OFF. Moving the
wipers manually may damage them.
[MC16700(ALL)07/96]
Wiper Blade Replacement
*
[MC16800(ALL)01/96]
If the wipers still do not work properly after you clean them,
you may need to replace the wiper blade assembly. When
replacing the wiper blade assembly always use a Motorcraft part
or equivalent.
*
[MC16900(ALL)08/95]
To replace the wiper blades:
*
[MC17000(ALL)01/96]1.
Pull the wiper arm away from the windshield and into the
lock position.
[MC17100(ALL)01/96]2.
Turn the blade at an angle from the wiper arm. Squeeze the
lock tabs of the plastic clip together to release the blade and
pull the wiper blade down toward the windshield to remove
it from the arm.
File:11wnmcs.ex
Update:Tue Oct 8 10:24:50 1996

294
*
[MC17200(ALL)08/95]3.
Attach a new wiper blade to the wiper arm and press it into
place until you hear it click.
%*
[MC17300(ALL)01/96]
Tires
[MC17400(ALL)04/96]
Look at your tires each time you fill your fuel tank. If one tire
looks lower than the others, check the pressure in all of them.
[MC17500(ALL)01/96]
n
Keep your tires inflated to the recommended pressures. See
Checking the pressure of the tireslater in this chapter.
*
[MC17600(ALL)01/96]
n
Stay within the recommended load limits. SeeDriving with a
heavy loadin the Index.
*
[MC17700(ALL)03/96]
n
Make sure the weight of your load is evenly distributed.
*
[MC17800(ALL)03/96]
n
Adjust tire pressure to recommended specifications found on
the Safety Compliance Certification Label.
*
[MC17900(ALL)03/96]
If you do not take these precautions, your tires may fail or go
flat.
*
[MC18000(ALL)01/96]
RWARNING
Always obey posted speed limits. If you drive too fast
for road conditions, you could lose control of your
vehicle. Under some circumstances, driving at very high
speeds for extended periods of time may damage vehicle
components, creating a risk of component failure and a
potential loss of vehicle control. Any time you lose
control of your vehicle, it may result in injury.
[MC18100(ALL)01/96]
At least once a month, check the pressure in all your tires,
including the spare. Use an accurate tire pressure gauge. Check
the tire pressure when tires are cold, that is, after the vehicle
has been parked for at least one hour or has been driven less
than 3 miles (5 km). You can find the proper cold tire pressure
on the Safety Compliance Certification Label located on the
driver's door pillar.
File:11wnmcs.ex
Update:Tue Oct 8 10:24:50 1996

Maintenance and Care
295
*
[MC18200(ALL)01/96]
RWARNING
Improperly inflated tires can affect vehicle handling and
can fail suddenly, possibly resulting in loss of vehicle
control.
%*
[MC18300(ALL)01/96]

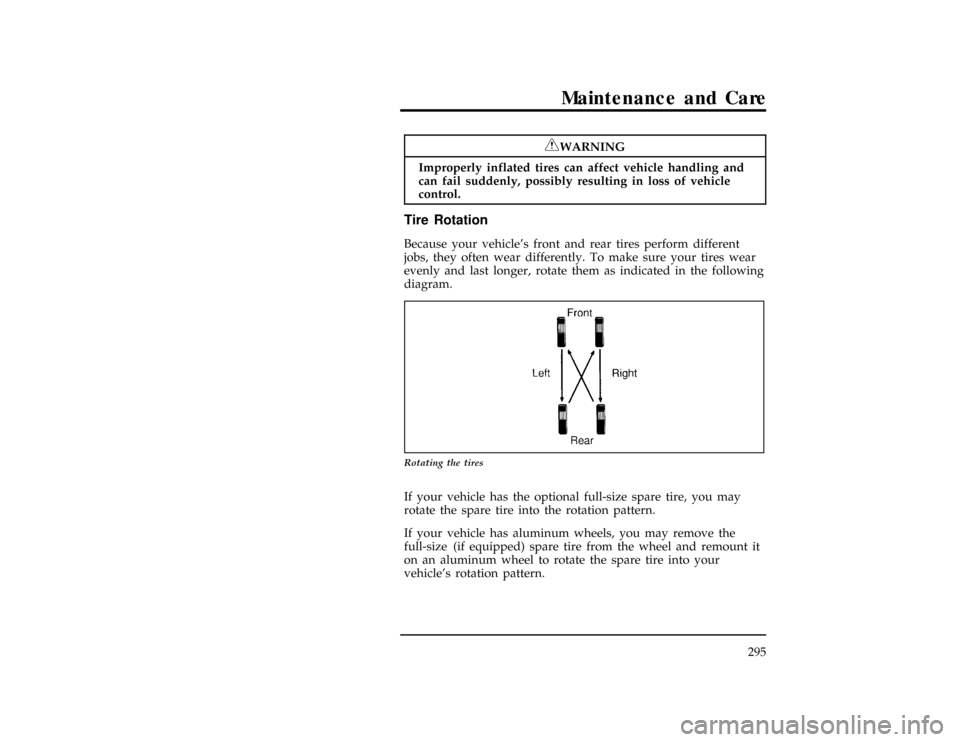

Tire Rotation
*
[MC18400(ALL)01/96]
Because your vehicle's front and rear tires perform different
jobs, they often wear differently. To make sure your tires wear
evenly and last longer, rotate them as indicated in the following
diagram.
[MC18500(ALL)01/96]
10-1/2 pica
art:0050224-A
Rotating the tires
*
[MC18600(ALL)01/96]
If your vehicle has the optional full-size spare tire, you may
rotate the spare tire into the rotation pattern.
[MC18700(ALL)01/96]
If your vehicle has aluminum wheels, you may remove the
full-size (if equipped) spare tire from the wheel and remount it
on an aluminum wheel to rotate the spare tire into your
vehicle's rotation pattern.
File:11wnmcs.ex
Update:Tue Oct 8 10:24:50 1996

296
%*
[MC18800(ALL)01/96]

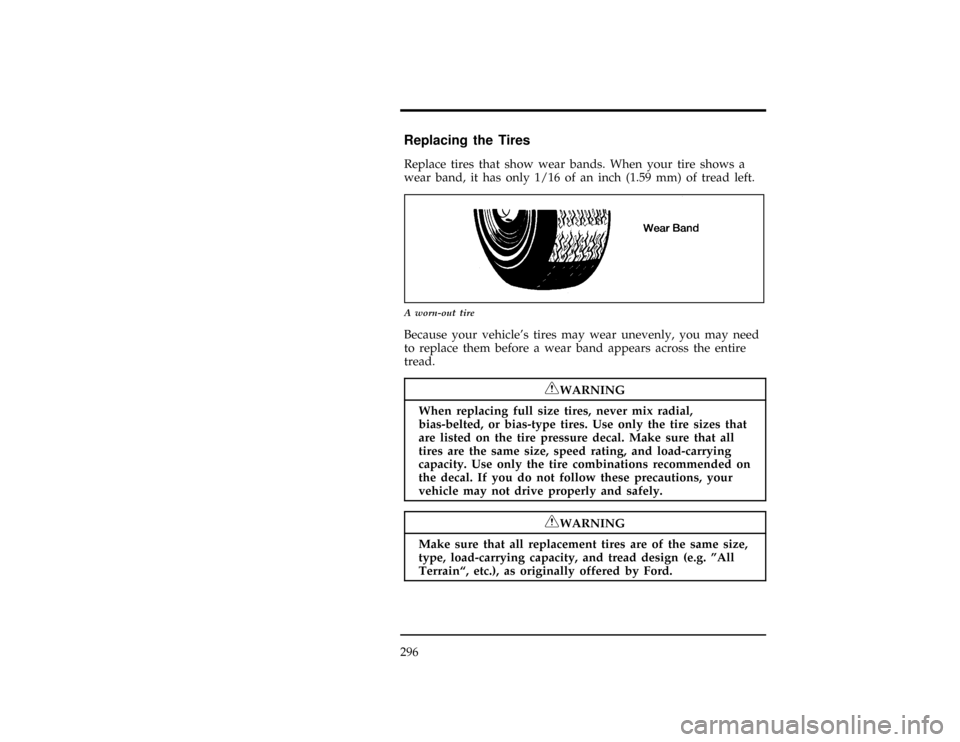

Replacing the Tires
*
[MC18900(ALL)01/96]
Replace tires that show wear bands. When your tire shows a
wear band, it has only 1/16 of an inch (1.59 mm) of tread left.
*
[MC19000(ALL)01/96]
7-1/2 pica art:0040200-A
A worn-out tire
*
[MC19100(ALL)02/96]
Because your vehicle's tires may wear unevenly, you may need
to replace them before a wear band appears across the entire
tread.
*
[MC19200(ALL)01/96]
RWARNING
When replacing full size tires, never mix radial,
bias-belted, or bias-type tires. Use only the tire sizes that
are listed on the tire pressure decal. Make sure that all
tires are the same size, speed rating, and load-carrying
capacity. Use only the tire combinations recommended on
the decal. If you do not follow these precautions, your
vehicle may not drive properly and safely.
*
[MC19300(ALL)03/96]
RWARNING
Make sure that all replacement tires are of the same size,
type, load-carrying capacity, and tread design (e.g. ºAll
Terrainª, etc.), as originally offered by Ford.
File:11wnmcs.ex
Update:Tue Oct 8 10:24:50 1996

Maintenance and Care
297
*
[MC19400(ALL)03/96]
RWARNING
Do not replace your tires with ºhigh performanceª tires
or larger size tires.
*
[MC19500(ALL)03/96]
RWARNING
Use of aftermarket wheel assemblies may damage your
vehicle or cause accidents resulting in serious injuries.
*
[MC19600(ALL)03/96]
RWARNING
Failure to follow these precautions may adversely affect
the handling of the vehicle and make it easier to lose
control and roll over.
*
[MC19700(ALL)01/96]
Tires that are larger or smaller than your vehicle's original tires
may affect the accuracy of your speedometer and odometer.
%*
[MC19800(ALL)01/96]
Information About Tire Quality Grades
*
[MC19900(ALL)01/96]
New vehicles are fitted with tires that have their Tire Quality
Grade (described below) molded into the tire's sidewall. These
Tire Quality Grades are determined by standards that the
United States Department of Transportation has set.
*
[MC20000(ALL)01/96]
Tire Quality Grades apply to new pneumatic tires for use on
this vehicle. They do not apply to deep tread, winter-type snow
tires, space-saver or temporary use spare tires, tires with
nominal rim diameters of 10 to 12 inches (254-305 mm) or
limited production tires as defined in Title 49 Code of Federal
Regulations Part 575.104(c)(2).
*
[MC20100(ALL)01/96]
U.S. Department of Transportation Ð Tire quality grades:The
U.S. Department of Transportation requires Ford to give you the
following information about tire grades exactly as the
government has written it.
File:11wnmcs.ex
Update:Tue Oct 8 10:24:50 1996

298
%*
[MC20200(ALL)01/96]
Treadwear
*
[MC20300(ALL)01/96]
The treadwear grade is a comparative rating based on the wear
rate of the tire when tested under controlled conditions on a
specified government test course. For example, a tire graded 150
would wear one and one-half (1 1/2) times as well on the
government course as a tire graded 100. The relative
performance of tires depends upon the actual conditions of their
use, however, and may depart significantly from the norm due
to variations in driving habits, service practices and differences
in road characteristics and climate.
*
[MC20400(ALL)01/96]
Traction A B C
*
[MC20500(ALL)01/96]
The traction grades, from highest to lowest, are A, B, and C,
and they represent the tire's ability to stop on wet pavement as
measured under controlled conditions on specified government
test surfaces of asphalt and concrete. A tire marked C may have
poor traction performance. Warning: The traction grade assigned
to this tire is based on braking (straight ahead) traction tests
and does not include cornering (turning) traction.
*
[MC20600(ALL)01/96]
Temperature A B C
[MC20700(ALL)01/96]
The temperature grades are A (the highest), B, and C,
representing the tire's resistance to the generation of heat and
its ability to dissipate heat when tested under controlled
conditions on a specified indoor laboratory test wheel. Sustained
high temperature can cause the material of the tire to
degenerate and reduce tire life, and excessive temperature can
lead to sudden tire failure. The grade C corresponds to a level
of performance which all passenger car tires must meet under
the Federal Motor Vehicle Safety Stadard No. 109. Grades B and
A represent higher levels of performance on the laboratory test
wheel than the minimum required by law. Warning: The
temperature grade for this tire is established for a tire that is
properly inflated and not overloaded. Excessive speed,
underinflation, or excessive loading, either separately or in
combination, can cause heat buildup and possible tire failure.
File:11wnmcs.ex
Update:Tue Oct 8 10:24:50 1996

Maintenance and Care
299
[MC20800(ALL)08/96]
Snow Chains
[MC20900(ALL)08/96]
The tires on your vehicle have all-weather treads that provide
traction in rain or snow. However, during the winter months in
some climates, you may need to use chains with your tires. Use
tire chains with P205/70R15 tires only.
*
[MC21100(ALL)01/96]
Do not use chains when using a temporary spare. For full size
tires, use chains on the tires only in an emergency or if the law
requires them where you live. When you use the tire chains:
*
[MC21200(ALL)01/96]
n
Make sure the chains are the right size for your tires. Use
only SAE Class ºSª chains. Other types may damage your
vehicle.
*
[MC21300(ALL)01/96]
n
Put chains on tightly with the ends held down securely.
Follow the chain manufacturer's instructions.
*
[MC21400(ALL)01/96]
n
Drive slowly. If you can hear the chains rub or bang against
your vehicle, stop the vehicle and tighten the chains. If you
continue to hear the chains rub or bang against your vehicle,
remove the chains to prevent damage to your vehicle.
*
[MC21500(ALL)01/96]
n
Avoid fully loading your vehicle if possible.
*
[MC21600(ALL)01/96]
n
Remove tire chains at the first opportunity after using them
on snow and ice. Do not use the chains on dry roads.
[MC21800(ALL)01/96]
Be sure:
[MC21900(ALL)01/96]
n
The chains are fully tightened
[MC22000(ALL)01/96]
n
The vehicle is driven below 30 MPH (50 km/h)
[MC22100(ALL)01/96]
n
The vehicle is lightly loaded
[MC22200(ALL)01/96]
n
To avoid sharp turns
*
[MC22300(ALL)01/96]
Make sure your suspension insulators and bumpers are not
missing or worn to avoid damage to your vehicle.
File:11wnmcs.ex
Update:Tue Oct 8 10:24:50 1996

300
% [MC22400(ALL)08/96]
Filling Your Fuel Tank

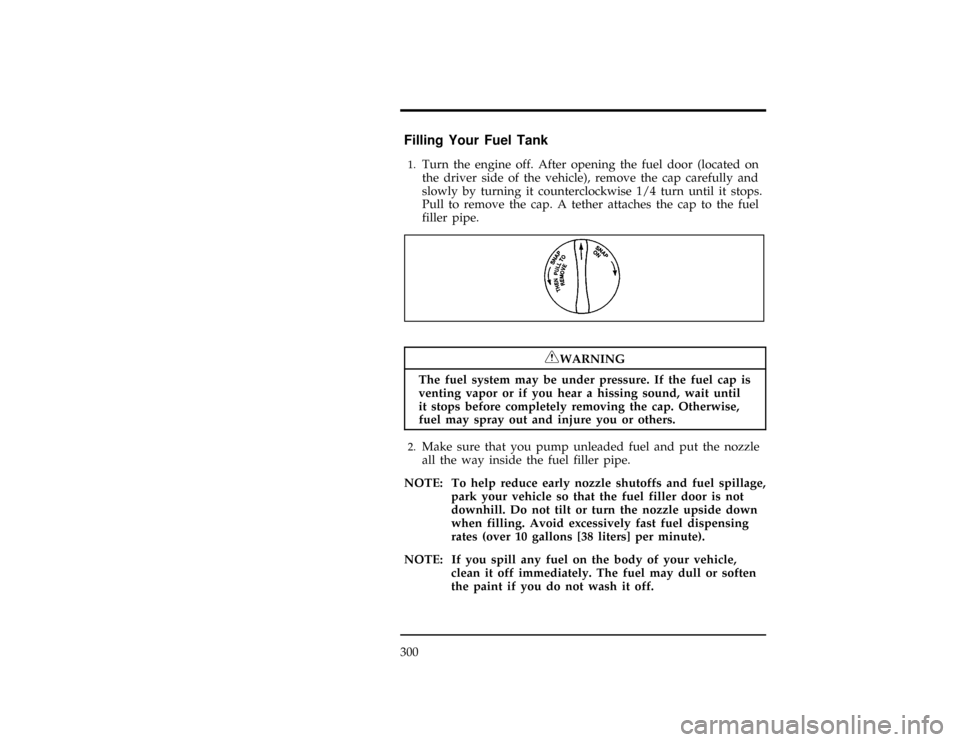

[MC22500(ALL)08/96]1.
Turn the engine off. After opening the fuel door (located on
the driver side of the vehicle), remove the cap carefully and
slowly by turning it counterclockwise 1/4 turn until it stops.
Pull to remove the cap. A tether attaches the cap to the fuel
filler pipe.
[MC22600(ALL)09/96]
one inch art:0051020-A[MC22700(ALL)08/96]
RWARNING
The fuel system may be under pressure. If the fuel cap is
venting vapor or if you hear a hissing sound, wait until
it stops before completely removing the cap. Otherwise,
fuel may spray out and injure you or others.
*
[MC22800(ALL)08/96]2.
Make sure that you pump unleaded fuel and put the nozzle
all the way inside the fuel filler pipe.
[MC22900(ALL)08/96]
NOTE: To help reduce early nozzle shutoffs and fuel spillage,
park your vehicle so that the fuel filler door is not
downhill. Do not tilt or turn the nozzle upside down
when filling. Avoid excessively fast fuel dispensing
rates (over 10 gallons [38 liters] per minute).
*
[MC23000(ALL)08/96]
NOTE: If you spill any fuel on the body of your vehicle,
clean it off immediately. The fuel may dull or soften
the paint if you do not wash it off.
File:11wnmcs.ex
Update:Tue Oct 8 10:24:50 1996

Maintenance and Care
301
[MC23100(ALL)08/96]3.
To replace the fuel cap, align the tabs on the cap with the
notches on the filler pipe. Turn it clockwise until it stops.
*
[MC23200(ALL)08/96]4.
Push the fuel door closed.
[MC23250(ALL)08/96]
If the Service Engine Soon warning light comes on and stays on
when you start the engine, the fuel cap may not be properly
seated. Turn off the engine, remove the fuel cap and replace it,
being careful to align the cap properly. For more information,
seeWarning lightsin the Index.
*
[MC23300(ALL)01/96]
If you lose the fuel cap, replace it with an authorized Motorcraft
or equivalent part.
%*
[MC23400(ALL)01/96
]
RWARNING
If you do not use the proper fuel cap, the pressure in the
fuel tank can damage the fuel system or cause it to work
improperly in a collision.
*
[MC23500(ALL)01/96]
NOTE: If you replace your fuel cap with an aftermarket fuel
filler cap, the customer warranty may be void for any
damage to the fuel tank and/or fuel system.
[MC24100(ALL)08/96]
Choosing the Right Fuel
*
[MC24200(ALL)08/96]
Use only UNLEADED FUEL. Using leaded fuel is prohibited by
federal law. Any vehicle damage may not be covered by your
warranty.
[MC24300(ALL)08/96]
Your vehicle was not designed to use fuel containing
manganese-based additives such as MMT. Additionally, vehicles
certified to California emission standards (indicated on the
underhood Vehicle Emissions Control Information label) are
designed to operate on California reformulated gasolines. If
California reformulated gasoline is not available when you
refuel, your vehicle can be operated on non-California fuels.
However, even though your engine will perform adequately on
File:11wnmcs.ex
Update:Tue Oct 8 10:24:50 1996
