GENESIS G80 2021 Owner's Guide

02
2-9
Light bulbBulb typeWattage
Front Headlamp
Low
LEDLED
High LEDLED
Turn signal lamp LEDLED
Parking lamp LEDLED
Side marker LEDLED
Daytime Running Lamp (DRL) LEDLED
Puddle lamp LEDLED
Rear Stop lamp
LEDLED
Tail lamp LEDLED
Turn signal lamp LEDLED
Reverse lamp LEDLED
Side marker LEDLED
License plate lamp LEDLED
High mounted stop lamp LEDLED
Interior Map lamp
LEDLED
Room lamp (without sunroof) LEDLED
Personal lamp (with sunroof) LEDLED
Vanity mirror lamp LEDLED
Glove box lamp LEDLED
Handle lamp / Mood lamp / Door courtesy
lamp LED
LED
Trunk lamp LEDLED
BULB WATTAGE

Vehicle Information, Consumer Information and Reporting Safety Defects
2-10
ItemsTire sizeWheel size Inflation pressure psi (kPa)
Wheel bolt
torque [lbf·ft
(kgf·m, N·m)]
Normal load
Maximum
load
Front RearFront Rear
Full
size tire 18 in.
245/50R18
8.0J X 1836
(250) 36
(250) 38
(260) 38
(260)
101~116
(14~16, 137~157)
19 in.
245/45R19
8.5J X 1936
(250) -38
(260) -
275/40R19
9.5J X 19-36
(250) -38
(260)
20 in.
245/40R20 8.5J X 2038
(260) -40
(275) -
275/35R20
9.5J X 20-38
(260) -40
(275)
Compact
spare tireT135/70R19 4.0T X 1960
(420) 60
(420) 60
(420) 60
(420)
NOTICE
• It is permissible to add 3psi to the standard tire pressure specification if colder
temperatures are expected soon.
• Tires typically lose 1psi (7kPa) for every 12°F temperature drop. If extreme
temperature variations are expected, recheck your tire pressure as necessary to
keep them properly inflated.
• Tire inflation pressures will vary with changes in elevation. If driving in areas of
higher or lower elevation, be sure to check and adjust for proper tire inflation.
CAUTION
• When replacing tires, use the same size originally supplied with the vehicle.
• Using tires of a different size can damage the related parts or not work properly.
• When replacing tires, ALWAYS use the same size, type, construction and tread
pattern supplied with the vehicle for all tires.
TIRES AND WHEELS

02
2-11

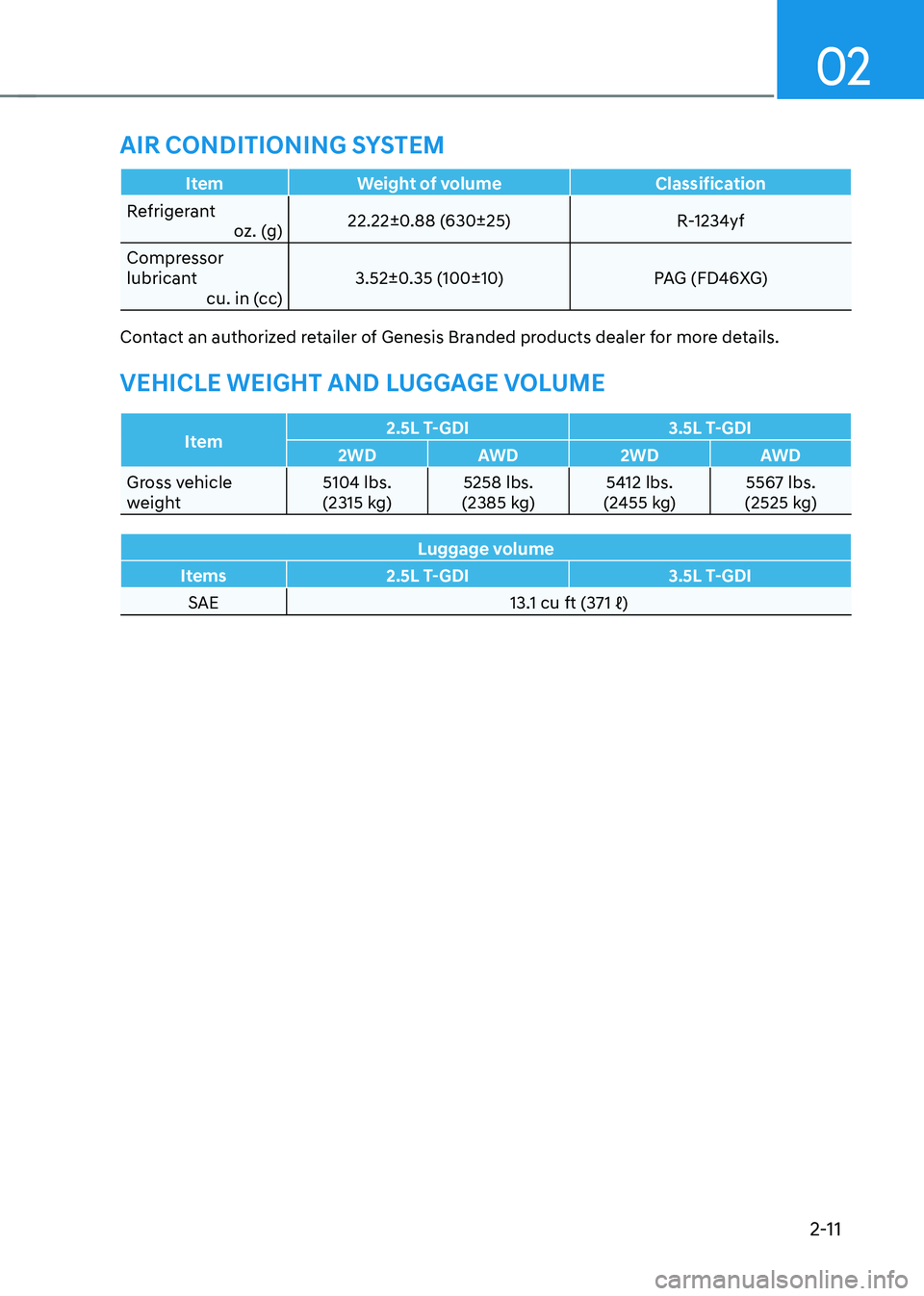

ItemWeight of volume Classification
Refrigerant oz. (g) 22.22±0.88 (630±25)
R-1234yf
Compressor
lubricant cu. in (cc) 3.52±0.35 (100±10)
PAG (FD46XG)
Contact an authorized retailer of Genesis Branded products dealer for more details.
VEHICLE WEIGHT AND LUGGAGE VOLUME
Item 2.5L T-GDI
3.5L T-GDI
2WD AWD 2WDAWD
Gross vehicle
weight 5104 lbs.
(2315 kg) 5258 lbs.
(2385 kg) 5412 lbs.
(2455 kg) 5567 lbs.
(2525 kg)
Luggage volume
Items 2.5L T-GDI 3.5L T-GDI
SAE 13.1 cu ft (371 ℓ)
AIR CONDITIONING SYSTEM

Vehicle Information, Consumer Information and Reporting Safety Defects
2-12
To help achieve proper engine and powertrain performance and durability, use only
lubricants of the proper quality. The correct lubricants also help promote engine
efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
LubricantVolumeClassification
Engine oil
*1
Recommends 2.5L T-GDI
6.5 US qt. (6.2 ℓ)
SAE 0W-30, API SN PLUS/
SP or ILSAC GF-6
*43.5L T-GDI 7.4 US qt. (7.0 ℓ)
Automatic transmission fluid 9.7 US qt. (9.2 ℓ)GS ATF SP-IV-RR, Genesis/
HYUNDAI genuine ATF
SP-IV-RR or other brands
meeting the above
specification approved by
Genesis Customer Care
Engine coolant 2.5L T-GDI
10.1 US qt. (9.6 ℓ)
Mixture of antifreeze and
water (Phosphate-based
Ethylene glycol coolant for
aluminum radiator)
3.5L T-GDI
11.6 US qt. (11 ℓ)
Liquid-cooled
intercooler
coolant 2.5L T-GDI
4.1 US qt. (3.9 ℓ)
3.5L T-GDI 4 US qt. (3.8 ℓ)
Brake fluid
*2As required DOT-4
Front differential oil (AWD)
*30.71±0.026 US qt. (0.67±0.025 ℓ)HYPOID GEAR OIL API GL-5
SAE 75W/85
(SK HK SYN GEAR OIL
75W85 or equivalent)
Rear differential oil
*31.27±0.05 US qt.
(1.2±0.05 ℓ)
Transfer case oil (AWD) 1.11±0.022 US qt.
(1.05±0.021 ℓ) FUCHS ATF 134 MPT
Fuel 2.5L T-GDI
21.9 US gal. (65 ℓ)
Refer to “Fuel
requirements” in chapter 1.
3.5L T-GDI 19.3 US gal. (73 ℓ)
*1 : Refer to the recommended SAE viscosity numbers on the next page.
*2 : To maintain the best braking performance and ABS/ESC performance, we recommend
that you use fluid that conform to specifications.
*3 : If the front/rear differential is submerged, visit an authorized retailer of Genesis Branded
products to replace the differential oil.
*4 : If the above recommended specification oil is not available, SAE 0W-30 grade synthetic
oil can be used. If mineral oil or semi-synthetic oil is used, it is a severe maintenance
condition in terms of engine oil change
RECOMMENDED LUBRICANTS AND CAPACITIES

02
2-13
Recommended SAE Viscosity Number
CAUTION
Always be sure to clean the area around any filler cap, drain plug, or dipstick before
checking or draining any lubricant. This is especially important in dusty or sandy
areas and when the vehicle is used on unpaved roads. Cleaning the plug and dipstick
areas will prevent dirt and grit from entering the engine and other mechanisms that
could be damaged.
Engine oil viscosity (thickness) has an effect on fuel economy and cold weather
operating (engine start and engine oil flowability). Lower viscosity engine oils can
provide better fuel economy and cold weather performance, however, higher viscosity
engine oils are required for satisfactory lubrication in hot weather. Using oils of any
viscosity other than those recommended could result in engine damage.
When choosing an oil, consider the range of temperature your vehicle will be operated
in before the next oil change. Proceed to select the recommended oil viscosity from
the chart.
Temperature Range for SAE Viscosity Numbers
Temperature °C
-30 -20-10 010 20 30 4050
(°F) -10020 40 60 80 100120
Engine Oil
*10W-300W-30
*1 : For better fuel economy, it is recommended to use the engine oil of a viscosity grade
SAE 0W-30. However, if the engine oil is not available in your country, select the proper
engine oil using the engine oil viscosity chart.
An engine oil displaying this American Petroleum Institute(API) Certification Mark conforms to the International Lubricant
Specification Advisory Committee (ILSAC). It is recommended to
only use engine oils that uphold this API Certification Mark.

Vehicle Information, Consumer Information and Reporting Safety Defects
2-14
VEHICLE IDENTIFICATION
NUMBER (VIN)
„„Frame number
ORG3010020
The vehicle identification number (VIN)
is the number used in registering your
vehicle and in all legal matters pertaining
to its ownership, etc.
The number is punched on the floor
under the right front seat. To check the
number, open the cover.
„„VIN label (if equipped)
ORG3010026L
The VIN is also on a plate attached to
the top of the left side dashboard. The
number on the plate can easily be seen
through the windshield from outside.
VEHICLE CERTIFICATION
LABEL
ORG3010023
The vehicle certification label attached
on the driver’s (or front passenger’s)
side center pillar gives the vehicle
identification number (VIN).
TIRE SPECIFICATION AND
PRESSURE LABEL
ORG3010025L
The tires supplied on your new
vehicle are chosen to provide the best
performance for normal driving.
The tire label located on the driver’s
side center pillar gives the tire pressures
recommended for your vehicle.

02
2-15
ENGINE NUMBER
„„2.5L T-GDI
ORG3010021
„„3.5L T-GDI
ORG3010024
The engine number is stamped on the
engine block as shown in the drawing.
AIR CONDITIONER
COMPRESSOR LABEL
OHI088008L
A compressor label informs you the type
of compressor your vehicle is equipped
with such as model, supplier part
number, production number, refrigerant
(1) and refrigerant oil (2).

Vehicle Information, Consumer Information and Reporting Safety Defects
2-16
Eastern Region:
Connecticut, Delaware, Maine,
Massachusetts, New Hampshire, New
Jersey, New York, Pennsylvania, Rhode
Island, Vermont.
Eastern Region
1122 Cranbury South River Road
Jamesburg, NJ 08831
844-340-9741
Southern Region:
Florida, Georgia, Maryland, North
Carolina, South Carolina, Virginia, West
Virginia.
Southern Region
3025 Chastain Meadows Parkway Suite
100 Marietta, GA 30066
844-340-9741
South Central Region:
Alabama, Arkansas, Louisiana,
Mississippi, New Mexico, Oklahoma,
Tennessee, Texas.
South Central Region
1421 South Beltline Road, Suite 400
Coppell, TX 75019
844-340-9741Central Region:
Illinois, Indiana, lowa, Kentucky,
Michigan, Minnesota, Nebraska, North
Dakota, South Dakota, Ohio, Wisconsin,
Kansas, Missouri.
Central Region
2 Trans Am Plaza Dr #500 Oakbrook
Terrace, IL 60181
844-340-9741
Western Region:
Alaska, Hawaii, Arizona, California,
Colorado, Idaho, Montana, Nevada,
Oregon, Utah, Washington, Wyoming.
Western Region
10550 Talbert Avenue P.O.Box 20850
Fountain Valley, California 92728-0850
844-340-9741
CONSUMER INFORMATION
This consumer information has been prepared in accordance with regulations
issued by the National Highway Traffic Safety Administration of the U.S. Department
of Transportation. Your retailer of Genesis Branded products will help answer any
questions you may have as you read this information.
Genesis Branded Vehicles are designed and manufactured to meet or exceed all
applicable safety standards.
For your safety, however, we strongly urge you to read and follow all directions in
this Owner’s Manual, particularly the information under the headings “NOTICE”,
“CAUTION” and “WARNING”.
If, after reading this manual, you have any questions regarding the operation of your
vehicle, please contact your nearest Genesis Customer Care Regional Office as listed in
the following:

02
2-17
If you believe that your vehicle has a defect which could cause a crash or could cause
injury or death, you should immediately inform the National Highway Traffic Safety
Administration (NHTSA) in addition to notifying Genesis Customer Care.
If NHTSA receives similar complaints, it may open an investigation, and if it finds that a
safety defect exists in a group of vehicles, it may order a recall and remedy campaign.
However, NHTSA cannot become involved in individual problems between you, your
dealer, or Genesis Customer Care.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236
(TTY: 1-800-424-9153);
go to http://www.safercar.gov;
download the SaferCar mobile application;
or write to: Administrator, NHTSA.
1200 New Jersey Ave, SE.,
Washington, DC. 20590.
You can also obtain other information about motor vehicle safety from
http://www.safercar.gov.
REPORTING SAFETY DEFECTS

Vehicle Information, Consumer Information and Reporting Safety Defects2-18
