4-25
04
Unplug vehicle to start
OOSEV040498L
This message is displayed when you
start the vehicle without unplugging the
charging cable. Unplug the charging
cable, and then turn on the vehicle.
Charging door open
OOSEV040499L
This message is displayed when the
vehicle is driven with the charging door
opened. Close the charging door and
then start driving.
Charging stopped. Check the
charger
ORG3EVQ011119N

[This warning message is displayed
when charging is stopped for the
reasons below:
-There is a problem with the external
AC charger or DC charger charger
-The external AC charger stopped
charging
-The charging cable is damaged
In this case, check whether there is any
problem with the external AC or DC
charger and charging cable.
If the same problem occurs when
charging the vehicle with a normally
operating AC charger or genuine Genesis
portable charger, have your vehicle
inspected by an authorized retailer of
Genesis Branded products.

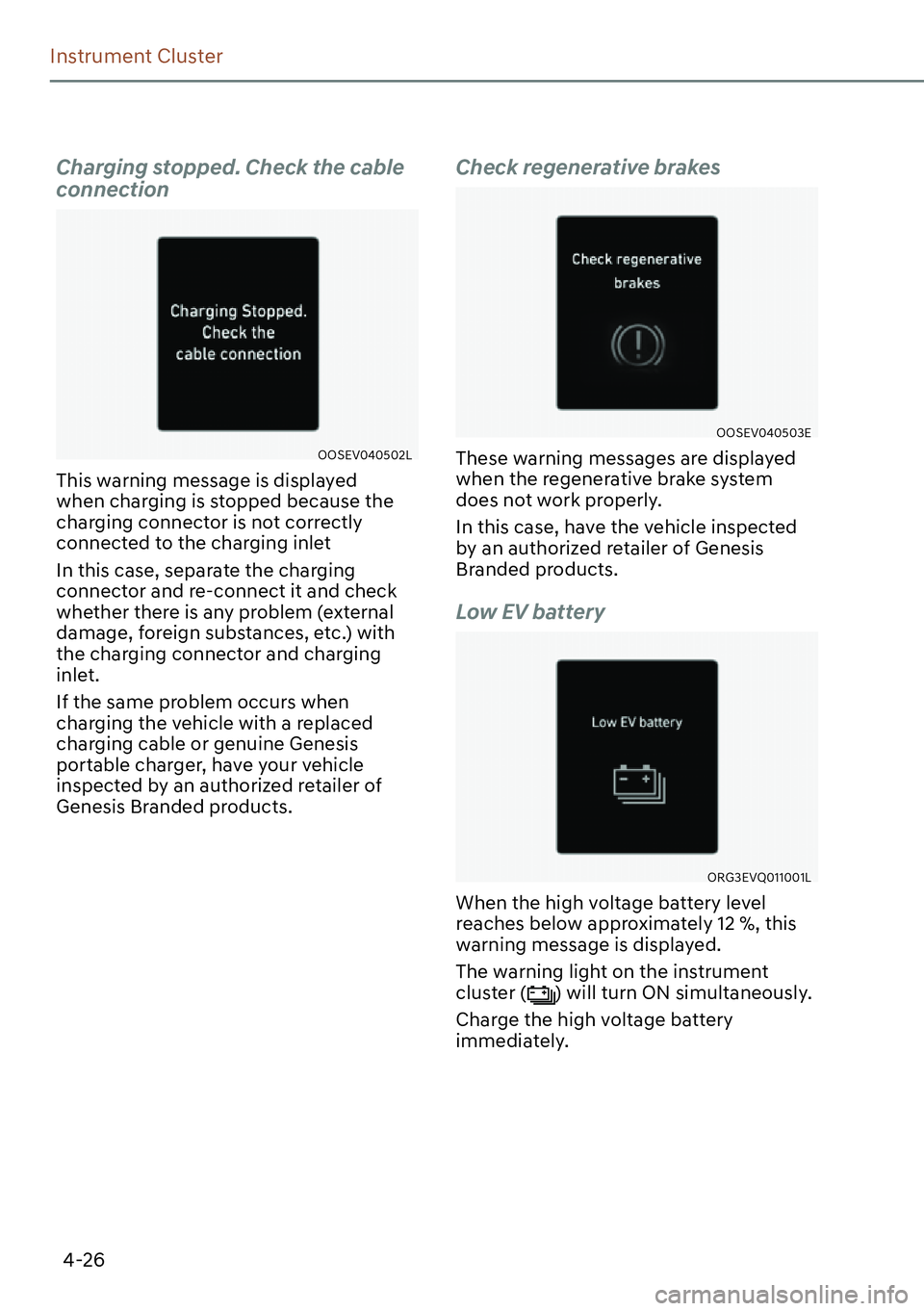

4-26
Instrument Cluster
Charging stopped. Check the cable
connection
OOSEV040502L
This warning message is displayed
when charging is stopped because the
charging connector is not correctly
connected to the charging inlet
In this case, separate the charging
connector and re-connect it and check
whether there is any problem (external
damage, foreign substances, etc.) with
the charging connector and charging
inlet.
If the same problem occurs when
charging the vehicle with a replaced
charging cable or genuine Genesis
portable charger, have your vehicle
inspected by an authorized retailer of
Genesis Branded products.
Check regenerative brakes
OOSEV040503E
These warning messages are displayed
when the regenerative brake system
does not work properly.
In this case, have the vehicle inspected
by an authorized retailer of Genesis
Branded products.
Low EV battery
ORG3EVQ011001L
When the high voltage battery level
reaches below approximately 12 %, this
warning message is displayed.
The warning light on the instrument
cluster (
) will turn ON simultaneously.
Charge the high voltage battery
immediately.

4-27
04
Charge immediately. Power limited
ORG3EVQ011122L
When the high voltage battery level
reaches below approximately 6 %, this
warning message is displayed.
The warning light on the instrument
cluster (
) will turn on simultaneously.
The vehicle’s power will be reduced to
minimize the energy consumption of the
high voltage battery. Charge the high
voltage battery immediately.
Power limited due to low EV battery
temperature. Charge battery
ORG3EVQ011123L
Both warning messages are displayed
to protect electric vehicle system when
outside temperature is low. If the high
voltage battery charging level is low
and parked outside in low temperature
for a long time, vehicle power could be
limited.
Charging the battery before driving helps
increase power.
NOTICE
If these warning messages are still
displayed even after the ambient
temperature has increased, have the
vehicle inspected by an authorized
retailer of Genesis Branded products.

4-28
Instrument Cluster
EV battery overheated! Stop vehicle
ORG3EVQ011050L
This warning message is displayed to
protect battery and electric vehicle
system when the high voltage battery
temperature is too high.
Turn off the START/STOP button and
stop the vehicle so that the battery
temperature decreases.
Power limited
ORG3EVQ011003L
This warning message is displayed:

[When the power is limited for the
safety of the high-powered parts of an
electric vehicle. The power is limited
for the following reasons. (Unless
both Service Warning Light and Power
Down Indicator Light illuminate at the
same time, it is not a failure.)
-The high voltage battery level is too
low or voltage is decreasing
-The temperature of the high voltage
battery is too high or too low
-The temperature of the motor is
high
NOTICE

[When this warning message is
displayed, do not accelerate or start
the vehicle suddenly.

[When the power is limited for the
safety of the high-powered parts
of an electric vehicle, the warning
message is displayed. Your vehicle
may not be driven, or may roll back
on a slope with the warning message
displayed due to the limitation of
vehicle power.

4-29
04
Stop vehicle and check power
supply
ORG3EVQ011051L
This warning message is displayed when
a failure occurs in the power supply
system.
In this case, park the vehicle in a safe
location and tow your vehicle to the
nearest authorized retailer of Genesis
Branded products and have the vehicle
inspected.
Check virtual engine sound system
OOSEV040512L
This message is displayed when there is
a problem with the Virtual Engine Sound
System (VESS).
In this case, have the vehicle inspected
by an authorized retailer of Genesis
Branded products.
Check electric vehicle system
ORG3EVQ011048L
This warning message is displayed when
there is a problem with the electric
vehicle control system.
Refrain from driving when the warning
message is displayed.
In this case, have the vehicle inspected
by an authorized retailer of Genesis
Branded products.

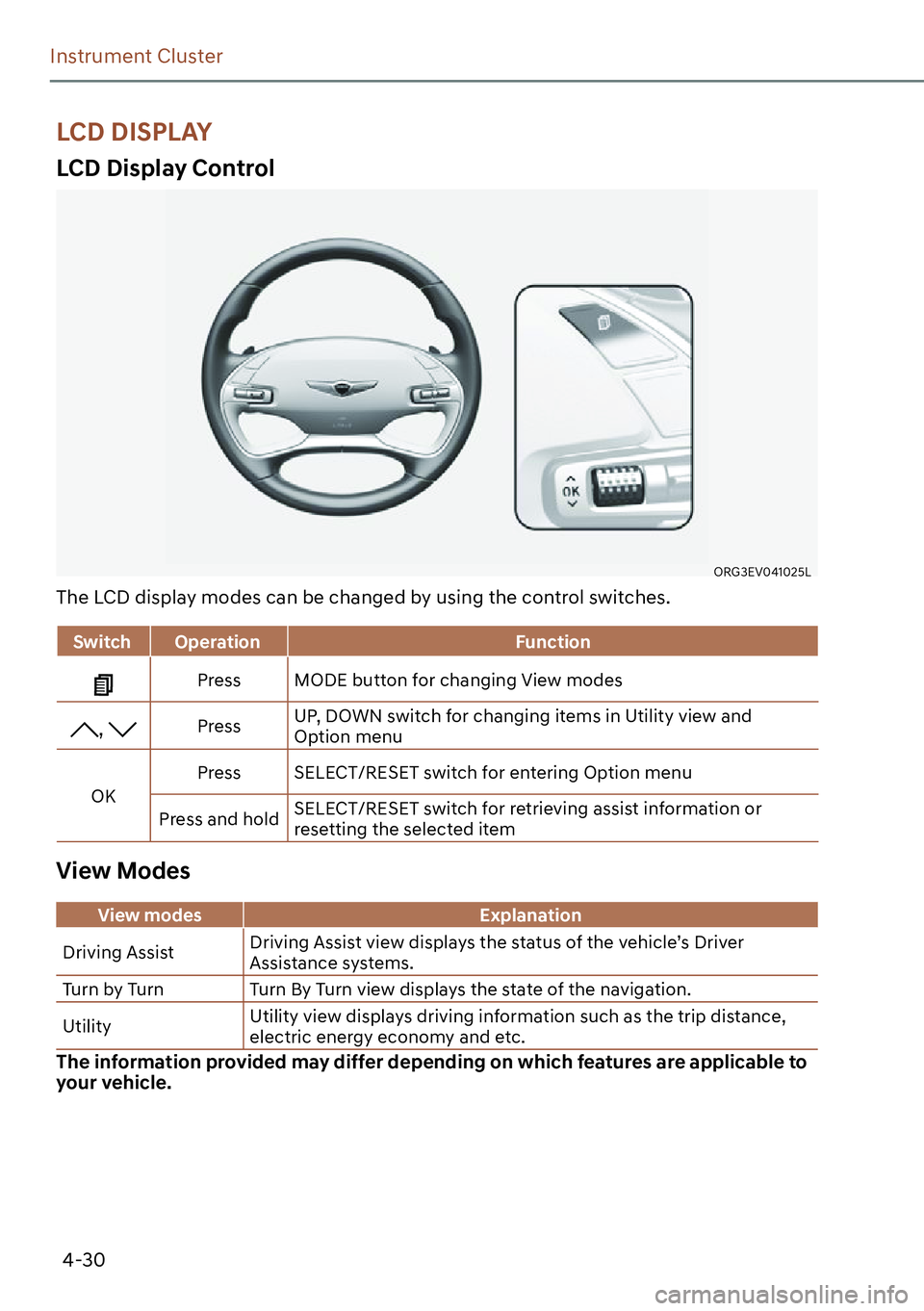

4-30
Instrument Cluster
LCD Display Control
ORG3EV041025L
The LCD display modes can be changed by using the control switches.
Switch Operation Function
Press MODE button for changing View modes
, PressUP, DOWN switch for changing items in Utility view and
Option menu
OKPress SELECT/RESET switch for entering Option menu
Press and holdSELECT/RESET switch for retrieving assist information or
resetting the selected item
View Modes
View modes Explanation
Driving AssistDriving Assist view displays the status of the vehicle’s Driver
Assistance systems.
Turn by Turn Turn By Turn view displays the state of the navigation.
UtilityUtility view displays driving information such as the trip distance,
electric energy economy and etc.
The information provided may differ depending on which features are applicable to
your vehicle.
LCD DISPLAY

4-31
04
„Type A
ORG3EV041052N
„Type B
ORG3EV041027N
Driving Assist, Turn by Turn, Utility view
modes are displayed in the center (A) of
the instrument cluster.
Driving Assist view
ORG3EV041028
The status of Lane Keeping Assist, Smart
Cruise Control, Lane Following Assist,
Highway Driving Assist, etc., is displayed
when Driving Assist view is selected.
For more details, refer to each function
information section in chapter 7.
Turn By Turn (TBT) view
OIK040085L
Turn-by-turn navigation, distance/time
to destination information is displayed
when Turn by Turn view is selected.

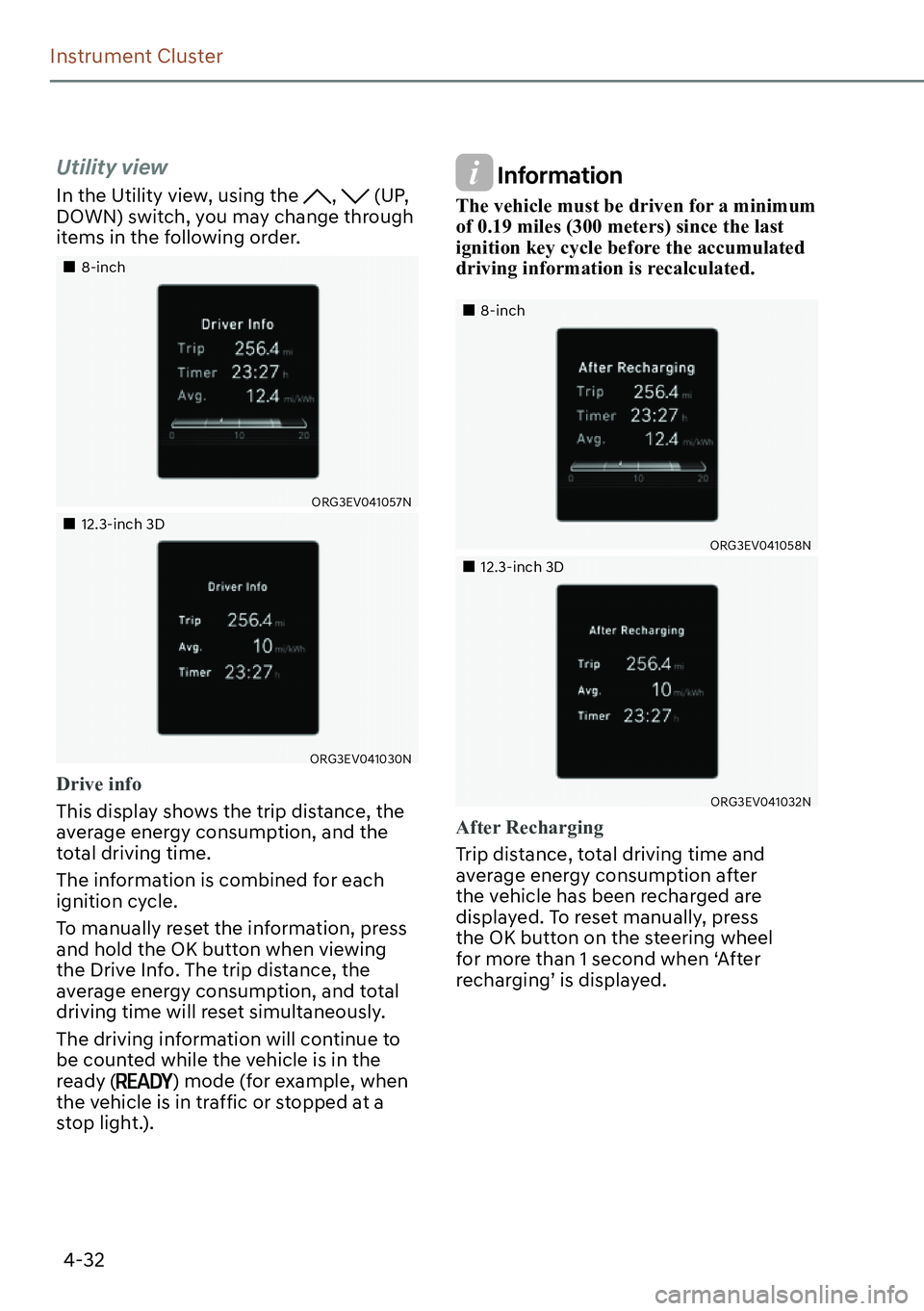

4-32
Instrument Cluster
Utility view
In the Utility view, using the , (UP,
DOWN) switch, you may change through
items in the following order.
„8-inch
ORG3EV041057N
„12.3-inch 3D
ORG3EV041030N
Drive info
This display shows the trip distance, the
average energy consumption, and the
total driving time.
The information is combined for each
ignition cycle.
To manually reset the information, press
and hold the OK button when viewing
the Drive Info. The trip distance, the
average energy consumption, and total
driving time will reset simultaneously.
The driving information will continue to
be counted while the vehicle is in the
ready (
) mode (for example, when
the vehicle is in traffic or stopped at a
stop light.).
Information
The vehicle must be driven for a minimum
of 0.19 miles (300 meters) since the last
ignition key cycle before the accumulated
driving information is recalculated.
„8-inch
ORG3EV041058N
„12.3-inch 3D
ORG3EV041032N
After Recharging
Trip distance, total driving time and
average energy consumption after
the vehicle has been recharged are
displayed. To reset manually, press
the OK button on the steering wheel
for more than 1 second when ‘After
recharging’ is displayed.

4-33
04
„8-inch
ORG3EV041059N
„12.3-inch 3D
ORG3EV041034N
Accumulated info
This display shows the accumulated
trip distance (1), the average energy
consumption (2), and the total driving
time (3).
The information is accumulated starting
from the last reset.
To manually reset the information,
press and hold the OK button when
viewing the Accumulated driving info.
The trip distance, the average energy
consumption, and total driving time will
reset simultaneously.
The accumulated driving information
will continue to be counted while the
vehicle is in the ready (
) mode (for
example, when the vehicle is in traffic or
stopped at a stop light).
Information
The vehicle must be driven for a minimum
of 0.19 miles (300 meters) since the last
ignition key cycle before the accumulated
driving information is recalculated.
ORG3EV071234N
Attention level
The driver’s attention level is shown
based on the driver’s driving pattern.
For more details, refer to "Driver
Attention Warning (DAW)“ section in
chapter 7.
OJK040045L
Speed limit warning (if equipped)
The driver can monitor the information
provided from Intelligent Speed Limit
Assist.
For more details, refer to "Intelligent
Speed Limit Assist (ISLA)" section in
chapter 7.

4-34
Instrument Cluster
ORG3EV041056L
Tire pressure
The tire pressure of each tire is displayed.
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” section in
chapter 8.
ORG3EV041037
Energy flow / Driving force distribution (if
equipped)

[The electric vehicle system informs
the drivers its energy flow in various
operating modes.

[The distribution status of the driving
power of the front and rear wheels are
displayed when Auto AWD mode is
activated.
For more details, refer to "Four Wheel
Drive (AWD)" section in chapter 6.
Select contents
You can select the items to be displayed
in Utility view.
OJK040050L
1. Press and hold the OK switch on the
steering wheel.
„Type A„Type B
ORG3EV041055LORG3EV041047L
2. Use the , (UP, DOWN) switch
to change items, and press the OK
switch to select or deselect the item.
3. After selecting the items to be
displayed in the Utility view, press the
(MODE) button to exit the ‘Select
Contents’ display.
WARNING
To avoid driver distractions, do not
adjust the setting while driving the
vehicle which may lead to an accident.
