The Head-Up Display is an optional
feature that allows the driver to view
information projected onto a transparent
screen while still keeping your eyes
safely on the road ahead while driving.
Head-up display Settings
OJK050087L
[ Head-up display can be enabled from
the Settings menu in the infotainment
system screen. Select:
- 6 H W X S
Page 274 of 661
5-80
Convenience Features
Head-up display Information
ORG3051266N
1. Turn by Turn (TBT) navigation
information
2. Traffic information
3. Speedometer information
4. SCC set speed information
5. SCC vehicle distance information
6. Lane Following Assist information
7. Lane Safety information
8. Blind-Spot Safety information
9. Highway Auto Speed Change
information
10. Highway Driving Assist information
11. Surrounding vehicle information
Information
If you select Turn By Turn (TBT)
navigation information as Head-Up
Display contents, the Turn By Turn
(TBT) navigation information will not be
displayed in the instrument cluster LCD
display.
Precautions while Using the
Head-up display
[ It may sometimes be difficult to read
information on the Head-Up Display in
the following situations.
-The driver is improperly positioned
in the driver’s seat
-The driver wears polarizing-filter
sunglasses
-An object is located above the
head-up display cover
-The vehicle is driven on a wet road
-Any improper lighting accessory is
installed inside the vehicle, or there
is incoming light from outside of the
vehicle
-The driver wears glasses
-The driver wears contact lenses
When it is difficult to read the head up
display information, adjust the image
height or brightness level from the
Settings menu in the infotainment
system screen.
See additional information in
supplied Infotainment Manual.
[ For your safety, make sure to stop the
vehicle before adjusting the settings.
[ Do not tint the front windshield glass
or add other types of metallic coating.
Otherwise, the Head-Up Display
image may be invisible.
[ Do not place any accessories on the
crash pad or attach any objects on the
windshield glass.
[ When replacing the front windshield
glass, replace it with a windshield
glass designed for Head-Up Display
operation. Otherwise, duplicated
images may be displayed on the
windshield glass.
Page 275 of 661
5-81
05

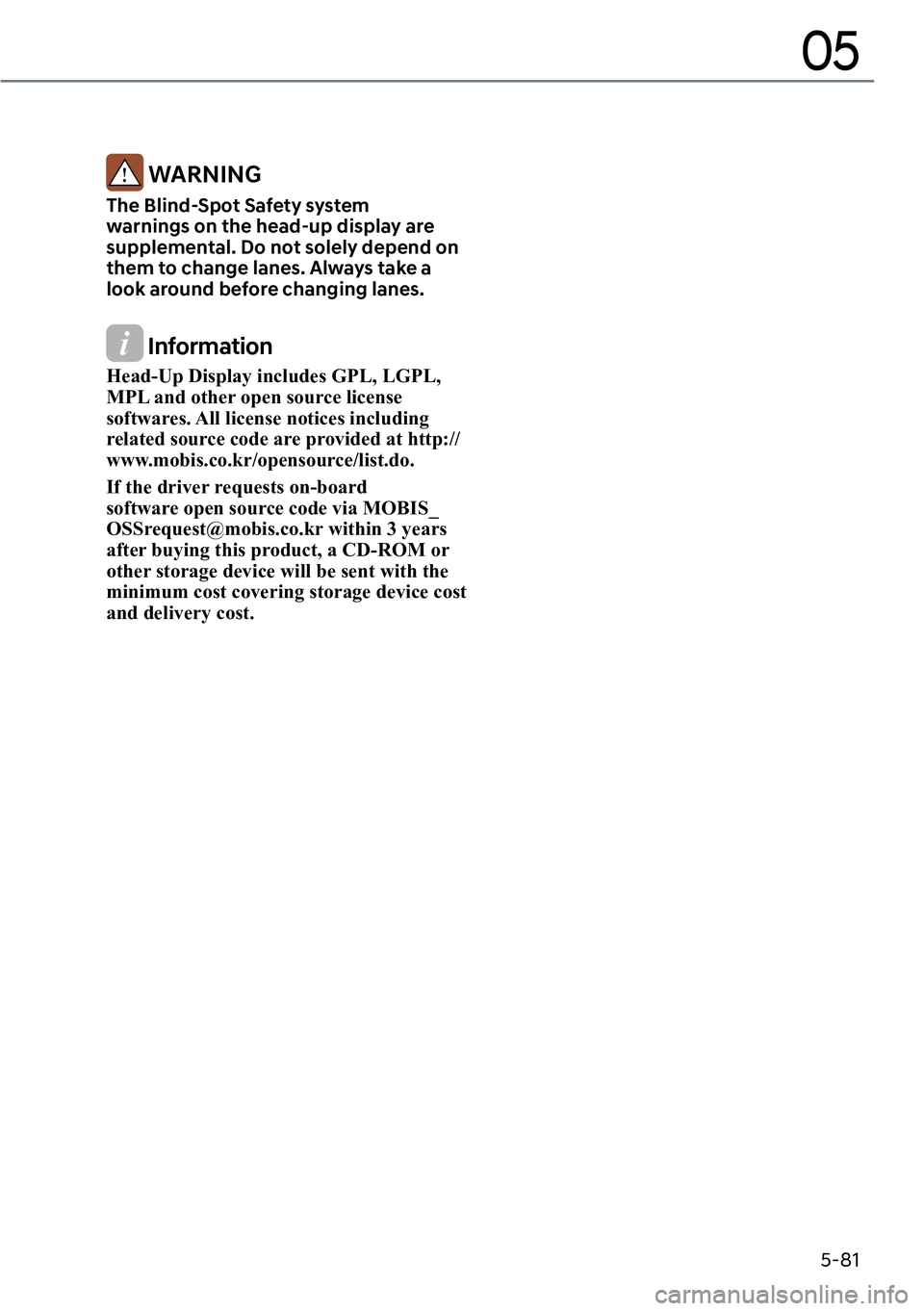

WARNING
The Blind-Spot Safety system
warnings on the head-up display are
supplemental. Do not solely depend on
them to change lanes. Always take a
look around before changing lanes.
Information
Head-Up Display includes GPL, LGPL,
0 3 / D Q G R W K H U R S H Q V R X U F H O L F H Q V H
softwares. All license notices including
U H O D W H G V R X U F H F R G H D U H S U R Y L G H G D W K W W S
Z Z Z P R E L V F R N U R S H Q V R X U F H O L V W G R
If the driver requests on-board
V R I W Z D U H R S H Q V R X U F H F R G H Y L D 0 2 % , 6 B
[email protected] within 3 years
D I W H U E X \ L Q J W K L V S U R G X F W D & ' 5 2 0 R U
other storage device will be sent with the
minimum cost covering storage device cost
and delivery cost.

Page 281 of 661
5-87
05
High Beam Assist Operation
Display and control
[ After selecting ‘High Beam Assist’
in the Settings menu, High Beam
Assist will operate by following the
procedure below.
-Place the headlamp switch in
the AUTO position and push
the headlamp lever towards the
instrument cluster. The High Beam
Assist (
) indicator light will
illuminate on the cluster and the
function will be enabled.
-When the function is enabled, high
beam will turn on when vehicle
speed is above 25 mph (40 km/h).
When vehicle speed is below 15
mph (25 km/h), high beam will not
turn on.
-The High Beam (
) indicator light
will illuminate on the cluster when
high beam is on.
[ When High Beam Assist is operating, if
the headlamp lever or switch is used,
the function operates as follow:
-If the headlamp lever is pulled
towards you when the high beam
is off, the high beam will turn on
without High Beam Assist canceled.
When you let go of the headlamp
lever, the lever will move to the
middle and the high beam will turn
off.
-If the headlamp lever is pulled
towards you when the high beam is
on by High Beam Assist, low beam
will be on and the function will turn
off.
-If the headlamp switch is placed
from AUTO to another position
(headlamp/position/off), High
Beam Assist will turn off and the
corresponding lamp will turn on.[ When High Beam Assist is operating,
high beam switches to low beam if
any of the following conditions occur:
-When the headlamp of an
oncoming vehicle is detected.
-When the tail lamp of a vehicle in
front is detected.
-When the headlamp or tail lamp of a
motorcycle or a bicycle is detected.
-When the surrounding ambient light
is bright enough that high beams
are not required.
-When streetlights or other lights are
detected.
Information
The images and colors in the cluster may
differ depending on the cluster type or
theme selected from the cluster.
High Beam Assist Malfunction
and Limitations
High Beam Assist malfunction
OJK050059L
When High Beam Assist is not working
properly, the ‘Check High Beam Assist
(HBA) system’ warning message will
appear and
light will illuminate on the
cluster. Have the function be inspected
by an authorized retailer of Genesis
Branded products.
Page 310 of 661
5-116
Convenience Features
Auto Defogging System
ORG3EV051068
Auto defogging helps reduce the
possibility of fogging up the inside of the
windshield by automatically sensing the
moisture on inside the windshield.
The auto defogging system operates
when the heater or air conditioning is on.
Information
The auto defogging system may not
operate normally, when the outside
temperature is below 14 °F (-10 °C).
When the Auto Defogging
System operates, the indicator
will illuminate.
If a high amount of humidity is detected
in the vehicle, the Auto Defogging
System will be enabled. The following
steps will be performed automatically:
Step 1) Air conditioning will turn ON.
Step 2) Air intake control will change to
Fresh mode.
Step 3) Mode will change to defrost to
direct airflow to the windshield.
Step 4) Fan speed will be set to MAX.
If the air conditioning is off or
recirculation mode is manually selected
while Auto Defogging System is ON, the
Auto Defogging System indicator will
blink 3 times to signal that the manual
operation has been canceled.
Turning the Auto Defogging System
ON or OFF
Climate control system
Press the front windshield defroster
button for 3 seconds when the Start/Stop
button is in the ON position. When the
Auto Defogging System is turned off, the
ADS OFF symbol will blink 3 times and
ADS OFF will be displayed on the climate
control information screen.
When the Auto Defogging System is
turned on, the ADS OFF symbol will blink
6 times without a signal.
Infotainment system
Auto Defogging System can be turned
R Q D Q G R I I E \ V H O H F W L Q J S 6 H W X S
Page 327 of 661
6
6. Driving Your Vehicle
Before Driving ................................................................................................... 6-3Before Entering the Vehicle .........................................................................................6-3
Before Starting .............................................................................................................6-3
Start/Stop Button .............................................................................................. 6-4Start/Stop Button Positions .........................................................................................6-5
Starting the Vehicle ..................................................................................................... 6-6
Turning Off the Vehicle ................................................................................................ 6-7
Remote Start ................................................................................................................ 6-8
Reduction Gear (Rotary shifter) ....................................................................... 6-9Reduction gear Operation .......................................................................................... 6-9
LCD Display Messages (Cluster) ................................................................................ 6-14
Good Driving Practices .............................................................................................. 6-15
Regenerative Braking System ......................................................................... 6-17One Pedal Driving....................................................................................................... 6-18
Limitations .................................................................................................................. 6-18
i-Pedal ......................................................................................................................... 6-19
Limitations .................................................................................................................. 6-19
Smart Recuperation System .......................................................................... 6-20Smart Recuperation System Setting ........................................................................ 6-20
To Activate Smart Recuperation System ................................................................. 6-20
Ready to Operate ....................................................................................................... 6-22
How to Operate .......................................................................................................... 6-22
Smart Recuperation System Will Be Temporarily Cancelled When: ....................... 6-23
To Resume Smart Recuperation System .................................................................. 6-23
Vehicle-to-Vehicle Distance Recognition Sensor (Front Radar) ............................. 6-23
System Malfunction ...................................................................................................6-24
Limitations of the System ..........................................................................................6-24
Braking System ................................................................................................6-27Power-Assist Brakes ................................................................................................... 6-27
Disc Brakes Wear Indicator........................................................................................6-28
High performance brake ............................................................................................6-28
Electronic Parking Brake (EPB) ..................................................................................6-29
Auto Hold ....................................................................................................................6-34
Anti-Lock Brake System (ABS) ................................................................................... 6-37
Electronic Stability Control (ESC) ............................................................................ 6-38
Vehicle Stability Management (VSM) ....................................................................... 6-41
Hill-Start Assist Control (HAC) .................................................................................. 6-42
Good Braking Practices ............................................................................................ 6-43
Page 329 of 661
6-3
06
WARNING
CALIFORNIA PROPOSITION 65
WARNING
Engine exhaust and a wide variety of
automobile components including
components found in the interior
furnishings in a vehicle, contain or
emit harmful chemicals known to the
State of California to cause cancer and
birth defects and reproductive harm.
In addition, certain fluids contained
in vehicles and certain products of
components contain or emit chemicals
known to the State of California to
cause cancer and birth defects or other
reproductive harm.
Before Entering the Vehicle
[ Be sure all windows, outside mirror(s),
and outside lights are clean and
unobstructed.
[ Remove frost, snow, or ice.
[ Visually check the tires for uneven
wear and damage.
[ Check under the vehicle for any sign
of leaks.
[ Be sure there are no obstacles behind
you if you intend to back up.
Before Starting
[ Make sure the hood, the trunk, and
the doors are securely closed and
locked.
[ Adjust the position of the seat and
steering wheel.
[ Adjust the inside and outside rearview
mirrors.
[ Verify all the lights work.
[ Fasten your seat belt. Check that all
passengers have fastened their seat
belts.
[ Check the gauges and indicators
in the instrument panel and the
messages on the instrument display
when the vehicle is in the ON position.[ Check that any items you are carrying
are stored properly or fastened down
securely.
WARNING
To reduce the risk of SERIOUS INJURY or
DEATH, take the following precautions:
[ ALWAYS wear your seat belt. All
passengers must be properly belted
whenever the vehicle is moving.
For more information, refer to “Seat
Belts” section in chapter 3.
[ Always drive defensively. Assume
other drivers or pedestrians may be
careless and make mistakes.
[ Stay focused on the task of driving.
Driver distraction can cause
accidents.
[ Leave plenty of space between you
and the vehicle in front of you.
WARNING
NEVER drink or take drugs and drive.
Drinking or taking drugs and driving
is dangerous and may result in an
accident and SERIOUS INJURY or
DEATH.
Drunk driving is the number one
contributor to the highway death
toll each year. Even a small amount
of alcohol will affect your reflexes,
perceptions and judgment. Just
one drink can reduce your ability to
respond to changing conditions and
emergencies and your reaction time
gets worse with each additional drink.
Driving while under the influence
of drugs is as dangerous as or more
dangerous than driving under the
influence of alcohol.
You are much more likely to have a
serious accident if you drink or take
drugs and drive. If you are drinking or
taking drugs, don’t drive. Do not ride
with a driver who has been drinking
or taking drugs. Choose a designated
driver or call a taxi.
BEFORE DRIVING
Page 337 of 661
6-11
06
N (Neutral)
ORG3EV061012N
To shift the gear to N (Neutral), rotate the
shift dial clockwise from R (Reverse) or
counterclockwise from D (Drive) while
depressing the brake pedal.
Always depress the brake pedal when
you are shifting from N (Neutral) to
another gear.
If you turn the vehicle off in N (Neutral),
the gear will automatically shift to P
(Park).
However, if you need to stay in N
(Neutral) with the vehicle off, refer to “To
stay in N (Neutral) when vehicle is OFF”
in the following page.
CAUTION
The vehicle can be started with the gear
in N (Neutral), but for your safety, be sure
to start the vehicle with the gear in P
(Park).To stay in N (Neutral) when vehicle is
OFF
OJX1069009L
ORG3EV061014
If you want to stay in N (Neutral) after the
vehicle is OFF (in the ACC state), do the
following.
1. Turn off Auto Hold and release
Electronic Parking Brake when the
vehicle is running.
2. Rotate the shift to N (neutral) while
depressing the brake pedal.
3. When you take your foot off the brake
pedal, the message ‘Press and hold
OK button to stay in Neutral when
vehicle is Off’ will appear on the
cluster LCD display.
Page 338 of 661
6-12
Driving Your Vehicle
4. Press and hold the OK button on
the steering wheel for more than 1
second.
5. When the message ‘Vehicle will stay in
(N). Change gear to cancel’ (or ‘N will
stay engaged when the vehicle is Off’)
will appear on the cluster LCD display,
press the Start/Stop button while
depressing the brake pedal.
However, if you open the driver’s door,
the gear will automatically shift to P
(Park) and the Start/Stop button will
change to the OFF position.
NOTICE
With the gear in N (Neutral) the Start/
Stop button will be in the ACC position.
Note that the doors cannot be locked
in the ACC position or the battery may
discharge if left in the ACC position for a
long period.
D (Drive)
This is the normal driving position.
It automatically activates the
regenerative braking system according
to the road conditions.
ORG3EV061013N
To shift the gear to D (Drive), rotate the
rotary gear shift dial to D (Drive) while
depressing the brake pedal.
When the vehicle is stopped in the D
(Drive) position, if you open the driver's
door, the gear will automatically shift to
P (Park).
However, if the vehicle is in motion, the
gear may not automatically shift to P
(Park) to prevent reduction gear damage.
NOTICE
Always come to a complete stop before
shifting into D (Drive).
CAUTION
When you start after stopping on a steep
incline, even if the gear is in D (Drive),
if you do not depress the accelerator
or brake pedal, the vehicle may roll
backwards, which can cause an accident.
Page 340 of 661
6-14
Driving Your Vehicle
LCD Display Messages (Cluster)
Press brake pedal to change gear
ORG3EV061049AU
This message is displayed when the
brake pedal is not depressed while
shifting the gear.
Depress the brake pedal and then shift
the gear.
Shift to P after stopping
OJK060053L
This message is displayed when the gear
is shifted to P (Park) while the vehicle is
moving.
Stop the vehicle before shifting to P
(Park).
Shifter system malfunction
OJK060057L
This message is displayed when the shift
gear does not properly operate in the P
(Park) position.
Have the vehicle inspected by an
authorized retailer of Genesis Branded
products.
Check shifter dial
OJK060061L
This message is displayed when there is
a malfunction with the rotary gear shift
dial.
Have the vehicle inspected by an
authorized retailer of Genesis Branded
products.
