GENESIS G90 2021 Owner's Manual

5-9
05
To prevent damage to the vehicle:
• If the engine stalls while you are
in motion, do not attempt to shift
the gear to the P (Park) position.
If traffic and road conditions
permit, you may put the shift
lever in the N (Neutral) position
while the vehicle is still moving
and press the Engine Start/Stop
button in an attempt to restart
the engine.
• Do not push or tow your vehicle
to start the engine.
To prevent damage to the vehicle:
When the stop lamp fuse is blown,
you can't start the engine normal-
ly. Replace the fuse with a new
one. If you are not able to replace
the fuse, you can start the engine
by pressing and holding the
Engine Start/Stop button for 10
seconds with the Engine Start/
Stop button in the ACC position.
Do not press the Engine Start/
Stop button for more than 10 sec-
onds except when the stop lamp
fuse is blown.
For your safety always depress
the brake pedal before starting the
engine.
Information
If the smart key battery is weak or the
smart key does not work correctly,
you can start the engine by pressing
the Engine Start/Stop button with the
smart key in the direction of the pic-
ture above.
Turning Off the Engine
1. Stop the vehicle and depress the
brake pedal fully.
2. Press the P button to shift to P
(Park).
3. Press the Engine Start/Stop but-
ton to the OFF position and apply
the parking brake.
i
NOTICE
NOTICE
OHI058006

5-10
Driving your vehicle
[A] : P button, [B] : UNLOCK button, [C] : P release button
Automatic Transmission Operation
The automatic transmission has eight forward speeds and one reverse speed.
The individual speeds are selected automatically in the D (Drive) position.
AUTOMATIC TRANSMISSION
OHI058010L
When you move the shift lever, depress the brake pedal while
pressing the UNLOCK button.

5-11
05
Transmission ranges
The indicator in the instrument clus-
ter displays the gear position when
the Engine Start/Stop button is in the
ON position.
P (Park)
Always come to a complete stop
before shifting into P (Park).
To shift the gear from R (Reverse), N
(Neutral), D (Drive) or Manual mode
to P (Park), press the P button.
If you turn off the engine in D (Drive),
R (Reverse) or Manual shift mode the
shifting automatically changes to P
(Park).
When you park the vehicle, press the
P button while depressing the brake
pedal and then apply the parking
brake. To reduce the risk of serious
injury or death:
• ALWAYS check the surround-
ing areas near your vehicle for
people, especially children,
before shifting a vehicle into
D (Drive) or R (Reverse).
• Before leaving the driver's
seat, always make sure the
vehicle is shifted to the P
(Park) position, then apply the
parking brake, and place the
Engine Start/Stop button in
the OFF position. Unexpected
and sudden vehicle move-
ment can occur if these pre-
cautions are not followed.
• When using the paddle shifter
(manual shift mode), do not
use engine braking (shifting
from a high gear to lower
gear) rapidly on slippery
roads. The vehicle may slip
causing an accident.
WARNING
• Shifting into P (Park) while the
vehicle is in motion may cause
you to lose control of the vehi-
cle.
• After the vehicle has stopped,
always make sure the vehicle
is in P (Park), apply the parking
brake, and turn the engine off.
• When parking on an incline,
shift the gear to P (Park) and
apply the parking brake to pre-
vent the vehicle from rolling
downhill.
WARNING
OHI058011L

5-12
Driving your vehicle
R (Reverse)
Use this position to drive the vehicle
rearward.
To move the shift lever to R
(Reverse), press the UNLOCK but-
ton while depressing the brake pedal
and then move the shift lever for-
ward.
N (Neutral)
The wheels and transmission are not
engaged.
Use N (Neutral) if you need to restart
a stalled engine.
Shift into P (Park) if you need to
leave your vehicle for any reason.
Always depress the brake pedal
when you are shifting from N
(Neutral) to another gear.
In N (Neutral), if the driver attempts
to turn off the engine, the transmis-
sion remains in the N (Neutral) posi-
tion and the Engine Start/Stop button
will be in the ACC position.
To turn off the engine from the ACC
position, press the Engine Start/Stop
button to the ON position, press the
P button, and then press the Engine
Start/Stop button to the OFF posi-
tion.
When either the driver's door or the
front passenger's door is opened
with the Engine Start/Stop button in
the ACC position and the shift lever
in N (Neutral) position, the engine is
automatically turned OFF and the
transmission automatically changes
to the P (Park) position.
OHI058013L
■P (Park), N (Neutral) →R (Reverse)
Unlock Button
OHI058014L
Unlock Button
■R (Reverse), D (Drive) →N (Neutral)
OHI058012L
■D (Drive) →R (Reverse)
Unlock Button

5-13
05
D (Drive)
This is the normal driving position.
The transmission will automatically
shift through an 8-gear sequence,
providing the best fuel economy and
power.
For extra power when passing anoth-
er vehicle or driving uphill, depress
the accelerator pedal further until
you feel the transmission downshift
to a lower gear.To shift into D (Drive), depress the
brake pedal and press the UNLOCK
button on the shift lever. Move the
shift lever rearward.
To shift into D (Drive) from N
(Neutral), you must depress the brake
pedal.
Always come to a complete stop
before shifting into D (Drive).
NOTICE
Do not drive with the shift lever
in N (Neutral). If the shift lever is
moved to N (Neutral) while driv-
ing, the vehicle loses the ability
to provide engine braking.
Doing so may increase the risk
of an accident.
Also, moving the shift lever
back to D (Drive) while the vehi-
cle is moving may severely
damage the transmission.
WARNING
OHI058016L
■P (Park), N (Neutral) →D (Drive)
Unlock Button
OHI058015L
■R (Reverse) →D (Drive)
Unlock Button

5-14
Driving your vehicle
Shift-lock System
For your safety, the automatic trans-
mission has a shift-lock system
which prevents shifting the transmis-
sion from P (Park) into R (Reverse)
or D (Drive) unless the UNLOCK but-
ton is pressed while depressing the
brake pedal.
To shift from P (Park) into R
(Reverse) or D (Drive):
1. Depress and hold the brake pedal.
2. Start the engine or place the
Engine Start/Stop button in the
ON position.
3. Move the shift lever to R (Reverse)
or D (Drive) while pressing the
UNLOCK button.
When the Battery is
Discharged
You cannot move the shift lever,
when the battery is discharged.
In emergencies, do the following to
move the shift lever to N (Neutral) on
a level ground.
1. Connect the battery cables from
another vehicle or from a another
battery to the jump-starting termi-
nals inside the engine compart-
ment.
For more details, refer to "Jump
Starting" in chapter 6.
2. Release the parking brake with
the Engine Start/Stop button in the
ON position.
3. Press the Engine Start/Stop but-
ton to the OFF position.
4. Remove the cap-cover (1) and
press the P release button (2)
while depressing the brake pedal.
Then, the gear will change to the N
(Neutral) position. The button (2)
operates only for 20 seconds to
change the gear between P (Park)
and N (Neutral) from the time when
the button (2) is first pressed.
OHI058017L

5-15
05
Information
In situations when the gear needs to be
shifted from P (Park) to N (Neutral)
when the Engine Start/Stop button is
in the OFF position, refer to step 4.
Parking
Always come to a complete stop and
continue to depress the brake pedal.
Shift the vehicle into the P (Park)
position, apply the parking brake,
and place the Engine Start/Stop but-
ton in the OFF position. Take the Key
with you when exiting the vehicle.
Paddle Shifter
(Manual Shift Mode)
The paddle shifter is available when
the shift lever is in the D (Drive) posi-
tion.
Pull the [+] or [-] paddle shifter once
to shift up or down one gear and the
system changes from automatic shift
mode to manual shift mode.
To change back to the automatic shift
mode from manual shift mode, do
one of the following:
• Move the shift lever down toward
the D (Drive) position.
• Gently depress the accelerator
pedal for more than 5 seconds.
• Drive the vehicle under 4 mph (7
km/h).
• Pull and hold the right side paddle
shifter.
Information
If the [+] and [-] paddle shifters are
pulled at the same time, gear shift may
not occur.
i
i
• When you stay in the vehicle
with the engine running, be
careful not to depress the
accelerator pedal for a long
period of time. The engine or
exhaust system may overheat
and start a fire.
• The exhaust gas and the
exhaust system are very hot.
Keep away from the exhaust
system components.
• Do not stop or park over flam-
mable materials, such as dry
grass, paper or leaves. They
may ignite and cause a fire.
WARNING
OHI058018

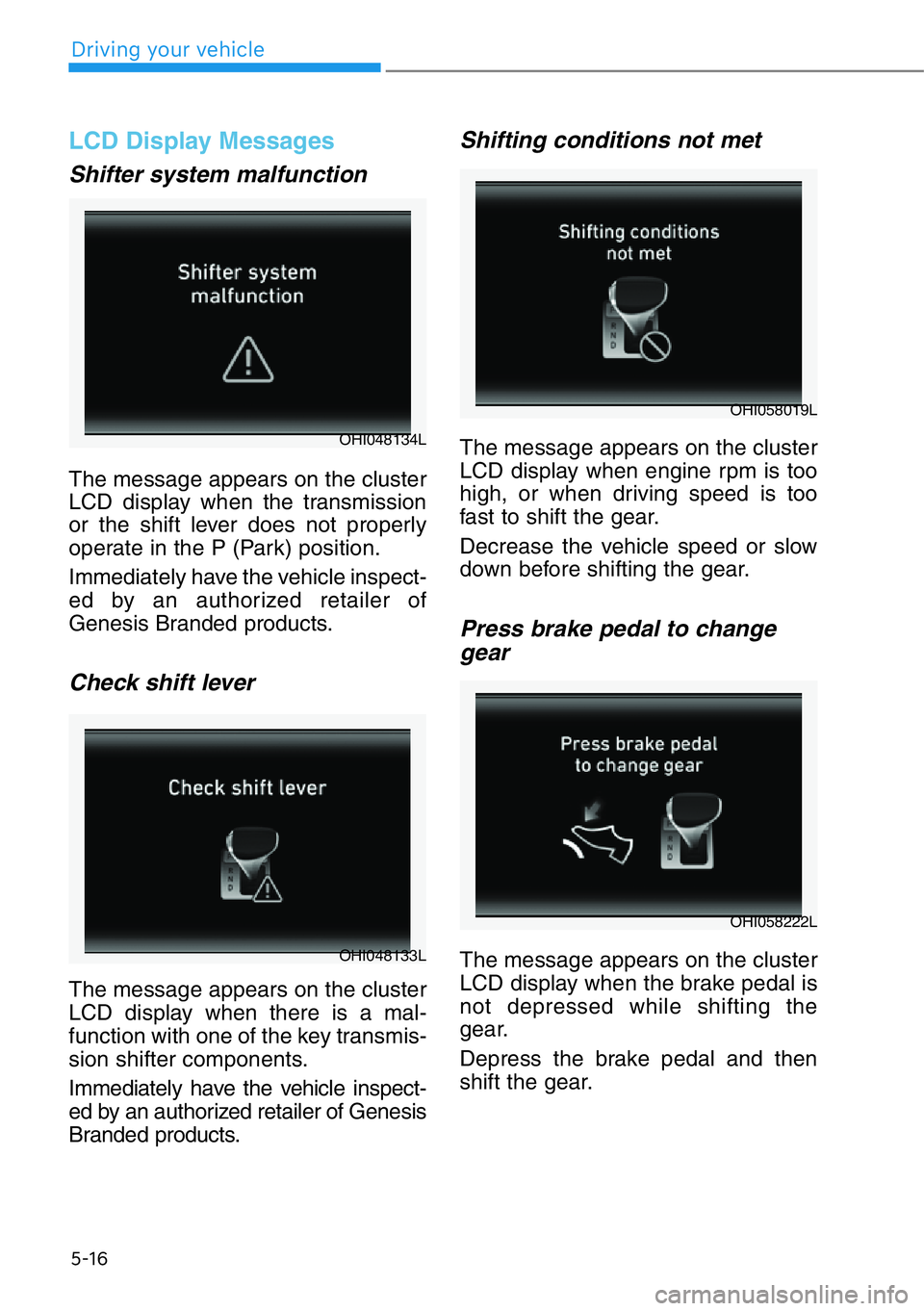

5-16
Driving your vehicle
LCD Display Messages
Shifter system malfunction
The message appears on the cluster
LCD display when the transmission
or the shift lever does not properly
operate in the P (Park) position.
Immediately have the vehicle inspect-
ed by an authorized retailer of
Genesis Branded products.
Check shift lever
The message appears on the cluster
LCD display when there is a mal-
function with one of the key transmis-
sion shifter components.
Immediately have the vehicle inspect-
ed by an authorized retailer of Genesis
Branded products.
Shifting conditions not met
The message appears on the cluster
LCD display when engine rpm is too
high, or when driving speed is too
fast to shift the gear.
Decrease the vehicle speed or slow
down before shifting the gear.
Press brake pedal to change
gear
The message appears on the cluster
LCD display when the brake pedal is
not depressed while shifting the
gear.
Depress the brake pedal and then
shift the gear.
OHI048134L
OHI058019L
OHI058222L
OHI048133L

5-17
05
Shift to P after stopping
The message appears on the cluster
LCD display when the gear is shifted
to P (Park) while the vehicle is mov-
ing.
Stop the vehicle before shifting to P
(Park).
Press P for park
The message appears on the cluster
LCD display to inform the driver to
press the P button to shift to P (Park)
when the driver moves the shift lever
upward even though the gear is in R
(Reverse).
Check P button
The message appears on the cluster
LCD display when there is problem
with the P button.
Immediately have the vehicle inspect-
ed by an authorized retailer of Genesis
Branded products.
Press brake pedal, then press P
RELEASE button
The message appears on the cluster
LCD display when the driver presses
the P RELEASE button without
depressing the brake pedal.
Depress the brake pedal before
pressing the P RELEASE button.
OHI058021L
OHI058223L
OHI058025L
OHI058224L

5-18
Driving your vehicle
Check P RELEASE button
The message appears on the cluster
LCD display when there is problem
with the P RELEASE button.
Immediately have the vehicle inspect-
ed by an authorized retailer of Genesis
Branded products.
Press UNLOCK to change gear
The message appears on the cluster
LCD display when the UNLOCK but-
ton is not pressed while shifting the
gear.
Press the UNLOCK button and then
shift the gear.
PARK engaged
The message appears on the cluster
LCD display when the P (Park) posi-
tion is engaged.
NEUTRAL engaged
The message appears on the cluster
LCD display when the N (Neutral)
position is engaged.
OHI058024L
OHI058026L
OHI058027L
OHI058028L
