GMC ACADIA 2007 User Guide

Move the seat forward or rearward by sliding the
control forward or rearward.
Your vehicle may have additional features to
adjust your vehicle’s power seat:
Raise or lower the entire seat by moving the
entire control up or down.
Raise or lower the front part of the seat
cushion by moving the front of the control up
or down.
Raise or lower the rear part of the seat
cushion by moving the rear of the control up
or down.
Your vehicle may have a memory function which
allows seat settings to be saved and recalled.
SeeMemory Seat and Mirrors on page 13for more
information.
Manual Lumbar
If your vehicle has this
feature, the handle is
located on the inboard
side of the seatback.
SeeManual Seats
on page 9for more
information.
Turn the handle rearward to decrease lumbar
support. Turn the handle forward to increase
lumbar support.
Keep in mind that as your seating position
changes, as it may during long trips, so should the
position of your lumbar support. Adjust the seat
as needed.
11

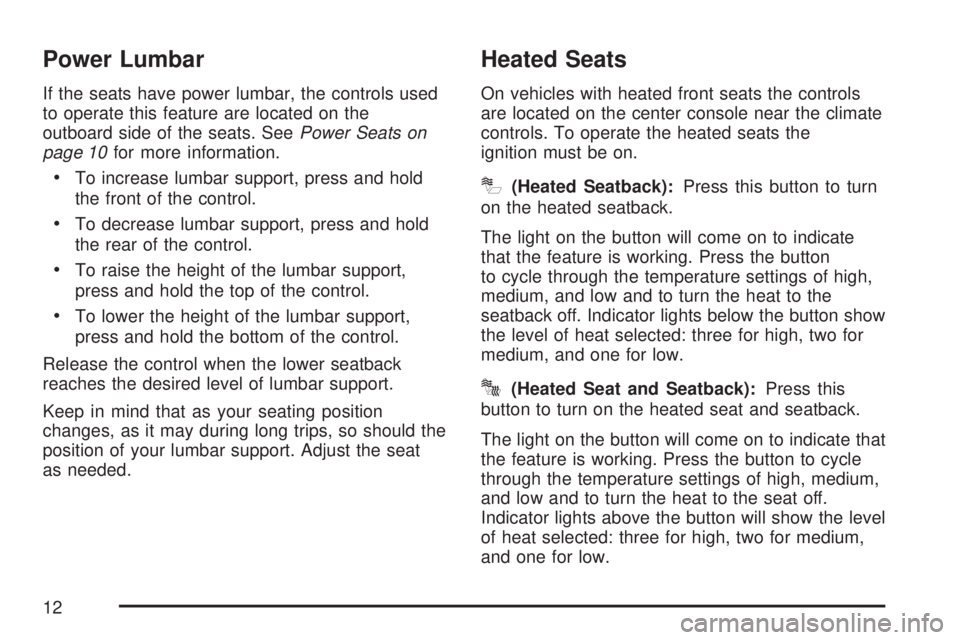

Power Lumbar
If the seats have power lumbar, the controls used
to operate this feature are located on the
outboard side of the seats. SeePower Seats on
page 10for more information.
To increase lumbar support, press and hold
the front of the control.
To decrease lumbar support, press and hold
the rear of the control.
To raise the height of the lumbar support,
press and hold the top of the control.
To lower the height of the lumbar support,
press and hold the bottom of the control.
Release the control when the lower seatback
reaches the desired level of lumbar support.
Keep in mind that as your seating position
changes, as it may during long trips, so should the
position of your lumbar support. Adjust the seat
as needed.
Heated Seats
On vehicles with heated front seats the controls
are located on the center console near the climate
controls. To operate the heated seats the
ignition must be on.
I(Heated Seatback):Press this button to turn
on the heated seatback.
The light on the button will come on to indicate
that the feature is working. Press the button
to cycle through the temperature settings of high,
medium, and low and to turn the heat to the
seatback off. Indicator lights below the button show
the level of heat selected: three for high, two for
medium, and one for low.
J(Heated Seat and Seatback):Press this
button to turn on the heated seat and seatback.
The light on the button will come on to indicate that
the feature is working. Press the button to cycle
through the temperature settings of high, medium,
and low and to turn the heat to the seat off.
Indicator lights above the button will show the level
of heat selected: three for high, two for medium,
and one for low.
12

The heated seats will turn off ten seconds after
the ignition is turned off. If you want to use
the heated seat feature after you restart your
vehicle, you will need to press the heated seat
or seatback button again.
If your vehicle has remote vehicle start and is
started using the remote keyless entry transmitter,
the front heated seats will be turned on to the
high setting if it is cold outside. See “Remote
Vehicle Start” underRemote Keyless Entry (RKE)
System Operation on page 100. When the key is
inserted into the ignition and the ignition is turned
on, the heated seat feature will turn off. To turn
the heated seat feature back on, press the
desired button.Memory Seat and Mirrors
Your vehicle may have the memory package.
The controls for this feature are located on the
driver’s door panel, and are used to program and
recall memory settings for the driver’s seat and
outside mirrors.
To save your positions in memory, do the
following:
1. Adjust the driver’s seat, including the seatback
recliner and lumbar and both outside mirrors
to a comfortable position.
SeeOutside Power Mirrors on page 142for
more information.
Not all mirrors will have the ability to save and
recall the mirror positions.
2. Press and hold button 1 until two beeps let
you know that the position has been stored.
13

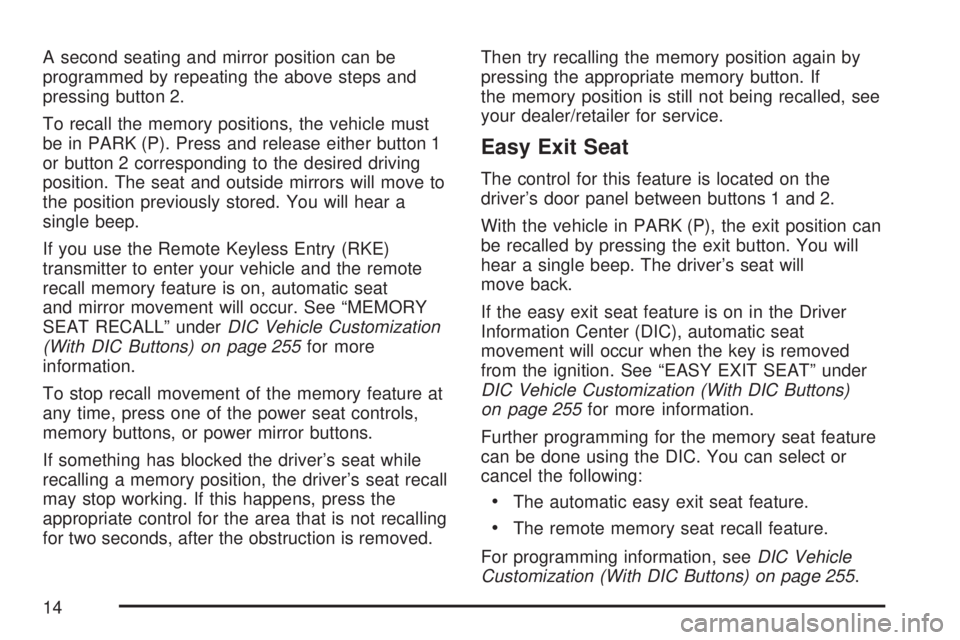

A second seating and mirror position can be
programmed by repeating the above steps and
pressing button 2.
To recall the memory positions, the vehicle must
be in PARK (P). Press and release either button 1
or button 2 corresponding to the desired driving
position. The seat and outside mirrors will move to
the position previously stored. You will hear a
single beep.
If you use the Remote Keyless Entry (RKE)
transmitter to enter your vehicle and the remote
recall memory feature is on, automatic seat
and mirror movement will occur. See “MEMORY
SEAT RECALL” underDIC Vehicle Customization
(With DIC Buttons) on page 255for more
information.
To stop recall movement of the memory feature at
any time, press one of the power seat controls,
memory buttons, or power mirror buttons.
If something has blocked the driver’s seat while
recalling a memory position, the driver’s seat recall
may stop working. If this happens, press the
appropriate control for the area that is not recalling
for two seconds, after the obstruction is removed.Then try recalling the memory position again by
pressing the appropriate memory button. If
the memory position is still not being recalled, see
your dealer/retailer for service.
Easy Exit Seat
The control for this feature is located on the
driver’s door panel between buttons 1 and 2.
With the vehicle in PARK (P), the exit position can
be recalled by pressing the exit button. You will
hear a single beep. The driver’s seat will
move back.
If the easy exit seat feature is on in the Driver
Information Center (DIC), automatic seat
movement will occur when the key is removed
from the ignition. See “EASY EXIT SEAT” under
DIC Vehicle Customization (With DIC Buttons)
on page 255for more information.
Further programming for the memory seat feature
can be done using the DIC. You can select or
cancel the following:
The automatic easy exit seat feature.
The remote memory seat recall feature.
For programming information, seeDIC Vehicle
Customization (With DIC Buttons) on page 255.
14

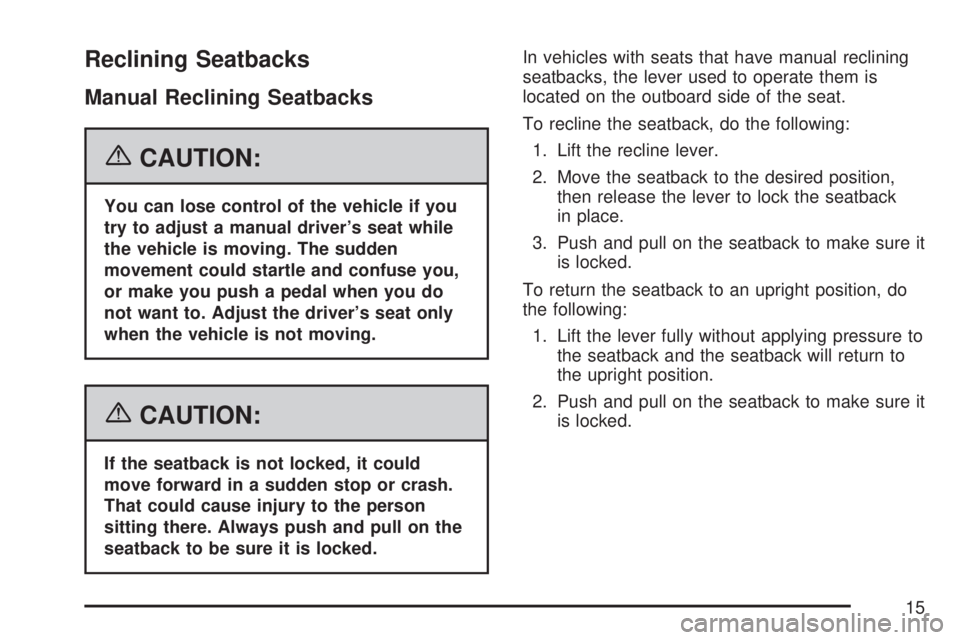

Reclining Seatbacks
Manual Reclining Seatbacks
{CAUTION:
You can lose control of the vehicle if you
try to adjust a manual driver’s seat while
the vehicle is moving. The sudden
movement could startle and confuse you,
or make you push a pedal when you do
not want to. Adjust the driver’s seat only
when the vehicle is not moving.
{CAUTION:
If the seatback is not locked, it could
move forward in a sudden stop or crash.
That could cause injury to the person
sitting there. Always push and pull on the
seatback to be sure it is locked.In vehicles with seats that have manual reclining
seatbacks, the lever used to operate them is
located on the outboard side of the seat.
To recline the seatback, do the following:
1. Lift the recline lever.
2. Move the seatback to the desired position,
then release the lever to lock the seatback
in place.
3. Push and pull on the seatback to make sure it
is locked.
To return the seatback to an upright position, do
the following:
1. Lift the lever fully without applying pressure to
the seatback and the seatback will return to
the upright position.
2. Push and pull on the seatback to make sure it
is locked.
15

Power Reclining Seatbacks
In vehicles with seats that have power reclining
seatbacks, the control used to recline them
is located on the outboard side of the seat behind
the power seat control. SeePower Seats on
page 10for more information.
To recline the seatback, tilt the top of the
control rearward.
To bring the seatback forward, tilt the top of
the control forward.
{CAUTION:
Sitting in a reclined position when your
vehicle is in motion can be dangerous.
Even if you buckle up, your safety belts
cannot do their job when you are reclined
like this.
The shoulder belt cannot do its job
because it will not be against your body.
Instead, it will be in front of you. In a
crash, you could go into it, receiving neck
or other injuries.
The lap belt cannot do its job either. In a
crash, the belt could go up over your
abdomen. The belt forces would be there,
not at your pelvic bones. This could cause
serious internal injuries.
For proper protection when the vehicle is
in motion, have the seatback upright.
Then sit well back in the seat and wear
your safety belt properly.
16

Do not have a seatback reclined if your vehicle
is moving.
Head Restraints
Adjust the head restraint so that the top of the
restraint is at the same height as the top of
the occupant’s head. This position reduces the
chance of a neck injury in a crash.Pull the head restraint
up to raise it. To lower
the head restraint,
press the release
button, located on the
top of the seatback,
while you push the head
restraint down.
17

Rear Seats
Rear Seat Operation
A. Seat Adjustment Handle.
B. Reclining Seatback Strap.
C. Sliding Seat Lever.
Entering and Exiting the Third Row
{CAUTION:
Using the third row seating position while
the second row is folded, or folded and
tumbled, could cause injury in a sudden
stop or crash. Be sure to return the seat
to the passenger seating position. Push
and pull on the seat to make sure it is
locked into place.
Notice:Folding a rear seat with the safety
belts still fastened may cause damage to the
seat or the safety belts. Always unbuckle
the safety belts and return them to their normal
stowed position before folding a rear seat.
18

To access the third row:
1. Make sure there are no objects on the oor in
front of or on the second row seat, or in the
seat tracks on the oor.
2. On seats with folding armrests, make sure the
armrest is in the upright position.
3. Make sure the safety belt is unfastened and in
the stowed position.
4. Turn the sliding seat lever (C) forward and
push the seatback forward. The seat cushion
will automatically fold, and the entire seat
will slide forward.Returning the Seat to the Seating
Position
To return the second row seat to its normal
seating position:
1. Make sure there are no objects on the oor
behind the second row seat, or in the seat
tracks on the oor.
2. Pull the seatback rearward until it is locked in
place.
3. Slide the seat rearward by pushing on the
seatback until it is locked in place.
4. Push down on the rear of the seat cushion
until it is locked in place.
5. Push and pull on the seatback and seat
cushion to make sure they are locked in place
6. Make sure the safety belt is not under the seat
cushion.
19

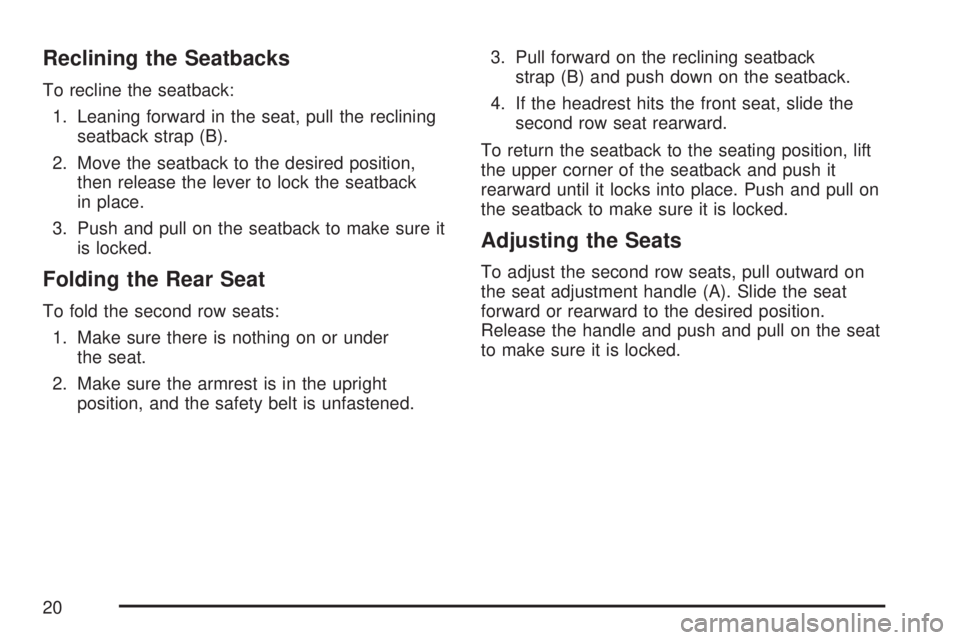

Reclining the Seatbacks
To recline the seatback:
1. Leaning forward in the seat, pull the reclining
seatback strap (B).
2. Move the seatback to the desired position,
then release the lever to lock the seatback
in place.
3. Push and pull on the seatback to make sure it
is locked.
Folding the Rear Seat
To fold the second row seats:
1. Make sure there is nothing on or under
the seat.
2. Make sure the armrest is in the upright
position, and the safety belt is unfastened.3. Pull forward on the reclining seatback
strap (B) and push down on the seatback.
4. If the headrest hits the front seat, slide the
second row seat rearward.
To return the seatback to the seating position, lift
the upper corner of the seatback and push it
rearward until it locks into place. Push and pull on
the seatback to make sure it is locked.
Adjusting the Seats
To adjust the second row seats, pull outward on
the seat adjustment handle (A). Slide the seat
forward or rearward to the desired position.
Release the handle and push and pull on the seat
to make sure it is locked.
20
