GMC ACADIA 2007 Owner's Guide

Third Row Seats
{CAUTION:
Using the third row seating position while
the second row is folded, or pushed
forward in the entry position, could cause
injury in a sudden stop or crash. Be sure
to return the seat to the passenger
seating position. Push and pull on the
seat to make sure it is locked into place.
The third row seats can be folded forward or
removed.
Notice:Folding a rear seat with the safety
belts still fastened may cause damage to the
seat or the safety belts. Always unbuckle
the safety belts and return them to their normal
stowed position before folding a rear seat.To fold the seatback:
1. Make sure there is nothing on or under
the seat.
2. Disconnect the rear safety belt mini-latch,
using a key in the slot on the mini-buckle,
let the belt retract into the headliner. Stow
the mini-latch in the holder located in
the headliner.
21

3. Pull up on the
release lever located
on the back of the
seat. The headrest
moves forward
automatically.
4. Push the seatback forward to lay at.
To return the seatback to the seating position:
1. Raise the seatback into place by using
the pullstrap from the rear of the vehicle, or by
pushing it into place from inside the vehicle.
2. Make sure the headrest is locked into place
before sitting in the seat.
{CAUTION:
If the seatback is not locked, it could
move forward in a sudden stop or crash.
That could cause injury to the person
sitting there. Always push and pull on the
seatback to be sure it is locked.
3. Push and pull on the seatback to make sure it
is locked in place.
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not
provide the protection needed in a crash.
The person wearing the belt could be
seriously injured. After raising the rear
seatback, always check to be sure that the
safety belts are properly routed and
attached, and are not twisted.
22

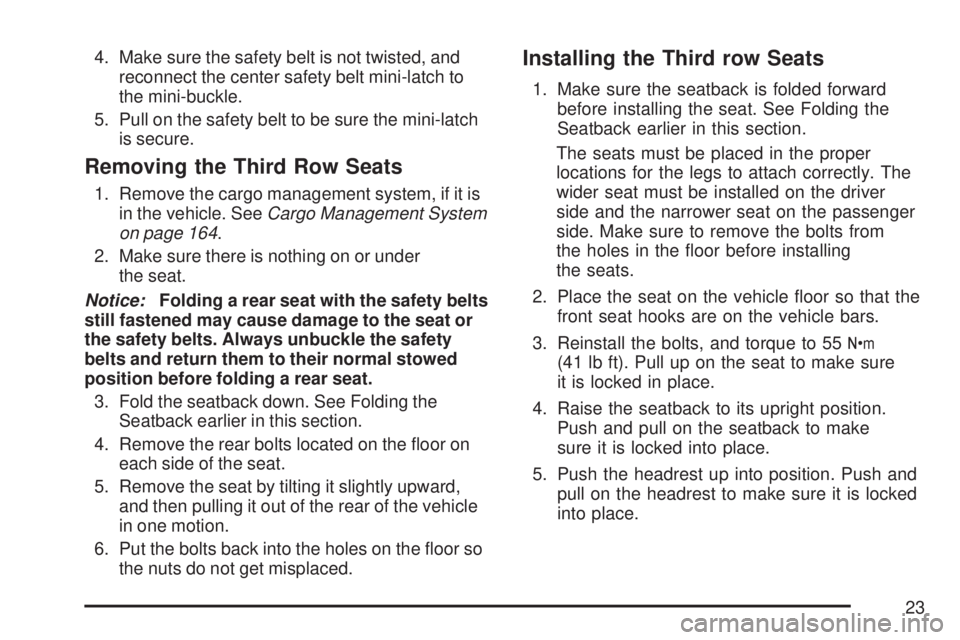

4. Make sure the safety belt is not twisted, and
reconnect the center safety belt mini-latch to
the mini-buckle.
5. Pull on the safety belt to be sure the mini-latch
is secure.
Removing the Third Row Seats
1. Remove the cargo management system, if it is
in the vehicle. SeeCargo Management System
on page 164.
2. Make sure there is nothing on or under
the seat.
Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or
the safety belts. Always unbuckle the safety
belts and return them to their normal stowed
position before folding a rear seat.
3. Fold the seatback down. See Folding the
Seatback earlier in this section.
4. Remove the rear bolts located on the oor on
each side of the seat.
5. Remove the seat by tilting it slightly upward,
and then pulling it out of the rear of the vehicle
in one motion.
6. Put the bolts back into the holes on the oor so
the nuts do not get misplaced.
Installing the Third row Seats
1. Make sure the seatback is folded forward
before installing the seat. See Folding the
Seatback earlier in this section.
The seats must be placed in the proper
locations for the legs to attach correctly. The
wider seat must be installed on the driver
side and the narrower seat on the passenger
side. Make sure to remove the bolts from
the holes in the oor before installing
the seats.
2. Place the seat on the vehicle oor so that the
front seat hooks are on the vehicle bars.
3. Reinstall the bolts, and torque to 55
Y
(41 lb ft). Pull up on the seat to make sure
it is locked in place.
4. Raise the seatback to its upright position.
Push and pull on the seatback to make
sure it is locked into place.
5. Push the headrest up into position. Push and
pull on the headrest to make sure it is locked
into place.
23

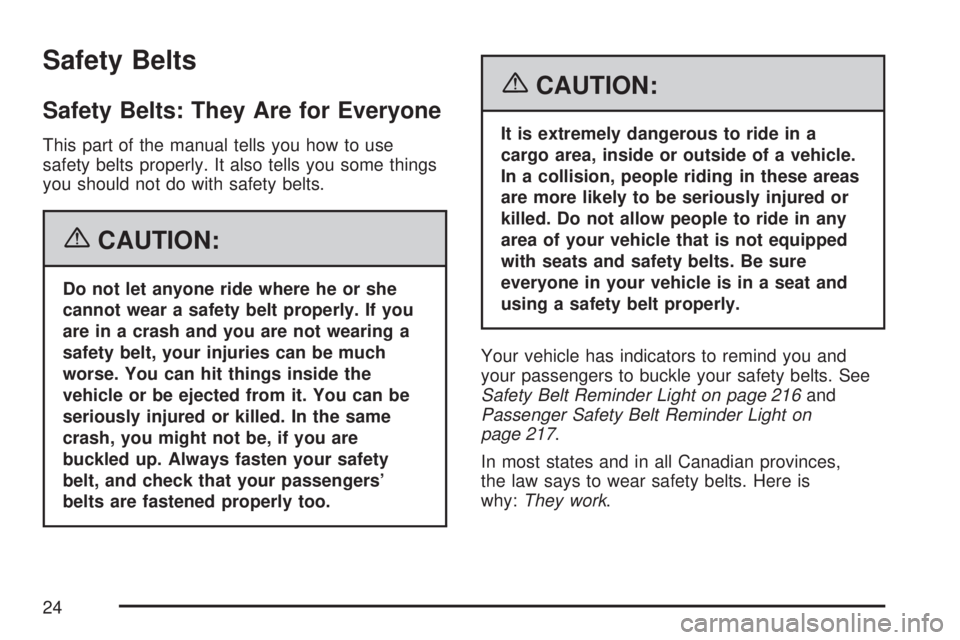

Safety Belts
Safety Belts: They Are for Everyone
This part of the manual tells you how to use
safety belts properly. It also tells you some things
you should not do with safety belts.
{CAUTION:
Do not let anyone ride where he or she
cannot wear a safety belt properly. If you
are in a crash and you are not wearing a
safety belt, your injuries can be much
worse. You can hit things inside the
vehicle or be ejected from it. You can be
seriously injured or killed. In the same
crash, you might not be, if you are
buckled up. Always fasten your safety
belt, and check that your passengers’
belts are fastened properly too.
{CAUTION:
It is extremely dangerous to ride in a
cargo area, inside or outside of a vehicle.
In a collision, people riding in these areas
are more likely to be seriously injured or
killed. Do not allow people to ride in any
area of your vehicle that is not equipped
with seats and safety belts. Be sure
everyone in your vehicle is in a seat and
using a safety belt properly.
Your vehicle has indicators to remind you and
your passengers to buckle your safety belts. See
Safety Belt Reminder Light on page 216and
Passenger Safety Belt Reminder Light on
page 217.
In most states and in all Canadian provinces,
the law says to wear safety belts. Here is
why:They work.
24

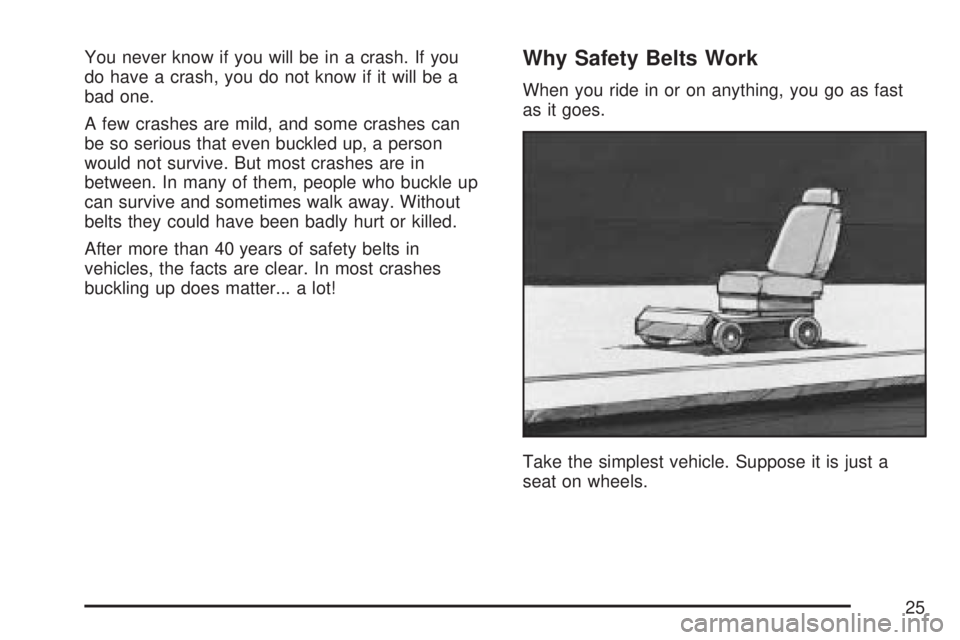

You never know if you will be in a crash. If you
do have a crash, you do not know if it will be a
bad one.
A few crashes are mild, and some crashes can
be so serious that even buckled up, a person
would not survive. But most crashes are in
between. In many of them, people who buckle up
can survive and sometimes walk away. Without
belts they could have been badly hurt or killed.
After more than 40 years of safety belts in
vehicles, the facts are clear. In most crashes
buckling up does matter... a lot!Why Safety Belts Work
When you ride in or on anything, you go as fast
as it goes.
Take the simplest vehicle. Suppose it is just a
seat on wheels.
25

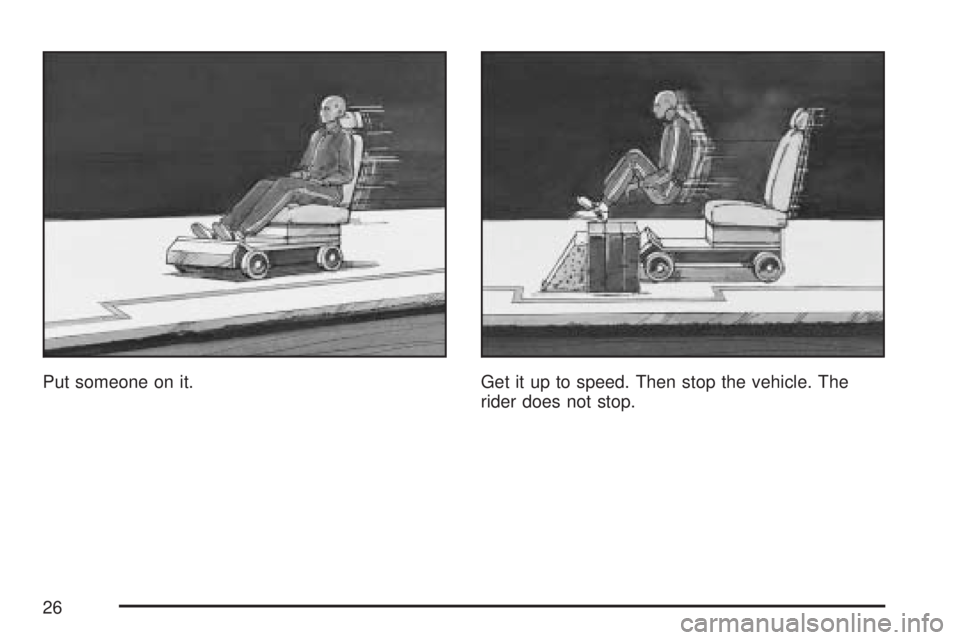

Put someone on it. Get it up to speed. Then stop the vehicle. The
rider does not stop.
26

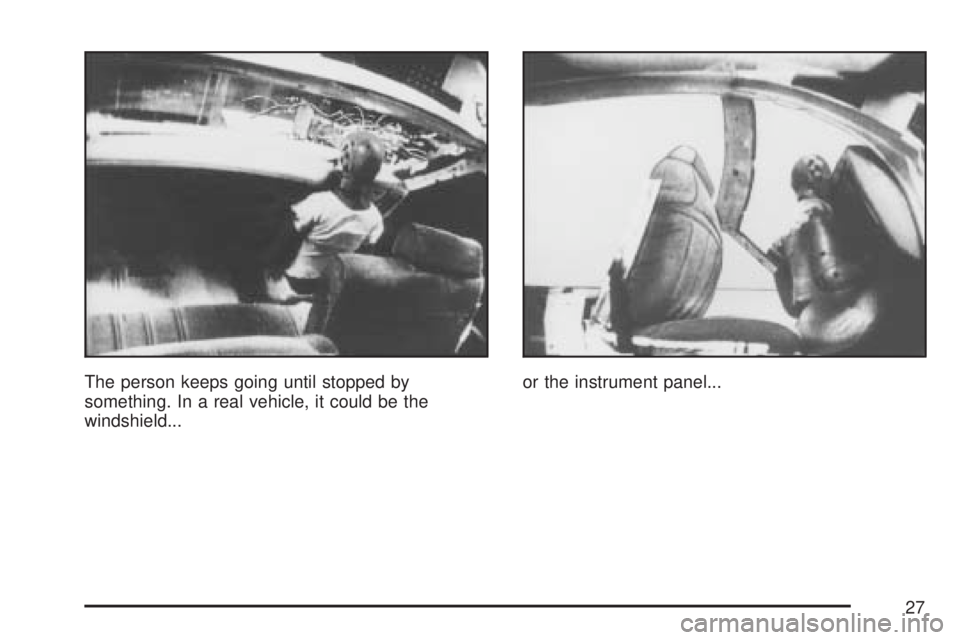

The person keeps going until stopped by
something. In a real vehicle, it could be the
windshield...or the instrument panel...
27

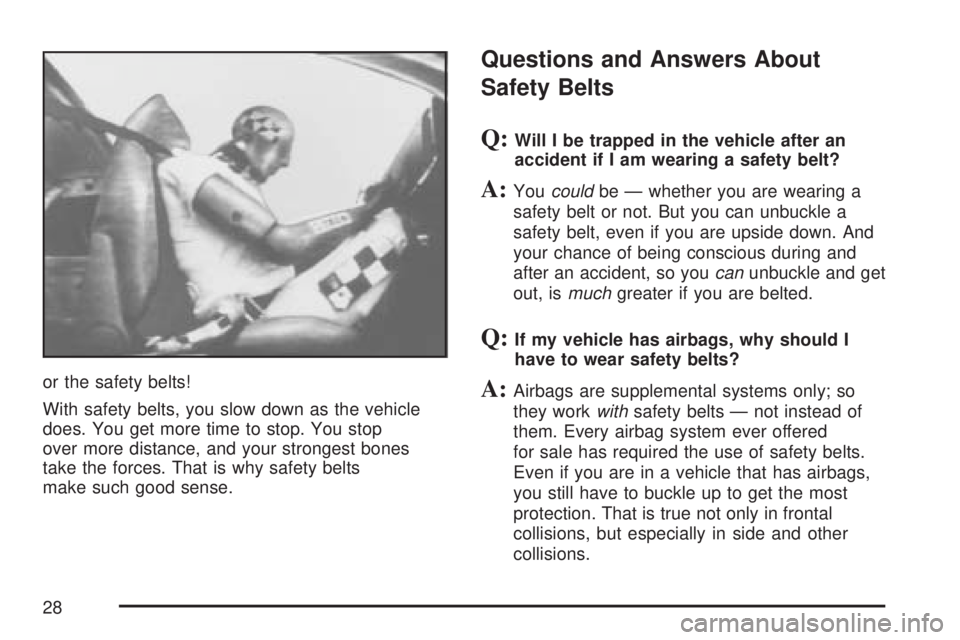

or the safety belts!
With safety belts, you slow down as the vehicle
does. You get more time to stop. You stop
over more distance, and your strongest bones
take the forces. That is why safety belts
make such good sense.
Questions and Answers About
Safety Belts
Q:Will I be trapped in the vehicle after an
accident if I am wearing a safety belt?
A:Youcouldbe — whether you are wearing a
safety belt or not. But you can unbuckle a
safety belt, even if you are upside down. And
your chance of being conscious during and
after an accident, so youcanunbuckle and get
out, ismuchgreater if you are belted.
Q:If my vehicle has airbags, why should I
have to wear safety belts?
A:Airbags are supplemental systems only; so
they workwithsafety belts — not instead of
them. Every airbag system ever offered
for sale has required the use of safety belts.
Even if you are in a vehicle that has airbags,
you still have to buckle up to get the most
protection. That is true not only in frontal
collisions, but especially in side and other
collisions.
28

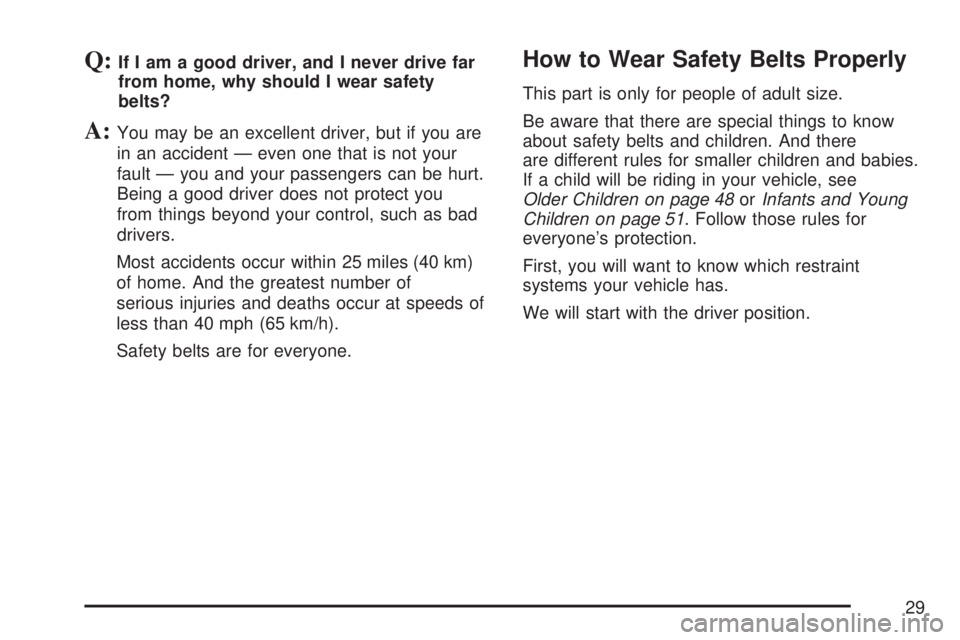

Q:If I am a good driver, and I never drive far
from home, why should I wear safety
belts?
A:You may be an excellent driver, but if you are
in an accident — even one that is not your
fault — you and your passengers can be hurt.
Being a good driver does not protect you
from things beyond your control, such as bad
drivers.
Most accidents occur within 25 miles (40 km)
of home. And the greatest number of
serious injuries and deaths occur at speeds of
less than 40 mph (65 km/h).
Safety belts are for everyone.
How to Wear Safety Belts Properly
This part is only for people of adult size.
Be aware that there are special things to know
about safety belts and children. And there
are different rules for smaller children and babies.
If a child will be riding in your vehicle, see
Older Children on page 48orInfants and Young
Children on page 51. Follow those rules for
everyone’s protection.
First, you will want to know which restraint
systems your vehicle has.
We will start with the driver position.
29

Driver Position
Lap-Shoulder Belt
The driver has a lap-shoulder belt. Here is how to
wear it properly.
1. Close and lock the door.
2. Adjust the seat so you can sit up straight. To
see how, see “Seats” in the Index.
3. Pick up the latch plate and pull the belt across
you. Do not let it get twisted.The lap-shoulder belt may lock if you pull the
belt across you very quickly. If this happens,
let the belt go back slightly to unlock it.
Then pull the belt across you more slowly.
4. Push the latch plate into the buckle until
it clicks.
Pull up on the latch plate to make sure it is
secure. If the belt is not long enough,
seeSafety Belt Extender on page 47.
Make sure the release button on the buckle is
positioned so you would be able to unbuckle
the safety belt quickly if you ever had to.
5. Move the shoulder belt height adjuster to the
height that is right for you. Improper shoulder
belt height adjustment could reduce the
effectiveness of the safety belt in a crash. See
Shoulder Belt Height Adjustment on page 38.
30
