Page 10 of 472
Memory Seat and Mirrors
Your vehicle may have the memory package.
The controls for this feature are located on the driver’s
door panel, and are used to program and recall
memory settings for the driver’s seat and outside
mirrors.To save your positions in memory, do the following:
1. Adjust the driver’s seat, including the seatback
recliner and lumbar and both outside mirrors to
a comfortable position.
SeeOutside Power Mirrors on page 2-42for more
information.
Not all mirrors will have the ability to save and
recall the mirror positions.
2. Press and hold button 1 until two beeps let you
know that the position has been stored.
A second seating and mirror position can be
programmed by repeating the above steps and pressing
button 2.
To recall the memory positions, the vehicle must be in
PARK (P). Press and release either button 1 or button 2
corresponding to the desired driving position. The
seat and outside mirrors will move to the position
previously stored. You will hear a single beep.
1-6
Page 11 of 472
Using the Remote Keyless Entry (RKE) transmitter to
enter your vehicle with the remote recall memory feature
on causes automatic seat and mirror adjustment.
There is no adjustment when the position has not been
changed by another seating position or the easy exit
feature. See “MEMORY SEAT RECALL” under
DIC Vehicle Customization (With DIC Buttons) on
page 3-75for more information.
To stop recall movement of the memory feature at any
time, press one of the power seat controls, memory
buttons, or power mirror buttons.
If something has blocked the driver’s seat while recalling
a memory position, the driver’s seat recall may stop
working. If this happens, press the appropriate control
for the area that is not recalling for two seconds,
after the obstruction is removed. Then try recalling the
memory position again by pressing the appropriate
memory button. If the memory position is still not being
recalled, see your dealer/retailer for service.Easy Exit Seat
The control for this feature is located on the driver’s
door panel between buttons 1 and 2.
With the vehicle in PARK (P), the exit position can be
recalled by pressing the exit button. You will hear
a single beep. The driver’s seat will move back.
If the easy exit seat feature is on in the Driver
Information Center (DIC), automatic seat movement will
occur when the key is removed from the ignition.
See “EASY EXIT SEAT” underDIC Vehicle
Customization (With DIC Buttons) on page 3-75for
more information.
Further programming for the memory seat feature can
be done using the DIC. You can select or cancel
the following:
The automatic easy exit seat feature.
The remote memory seat recall feature.
For programming information, seeDIC Vehicle
Customization (With DIC Buttons) on page 3-75.
1-7
Page 83 of 472
Keys...............................................................2-3
Remote Keyless Entry (RKE) System................2-4
Remote Keyless Entry (RKE) System
Operation...................................................2-5
Remote Vehicle Start......................................2-7
Doors and Locks............................................2-10
Door Locks..................................................2-10
Power Door Locks........................................2-11
Delayed Locking...........................................2-11
Programmable Automatic Door Locks..............2-11
Rear Door Security Locks..............................2-11
Lockout Protection........................................2-12
Liftgate........................................................2-13
Power Liftgate..............................................2-14
Windows........................................................2-18
Power Windows............................................2-19
Sun Visors...................................................2-21
Theft-Deterrent Systems..................................2-21
Content Theft-Deterrent.................................2-21
PASS-Key
®III+............................................2-23
PASS-Key®III+ Operation..............................2-23
Starting and Operating Your Vehicle................2-25
New Vehicle Break-In....................................2-25
Ignition Positions..........................................2-26Retained Accessory Power (RAP)...................2-27
Starting the Engine.......................................2-27
Engine Coolant Heater..................................2-29
Automatic Transmission Operation...................2-30
Tow/Haul Mode............................................2-34
Parking Brake..............................................2-35
Shifting Into PARK (P)...................................2-36
Shifting Out of PARK (P)...............................2-37
Parking Over Things That Burn.......................2-38
Engine Exhaust............................................2-38
Running the Engine While Parked...................2-39
Mirrors...........................................................2-40
Manual Rearview Mirror with OnStar
®..............2-40
Automatic Dimming Rearview Mirror with
OnStar
®and Compass...............................2-40
Outside Power Mirrors...................................2-42
Outside Power Foldaway Mirrors.....................2-43
Outside Convex Mirror...................................2-44
Outside Heated Mirrors..................................2-44
Object Detection Systems...............................2-45
Ultrasonic Rear Parking
Assist (URPA)...........................................2-45
Rear Vision Camera......................................2-47
OnStar
®System.............................................2-47
Section 2 Features and Controls
2-1
Page 87 of 472

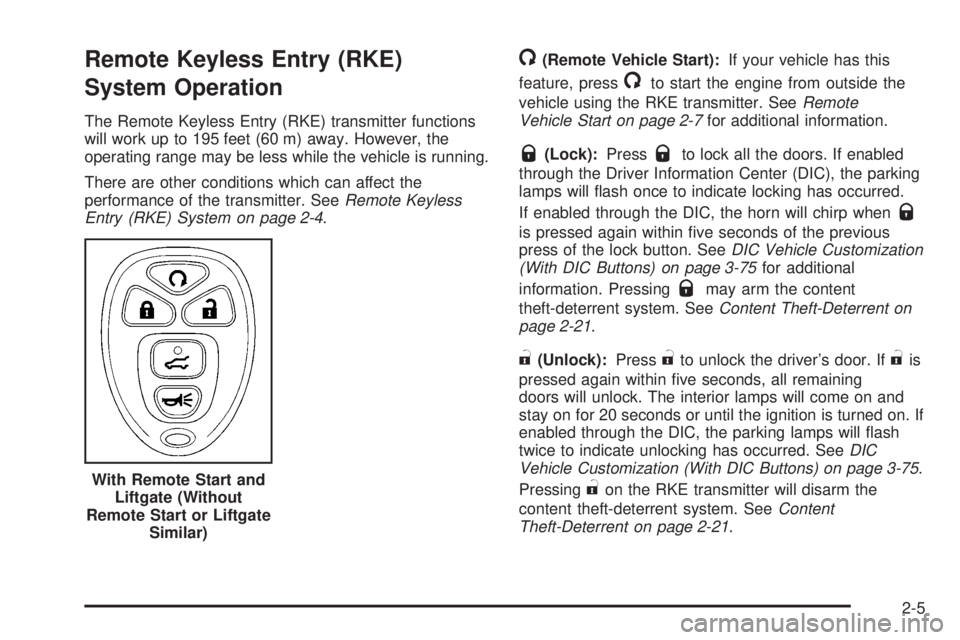

Remote Keyless Entry (RKE)
System Operation
The Remote Keyless Entry (RKE) transmitter functions
will work up to 195 feet (60 m) away. However, the
operating range may be less while the vehicle is running.
There are other conditions which can affect the
performance of the transmitter. SeeRemote Keyless
Entry (RKE) System on page 2-4.
/(Remote Vehicle Start):If your vehicle has this
feature, press
/to start the engine from outside the
vehicle using the RKE transmitter. SeeRemote
Vehicle Start on page 2-7for additional information.
Q(Lock):PressQto lock all the doors. If enabled
through the Driver Information Center (DIC), the parking
lamps will ash once to indicate locking has occurred.
If enabled through the DIC, the horn will chirp when
Q
is pressed again within ve seconds of the previous
press of the lock button. SeeDIC Vehicle Customization
(With DIC Buttons) on page 3-75for additional
information. Pressing
Qmay arm the content
theft-deterrent system. SeeContent Theft-Deterrent on
page 2-21.
"(Unlock):Press"to unlock the driver’s door. If"is
pressed again within ve seconds, all remaining
doors will unlock. The interior lamps will come on and
stay on for 20 seconds or until the ignition is turned on. If
enabled through the DIC, the parking lamps will ash
twice to indicate unlocking has occurred. SeeDIC
Vehicle Customization (With DIC Buttons) on page 3-75.
Pressing
"on the RKE transmitter will disarm the
content theft-deterrent system. SeeContent
Theft-Deterrent on page 2-21. With Remote Start and
Liftgate (Without
Remote Start or Liftgate
Similar)
2-5
Page 90 of 472

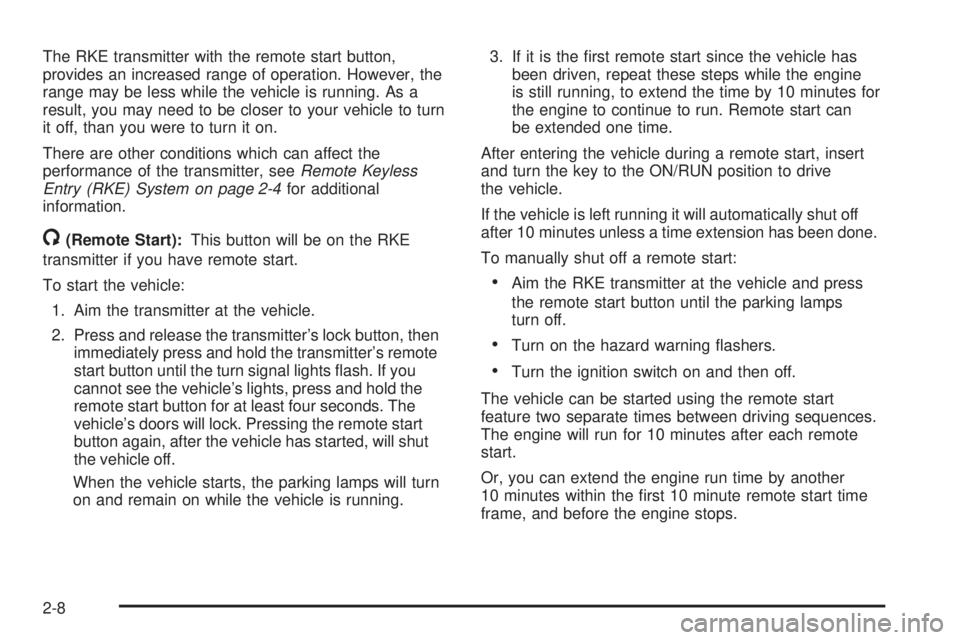

The RKE transmitter with the remote start button,
provides an increased range of operation. However, the
range may be less while the vehicle is running. As a
result, you may need to be closer to your vehicle to turn
it off, than you were to turn it on.
There are other conditions which can affect the
performance of the transmitter, seeRemote Keyless
Entry (RKE) System on page 2-4for additional
information.
/(Remote Start):This button will be on the RKE
transmitter if you have remote start.
To start the vehicle:
1. Aim the transmitter at the vehicle.
2. Press and release the transmitter’s lock button, then
immediately press and hold the transmitter’s remote
start button until the turn signal lights ash. If you
cannot see the vehicle’s lights, press and hold the
remote start button for at least four seconds. The
vehicle’s doors will lock. Pressing the remote start
button again, after the vehicle has started, will shut
the vehicle off.
When the vehicle starts, the parking lamps will turn
on and remain on while the vehicle is running.3. If it is the rst remote start since the vehicle has
been driven, repeat these steps while the engine
is still running, to extend the time by 10 minutes for
the engine to continue to run. Remote start can
be extended one time.
After entering the vehicle during a remote start, insert
and turn the key to the ON/RUN position to drive
the vehicle.
If the vehicle is left running it will automatically shut off
after 10 minutes unless a time extension has been done.
To manually shut off a remote start:
Aim the RKE transmitter at the vehicle and press
the remote start button until the parking lamps
turn off.
Turn on the hazard warning ashers.
Turn the ignition switch on and then off.
The vehicle can be started using the remote start
feature two separate times between driving sequences.
The engine will run for 10 minutes after each remote
start.
Or, you can extend the engine run time by another
10 minutes within the rst 10 minute remote start time
frame, and before the engine stops.
2-8
Page 95 of 472
Liftgate
{CAUTION:
It can be dangerous to drive with the liftgate
open because carbon monoxide (CO) gas can
come into your vehicle. You cannot see or
smell CO. It can cause unconsciousness and
even death.
If you must drive with the liftgate open, or if
electrical wiring or other cable connections
must pass through the seal between the body
and the liftgate:
Make sure all other windows are shut.
Turn the fan on your heating or cooling
system to its highest speed with the
recirculation mode off. That will force
outside air into your vehicle. See Climate
Control System in the index.
If you have air outlets on or under the
instrument panel, open them all the way.
If your vehicle has a power liftgate, disable
the power liftgate function.
SeePower Liftgate on page 2-14.If your vehicle has a power liftgate, seePower Liftgate
on page 2-14.
To unlock the liftgate, use the power door lock switch or
press the door unlock button on the Remote Keyless
Entry (RKE) transmitter twice. SeeRemote Keyless
Entry (RKE) System Operation on page 2-5.
To open the liftgate, press the touchpad on the
underside of the liftgate handle. The vehicle must be in
PARK (P) to open the liftgate. To close the liftgate,
use the pull cup or pull strap as an aid.
The liftgate has an electric latch. If the battery is
disconnected or has low voltage, the liftgate will not
open. The liftgate will resume operation when the battery
is reconnected and charged.
If the battery is properly connected and has adequate
voltage, and the liftgate still will not function, your vehicle
should be taken to a dealership for service.
2-13
Page 96 of 472
Power Liftgate
Power Liftgate Operation
{CAUTION:
It can be dangerous to drive with the liftgate
open because carbon monoxide (CO) gas can
come into your vehicle. You cannot see or
smell CO. It can cause unconsciousness and
even death.
If you must drive with the liftgate open, or if
electrical wiring or other cable connections
must pass through the seal between the body
and the liftgate:
Make sure all other windows are shut.
Turn the fan on your heating or cooling
system to its highest speed with the
recirculation mode off. That will force
outside air into your vehicle. See Climate
Control System in the index.
CAUTION: (Continued)
CAUTION: (Continued)
If you have air outlets on or under the
instrument panel, open them all the way.
If your vehicle has a power liftgate, disable
the power liftgate function.
SeePower Liftgate on page 2-14.
Your vehicle may have a power liftgate. The vehicle
must be in PARK (P) to use the power feature.
The taillamps will ash and a chime will sound when the
power liftgate is used.
2-14
Page 98 of 472
The liftgate can also be closed by pressing the power
liftgate button next to the liftgate latch. Press the button
a second time during liftgate operation to reverse that
operation.
The power liftgate may be temporarily disabled under
extreme temperatures, or under low battery conditions. If
this occurs, the liftgate can still be operated manually.If you shift the transmission out of PARK (P) while the
power function is in progress, the liftgate power function
will continue to completion. If you shift the transmission
out of PARK (P) and accelerate before the power
liftgate latches closed, the liftgate may reverse to the
open position. Cargo could fall out of the vehicle. Always
make sure the power liftgate is closed and latched
before you drive away.
If you power open the liftgate and the liftgate support
struts have lost pressure, the lights will ash and a
chime will sound. The liftgate will stay open temporarily,
then slowly close. See your dealer/retailer for service
before using the liftgate.
Obstacle Detection Features
If the liftgate encounters an obstacle during a power
open or close cycle, a warning chime will sound and the
liftgate will automatically reverse direction to the full
closed or open position. After removing the obstruction,
the power liftgate operation can be used again. If the
liftgate encounters multiple obstacles on the same power
cycle, the power function will deactivate, and you
must manually open or close the liftgate. The LIFTGATE
OPEN warning message in the Driver Information
Center (DIC) will indicate that the liftgate is open. After
removing the obstructions, manually open the liftgate
to the full open position or close the liftgate to the fully
closed and latched position. The liftgate will now
resume normal power operation. Power Liftgate Button Near Liftgate Latch
2-16
Page 108 of 472
Ignition Positions
With the key in the ignition,
you can turn it to four
different positions.
In order to shift out of PARK (P), ignition must be in
ON/RUN or ACC/ACCESSORY and the regular brake
pedal must be applied.
Notice:Using a tool to force the key from the
ignition switch could cause damage or break the key.
Use the correct key and turn the key only with your
hand. Make sure the key is all the way in. If none of
this works, then your vehicle needs service.
A (LOCK/OFF):This is the only position in which you
can remove the key. This position locks the ignition and
transmission. If the steering wheel is locked, move it from
right to left and turn the key to ACC/ACCESSORY. If
none of this works, then your vehicle needs service.B (ACC/ACCESSORY):This position allows you to use
things like the radio and the windshield wipers while
the engine is off. This position will also allow you to turn
off the engine.
C (ON/RUN):This is the position that the switch returns
to after you start your engine and release the key.
The switch stays in ON/RUN when the engine is
running. But even when the engine is not running, you
can use ON/RUN to operate your electrical power
accessories, and to display some instrument panel
warning lights.
The battery could be drained if you leave the key in the
ACC/ACCESSORY or ON/RUN position with the
engine off. You may not be able to start your vehicle if
the battery is allowed to drain for an extended period
of time.
D (START):This position starts the engine. When the
engine starts, release the key. The ignition switch
will return to ON/RUN for normal driving.
2-26
Page 109 of 472
Key In the Ignition
Never leave your vehicle with the keys inside, as it is an
easy target for joy riders or thieves. If you leave the key in
the ignition and park your vehicle, a chime will sound
when you open the driver’s door. Always remember to
remove your key from the ignition and take it with you.
This will lock your ignition and transmission. Also, always
remember to lock the doors.
The battery could be drained if you leave the key in the
ignition while your vehicle is parked. You may not be able
to start your vehicle after it has been parked for an
extended period of time.
Retained Accessory Power (RAP)
These vehicle accessories can be used for up to
10 minutes after the ignition key is turned off:
Audio System
Power Windows
Sunroof (if equipped)Power to the windows and sunroof will work up to
10 minutes or until a door is opened.
The radio continues to work for 10 minutes or until the
driver’s door is opened.
For an additional 10 minutes of operation, close all the
doors and turn the key to ON/RUN and then back to
LOCK/OFF.
All these features will work when the key is in the
ON/RUN or ACC/ACCESSORY positions.
Starting the Engine
Move your shift lever to PARK (P) or NEUTRAL (N). Your
engine will not start in any other position – this is a safety
feature. To restart when you are already moving, use
NEUTRAL (N) only.
Notice:Do not try to shift to PARK (P) if your vehicle
is moving. If you do, you could damage the
transmission. Shift to PARK (P) only when your
vehicle is stopped.
2-27
