GMC CANYON 2008 Get To Know Guide

Congratulations on your purchase of a GMC Canyon. Please read this information and your Owner Manual
to ensure an outstanding ownership experience. Note that your vehicle may not include all the featuresdescribed in this booklet. Keep this booklet with your Owner Manual for easy reference.
DRIVER INFORMATION
Instrument Panel . . . . . . . . . . . . . .2
Instrument Panel Cluster . . . . . . .3
Driver Information Center . . . . . . .4
SAFETY & SECURITY
Safety Belts . . . . . . . . . . . . . . . . . .5
Child Comfort Guide . . . . . . . . . . .5Child Restraints (LATCH) . . . . . . .6
Automatic Door Locks . . . . . . . . .6
Rear Door Security Locks . . . . . .6
Passenger Airbag Status
Indicator . . . . . . . . . . . . . . . . . . . . .7
Content TheftDeterrent System .7
OnStar
® . . . . . . . . . . . . . . . . . . . . . .8
COMFORT
Power Seats . . . . . . . . . . . . . . . . . .8
Heated Seats . . . . . . . . . . . . . . . . .8
Manual/Power Lumbar . . . . . . . . .9
Preventing Window Fogging . . . .9
ENTERTAINMENT
Audio Systems . . . . . . . . . . . . . . .9
Radio Antenna . . . . . . . . . . . . . . .12
CONVENIENCE
Headlamp Controls . . . . . . . . . . .12
Automatic Headlamp System . . .13
Fog Lamps . . . . . . . . . . . . . . . . . .13
Cargo Lamps . . . . . . . . . . . . . . . .13
Dome Lamp Override . . . . . . . . .13
Rear Seat Folding Operation . . .14Flexible, Locking Tailgate . . . . . .14
Cargo TieDowns and
Bed Rails . . . . . . . . . . . . . . . . . . .15
TwoTier Loading and
Optional Bed Extender . . . . . . . .15
PERFORMANCE & MAINTENANCE
Starting Your Engine . . . . . . . . . .16
Resetting the Oil Life System . .16
Automatic Locking Differential .16
FourWheel Drive System . . . . . .16
Traction Control System . . . . . . .19
Tire Pressure Monitor . . . . . . . . .19
OWNER INFORMATION
Roadside Assistance . . . . . . . . .20
My GMLink . . . . . . . . . . . . . . . . . .20
Canyon 2008 A 4/3/07 12:36 PM Page 1

Getting to Know Your Canyon2
A. Air Outlets
B. Turn Signal/
Multifunction Lever
C.Instrument Panel
Cluster
D. Hazard Warning
Flashers Button
E.Passenger Front
AirbagF. Exterior Lamp Controls
G. Parking Brake Release
H. Horn I.Traction Control
Button/FourWheel
Drive Buttons
(if equipped)
J.Audio System K. Cigarette Lighter
(if equipped)
L. Climate Control
System
M.Accessory Power
Outlet
N. Passenger Airbag
Status Indicator
O. Glove Box
See Section 3 of your Owner Manual.
Instrument Panel
DRIVER INFORMATION
Canyon 2008 A 4/3/07 12:36 PM Page 2

3
See Section 3 of your Owner Manual.
Your vehicle’s instrument panel is
equipped with this cluster or one verysimilar to it. The instrument panel cluster
includes these key features:
A.Tachometer
B. Fuel Gauge
C. Engine Coolant Temperature GaugeD.Speedometer
E. Driver Information Center (DIC)F.DICReset StemNote:The instrument panel cluster is
designed to let you know about many
important aspects of your vehicle’s
operation. It is important to read yourOwner Manual and become familiar withthe information being relayed to you
by the lights, gauges and indicators,
as well as what action can be taken toensure safety and to prevent damage.
Instrument Panel Cluster
ADBC
EF
Canyon 2008 A 4/3/07 12:36 PM Page 3

Getting to Know Your Canyon4
Driver Information Center
Your vehicle’s Driver Information Center
(DIC) is located on the instrument panel
cluster. It features a message center
that can display information such as the
trip odometer, vehicle personalizationfeatures and a number of messages orwarnings.
The odometer is automatically displayed
when the engine is started, and showsthe total distance the vehicle has beendriven in either miles or kilometers.
Scroll through the various DIC modes
•Press and release the control stem
located on the DIC.
Display trip odometer information
•Press and hold the control stem for
four seconds.
The display shows the distance traveled
since you last set the trip odometer tozero.
Select the DIC language
1.With the engine off, turn the key to On.
2. Close all doors.
3. Press and release the reset stem
until LANGUAGE is displayed.
4. To view each available language,
press and hold the reset stem for
two seconds.
5. Once the desired language is dis
played, briefly press the reset stem to set your choice.
Warnings and Messages
The following are examples of some of
the warnings or messages that mayappear in the DIC. Have your vehicleserviced as soon as possible:
• BRAKE FLUID
(Brake fluid may be low)
• BRAKE SYSTEM
(Service the brake system)
• ABS (Brake system operates
normally without the antilock brakesystem benefit)
•SERVICE TRACTION (Service
the Traction Control System)
• ENG HOT (Check your engine
coolant temperature gauge)
• SERVICE VEH (Service vehicle)
Acknowledge and clear a warning or
message
• Press and hold the control stem for
one second.
Note:To ensure your own safety and to
protect your vehicle warranty, it’s impor
tant not to ignore the preceding warn
ings. Acknowledge each one and attendto them at your earliest convenience.
Canyon 2008 A 4/3/07 12:36 PM Page 4

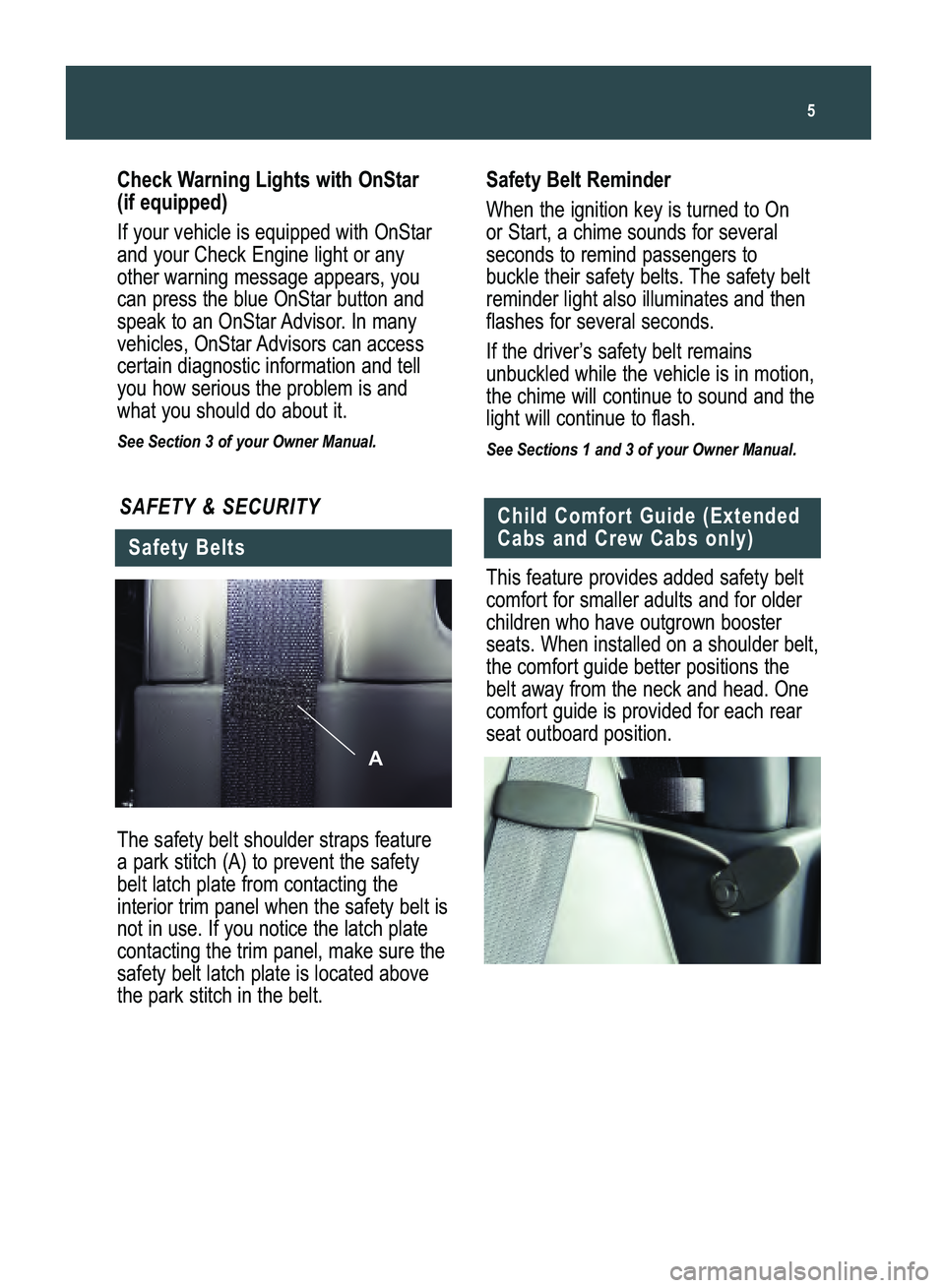

5
Check Warning Lights with OnStar
(if equipped)
If your vehicle is equipped with OnStar
and your Check Engine light or anyother warning message appears, youcan press the blue OnStar button and
speak to an OnStar Advisor. In many
vehicles, OnStar Advisors can accesscertain diagnostic information and tellyou how serious the problem is andwhat you should do about it.
See Section 3 of your Owner Manual.
SAFETY & SECURITY
Safety Belts
The safety belt shoulder straps feature
a park stitch (A) to prevent the safetybelt latch plate from contacting theinterior trim panel when the safety belt isnot in use. If you notice the latch platecontacting the trim panel, make sure thesafety belt latch plate is located abovethe park stitch in the belt.
A
Child Comfort Guide (Extended
Cabs and Crew Cabs only)
This feature provides added safety belt
comfort for smaller adults and for olderchildren who have outgrown boosterseats. When installed on a shoulder belt,the comfort guide better positions thebelt away from the neck and head. Onecomfort guide is provided for each rearseat outboard position.
Safety Belt Reminder
When the ignition key is turned to On
or Start, a chime sounds for severalseconds to remind passengers tobuckletheir safety belts. The safety belt
reminder light also illuminates and then
flashes for several seconds.
If the driver’s safety belt remains
unbuckled while the vehicle is in motion,the chime will continue to sound and thelight will continue to flash.
See Sections 1 and 3 of your Owner Manual.
Canyon 2008 A 4/3/07 12:36 PM Page 5

Getting to Know Your Canyon6
Child Restraints (LATCH)
Your vehicle is equipped with LATCH
anchors, and may have top tethers for
use with a LATCHcompatible child
restraint. If your child restraint is notcompatible with the LATCH system, you
may still use it by installing the childrestraint with the safety belt system.
Automatic Door Locks
(if equipped)
For your safety, vehicles equipped with
power door locks and Remote KeylessEntry are programmed at the factory to
lock all doors automatically. The doorswill lock when all doors are closed, theignition is on and the gearshift lever ismoved out of Park on vehicles with anautomatic transmission, or when vehicle
speed is greater than 15 mph on vehi
cles with a manual transmission. Thisfeature cannot be disabled.
You can personalize the automatic
unlock features through the DriverInformation Center.
See Sections 2 and 3 of your Owner Manual.
Rear Door Security Locks
(Crew Cab models)
Crew Cab models are equipped with
rear door security locks that allow you tolock the rear doors so they cannot beopened by passengers from the inside.
The lock switch (shown above) is locat
ed on the inside edge of each rear door.
Install a comfort guide on a shoulder
belt
1. Pull the elastic cord out from between
the seatback and the interior body toremove the guide from its storageclip.
2. Slide the guide under and past the
safety belt (the elastic cord must beunder the belt).
3. Place the guide over the belt and
insert the two edges of the belt intothe slots of the guide. (Be sure thatthe belt is not twisted and that it lies
flat. The elastic cord must be underthe belt and the guide on top.)
4. Buckle, position and release the
safety belt as described in Section 1 of your Owner Manual. Make sure
the belt crosses the passenger’s
shoulder.
Storing the Child Comfort Guide
To remove and store the comfort guides,
squeeze the belt edges together so thatyou can take them out of the guides.Slide the guide back on its storage cliplocated between the interior body andthe seatback. Storing the comfort guideproperly will prevent possible rattling.
See Section 1 of your Owner Manual.
Choose a child restraint that is appropri
ate for the child’s age and size (weightand height).
See Section 1 of your Owner Manual.
Canyon 2008 A 4/3/07 12:36 PM Page 6

7
Engage the rear door security locks
1. Open a rear door and insert your
ignition key into the lock.
2. On the driver’s side rear door, turn
the key clockwise to engage the rear
door security lock (turn it counterclockwise on the opposite side reardoor).
3. Close the door.
Open the rear door when the security
lock is on
• Unlock and open the door from
outside the vehicle.
Return the rear doors to normal use
• On the driver’s side rear door, insert
the key and turn the lock counterclockwise (turn it clockwise on theopposite side rear door).
See Section 2 of your Owner Manual.
Passenger Airbag Status
Indicator
Your vehicle is equipped with a
Passenger Sensing System located inthe front passenger seat for the front
passenger frontal airbag, and a passenger airbag status indicator located onthe center of the instrument panel.
See Sections 1 and 3 of your Owner Manual.
Note:It is recommended that children
not be placed in the front passengerseat, even with the Passenger Sensing
System. All children should be securedin a rear seat, including an infant ridingin a rearfacing infant seat, a child ridingin a forwardfacing child seat or an olderchild riding in a booster seat.
Content TheftDeterrent System
(if equipped)
If your vehicle has the Remote Keyless
Entry (RKE) system, it also has a content theftdeterrent alarm system.
The content theft
deterrent system isarmed when youlock the doors withthe RKE transmitterand all the doorsare closed. If thelock button on the RKE transmitter ispressed with a door open, the horn willchirp several times. Close the door to
arm the system. The security light will
flash when the system is armed.
The system will not be armed if the
doors are locked with a key, the manualdoor lock or the power door lock switch.
Alarm System
If a locked door is not opened using the
RKE transmitter or by OnStar, the horn
will chirp for several seconds and then
the alarm will sound. The alarm will flashthe front turn signal lamps and soundthe horn for two minutes.
To prevent the alarm from sounding,
unlock the doors using the RKE trans
mitter. To turn off the alarm, press theunlock button on the RKE transmitter or
start the engine using the correct key.
PASSlock®
Your vehicle also is equipped with the
PASSlock theftdeterrent system thatrequires the correct key be used to startthe engine. If the correct key is not usedor the ignition lock cylinder is tamperedwith, the fuel system is disabled and theengine will not start.
See Section 2 of your Owner Manual.
Canyon 2008 A 4/3/07 12:36 PM Page 7

Getting to Know Your Canyon8
OnStar®(if equipped)
If your vehicle is OnStarequipped,
the OnStar system provides invehicle
safety, security and phone services,
available 24 hours a day, 7 days a
week. These services are easilyaccessed through the three OnStarbuttons in your vehicle. For more infor
mation about OnStar features, refer to
the OnStar Owner’s Guide and enclosedaudio CD located in your glove box.
See Section 2 of your Owner Manual.
COMFORT
Heated Seats (if equipped)
On equipped vehicles, the driver and
front passenger seats and lower seat
backs can be heated.
The controls are located on the outboard
sides of the front seats. (The ignitionmust be on for this feature to work.)
Activate the heated seats
•Press the lower part of the switch to
turn on the heater to the LO setting.
• Press the upper part of the switch to
turn on the heater to the HI setting.
• Place the switch in the center position
to turn the heater off.
See Section 1 of your Owner Manual.
Note:In order for the passenger heated
seat to operate, the passenger safetybelt must be buckled.
Power Seats (if equipped)
On equipped vehicles, the power seat
controls are located on the outboardsides of the front seats.
Raise or lower the front of the seat
• Lift or depress the front edge of the
control (A).
Raise or lower the rear of the seat
•Lift or depress the rear of the control
(B).
Move the seat forward or rearward
• Move the entire control forward or
rearward.
Raise or lower the seat
• Lift or depress the entire control.
Move the reclining front seatback
forward or rearward
• Move the recliner control (C) forward
or rearward.
See Section 1 of your Owner Manual.
A
BC
Canyon 2008 A 4/3/07 12:36 PM Page 8

9
Manual/Power Lumbar
(if equipped)
The manual lumbar control knob is
located on the outboard side of the driver’s seat. Turn the knob counterclock
wise to increase lumbar support andclockwise to decrease lumbar support.
The power lumbar control switches for
the driver and passenger seats arelocated on the outboard side of theseats.
See Section 1 of your Owner Manual.
Preventing Window Fogging
To clear fog or frost from the windshield
or side windows, turn the airflow controlknob to one of the following modes:
(Floor/Defog):Use to clear the
windows of moisture and to warm
passengers. This mode splits the air delivery between the windshield and thefloor outlets.
(Defrost):Use to remove fog or
frost from the windshield more quickly.This mode directs most of the air to the windshield.
When you select the floor/defog or
defrost mode, the system automatically
turns off the recirculation mode and runsthe air conditioning compressor. The
recirculation mode cannot be selected
because outside air is needed to removeinterior moisture from the vehicle.
See Section 3 of your Owner Manual.
ENTERTAINMENT
Audio Systems
AM/FM Stereo (if equipped)
Set the clock on the AM/FM stereo
radio
•Press and hold the HR button until
the correct hour appears.
• Press and hold MIN until the correct
minute appears.
Display the time with the ignition off
• Press RCL, HR or MIN.
Presetting Radio Stations
You can set up to 18 station presets
(six AM, six FM1 and six FM2) using the
process shown below.
Set a station
1.Turn the radio on.
2. Press the BAND button to select the
band (AM, FM1 or FM2).
3. Tune to the desired station using the
seek function or tune knob.
4.Press AUTO EQ or AUTO TONE (on
equipped audio systems, as applies
to your radio) to select the soundequalization best suiting the type ofstation selected.
5.Press/hold a numbered button until a
beep confirms storage of the station.
6. Repeat the previous steps for each
pushbutton.
Canyon 2008 A 4/3/07 12:36 PM Page 9

Getting to Know Your Canyon10
AM/FM Stereo with CD/MP3 and
Radio Data System (if equipped)
Set the clock on RDSequipped radios
• Press and hold HR and MN simul
taneously for two seconds until
UPDATED and the clock symbol
appear on the display.
If the time is not available from the
station, NO UPDAT will appear.
Using the RDS
Radios equipped with RDS mode allow
you to:
• Seek only stations with your
preferred programming type.
• Seek stations with traffic
announcements.
• Receive announcements of local
and/or national emergencies.
•Receive and display messages from
radio stations.
RDS features are available only on FM
stations that broadcast RDS information.When tuned to an RDS station, the radiodisplays the station name instead of the
frequency. Most RDS stations broadcasttheir station name, time of day and a
Program Type (PTY).
Access the traffic announcement
feature
• Press the TRAF button.
Access radio station messages
• Press the INFO button when INFO
appears on your radio display.
Access Program Type selections
1. To turn Program Type on, press the
SEEK TYPE button once.
2. Turn the PTYPE knob to select the
Program Type you want.
3. Press the SEEK or SEEK TYPE but
ton and the radio seeks to the firstavailable RDS broadcast of the
selected Program Type.
4. To turn Program Type off (while
seeking), press the SEEK or SEEKTYPE button, or wait for the seek tocomplete. All stations will now be
available when you press the SEEK
button.
Activate the Alternate Frequency
feature
• Press and hold the BAND button for
two seconds to turn it on; repeat to
turn it off.
When turned on, AF ON appears on the
radio display and the radio may switch
to stronger stations of the same PTY.
ALERT!
This message appears on the display
when a local or national emergency
announcementis available. If a CD is
playing, the announcement will override
it. ALERT! announcements cannot beturned off, and are not affected by tests
of the Emergency Broadcast System.
Canyon 2008 A 4/3/07 12:36 PM Page 10
