GMC CANYON 2008 Owner's Manual

Seats and Restraint Systems........................... 1-1
Front Seats
............................................... 1-2
Rear Seats
............................................... 1-9
Safety Belts
.............................................1-12
Child Restraints
.......................................1-33
Airbag System
.........................................1-60
Restraint System Check
............................1-75
Features and Controls..................................... 2-1
Keys
........................................................ 2-3
Doors and Locks
....................................... 2-7
Windows
.................................................2-12
Theft-Deterrent Systems
............................2-15
Starting and Operating Your Vehicle
...........2-19
Mirrors
....................................................2-39
OnStar
®System
......................................2-47
Storage Areas
.........................................2-50
Sunroof
..................................................2-52
Instrument Panel............................................. 3-1
Instrument Panel Overview
.......................... 3-4
Climate Controls
......................................3-20
Warning Lights, Gages, and Indicators
........3-23
Driver Information Center (DIC)
..................3-38
Audio System(s)
.......................................3-46Driving Your Vehicle....................................... 4-1
Your Driving, the Road, and Your Vehicle
..... 4-2
Towing
...................................................4-38
Service and Appearance Care.......................... 5-1
Service
..................................................... 5-3
Fuel
......................................................... 5-5
Checking Things Under the Hood
...............5-10
Rear Axle
...............................................5-46
Four-Wheel Drive
.....................................5-47
Front Axle
...............................................5-48
Headlamp Aiming
.....................................5-49
Bulb Replacement
....................................5-49
Windshield Wiper Blade Replacement
.........5-54
Tires
......................................................5-56
Appearance Care
.....................................5-99
Vehicle Identication
...............................5-109
Electrical System
....................................5-110
Capacities and Specications
...................5-116
Maintenance Schedule..................................... 6-1
Maintenance Schedule
................................ 6-2
Customer Assistance Information.................... 7-1
Customer Assistance and Information
........... 7-2
Reporting Safety Defects
...........................7-14
Vehicle Data Recording and Privacy
...........7-16
Index................................................................ 1
2008 GMC Canyon Owner ManualM

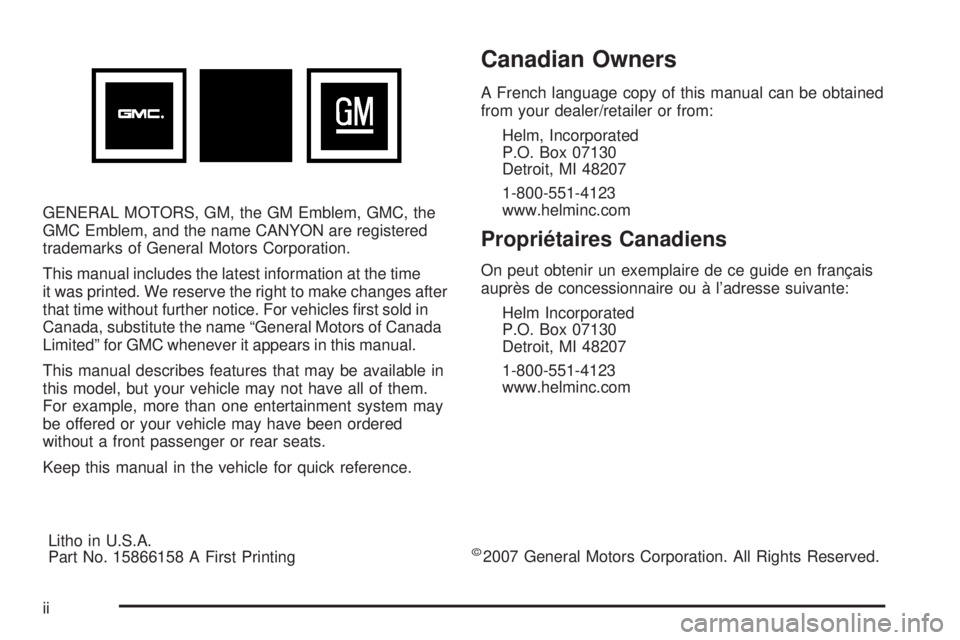

GENERAL MOTORS, GM, the GM Emblem, GMC, the
GMC Emblem, and the name CANYON are registered
trademarks of General Motors Corporation.
This manual includes the latest information at the time
it was printed. We reserve the right to make changes after
that time without further notice. For vehicles rst sold in
Canada, substitute the name “General Motors of Canada
Limited” for GMC whenever it appears in this manual.
This manual describes features that may be available in
this model, but your vehicle may not have all of them.
For example, more than one entertainment system may
be offered or your vehicle may have been ordered
without a front passenger or rear seats.
Keep this manual in the vehicle for quick reference.
Canadian Owners
A French language copy of this manual can be obtained
from your dealer/retailer or from:
Helm, Incorporated
P.O. Box 07130
Detroit, MI 48207
1-800-551-4123
www.helminc.com
Propriétaires Canadiens
On peut obtenir un exemplaire de ce guide en français
auprès de concessionnaire ou à l’adresse suivante:
Helm Incorporated
P.O. Box 07130
Detroit, MI 48207
1-800-551-4123
www.helminc.com
Litho in U.S.A.
Part No. 15866158 A First Printing
©2007 General Motors Corporation. All Rights Reserved.
ii

Using this Manual
Many people read the owner manual from beginning to
end when they rst receive their new vehicle to learn
about the vehicle’s features and controls. Pictures
and words work together to explain things.
Index
A good place to quickly locate information about the
vehicle is the Index in the back of the manual. It is
an alphabetical list of what is in the manual and
the page number where it can be found.
Safety Warnings and Symbols
There are a number of safety cautions in this book.
A box with the word CAUTION is used to tell about
things that could hurt you or others if you were to
ignore the warning.
{CAUTION:
These mean there is something that could hurt
you or other people.
We tell you what the hazard is and what to do to help
avoid or reduce the hazard. Please read these cautions.
If you do not, you or others could be hurt.
A circle with a slash
through it is a safety
symbol which means
“Do Not,” “Do Not do this”
or “Do Not let this happen.”
iii

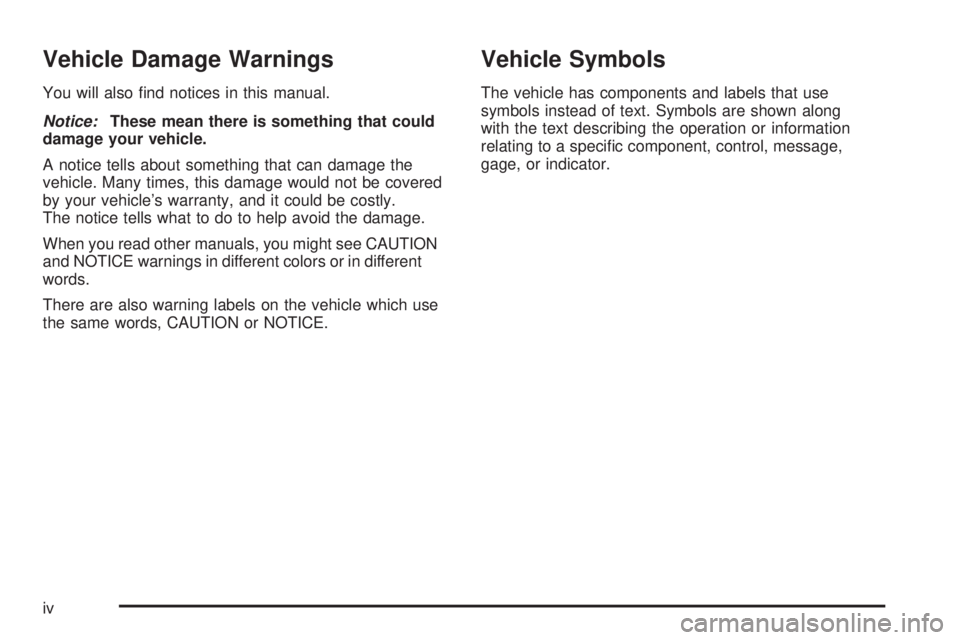

Vehicle Damage Warnings
You will also nd notices in this manual.
Notice:These mean there is something that could
damage your vehicle.
A notice tells about something that can damage the
vehicle. Many times, this damage would not be covered
by your vehicle’s warranty, and it could be costly.
The notice tells what to do to help avoid the damage.
When you read other manuals, you might see CAUTION
and NOTICE warnings in different colors or in different
words.
There are also warning labels on the vehicle which use
the same words, CAUTION or NOTICE.
Vehicle Symbols
The vehicle has components and labels that use
symbols instead of text. Symbols are shown along
with the text describing the operation or information
relating to a specic component, control, message,
gage, or indicator.
iv

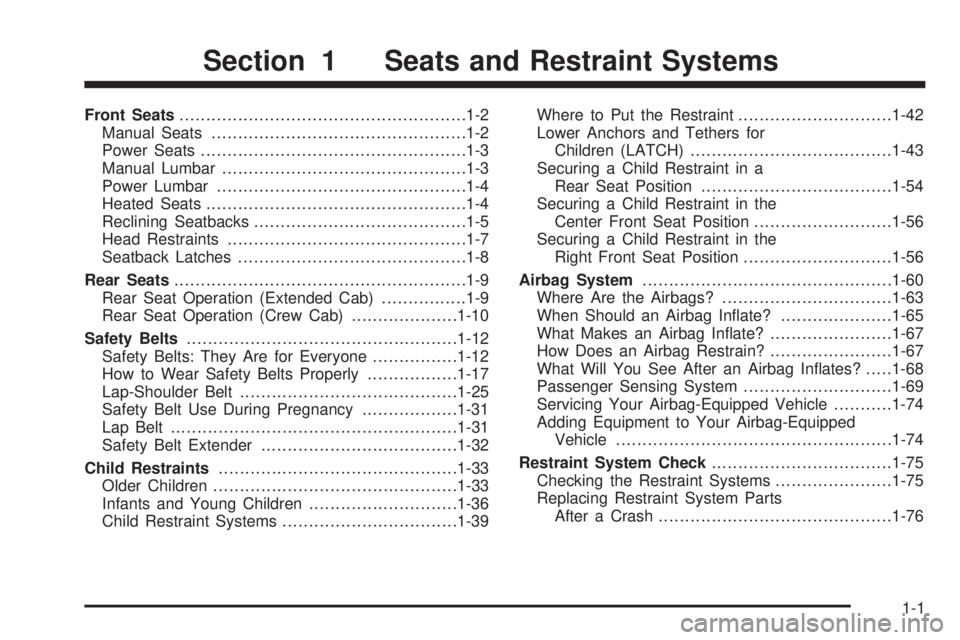

Front Seats......................................................1-2
Manual Seats................................................1-2
Power Seats..................................................1-3
Manual Lumbar..............................................1-3
Power Lumbar...............................................1-4
Heated Seats.................................................1-4
Reclining Seatbacks........................................1-5
Head Restraints.............................................1-7
Seatback Latches...........................................1-8
Rear Seats.......................................................1-9
Rear Seat Operation (Extended Cab)................1-9
Rear Seat Operation (Crew Cab)....................1-10
Safety Belts...................................................1-12
Safety Belts: They Are for Everyone................1-12
How to Wear Safety Belts Properly.................1-17
Lap-Shoulder Belt.........................................1-25
Safety Belt Use During Pregnancy..................1-31
Lap Belt......................................................1-31
Safety Belt Extender.....................................1-32
Child Restraints.............................................1-33
Older Children..............................................1-33
Infants and Young Children............................1-36
Child Restraint Systems.................................1-39Where to Put the Restraint.............................1-42
Lower Anchors and Tethers for
Children (LATCH)......................................1-43
Securing a Child Restraint in a
Rear Seat Position....................................1-54
Securing a Child Restraint in the
Center Front Seat Position..........................1-56
Securing a Child Restraint in the
Right Front Seat Position............................1-56
Airbag System...............................................1-60
Where Are the Airbags?................................1-63
When Should an Airbag Inate?.....................1-65
What Makes an Airbag Inate?.......................1-67
How Does an Airbag Restrain?
.......................1-67
What Will You See After an Airbag Inates?.....1-68
Passenger Sensing System............................1-69
Servicing Your Airbag-Equipped Vehicle...........1-74
Adding Equipment to Your Airbag-Equipped
Vehicle....................................................1-74
Restraint System Check..................................1-75
Checking the Restraint Systems......................1-75
Replacing Restraint System Parts
After a Crash............................................1-76
Section 1 Seats and Restraint Systems
1-1

Front Seats
Manual Seats
{CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle
is moving. The sudden movement could startle
and confuse you, or make you push a pedal
when you do not want to. Adjust the driver’s
seat only when the vehicle is not moving.
Lift the bar located under the front of the seat to unlock
it. Slide the seat to where you want it and release
the bar. Try to move the seat with your body to make
sure the seat is locked into place.
1-2

Power Seats
If the vehicle has power
seats, the controls used to
operate them are located
on the outboard side of
the seats.
To adjust the seat, do any of the following:
Move the seat forward or rearward by sliding the
horizontal control forward or rearward.
Raise or lower the front part of the seat cushion by
moving the front of the horizontal control up or down.
Raise or lower the rear part of the seat cushion by
moving the rear of the horizontal control up or down.
Raise or lower the entire seat by moving the entire
horizontal control up or down.
Use the vertical control to recline the seatback.
See “Power Reclining Seatbacks” underReclining
Seatbacks on page 1-5for more information.
Manual Lumbar
If your vehicle has this
feature, there is a knob
located on the outboard
side of the driver’s seat.
Turn the top of the knob toward the front of the vehicle
to increase lumbar support. Turn the top of the knob
toward the rear of the vehicle to decrease lumbar
support.
1-3

Power Lumbar
If your vehicle has this
feature, the control is
located on the outboard
side of the seat(s).
Press and hold the front of the control until you have
the desired lumbar support. To decrease lumbar
support, press and hold the rear of the control.
Heated Seats
If your vehicle has this
feature, the controls are
located on the outboard
side of the front seats.
This feature will heat the cushion and back of the seats.
Press the top of the switch to turn the heat to the
high setting. Press the bottom of the switch to turn the
heat to the low setting. Put the switch in the center
position to turn the heat off.
The ignition must be on for the heated seat feature to
work. The seat will heat to the last setting if the ignition
has been turned off and then turned back on.
The passenger’s safety belt must be fastened for the
heated seat feature to work on the passenger’s seat.
1-4

Reclining Seatbacks
Manual Reclining Seatbacks
{CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle
is moving. The sudden movement could startle
and confuse you, or make you push a pedal
when you do not want to. Adjust the driver’s
seat only when the vehicle is not moving.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.If your seats have manual reclining seatbacks, the lever
used to operate them is located on the outboard side
of the seat(s).
To recline the seatback, do the following:
1. Lift the recline lever.
2. Move the seatback to the desired position, then
release the lever to lock the seatback in place.
3. Push and pull on the seatback to make sure it is
locked.
1-5

To return the seatback to an upright position, do the
following:
1. Lift the lever fully without applying pressure to the
seatback and the seatback will return to the upright
position.
2. Push and pull on the seatback to make sure it is
locked.
Power Reclining Seatbacks
If the seats have power
reclining seatbacks, use
the vertical power seat
control located on the
outboard side of the seat.
To recline the seatback, press the control toward the
rear of the vehicle.
To raise the seatback, press the control toward the
front of the vehicle.
1-6
