buttons GMC ENVOY 1998 Owners Manual

Resynchronization Resynchronization may be necessary due to the security
method used by this system. The transmitter does not
send the
same signal twice to the receiver. The receiver
will
not respond to a signal it has been sent previously.
This prevents anyone
from recording and playing back
the signal from the transmitter.
To resynchronize your transmitter, stand close to your
vehicle and press and hold the LOCK and UNLOCK
buttons on the transmitter at the same time for seven
seconds. The door locks should cycle to confirm
synchronization.
If the locks do not cycle. see your
dealer for service.
LiftgateLiftglass
It can be dangerous to drive with the liftgate or
liftglass open because carbon monoxide (CO) gas
can come into your vehicle. You can’t see or smell
CO. It can cause unconsciousness and even death.
If‘ you must drive with the liftgate or liftglass
open or if electrical wiring or other cable
connections must pass through the seal between
the body and the liftgate
or liftglass:
Make sure all windows are shut.
Turn the fan on your heating or cooling
system to its highest speed with the setting
on any airflow selection except
RECIRCULATION. That will force outside
air into your vehicle. See “Comfort
Controls” in the Index.
If you have air outlets on or under the
instrument panel, open them
all the way.
See “Engine Exhaust” in the Index.
2-9
I
ProCarManuals.com

Reading La ~ ~ ps
Press the button near each
lamp to turn the reading
lamps
on and off.
The lamps can also be swiveled
to point in the
desired direction.
Driver Information System
This system displays the outside air temperature,
compass direction and trip information in the
overhead console.
USMET The USMET (United Statedmetric) button
allows you to switch the display between
the English
and metric system.
MODE: The MODE button can be used to toggle
between three modes
of operation: OFF, COMP/TEMP
and TRIP.
OFF: This button turns the system off.
COMP/TEMP: The display provides the outside
temperature and one
of eight compass readings to
indicate the direction the vehicle is facing.
Before you turn on the ignition and move
the vehicle,
the temperature indicated will be the last outside
temperature recorded with the ignition on. If the outside
temperature is
37°F (3°C) or lower, the display will
toggle between the word ICE and the current
temperature every eight seconds. This is a warning
to
the driver that road conditions may be icy, and that
appropriate precautions should be taken.
The compass is self-calibrating,
so it does not need to be
manually set. However, if C (Calibration) is displayed, the
compass will need
to be calibrated. You may also place the
compass in a noncalibrated mode by pressing and holding
the MODE and USMET buttons simultaneously while in
the COMPREMP mode. After about 10 seconds, the
compass will display
C and you can release the buttons.
Drive
the vehicle in a complete 360" circle three times at
a speed of less than 5 mph (8 km/h), and the compass will
function normally. Once the calibration is complete, the
display will return
to a compass reading.
2-43
I
ProCarManuals.com

Variance is the difference between magnetic north and
geographic north. In some areas, the difference between
the two can be great enough to cause false compass
readings. If this happens, follow these instructions to set
the variance for your particular location:
1. Find your location on the zone map earlier in this
section. Note your zone number.
2. Press and hold both the MODE and the USMET
buttons
in the COMP/TEMP mode.
3. After five seconds, the compass will acknowledge
the variation mode by displaying the current zone
number,
When it does, release both buttons.
4. Press US/MET until your zone number appears on
the display.
5. Press MODE to enter your zone number. Your
variance is now set and the display will return to the
COMP/TEMP mode.
TRIP: Once in the TRIP mode, pressing the MODE
button will step
you through the following
TRIP functions:
0 AVG ECON: The average fuel economy since the
last reset
is displayed.
INST ECON: Instantaneous fuel economy for the
last second of driving is displayed.
RANGE: The display indicates the estimated
distance that can be travelled with the remaining fuel
in the tank, based on the fuel economy for the last
few hours
of driving.
FUEL USED: The fuel used since the last reset
is displayed.
AVG SPEED: The average speed since the last reset
is displayed.
2-44
ProCarManuals.com

To reset the trip computer, press the MODE and
US/MET buttons simultaneously for at least two
seconds.
All functions will be displayed for half a
second once the system
is reset. Reset can only be
performed in the AVG
ECON, FUEL USED and
AVG SPEED modes. All three modes are
reset simultaneously.
Sunglasses Storage Compartment
The console has a sunglasses storage compartment.
Center Floor Console
Your vehicle has a console between the two front
bucket seats.
To open the console, pull up on the console cover.
The console has two cupholders and
a storage tray,
including
a change holder, for the front seat passenger
and driver
to use.
2-45
I
ProCarManuals.com

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and
(2) this device must accept any interference
received, including interference that may cause
undesired operation.
This device complies with
RSS-2 10 of Industry Canada.
Operation
is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference, including
interference that may cause undesired operation of
the device.
Changes and modifications to this system by other than
an authorized service facility could void authorization to
use this equipment.
Programming the Transmitter
Do not use the transmitter with any garage door opener
that does not have the “stop and reverse” feature. This
includes any garage door opener model manufactured
before April
1, 1982.
Be sure that pe~ple arid objects Lire clear of the garclge
door- you ~1-e Iwogmmning!
Your vehicle’s engine should be turned off while
programming the transmitter. Follow these steps to
program up to three channels:
1. If you have not previously programmed a universal
channel, proceed to Step
2. Otherwise, hold down
the two outside buttons
on the universal transmitter
until the red light begins to flash rapidly
(approximately
20 seconds). Then release the
buttons. This procedure initializes the memory and
erases any previous settings for all three channels.
2. Hold the end of the hand-held transmitter against the
bottom surface
of the universal transmitter so that
you can still see the red light.
2-54
ProCarManuals.com

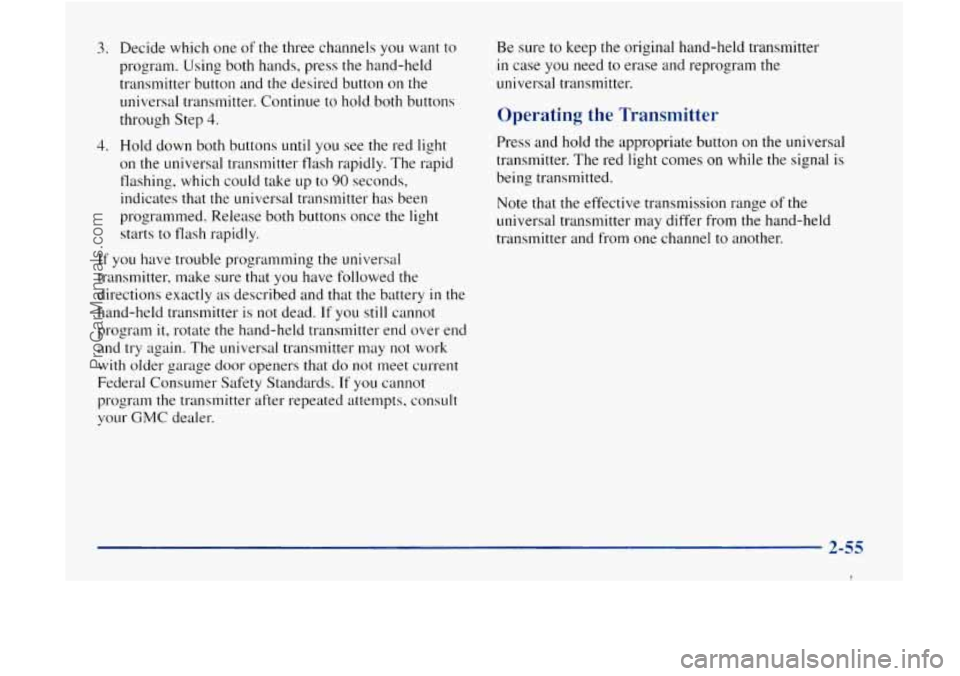

3.
4.
Decide which one of the three channels you want to
program. Using both hands, press the hand-held
transmitter button and the desired button
on the
universal transmitter. Continue
to hold both buttons
through Step
4.
Hold down both buttons until you see the red light
on the universal transmitter flash rapidly. The rapid
flashing, which could take up to
90 seconds,
indicates that the universal transmitter has been
programmed. Release both buttons once the light
starts
to flash rapidly.
If you have trouble programming the universal
transmitter, make sure that you have followed the
directions exactly as described and that the battery
in the
hand-held transmitter is not dead. If you still cannot
program
it, rotate the hand-held transmitter end over end
and try again. The universal transmitter may not work
with older garage door openers that do not meet current
Federal Consumer Safety Standards.
If you cannot
program the transmitter after repeated attempts, consult
your
GMC dealer. Be
sure to keep the original hand-held transmitter
in case you need to erase and reprogram the
universal transmitter.
Operating the Transmitter
Press and hold the appropriate button on the universal
transmitter. The red light comes on while the signal is
being transmitted.
Note that the effective transmission range of the
universal transmitter may differ from the hand-held
transmitter and from one channel to another.
2-55
I
ProCarManuals.com

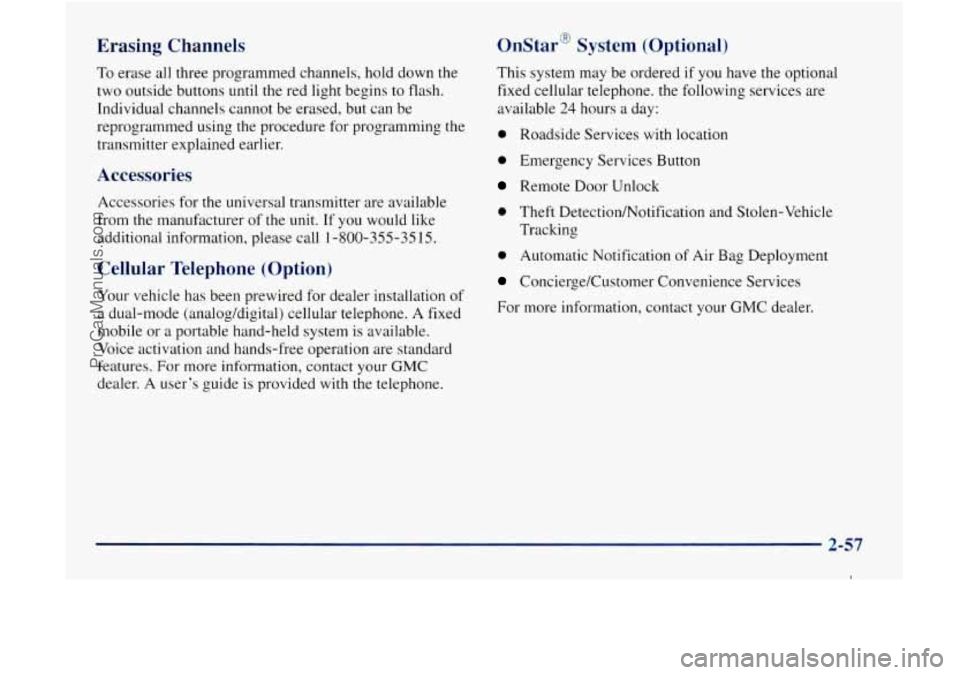

Erasing Ch; !lS
To erase all three programmed channels, hold down the
two outside buttons
until the red light begins to flash.
Individual channels cannot be erased, but can be
reprogrammed using the procedure for programming the
transmitter explained earlier.
Accessories
Accessories for the universal transmitter are available
from the manufacturer of
the unit. If you would like
additional information, please call
1-800-355-35 15.
Cellular Telephone (Option)
Your vehicle has been prewired for dealer installation of
a dual-mode (analog/digital) cellular telephone.
A fixed
mobile or a portable hand-held system is available.
Voice activation and hands-free operation are standard
features. For more information, contact your
GMC
dealer. A user’s guide is provided with the telephone.
Onstar@ System (Optional)
This system may be ordered if you have the optional
fixed cellular telephone. the following services are
available
24 hours a day:
0 Roadside Services with location
0 Emergency Services Button
Remote Door Unlock
0 Theft Detectionhlotification and Stolen-Vehicle
Tracking
0 Automatic Notification of Air Bag Deployment
ConciergeKustomer Convenience Services
For more information, contact your GMC dealer.
2-57
1
ProCarManuals.com

RECALL: Display the time with the ignition off by
pressing this button. When the radio is playing, press
this button
to recall the station frequency.
SCV Your system has a feature called
Speed-Compensated-Volume (SCV). With
SCV, your
audio system adjusts automatically
to make up for road
and wind noise as
you drive. Set the volume at the
desired level. Move
the control ring behind the upper
knob to
the right to adjust the SCV. Then, as you drive,
SCV automatically increases the volume, as necessary,
to overcome noise at any particular speed. The volume
level should always sound the same to you as you drive.
If you don't want
to use SCV, turn the control all the
way down. Each notch on
the control ring allows for
more volume compensation at faster vehicle speeds.
Finding a Station
AM-FM: Press this button to switch between AM, FMl
and FM2. The display will show your selection.
TUNE: Press this knob lightly so it extends. Turn it to
choose radio stations. Push the knob back into its stored
position when you're not using it.
SEEK: Press the right arrow to tune to the next higher
station and the left arrow to tune to
the next lower station
and stay there. The sound will mute while seeking.
SCAN: Press and hold SEEK for two seconds until
SCAN appears
on the display. SCAN allows you to
listen to stations for a few seconds. The receiver will
continue to scan and momentarily stop at each station
until
you press the button again. The sound will mute
while scanning.
PUSHBUTTONS: The six numbered pushbuttons let
you return to your favorite stations. You can set up to
18 stations (six
AM, six FM 1 and six FM2). Just:
1. Turn the radio on.
2. Press AM-FM to select the band.
3. Tune in the desired station.
4. Press and hold one of the six pushbuttons. The sound
will mute. When it returns, release the button.
Whenever you press that numbered button, the
station you set will return.
5. Repeat the steps for each pushbutton.
3-9
I
ProCarManuals.com

P. SCAN: The preset scan button lets you scan through
your favorite stations stored on your pushbuttons. Select
either the AM, FMl or
FM2 mode and then press
P. SCAN.
It will scan through each station stored on
your pushbuttons and stop for
a few seconds before
continuing to scan through all
of the pushbuttons. Press
P. SCAN again or one of the pushbuttons to stop
scanning to listen to a specific preset station. P.
SCAN
will light up on the display while in this mode. If one of
the stations stored on
a pushbutton is too weak for the
location you are in, the radio display will show the
channel number
(P 1 -P6) for several seconds before
advancing to the next preset station.
Setting the Tone
BASS: Press lightly on this knob to release it from its
stored position. Turn the knob to the right
to increase
bass and to the
left to decrease bass.
TREB: Press lightly on this knob to release it from its
stored position. Turn the knob to
the right to increase
treble and
to the left to decrease treble. If a station is
weak
or noisy, you may want to decrease the treble.
Push these knobs back into their stored positions when
you’re
not using them.
Adjusting the Speakers
BAL: Press lightly on this knob to release it from its
stored position. Turn
the control to the right to adjust
sound to
the right speakers and to the left to adjust
sound to the left speakers.
The middle position balances
the sound between the speakers.
FADE: Press lightly on this knob to release it from its
stored position. Turn the control
to the right to adjust the
sound to the front speakers and
to the left for the rear
speakers. The middle position balances the sound
between the speakers.
Push these knobs back into their stored positions when
you’re not using them.
Playing a Cassette Tape
Your tape player is built to work best with tapes that are
30 to 45 minutes long on each side. Tapes longer than
that are
so thin they may not work well in this player.
To load a cassette tape with the ignition off, press EJECT
or RECALL. Then, insert the cassette tape. If the ignition
is on
but the radio is off, the tape will begin playing.
Once the tape is playing, use the
VOL, BAL, FADE,
BASS and TREB controls just as you do for the radio.
The tape symbol and a direction arrow will be on the
display whenever
a tape is being played. Anytime a tape
is inserted, the top side is selected for play first.
ProCarManuals.com

Playing the Radio
PWR-VOL:
Press this knob to turn the system on and
off. To increase volume, turn this knob
to the right. Turn
it to the left to decrease volume. The knob is capable of
rotating continuously.
REAR DSPL: When the primary radio is turned on,
press this button to turn the rear seat audio display on.
Press
it again to turn the rear seat audio display off.
RECALL: Display the time with the ignition off by
pressing this button. When the radio is playing, press
this button
to recall the station frequency.
SCV Your system has a feature called
Speed-Compensated-Volume (SCV). With SCV, your
audio system adjusts automatically to make
up for road
and wind noise
as you drive. Set the volume at the
desired level. Move the control ring behind the upper
knob to
the right to adjust the SCV. Then, as you drive,
SCV automatically increases the volume, as necessary,
to overcome noise at any particular speed. The volume
level should always sound the same to you as you drive.
If you don't want to use SCV, turn the control all the
way down. Each notch on the control ring allows for
more volume compensation at faster vehicle speeds.
Finding a Station
AM-FM:
Press this button to switch between AM, FMl
and FM2. The display will show your selection.
TUNE: Press this knob lightly so it extends. Turn it to
choose radio stations. Push the knob back into its stored
position when you're not using
it.
SEEK: Press the right arrow to tune to the next higher
station and the left arrow
to tune to the next lower station
and stay there. The sound will mute while seeking.
SCAN: Press and hold SEEK for two seconds until
SCAN appears on the display. SCAN allows you to
listen to stations for a few seconds. The receiver will
continue to scan and momentarily stop at each station
until you press the button again. The sound will mute
while scanning.
PUSHBUTTONS: The six numbered pushbuttons let
you return to your favorite stations. You can set up to
18 stations (six AM, six FMl and six FM2). Just:
1. Turn the radio on.
2. Press AM-FM to select the band.
3. Tune in the desired station.
3- 13
I
ProCarManuals.com
