GMC SAVANA 1996 Owners Manual

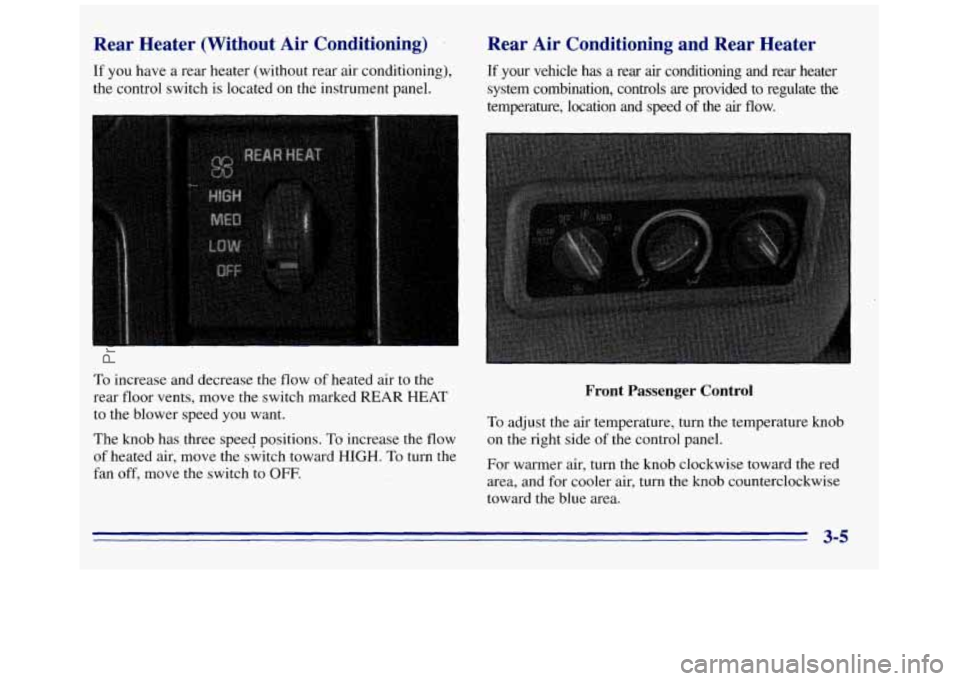

Rear Heater (Without Air Conditioning) Rear Air Conditioning a\
nd Rear Heater
If you have a rear heater (without rear air conditioning), If your vehicle has a rear air conditioning and rear heater
the control switch is located on the instrument panel.
system combination, controls are provided
to regulate the
temperature, location and speed
of the air flow.
To increase and decrease the flow of heated air to the
rear floor vents, move the switch marked
REAR HEAT
to the blower speed you want.
The knob has three speed positions.
To increase the flow on the right side of the control panel.
Front Passenger Control
To adjust the air temperature, turn the temperature knob
of heated air, move the switch toward HIGH. To turn the For warmer air, the knob clockwise the red
fan off, move the switch to OFF.
area, and for cooler air, turn the knob counterclockwise
-
toward the blue area.
3-5
ProCarManuals.com

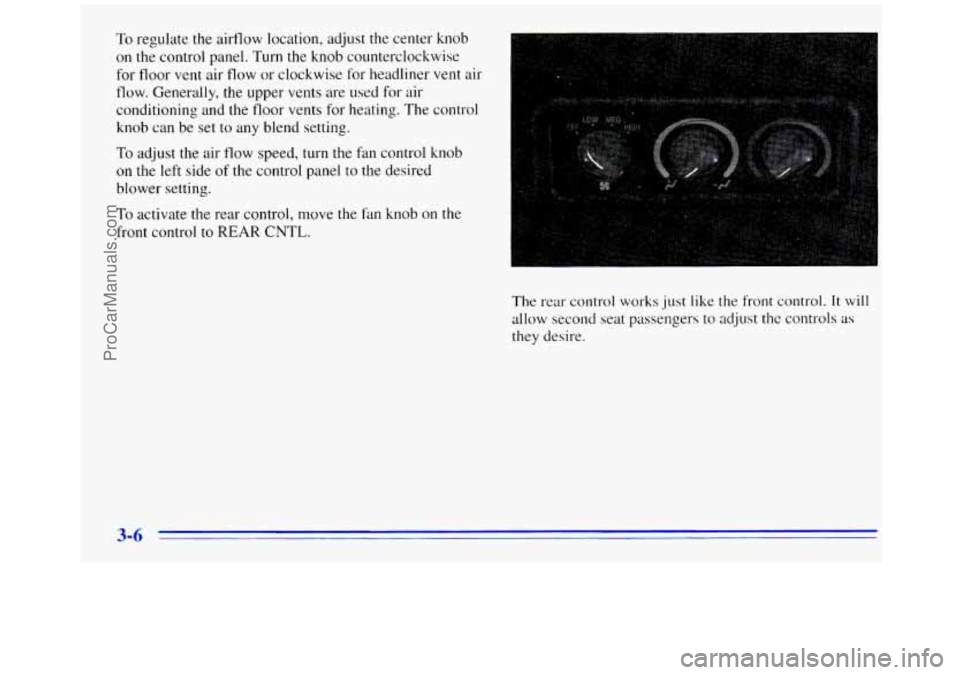

To regulate the airflow location, adjust the center knob
on the control panel. Turn the knob counterclockwise
for floor vent air flow or clockwise
for headliner vent air
flow. Generally, the upper vents are used for air
conditioning and the floor vents for heating. The control
knob can be set to any blend setting.
To adjust the air flow speed, turn the fan control knob
on the left side of the control panel to the desired
blower setting.
To activate the rear control, move the fan knob on the
front control
to REAR CNTL.
The rear control
works just like the front control. It will
allow second seat passengers to adjust the controls as
they desire.
3-6
ProCarManuals.com

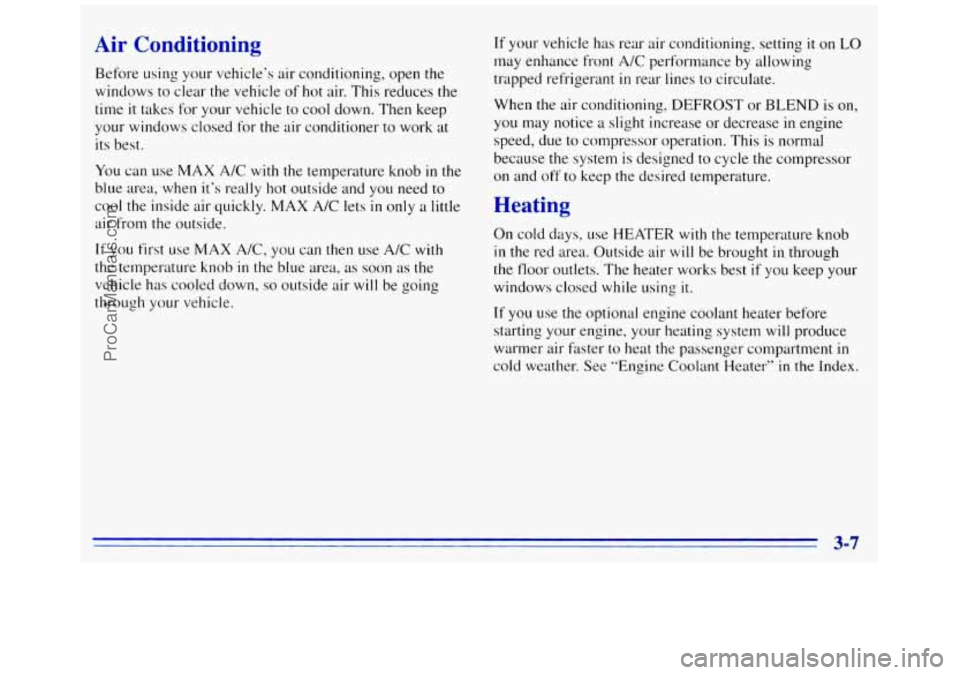

Air Conditioning
Before using your vehicle’s air conditioning, open the
windows to clear
the vehicle of hot air. This reduces the
time it takes for your vehicle
to cool down. Then keep
your windows closed
for the air conditioner to work at
its best.
You can use MAX A/C
with the temperature knob in the
blue area, when
it’s really hot outside and you need to
cool the inside air quickly. MAX A/C lets in only a little
air from the outside.
If you first use MAX A/C, you can then use A/C with
the temperature knob
in the blue area, as soon as the
vehicle has cooled down,
so outside air will be going
through your vehicle.
If your vehicle has rear air conditioning, setting it on LO
may enhance front A/C perfor~nance by allowing
trapped refrigerant
in rear lines to circulate.
When the air conditioning,
DEFROST or BLEND is on,
you may notice a slight increase or decrease in engine
speed, due to compressor operation. This is normal
because the system is designed
to cycle the compressor
on and off to keep the desired temperature.
Heating
On cold days, use HEATER with the temperature knob
in the red area. Outside air will be brought in. through
the floor outlets. The heater works best if you keep your
windows closed while using
it.
If you use the optional engine coolant heater before
starting your engine, your heating system will produce
warmer air faster
to heat the passenger compartment in
cold weather. See ”Engine Coolant Heater”
in the Index.
3-7
ProCarManuals.com

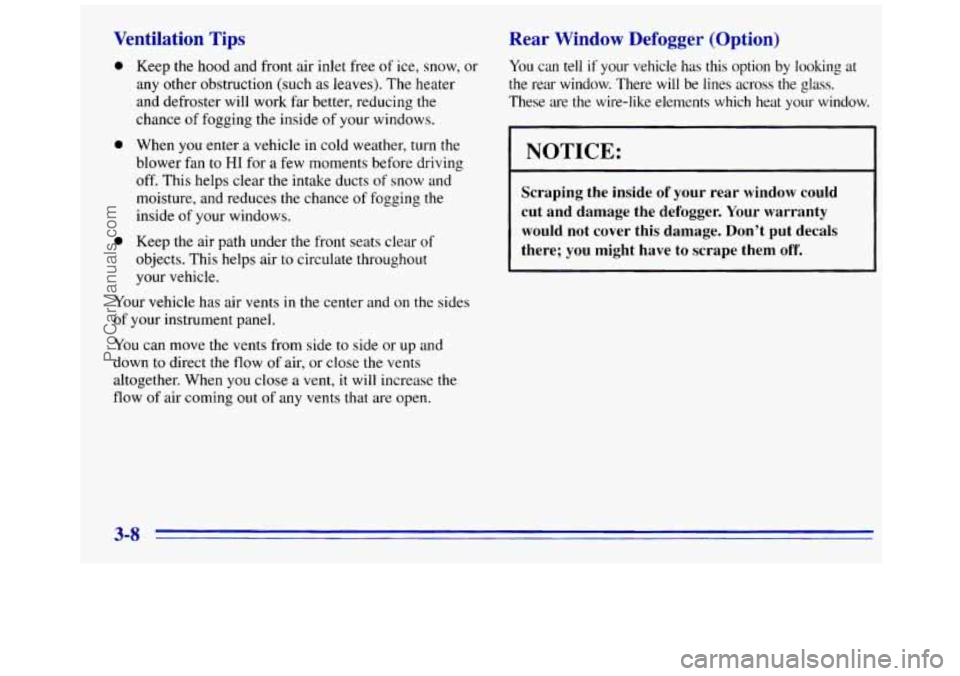

Ventilation Tips
0
0
Keep the hood and front air inlet free of ice, snow, or
any other obstruction (such as leaves). The heater
and defroster will work far better, reducing the
chance of fogging the inside of your windows.
When
you enter a vehicle in cold weather, turn the
blower fan to
HI for a few moments before driving
off. This helps clear the intake ducts of snow and
moisture, and reduces the chance
of fogging the
inside of your windows.
Keep the air path under the front seats clear
of
objects. This helps air to circulate throughout
your vehicle.
Rear Window Defogger (Option)
You can tell if your vehicle has this option by looking at
the rear window. There will be lines across the glass.
These are the wire-like elements which heat your window.
NOTICE:
Scraping the inside of your rear window could
cut
and damage the defogger. Your warranty
would not cover this damage. Don’t put decals
there; you might have to scrape them
off.
Your vehicle has air vents in the center and on the sides
of your instrument panel.
You can move the vents from side to side or up and
down
to direct the flow of air, or close the vents
altogether. When
you close a vent, it will increase the
flow of air coming out of any vents that are open.
3-8
ProCarManuals.com

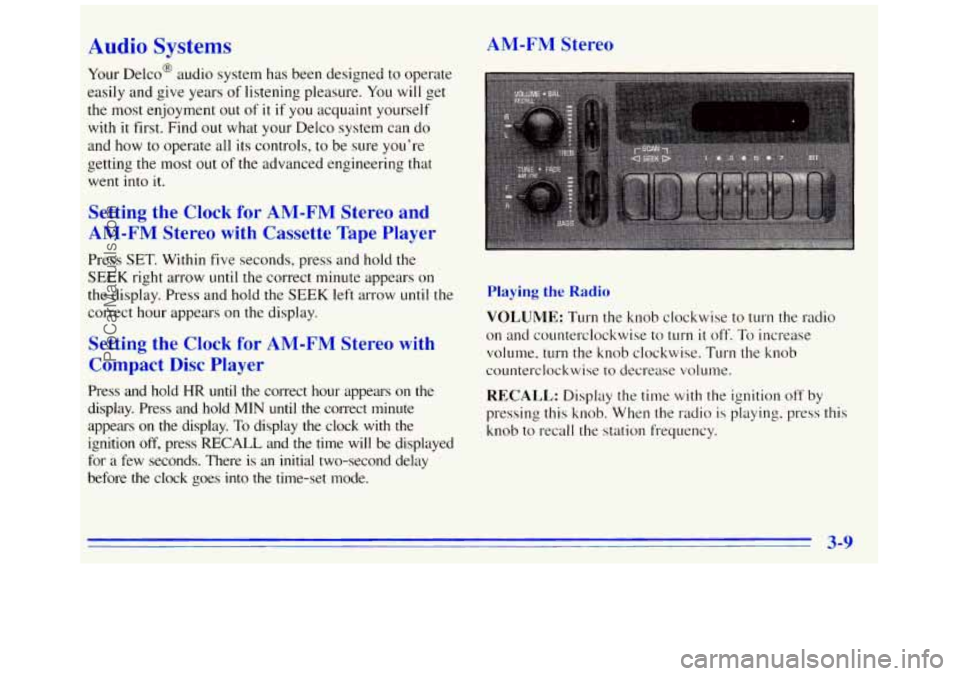

Audio Systems
Your Delco@ audio system has been designed to operate
easily and give years
of listening pleasure. You will get
the most enjoyment out
of it if you acquaint yourself
with it first. Find out what your Delco system can do
and how to operate
all its controls, to be sure you’re
getting
the most out of the advanced engineering that
went into it.
AM-FM Stereo
Setting the Clock for AM-FM Stereo and
AM-FM Stereo with Cassette Tape Player
Press SET. Within five seconds, press and hold the
SEEK right arrow
until the correct minute appears on
the display. Press and hold
the SEEK left arrow until the
correct hour appears on the display.
Setting the Clock for AM-FM Stereo with
Compact Disc Player
Press and hold HR until the correct hour appears on the
display. Press and hold
MIN until the correct minute
appears on the display.
To display the clock with the
ignition
off, press RECALL and the time will be displayed
for
a few seconds. There is an initial two-second delay
before the clock
goes into the time-set mode.
Playing the Radio
VOLUME: TLITII the knob clockwise to turn the radio
on and counterclockwise to
turn it off. To increase
volume, turn the knob clockwise. Turn the knob
counterclockwise
to decrease volume.
RECALL: Display the time with the ignition off by
pressing this
knob. When the radio is playing, press this
knob to recall
the station frequency.
3-9
ProCarManuals.com

Finding a Station
AM-FM: Press the lower knob to get AM or FM.
TUNE: Turn this knob to tune in radio stations.
SEEk: Press the right arrow to tune to the next higher
station and the left arrow to tune to the next lower
station and stay there.
SCAN: Press both SEEK buttons to listen to a few
seconds of each radio station.
SCAN will light up dn
the display. Press the right arrow to tune in the next
higher station and press the left arrow to tune to the
next lower station. Press VOLUME or both
SEEK
buttons to stop scanning.
PUSHBUTTONS: The four numbered pushbuttons let
you return to your favorite stations. You can set up to
14 stations (seven AM and seven FM).
1. Tune in the desired station.
2. Press SET.
3. Press and hold one of the four pushbuttons, within
five seconds. Whenever you press that numbered
button, the station you set will return.
4. Repeat these steps for each pushbutton. In addition to
the four stations set as above, up to three
additional stations may be preset on each band by
pressing two adjoining buttons at the same time. Just:
1. Tune in the desired station.
2. Press SET.
3. Press two adjoining buttons at the same time, within
five seconds. Whenever you press the same two
buttons, the station you set will return.
4. Repeat these steps for each pair of buttons.
Setting the Tone
BASS: Slide.this lever up to increase the bass.
TREB: Slide this lever up to increase the treble. Slide the
lever down to reduce noise with a weak or noisy station.
Adjusting the Speakers
BAL:
The control behind the upper knob balances the
sound between the right and left speakers.
FADE: The control behind the lower knob fades the
sound between the front and rear speakers.
3-10 c -.
I
i
I
ProCarManuals.com

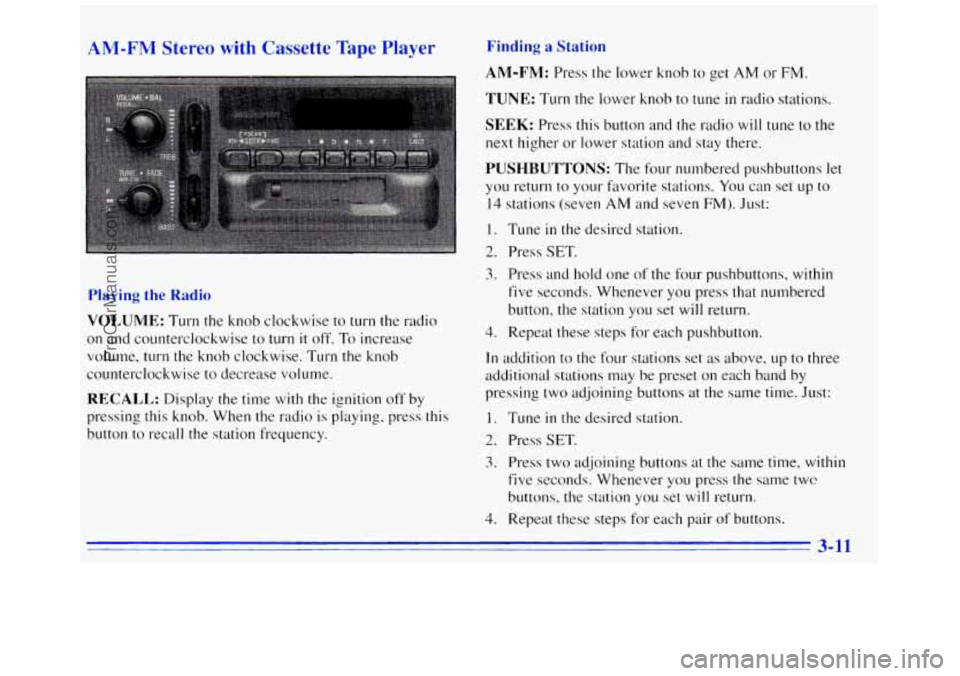

e Plaver
Playing the Rac
VOLUME: Turn the knob clockwise to turn the radio
on and counterclockwise to turn it off. To increase
volume, turn the knob clockwise. Turn the knob
counterclockwise to decrease volume.
RECALL: Display the time with the ignition off by
pressing this knob. When the radio is playing, press this
button to recall the station frequency.
Finding a Statj
AM-FM: Press the lower knob to get AM or FM.
TUNE: Turn the lower knob to tune in radio stations.
SEEK: Press this button and the radio will tune to the
next higher or lower station and stay there.
PUSHBUTTONS: The four numbered pushbuttons let
you return
to your favorite stations. You can set up to
14 stations (seven AM and seven FM). Just:
1. Tune in the desired station.
2. Press SET.
3. Press and hold one of the four pushbuttons, within
five seconds. Whenever you press that nunlbered
button, the station
you set will return.
4. Repeat these steps for each pushbutton.
In addition to the four stations set as above, up to three
additional stations may be preset on each band by
pressing two adjoining buttons at the same
time. Just:
1. Tune in the desired station.
2. Press SET.
3. Press two adjoining buttons at the same time, within
five seconds. Whenever you press the same
twc?
buttons, the station you set will return.
4. Repeat these steps for each pair of buttons.
3-11
ProCarManuals.com

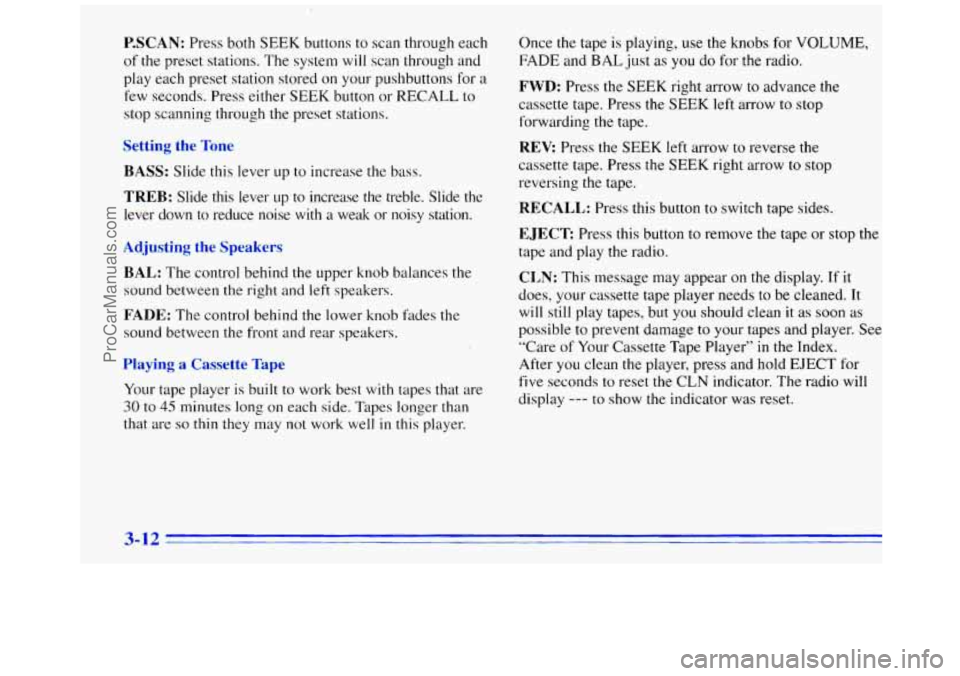

P.SCAN: Press both SEEK buttons to scan through each
of the preset stations. The system
will scan through and
play each preset station stored
on your pushbuttons for a
few seconds. Press either SEEK button or RECALL to
stop scanning through
the preset stations.
Setting the Tone
BASS:
Slide this lever up to increase the bass.
TREB: Slide this lever up to increase the treble. Slide the
lever down to reduce noise with a weak or noisy station.
Adjusting the Speakers
BAL:
The control behind the upper knob balances the
sound between the right and left speakers.
FADE: The control behind the lower knob fddes the
sound between the front and rear speakers.
Playing a Cassette Tape
Your tape player is built to work best with tapes that are
30 to 45 minutes long on each side. Tapes longer than
that are
so thin they may not work well in this player. Once the tape
is playing, use the knobs for VOLUME,
FADE and BAL just as you do for the radio.
FWD: Press the SEEK right arrow to advance the
cassette tape. Press the SEEK left arrow to stop
forwarding the tape.
REV: Press the SEEK left arrow to reverse the
cassette tape. Press the SEEK right arrow
to stop
reversing the tape.
RECALL: Press this button to switch tape sides.
EJECT Press this button to remove the tape or stop the
tape and play the radio.
CLN: This message may appear on the display. If it
does, your cassette tape player needs to be cleaned. It
will still play tapes,
but you should clean it as soon as
possible to prevent damage to your tapes and player. See
“Care of Your Cassette Tape Player’’
in the Index.
After you clean the player, press and hold EJECT for
five seconds to reset the CLN indicator. The radio will
display
--- to show the indicator was reset.
3-12
ProCarManuals.com

AM-FM Stereo with Cassette Tape and
Automatic Tone Control SCV: This is the Speed-Compensated-Volume (SCV)
knob. Move the control ring behind the PWR-VOL
knob clockwise to ad-just the SCV. Set the volume at
the
desired level. As you-drive, the SCV automatically
increases the volume, as necessary, to overcome road
and wind noise at any particular speed. The volume
should always sound
the same. Each clockwise position
on the control ring allows for more compensation at a
faster rate.
Finding a Station
AM-FM: Press this button to switch between AM, FM1
and FM2. The display will show your selection.
TUNE: Press lightly on this knob to release it from its
stored position. Rotate the knob clockwise to increase
frequency and counterclockwise to decrease frequency.
When finished tuning, press the knob again
to return it
to its stored position.
Playing the Radio
PWR-VOL: Press this knob to turn the system on and
off.
To increase volume, turn the knob clockwise. Turn
it counterclockwise to decrease volume. The faster the
PWR-VOL knob is rotated, the quicker
the volume is
increased or decreased. SEEK: Press the right arrow to tune to the next higher
station and the left arrow to tune to the next lower station \
and stay there. The sound will mute while seeking.
RECALL: Display the time with the ignition off by
pressing this knob. When the radio
is playing, press this
button to recall the station frequency.
3-13
ProCarManuals.com

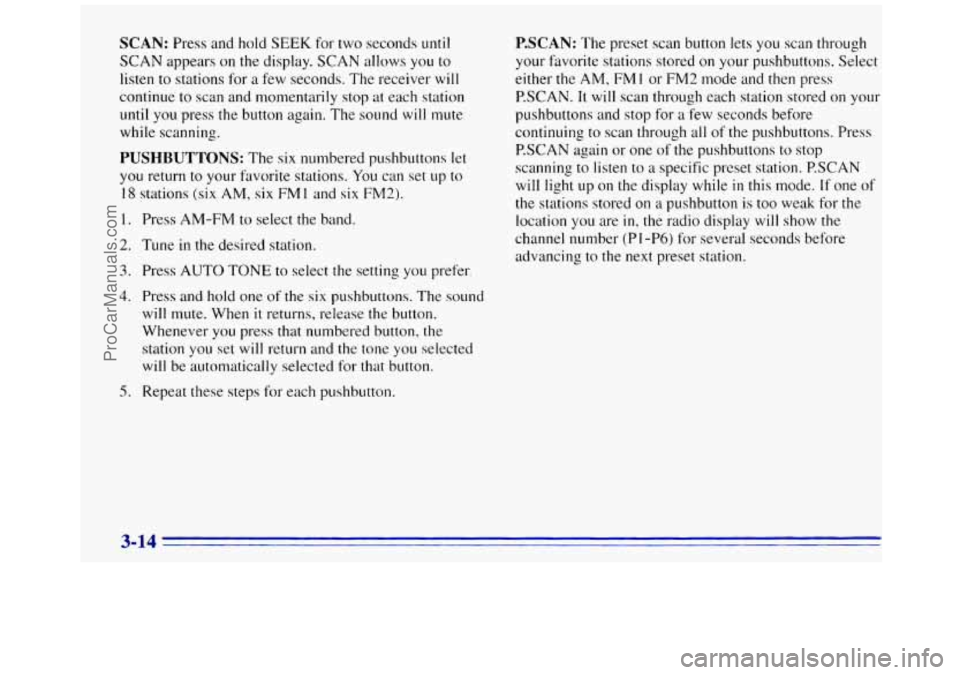

SCAN: Press and hold SEEK for two seconds until
SCAN appears on the display. SCAN allows you to
listen
to stations for a few seconds. The receiver will
continue to scan and momentarily stop at each station
until you press the button again. The sound will mute
while scanning.
PUSHBUTTONS: The six numbered pushbuttons let
you return to your favorite stations. You can set up to
18 stations (six AM, six FMl and six FM2).
1.
2.
3.
4.
5.
Press AM-FM to select the band.
Tune
in the desired station.
Press AUTO TONE to select the setting you prefer.
Press and
hold one of the six pushbuttons. The sound
will mute. When
it returns, release the button.
Whenever you press that numbered button, the
station you set will return and
the tone you selected
will be automatically selected for that button.
Repeat these steps for each pushbutton.
P.SCAN: The preset scan button lets you scan through
your favorite stations stored on your pushbuttons. Select
either the AM,
FM I or FM2 mode and then press
P.SCAN.
It will scan through each station stored on your
pushbuttons and stop for
a few seconds before
continuing to scan through all
of the pushbuttons. Press
P.SCAN again or one of
the pushbuttons to stop
scanning to listen to
a specific preset station. P.SCAN
will light up on the display while in this mode. If one of
the stations stored on a pushbutton is too weak for the
location you are
in, the radio display will show the
channel number (PI -P6) for several seconds before
advancing to the next preset station.
ProCarManuals.com
