GMC SAVANA 1996 Owners Manual

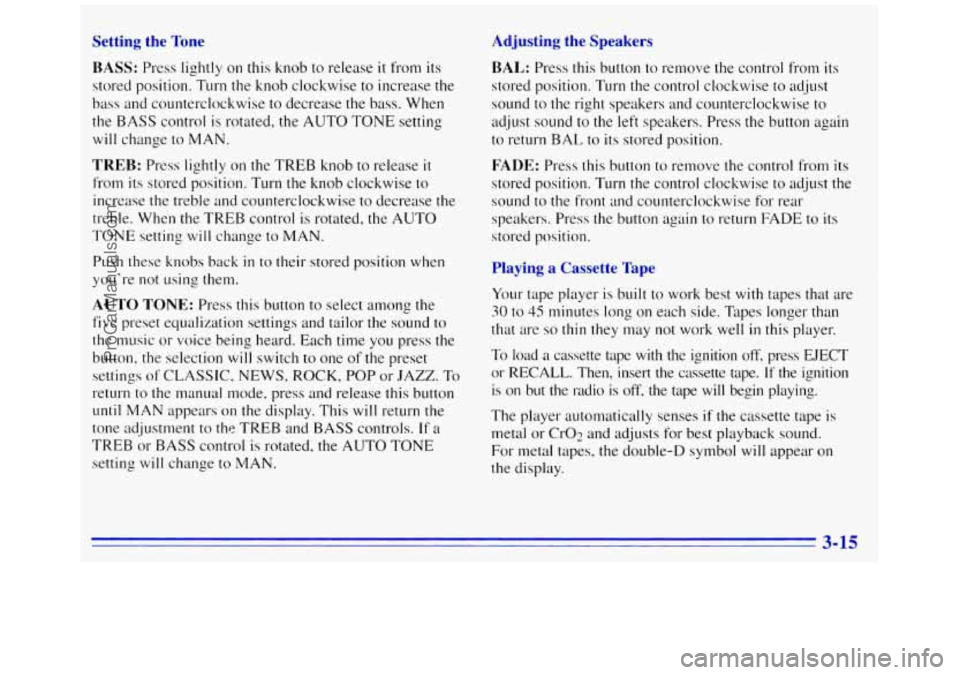

Setting the Tone Adjusting the Speakers
BASS:
Press lightly on this knob to release it from its
stored position. Turn the knob clockwise to increase the
bass and counterclockwise to decrease the bass. When
the BASS control is rotated, the AUTO TONE setting
will change to MAN.
TREB: Press lightly on the TREB knob to release it
from its stored position. Turn the knob clockwise to
increase the treble and counterclockwise to decrease the
treble. When
the TREB control is rotated, the AUTO
TONE setting will change to MAN.
Push these knobs back
in to their stored position when
you're not using them.
AUTO TONE: Press this button to select among the
five preset equalization settings and tailor
the sound to
the music or voice being heard. Each time
YOLI press the
button? the selection will switch
to one of the preset
settings
of CLASSIC, NEWS, ROCK, POP or JAZZ. To
return to the manual mode, press and release this button
until MAN appears on the display. This will return the
tone adjustment to the TREB and BASS controls.
If a
TREB or BASS control is rotated, the AUTO TONE
setting
will change to MAN.
BAL: Press this button to remove the control from its
stored position. Turn the control clockwise to adjust
sound to the right speakers and counterclockwise to
ad-just sound to the left speakers. Press the button again
to return BAL to
its stored position.
FADE: Press this button to remove the control from its
stored position. Turn the control clockwise
to adjust the
sound to the front and counterclockwise for rear
speakers. Press the button again to return FADE to its
stored position.
Playing a Cassette Tape
Your tape player is built to work best with tapes that are
30 to 45 minutes long on each side. Tapes longer than
that are
so thin they may not work well in this player.
To load
a cassette tape with the ignition off, press EJECT
or RECALL. Then, insert the cassette tape. If the ignition
is
on but the radio is off, the tape will begin playing.
The player automatically senses if the cassette tape is
metal or CrO;! and adjusts
for best playback sound.
For metal tapes, the double-D symbol will appear on
the display.
3-15
ProCarManuals.com

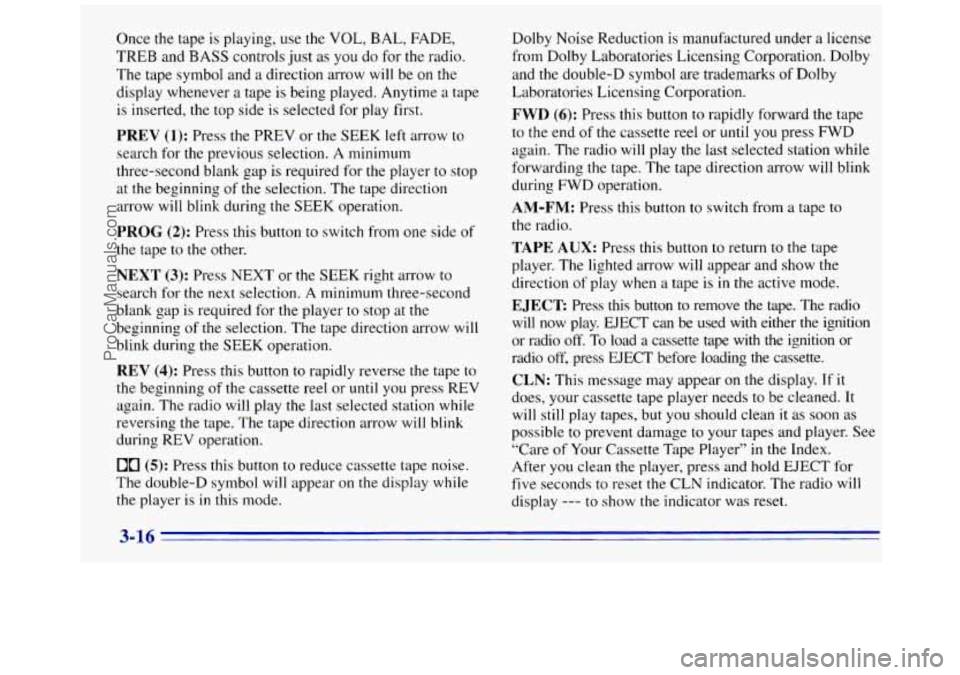

Once the tape is playing, use the VOL, BAL, FADE,
TREB and BASS controls just
as you do for the radio.
The tape symbol and
a direction arrow will be on the
display whenever a tape is being played. Anytime
a tape
is inserted, the top side
is selected for play first.
PREV (1): Press the PREV or the SEEK left arrow to
search for the previous selection. A minimum
three-second blank gap is required for the player to stop
at the beginning of the selection. The tape direction
arrow will blink during the SEEK operation.
PROG (2): Press this button to switch from one side of
the tape to
the other.
NEXT (3): Press NEXT or the SEEK right arrow to
search for the next selection.
A minimum three-second
blank gap is required for the player to stop at the
beginning of
the selection. The tape direction arrow will
blink during the
SEEK operation.
REV (4): Press this button to rapidly reverse the tape to
the beginning of the cassette reel or
until you press REV
again. The radio will play the last selected station while
reversing the tape. The tape direction arrow
will blink
during REV operation.
00 (5): Press this button to reduce cassette tape noise.
The double-D symbol will appear
on the display while
the player is
in this mode. Dolby
Noise Reduction is manufactured under
a license
from Dolby Laboratories Licensing Corporation. Dolby
and the double-D symbol are trademarks of Dolby
Laboratories Licensing Corporation.
FWD (6): Press this button to rapidly forward the tape
to the end of the cassette reel or until
you press FWD
again. The radio will play the last selected station while
forwarding the tape. The tape direction arrow will blink
during FWD operation.
AM-FM: Press this button to switch from a tape to
the radio.
TAPE AUX: Press this button to return to the tape
player. The lighted arrow will appear and show the
direction of play when
a tape is in the active mode.
EJECT Press this button to remove the tape. The radio
will now play. EJECT
can be used with either the ignition
or radio
off. To load a cassette tape with the ignition or
radio
off, press EJECT before loading the cassette.
CLN: This message may appear on the display. If it
does, your cassette tape player needs to be cleaned. It
will still play tapes, but you should clean it as soon as
possible to prevent damage to your tapes and player. See
“Care
of Your Cassette Tape Player” in the Index.
After you clean the player, press and hold EJECT for
five seconds to reset the CLN indicator. The radio will
display
--- to show the indicator was reset.
3-16
ProCarManuals.com

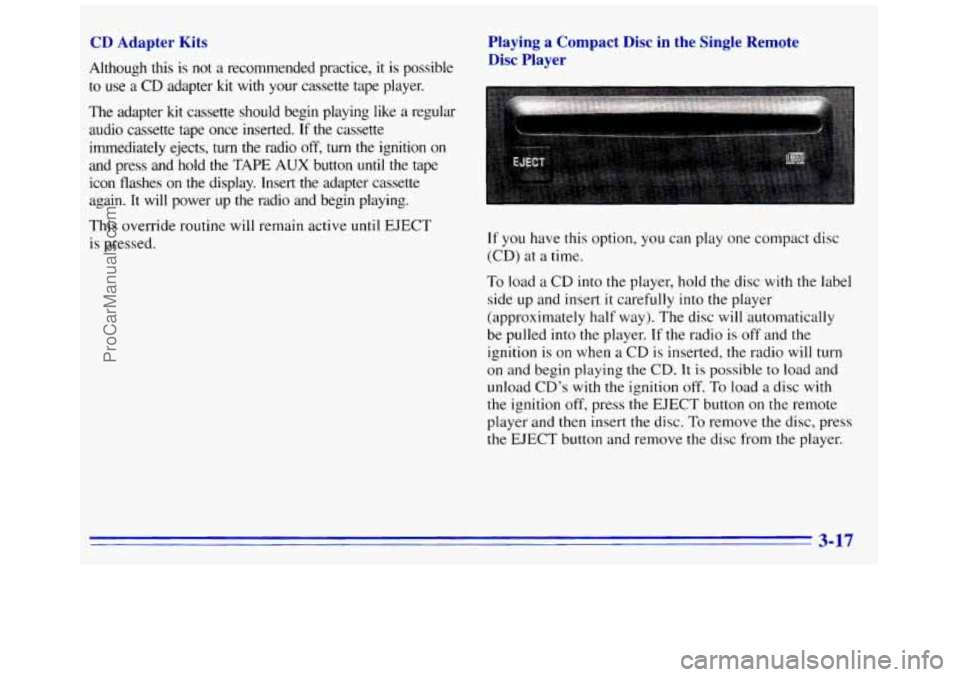

CD Adapter Kits
Although this is not a recommended practice, it is possible
to use a
CD adapter kit with your cassette tape player.
The adapter
kit cassette should begin playing like a regular
audio cassette tape once inserted.
If the cassette
immediately ejects,
turn the radio off, turn the ignition on
and press and hold the TAPE AUX button
until the tape
icon flashes on the display. Insert the adapter cassette
again.
It will power up the radio and begin playing.
This override routine will remain active
until EJECT
is pressed.
Playing a Compact Disc in the Single Remote
Disc Player
If you have this option, you can play one compact disc
(CD) at a time.
To load
a CD into the player, hold the disc with the label
side up and insert
it carefully into the player
(approximately half way). The disc will automatically
be pulled into the player.
If the radio is off and the
ignition is on when a
CD is inserted, the radio will turn
on and begin playing the CD. It is possible to load and
unload CD’s with the ignition
off. To load a disc with
the ignition
off, press the EJECT button on the remote
player and then insert the disc.
To remove the disc, press
the EJECT button and remove the disc from the player.
3-17
ProCarManuals.com

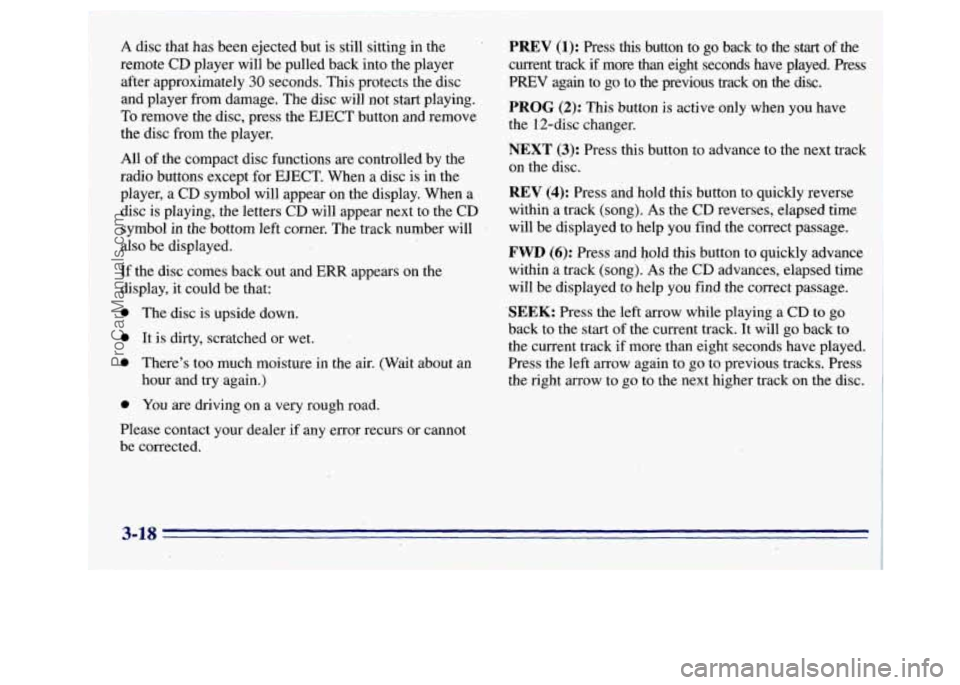

A disc that has been ejected but is still sitting in the
remote
CD player will be pulled back into the player
after approximately
30 seconds. This protects the disc
and player from damage. The disc will not start playing.
To remove the disc, press the EJECT button and remove
the disc from the player.
All of the compact disc functions are controlled by the
radio buttons except for EJECT. When a disc is in the
player, a CD symbol will appear on the display. When a
disc is playing, the letters CD will appear next to the CD
symbol in the bottom left corner. The track number will
also be displayed.
If the disc comes back out and ERR appears on the
display, it could be that:
0 The disc is upside down.
0 It is dirty, scratched or wet.
0 There’s too much moisture in the air. (Wait about an
hour and try again.)
0 You are driving on a very rough road.
Please contact your dealer if any error recurs or cannot
be corrected.
PREV (1): Press this button to go back to the start of the
current track
if more than eight seconds have played. Press
PREV again to
go to the previous track on the disc.
PROG (2): This button is active only when you have
the
1 2-disc changer.
NEXT (3): Press this button to advance to the next track
on the disc.
REV (4): Press and hold this button to quickly reverse
within a track (song).
As the CD reverses, elapsed time
will be displayed to help you find the correct passage.
FWD (6): Press and hold this button to quickly advance
within a track (song).
AS the CD advances, elapsed time
will be displayed to help you find the correct passage.
SEEK: Press the left arrow while playing a CD to go
back to the start of the current track. It will go back to
the current track
if more than eight seconds have played.
Press the left arrow again to
go to previous tracks. Press
the right arrow to
go to the next higher track op@ .- disc,
3-18
ProCarManuals.com

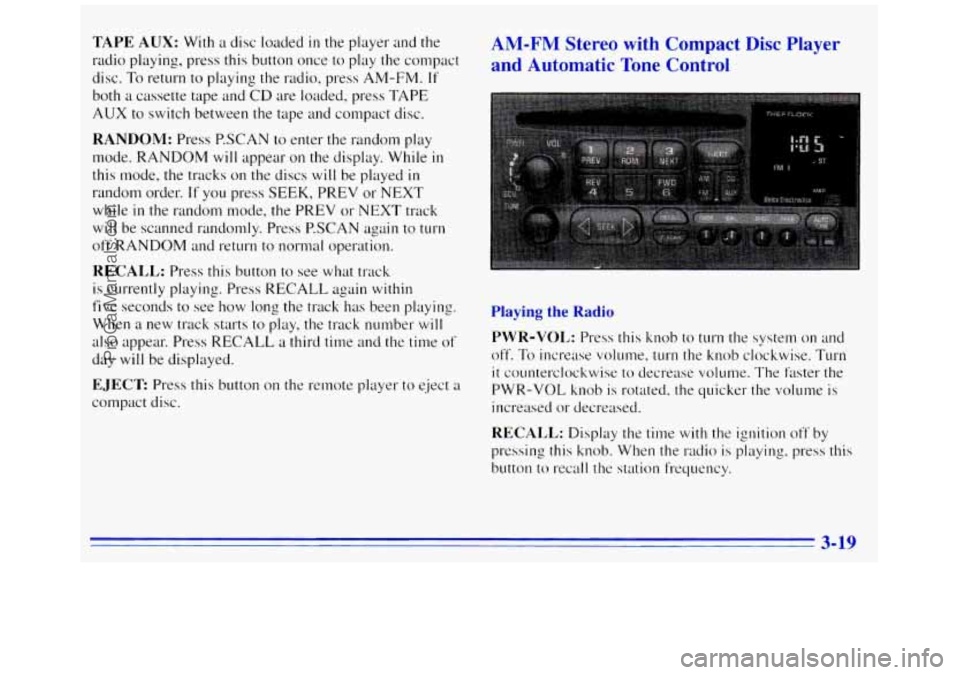

TAPE AUX: With a disc loaded in the player and the
radio playing, press this button once to play the compact
disc. To return to playing the radio. press
AM-FM. If
both a cassette tape and CD are loaded, press TAPE
AUX
to switch between the tape and compact disc.
RANDOM: Press P.SCAN to enter the random play
mode. RANDOM
will appear on the display. While in
this mode. the tracks on the discs will be played in
random order. If you press SEEK, PREV or NEXT
while in the random mode, the PREV or NEXT track
will be scanned randomly. Press P.SCAN again to turn
off RANDOM and return to normal operation.
RECALL: Press this button to see what track
is currently playing. Press RECALL again
within
five seconds to see how long the track has been playing.
When a new track starts to play, the track number
will
also appear. Press RECALL a third time and the time of
day
will be displayed.
EJECT Press this button on the remote player to e-ject a
compact disc.
AM-FM Stereo with Compact Disc Player
and Automatic
Tone Control
Playing the Radio
PWR-VOL: Press this knob to turn the system on and
off.
To increase vol~~~ne, turn the knob clockwise. Turn
it counterclockwise to decrease volume. The faster the
PWR-VOL knob
is rotated. the quicker the volume is
increased or decreased.
RECALL: Display the time with the ignition off by
pressing this knob. When the radio is playing, press this
button to
I-ecal I the station frequency.
3-19
ProCarManuals.com

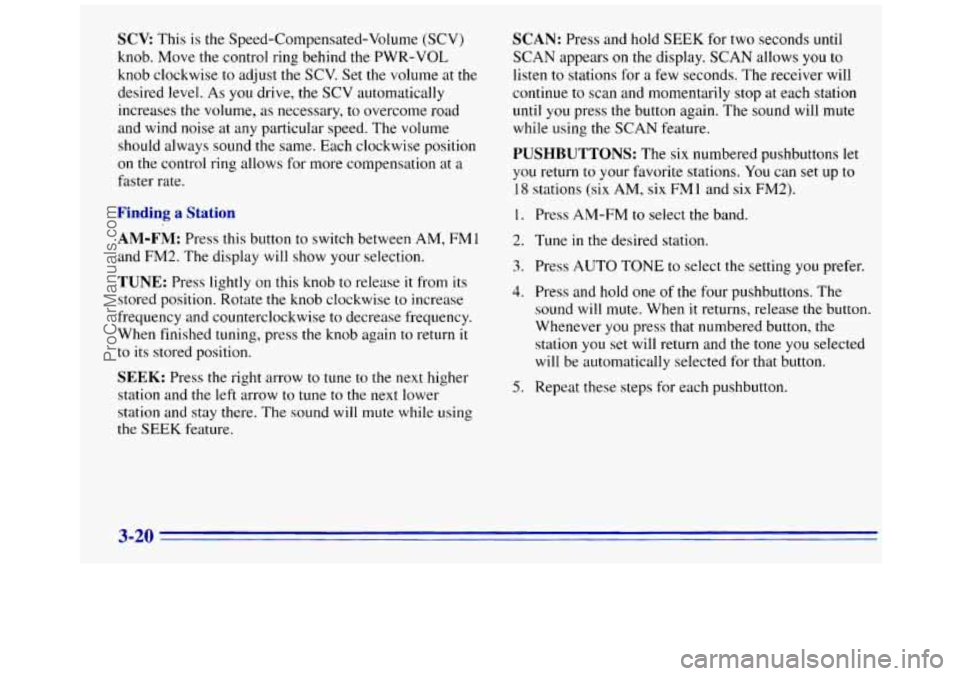

SCV This is the Speed-Compensated-Volume (SCV)
knob. Move the control ring behind the PWR-VOL
knob clockwise to adjust the
SCV. Set the volume at the
desired level. As you drive, the SCV automatically
increases the volume, as necessary, to overcome road
and wind noise at any particular speed. The volume
should always sound
the same. Each clockwise position
on
the control ring allows for more compensation at a
faster rate.
Finding a Station
AM-FM: Press this button to switch between AM, FMI
and FM2. The display will show your selection.
TUNE: Press lightly on this knob to release it from its
stored position. Rotate
the knob clockwise to increase
frequency and counterclockwise to decrease frequency.
When finished tuning, press the knob again to return
it
to its stored position.
SEEK: Press the right arrow to tune to the next higher
station and
the left arrow to tune to the next lower
station and stay there.
The sound will mute while using
the
SEEK feature.
SCAN: Press and hold SEEK for two seconds until
SCAN appears on the display. SCAN allows you to
listen
to stations for a few seconds. The receiver will
continue to scan and momentarily stop at each station
until you press the button again. The sound will mute
while using
the SCAN feature.
PUSHBUTTONS: The six numbered pushbuttons let
you return to your favorite stations. You can set up
to
18 stations (six AM, six FM 1 and six FM2).
1. Press AM-FM to select the band.
2. Tune
in the desired station.
3. Press AUTO TONE to select the setting you prefer.
4. Press and hold one of the four pushbuttons. The
sound will mute. When it returns, release
the button.
Whenever you press that numbered button, the
station you set will return and the tone
you selected
will be automatically selected for that button.
5. Repeat these steps for each pushbutton.
3-20
ProCarManuals.com

P.SCAN: The preset scan button lets you scan through
your favorite stations stored on your pushbuttons. Select
either the AM, FM 1 or FM2 mode and then press
P.SCAN. It will scan through each station stored on your
pushbuttons and stop for
a few seconds before
continuing to scan through
all of the pushbuttons. Press
P.SCAN again or one
of the pushbuttons to stop
scanning
to listen to a specific stored station. P.SCAN
will light up on the display while
in this mode. If one of
the stations stored
on a pushbutton is too weak for the
location
you are in, the radio display will show the
channel number (P
1 -P6) ‘for several seconds before
advancing
to the next preset station.
Setting the Tone
BASS:
Press lightly on this knob to release it from its
stored position. Turn the knob clockwise
to increase the
bass and counterclockwise to decrease the bass. When
the BASS control is rotated, the
AUTO TONE setting
will change to MAN.
TREB: Press lightly on the TREB knob to release it
from its stored position. Turn the knob clockwise to
increase the treble and counterclockwise
to decrease the
treble. When the TREB control is rotated,
the AUTO
TONE setting will change to
MAN.
Push these knobs back in to their stored position when
you’re
not using them.
AUTO TONE: Press this button to select among the
five preset equalization settings and tailor the sound to
the music or voice being heard. Each time you press the
button, the selection
will switch to one of the preset
settings
of CLASSIC, NEWS, ROCK, POP or JAZZ.
The display
will show which mode the receiver is in. To
return to the manual mode, press and release this button
until MAN appears
on the display. This will return the
tone adjustment to the TREB and BASS controls. When
a TREB or BASS control
is rotated, tone is
automatically set to MAN.
Adjusting the Speakers
BAL: Press lightly on this knob to release it from its
stored position. Turn the control clockwise
to adjust
sound to the right speakers and counterclockwise to
adjust sound
to the left speakers.
FADE: Press lightly on this knob to release it from its
stored position. Turn the control clockwise to adjust the
sound to the front and counterclockwise for rear speakers.
Push these knobs back
in to their stored position when
you’re
not using them.
3-21
ProCarManuals.com

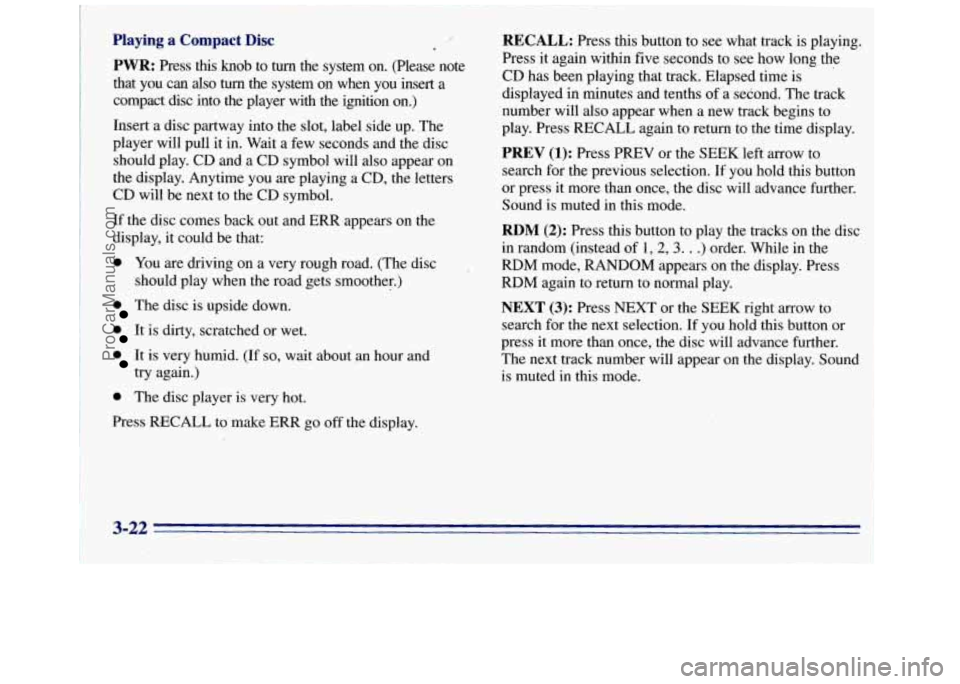

. Playing a Compact Disc
PWR: Press this knob to turn the system on. (Please note
that you can
also turn the system on when you insert a
compact disc into the player with
the ignition on.)
Insert a disc partway into the slot, label side up. ,The
player will pull it in. Wait a few seconds and the disc
should play. CD and a CD symbol will also appear on
the display. Anytime you are playing a CD, the letters
CD will be next to the CD symbol.
If the disc comes back out and
ERR appears on the
display, it could be that:
0 You are driving on a very rough road. (The disc
should play when the road gets smoother.)
The disc is upside down.
It is dirty, scratched or wet.
It is very humid. (If so, wait about an hour and
0 The disc player is very hot.
Press
RECALL to make ERR go off the display.
try
again.)
ProCarManuals.com

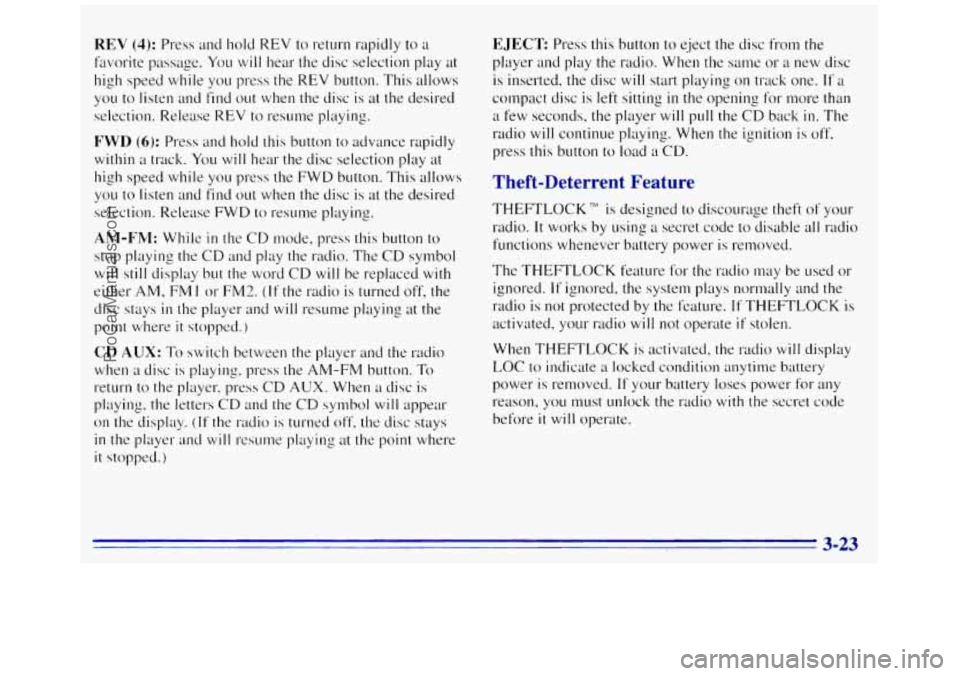

REV (4): Press and hold REV to return rapidly to a
favorite passage. You will hex the disc selection play at
high speed while
you press the REV button. This allows
you to listen and find out when the disc is at the desired
selection. Release REV to resume playing.
FWD (6): Press and hold this button to advance rapidly
within
a track. You will hear the disc selection play at
high speed while
you press the FWD button. This allows
you to listen and find out when the disc is at the desired
selection. Release FWD
to resume playing.
AM-FM: While in the CD T node, press this button to
stop playing the CD and play the radio. The CD symbol
will still display but the word CD will be replaced with
either
AM, FM I 01- FM2. (If the radio is turned off, the
disc stays
in the player and will resume playing at the
point where it stopped.)
CD AUX: To switch between the player and the radio
when
a disc is playing, press the AM-FM buttcm. To
return
to the player. press CD AUX. When a disc is
playing, the letters CD and the CD symbol will appear
on the display.
(If the ri.tdi0 is turned off, the disc stays
in the player and will resume playing at the point where
it stopped.)
EJECT: Press this button to eject the disc from the
player and play the radio. When the same or a new disc
is inserted, the disc will start playing
on track one. If a
compact disc is left sitting
in the opening for more than
a few seconds, the player will pull the CD back in. The
radio
will continue playing. When the ignition is off,
press this button
to load a CD.
Theft-Deterrent Feature
THEFTLOCK TM is designed to discollrage theft of ~OLW
radio. It works by using a secret code to disable all radio
functions whenever battery power is removed.
The THEFTLOCK feature
for the radio may be used or
ignored. If ignored, the system plays normally and the
radio is
not protected by the feature. If THEFTLOCK is
activated, your radio will not operate if stolen.
When THEFTLOCK
is activated, the radio will display
LOC
to indicate ;L locked condition anytime battery
power
is removed. If your battery loses power for any
reason,
you must unlock the radio with the secret code
before
it will operate.
3-23
ProCarManuals.com

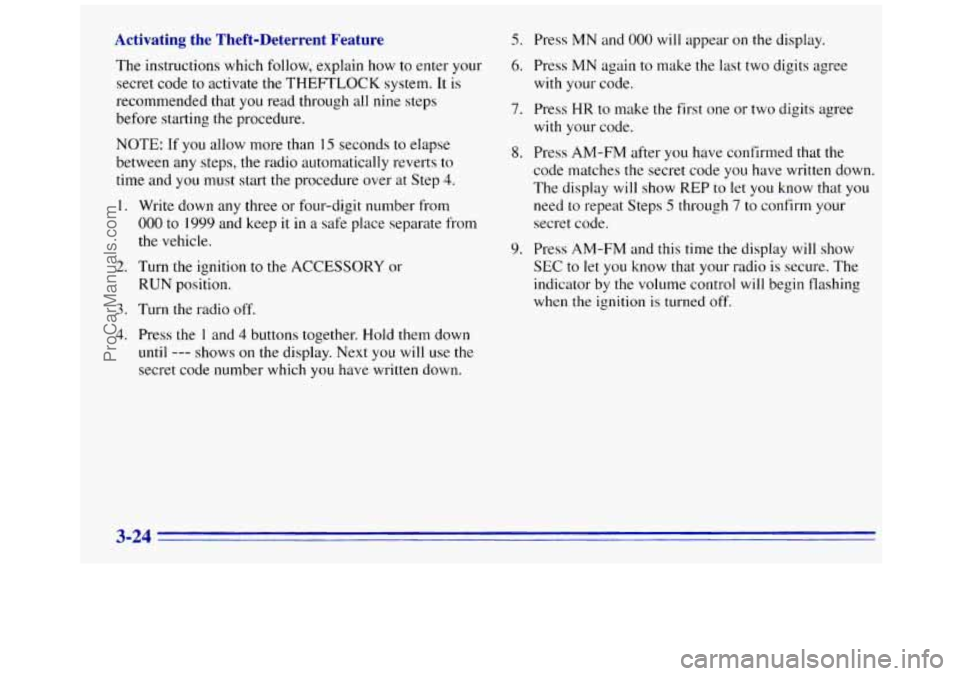

Activating the Theft-Deterrent Feature
The instructions which follow, explain how to enter your
secret code to activate the THEFTLOCK system. It
is
recommended that you read through all nine steps
before starting the procedure.
NOTE:
If you allow more than 15 seconds to elapse
between any steps, the radio automatically reverts to
time and you must start the procedure over at Step
4.
1. Write down any three or four-digit number from
000 to 1999 and keep it in a safe place separate from
the vehicle.
2. Turn the ignition to the ACCESSORY or
RUN position.
,3. Turn the radio off.
4. Press the 1 and 4 buttons together. Hold them down
until --- shows on the display. Next you will use the
secret code number which you have written down.
5. Press MN and 000 will appear on the display.
6. Press MN again to make the last two digits agree
with your code.
7. Press HR to make the first one or two digits agree
with your code.
code matches the secret code you have written down
The display
will show REP to let you know that you
need
to repeat Steps 5 through 7 to confirm your
secret code.
8. Press AM-FM after you have confirmed that the
9. Press AM-FM and this time the display will show
SEC to let you know that your radio is secure. The
indicator by the volume control will begin flashing
when the ignition
is turned off.
3-24
ProCarManuals.com
