GMC SAVANA 1997 Owners Manual

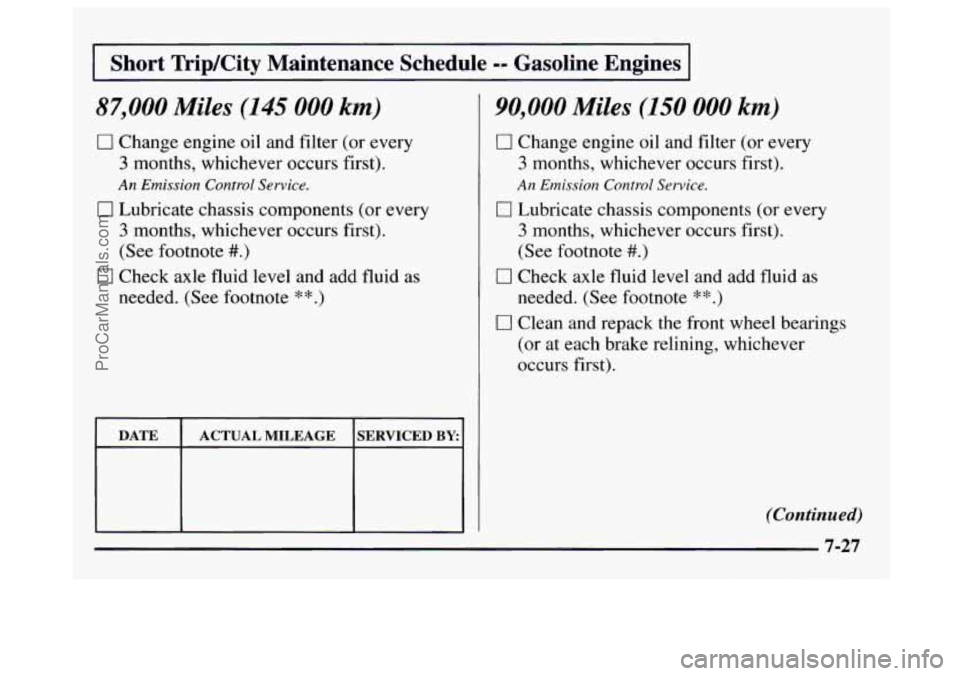

I Short Trip/City Maintenance Schedule -- Gasoline Engines I
87,000 Miles (145 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
0 Check axle fluid level and add fluid as
needed. (See footnote
** .)
r I I I
DATE SERVICED BY: ACTUAL MILEAGE
90,000 Miles (150 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
Cl Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
0 Check axle fluid level and add fluid as
needed. (See footnote
**.)
0 Clean and repack the front wheel bearings
(or at each brake relining, whichever
occurs first).
(Continued)
e 4m
ProCarManuals.com

I Short TriplCity Maintenance Schedu le -- Gasoline Engines I
90,000 Miles (150 000 km) (Continued)
0 Replace fuel filter. An Emission Control Sewice.
0 Replace air cleaner filter.
Cl Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information.
(See footnote
+.)
(See footnote?.)
An Emission Control Service.
0 Vehicles With GVWR Above 8,500 lbs.
Only: Inspect shields and underhood
insulation for damage or looseness. Adjust
or replace
as required. This is a Noise Emission
Control Service. Applicable
only to vehicles sold in
the United States.
I I
DATE ACTUAL MILEAGE
1
SERVICED BY:
7-28
ProCarManuals.com

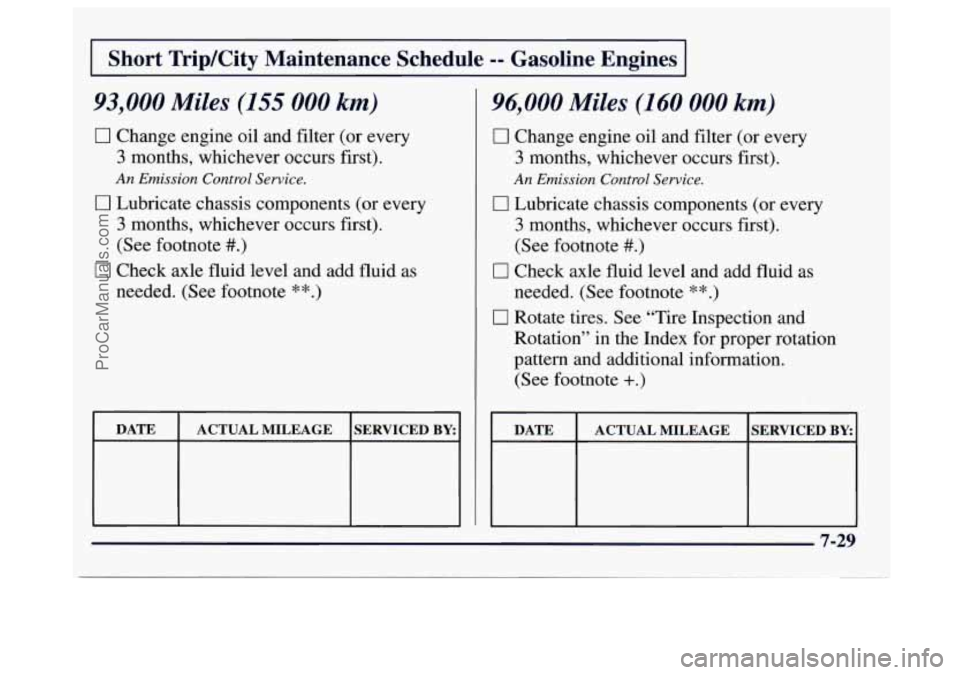

I Short TripKity Maintenance Schedule -- Gasoline Engines I
93,000 Miles (155 000 km)
I7 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
CI Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
I7 Check axle fluid level and add fluid as
needed. (See footnote
**.)
96,000 Miles (160 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
0 Check axle fluid level and add fluid as
needed. (See footnote ** .)
17 Rotate tires. See “Tire Inspection and
Rotation’’ in the Index for proper rotation
pattern and additional information.
(See footnote
+.)
DATE SERVICED BY: ACTUAL MILEAGE
I I I
7-29
ProCarManuals.com

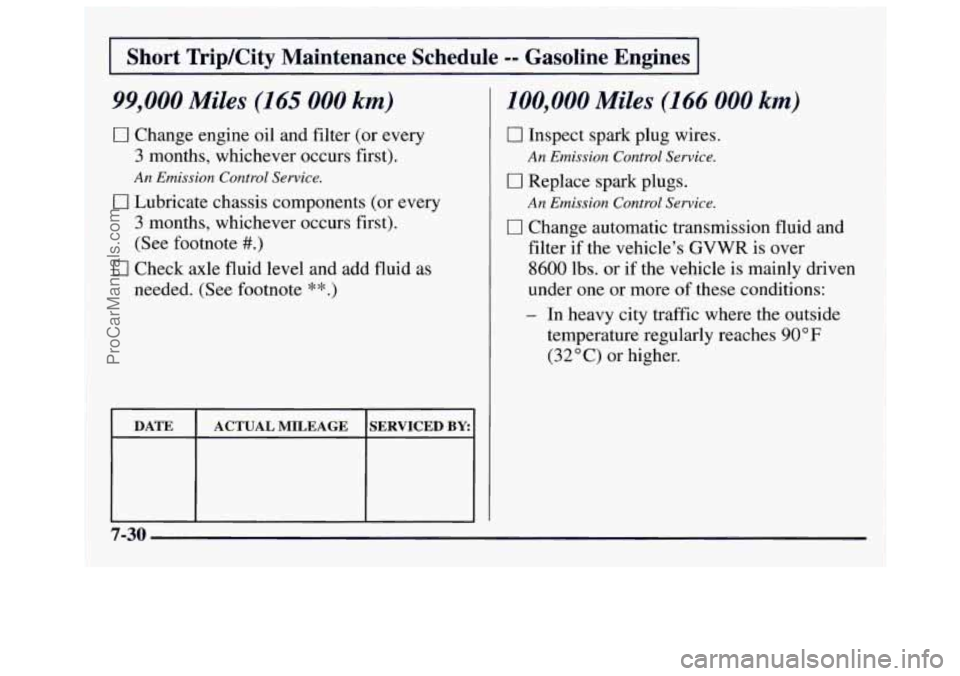

Short TripKity Maintenance Schedule -- Gasoline Engines
99,000 Miles (165 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
0 Check axle fluid level and add fluid as
needed. (See footnote
**.)
100,000 Miles (166 000 km)
0 Inspect spark plug wires.
An Emission Control Sewice.
0 Replace spark plugs.
An Emission Control Service.
0 Change automatic transmission fluid and
filter if the vehicle’s
GVWR is over
8600 lbs. or if the vehicle is mainly driven
under one or more of these conditions:
- In heavy city traffic where the outside
temperature regularly reaches
90 OF
(32 O C) or higher.
DATE ACTUAL MILEAGE SERVICED BY:
7-30
ProCarManuals.com

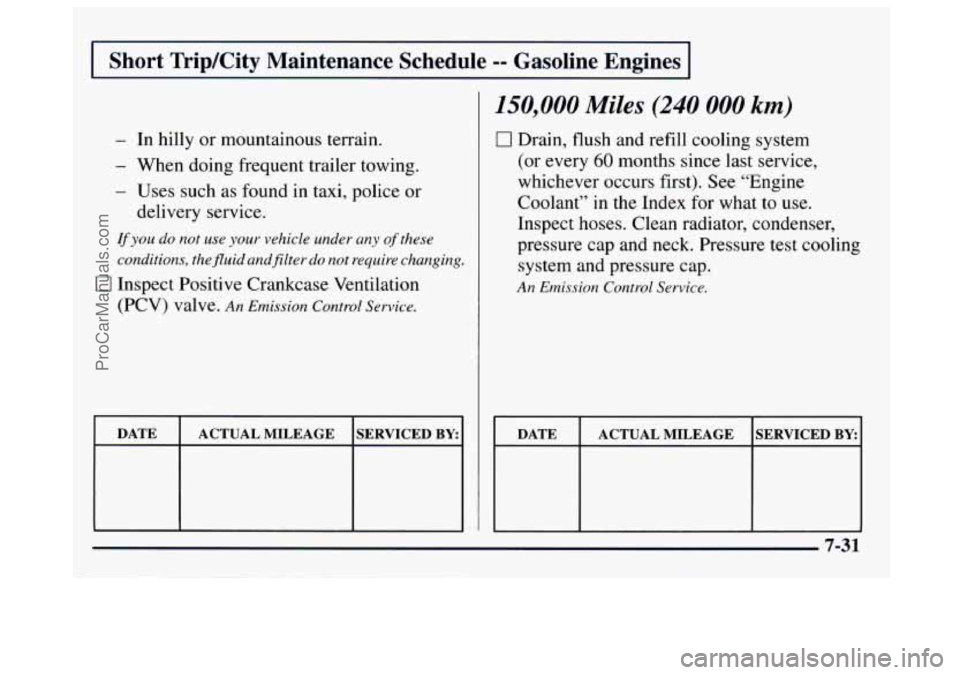

I Short TripKity Maintenance Schedule -- Gasoline Engines I
- In hilly or mountainous terrain.
- When doing frequent trailer towing.
- Uses such as found in taxi, police or
delivery service.
Ifyou do not use your vehicle under any of these
conditions, theJiruid andjilter do not require changing.
[7 Inspect Positive Crankcase Ventilation
(Pcv) valve. An Emission Control Service.
DATE ACTUAL MILEAGE
1
SERVICED BY
150,000 Miles (240 000 km)
0 Drain, flush and refill cooling system
(or every
60 months since last service,
whichever occurs first). See “Engine
Coolant”
in the Index for what to use.
Inspect hoses. Clean radiator, condenser,
pressure cap and neck. Pressure test cooling
system and pressure cap.
An Em.ission Control Service.
’/ -31
ProCarManuals.com

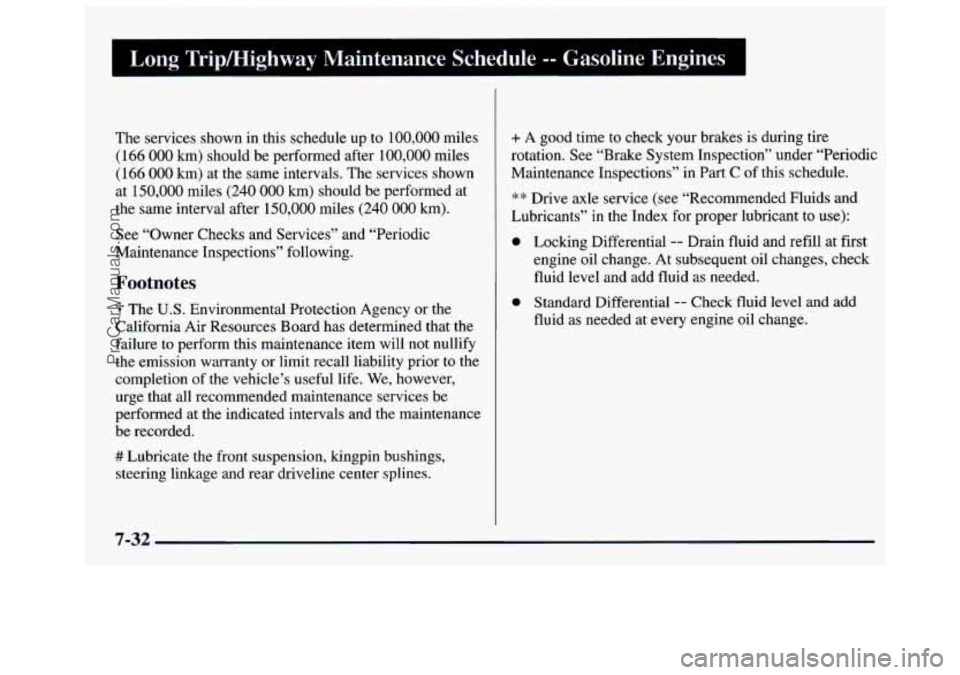

I Long Tripmighway Maintenance Schedule -- Gasoline Engines
The services shown in this schedule up to 100,000 miles
( 166 000 km) should be performed after 100,000 miles
(166 000 km) at the same intervals. The services shown
at
150,000 miles (240 000 km) should be performed at
the same interval after 150,000 miles
(240 000 km).
See “Owner Checks and Services” and “Periodic
Maintenance Inspections” following.
Footnotes
The U.S. Environmental Protection Agency or the
California Air Resources Board has determined that the
failure to perform this maintenance item will
not nullify
the emission warranty or limit recall liability prior
to the
completion of the vehicle’s useful life. We, however,
urge that all recommended maintenance services be
performed at the indicated intervals and the maintenance
be recorded.
## Lubricate the front suspension, kingpin bushings,
steering linkage and rear driveline center splines.
+ A good time to check your brakes is during tire
rotation. See “Brake System Inspection” under “Periodic
Maintenance Inspections”
in Part C of this schedule.
** Drive axle service (see “Recommended Fluids and
Lubricants” in the Index for proper lubricant to use):
0 Locking Differential -- Drain fluid and refill at first
engine oil change. At subsequent oil changes, check
fluid level and add fluid as needed.
0 Standard Differential -- Check fluid level and add
fluid as needed at every engine oil change.
ProCarManuals.com

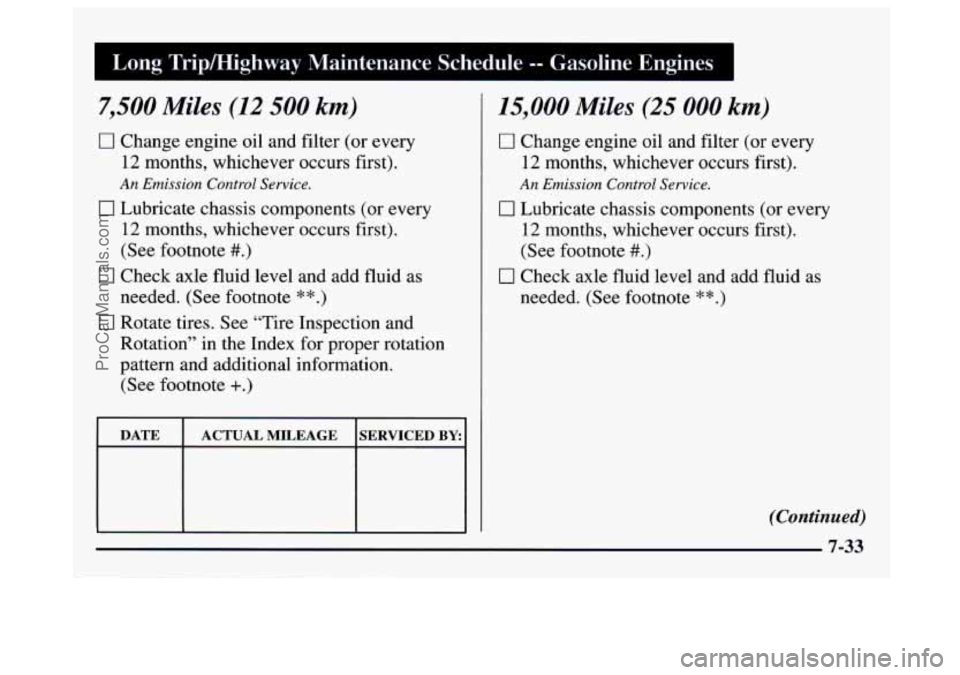

7,500 Miles (12 500 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components (or every
12 months, whichever occurs first).
(See footnote
#.)
0 Check axle fluid level and add fluid as
needed. (See footnote
**.)
0 Rotate tires. See “Tire Inspection and
Rotation’’
in the Index for proper rotation
pattern and additional information.
(See footnote
+.)
15,000 Miles (25 000 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
0 Lubricate chassis components (or every
12 months, whichever occurs first).
(See footnote
#.)
0 Check axle fluid level and add fluid as
needed. (See footnote
**.)
An Emission Control Service.
(Continued)
- AA
ProCarManuals.com

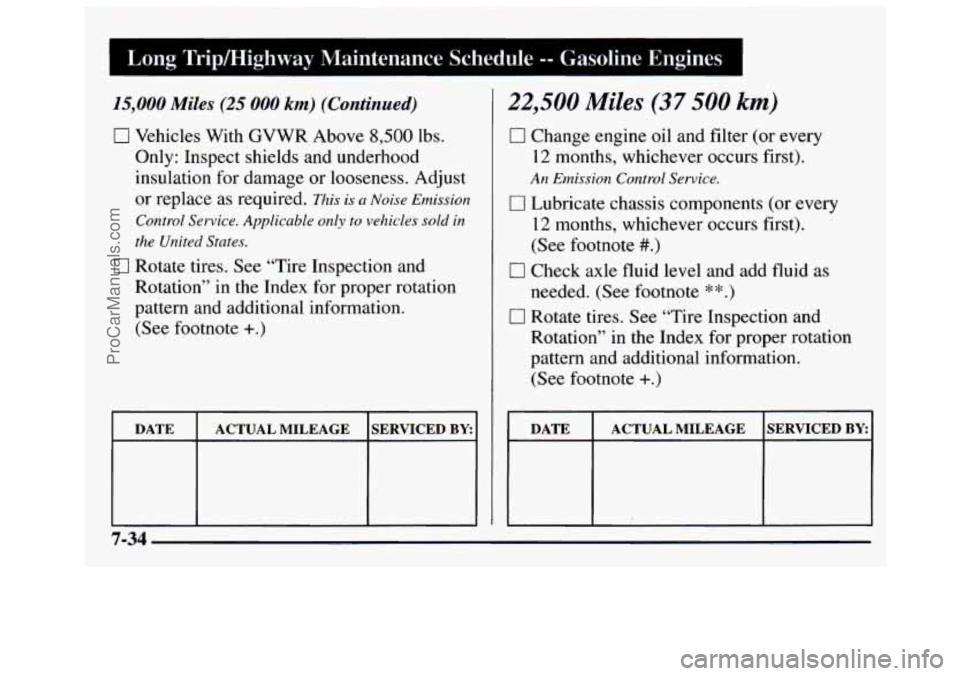

I Long Tripmighway Maintenance Schedule -- Gasoline Engines ~
15,000 Miles (25 000 km) (Continued)
0 Vehicles With GVWR Above 8,500 lbs.
Only: Inspect shields and underhood
insulation for damage or looseness. Adjust
or replace as required.
This is LE Noise Emission
Control Service. Applicable
ordy to vehicles sold in
the United States.
0 Rotate tires. See “Tire Inspection and
Rotation’’
in the Index for proper rotation
pattern
and additional information.
(See footnote
+.)
DATE SERVICED BY ACTUAL MILEAGE ~ ~~
R 3A
22,500 Miles (37 500 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
0 Lubricate chassis components (or every
12 months, whichever occurs first).
(See footnote
#.)
0 Check axle fluid level and add fluid as
needed. (See footnote
**.)
0 Rotate tires. See “Tire Inspection and
Rotation’’
in the Index for proper rotation
pattern and additional information.
(See footnote
+.)
An Emission Control Service.
DATE
SERVICED BY ACTUAL MILEAGE
/ -34
ProCarManuals.com

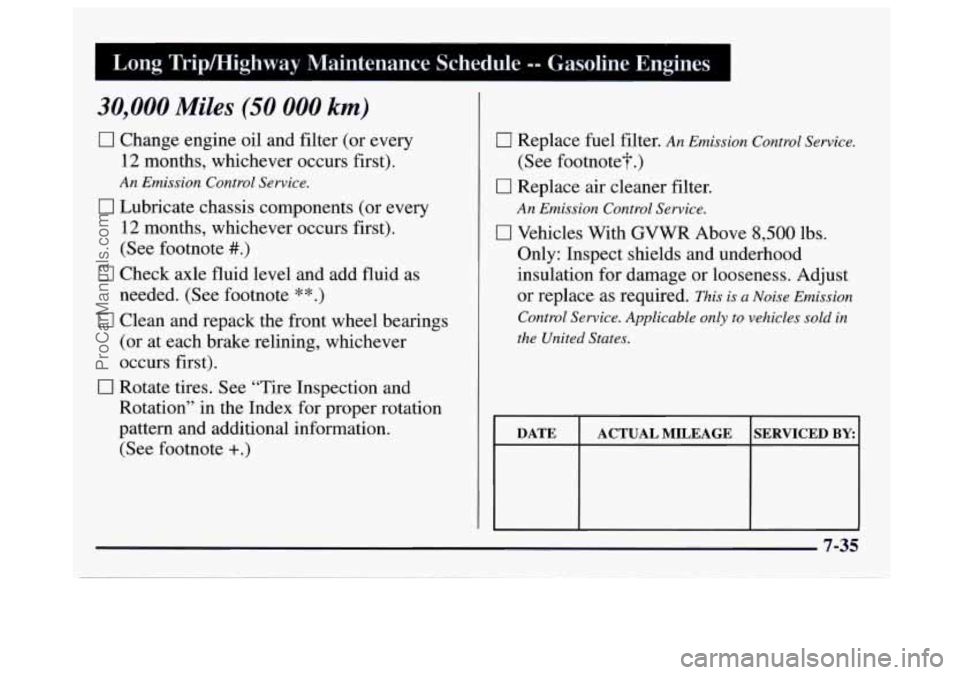

30,000 Miles (50 000 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
0 Lubricate chassis components (or every
12 months, whichever occurs first).
(See footnote
#.)
An Emission Control Service.
0 Check axle fluid level and add fluid as
0 Clean and repack the front wheel bearings
needed. (See footnote
**.)
(or
at each brake relining, whichever
occurs first).
0 Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information.
(See footnote
+.)
0 Replace fuel filter. An Emission Control Service.
0 Replace air cleaner filter.
An Emission Control Service.
0 Vehicles With GVWR Above 8,500 lbs.
Only: Inspect shields and underhood
insulation for damage or looseness. Adjust
or replace as required.
This is a Noise Emission
Control Service. Applicable
only to vehicles sold in
the United States.
(See footnote?.)
DATE
SERVICED BY: ACTUAL MILEAGE
7-35
ProCarManuals.com

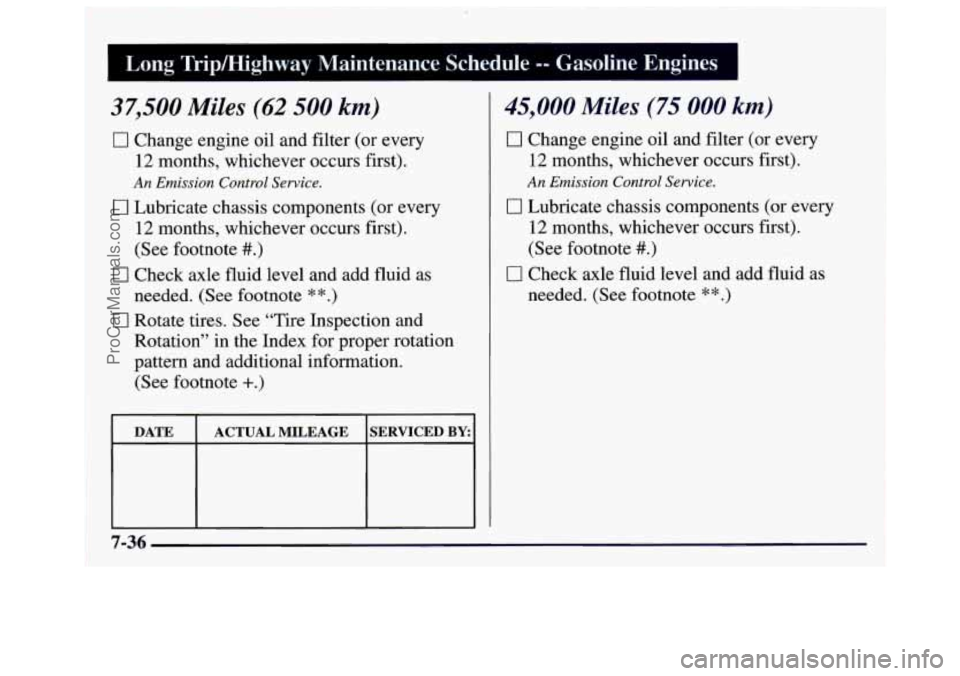

37,500 Miles (62 500 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components (or every
12 months, whichever occurs first).
(See footnote
#.)
0 Check axle fluid level and add fluid as
needed. (See footnote
* *.)
0 Rotate tires. See “Tire Inspection and
Rotation’’ in the Index for proper rotation
pattern and additional information.
(See footnote
+.)
45,000 Miles (75 000 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
0 Lubricate chassis components (or every
12 months, whichever occurs first).
(See footnote
#.)
0 Check axle fluid level and add fluid as
needed. (See footnote
**.)
An Emission Control Service.
DATE ACTUAL MILEAGE SERVICED BY:
7-36
F
