GMC SAVANA 1997 Owners Manual
Manufacturer: GMC, Model Year: 1997, Model line: SAVANA, Model: GMC SAVANA 1997Pages: 388, PDF Size: 20.17 MB

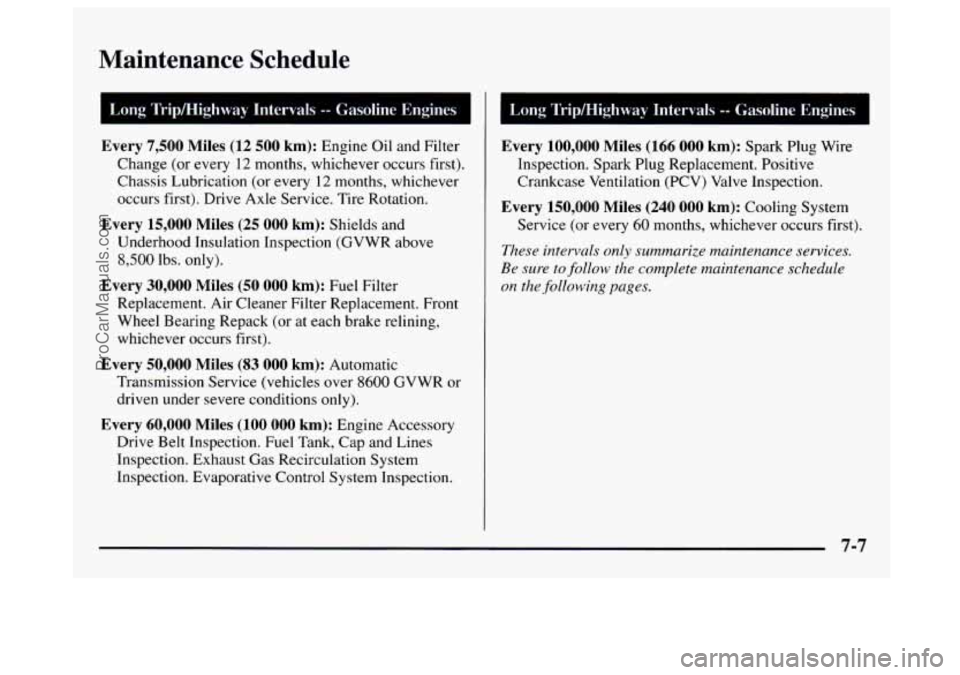

Page 311 of 388

Maintenance Schedule
I
I Long Tripmighway Intervals -- Gasoline Engines I
rn &very 7,500 Miles (12 500 km): Engine Oil and Filter
Change (or every
12 months, whichever occurs first).
Chassis Lubrication (or every
12 months, whichever
occurs first). Drive Axle Service. Tire Rotation.
Every 15,000 Miles (25 000 km): Shields and
Underhood Insulation Inspection (GVWR above
8,500 lbs. only).
Every 30,000 Miles (50 000 km): Fuel Filter
Replacement. Air Cleaner Filter Replacement. Front
Wheel Bearing Repack (or at each brake relining,
whichever occurs first).
Every 50,000 Miles (83 000 km): Automatic
Transmission Service (vehicles over
8600 GVWR or
driven under severe conditions
only).
Every 60,000 Miles (100 000 km): Engine Accessory
Drive Belt Inspection. Fuel Tank, Cap and Lines
Inspection. Exhaust Gas Recirculation System
Inspection. Evaporative Control System Inspection.
Long Tripmighway Intervals -- Gasoline Engines
Every 100,000 Miles (166
000 km): Spark Plug Wire
Inspection. Spark Plug Replacement. Positive
Crankcase Ventilation (PCV) Valve Inspection.
Every 150,000 Miles (240 000 km): Cooling System
Service (or every
60 months, whichever occurs first).
These intervals only summarize maintenance services.
Be sure to
follow the complete maintenance schedule
on the following pages.
7-7
ProCarManuals.com

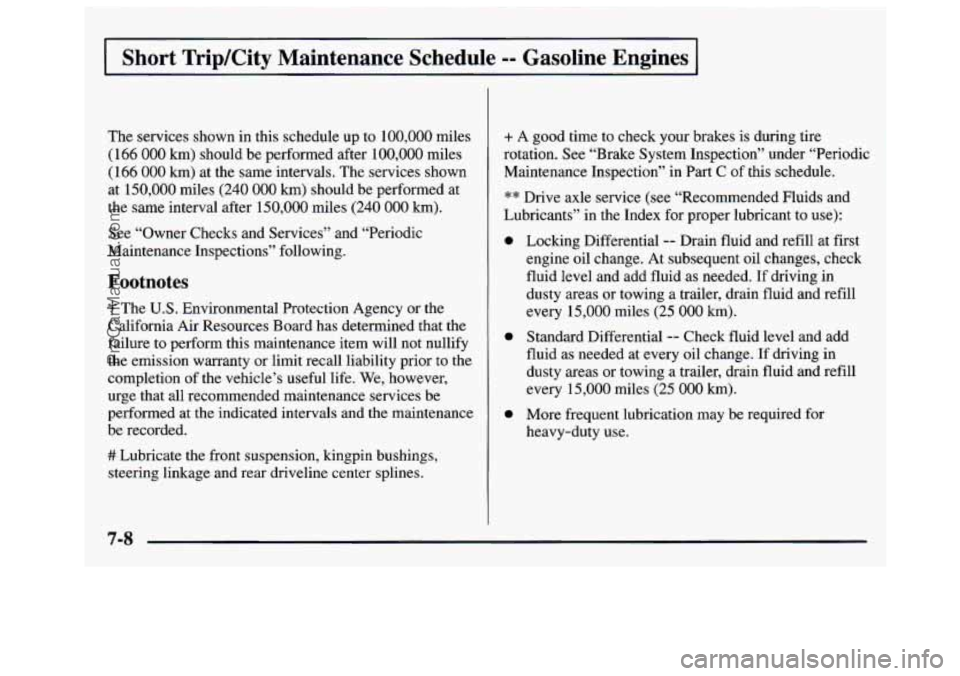

Page 312 of 388

Short TripKity Maintenance Schedule -- Gasoline Engines
The services shown in this schedule up to 100,000 miles
(166
000 km) should be performed after 100,000 miles
(166 000 km) at the same intervals. The services shown
at
150,000 miles (240 000 km) should be performed at
the same interval after
150,000 miles (240 000 km).
See “Owner Checks and Services” and “Periodic
Maintenance Inspections” following.
Footnotes
The U.S. Environmental Protection Agency or the
California Air Resources Board has determined that the
failure to perform this maintenance item will not nullify
the emission warranty or limit recall liability prior to the
completion of the vehicle’s useful life. We, however,
urge that all recommended maintenance services be
performed at the indicated intervals and the maintenance
be recorded.
# Lubricate the front suspension, kingpin bushings,
steering linkage and rear driveline center splines.
+ A good time to check your brakes is during tire
rotation. See “Brake System Inspection” under “Periodic
Maintenance Inspection” in Part C of this schedule.
** Drive axle service (see “Recommended Fluids and
Lubricants” in the Index for proper lubricant to use):
0
a
a
Locking Differential -- Drain fluid and refill at first
engine oil change. At subsequent oil changes, check
fluid level and add fluid
as needed. If driving in
dusty areas or towing a trailer, drain fluid and refill
every 15,000 miles (25
000 km).
Standard Differential -- Check fluid level and add
fluid as needed at every oil change. If driving in
dusty areas or towing a trailer, drain fluid and refill
every 15,000 miles
(25 000 km).
More frequent lubrication may be required for
heavy-duty use.
7-8
ProCarManuals.com

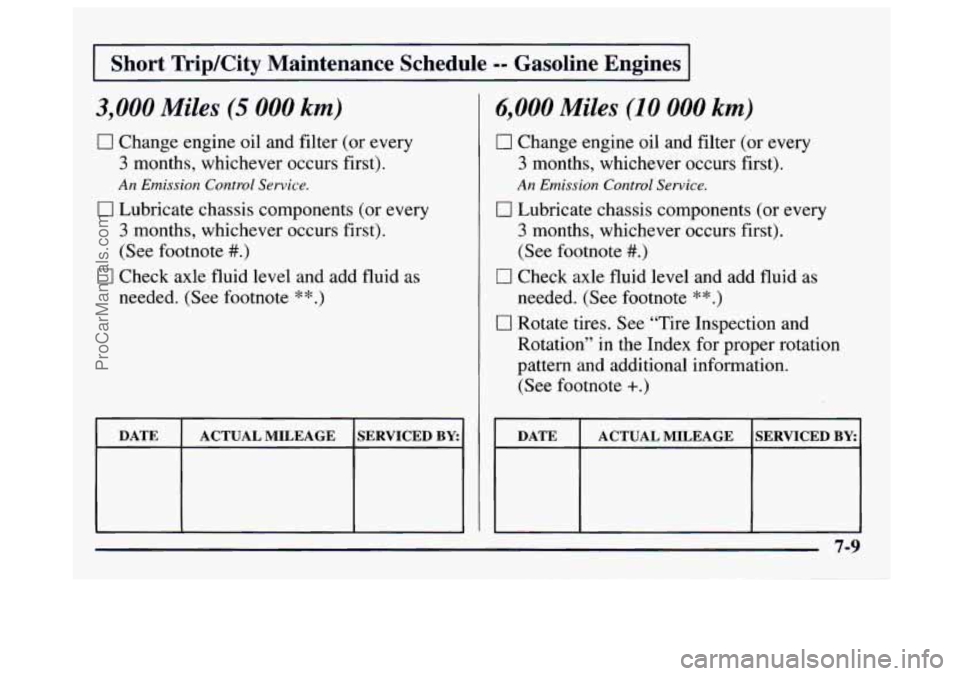

Page 313 of 388

I Short TripKity Maintenance Schedule =- Gasoline Engines I
3,000 Miles (5 000 km)
17 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
17 Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
0 Check axle fluid level and add fluid as
needed. (See footnote
* *.)
DATE SERVICED BY: ACTUAL MILEAGE
6,000 Miles (10 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
0 Check axle fluid level and add fluid as
needed. (See footnote
**.)
0 Rotate tires. See “Tire Inspection and
Rotation”
in the Index for proper rotation
pattern and additional information.
(See footnote
+.)
DATE SERVICED BY: ACTUAL MILEAGE
7-9
ProCarManuals.com
Page 314 of 388

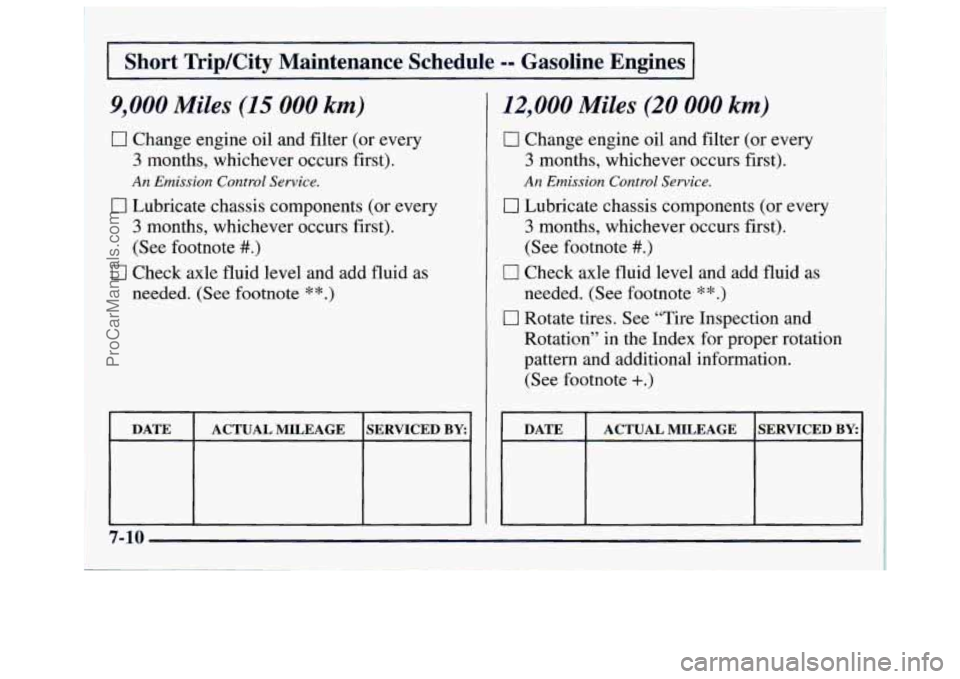

Short TripKity Maintenance Schedule -- Gasoline Engines
9,000 Miles (15 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
needed. (See footnote **.)
0 Check axle fluid level and add fluid as
DATE ACTUAL MILEAGE
12,000 Miles (20 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
0 Check axle fluid level and add fluid as
needed. (See footnote
** .)
0 Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information. (See footnote
+.)
DATE ACTUAL MILEAGE SERVICED BY
7-10
1
ProCarManuals.com

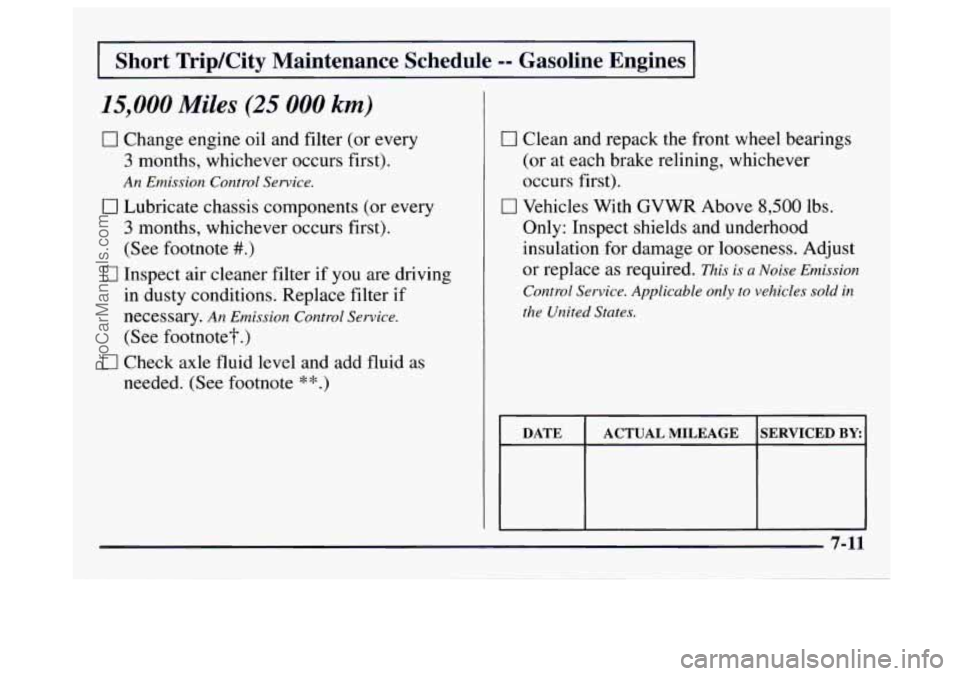

Page 315 of 388

I Short TripKity Maintenance Schedule -- Gasoline Engines I
15,000 Miles (25 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
in dusty conditions. Replace filter if
necessary. An Emission Control Service.
(See footnote? .)
0 Check axle fluid level and add fluid as
needed. (See footnote
**.)
0 Inspect air cleaner filter if you are driving
0 Clean and repack the front wheel bearings
(or at each brake relining, whichever
occurs first).
0 Vehicles With GVWR Above 8,500 lbs.
Only: Inspect shields and underhood
insulation for damage or looseness. Adjust
or replace as required.
This is a Noise Emission
Control Service. Applicable only to vehicles
sold in
th.e United States.
DATE SERVICED BY. ACTUAL MILEAGE
7-11
ProCarManuals.com

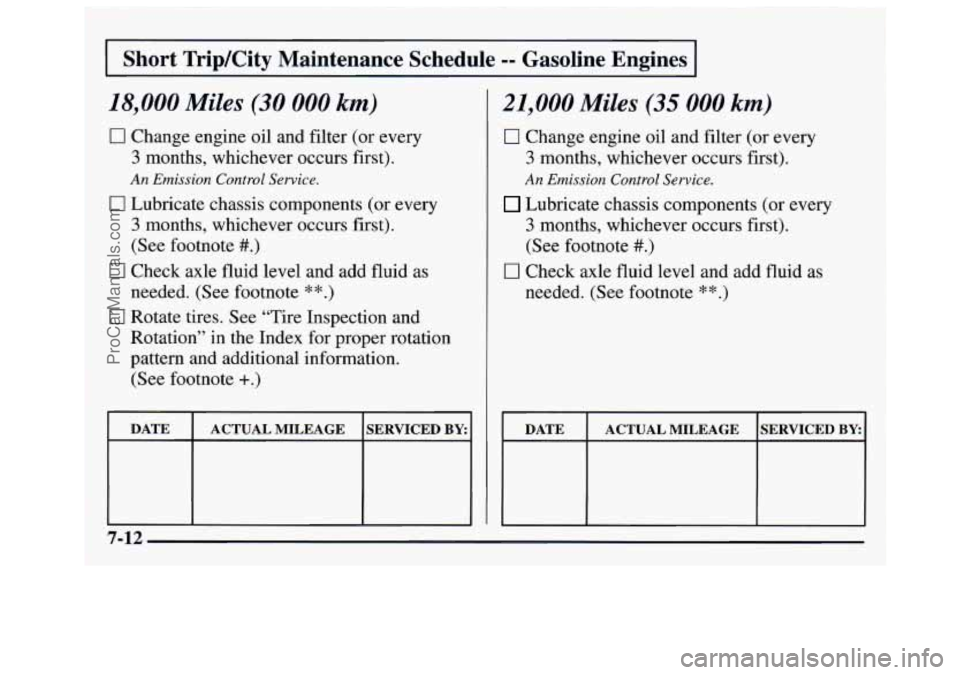

Page 316 of 388

J
Short TripKity Maintenance Schedule -- Gasoline Engines
I
18,000 Miles (30 000 km)
1
21,000 Miles (35 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Sewice.
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service,
0 Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
0 Check axle fluid level and add fluid as
needed. (See footnote
**.)
0 Rotate tires. See “Tire Inspection and
Rotation’’
in the Index for proper rotation
pattern and additional information.
(See footnote
+.)
Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
0 Check axle fluid level and add fluid as
needed. (See footnote
* *.)
DATE ACTUAL MILEAGE SERVICED BY: DATE ACTUAL MILEAGE SERVICED BY
7-12
ProCarManuals.com

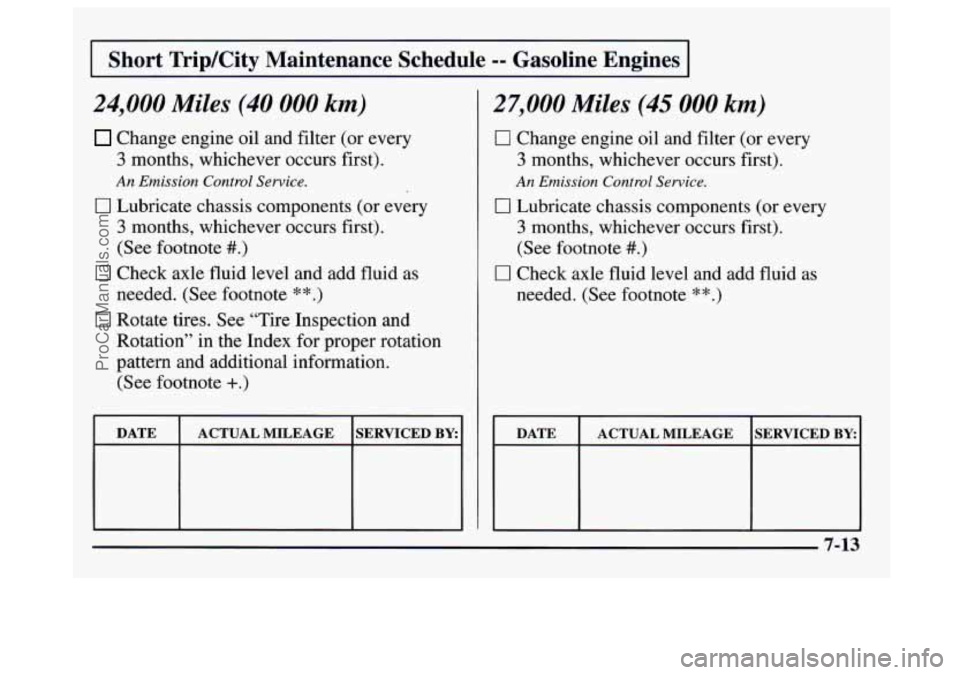

Page 317 of 388

I Short TripKity Maintenance Schedule -- Gasoline Engines I
24,000 Miles (40 000 km)
Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
0 Check axle fluid level and add fluid as
needed. (See footnote
** .)
0 Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information.
(See footnote
+.)
I DATE I ACTUALMILEAGE ISERVICED BYJ
27,000 Miles (45 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
0 Check axle fluid level and add fluid as
needed. (See footnote
* *.)
7-13
ProCarManuals.com

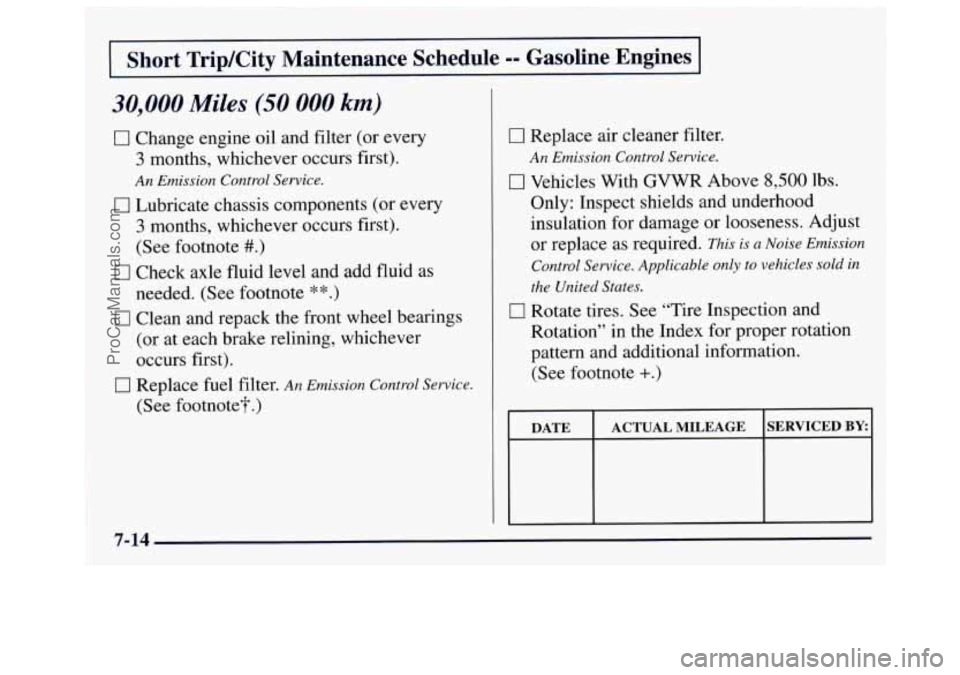

Page 318 of 388

bhort Trip/City Maintenance Schedule =- Gasoline Engines I
30,000 Miles (50 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
17 Check axle fluid level and add fluid as
needed. (See footnote
**.)
0 Clean and repack the front wheel bearings
(or at each brake relining, whichever
occurs first).
(See footnote?.)
0 Replace fuel filter. An Emission Control Service.
0 Replace air cleaner filter.
0 Vehicles With GVM Above 8,500 lbs.
Only: Inspect shields and underhood
insulation for damage or looseness. Adjust
or replace as required. This is a Noise Emission
Control Service. Applicable only to vehicles
sold in
the United States.
An Emission Control Service.
0 Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information. (See footnote
+.)
DATE ACTUAL MILEAGE SERVICED BY
11
I
ProCarManuals.com

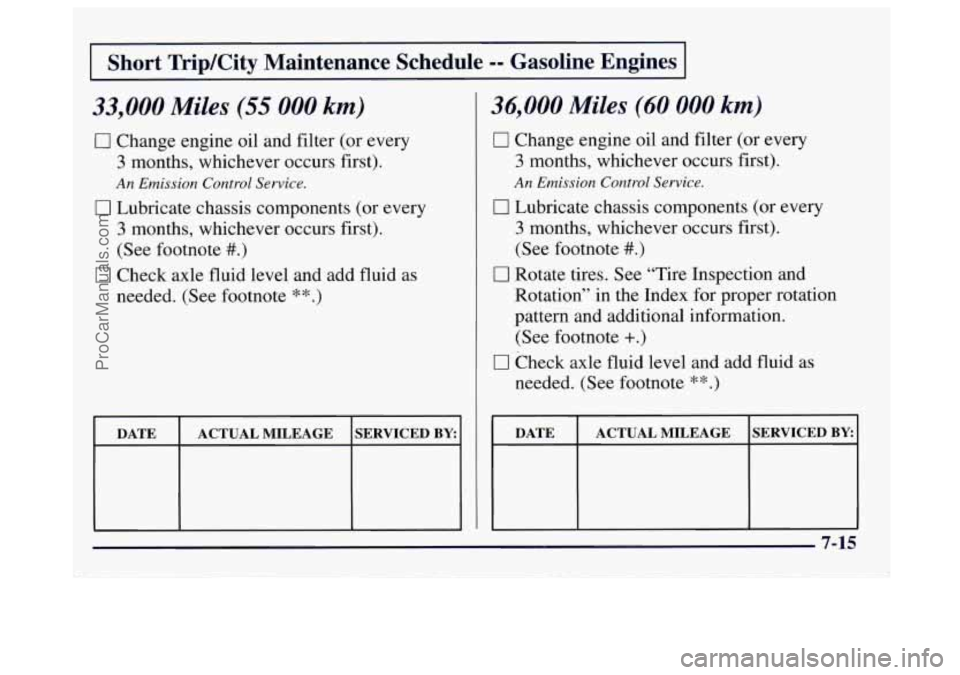

Page 319 of 388

Short TripKity Maintenance Schedule -- Gasoline Engines
33,000 Miles (55 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
0 Check axle fluid level and add fluid as
needed. (See footnote
**.)
DATE SERVICED BY: ACTUAL MILEAGE
36,000 Miles (60 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
0 Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information.
(See footnote
+.)
(7 Check axle fluid level and add fluid as
needed. (See footnote
**.)
DATE SERVICED BY: ACTUAL MILEAGE
7-15
ProCarManuals.com
Page 320 of 388

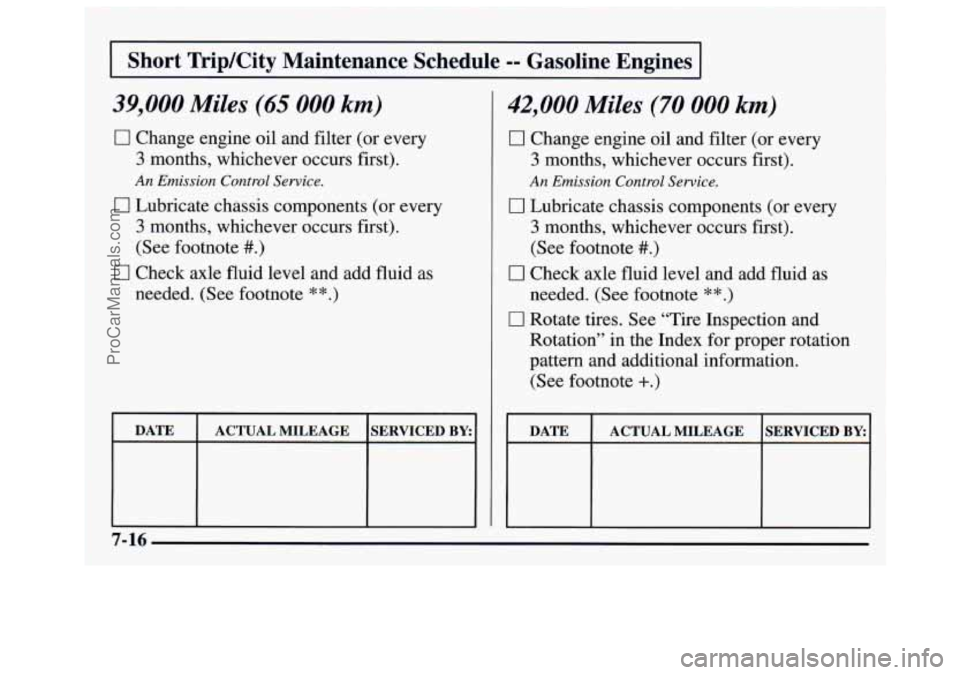

I Short TripKity Maintenance Schedule -- Gasoline Engines I
39,000 Miles (65 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
0 Check axle fluid level and add fluid as
needed. (See footnote
* * .)
DATE ACTUAL MILEAGE SERVICED BY:
42,000 Miles (70 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
Check axle fluid level and add fluid as
needed. (See footnote
** .)
0 Rotate tires. See “Tire Inspection and
Rotation’’
in the Index for proper rotation
pattern and additional information.
(See footnote
+.)
DATE ACTUAL MILEAGE SERVICED BY:
