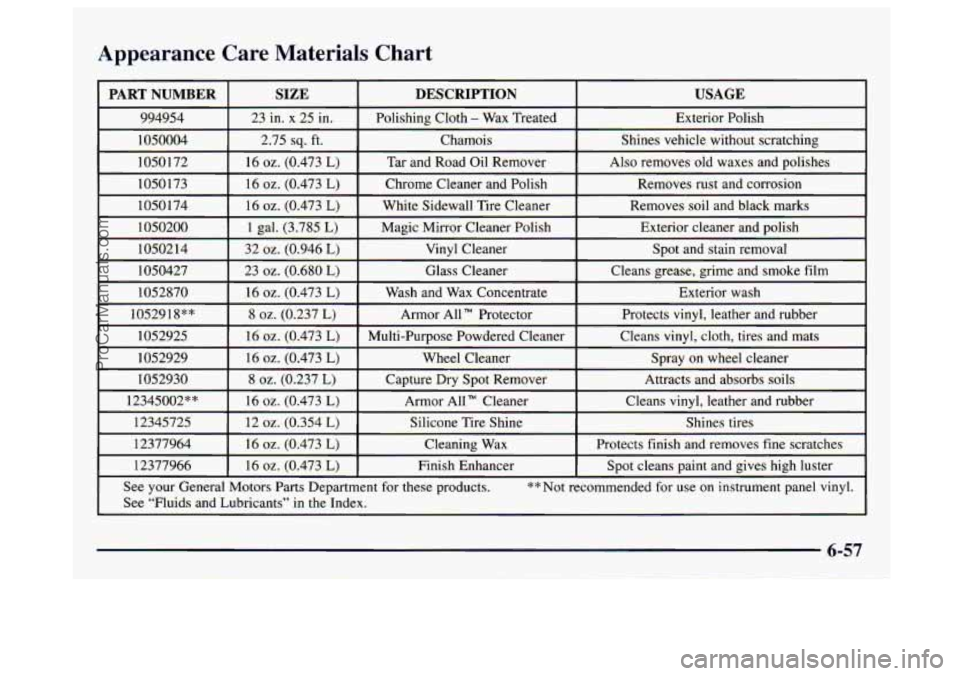

Appearance Care Materials Chart
6-57
ProCarManuals.com
Page 292 of 388

I

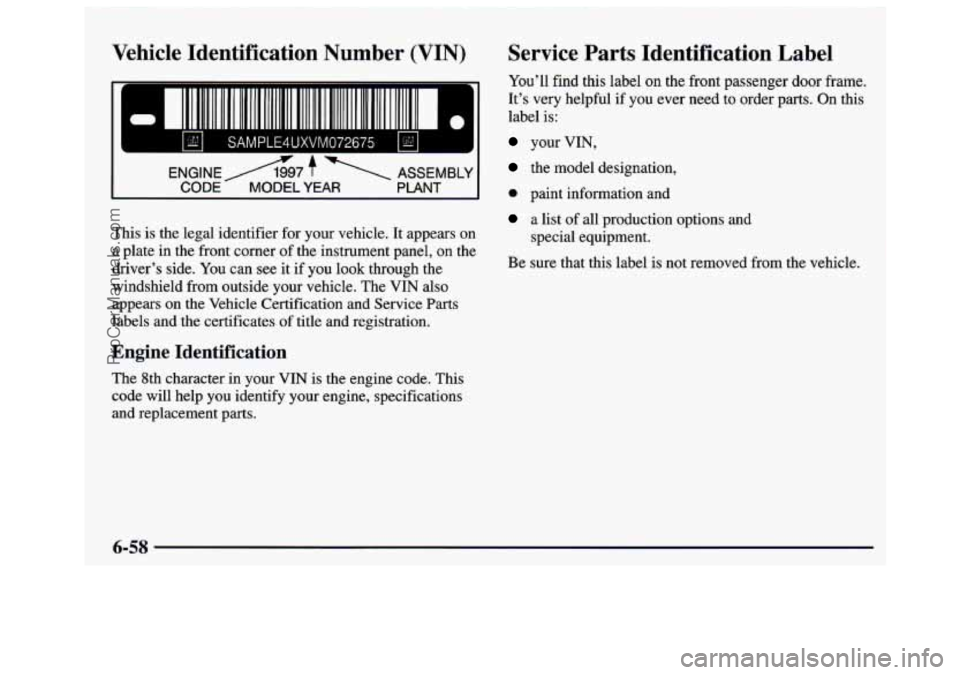

Vehicle Identification Number (VIN)
- -1 I1 11111.11 1.11 111 111111 II. 111111I1 111111111111 111111111 11- a
SAMPLE4UXVM072675
I I 111 1111II IIII 11111111111111 IIIIIIII 11111111 11111111 I IIIIIII I
ENGINE A97 7 ASSEMBLY
CODE
MODEL YEAR PLANT
This is the legal identifier for your vehicle. It appears on
a plate in the front corner
of the instrument panel, on the
driver’s side. You can see it if
you look through the
windshield from outside your vehicle. The
VIN also
appears on the Vehicle Certification and Service Parts
labels and the certificates
of title and registration.
Engine Identification
The 8th character in your VIN is the engine code. This
code will help you identify your engine, specifications
and replacement
parts.
Service Parts Identification Label
You’ll find this label on the front passenger door frame.
It’s very helpful if you ever need to order parts. On this
label is:
your VIN,
the model designation,
0 paint information and
a list of all production options and
special equipment.
Be sure that this label
is not removed from the vehicle.
6-58
ProCarManuals.com
Page 293 of 388

Electrical System
Add-on Electrical Equipment
I NOTICE:
Don’t add anything electrical to your vehicle
unless you check with your dealer first. Some
electrical equipment can damage your vehicle
and the damage wouldn’t be covered by your
warranty. Some add-on electrical equipment
can keep other components from working as
they should.
Your vehicle has an air bag system. Before attempting to
add anything electrical
to your vehicle, see “Servicing
Your Air Bag-Equipped Vehicle” in the Index.
Headlamp Wiring
The headlamp wiring is protected by a circuit breaker in
the lamp switch. An electrical overload will cause the
lamps to flicker on and off, or in some cases
to remain
off. If this happens, have your headlamp wiring checked
right away.
Windshield Wiper Fuses
The windshield wiper motor is protected by a circuit
breaker and a fuse. If the motor overheats due to heavy
snow, etc., the wiper will stop until the motor cools.
Although the circuit is protected from electrical
overload, overload due to heavy snow, etc., may cause
wiper linkage damage. Always clear ice and heavy snow
from the the windshield before using the windshield
wipers. If the overload is caused by some electrical
problem and not snow, etc., be sure to get it fixed.
6-59
ProCarManuals.com
Page 294 of 388

Instrument Panel Fuse Block
The fuse block access door
is
on the driver’s side of the
instrument panel above
the
hood release lever.
You can remove the cover
by turning the fastener
counterclockwise.
You can remove fuses with a fuse extractor. The
fuse
extractor is mounted to the fuse block access door.
To remove fuses if you don’t have a fuse extractor, hold
the end of the
fuse between your thumb and index finger
and pull straight out. Be
sure
to use the correct fuse. If you ever have a
problem on the road and don’t have a spare fuse,
you can “borrow” one of the correct value. Just pick
some feature of your vehicle that you can get along
without
-- like the radio or cigarette lighter -- and use
its fuse,
if it is of the value you need. Replace it as soon
as
you can. See “Fuses and Circuit Breakers” in the
Index for more information.
FUSE BLOCK INFORMATION
6-60
ProCarManuals.com
Page 295 of 388

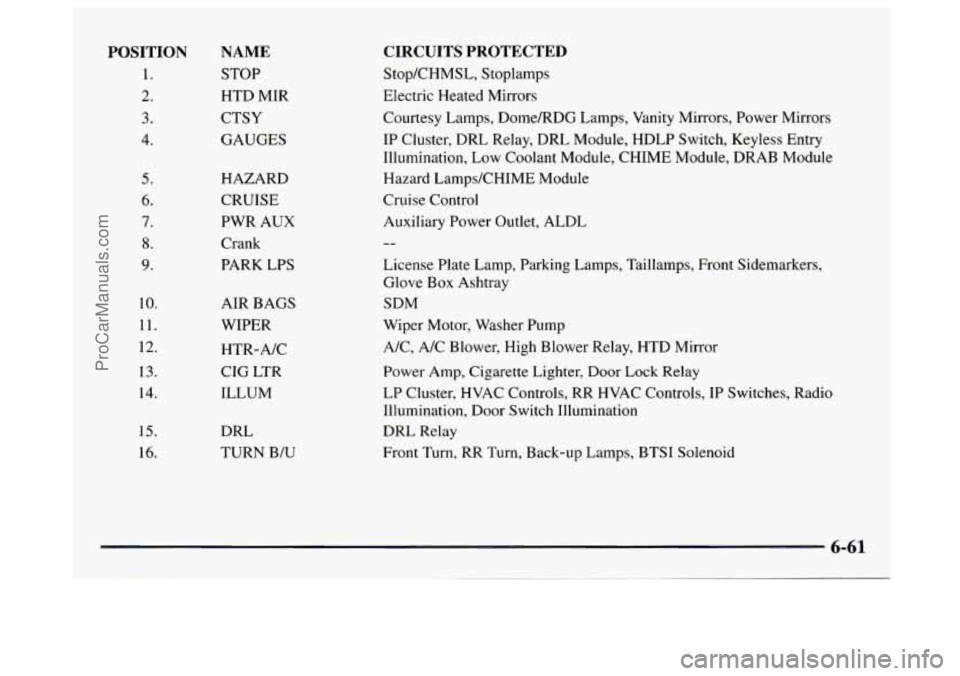

POSITION
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
NAME
STOP HTD
MIR
CTSY
GAUGES
HAZARD CRUISE
PWR AUX Crank
PARK LPS
AIR BAGS WIPER
HTR-A/C
CIG
LTR
ILLUM
DRL
TURN
B/U
CIRCUITS PROTECTED
Stop/CHMSL, Stoplamps
Electric Heated Mirrors
Courtesy Lamps, Dome/RDG Lamps, Vanity Mirrors, Power Mirrors
IP Cluster, DRL Relay, DRL Module, HDLP Switch, Keyless Entry
Illumination, Low Coolant Module, CHIME Module, DRAB Module
Hazard LampdCHIME Module
Cruise Control
Auxiliary Power Outlet, ALDL
License Plate Lamp, Parking Lamps, Taillamps, Front Sidemarkers,
Glove Box Ashtray
SDM
Wiper Motor, Washer Pump
A/C, A/C Blower, High Blower Relay, HTD Mirror
Power Amp, Cigarette Lighter, Door Lock Relay
LP Cluster, HVAC Controls,
RR HVAC Controls, IP Switches, Radio
Illumination, Door Switch Illumination
DRL Relay
Front Turn, RR Turn, Back-up Lamps,
BTSI Solenoid
6-61
ProCarManuals.com
Page 296 of 388

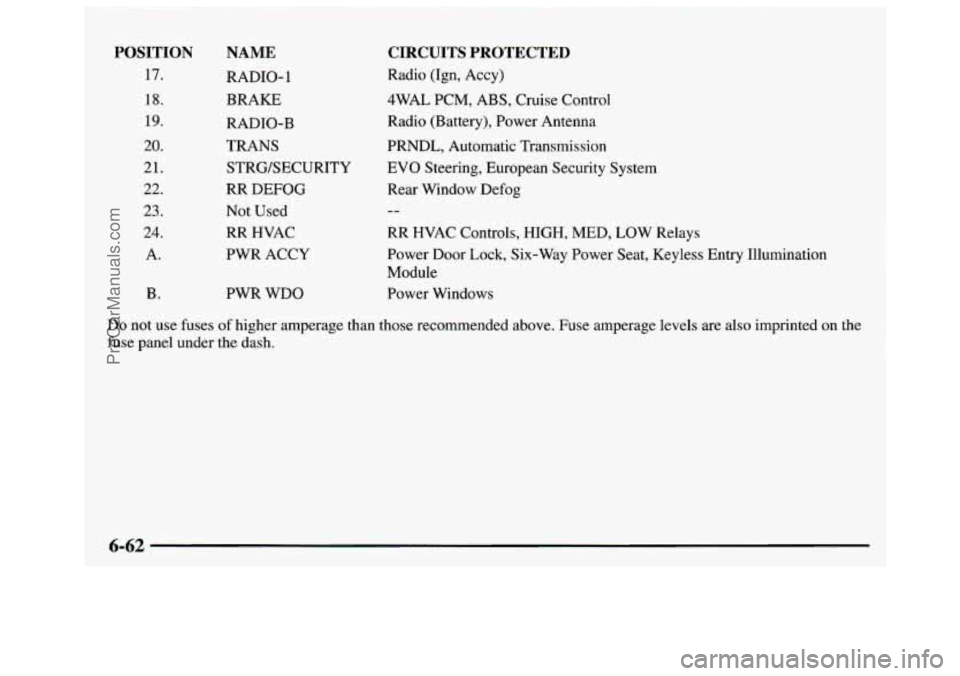

POSITION
17.
18.
19.
20.
21.
22.
23.
24.
A.
B.
NAME
RADIO- 1
BRAKE
RADIO-B TRANS STRGISECURITY
RR DEFOG
Not Used
RR HVAC
PWR ACCY
PWR WDO
CIRCUITS PROTECTED
Radio (Ign, Accy)
4WAL PCM, ABS, Cruise Control
Radio (Battery), Power Antenna
PRNDL, Automatic Transmission
EVO Steering, European Security System
Rear Window Defog
RR HVAC Controls, HIGH, MED, LOW Relays
Power Door Lock, Six-Way Power Seat, Keyless Entry Illumination
Module
Power Windows
Do not use fuses of higher amperage than those recommended above. Fuse amperage levels are also imprinted on the
fuse panel under the dash.
6-62
ProCarManuals.com
Page 297 of 388
![GMC SAVANA 1997 Owners Manual Engine Compartment Fuse Relay Center
The fuse block is on the drivers side of the engine
compartment at the rear.
[-I
[)
[T]
Name
BLOWER
ABS
Circuits Protected
Blower Motor
Electr GMC SAVANA 1997 Owners Manual Engine Compartment Fuse Relay Center
The fuse block is on the drivers side of the engine
compartment at the rear.
[-I
[)
[T]
Name
BLOWER
ABS
Circuits Protected
Blower Motor
Electr](/img/44/57846/w960_57846-296.png)

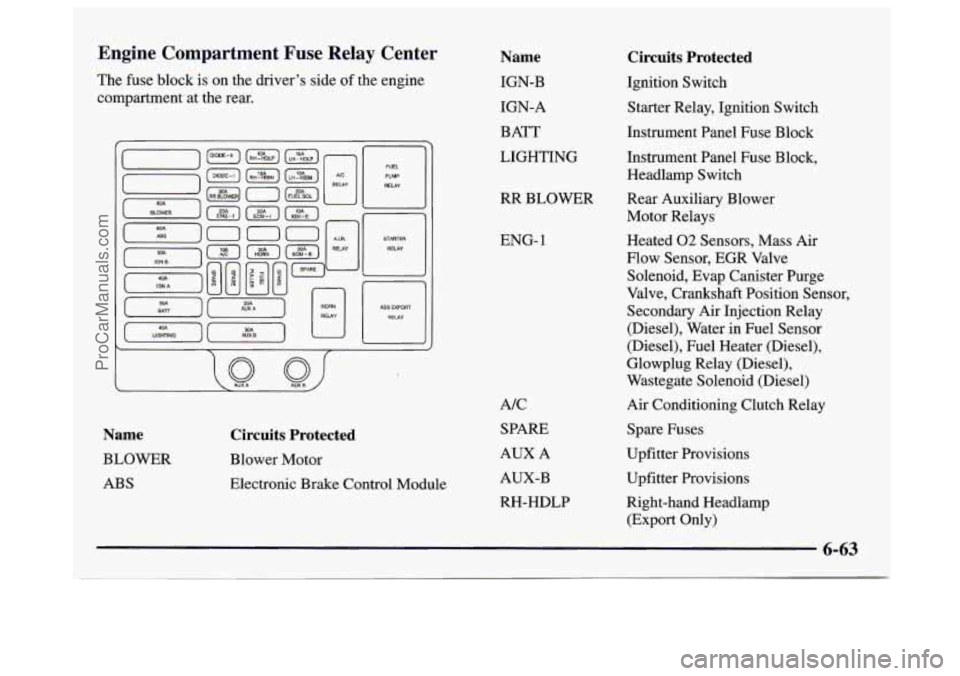

Engine Compartment Fuse Relay Center
The fuse block is on the driver's side of the engine
compartment at the rear.
[-I
[)
[T]
Name
BLOWER
ABS
Circuits Protected
Blower Motor
Electronic Brake Control Module
Name
IGN-B
IGN-A
BATT
LIGHTING
RR BLOWER
ENG-
1
A/C SPARE
AUX A
AUX-B
RH-HDLP
Circuits Protected
Ignition Switch
Starter Relay, Ignition Switch
Instrument Panel Fuse Block
Instrument Panel Fuse Block,
Headlamp Switch
Rear Auxiliary Blower
Motor Relays
Heated
02 Sensors, Mass Air
Flow Sensor, EGR Valve
Solenoid, Evap Canister Purge
Valve, Crankshaft Position Sensor,
Secondary Air Injection Relay
(Diesel), Water in Fuel Sensor
(Diesel), Fuel Heater (Diesel),
Glowplug Relay (Diesel),
Wastegate Solenoid (Diesel)
Air Conditioning Clutch Relay
Spare Fuses
Upfitter Provisions
Upfitter Provisions
Right-hand Headlamp
(Export Only)
6-63
ProCarManuals.com
Page 298 of 388

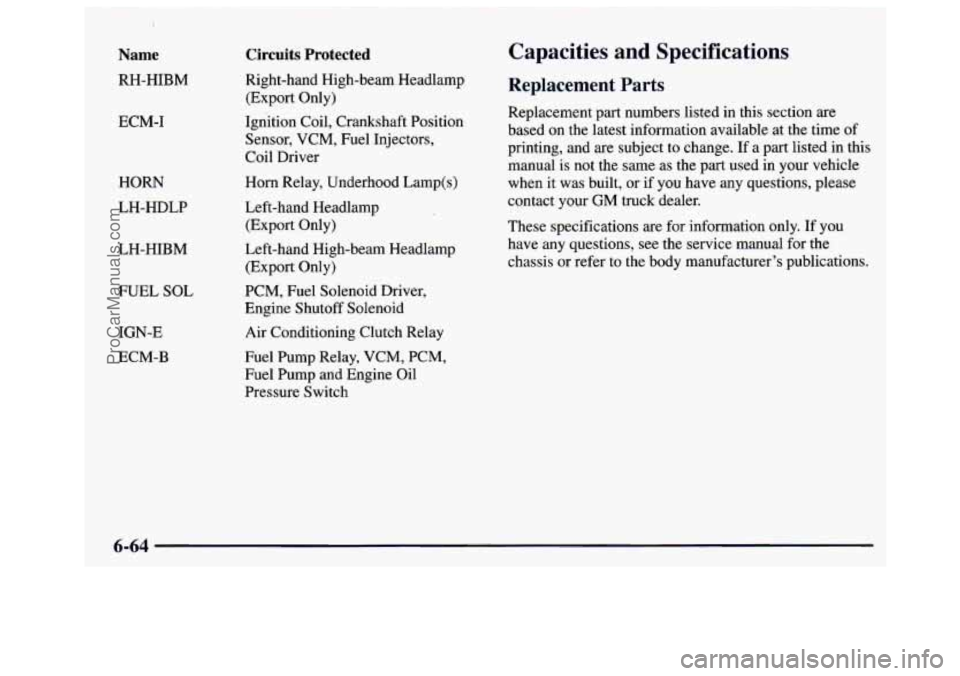

Name
RH-HIBM
ECM-I
HORN
LH-HDLP
LH-HIBM
FUEL SOL
IGN-E
ECM-B
Circuits Protected
Right-hand High-beam Headlamp
(Export Only)
Ignition Coil, Crankshaft Position Sensor, VCM, Fuel Injectors,
Coil Driver
Horn Relay, Underhood Lamp(
s)
Left-hand Headlamp
(Export Only)
Left-hand High-beam Headlamp
(Export Only)
PCM, Fuel Solenoid Driver,
Engine Shutoff Solenoid
Air Conditioning Clutch Relay
Fuel Pump Relay, VCM, PCM,
Fuel Pump and Engine Oil
Pressure Switch
Capacities and Specifications
Replacement Parts
Replacement part numbers listed in this section are
based on the latest information available at the time of
printing, and are subject to change. If a part listed in this
manual is not the same as the part used in your vehicle
when
it was built, or if you have any questions, please
contact your GM truck dealer.
These specifications
are for information only. If you
have
any questions, see the service manual for the
chassis or refer to the body manufacturer’s publications.
6-64
ProCarManuals.com
Page 299 of 388
![GMC SAVANA 1997 Owners Manual Engine Identification -- Gasoline Engines
Engine “VORTEC”4300 “VORTEC”5000
Type V6 V8
VIN Code
w M
Fuel System CSFI’ CSFI*
]Central
Sequential Fuel Injection
2Sequential Fuel I GMC SAVANA 1997 Owners Manual Engine Identification -- Gasoline Engines
Engine “VORTEC”4300 “VORTEC”5000
Type V6 V8
VIN Code
w M
Fuel System CSFI’ CSFI*
]Central
Sequential Fuel Injection
2Sequential Fuel I](/img/44/57846/w960_57846-298.png)

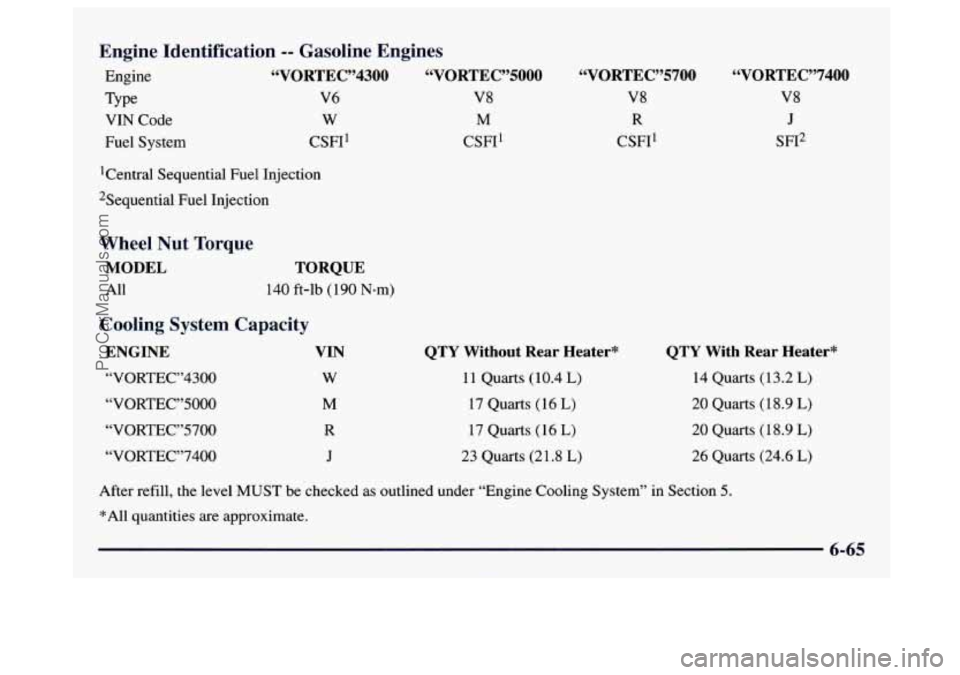

Engine Identification -- Gasoline Engines
Engine “VORTEC”4300 “VORTEC”5000
Type V6 V8
VIN Code
w M
Fuel System CSFI’ CSFI*
]Central
Sequential Fuel Injection
2Sequential Fuel Injection
Wheel Nut Torque
MODEL TORQUE
All 140 ft-lb (190 N-m)
Cooling System Capacity
ENGINE VIN
“VORTEC”4300
“VORTEC”5000
“VORTEC”5700
“VORTEC”7400 W
M
R
J
QTJ “VORTEC”5700
V8
R
CSFI’
1 Without Rear Heater*
11
Quarts (10.4 L)
17 Quarts (16 L)
17 Quarts (16 L)
23 Quarts (2 1.8 L)
“VORTEC”7400
V8
J
SF12
rl With Rear Heater 8
14 Quarts (13.2 L)
20 Quarts (18.9 L)
20 Quarts (18.9 L)
26 Quarts (24.6 L)
After refill, the level MUST be checked as outlined under “Engine Cooling System” in Section 5.
*All quantities are approximate.
6-65
ProCarManuals.com
Page 300 of 388

Crankcase Capacity
ENGINE VIN Quantity With Filter
“VORTEC”4300 W 4.5 Quarts (4.3 L)
“VORTEC”5000
“VORTEC”5700
“VORTEC”7400 M
R
J
5 Quarts (4.8 L)
5 Quarts (4.8 L)
7 Quarts (6.5 L)
Fuel Tank Capacity
TYPE QUANTITY
Standard Tank 3 1 Gallons (1 17.33 L)
Optional Tank* * 55 Gallons (208.18 L)
*All quantities are approximate.
** 159’’ , 177” Wheelbase Vehicles Only.
All quantities are approximate. After refill, the level MUST be checked as outlined
under “Engine Oil And Filter Recommendations’’ in
Section
5.
**Add one additional quart for RPO 5Z1 and
WO KL5 Models.
