Page 331 of 436

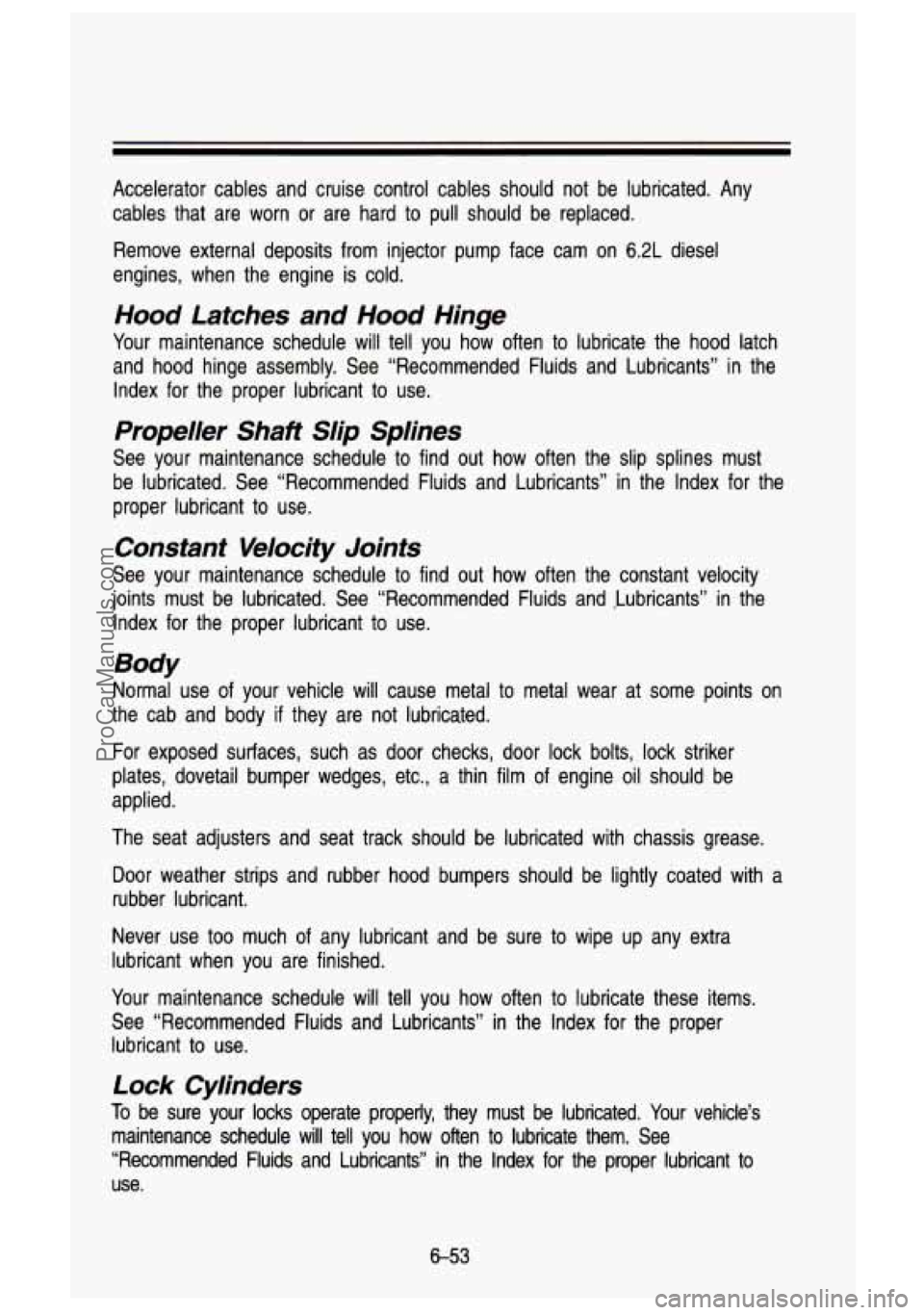

GMC SIERRA 1993  Owners Manual Accelerator  cables  and  cruise  control  cables  should  not  be  lubr\
icated.  Any
cables  that  are  worn  or  are  hard  to  pull  should  be  replaced. \
Remove  external  deposits  from  inje

Page 332 of 436

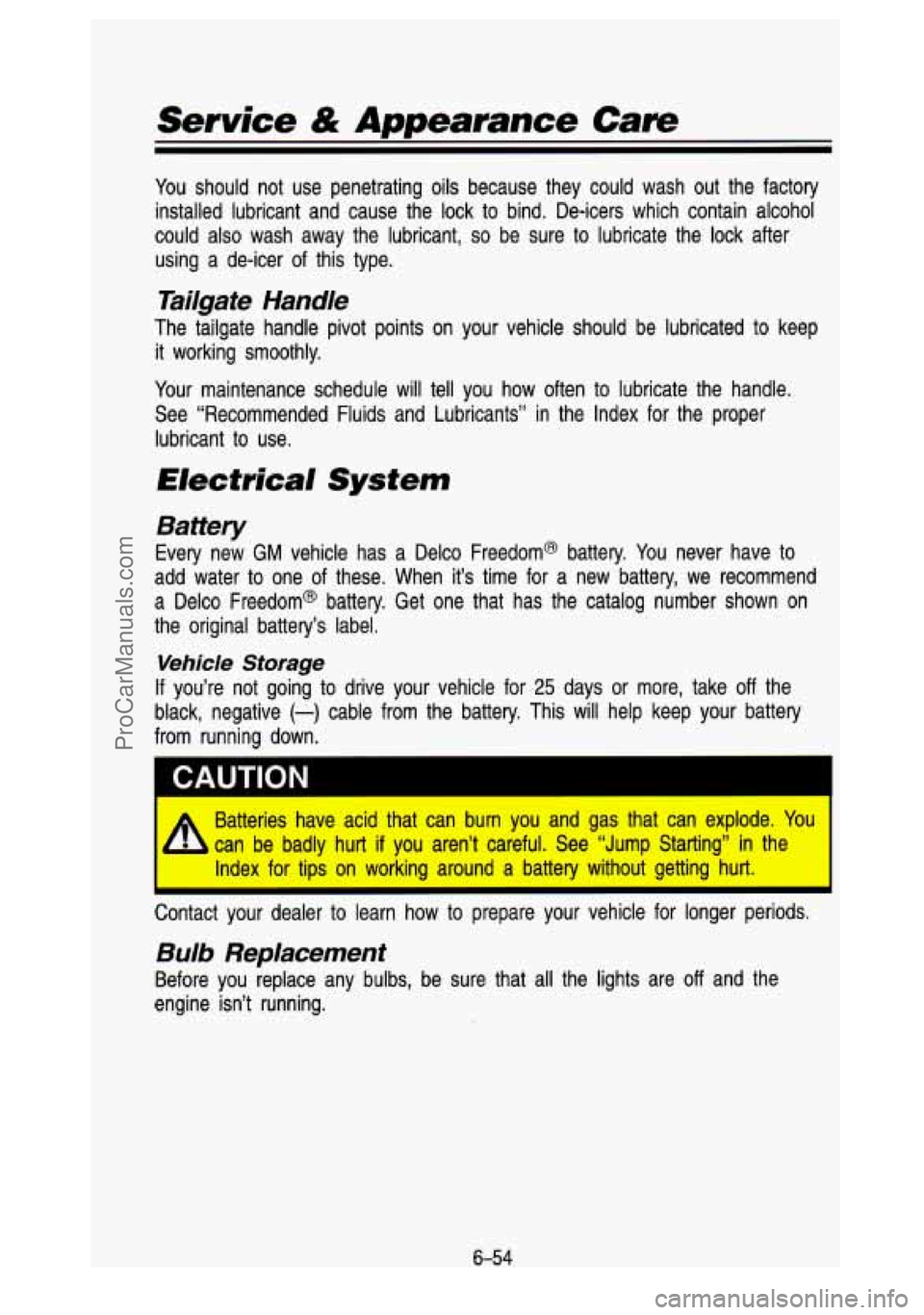

GMC SIERRA 1993  Owners Manual Service & Appearance Care
You should  not  use  penetrating  oils  because  they  could  wash  out  the  factory
installed  lubricant  and  cause  the  lock  to  bind.  De-icers  which contain  alco

Page 333 of 436

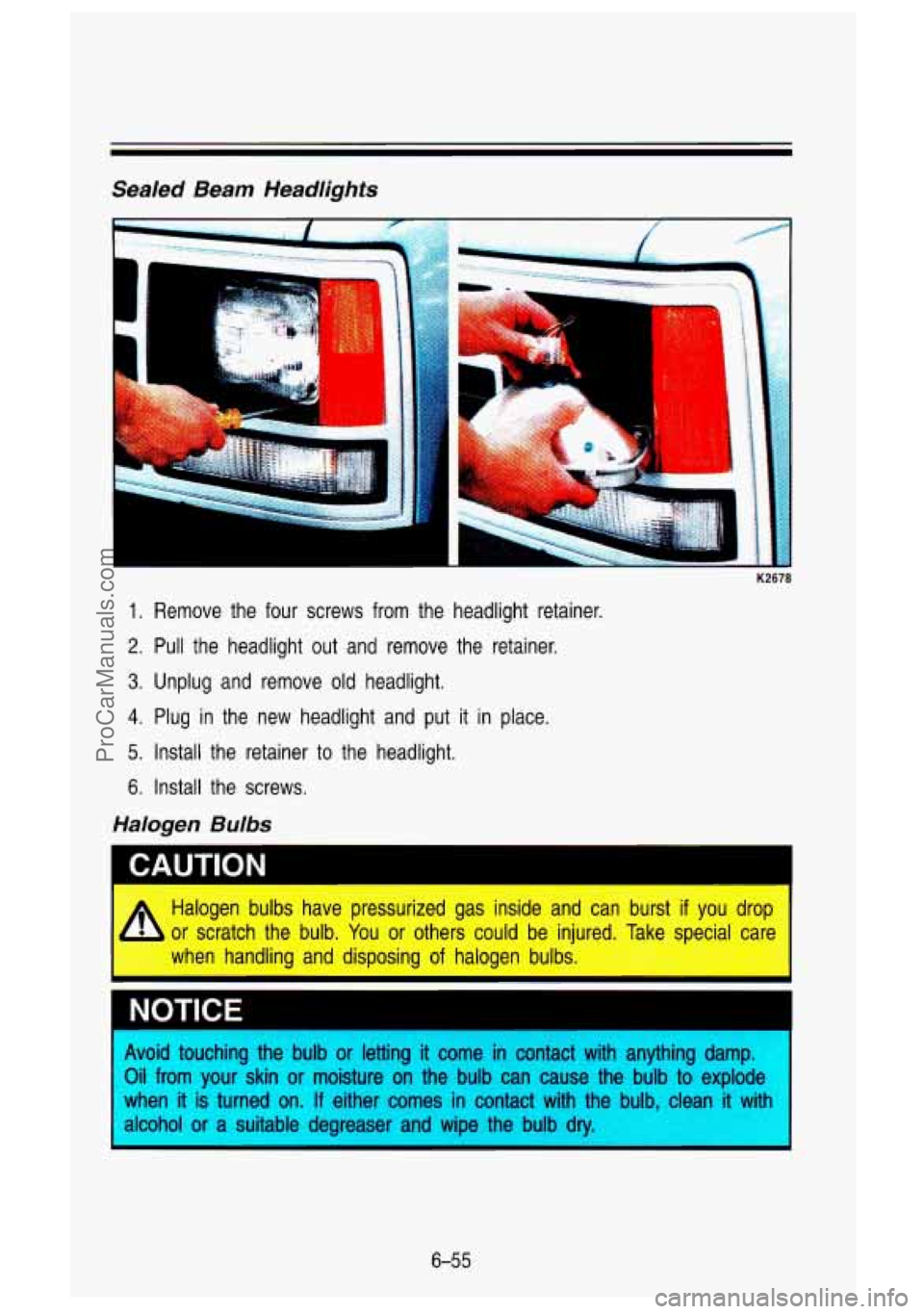

GMC SIERRA 1993  Owners Manual Sealed  Beam  Headlights
t i
1. Remove  the  four  screws  from  the  headlight  retainer.
2. Pull  the  headlight  out  and  remove  the  retainer.
3. Unplug  and  remove  old  headlight.
4. Plu

Page 334 of 436

GMC SIERRA 1993  Owners Manual Service & Appearance Care

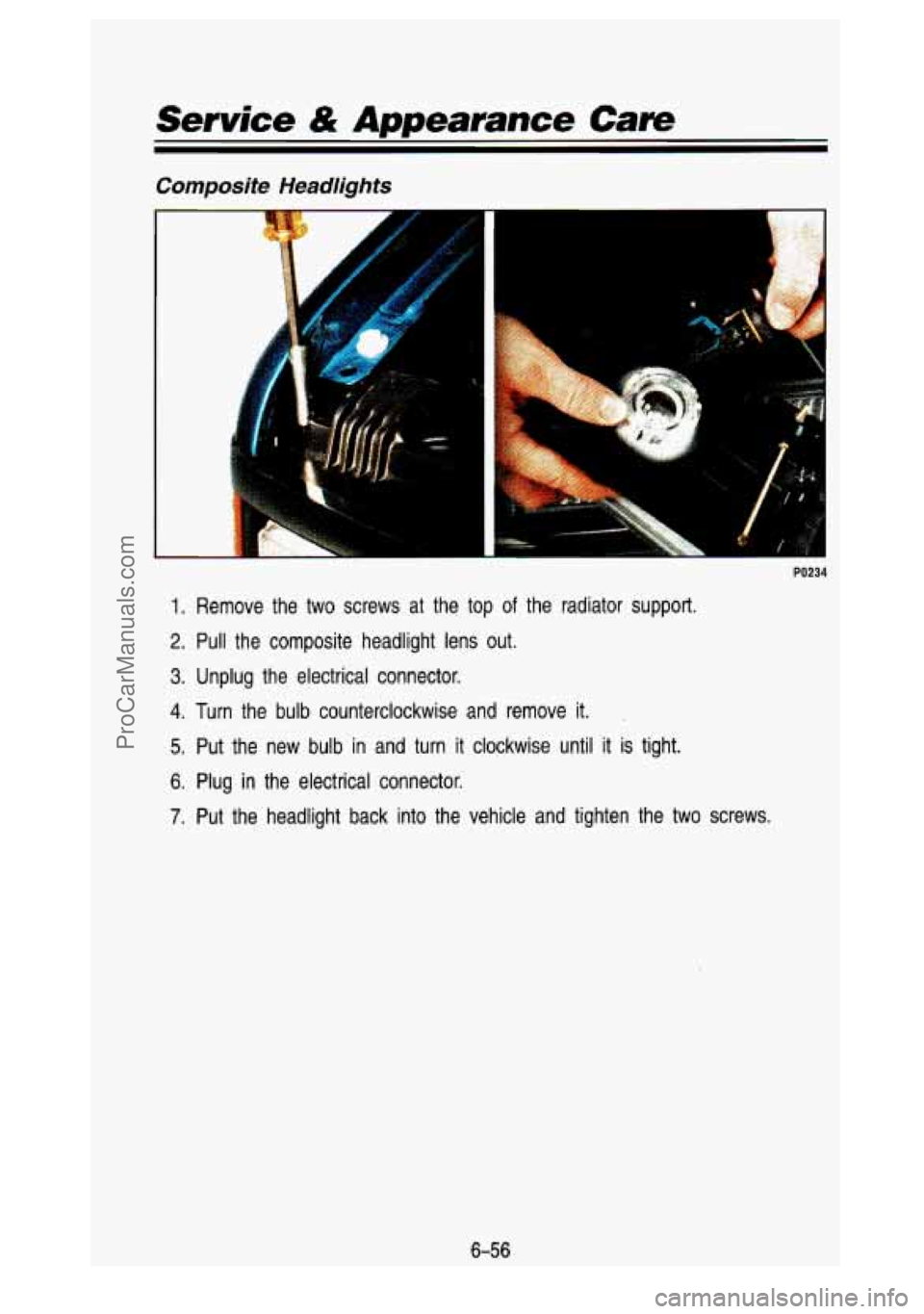

Composite  Headlights
A
1
I
PO234
1. Remove the  two  screws  at the  top of the  radiator  support.
2. Pull  the  composite  headlight  lens  out.
3. Unplug  the  el

Page 335 of 436

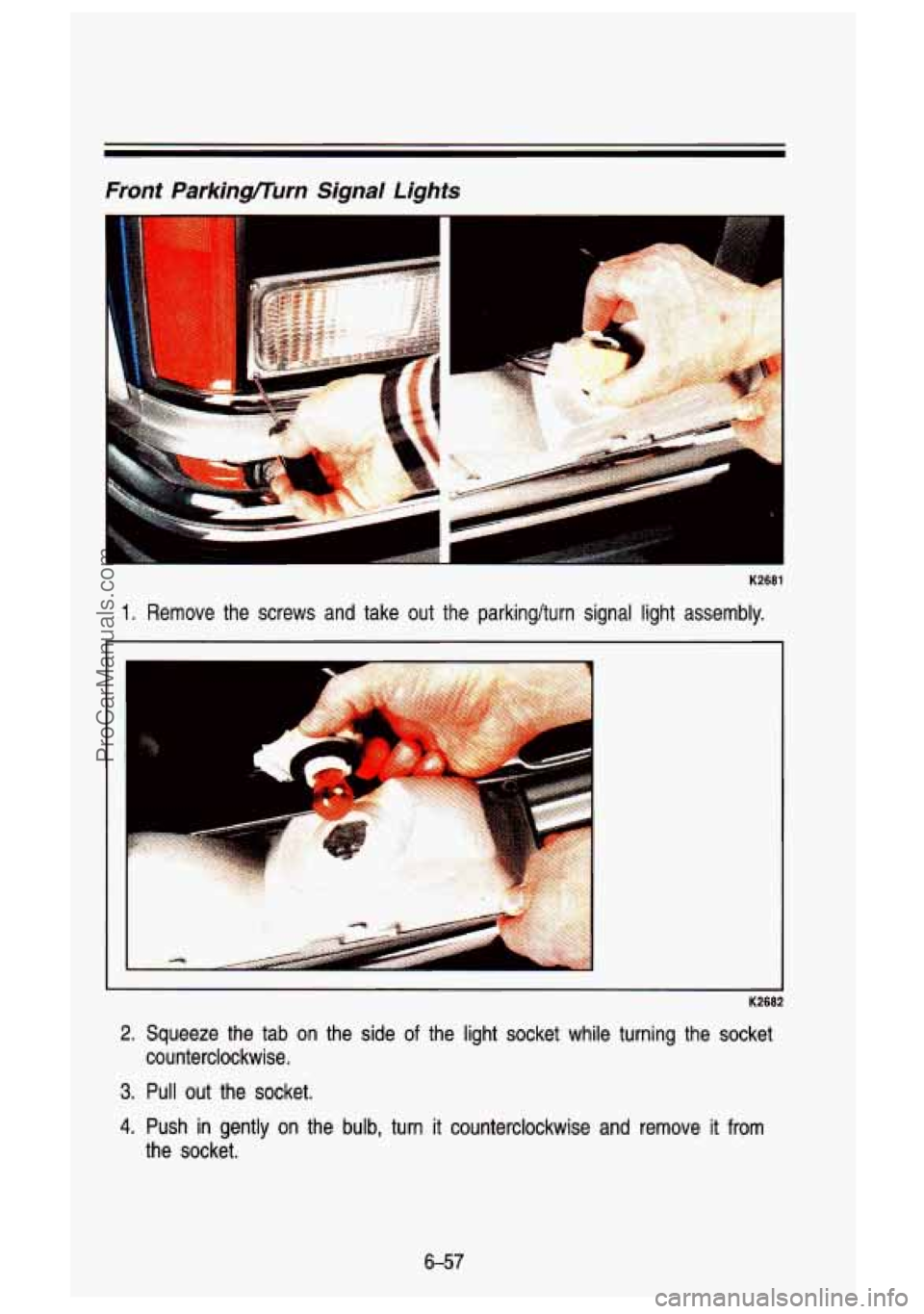

GMC SIERRA 1993  Owners Manual Front Parkinflurn  Signal Lights
K2681
1. Remove  the  screws  and  take  out  the  parking/turn  signal  light  assembly.\

K2682
2. Squeeze  the  tab  on  the  side of the  light  socket  while

Page 336 of 436

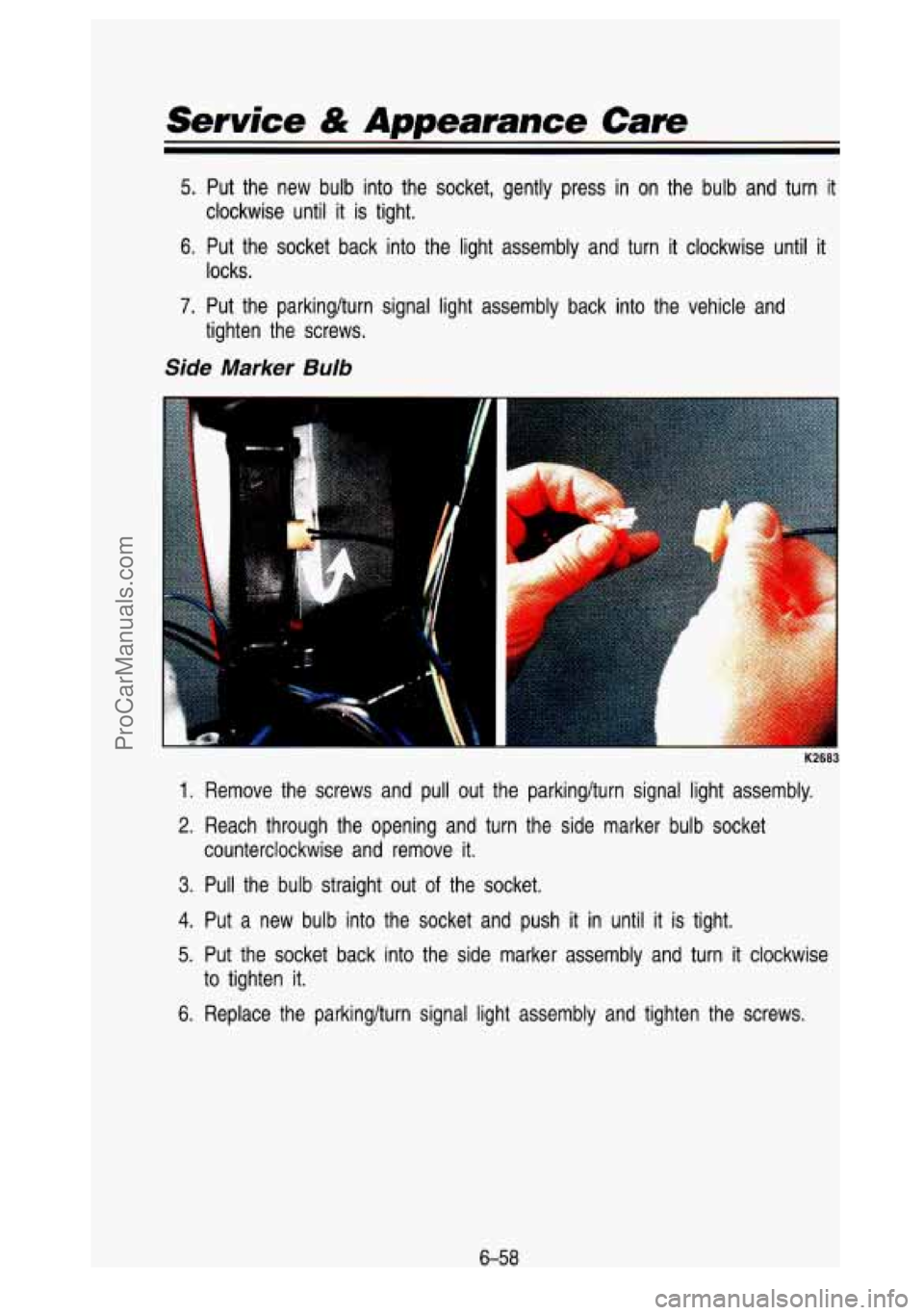

GMC SIERRA 1993  Owners Manual Service & Amearance Care
5. Put  the  new  bulb  into  the  socket,  gently  press in on  the  bulb  and  turn it
clockwise  until  it is  tight.
6. Put  the  socket  back  into  the  light  assemb

Page 337 of 436

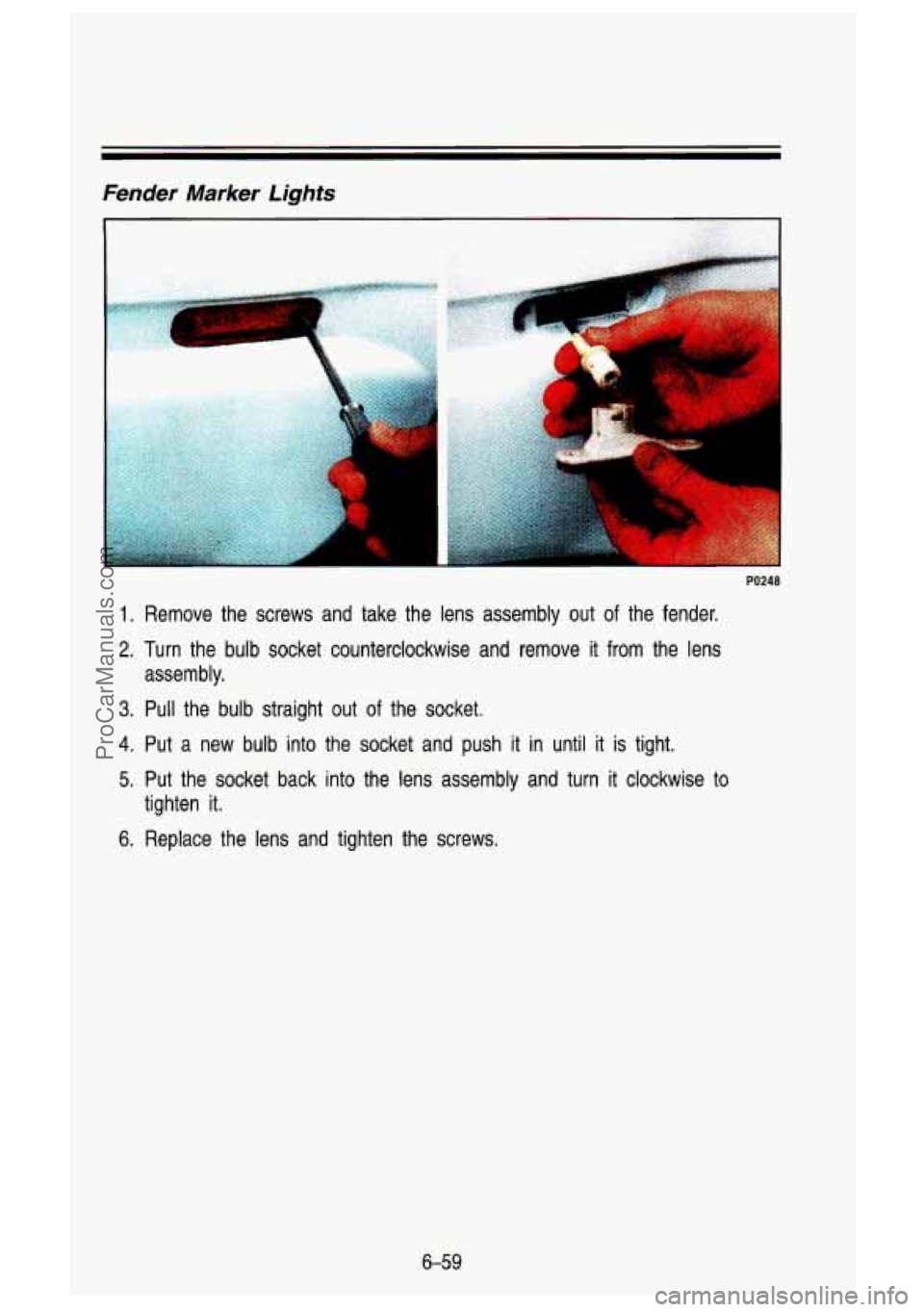

GMC SIERRA 1993  Owners Manual Fender  Marker Lights
I
1. Remove  the  screws  and  take  the  lens  assembly  out of the  fender.
2. Turn  the bulb socket  counterclockwise  and  remove  it  from  the  lens
3. Pull  the  bulb

Page 338 of 436

GMC SIERRA 1993  Owners Manual Service & Appearance Cam

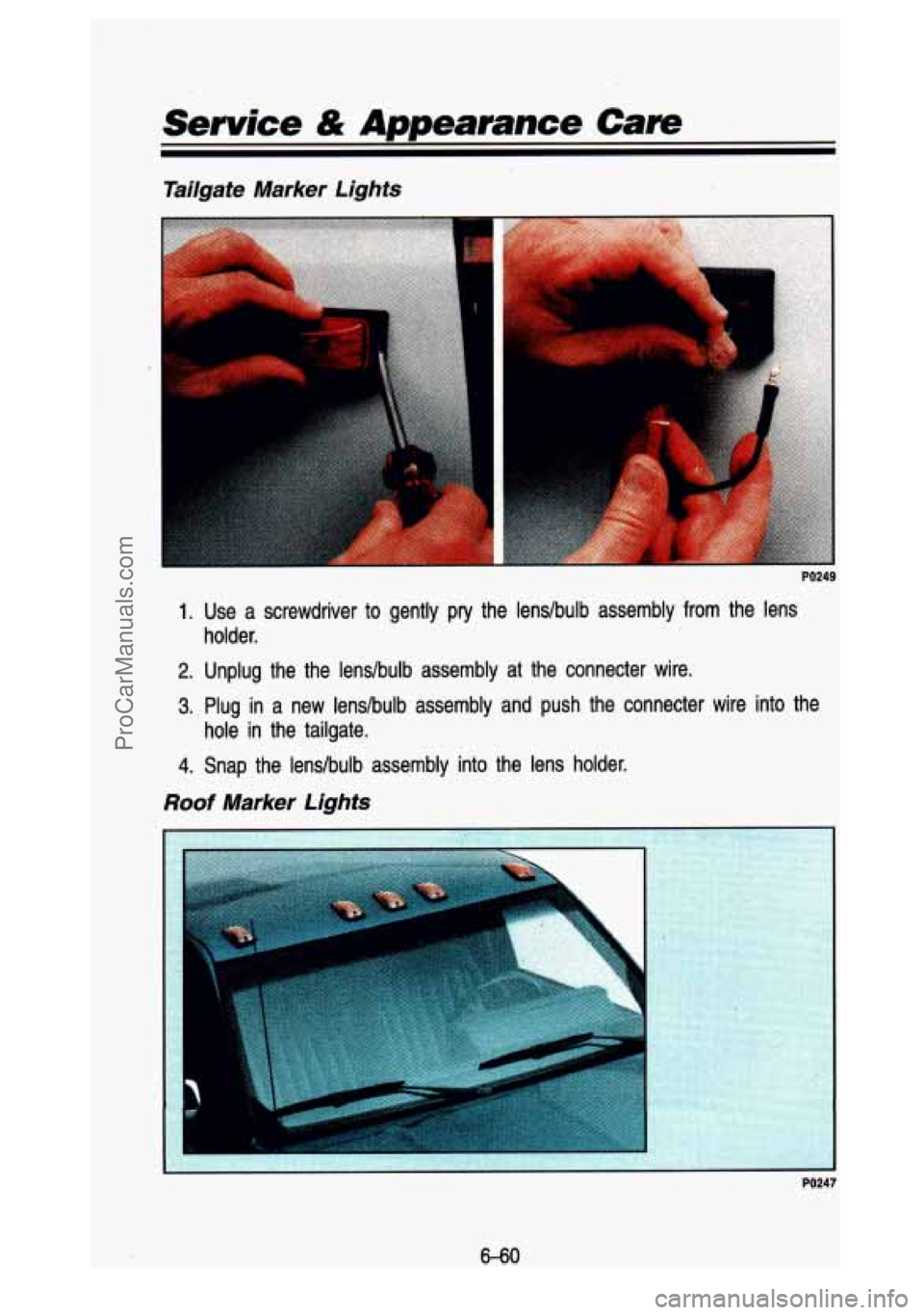

Tailgate  Marker  Lights
PO249
1. Use a screwdriver to gently  pry  the  lenslbulb  assembly  from  the  lens
2. Unplug  the  the  lenslbulb  assembly  at  the  connecter

Page 339 of 436

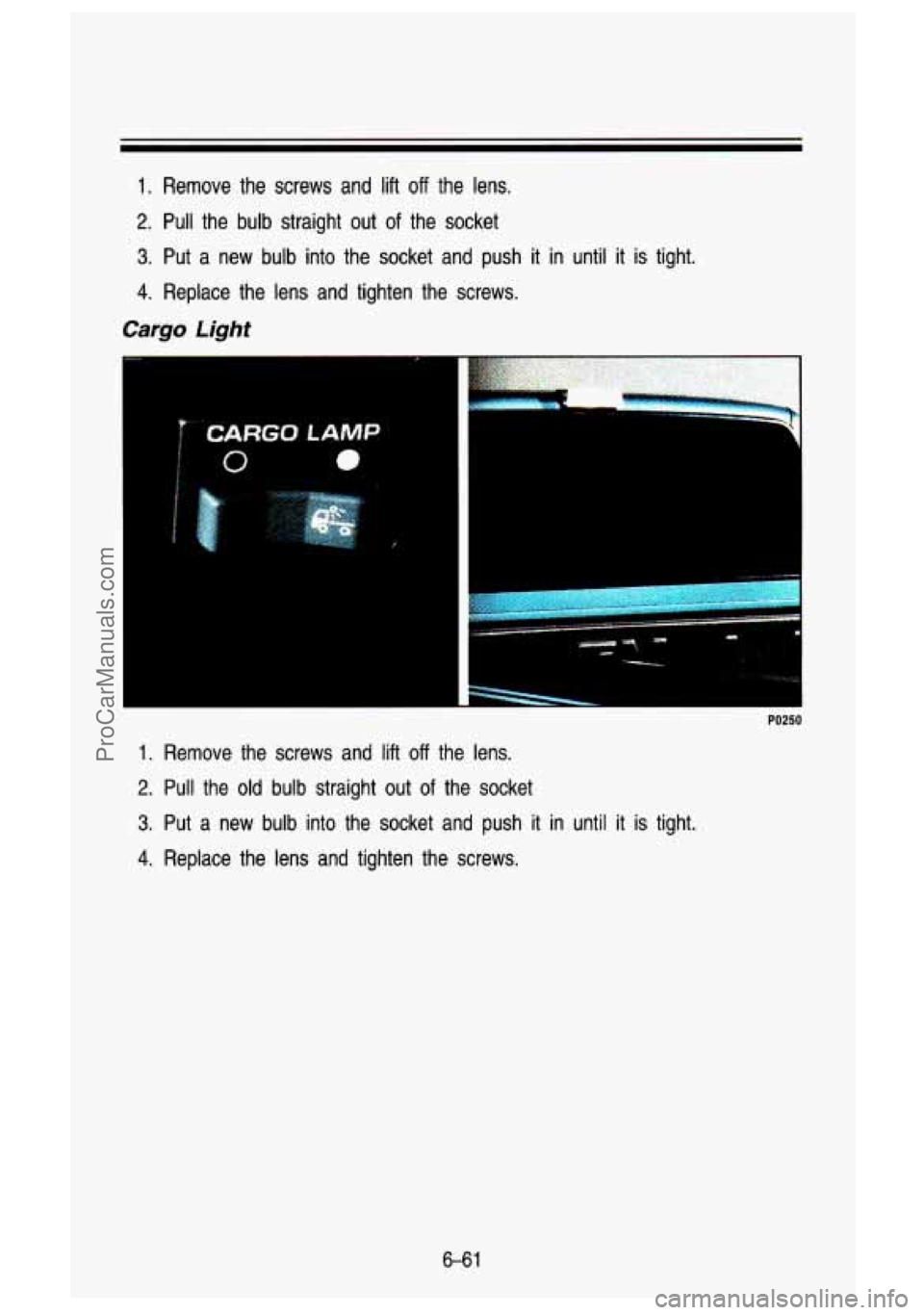

GMC SIERRA 1993  Owners Manual 1. Remove  the  screws  and lift off the  lens.
2. Pull the  bulb  straight  out of the  socket
3. Put a new  bulb  into  the  socket  and  push it in  until it is  tight.
4. Replace  the  lens  an

Page 340 of 436

GMC SIERRA 1993  Owners Manual Service & Appearance Care

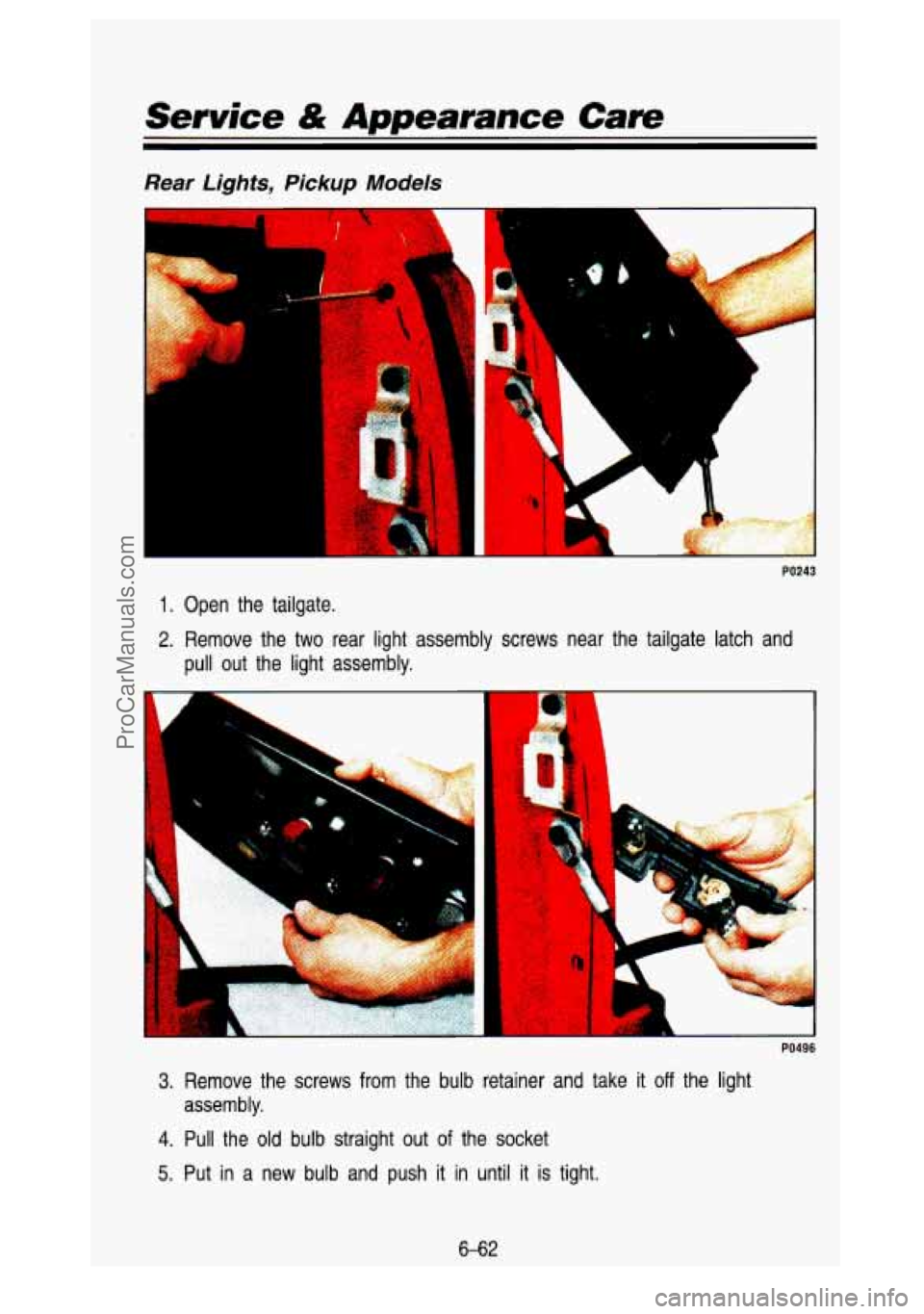

Rear Lights, Pickup  Models
I
i
1. Open  the  tailgate.
2. Remove  the  two  rear  light  assembly  screws  near  the  tailgate  la\
tch  and
pull  out  the  light  ass
