Page 471 of 574

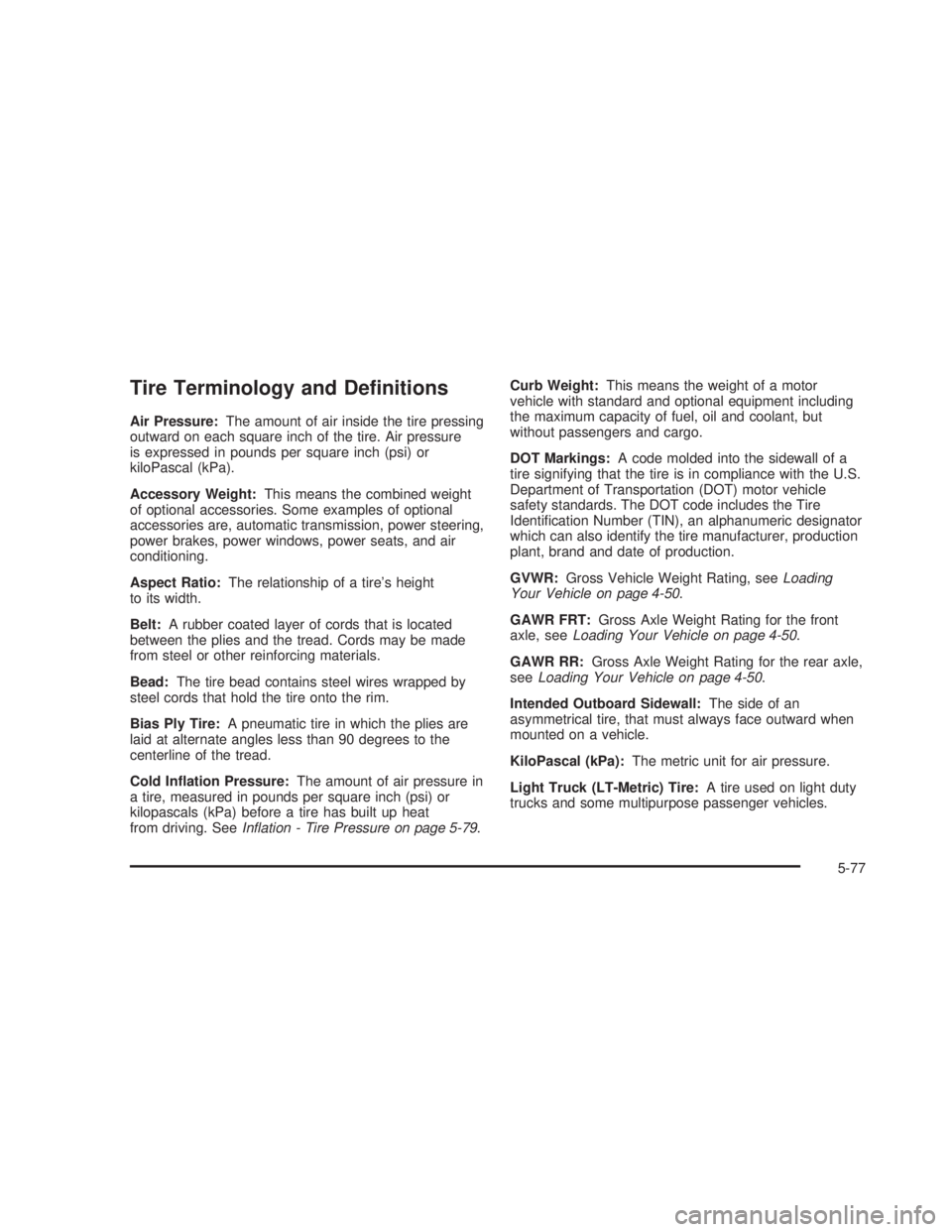

GMC SIERRA 2005  Owners Manual Tire Terminology and De�nitions
Air Pressure:The amount of air inside the tire pressing
outward on each square inch of the tire. Air pressure
is expressed in pounds per square inch (psi) or
kiloPascal

Page 472 of 574

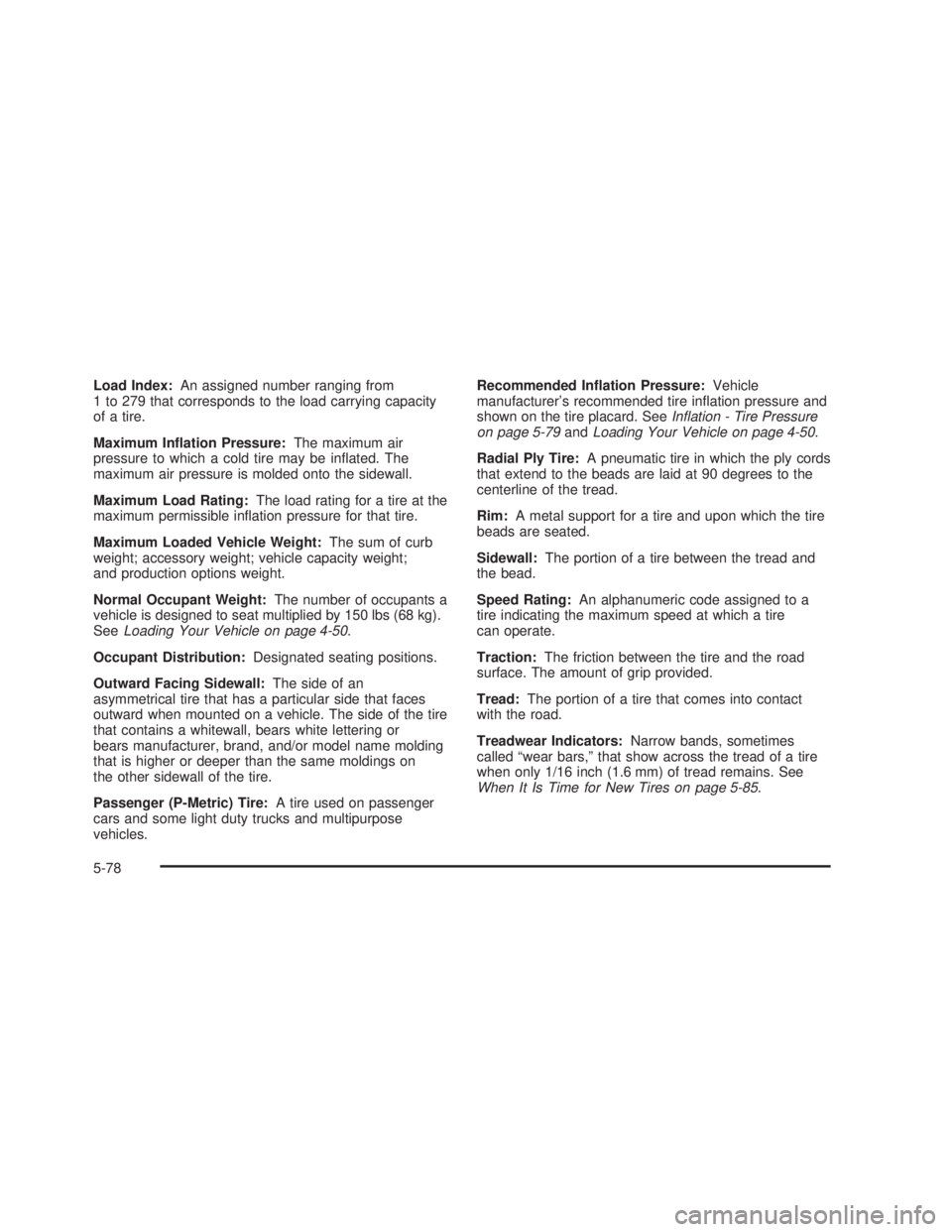

GMC SIERRA 2005  Owners Manual Load Index:An assigned number ranging from
1 to 279 that corresponds to the load carrying capacity
of a tire.
Maximum In�ation Pressure:The maximum air
pressure to which a cold tire may be in�ated. Th

Page 473 of 574

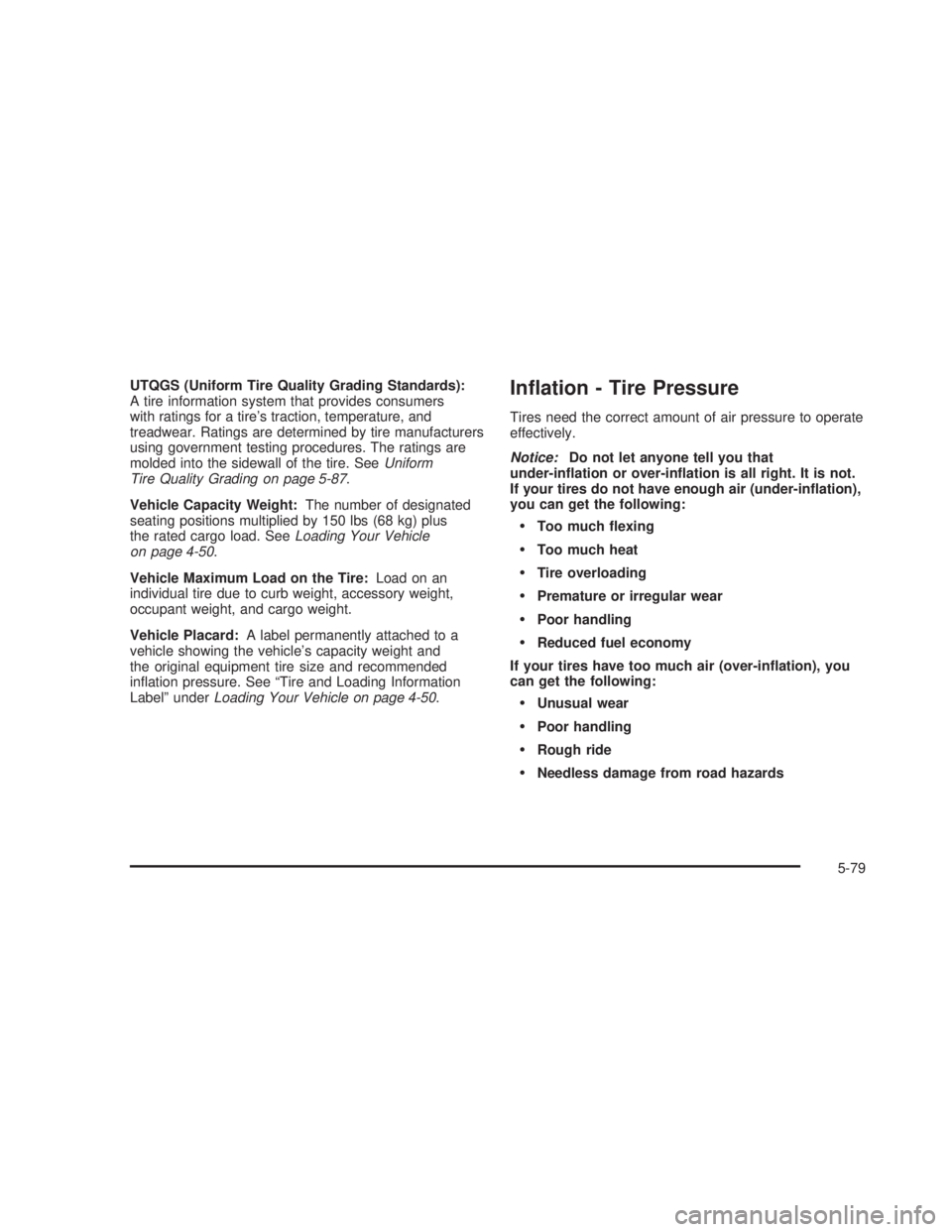

GMC SIERRA 2005  Owners Manual UTQGS (Uniform Tire Quality Grading Standards):
A tire information system that provides consumers
with ratings for a tire’s traction, temperature, and
treadwear. Ratings are determined by tire manuf

Page 474 of 574

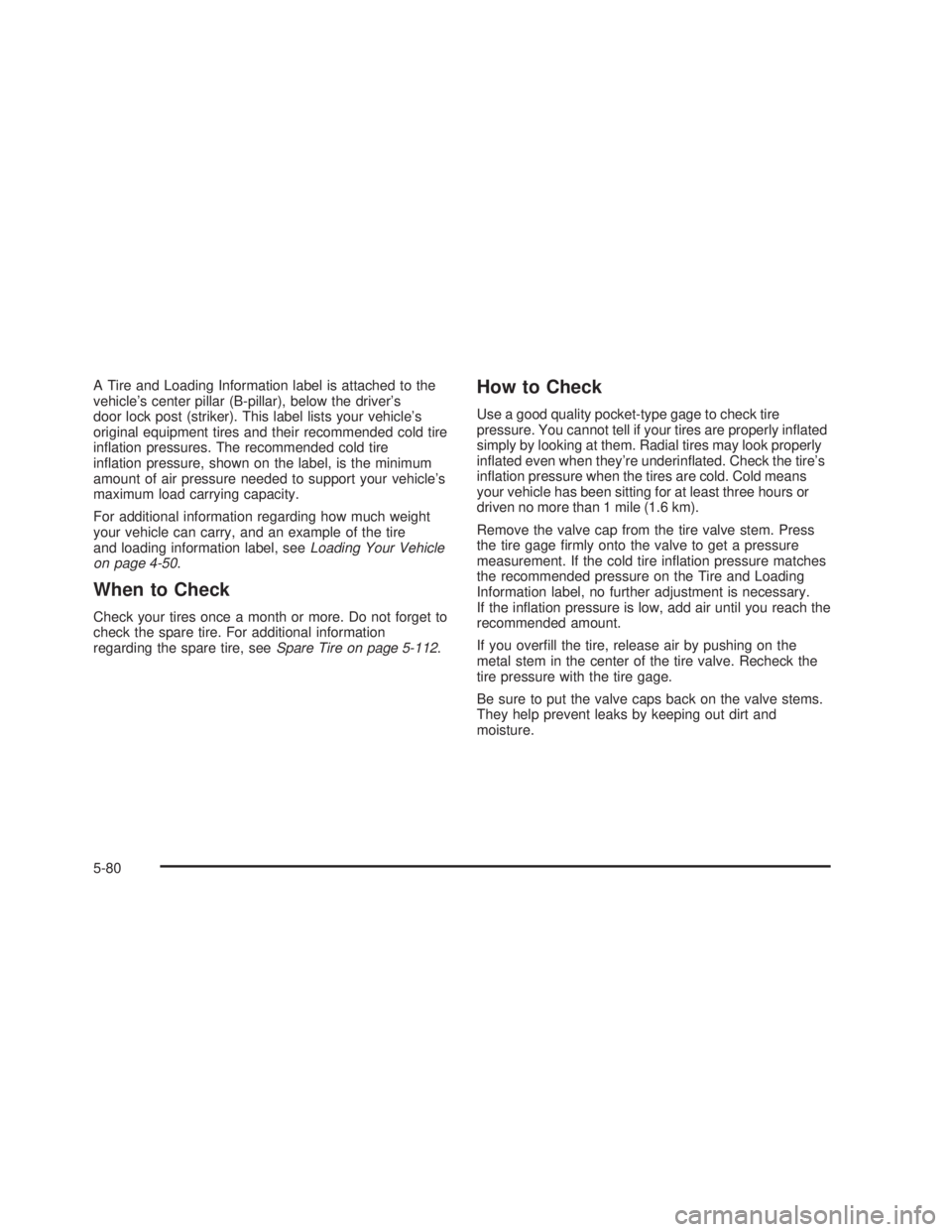

GMC SIERRA 2005  Owners Manual A Tire and Loading Information label is attached to the
vehicle’s center pillar (B-pillar), below the driver’s
door lock post (striker). This label lists your vehicle’s
original equipment tires

Page 475 of 574

GMC SIERRA 2005  Owners Manual Improved Ride with Light Load
{CAUTION:
Do not overload your vehicle or underin�ate
the tires. Overloading your vehicle or
underin�ating the tires can cause rapid loss of
pressure and cause a serious

Page 476 of 574

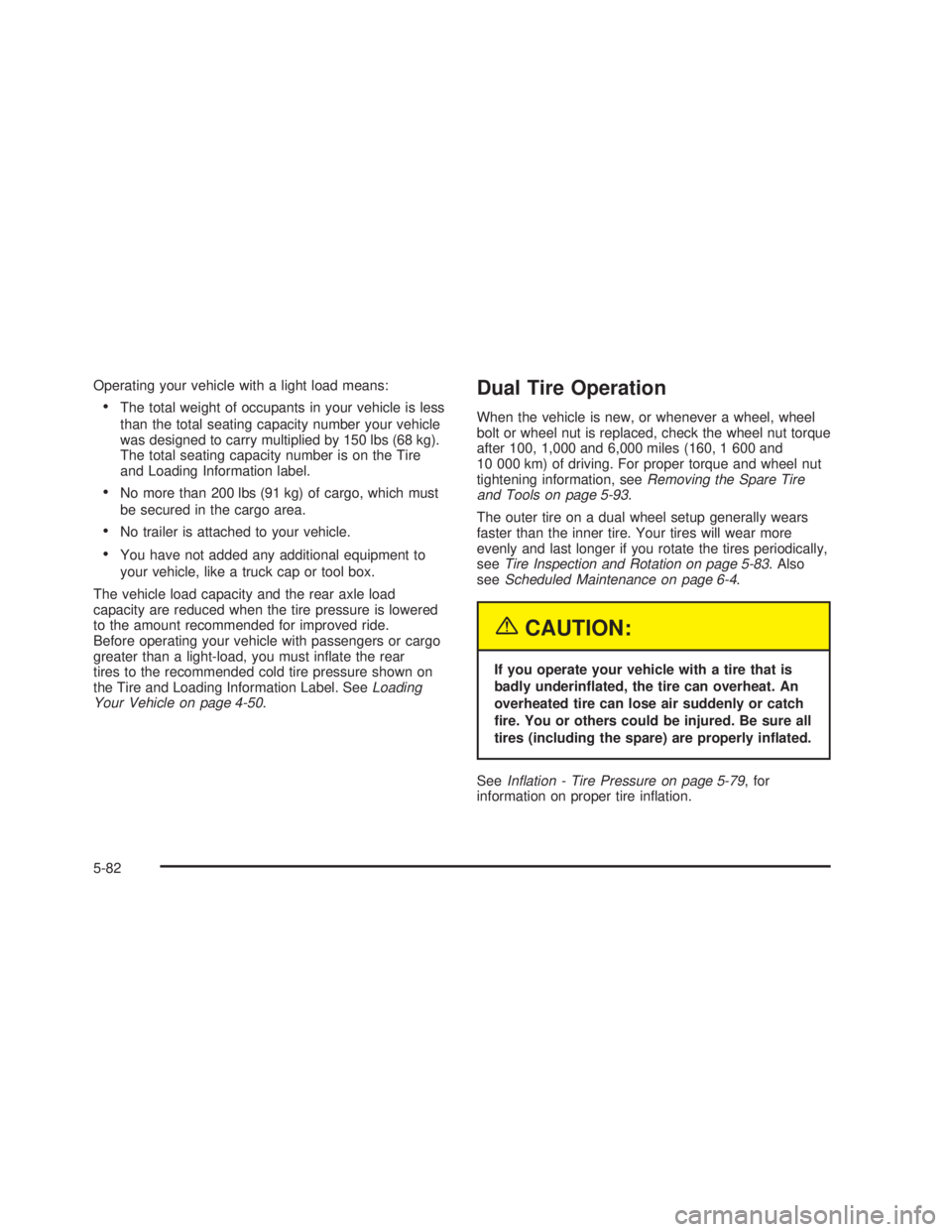

GMC SIERRA 2005  Owners Manual Operating your vehicle with a light load means:
The total weight of occupants in your vehicle is less
than the total seating capacity number your vehicle
was designed to carry multiplied by 150 lbs (

Page 477 of 574

GMC SIERRA 2005  Owners Manual Tire Inspection and Rotation
Tires should be rotated every 5,000 to 8,000 miles
(8 000 to 13 000 km).
Any time you notice unusual wear, rotate your tires as
soon as possible and check wheel alignment.

Page 478 of 574

GMC SIERRA 2005  Owners Manual If your vehicle has dual rear wheels and the tread
design for your front tires is the same as your rear tires,
always use one of the correct rotation patterns shown
here when rotating your tires.If yo

Page 479 of 574

GMC SIERRA 2005  Owners Manual {CAUTION:
Rust or dirt on a wheel, or on the parts to
which it is fastened, can make wheel nuts
become loose after a time. The wheel could
come off and cause an accident. When you
change a wheel, remo

Page 480 of 574

GMC SIERRA 2005  Owners Manual Buying New Tires
To �nd out what kind and size of tires you need, look at
the Certi�cation/Tire label. SeeLoading Your Vehicle
on page 4-50, for more information about this
Certi�cation/Tire label and
